USER MANUAL 10029378 Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Technical Data 6

Packing Content 6

Safety Instructions 6

Product Description 7

Before first Use 7

Use and Operation 8

Cleaning and Care 9

Disposal and Declaration of Conformity 9

Technical Data

Item number 10029377, 10029378
Power supply 220-240 V ~ 50-60 Hz
Power consumption 400 W

Packing Content

1x Slow Juicer
1x Instruction Manual
1x Juicer cup
1x Pulp tank

Safety Instructions

• Always check that the power supply corresponds to the voltage on the rating plate.
• Always unplug from mains supply when not in use. Do not abuse or damage the power cord. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Do not immerse appliance in water or supply cord in water. Do not use with wet hands or use in damp situations.

• Do not use outdoors. Do not use directly below a socket outlet. This appliance is not intended to be operated by means of an external timer or separate remote-control system. This appliance is designed exclusively for private, domestic use and is not suitable for commercial or industrial use. Do not use this appliance for anything other than its intended use. Only use the appliance on a stable, level, heat-resistant surface.

• WARNING: Potential injury from misuse! Avoid contact with all moving parts. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• Always inspect your appliance before use. Check parts are correctly attached. Do not use this appliance if it has been damaged, dropped, left outdoors or dropped in water. Return it to an authorized service dealer for examination and repair.

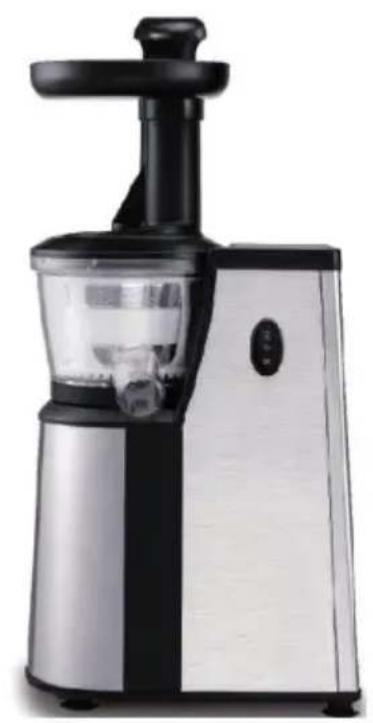

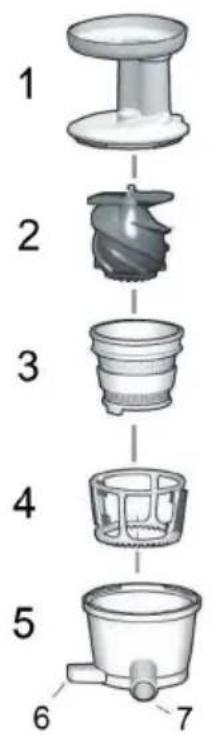

Product Description

1 Hopper
2 Auger
3 Strainer
4 Strainer holder with cleaning brush
5 Bowl
6 Pulp spout
7 Juice Spout

Before first Use

• Carefully wipe the exterior of the appliance to remove any dust that may have accumulated. Dry with a dry towel. Do not use harsh abrasive cleaners.
• Remove any label or stickers. Wash the accessories in warm soapy water, dry with a dry towel. Do not immerse the supply cord or motor part of this appliance in water or any other liquids.
• This appliance has a built-in safety lock; this feature ensures that you can only switch on the appliance if you have assembled the juicer correctly on the motor unit. When assembled correctly, the built-in safety lock will be unlocked.

Use and Operation

1. Place the Juice bowl (5) on top of the main body, make sure the juice bowl in position so it locks into the main body and cannot be removed.
2. Put the strainer holder (4) into the juice bowl.
3. Put the strainer (3) into the strainer holder.
4. Put the Juice Auger (2) into the strainer
5. Fit the Hopper (1) over the Juice bowl and turn in position so it locks into the main body.
6. Place the pulp tank so it fits in position on the left hand side of the juicer's main body.
7. Place the juice cup under the Juicer spout.
8. Slide the food pusher down the food chute. The pusher can only fit one way.

IMPORTANT: If the Juice bowl and lid are not correctly assembled, the Juicer will not operate. This is a safety feature. Please press the "R" button lightly to stop the Juicer, and over press will damaged the motor of Juicer. Product prohibits idling condition before feeding fruits and vegetables.

Using your Juicer

• This Slow Juicer is suitable for celery, spinach, carrots, apples, bananas, tomatoes, cucumbers, balsam pear, all need the juice of fruits and vegetables, but not for the fruits and vegetables which containing starch and please do not use this Juicer to squeeze sugarcane.
• Clean fruit and vegetables thoroughly, ready for juicing.
• If juicing fruit with stones or hard seeds, pit the fruit. Remove any hard inedible skins, i.e. skin of melons, pineapples and mangoes prior to juicing. If citrus fruits are being used, remove the skin prior to juicing. If pieces of fruit or vegetables are very large, chop them to a size that will fit down the juicer's food chute.
• Ensure the safety clamps are locked in position on top of the juicer lid.
• Turn the control switch To On to juice fruits Press the food pusher slowly down until all fruit or vegetables have gone through the juicer. Do not press the food pusher rapidly as the juicer will not be as effective. CAUTION: do not put your hand or any other object in the food chute during operation.
• The juice from the fruit and/or vegetables will flow directly into the juice cup and the pulp will be collected in the pulp bin.
• When juicing is complete, ensure that the juicer's control switch is set to the OFF position, the power is turned off at the outlet and the juicer is unplugged. It is now safe to disassemble the unit.
• If the Juice Bowl is stuck and does not detach from the base, Press reverse button "R" 3-5 seconds. Repeat process 2-3 times. Then, push bowl upward while turning

Disassembling the Juicer

1. Remove the food pusher.
2. Remove the lid.
3. Remove the juice auger.
4. Remove the strainer holder & strainer.
5. Remove the juice bowl.

Tips for Juicing

• Cut food items into small pieces for optimal extraction. Do not input ice or frozen fruit Put food into feeding tube. Do not push heavily. The pusher perfect into use if food becomes stuck. Insert food at a regular speed, allowing all the pulp to extract. For maximum efficiency, do not rush.
• When juicing leafy greens or wheatgrass, it is suggested that you mix it with fruits or other hard vegetables for optimal results. Juice nuts only with other foods such as soaked soybeans or liquids.
• When selecting fruit and vegetables for juicing, always select fresh and well ripened specimens. Fresh fruit and vegetables carry more flavour and juice than those that are not properly ripened. Juice is best consumed when freshly made as this is when its vitamin and mineral content is highest.

Cleaning and Care

• When not in use or before cleaning, always disconnect the appliance from the mains supply.
• Wash removable parts in warm, soapy water then rinse and dry all parts. Regularly clean the outside of the appliance with a soft damp cloth and dry with a dry towel. CAUTION: To prevent damage to the appliance do not use harsh solvents, alkaline cleaning agents, abrasive cleansers or scouring agents of any kind when cleaning. Do not immerse the motor unit or supply cord in water.
• Always check that the appliance is in good working order and that all removable parts are secure. Check the power supply cord and plug regularly for cuts or damage.
• When not in use store your appliance and all its accessories and instruction manual in a safe and dry place.

Disposal and Declaration of Conformity

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
