Product Type	Wi-Fi Surveillance Camera
Brand	Chuango
Model	IP116
Dimensions (L × W × H)	91 × 78 × 115 mm
Power Supply	5 V DC, 1 A (power adapter included)
Power Consumption	5 W max.
Image Sensor	Sony 1/3" CMOS
Minimum Illumination	0.01 lux (F1.2, AGC on)
Lens	2.4 mm F2.0
Viewing Angle	110°
Video Compression	H.264
Max Image Resolution	1280 × 720 (720p)
Frame Rate	30 fps (1280 × 720)
Storage	micro-SD card up to 32 GB
Wireless Standards	IEEE 802.11b/g/n
Frequency Band	2.4 GHz - 2.4835 GHz
Operating Conditions	-5 °C to 60 °C, humidity < 95% (non-condensing)
Audio Function	Built-in microphone and speaker (two-way audio)
LED Indicators	Red (flashing) and blue (connection)
Package Contents	Camera, power adapter, quick guide, reset pin
Security	Customizable admin password, QR code sharing
Maintenance	Clean the lens with a soft, dry cloth

Frequently Asked Questions - IP116 Chuango

How to connect the IP116 camera to the Wi-Fi network?

1. Press and hold the reset button until the camera beeps and the red LED flashes. 2. On your phone, connect to the Wi-Fi network named HD WiFi Cam. 3. Open the app, tap [+], give the camera a name, enter the password (default 888888), your home Wi-Fi network name and its password. 4. Wait for the blue LED to become solid, the connection is established.

What should I do if the red indicator flashes?

The flashing red indicator means the camera is in Wi-Fi pairing mode. If you do not want to pair it, you can wait a few minutes; the flashing will stop. For a new pairing, follow the Wi-Fi connection procedure.

How to reset the camera to factory settings?

Use the provided reset pin to press and hold the reset button on the back until the camera beeps. The red LED will start flashing, indicating the camera is reset and ready for a new pairing.

Which memory card to use and how to insert it?

Use a micro-SD card with a maximum capacity of 32 GB. Insert it into the slot on the back of the camera. Be careful not to insert the card when the camera is powered on. It is recommended to format the card before first use if it already contains files.

How to share access to my camera with others?

In the app, go to camera settings and save the displayed QR code icon. Send this QR code to your friends. They can scan the code from their app to view your camera. To cancel sharing, change the camera password.

Can I use the camera without a micro-SD card?

Yes, the camera works without a micro-SD card for live viewing. However, local recording requires a micro-SD card. Without a card, you will not be able to record videos. The camera records automatically every 20 minutes if a card is inserted.

How to change the camera password?

In the app, open camera settings and look for the Password option. Enter the old password (default 888888) then the new one. After modification, all paired phones will need to enter the new password to access the camera.

What to do if the camera does not connect to Wi-Fi?

Check that your Wi-Fi network is 2.4 GHz (the camera does not support 5 GHz). Make sure the Wi-Fi password is correct. Place the camera near the router for a better signal. If the problem persists, reset the camera and try again.

How to sync the date and time?

In the app, go to camera settings and look for the Sync date and time option. Tap to sync with your phone's time. Verify that the time is correct after syncing.

Is the IP116 camera compatible with Chuango alarm systems?

Yes, if you use a Chuango alarm system, simply download the alarm system app instead of the IP116 Camera app. The camera will then integrate with the existing system.

USER MANUAL IP116 Chuango

Line drawing of a device with a circular top and base, no text or symbols present

IP116
HD WiFi Camera

Overview

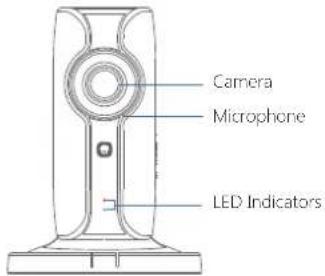

- Front View

Camera Microphone LED Indicators

Red indicator Blinking Enter WiFi pairing state
Blue indicator	Blinking Searching network
	On Network connected

- Side View

Reset button microSD Card Slot

- Back View

Heat Vent Power Jack

microSD Card (Not included)

Support 32GB microSD card maximum; please do not insert the card after the camera is powered on.

This camera automatically records and saves video once every 20 minutes; the video recorded at the earliest will be replaced with the latest ones if the microSD card is full.

Note: Please format your microSD card before inserting into this slot if any file had been written in.

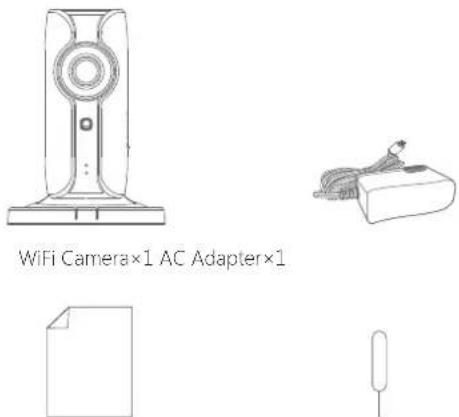

What is inside the box

WiFi Camera×1 AC Adapter×1

Quick guide×1 Reset Pin×1

Download the App

Download the App by searching "IP116 camera" from Apple Store or Google Play.

If you also bought a Chuango alarm system, you don't need to download the separate app for the camera, just setup through the app for the alarm system.

WiFi Pairing

1. Preparation

Line drawing of a handheld device connected to a wall-mounted power outlet (no text or symbols)

- Hold the reset button by using the supplied reset pin until the camera beeps once, and then the red indicator starts to blink

- Find and choose the WiFi named "HD WiFi Cam" from your phone's WiFi list

2. Pairing Camera with WiFi through App

Technical line drawing of a mechanical device with a circular top and base (no text or symbols)

- Launch the App, and then tap [+] to add a new camera

• Name your camera, enter the password (default: 888888) and input your home WiFi name & password

- When the blue indicator is on, it means the camera has connected with WiFi

* Make sure the UID No. is displayed before tapping [OK]

The paired camera will be displayed in the video list.

Note: For safety, it is recommended to change the password of your camera on the setting menu after pairing.

Settings

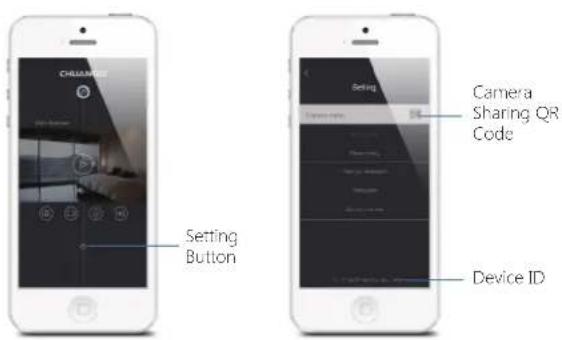

CHIAMER Setting Button Camera Sharing QR Code Device ID

Share or Stop Sharing Camera with Your Friends

Tap and save the QR code icon on your camera's [Settings] interface, send to your friends so they can watch your camera from his/her App by scanning the given QR code.

If you want to stop sharing the camera, please change the password of camera.

Password

All the successfully paired phones have the same authority as administrator who can view and set the camera (including changing the password), so it is recommended to pair the phones of users with caution. For non-administrator users, you can share the camera by sending the QR code for them to scan.

Sync the Date and Time

Check if the camera's date and time are set correctly. Sync them with your phone's time if necessary.

Enjoy the App

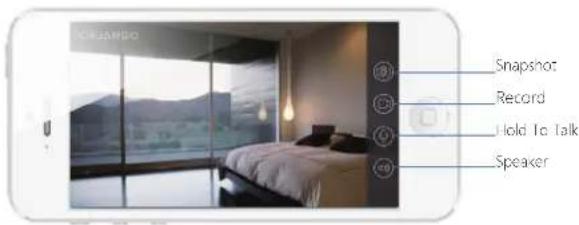

Snapshot Record Hold To Talk Speaker

Installation

Important: This camera should be placed where the WiFi signal is strong for optimal performance.

①

up

②

Technical line drawing of a mechanical component with mounting flanges (no text or symbols)

③

Line drawing of a mechanical device with two curved components and a blue dot at the bottom (no text or symbols)

Specifications

Image sensor Sony 1/3" CMOS sensor

Min. illumination 0.01Lux@ (F1.2, AGC ON)

Shutter time 1/50s to 1/100,000s

Lens 2.4mm F2.0

Angle of view 110°

Video compression H.264

Bit rate Self-adaption

Max. image resolution 1280 x 720

Frame rate 30fps (1280 × 720)

Storage Built-in microSD card slot, up to 32GB

Wireless standards IEEE802.11b/g/n

Frequency range 2.4 GHz \~ 2.4835 GHz

Channel bandwidth 20/40MHz Support

Operating conditions Temperature: -5 °C - 60 °C

(23°F - 140°F)

Humidity: < 95% (non-condensing)

Power supply DC 5V 1A

Power consumption 5W MAX

Dimensions (L x W x H) 91 x 78 x 115 mm

DE

CHUANGO®

SCHNELLANLEITUNG

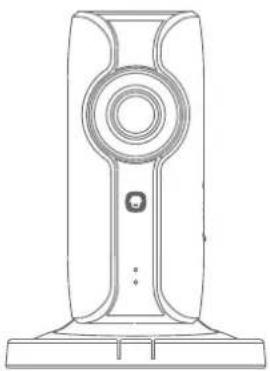

Line drawing of a device with a circular top and base (no text or symbols)

IP116

HD-WLAN-Kamera

Übersicht

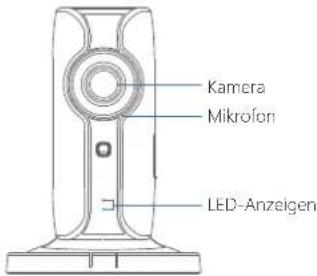

• Vorderansicht

Line drawing of a portable device with a circular top and base, alongside a small electronic device with a plug (no text or symbols)

WLAN-Kamera×1 Wechselstromadapter×1

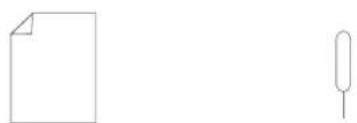

Simple line drawing of a document and a pen (no text or symbols)

Line drawing of a handheld device with a cable, no text or symbols present

Technical line drawing of a mechanical component with a circular top and base (no text or symbols)

Simple line drawing of a circular object with a handle and small protrusions, no text or symbols present.

②

Technical line drawing of a mechanical component with no visible text or symbols

③

Line drawing of a medical device with a handle and clasp (no text or symbols)

Technische Daten

Line drawing of a device with a circular top and base, no text or symbols present

IP116

Caméra Wi-Fi HD

Vue d'ensemble

- Vue de face

Carte micro-SD (non incluse)

Technical line drawing of a device with a cylindrical top and a separate sketch of a cable or connector (no text or symbols)

Simple line drawing of a document and a pen outline (no text or symbols)

Line drawing of a handheld device connected to a power outlet (no text or symbols)

Line drawing of a mechanical device with a circular top and base (no text or symbols)

Simple line drawing of a circular object with a handle and small protrusions, no text or symbols present.

②

Technical line drawing of a mechanical component with flanges and a central housing (no text or symbols)

③

Line drawing of a handheld device with a cylindrical body and curved arm (no text or symbols)

Caractéristiques

Line drawing of a device with a circular top and base, no text or symbols present

IP116

HD Wi-Fi-Camera

Overzicht

• Vooraanzicht

Camera Microfoon LED-indicatoren

Line drawing of a handheld device connected to a power outlet (no text or symbols)

Line drawing of a mechanical device with a circular top and base (no text or symbols)

Simple line drawing of a circular object with a handle and a small protrusion, no text or symbols present.

②

Technical line drawing of a mechanical component with flanges and a central housing (no text or symbols)

③

Line drawing of a cylindrical device with a curved arm and a rectangular body (no text or symbols)

Specifications
