USER MANUAL T15 POLK

Line drawing of a multi-tiered speaker tower with three circular speakers and mounting holes (no text or symbols)

Technical line drawing of a speaker with three concentric circles and mounting holes (no text or symbols)

Technical line drawing of three circular speaker components with mounting holes (no text or symbols)

T Series Owner's Manual

T15, T30 and T50

Contents

How to Connect Your System .... 3

T Series Speaker Positioning 3

Adding Adhesive-Backed Rubber

Feet to the T-Series.... 4

Cleaning Your Polk Speakers.... 4

Specifications 5

T15 Keyhole Template 23

Technical Assistance & Contact 24

Polk Audio History—A Passion for Sound

Polk Audio was founded in Baltimore in 1972 by Johns Hopkins University graduates, Matthew Polk and George Klopfer. Today, Polk Audio is a leading manufacturer of high-quality home, car and multimedia and the largest audio brand of Sound United. Polk products emphasize superior sound and build quality, and feature many patented and award-winning innovations. Having built their reputation as “The Speaker Specialists” for more than 40 years, Polk products are sold throughout the USA, Canada and in more than 50 countries around the world. Polk Audio’s mission is simple: Build high-quality, great-sounding speakers at affordable prices. For the people of Polk Audio, building speakers is not just a job—it’s a passion.

Important Notice

Please find the serial number located on the back of the product. It's a good idea to write this number on the warranty sheet and put it in a safe place should you need to reference it later.

Prior to Using Equipment

Polk Audio thanks you for your purchase. Make sure to read this user guide in full before using your speaker system. It will ensure that you get the most from the product and understand all safety requirements. Once you're done reading the user guide, put it in a safe place for later reference.

To avoid damaging your speaker from input overload, please note the following:

• Don't supply power to the speaker system that exceeds its maximum input
• Always make sure the amplifier is turned off when your connecting or disconnecting cables
• If you're using a graphic equalizer to highlight those high and low frequencies, avoid excessive amplifier volume
• Never leave your speaker playing unattended

How to Connect Your System

To get the best sound quality, it's important to wire your speakers correctly.

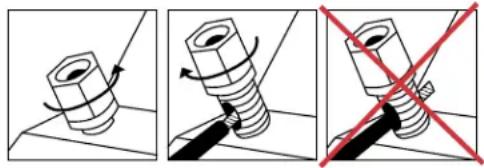

How to Use Binding Post Connectors

Loosen hex nut and insert bare speaker wire through hole. Tighten hex nut down to make connection.

Note: Do not insert insulated section of wire into hole (you will not get a connection).

Three-panel illustration showing a bolt being twisted with a red X symbol, no text or symbols present

Basic Speaker Hookup

Make sure that the red (+) and black (-) connectors on your amplifier or receiver connect to the red (+) and black (-) connectors on your speakers. If your speakers sound “thin,” with little bass and little or no center image, odds are that one of the speaker wires is connected backwards. Double check all connections.

Power Amplifier + -

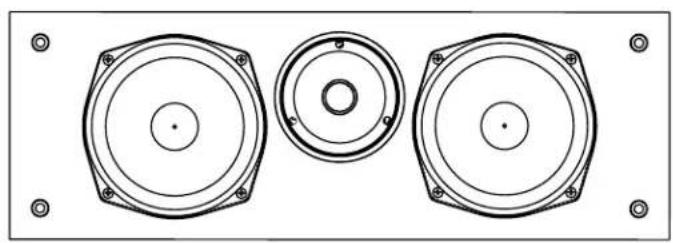

Placement Recommendations for the T30 Center Channel Speaker

The most popular placement for your T30 center channel speaker is on a shelf below your flat screen TV (if you have an older box TV, a popular option is to place your center channel speaker on top of it, anchoring the dialogue and effects to the screen).

Processor Mode for the T30 Center Channel Speaker

Note: Set Center Channel Speaker to "small" in your receiver's Bass Management Settings.

The “bass management” or “speaker configuration” menus of most surround receivers offer the choice of “normal” or “wide” modes for center channel operation. In discrete channel digital processors, these modes are referred to as “small” and “large.” Normal (small) mode filters bass frequencies from the center channel speaker and sends them instead to the front left and right main speakers or to the subwoofer output (LFE) jack. Wide (large) mode sends an unfiltered, full-range signal to the center channel speaker. Use the Small (normal) mode for optimum center (and surround) channel performance and reliability.

T Series Speaker Positioning

To maximize the sound quality of your Speaker system—whether you've purchased T15 Bookshelf Speakers, a T30 center channel speaker, or T50 tower speakers—correct placement is everything. Take a look at the following examples and give them a try based on the T Series speakers you've purchased.

Note: Your T Series speakers are compatible with 2.0, 2.1, 3.1, 5.1, 7.1 and 9.1 setups (optional subwoofer shown in graphics).

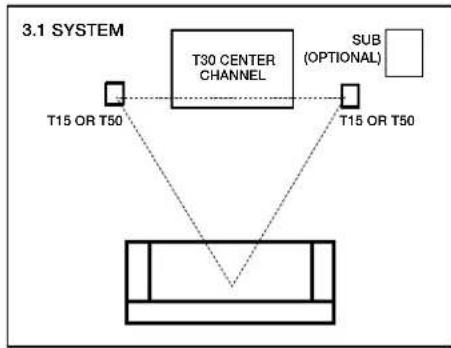

Listening in 3.1 System (T15, T30, T50)

Get the most realistic stereo image by placing speakers as far apart as the listeners are sitting from them. If room conditions require that you place the speakers farther apart, you may choose to angle the speakers toward the middle to support a more solid center image.


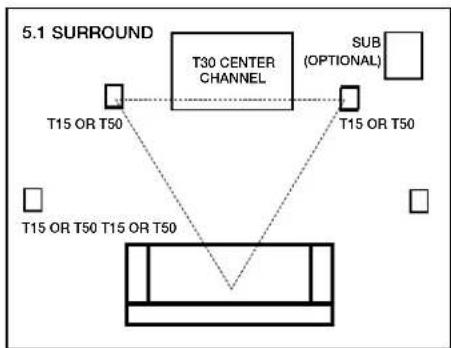

Listening in 5.1 Surround (T15, T30, T50)

You can use the T Series speakers as rear surround speakers in a Polk Audio home theater system. Ideal rear channel surround speaker placement is on a side wall, slightly behind and above the listening position.


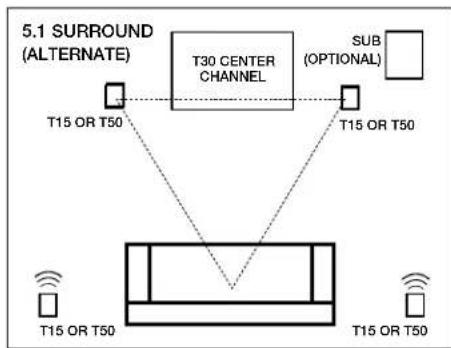

Listening in 5.1 Surround—alternate option (T15, T30, T50)

Alternate rear channel surround speaker placement for T Series speakers. If you cannot place rear surrounds on the side walls, position them on the rear wall above the listening position.

Wall Mounting the T15 Bookshelf Speaker

The T15 features a built-in keyhole slot for easy wall mounting. Follow the steps below to safely wall mount these speakers.

Simple line drawing of a door with two internal compartments and a handle (no text or symbols)

Use template to mark mounting location

a b

Use #10 panhead screw for wall stud.

Simple line drawing of a rectangular refrigerator with three downward arrows indicating side legs (no text or symbols)

Slide the speaker down on the screw head to catch the keyhole slots
a) Use #10 wall anchors with appropriate weight rating and screws for no wall stud
b) leave screws 1/4" - 1/8" (4mm) exposed

Adding Adhesive-Backed Rubber Feet to the T Series

To keep your Polk speakers firmly in place and prevent damage to floors or furniture, it's a smart idea to attach the included adhesive-backed rubber feet to the bottom of your speaker.

Isometric line drawing of a rectangular block with a sloped top surface and marked points (no text or symbols)

Peel and stick in corners of speaker enclosure

Line drawing of a rectangular electronic device with a ports and indicator lights (no text or symbols)

Cleaning Your Polk Speakers

You bought Polk quality for a reason. Keep your speakers looking good for years to come with these simple tips.

Line drawing of a hand gripping a piece of material, with a diagonal line above (no text or symbols)

Prohibition sign with hand spraying spray inside a circle, indicating no spray or disinfection

Clean cabinet with a damp cloth. Do not use furniture polish on veneer.

T Series Specifications

T15 T30 T50
Speaker Use Bookshelf Center Floor standing
Driver Complement
Mid/Woofer 5.25" 5.25" 6.5" Diameter			6.5" Bass Radiator (x2)
Tweeter 0.75" 1" Wave Guide Tweeter 1" Wave Guide Tweeter
Electrical
Overall Frequency	60Hz - 24kHz	38Hz - 24kHz	38Hz - 24kHz
Crossover	2-way 2-way	2-way
Response
Lower	-3db Limit 65Hz	-3db Limit 40Hz	-3db Limit 40Hz
Upper	-3db Limit 20kHz	-3db Limit 20kHz	-3db Limit 20kHz
Nominal Impedance	8 ohms	6 ohms	6 ohms
Recommended	20 - 100	20 - 100	20 - 100
Watts / Channel	Watts / Channel	Watts / Channel	Watts / Channel
Amplifier Power
Efficiency	89 dB 90 dB	90 dB
Inputs	5-way binding posts	5-way binding posts	5-way binding posts
Maximum Power Handling	150W 100W	150W
Dimensions
Cabinet Size	10.625" H x 6.5" W x 7.25" D	6.5" H x 19" W x 8.5" D	36.25" H x 9.25" W x 10.25" D
Mounting Options	Wall mount with integrated key-hole slot	N/A	N/A
Enclosure Type	Vented	Vented	Bass Reflex
Shipping Unit	Pair	Each	Each
Speaker Warranty	5 years parts and labor (original purchaser)	5 years parts and labor (original purchaser)	5 years parts and labor (original purchaser)
Recommended	30 - 36" speaker stands	N/A	N/A
Optional Accessories

Contenu

Three-panel illustration showing a bolt being twisted with a red X symbol, no text or symbols present

Configuration 5.1 ambiophonique (T15, T30, T50)

Autre configuration 5.1 ambiophonique (T15, T30, T50)

Simple line drawing of a door with a handle and two internal components (no text or symbols)

Simple line drawing of a refrigerator with three legs and a side panel, no text or symbols present.

Isometric line drawing of a rectangular block with a flat top and side edges marked by arrows (no text or symbols)

Line drawing of a rectangular electronic device with ports and connectors (no text or symbols)

Line drawing of a hand gripping a piece of material, with a diagonal line above (no text or symbols)

Prohibition sign with hand spraying spray inside a circle, indicating no spray or disinfection

T Series – fiche technique

Polk Audio thanks you for your purchase. Make sure to read this user guide in full before using your speaker system. It will ensure that you get the most from the product and understand all safety requirements. Once you're done reading the user guide, put it in a safe place for later reference.

Three-panel illustration showing a bolt being adjusted, with arrows indicating rotation and a red X mark highlighting the bolt (no text or symbols)

Simple line drawing of a door with a handle and two internal components (no text or symbols)

Line drawing of a refrigerator with a lid and three legs (no text or symbols)

Isometric line drawing of a rectangular block with a flat top and side edges marked with radius 'r' (no text or symbols present)

Line drawing of a rectangular electronic device with ports and indicator lights (no text or symbols)

Line drawing of a hand gripping a piece of material, with a diagonal line above (no text or symbols)

Prohibition sign with hand spraying spray inside a circle, commonly used for cleaning or anti-drug actions

Three-panel illustration showing a bolt being adjusted, with no text or symbols present.

Simple line drawing of a door with a handle and two internal compartments (no text or symbols)

Simple line drawing of a refrigerator with three arrows pointing to its side (no text or symbols)

Isometric line drawing of a rectangular block with a sloped top surface and marked points (no text or symbols)

Line drawing of a rectangular electronic device with ports and indicator lights (no text or symbols)

Line drawing of a hand gripping a piece of material, with no text or symbols present

Prohibition sign with hand spraying spray inside a circle, commonly used for cleaning or anti-drug actions

Three-panel illustration showing a bolt being cut with rotation arrows, no text or symbols present

Simple line drawing of a door with a handle and two rectangular compartments (no text or symbols)

Simple line drawing of a rectangular refrigerator with three downward arrows indicating side legs (no text or symbols)

Isometric line drawing of a rectangular block with a curved top surface and marked points (no text or symbols)

Line drawing of a rectangular electronic device with ports and a control panel (no text or symbols)

Line drawing of a hand gripping a piece of material, with a diagonal line above (no text or symbols)

Prohibition sign with hand spraying spray inside a circle, no text present

Technical line drawing of a door panel with two cylindrical components and a handle, no text or symbols present

1 Viper Way

Vista, CA 92081

800-638-7276

www.polkaudio.com

email: [e-mail]

twitter: @polkaudio
