USER MANUAL SB5810 AEG

Black and white photo of a AEG blender with handle and control knob (no visible text or symbols on body)

GB INSTRUCTION BOOK

A B C D E F G H I

1 A B

Illustration of a blender being processed with a magnified view showing interior layers (no text or symbols)

3 B A

Exterior view of a modern glass pitcher with lid and handle (no text or symbols)

5 PRESS ON ICE CNGRH OFF 1 2 3 4 5

Black and white photo of a blender with a circular control knob showing rotation arrows (no text or symbols)

Close-up of a glass pitcher with water being poured into it, accompanied by an inset image showing a jar and lid (no text or symbols visible)

Illustration of a portable electric heater with a solar panel and power plug, next to an electrical outlet (no text or symbols)

Close-up of a blender with a black lid and arrow indicating process (no text or symbols)

CONTENTS

ENGLISH 6

DEUTSCH 10

ESPAÑOL 14

FRANÇAIS 18

ΕΛΛΗΝΙΚΑ 21

NEDERLANDS 26

PORTUGUÊS 30

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice

Register your product for better service: www.registeraeg.com

Buy accessories and consumables for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.

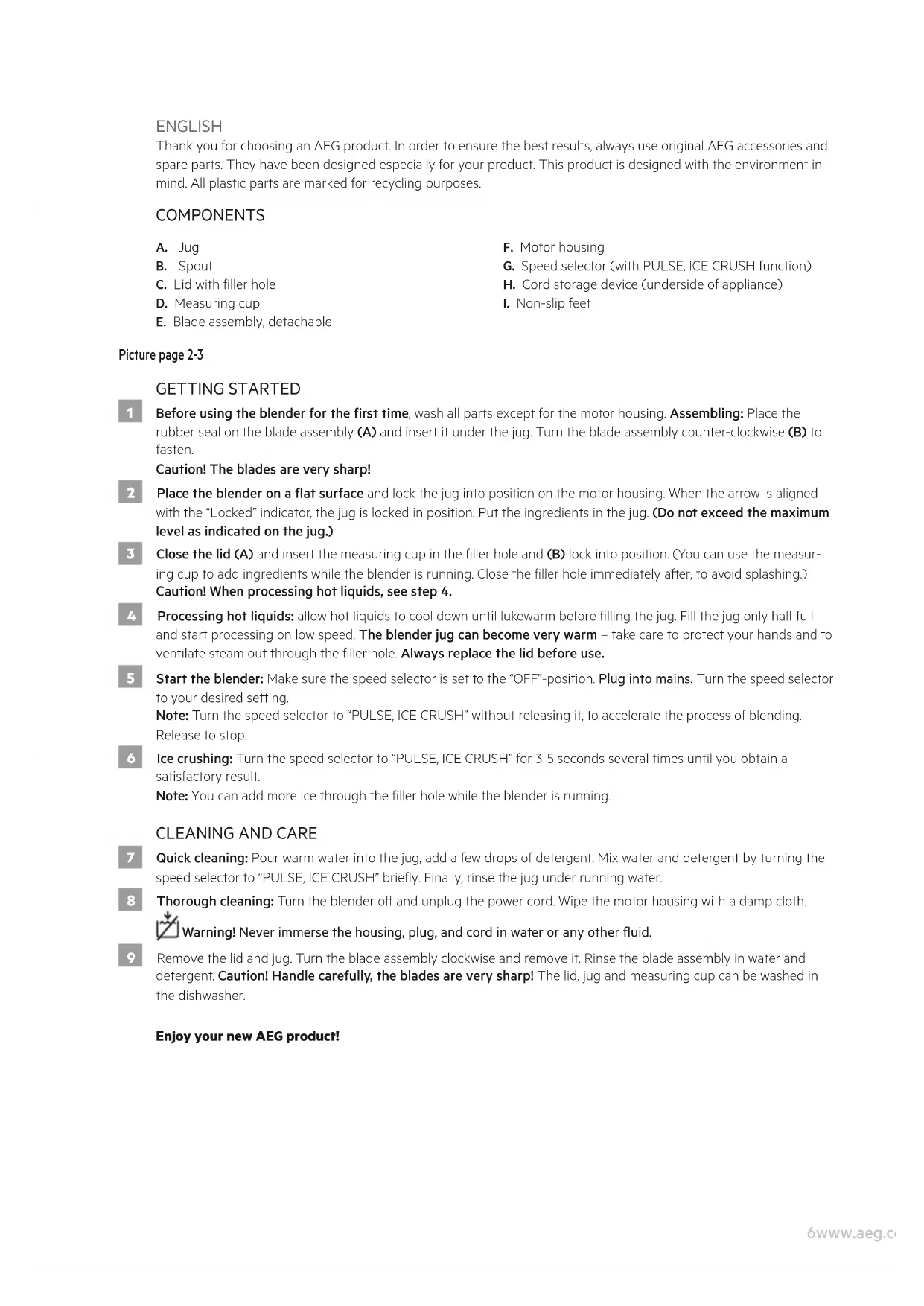

ENGLISH

Thank you for choosing an AEG product. In order to ensure the best results, always use original AEG accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

COMPONENTS

A. Jug
B. Spout
C. Lid with filler hole
D. Measuring cup
E. Blade assembly, detachable

F. Motor housing
G. Speed selector (with PULSE, ICE CRUSH function)
H. Cord storage device (underside of appliance)
I. Non-slip feet

Picture page 2-3

GETTING STARTED

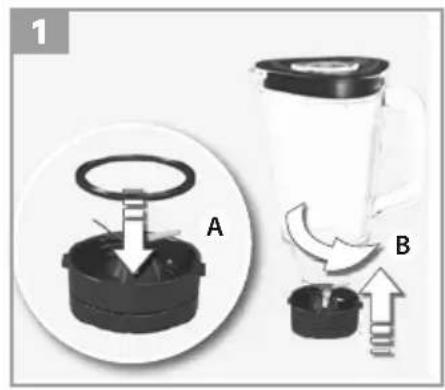

1 Before using the blender for the first time, wash all parts except for the motor housing. Assembling: Place the rubber seal on the blade assembly (A) and insert it under the jug. Turn the blade assembly counter-clockwise (B) to fasten.

Caution! The blades are very sharp!

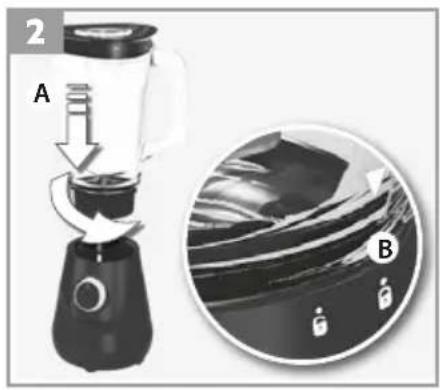

2 Place the blender on a flat surface and lock the jug into position on the motor housing. When the arrow is aligned with the "Locked" indicator, the jug is locked in position. Put the ingredients in the jug. (Do not exceed the maximum level as indicated on the jug.)

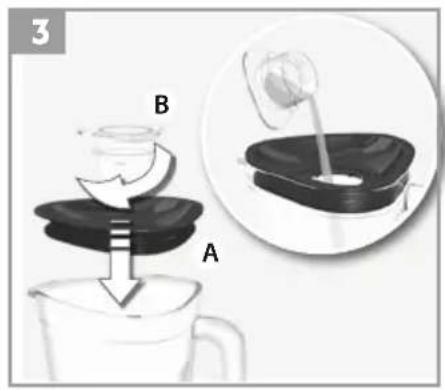

3 Close the lid (A) and insert the measuring cup in the filler hole and (B) lock into position. (You can use the measuring cup to add ingredients while the blender is running. Close the filler hole immediately after, to avoid splashing.) Caution! When processing hot liquids, see step 4.

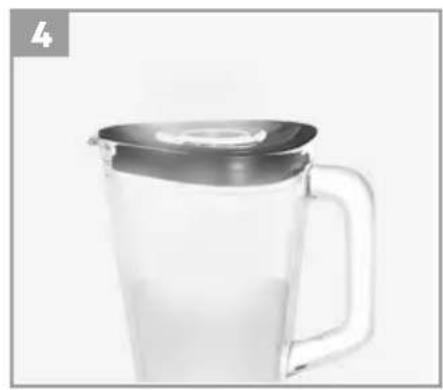

4 Processing hot liquids: allow hot liquids to cool down until lukewarm before filling the jug. Fill the jug only half full and start processing on low speed. The blender jug can become very warm – take care to protect your hands and to ventilate steam out through the filler hole. Always replace the lid before use.

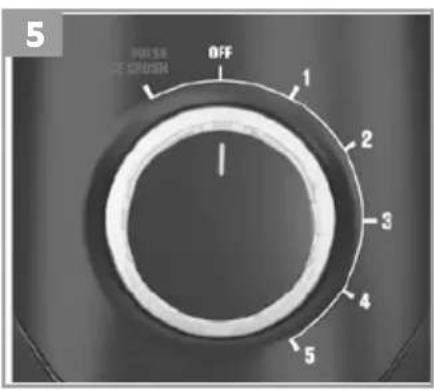

5 Start the blender: Make sure the speed selector is set to the "OFF"-position. Plug into mains. Turn the speed selector to your desired setting.

Note: Turn the speed selector to "PULSE, ICE CRUSH" without releasing it, to accelerate the process of blending.

Release to stop.

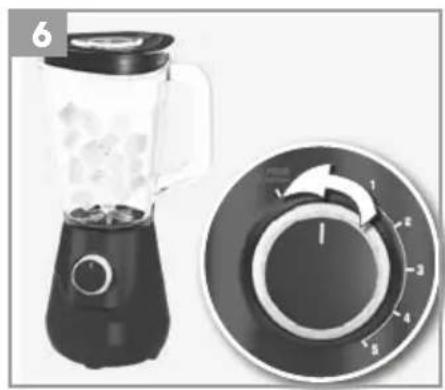

6 Ice crushing: Turn the speed selector to "PULSE, ICE CRUSH" for 3-5 seconds several times until you obtain a satisfactory result.

Note: You can add more ice through the filler hole while the blender is running.

CLEANING AND CARE

7 Quick cleaning: Pour warm water into the jug, add a few drops of detergent. Mix water and detergent by turning the speed selector to "PULSE, ICE CRUSH" briefly. Finally, rinse the jug under running water.

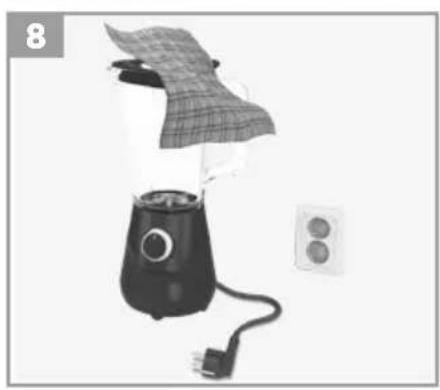

8 Thorough cleaning: Turn the blender off and unplug the power cord. Wipe the motor housing with a damp cloth.

Warning! Never immerse the housing, plug, and cord in water or any other fluid.

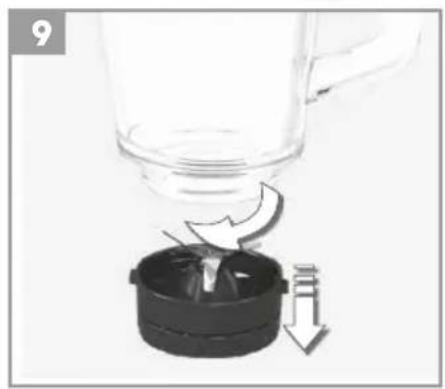

9 Remove the lid and jug. Turn the blade assembly clockwise and remove it. Rinse the blade assembly in water and detergent. Caution! Handle carefully, the blades are very sharp! The lid, jug and measuring cup can be washed in the dishwasher.

Enjoy your new AEG product!

SAFETY ADVICE

Read the following instruction carefully before using the appliance for the first time.

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if

- the supply cord is damaged, - the housing is damaged.

• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
  • Always place the appliance on a flat, level surface.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Never touch the blades or inserts with your hand or any tools while the appliance is plugged in.

• The blades and inserts are very sharp! Danger of injury! Caution when assembling, disassembling after use or when cleaning! Ensure that the appliance is disconnected from the mains supply.

• Do not immerse the appliance in water or any other liquid.

• Do not let the blender run for more than 2 minutes at a time using heavy loads. After running for 2 minutes with heavy loads, the blender should be left to cool for at least 10 minutes.
• Do not exceed the maximum filling volume as indicated on the appliances.
• Never process boiling liquids (max 90 °C).
• Do not use this appliance to stir paint. Danger, could result in an explosion!
• Never operate appliance without lid.
• Do not let the power cord touch hot surfaces or hang over edge of table or counter.
• Never use accessories or parts made by other manufactures not recommended or sold; may cause a risk of injury to persons.
• The appliance can not be used for blending or grinding hard and dry substance, except for ice cubes.
• Keep hands and utensils out of the blender during operation to reduce the risk of severe injury to persons or damage to the blender.
• Ensure that the blender is switched off before removing it from the stand.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

- This appliances is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and others working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

TROUBLESHOOTING

The blender does not switch on.	Components are not fixed properly. Check if all the components are properly locked into position.
	The speed selector is not on the right position. Choose the appropriate speed. To use PULSE function, make sure the speed selector is on PULSE position.
	The jug is overfilled. Empty the jug so you do not exceed the maximum level.
	The plug is not properly connected to the power outlet.	Check the connection of the plug to the outlet or try another outlet.
	Power outage. Wait until power outage is over.
	Functional problem. Contact authorized service.

RECIPES

2 min

Ingredients Quantity Time Speed

Cream 200-400 g 50\~60 sec 1

Note: The temperature of the cream should be between 4 and 8 Degree Celsius.

Recipe	Ingredients	Quantity		Time	Speed
	Carrots	20~80	g
	Potatos	20~80	g
Pureeing raw vegetables	Onions	20~80	g	20~30 s	8
	Water	60~160	g
	Tequila	240	ml
	Triple sec	60	ml
Strawberries margaritas (Cocktail)	Frozen strawberries	225	g	≤ 90 s	8
	Frozen Lemonade concentrate	145	g
	Ice cubes	150	g
	Pineapple in slices	250	g
Pineapple-apricots Smoothie	Dried Apricots	40	g	≤ 90 s	8
	Yoghurt 300 g

RECOMMENDED BLENDING SPEED

Recipe Ingredients Quantity Time Speed
Milkshake	Milk 150-300 ml			20~30 s 4
	Vanilla Ice cream 200-400 g
	Banana 1⁄4 - 1⁄2 pcs
	Chocolate syrup 30-60 g
Potato leek soup	Potatoes	400	g	30~40 s	4
	Leek	400	g
	Water	800	g
Pancake (Batters)	Wheat flour	150	g	30~40 s 4
	Salt	1	Pinch
	Eggs	3	pcs
	Milk 250 ml
	Water	140	ml
	Butter	50	g

CHOPPING QUANTITIES AND PROCESSING TIMES

Ingredients	Quantity		Quality	Time	Quality	Time	Quality	Time	Speed
Bread crumbs	100-200	g	Coarse	3 sec	Medium	3~5 sec	Fine	5~10 sec	Pulse
Almonds	100-200	g		3 sec		3~5 sec		5~10 sec	Pulse
Peppar	20-100	g		3 sec		5 sec		5~10 sec	Pulse

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

AEG reserves the right to change products, information and specifications without notice.
