Product Type	Universal USB Adapter
Brand	PHILIPS
Model	SCM4480
Dimensions (H x W x D)	70.3 × 55.5 × 35.5 mm
Weight	70 g
Power Supply	110 V - 240 V AC, 50/60 Hz
Output Voltage	5.6 V DC, 450 mA max
Max Consumption of Connected Device	5.8 V, 450 mA
Main Functions	Charging 5 V DC devices (mobile phones, MP3 players, etc.)
LED Indicator	PHILIPS logo lights up when charging, flashes when fully charged
Package Contents	USB adapter, connector tips, detachable USB cable, tip holder, travel pouch, user manual, compatibility chart
Operating Temperature	0 °C to 45 °C
Safety	Do not use in wet environments, do not disassemble, keep out of reach of children
Maintenance and Cleaning	Clean with a soft, lint-free cloth, without harsh chemicals
Troubleshooting	Check voltage, connection, cable and tip; replace if damaged
Warranty and Support	Register at www.philips.com/welcome, online help
Environmental Information	Recycling according to directive 2002/96/EC, do not dispose of with household waste

Frequently Asked Questions - SCM4480 PHILIPS

How do I charge my device with this adapter?

First check the maximum input voltage (V DC) of your device (manual provided). Make sure the power consumption does not exceed 450 mA. Choose the appropriate connector tip (see compatibility chart). Connect the USB cable to the adapter, then the tip to the cable and finally to the device. The PHILIPS logo lights up during charging and flashes once fully charged.

Which devices can I charge with this adapter?

This adapter is designed to charge devices operating at 5 V DC, such as mobile phones and MP3 players. The power consumption of the device must not exceed 450 mA (max voltage 5.8 V). Check your device manual to verify compatibility.

What should I do if the device is not charging?

First check that the device voltage matches the adapter (5 V). Make sure the USB cable and tip are properly connected. Try replacing the USB cable or tip if they are damaged. Use only the supplied accessories. If the problem persists, contact your local distributor.

What accessories are included in the package?

The package contains: the universal USB adapter, connector tips for 5 V devices, a detachable USB cable, a tip holder, a travel pouch, the user manual, and a compatibility chart.

Can I use a non-supplied USB cable?

It is recommended to use only the USB cable and connector tips supplied. Using other types of cords or tips may damage the adapter or your device. If lost, contact your distributor.

How do I clean the USB adapter?

Use a soft, lint-free cloth to clean the surface. Do not use harsh chemicals, cleaning solvents, or strong detergents. Unplug the adapter before cleaning.

Where can I find help in case of a problem?

Visit the interactive help and FAQ on the website www.philips.com/welcome. You can also register your product on this site for full support.

Is the adapter compatible with all phones?

It is compatible with most mobile phones and other devices requiring a voltage of 5 V DC and maximum consumption of 450 mA. Check the provided compatibility chart for specific supported models.

What does the flashing PHILIPS logo mean?

The PHILIPS logo glows steadily when a device is charging. It flashes when the device is fully charged. If no device is connected, the logo also flashes.

How do I dispose of the adapter at end of life?

Do not dispose of the adapter with household waste. In accordance with European Directive 2002/96/EC, take it to a collection point for waste electrical and electronic equipment (WEEE) for proper recycling.

USER MANUAL SCM4480 PHILIPS

Register your product and get support at www.philips.com/welcome

SCM4480

EN universal USB adapter 3
FR adaptateur USB universel 6
ES adaptador USB universal 9
DE universeller USB-Adapter 12
NL universele USB-adapter 15
IT adattatore universale USB 18
PT adaptador USB universal 21
GR προσαρμογέας USB 24
TR USB adaptörünüz 27
DK universal-USB-adapter 30
SV universell USB-adapter 33
FI USB-yleissovitin 36
PL uniwersalny adapter USB 39
CZ univerzální adaptér USB 42
SK univerzálny adaptér USB 45
HU univerzális USB-csatlakozó 48
RU универсальный адаптер USB 51

White digital phone with 'PHILIPS' illuminated screen and support base (no text or symbols on device)

PHILIPS

A

B

1 Your universal USB adapter

Congratulations on your purchase and welcome to Philips!

This universal USB adapter provides instant power to most devices with a service voltage of 5V DC (mobile telephones, MP3 players, etc.).

Carefully read and save this user manual for it contains important safety and operating instructions for this USB adapter. Before using the USB adapter read all instructions and cautionary markings on the USB adapter itself and the device to be charged.

To fully benefit from the support that Philips offers, register your product at: www.philips.com/welcome

Note:

For several portable devices (5V), a USB cable is supplied with the original device (e.g. most MP3 players). In this case, you can also use this cable to charge your device.

2 What's in the box?

– universal USB adapter
– connector tips for 5V DC devices (mobile telephones, MP3 players, etc.)
- retractable USB cable
- connector tip holder
- travel bag
- user manual
- compatibility sheet

3 Important safety instructions

• Read and observe all warnings on the USB adapter and in this user manual.
• Power consumption of the connected device must not exceed 5.8V, 450 mA.
• Never use the USB adapter in moist places or close to water.
• Do not expose the USB adapter to rain or excessive moisture.
• Do not place inflammable, explosive or hazardous objects near the USB adapter.
• Only use the supplied USB cable and connector tips. Use of other types of cords and tips may damage the USB adapter and/or your device.
• Only use the USB adapter in an environment with the proper temperature (0°C - 45°C).
• Keep the USB adapter away from children.
• Do not disassemble or try to repair the USB adapter yourself. You might get injured or the USB adapter may be damaged.
• Store the USB adapter in a dry place with the proper ambient temperature (0°C - 45°C).
• Do not operate the USB adapter if it has been subjected to shock or damage.
• To avoid risk of electric shock, unplug the USB adapter from the AC power supply and disconnect devices before cleaning or when not in use.
• Allow a sufficient amount of free space all around the USB adapter for adequate ventilation.
• Do not throw or shake the USB adapter.

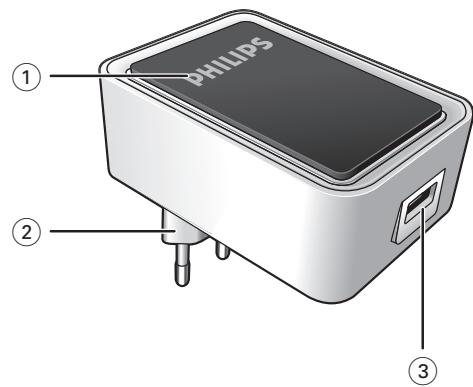

4 Functional overview (fig. A)

① PHILIPS

• Lights up when a 5V device is charging (when no device is connected, the PHILIPS logo will flash).
• Flashes when the device is fully charged.

② Foldable power plug

Connects to the wall outlet.

③ USB port

Connects to 5V DC devices (mobile telephones, MP3 players, etc.).

5 Operation

Charging devices - preparation

1 Check the maximum input voltage (V DC) of the device you wish to connect. For this see the user manual that came with the device.
2 Make sure the device does not consume more current (mA) than 450 mA.
3 Check what connector tip is required for your device. See the compatibility sheet for the proper tip for your device.

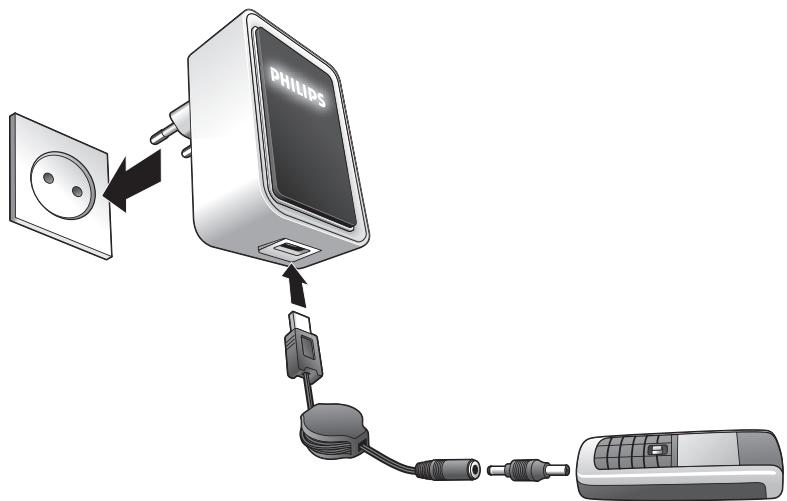

Charging 5V devices (fig. B)

1 Insert the plug of the USB cable into the USB port (3).
2 Connect the connector tip to the USB cable.
3 Insert the connector tip into the power supply jack of the device.

PHILIPS lights up when a device is charging.
PHILIPS will flash when the device is fully charged.
4 Disconnect the device from the USB adapter.

6 Technical specifications

• Rated input: 110V - 240V AC (60/50Hz)
• Rated output: 5.6V DC, max. 450 mA
- Operating temperature: 0^ - 45^
• Size: 70.3 x 55.5 x 35.5 mm (h x w x d)
- Weight: 70 g

7 Troubleshooting

Problem

- Possible cause

- Solution

USB adapter does not charge connected device

• Voltage of device does not correspond with that of USB adapter.
  • Refer to the user manual that came with the device.
• Improper connection between device and USB adapter.
• Make sure that the USB cable is properly inserted into the device and the USB adapter.
  – Damaged USB cable or connector tip.
• Replace USB cable and/or connector tip.
• Wrong connector tip used.
• Check connector tip and replace if necessary.
• Non supplied USB cable / connector tip used.
• Replace with supplied USB cable/connector tip.
  – Problems with electrical circuit of USB adapter.
  • Take the USB adapter to your local distributor.

8 Maintenance

• Use a soft, lint-free cloth to clean the USB adapter exterior. Do not use harsh chemicals, cleaning solvents or strong detergents.
• When any problems occur with the USB adapter or the accessories, take the adapter and accessories to your local distributor.

9 Need help?

Online help: www.philips.com/welcome

For interactive help and frequently asked questions.

EN Information to the consumer

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

Symbol of a trash bin crossed out by two diagonal lines, with no text or numbers present.

Symbol of a trash bin crossed out by two crossed lines, with no text or numbers present.

Symbol of a trash bin crossed out by two diagonal lines, with no text or numbers present.

All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication there of does not convey nor imply any license under patent- or other industrial or intellectual property rights.

September 2007
