USER MANUAL PMX240 LENCO

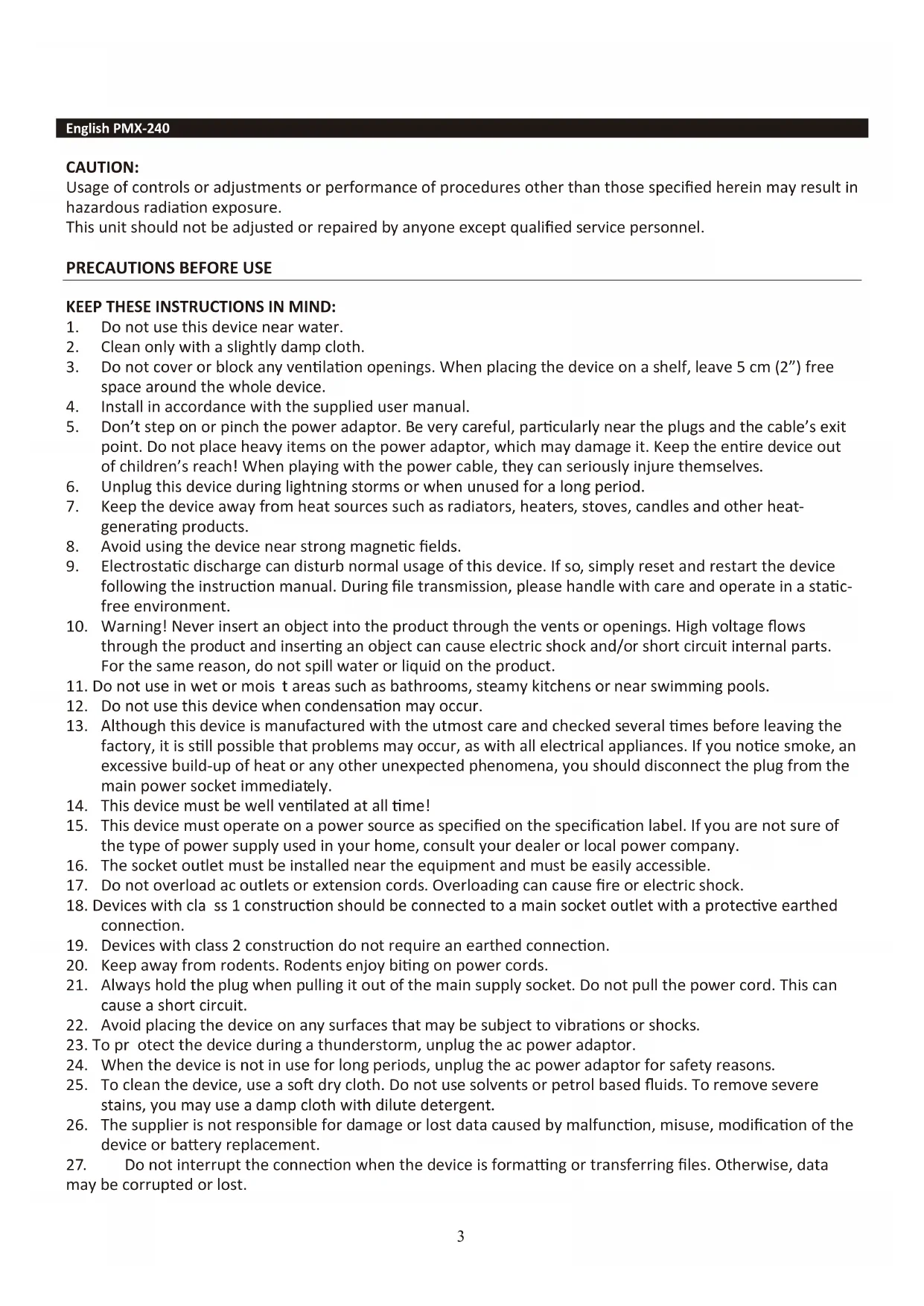

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not use this device near water.

2. Clean only with a slightly damp cloth.

3. Do not cover or block any venlaon openings. When placing the device on a shelf, leave 5 cm (2”) free

space around the whole device.

4. Install in accordance with the supplied user manual.

5. Don’t step on or pinch the power adaptor. Be very careful, parcularly near the plugs and the cable’s exit

point. Do not place heavy items on the power adaptor, which may damage it. Keep the enre device out of children’s reach! When playing with the power cable, they can seriously injure themselves.

6. Unplug this device during lightning storms or when unused for a long period.

7. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-

8. Avoid using the device near strong magnec fields.

9. Electrostac discharge can disturb normal usage of this device. If so

, simply reset and restart the device following the instrucon manual. During file transmission, please handle with care and operate in a stac- free environment.

10. Warning! Never insert an object into the product through the vents or openings. High voltage flows

through the product and inserng an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.

11. Do not use in wet or mois

t areas such as bathrooms, steamy kitchens or near swimming pools.

12. Do not use this device when condensaon may occur.

13. Although this device is manufactured with the utmost care and checked several mes before leaving the

factory, it is sll possible that problems may occur, as with all electrical appliances. If you noce smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediat ely.

14. This device must be well venlated at all me!

15. This device must operate on a power source as specified on the specificaon label. If you are not sure of

the type of power supply used in your home, consult your dealer or local power company.

16. The socket outlet must be installed near the equipment and must be easily accessible.

17. Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.

18. Devices with cla

ss 1 construcon should be connected to a main socket outlet with a protecve earthed connecon.

19. Devices with class 2 construcon do not require an earthed connecon.

20. Keep away from rodents. Rodents enjoy bing on power cords.

21. Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can

cause a short circuit.

22. Avoid placing the device on any surfaces that may be subject to vibraons or shocks.

otect the device during a thunderstorm, unplug the ac power adaptor.

24. When the device is not in use for long periods, unplug the ac power adaptor for safety reasons.

25. To clean the device, use a so dry cloth. Do not use solvents or petrol based fluids. To remove severe

stains, you may use a damp cloth with dilute detergent.

26. The supplier is not responsible for damage or lost data caused by malfuncon, misuse, modificaon of the

device or baery replacement.

. Do not interrupt the connecon when the device is formang or transferring files. Otherwise, data may be corrupted or lost.4

28. The usb memory sck should be plugged into the unit directly. Don’t use an usb extension cable because it

can cause interference resulng in failing of data.

29. The apparatus shall not be exposed to dripping or splashing and make sure that no objects filled with

liquids, such as vases, are placed on or near the apparatus.

30. To completely disconnect the power input, the mains plug of the apparatus shall be disconnected from

the mains, as the disconnect device i s the mains plug of apparatus.

31. The mains plug of the apparatus should not be obstructed or should be easily accessed during intended

32. Baery shall not be exposed to excessive heat such as sunshine, fire or the like.

33. Minimum distance of 10cm around the apparatus is needed for sufficient venlaons.

34. The venlaon should not be impeded by covering the venlaon openings with items such as

newspapers, table-cloths, curtains etc.

35. No naked flame sources such as light

ed candles should be placed on the apparatus.

36. Aenon should be drawn to the environmental aspects of baery disposal.

37. The apparatus can only be used in moderate extremely cold or climates warm environments should be

38. The rang label has been marked on the boom panel of the apparatus.

39. This device is not intended for use by people (including children) with physical, sensory or mental

disabilies, or a lack of experience and knowledge, unless they’re under supervision or have received instrucons about the correct use of the device by the person who is responsible for their safety.

40. This product is intended for household use only and not for commercial or industrial use.

41. Make sure the unit is adjusted to a stable posion. Damage caused by using this product in an unstable

posion or by failure to follow any other warning or precauon contained within this user manual will not be covered by warranty.

43. Never place this apparatus on other electrical equipment.

44. Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive dust or

45. Do not clean this product with water or other liquids.

46. Do not block or cover the slots and holes in the product.

47. Do not push foreign objects into the slots or holes in the product.

48. Do not allow children access to plasc bags.

49. Please check that the

voltage on the type plate of your appliance corresponds with your house electricity supply (type plate is located on the back of the unit).

50. Protect the power cord from being walked on or pinched, parcularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

51. Only use aachments/accessories specified by the manufacturer.

52. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

53. Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

Warning: prolonged exposure to loud sounds from personal music players may lead to temporary or

• Do not connect the unit to the mains before checking the mains voltage and before all other connecons have been made.

• Do not cover any vents and make sure that there is a space of several cenmeters around the unit for venlaon.REAR PANEL

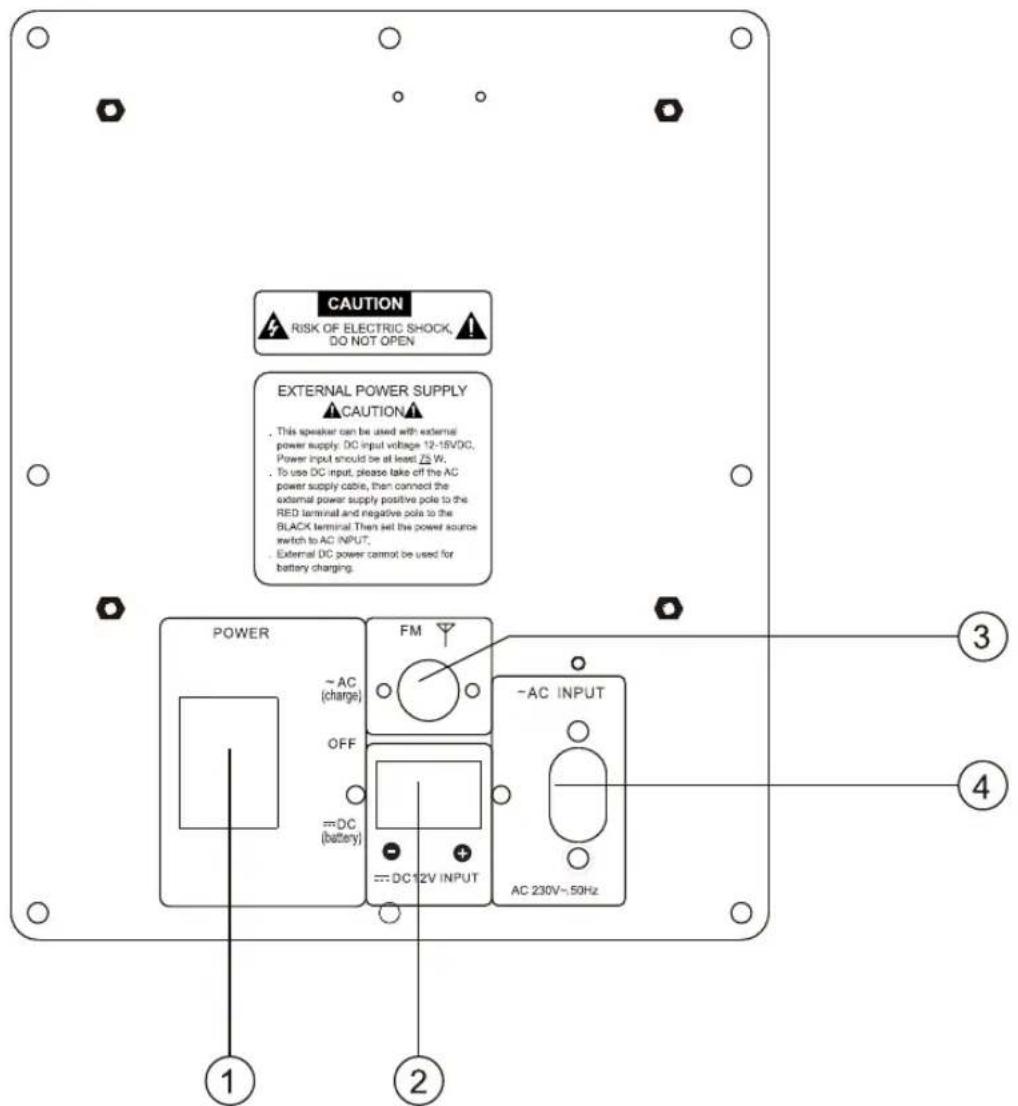

Switch modes DC INPUT, AC INPUT or off. When switched to AC status, the speaker is working on 230V and Baery will be charged. When switched to OFF, power is off with no baery charging. When switched to DC, speaker is baery powered.

The speaker can be connected to the 12V DC baery of a car.

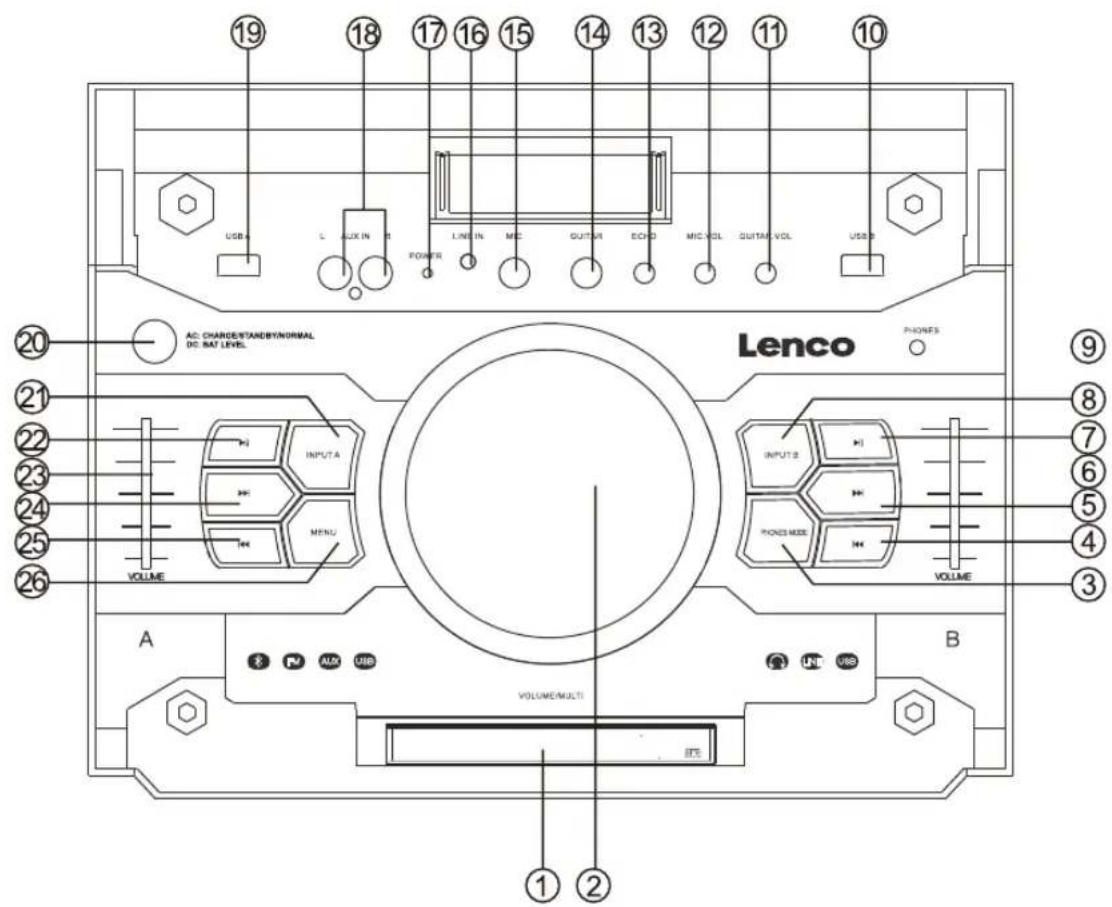

Press this key to choose previous music with USB B

Press this key to choose next music with USB B

This is used to adjust the volume with INPUT B

7. INPUT B PLAY/PAUSE

Press this key to choose play/pause music with INPUT B When playing usb, long press this key to change playme count down or count up.

Press this key to choose different INPUT B mode, LINE, USB B

Adjust the volume of the GUITAR

Adjust the ECHO of the MIC input

Connect to LINE IN signal input jack.

Connect to AUX signal input jack.

A long Press on this key turns on or standby the unit. A short Press on this key turns on the unit t

Press this key to choose different INPUT A mode, AUX A, BT A, FM, USB A

22. INPUT A PLAY/PAUSE

Press this key to choose play/pause music with INPUT A When playing usb, long press this key change play me count down or count up.

This is used to adjust the volume of INPUT A

Press this key to c hoose next music with USB A

Press this key to choose previous music with INPUT USB A

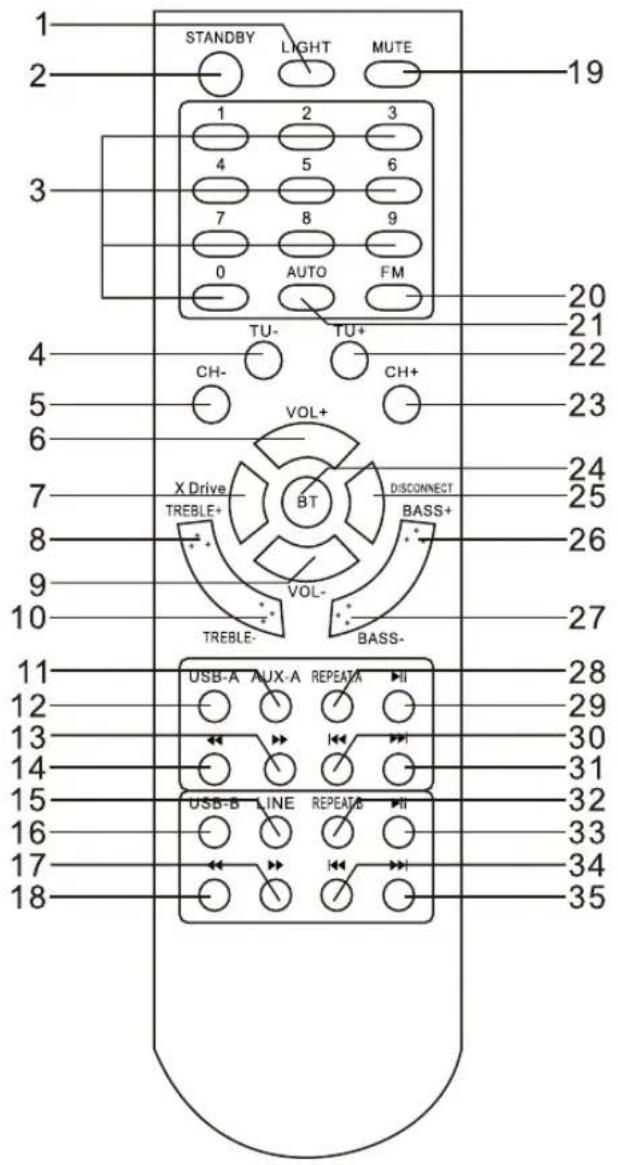

This switch selects the main volume, bass, treble, x driver, light modeREMOTE CONTROL

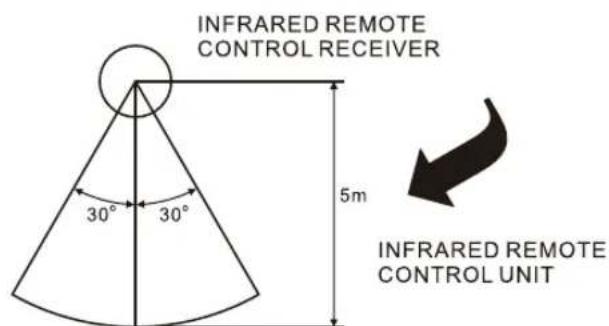

REMOTE CONTROL OPERATION: □ If the remote control conflicts with other devices, the operaon will be affected. □ Do not simultaneously press buons on the unit and the remote control. □ Avoid using two remote controls at the same me as this wiII cause a malfuncon. □ Use only UM-4 ‘AAA’ size baeries. Do not mix old baeries with new ones. □ If the baeries Ieak, clean the remote control thoroughly before replacing baeries □ Do not short two terminals of the baeries. Dispose old baeries in a suitable place.OPERATING

1. Select power switch on the backside of the speaker to AC or DC mode.

2. Select an audio source by pressing the INPUT A key on the front panel to display AUX A, BT A, FM, USB

A. Press the INPUT B key on the front panel to display LINE, USB B. When unit is AC mode: - Pressing standby buon once will acvate charging mode, showing the baery charging status on the blue led-display. - Pressing standby buon second me will ac vate the speaker and showing green charging light. - You can also select the standby mode, without charging the baery When unit is DC mode: - Pressing standby buon shows the baery level on the blue led display

3. Rotate the VOLUME/MULTI/DJ EFFECT wheel on the control panel or the VOL+/- key on the remote

control to adjust the main volume. Then adjust the volume slider of INPUT A and use the right volume slider to change the volume of INPUT

4. To adjust the bass, treble, X-drive, speaker lights and main volume, press the menu key to select bass,

treble, X-drive, speaker lights, then rotate the big VOLUME/MULTI/DJ EFFECT wheel.

5. PHONES OUTPUT selecon. Press the PHONES MODE buon on the control panel to display INPUT A,

INPUT B, or INPUT AB and adjust the volume of A,B or AB by rotang the mul DJ effect wheel.

6. Press the LIGHT buon on the remote control or press th

e MENU buon on the front panel unl speaker light mode is displayed, then rotate the VOLUME/MULTI/DJ EFFECT wheel to select to OFF, R, G, B, RG, RB, GB, RGB, AUTO, DEMO light mode.

7. Press the MUTE key on the remote to mute, press it again to reset.

8. Press X DRIVE on the remote to turn on/off X-Bass effect.

• G = green lights flash

• B = blue lights flash

• RG = red and green lights flash RB = red and b lue lights flash GB = green and blue lights flash

• RGB = red, green, and blue lights flash

• Auto = the various color combinaons cycle through and flash.

• Demo = lights flash and change color as if they were responding to the beat of the music.OPERATING

1. Before using the radio funcons, you must adjust the antenna to obtain opmum recepon.

Press the INPUT A key on the front panel or the FM key on the remote control, to select “FM” funcon.

2. Press the AUTO key on the remote control or the play buon of the INPUT A control panel.

The machine will scan radio channels from low- frequency to high-frequency by itself and stores the channels found one by on

3. Press the CH+/CH- key on the remote control to change radio presets that have been stored

4. Press or hold the TU+/TU- key on the remote control to adjust the radio frequency manually.

5. To select radio staons from the control panel, press and hold the next/prev buons.

e with the MIC.VOL knob on the front panel and adjust the volume gradually aer inserng the microphone. Remark: The PMX-240 is delivered with a wireless microphone using 2AA baeries (not included). When you switch the buon to “ON”, you can speak in it and adjust volume and echo on the control panel.

3. Adjust the ECHO knob on the front panel to change the microphone ECHO.

4. Adjust the GUITAR VOL knob on the front panel

to change the guitar VOLUME. Note: Do not touch the top of the microphone when singing in order to avoid howling effect. Adjust the microphone volume gradually to avoid howling effect.

BLUETOOTH PAIRING AND CONNECT

• Turn off any Bluetooth devices previously paired (linked) with this unit.

• Turn on the Bluetooth feature on your phone or music player.

• Turn on and set this unit to Bluetooth mode. The flashing blue light “BT” on LED displa y indicates it is in pairing mode.

• Set your phone or music player to search for Bluetooth devices.

• Select ‘PMX-240’ from search results on your phone or music player.

• Select OK or YES to pair this unit with your phone or music player.

• If protected, enter 0000 for passkey steady blue light indicates successful connecon.

• Press the DISCONNECT key on the remote control to disconnect the Bluetooth.OPERATING

USB interface This unit has two USB jacks. Press the INPUT A key to select USB A, then you can insert a USB sck to play music. Press the INPUT B key to select USB B, then you can insert another USB sck to play music. Important: The USB port is intended for data transfer only, other devices cannot be used with this USB connecon. The use of USB extension cords is not recommended. TIME DISPLAY In USB mode, the display can show eithe r the elapsed or the remaining me. With long press of the play/pause key, you can select negave or posive display of the me.

CHARGING THE BATTERY

1. When in baery powered mode, the standby operaon cannot be used.

2. The control panel has a charging light. When the baery is charged enough, the light is green.

When the baery is low, the system display prompts ‘LOW POWER’ and the light turns red. TO PROTECT THE LIFETIME OF THE I NTERNAL BATTERY: When the baery is empty, switch immediately the POWER knob on the backside to OFF posion to protect the lifeme of the internal baery or to AC to charge it again. Important: The supplier is not responsible for damage caused by misuse of the device and the baery will not be covered by the guarantee. BATTERY DISASSEMBLY

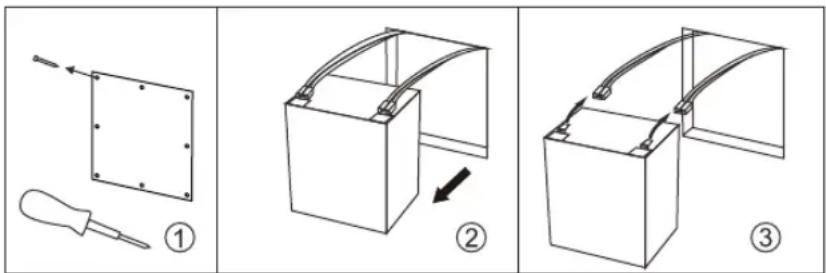

1. Remove the screws on the rear panel.

2. Take out the baery.

3. Disconnect the baery

SPECIFICATION Frequency Response 20Hz-20KHz Power Source 230V ~ 50Hz/12VDC Max.Power Consumpon 120W Baery Lead/Acid 12VDC, 3.5 Ah DC Playback me ~10hrs on 50% volume Output power 150W (RMS) Microphone Wireless 864 MHz Bluetooth V4.2 FM radio 87.5-108 MHz Unit Size (W x D x H) 32 x 33.7 x 59 cm Tweeter size 2 x 1 inch Woofer size 1 x 3 inch Subwoofer size 1 x 10 inch Unit weight 14.5 kg Working Temperature 10-40 °C ■ The specificaon presents only as a reference. The value of weight and size are approximaon. ■ Our product is improved ceaselessly and the specificaon and funcon may be changed without prior noce. This product operates at 2400 - 2483.5 MHz and is designated only to be used inside a normal household environment. This product is suited for this purpose within all EU counes. Please note (For use of wireless microphone) This product ope rates at a frequency of 864 MHz and is designated only to be used inside a normal household environment. This product is suited for this purpose within most EU countries. The user should check the allowed frequencies of the country where the unit will be used in. (More informaon can be found at: hps://www.apwpt.org

The user is responsible for the use of this unit. Lenco cannot be held responsible if this unit is used for other purposes than which are described in this manual. Guarantee Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and aer the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Le nco directly. Important note: If this unit is opened or accessed by a none official service center in any way, the warranty expires. This device is not suitable for professional use. In case of professional use, all warranty obligaons of the manufacturer will be void.OPERATING

Disclaimer Updates to Firmware and/or hardware components are made regularly. Therefore some of the instrucon, specificaons and pictures in this documentaon may differ slightly from your parcular situaon. All items described in this guide for illustraon purposes only and may not apply to a parcular situaon. No legal right or entlements may be obtained from the descripon made in this manual. Disposal of the Old Devi
