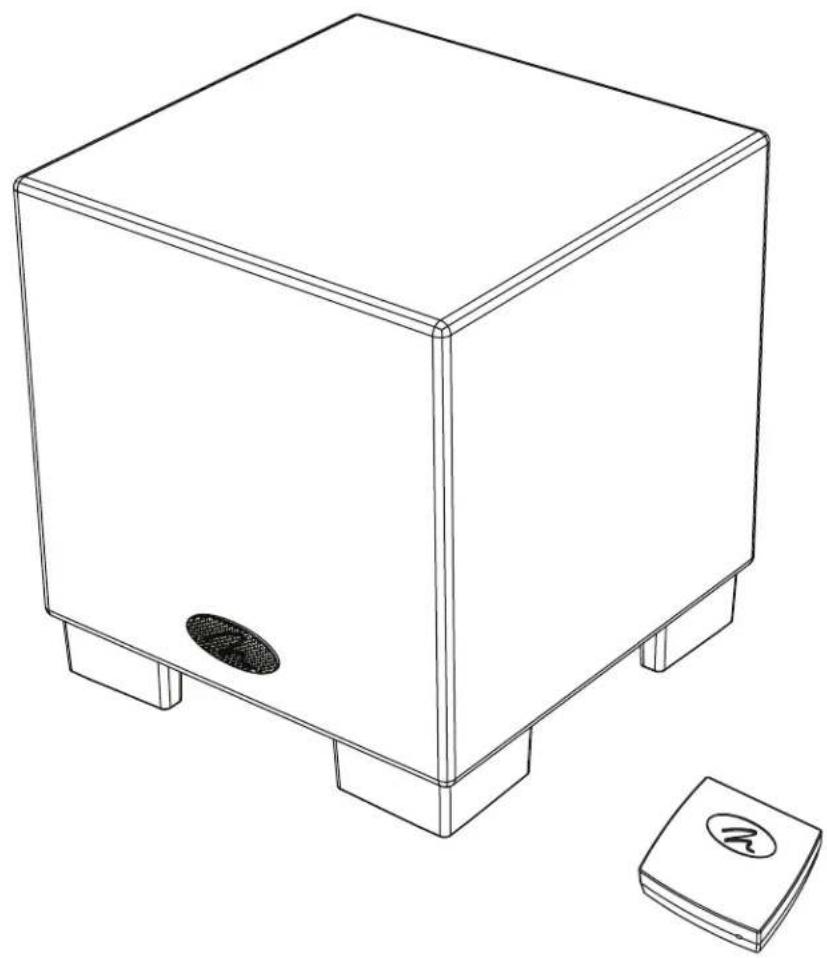

DYNAMO 1000W | DYNAMO 700W | SWT-2

user's manual

IMPORTANT SAFETY INSTRUCTIONS

1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus [including amplifiers] that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particu- latly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11 Only use attachments/accessories specified by the manufacturer.

In accordance with the European Union WEEE (Waste Electrical and Electronic Equipment) directive effective August 13, 2005, we would like to notify you that this product may contain regulated materials which upon

disposal, according to the WEEE directive, require special reuse and recycling processing.

For this reason MartinLogan has arranged with our distributors in European Union member nations to collect and recycle this product at no

12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used use caution when moving the cart/ apparatus combination to avoid injury from lip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
3. WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.
4. To completely disconnect this equipment from the mains, disconnect the power supply cord plug from the receptacle.
5. The mains plug of the power supply cord shall remain readily operable
   18 Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the equipment.

cost to you. To find your local distributor please contact the dealer from whom you purchased this product, email [e-mail] or visit the distributor locator at www.martinlogan.com.

Please note, only this product itself falls under the WEEE directive. When disposing of packaging and other related shipping materials we encourage you to recycle these items through the normal channels.

The lightning bolt flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Important Safety Instructions 2

Contents 3

Packaging 4

Introduction and Installation in Brief. 6

Introduction

Installation in Brief

About the Controls. 7

Connections and Control Settings 8

Before Connecting the Dynamo

2-Channel Mode

MultiChannel/LFE Mode 9

AC Power Connection 10

Replacing the Fuse

Break-In

Optional Wireless Connection

Placement 11

Listening Position

Ask Your Dealer

Enjoy Yourself

Installing in a Cabinet

Changing Woofer Orientation. 12

Room Acoustics 13

Your Room

Terminology

Solid Footing

Home Theater 14

FAQ & Troubleshooting 15

Frequently Asked Questions

Troubleshooting

Specifications 16

Dynamo 1000W Specifications

Dynamo 700W Specificaitons

General Information 17

Warranty and Registration

Service

Dimensional Drawings 17

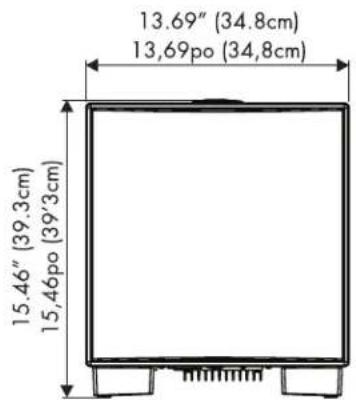

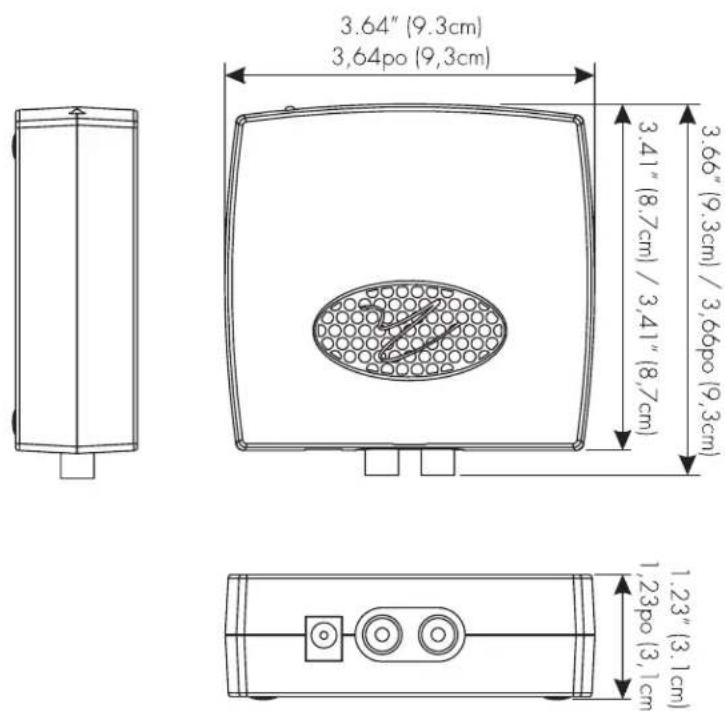

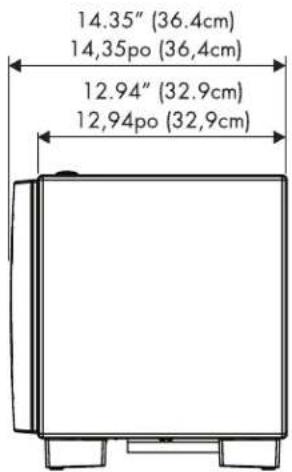

SWT-2 Dimensional Drawings

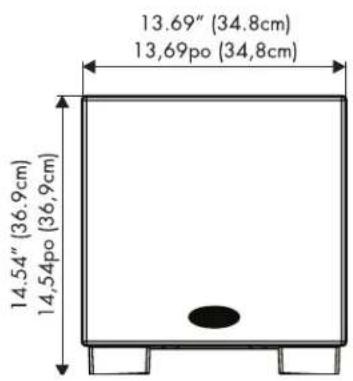

Dynam0 1000W Dimensional Drawings. 18

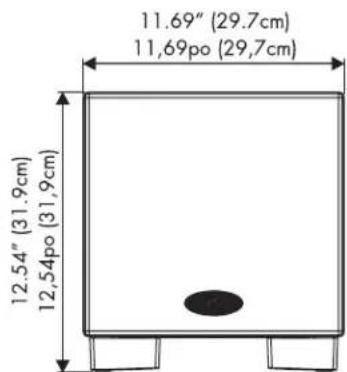

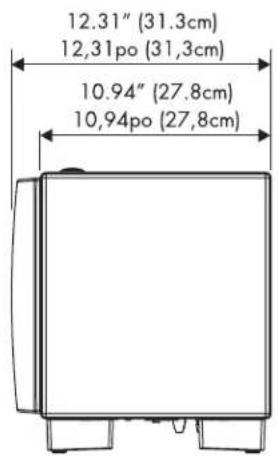

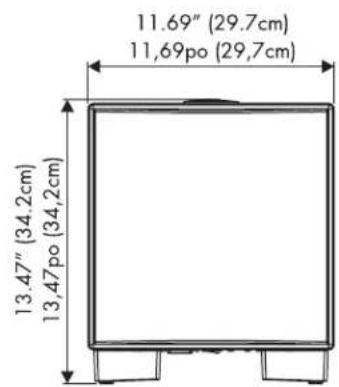

Dymamo 700W Dimensional Drawings 19

Dynamo 1000W Dynamo 700W

Tested to Comply th FCC Standards

FOR HOME OR OFFICE USE

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Serial Numbers:

Record your serial numbers here for easy reference. You will need this information when filling out your warranty registration. Your serial number is located near the bottom of the backplate and on the shipping container.

WARNING!

• Hazardous voltages exist inside—do not remove cover.
  Refer servicing to a qualified technician.
• To prevent fire or shock hazard, do not expose this module to moisture.
• Unplug subwoofer should any abnormal conditions occur.

WARNING! Do not use your Dynamo 1000W or Dynamo 700W subwoofoers or SWT-2 transmitter outside of the country of original sale—voltage requirements vary by country. Improper voltage can cause damage that will be potentially expensive to repair. The Dynamo 1000W or Dynamo 700W subwoofoers and SWT-2 transmitter are shipped to authorized MartinLogan distributors with the correct power supply for use in the country of intended sale. A list of authorized distributors can be accessed at www.martinlogan.com or by emailing info@martinlogan.

Thank you—the MartinLogan owner,

for loving what we do,

and

making it possible for us to do what we love.

Introduction

Congratulations! You have invested in one of the world's premier subwoofoers.

The MartinLogan Dynamo 1000W and 700W subwoofores represent the extension of an intensive, dedicated team research program directed toward establishing a world class line of reference subwoofores using leading-edge technology, without compromising durability, reliability, craftsmanship or aesthetics.

These subwoofoers use high-excursion drivers to achieve deep, tight, well-defined bass. A proprietary amplifier is used to drive the output stage with precision and extremely high efficiency. Low-pass filtering and phase control have been designed to make integrating the Dynamo 1000W and Dynamo 700W subwoofoers with MartinLogan and non-MartinLogan products both seamless and simple.

The materials in your new subwoofer are of the highest quality and will provide years of enduring enjoyment and deepening respect. The cabinet is constructed from the finest composite material for acoustical integrity and is finished with an attractive custom coating.

This User's Manual will explain in detail the operation of your subwoofer and the philosophy applied to its design. A clear understanding will insure that you obtain maximum performance and pleasure from this most exacting subwoofer.

Installation in Brief

We know that you are eager to hear your new subwoofer, so this section is provided to allow fast and easy up. Once you have it operational, please take the timer and, in depth, the rest of the information in this manual. It will give you perspective on how to attain the greatest possible performance from this most exacting subwoofer system.

If you experience any difficulties in setup or operation of the subwoofer, please refer to the Placement, Room Acoustics and Connections and Control Settings sections.

Should you encounter a persistent problem that cannot be resolved, please contact your authorized MartinLogan dealer. They will provide you with the appropriate technical analysis to alleviate the situation.

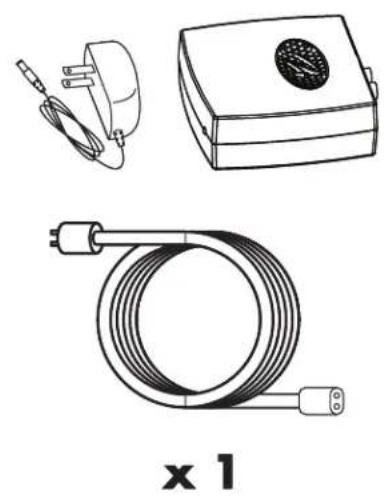

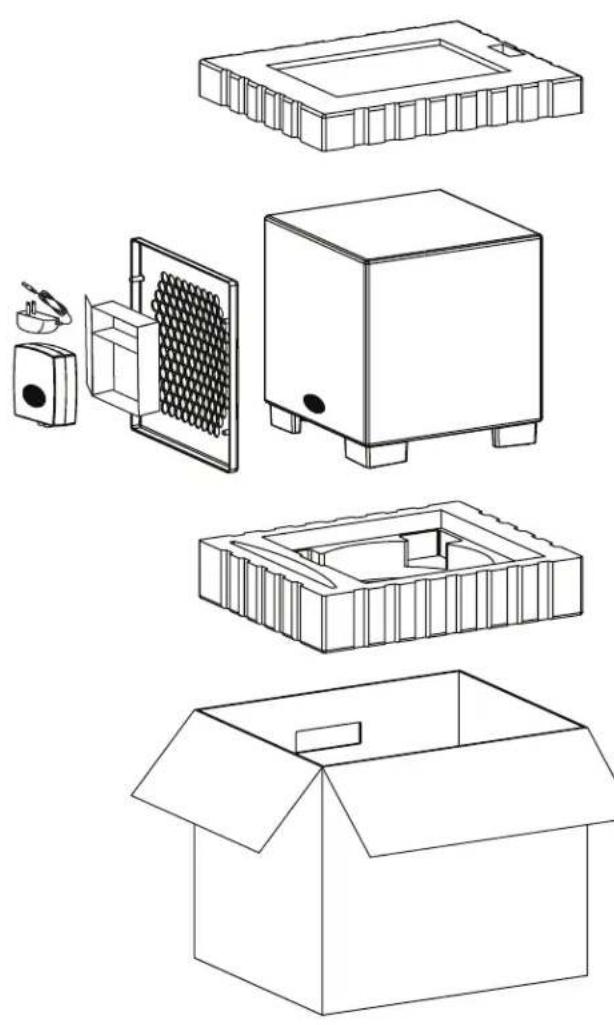

Step 1: Unpacking

Remove your new subwoofer from its packing.

Step 2: Placement

Ideally, place the subwoofer in a corner near the front of the room. This is a good place to start. Please see the Placement section (page 11) of this manual for more details.

Step 3: Signal Connection

The Dynamo 1000W and Dynamo 700W subwoofoers are provided with the SwT-2 subwoofer wireless transmitter. We recommend using a physical wire connection if possible. However, if ideal subwoofer placement is a challenge the SwT-2 will provide a seamless wireless connection with an extremely detailed and articulate bass performance.

Use the best cables you can. High quality cables, available from your specialty dealer, are recommended and will give you superior performance.

Attach your preamplifier/processor outputs through cables to the signal input area located on the subwoofer's rear panel. Please see the Connections and Control Settings section (pages 8-10) of this manual for more details.

Step 4: Power Connection (AC) (see warning)

Make sure the level knob is set at 'Min'. Plug the subwoofer into a wall outlet. Review the AC Power Connection section (page 10) of this manual for more details.

Step 5: Setting the Controls

Set the level knob to a medium volume position (12 o'clock). Set the power switch to 'Auto On'.

Step 6: Listen and Enjoy

Now, you may adjust your system and enjoy!

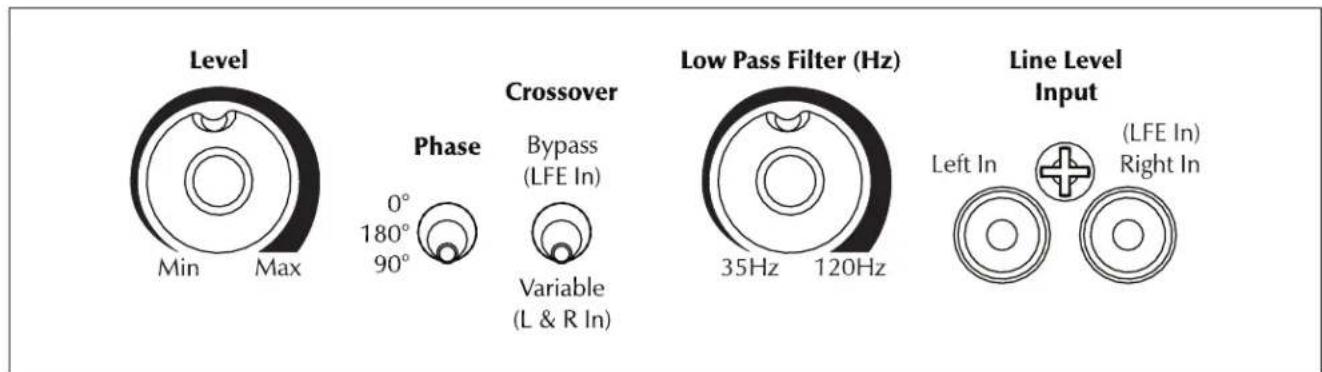

Figure 1. Dynamo 1000W and Dynamo 700W controls.

Level Knob

Setting the level too high will cause the bass to seem bloated and is the single most common cause of bad sounding subwoofoers. A rule of thumb is that the subwoofer should not draw attention to itself, but should simply make the systems low end seem more extended and accurate.

Phase Control Switch

The phase control is entirely dependent on the size and configuration of your listening environment, the placement of the unit, and your seating arrangement. Due to the way bass sound waves develop in different rooms, there is no rule of thumb for setting phase. For instance, if your room has a peak at the subwoofer crossover area, you may wish to set the phase so the actual acoustic outputs of the subwoofer and main speakers are out of phase. Experiment, try different settings and be patient.

Crossover

When the subwoofer is connected in multi-channel mode (via LFE), the crossover switch should be set to 'Bypass (LFE In)' so that the low pass filter is not active and your processor handles the bass management.

When connected in 2-channel mode (via left/right input), the crossover switch should be set to 'Variable (L&R In)' so that the low-pass filter is active.

Low Pass Filter Knob

When the subwoofer is connected in multi-channel mode (via LFE), the low pass filter is not active and your process

sor handles the bass management. When connected in 2-channel mode via its left/right input, the low-pass filter is active.

As a general rule the low pass filter should be set equal to approximately 70% of your speaker's lowest frequency response. Remember, this is a general rule. We advise that once you try the recommended setting using the formula above, you should try the surrounding settings to see which sounds best.

Wireless Sync Button and Status LED (not shown above)

The wireless sync button is used to establish connection to the SwT-2 MartinLogan Subwoofer Wireless Transmitter. The Wireless status LED indicates the current status of the wireless connection (see page 10 for further details).

Status LED (not shown above)

When the status LED (located on the back of the subwoofer) is blue, the subwoofer is on. When the status LED is red the subwoofer is in standby mode.

Master Power Switch (not shown above)

Located on the back panel of the subwoofer, the Master Power switch must be set to 'Auto On' for the subwoofer to operate. When set to 'Auto On' the subwoofer will automatically enter a power saving mode when no audio signal is detected. The subwoofer will automatically come out of power saving mode when a signal is detected.

Before Connecting the Dynamo

MartinLogan's engineering and design team developed the Dynamo 1000W and Dynamo 700W subwoofer for easy setup and system integration. Before beginning to connect your subwoofer, please review the controls discussed in the last section. An understanding of these will help speed you along as you connect and integrate your subwoofer with your system. All signal connections are done on the rear connections panel of the subwoofer. Make certain that all of your connections are tight.

WARNING! Turn your subwoofer to 'Off' before making or breaking any signal connections!

2-Channel Mode

This setup is recommended if your subwoofer will be used in a 2-channel system with main speakers playing full range. When a signal is connected via left/right inputs and the crossover switch is set to 'Variable (L&R In), the subwoofer's internal low pass filter is active.

If you will be using your system for both 2-channel and multi-channel listening we recommend connecting the subwoofer as recommended in 'Multi-Channel/LFE Mode' on the next page. Some modern receivers and processors allow users to route left and right channel low-frequency information, in addition to discrete LFE information, through the LFE output.

Signal Connection (see figure 2):

1 Connect the left and right outputs of your preamplifier to the left and right inputs using quality RCA interconnects. If your preamplifier only has one set of outputs you may need to obtain Y adapters from your dealer.

Recommended Control Settings (see figure 3):

1 Set the crossover switch to 'Variable [L&R In]'.
2 Set the 'Low Pass Filter' knob to approximately 70% of your loudspeakers lowest frequency response.
3 While playing music with bass content, turn the level control up until the music has deep extended bass, being careful to avoid levels that become overwhelming.

4 Try the phase control in different settings until the best blending is obtained. If you are augmenting MartinLogan loudspeakers, we suggest you start with the phase set at 90^ .

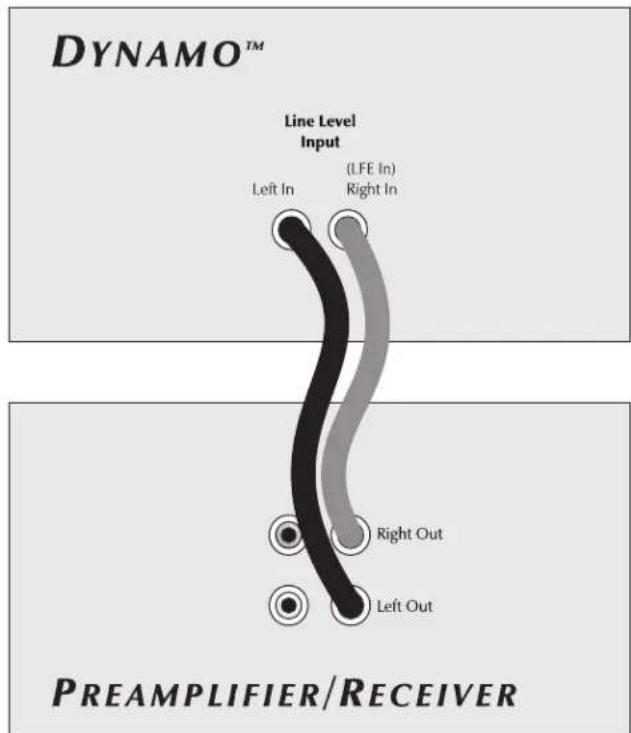

Figure 2. Signal connection for 2-channel mode.

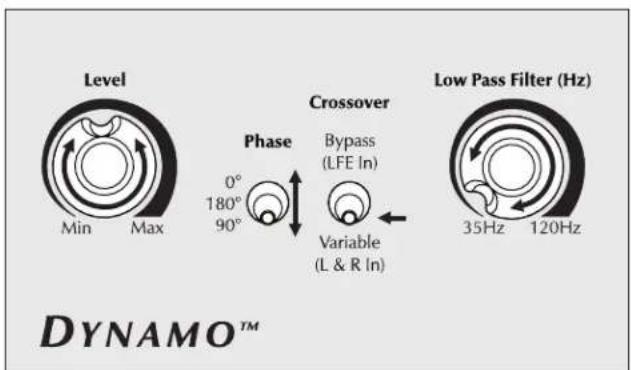

Figure 3. Control settings for 2-channel mode.

Multi-Channel/LFE Mode

This setup is recommended if your subwoofer will be used in a dedicated home theater or multi-channel system. When a signal is connected to the subwoofer's LFE input, and the crossover switch is set to 'Bypass (LFE In)' the internal low pass filter is not active. By following this setup, you will allow your processor to handle most of the bass management.

If you will be using your system for both 2-channel and multi-channel listening we recommend using this setup and connection method. Some modern receivers and processors allow users to route left and right channel low-frequency information, in addition to discrete LFE information, through the LFE output.

Signal Connection (see figure 4):

1 Connect the LFE output of the processor to the LFE input using a quality RCA interconnect.

WARNING!

Based on the performance of most processors, it is recommended that MartinLogan center and effects type speakers not be run in large, wide, or full range mode. Doing so may potentially damage the speaker if the processor attempts to drive the speaker beyond its rated frequency range. This warning also applies to products from other manufacturers.

It is recommended to run center and effects type speakers in limited or narrow mode. Some processors have an option to route the LFE channel to your main and/or surround speakers. We recommend that you do not use this option.

Recommended Control Settings (see figure 5):

1 Set the crossover switch to 'Bypass (LFE In)'.
2 Use the bass management section of your processor's speaker level setup option to set the subwoofer level at an appropriate level. Follow the instructions in your processor manual to fine-tune the subwoofer level.
3 If your processor offers the option to setup crossovers for a subwoofer, we recommend that you start with the following settings—Crossover: 70Hz, HighPass: 12dB, and Low

Pass: 24dB. The optimal setting for these options may vary depending on your room and listening preferences.

4 Adjust the phase control until ideal blending is obtained. If you hear no discernible difference leave the phase at 0^
5 Follow the instructions in your processor manual to finetune the subwoofer level

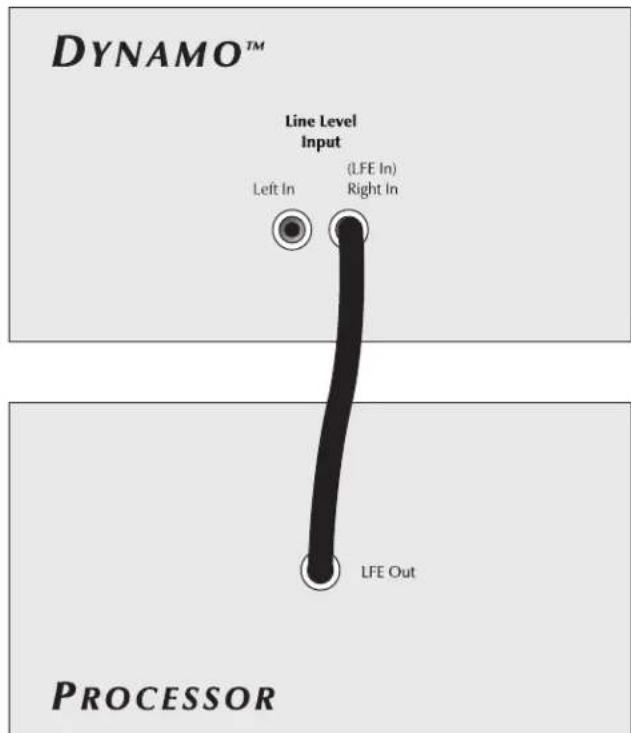

Figure 4. Signal connection for multi-channel mode.

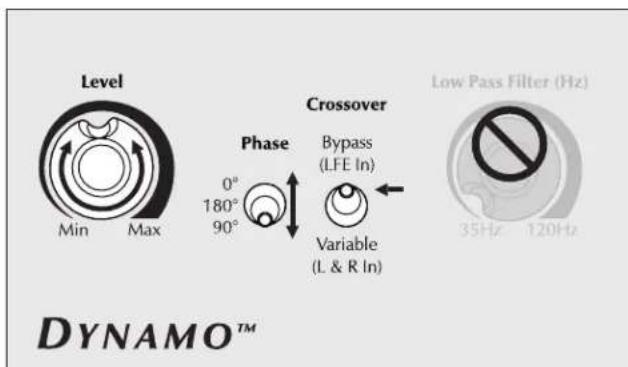

Figure 5. Control settings for multi-channel mode.

AC Power Connection

WARNING! The power cord should not be installed, removed, or left detached from the subwoofer while the other end is connected to an AC power source.

The IEC power cord should be firmly inserted into the AC power receptacle on the rear connection panel of the subwoofer, then to any convenient AC wall outlet. The sub also integrates a signal sensing power supply that automatically switches off after sensing no music signal for several minutes (this will occur when the power switch is set to 'Auto').

Your subwoofer is wired for the power service supplied in the country of original consumer sale. The AC power rating applicable to a particular unit is specified both on the packing carton and on the serial number plate attached to the subwoofer.

If you remove your subwoofer from the country of original sale, be certain that AC power supplied in any subsequent location is suitable before connecting and operating the subwoofer. Substantially impaired performance or severe damage may occur to the subwoofer if operation is attempted from an incorrect AC power source.

Replacing the Fuse

If the fuse in your subwoofer should require changing, turn off and unplug your subwoofer before removing the fuse. Replace with a matching fuse.

Break-In

Our custom made woofers require approximately 50 hours of break-in at moderate listening levels before their optimal performance occurs. This will factor in on any critical listening and judgment.

Optional Wireless Connection

The Dynamo 1000W and 700W subwoofer incorporate a wireless receiver for use with the MartinLogan SWT-2 Subwoofer Wireless Transmitter. To establish a wireless connection, connect a transmitter to your electronics and follow these two easy steps.

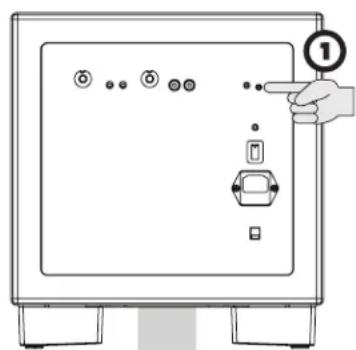

1. Press the subwoofer's sync button and hold for 3 seconds. The LED will blink quickly.
   2 Press the sync button on the SwT-2 transmitter and hold for 3 seconds. The LED will blink quickly. If pairing has completed successfully both LEDs will stop blinking and remain on. Please note: If a link is not established after 30 seconds this transmitter's LED will start blinking slowly. Repeat both steps.

WARNING! For best performance we recommend that the SwT-2 wireless transmitter not be placed on the floor.

WARNING! When operating wirelessly this subwoofer may be susceptible to RF interference in the 2.4GHz bandwidth from microwave ovens and wireless devices such as WiFi systems, video game consoles, cordless telephones, blue tooth devices, and baby monitors. Generally, this issue (intermittent sound or slight popping noises) is easily resolved by physically separating problematic devices from one another—a distance as little as two feet will often alleviate the interference. In the case of microwave ovens, the interference will only occur when the microwave is operating.

Figure 6. Establishing a connection between the subwoofer and the SwT-2 Subwoofer Wireless Transmitter (included).

Listening Position

Generally, subwoofoers have the most output when placed in the corner of a room. However, this can also exaggerate the subwoofoers output making blending difficult. We recommend starting by placing the subwoofer in a corner. If, after the full range of tuning techniques have been employed, the subwoofer sounds like it has too much upper bass energy trying pulling it away from the wall, toward the listening position. This will lessen the reinforcement of these problematic frequencies from the wall and likely smooth out the response. Repeat the tuning techniques with the woofer controls after you move it (see figure 7).

Ask Your Dealer

Your MartinLogan dealer can suggest many options for optimal subwoofer placement. They also have many tools at their disposal, such as experience, familiarity with the associated equipment, and even sound analysis equipment which may make the task of determining optimal subwoofer placement easier.

Enjoy Yourself

The Dynamo 1000W and Dynamo 700W are very refined subwoofoers and will benefit from care in setup. With the above placement tips in mind you will find, over months of listening, that small changes can result in measurable differences. As you live with your subwoofer, do not be afraid to experiment with positioning until you find the optimal relationship between your room, settings and subwoofer that gives you the best results. Your efforts will be rewarded.

Installing in a Cabinet

When placing the subwoofer inside of a cabinet it is recommended that there be a minimum of three inches of open space between the cabinet and the front and back sides (see figure 8).

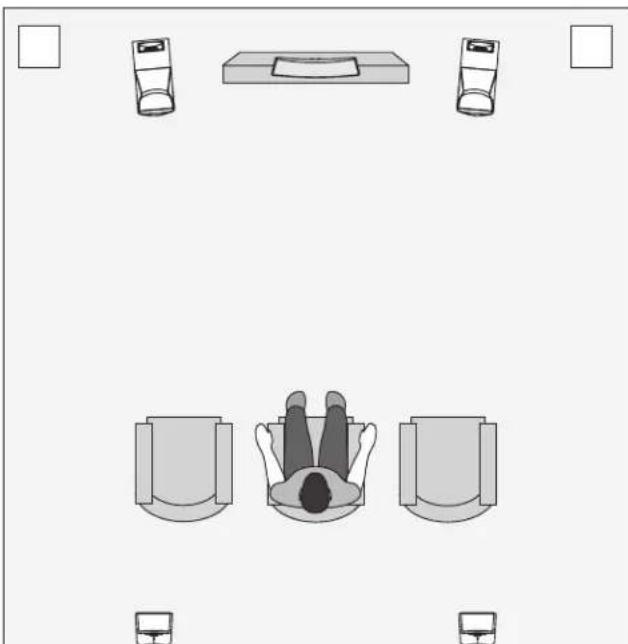

Figure 7. Dynamo subwoofoers as the LFE [effects] channels, MartinLogan speakers as front, center, and surround [effects] channels. Note the corner placement of the subwoofoers at the front of the listening room.

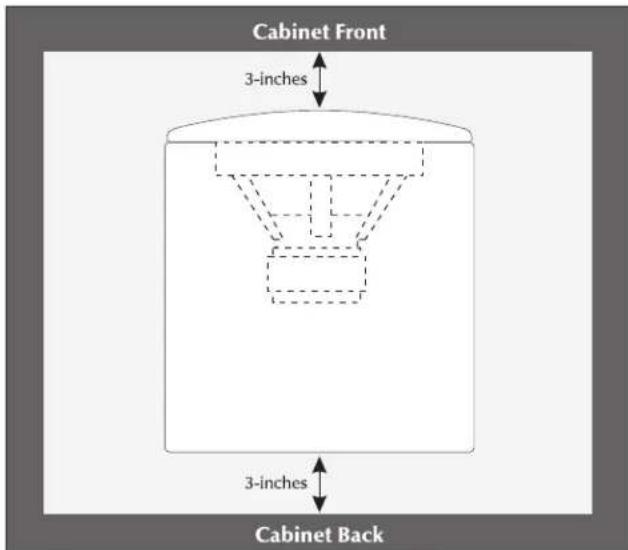

Figure 8. Placing the subwoofer in a cabinet requires a minimum of three inches of open space on the front and back.

Figure 9. The Dynamo 1000W and Dynamo 700W are capable of both frontfiring and down-firing woofer orientations.

Changing Woofer Orientation

When installing the subwoofer in a cabinet it is recommended that the subwoofer be converted to a front firing configuration. (see figure 9).

1 Prepare a flat surface with a blanket to protect the finish. Unplug signal and power connections. Remove the grill cloth.
2 Carefully lay the subwoofer on its side. Using a coin, unscrew the attached feet. (see figure 10).
3 Change the location of the four feet.
4 Using a coin, reinstall the feet (see figure 10).

Please note, 90^ RCA adaptors may be required to make signal connections. Two 90^ RCA adaptors are included with the subwoofer.

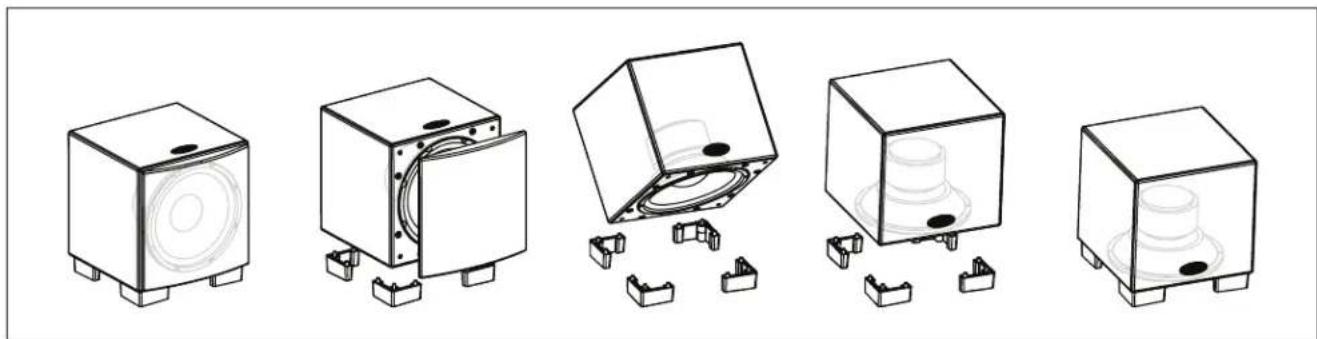

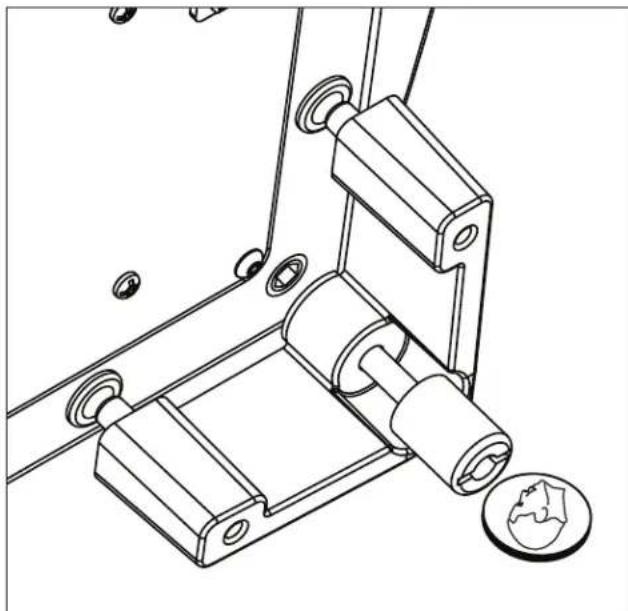

Figure 10. To change wooler orientation, use a coin to unscrew the attached feet, change location, and reinstall.

Your Room

This is an area that requires both a little background to understand and some time and experimentation to attain the best performance from your system. Your room is actually a component and an important part of your system. This component is a large variable and can dramatically add to or subtract from a great sonic experience.

All sound is composed of waves. Each frequency has its own wave size, with the lower, or bass frequencies literally encompassing from 10 feet to as much as 40 feet. Your room participates in this wave experience like a swimming pool with waves reflecting and becoming enhanced depending on the size and shape of the room and the types of surfaces in the room.

Remember that your audio system can actually generate all of the information required to recreate a sonic event in time, space, and tonal balance. Acoustically, the role of an ideal room would be to neither delete nor contribute to that information. However, nearly every room does to some degree.

Terminology

Standing Waves

Sound coming from a speaker bounces around in a room until a pattern emerges—this is called a standing wave. Typically, this is only a problem with frequencies below 100Hz. When this happens different parts of your room experience either an excess or a lack of bass.

Some people believe that having a room without parallel walls will eliminate this effect. The truth is that non-parallel walls only generate different standing wave patterns than those that occur in rectangular rooms.

Usually, you can excite most of the standing waves in a room by putting the subwoofer in a corner. Listening position determines which standing waves you will experience. For instance, if you sit in a corner you will hear most of the standing waves. This can be an overpowering experience. Sitting next to a wall can also intensify the levels of the standing waves that are experienced.

Resonant Surfaces and Objects

All of the surfaces and objects in your room are subject to the frequencies generated by your system. Much like an instrument, they will vibrate and "carry on" in syncopation

with the music, and may contribute in a negative way to the sound. Ringing, boominess, and even brightness can occur simply because surfaces and objects are "singing along" with your speakers.

Resonant Cavities

Small alcoves or closet type areas in your room can be chambers that create their own "standing waves" and can drum their own "one note" sounds.

Solid Footing

After living and experimenting with your subwoofer, you may want to use ETC™ (Energy Transfer Coupler) Spikes (see figure 11). With the use of these spikes, the subwoofer will become more firmly planted on the floor and, consequently, bass will tighten. It is best not to implement the spikes, however, until you are secure in the positioning, as the spikes can damage the floor if the subwoofer is moved.

Spike Installation Instructions:

1 Carefully lay the subwoofer on its side to gain access to the bottom of the feet.
2 Firmly press the spikes into the feet.

Caution: Make sure your hands and any cabling are clear of the spikes. Do not slide the subwoofer as spikes are sharp and can damage your floor or carpet.

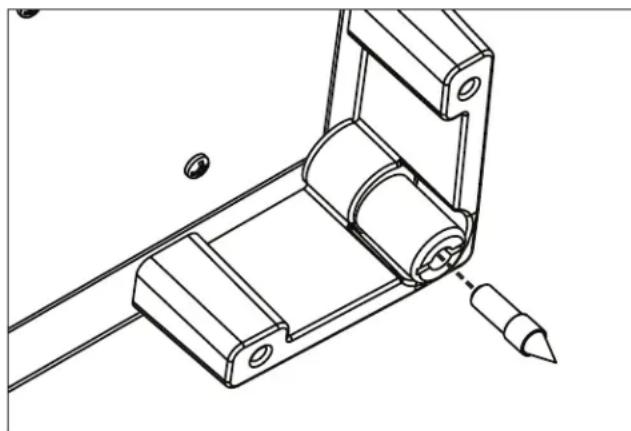

Figure 11. To install the spikes, press them into the feet.

It had long been the practice of stereo buffers to connect their television to a stereo system. The advantage was the use of the larger speakers and more powerful amplifier of the stereo system. Even though the sound was greatly improved, it was still mono and limited by the broadcast signal.

In the late 1970's and early 1980's two new home movie formats became widely available to the public: VCR and laser disc.

By 1985, both formats had developed into very high quality audio/video sources. In fact, the sonic performance of some video formats exceeded audio-only formats. Now, with theater-quality sound available at home, the only element missing was the "surround sound" presentation found in movie houses.

Fortunately, Dolby and DTS encoded DVD's emerged with the same surround sound information encoded on home releases as the theatrical release. Additionally, new high-resolution home-viewing formats such as Blu-ray as well as high-definition content provided via cable or satellite have evolved which include multi-channel encoded audio that is virtually master tape quality. All that is required to retrieve this information is a decoder and additional speakers and amps to reproduce it.

Home theater is a complex purchase and we recommend that you consult your local MartinLogan dealer, as they are well versed in this subject.

Each piece of a surround system can be purchased separately. Take your time and buy quality. No one has ever complained that the movie was too real. The following list and descriptions will give you only a brief outline of the responsibilities and demands placed on each speaker.

Front Left and Front Right

If these speakers will be the same two used for your stereo playback, they should be of very high quality and able to play loudly (over 102 dB) and reproduce bass below 80Hz .

Center Channel

This is the most important speaker in a home theater system, as almost all of the dialogue and a large portion of the front speaker information is reproduced by the center channel. It is important that the center speaker be extremely accurate and mate well with the front

speaker, and that it is recommended for use as a center speaker. This is not the place to cut corners.

Surround Speakers

We recommend (along with the film industry) that the surround speakers play down to at least 80Hz . Surround speakers contain the information that makes it appear that planes are flying over your head. Some may suggest that this is the place to save money and purchase small, inexpensive speakers. If you choose to do so, be prepared to upgrade in the future as discrete multi-channel digital encoding is proliferating rapidly and the demands on surround speakers have increased.

Subwoofer

With any good surround system you will need one or more high-quality subwoofoers (the .1 in a 5.1, 6.1, or 7.1 channel surround system). Most movie soundtracks contain large amounts of bass information as part of the special effects. Good subwoofoers will provide a foundation for the rest of the system.

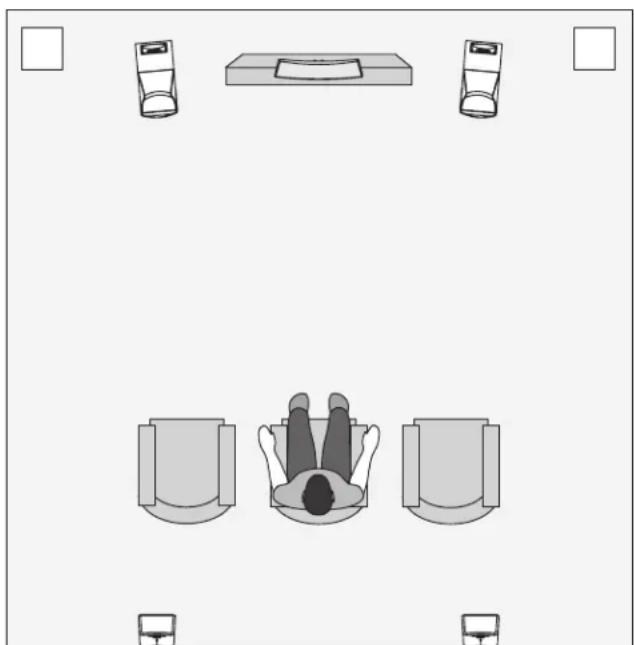

Figure 12. Dynamo subwoofoers as the LFE [effects] channels, MartinLogan speakers as front, center, and surround [effects] channels.

Frequently Asked Questions

How do I clean my subwoofer?

Use a dust free cloth or a soft brush to clean your subwoofer. We recommend a specialty cloth (available through the Xtatic shop at www.martinlogan.com) that cleans better than anything else we have tried.

Is it safe to set things on my subwoofer?

While your subwoofer is designed with a durable, stain-resistant surface, we advise you not to set anything on your subwoofer—especially containers holding liquids.

Is there likely to be any interaction between my subwoofer and the television in my Audio/ Video system?

Yes. The subwoofer doesn't use a shielded driver. We recommend 3 feet between the subwoofer and video components that are susceptible to magnetic fields.. Plamsma, LCD, and LED television are not susceptible to magnetic interference.

Is there likely to be any interaction between my subwoofer and other electrical devices in my house?

yes. When operating wirelessly this subwoofer may be susceptible to RF interference in the 2.4GHz bandwidth from microwave ovens and wireless devices such as WiFi systems, video game consoles, cordless telephones, blue tooth devices, and baby monitors. Generally, this issue (intermittent sound or slight popping noises) is easily resolved by physically separating problematic devices from one another—a distance as little as two feet will often alleviate the interference. In the case of microwave ovens, the interference will only occur when the microwave is operating.

Will my electric bill go 'sky high' by leaving my subwoofer plugged in all the time?

No. When the power switch is set to 'Auto On' the subwoofer will draw about 1.5 watts when idle and only 1 watts in standby mode.

Should I unplug my subwoofer during a thunderstorm?

Yes, or before. It's a good idea to disconnect all of your audio/video components during stormy weather.

Troubleshooting

No Output

• Check that all your system components are turned on.
• Check that the master power switch adjacent to the AC receptacle is set to 'Auto On'.
• Check your wires and connections.
• Check all interconnecting cables.
  Make sure the level control is not turned down.

• Turn off and unplug the subwoofer and check the fuse near the AC power cord receptacle on the back. If the fuse has blown, replace the bad fuse with a matching fuse.

• If the problem persists, contact your dealer.

Muddy Bass

• Check placement. Try moving the subwoofer closer to the front and side walls.
• Check the type of feet that are being used. Try installing the ETC spikes.
  Decrease the level.
• Check your processor setup.
• If the problem persists, contact your dealer.

Hums or Unusual Sounds

• Turn the subwoofer off, unplug all signal inputs, turn the subwoofer back on and turn up the level. If the problem disappears, the hum is originating elsewhere in your system.
• Connect the subwoofer's AC connection to the same AC circuit as the pre amp.
• If operating in wireless mode, move the subwoofer away from microwave ovens and/or any devices that use wireless technology.
  If the problem persists, contact your dealer.

Intermittent Output With Wireless

• Make sure that no other wireless devices are within 2 feet of the SVT-2 transmitter.
• Check placement and make sure the SWT-2 wireless transmitter is at least 1 foot off of the ground.
• Move the SwT-2 transmitter and sub closer together.
• Remove barriers from between the devices. Although the SwT-2 uses an RF signal, it may not penetrate some walls or cabinetry.

The Dynamo 1000W subwoofer system consists of a single woofer for high SPL output with minimal distortion. The equalization used is specifically designed to counteract the response of the wooferse sealed box response. This equalization leads to minimal group delay and proper transient response.

System Frequency Response

22-200 Hz ± 3 dB. Anechoic in LFE mode.

Low Pass Filter Frequencies

35Hz-120Hz

Low Pass Filter Switch

Bypass {LFE In}, Variable {L&R In}

Phase

0^, 90^, 180^

Components

12^ (30.5cm) high-excursion, polypropylene cone with extended throw driver assembly; sealed non-resonant cabinet design

Amplifier

500 watts RMS [1000 watts peak]

Impedance

Left & Right/LFE RCA - 20,000 Ohms

Inputs

Left & Right/LFE RCA Line Level

Weight

34 lbs. each (15.4 kg)

Mains Power Draw

Standby: 1W

Idle: 15W

Max: 650W

Size (Front-Firing Orientation)

13.69 inches W × 14.35 inches D × 15.46 inches H

(34.8cm W × 36.4cm D × 39.3cm H)

Size (Down-Firing Orientation)

13.69 inches W x 14.59 inches D x 14.54 inches H

34.8cm W × 37.1cm D × 36.93cm H

Dynamo 700W SpecificationsDynamo

The Dynamo 700W subwoofer system consists of a single woofer for high SPL output with minimal distortion. The equalization used is specifically designed to counteract the response of the woofer sealed box response. This equalization leads to minimal group delay and proper transient response.

System Frequency Response

24-200 Hz ± 3 dB. Anechoic in LFE mode.

Low Pass Filter Frequencies

35Hz-120Hz

Low Pass Filter Switch

Bypass {LFE In}, Variable (L&R In)

Phase

0^, 90^, 180^

Components

10^ (25.4cm) high-excursion, polypropylene cone with extended throw driver assembly; sealed non-resonant cabinet design

Amplifier

300 watts RMS (600 watts peak)

Impedance

Left & Right/LFE RCA - 20,000 Ohms

Inputs

Left & Right/LFE RCA Line Level

Weight

26.5 lbs. each (12 kg)

Mains Power Draw

Standby: 1W

Idle: 15W

Max:400W

Size (Front-Firing Orientation)

11.69 inches W × 12.31 inches D × 13.47 inches H

29.7cm W × 31.3cm D × 34.2cm H

Size (Down-Firing Orientation)

11.69 inches W x 12.53 inches D x 12.54 inches H

(29.7cm W × 31.8cm D × 31.9cm H)

Warranty and Registration Service

Your Dynamo subwoofer is provided with an automatic Limited 90 Day Warranty coverage.

You have the option, at no additional charge, to receive Limited 3-Year Warranty coverage. To obtain the Limited 3-Year Warranty coverage you need to complete and return the Certificate of Registration, included with your subwoofer, and provide a copy of your dealer receipt, to MartinLogan within 30 days of purchase.

For your convenience MartinLogan also offers online warranty registration at www.martinlogan.com.

MartinLogan may not honor warranty service claims unless we have a completed Warranty Registration card on file!

If you did not receive a Certificate of Registration with your new subwoofer you cannot be assured of having received a new unit. If this is the case, please contact your authorized MartinLogan dealer.

Should you be using your MartinLogan product in a country other than the one in which it was originally purchased, we ask that you note the following:

1 The appointed MartinLogan distributor for any given country is responsible for warranty servicing only on units distributed by or through it in that country in accordance with its applicable warranty.

2 Should a MartinLogan product require servicing in a country other than the one in which it was originally purchased, the end user may seek to have repairs performed by the nearest MartinLogan distributor, subject to that distributor's local servicing policies, but all cost of repairs (parts, labor, transportation) must be born by the owner of the MartinLogan product.

3 If, after owning your subwoofer for six months, you relocate to a country other than the one in which you purchased your subwoofer, your warranty may be transferable. Contact MartinLogan for details.

SWT-2 Dimensional Drawings

DYNAMO 700W DIMENSIONAL DRAWINGS

WARNING! Do not use your Dynamo 1000W or Dynamo 700W subwoofer or SWT-2 transmitter outside of the country of original sale—voltage requirements vary by country. Improper voltage can cause damage that will be potentially expensive to repair. The Dynamo 1000W or Dynamo 700W subwoofer and SWT-2 are shipped to authorized MartinLogan distributors with the correct power supply for use in the country of intended sale. A list of authorized distributors can be accessed at www.martinlogan.com or by emailing info@martinlogan.

MARTINLOGAN

lawrence, Kansas, USA tel [phone] fax [phone] www.martinlogan.com

DYNAMO 1000W | DYNAMO 700W | SWT-2

Warranty and Registration

Service

Low Pass Filter Switch

Bypass (LFE In], Variable (L&R In)

Phase

0^, 90^, 180^

Components

500 watts RMS (creme 1000 watts)

Impedance

Gauge et droit/LFE RCA - 20 000 Ohms

Entrées

Gauge et droite/LFE RCA Line Level,

Poids

34 lb chaun (15,4 kg)

Low Pass Filter Switch

Bypass (LFE In), Variable (L&R In)

Phase

0^, 90^, 180^

Components

300 watts RMS (crete 600 watts)

Impedance

Gauge et droit/LFE RCA - 20 000 Ohms

Entrees

Gauge et droite/LFE RCA Line Level,

Poids

26,5 lb chacun (12 kg)
