USER MANUAL Kickback Rebounder L EXIT

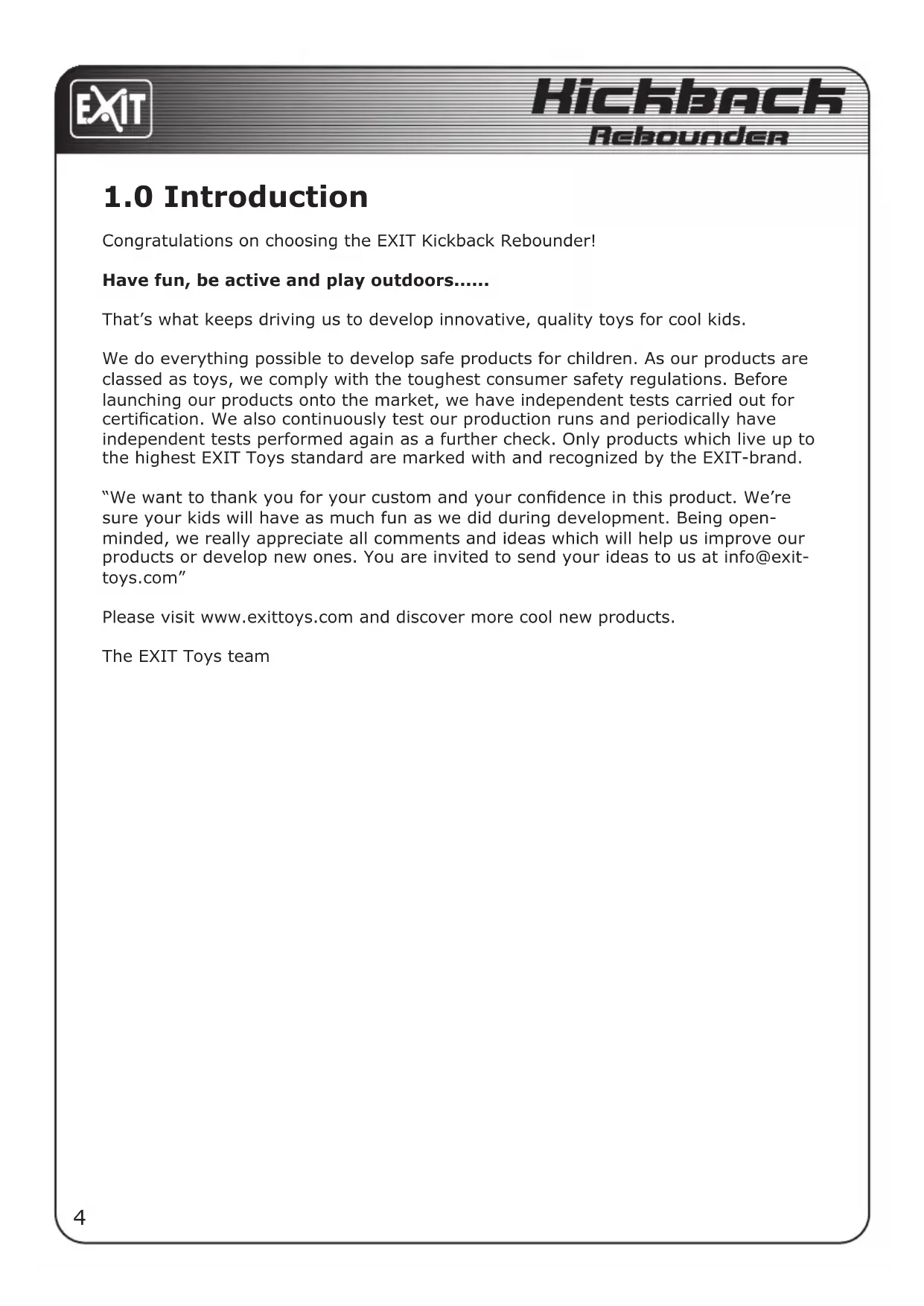

Congratulations on choosing the EXIT Kickback Rebounder!

Have fun, be active and play outdoors.....

That's what keeps driving us to develop innovative, quality toys for cool kids.

We do everything possible to develop safe products for children. As our products are classed as toys, we comply with the toughest consumer safety regulations. Before launching our products onto the market, we have independent tests carried out for certification. We also continuously test our production runs and periodically have independent tests performed again as a further check. Only products which live up to the highest EXIT Toys standard are marked with and recognized by the EXIT-brand.

"We want to thank you for your custom and your confidence in this product. We're sure your kids will have as much fun as we did during development. Being open-minded, we really appreciate all comments and ideas which will help us improve our products or develop new ones. You are invited to send your ideas to us at [e-mail]"

Please visit www EXITfoys.com and discover more cool new products.

The EXIT Toys team

2.0Warnings for safe use:

Adult supervision is required at all times when the rebounder is used by children.
- To reduce risk of entanglement, keep small children away from net area at all times.
- When properly assembled and used as intended, this rebounder is designed to provide many hours of training and playing enjoyment.
- Never let children climb on the rebounder as this can result in rebounder falling over causing serious injury or death.
- The metal frame of the rebounder will conduct electricity. Lights, extension cords, and all such electrical equipment must never be allowed to come in contact with the rebounder.
- Inspect the rebounder before each use. Make sure all parts are correctly and securely positioned and attached. Tighten any loose hardware. Replace any worn, defective, or missing parts.
- Read all instructions and complete all assembly before using.

3.0 Assembly and Installation Instructions

• Adequate overhead clearance is essential. Provide clearance for wires, tree limbs, and other possible hazards.
• Lateral clearance is essential. Place the rebounder away from walls, structures, fences, and other play areas. Maintain a clear space on all sides of the rebounder. A minimum of 3m from frame edge is recommended.
• Never set-up the rebounder in heavy rain, wind or storm conditions, especially storms.
• When moving the assembled rebounder, have at least two people evenly the frame to lift the reboundert off the ground.
• Place the rebounder on a level surface before use.
• Secure the rebounder against unauthorized and unsupervised use.

4.0 Care and Maintenance Instructions

Inspect the rebounder before each use and replace any worn, defective, or missing parts.

The following conditions could present potential hazards:

1. Missing, improperly positioned, or insecurely attached frame or frame padding.
2. Punctures, frays, tears, or holes worn in the rebounder mesh.
3. A bent or broken frame or support system.
4. Sharp protrusions on the frame or suspension.
5. Loosened or missing hardware, system.

5.0 Guarantee Conditions & Service

The owner of this product has the following guarantees on the product:

• 2 years from date of purchase on the frame (regular use).
• A 3-month guarantee is given on the other parts (regular use).
• The guarantee only applies for material/construction errors of the product and/or parts thereof.

The guarantee is not applicable and/or is invalidated in the following cases:

• The rebounder has been handled without due care, has been involved in an accident, or has been fitted with non-approved parts.
• The rebounder has not been assembled as per instructions or has not been correctly maintained.
• Parts fitted afterwards do not match the rebounder's technical specifications or original parts have not been used or have not been fitted correctly.
• The rebounder is used for professional purposes (rental, schools, clubs, etc.).
• Technical repairs to the rebounder were not carried out professionally.
• Replacement of parts were not carried out on time.

The owner of the rebounder can only claim a guarantee by presenting the original bill for the purchase to Dutch Toys Group or the dealer from whom the product was bought.

If the claim under the guarantee is refused, then all costs incurred must be paid by the owner.

Guarantee is not transferable to third parties.

1.0 Einführung

5 Elastic with ball 36pcs

6 Rear U-pipe 1pcs

7 Rear straight pipe 2pcs
8 Φ42mm pipe 1pcs

9 Φ38mm pipe 1pcs

10 L-plug 1pcs

11 M8X65mm Bolt 2pcs

12 M8 Plastic washer 6pcs

13 M8 Locknut 3pcs

16 M5 Washer 2pcs

14 Plastic pad 2pcs

15 M4.2X19mm Self-tapping screw 2pcs

19 combination spanner 1pcs

17 M8X60mm Bolt 1pcs

20 D-Plug 1 pcs

Assembly steps / Montageschritte / Montage / Assemblée

1. EN: Lay the Pad (1) upside down. Then insert the upper U-pipe (2) into the Lower U-pipe (3) to assemble the frame. The position of the holes in the upper U-pipe (2) and the position of the holes in the lower U-pipe are located in the same side. Note: The Pad (1) needs to be lifted when assembling the upper U-pipe (2) and the Lower U-pipe (3).

1. EN: Turn around the Pad (1). Use two elastics with ball (5) through the first mesh of the net (4) at each 4 corners of the frame as shown and put the elastics around the frame. Note: First attach an elastic at the horizontal direction, then attach another elastic at the vertical direction.

1. EN: Attach all remaining elastics (5) to the frame as indicated by the arrows. Expand the pad (1), then attach all the straps of the pad (1) to the Net (4).

1. EN: Attach the Plastic pad (14) to the Pad (1) and the Lower U-pipe (3) with two M4.2X19mm Self-tapping screws (15) and two M5 Washers (16). Note: The selftapping bolts need to through the Pad (1), then tighten on the hole of the Lower U-pipe (3).

1. EN: Insert the Rear straight pipe (7) into the Upper U-pipe (2) with M8X65mm Bolt (11) and two plastic washers (12) and M8Locknut(13).

Note: the hole of the Rear straight pipe (7) towards to the pad (1).

1. EN: Insert the Rear U-pipe (6) into the Rear straight pipe (7) until the button snaps into place.

1. EN: Insert the first hole of the 38mm pipe (9) into the second hole of the 42mm pipe(8). Then insert the D-plug (20) from the top down. There are multi adjustment positions, according to the desired position.

1. EN: Attach the third hole of the 42mm pipe (8) and the hole of the Lower U-pipe (3) with the L-plug(10). Then attach the eleventh hole of the 38mm pipe (9) and the hole of the Rear U-pipe(6) with M8X60mm Bolt(11) and two Plastic washers (12) and M8 Locknut(13).

1. EN: This Rebounder L has three adjustment angels when using the button snap adjustments and ten angles when using the D-plug.

EN: This rebounder can be reversed using the top of the frame as support on the ground. It has multi angle adjustment.

EN: Congratulations! The EXIT Kickback Rebounder is ready to use!
