USER MANUAL San Marino Detomaso

Instructions for care 14

Shortening of metal brackets. 15

DETOMASO SAN MARINO Solar 16

DETOMASO SAN MARINO Automatic 17

Operating instructions for the watch 18

24 months warranty. 19

EN

Foreword

Congratulations on the purchase of your new DETOMASO watch. You are now the new owner of a high precision time keeper characterised by its innovative design.

We keep a long term stock of the most important spare parts for all our watches, guaranteeing repair over a period of many years.

In order to ensure that your new watch functions properly for many years, please read the following instructions carefully.

Waterproof properties

The water resistance of your DETOMASO watch has been tested with 120 ATM for the automatic watch model and with 50 ATM for the solar model. This means that you may wash your hands, take a bath and a shower or swim and dive with it. Of course it also is spray waterproof.

This means that it is splashproof and that you may wash your hands or take a bath or a shower with it. You may also swim with it and even go diving. Waterproofness is not a permanent characteristic; it should be tested annually and in particular before the watch is put under exceptional strain, as the seals deteriorate gradually in daily use. The seals are the important factor in guaranteeing the waterproofness of a watch. These age naturally and are also affected by perspiration and acids.

ISO 2281 stipulates which standards have to be met by a new watch. The level of waterproofness is given in atm and noted on the base of the casing.

In some cases a short-term higher pressure than the guaranteed inspection pressure may be enforced on the seals, for example when swimming or diving into water. Watches are at particular risk when the wearer dives into water after sunbathing. The combination of the impact pressure with the negative pressure caused by the sudden drop in temperature can quite easily cause damage.

It is important to check and, if necessary, replace seals when the battery is replaced.

EN

Instructions for care

Your watch is a high precision electronic and mechanical masterpiece and should serve you well for a long time.

Please keep your watch away from magnetic fields, heat, water and chemicals. Do not submit it to sudden impact or abrasion. Watches should not be worn in bed.

If a battery operated watch stops or the low battery indicator shows, it should be taken to a specialist as soon as possible to prevent the battery from causing damage in the watch or to the environment.

Batteries should be replaced by a specialist at regular intervals of approx. 1 - 112 years. The seals can then be checked and, if necessary, replaced at the same time.

In the event of condensation forming underneath the glass [misting], the watch should be taken to a specialist as soon as possible to prevent the moisture from causing further damage.

The crown should always be firmly pressed in or screwed tight during use.

Note on screwed down crowns

Some watch models have a screwed down crown to prevent dust and water from penetrating. In order to set the time, first unscrew the crown by turning it in an anti-clockwise direction. Now set the time as required and then press the crown gently back onto the thread and screw it down tightly in a clockwise direction.

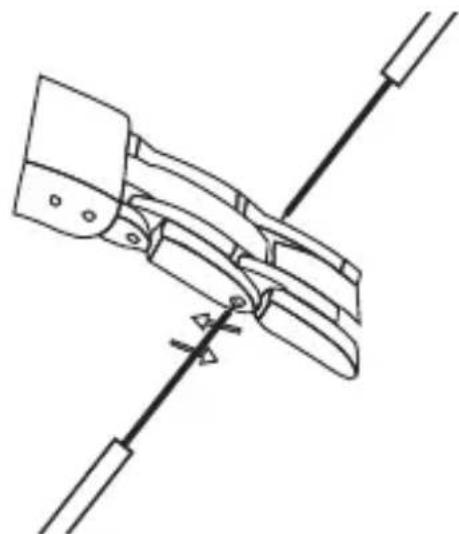

Shortening of metal brackets

Please have the shortening of a bracelet done at a local watch dealer as unprofessional handling may void your guarantee.

Shortening of the metal band:

You require 2 screwdrivers with a 1,4 mm tip.

Please fasten one screw with the screwdriver and unscrew the opposite screw with the other screwdriver. When the screws are removed you may shorten the band and afterwards fasten it in the same manner.

DETOMASO SAN MARINO Solar

The SAN Marino solar watch is powered by solar energy and does not require a battery. Light waves are transformed into electrical energy and saved in a condenser. Once charged, the watch will run for about 6 months before having to be recharged. The following table lists charging times for various lighting conditions:

Illumination in Lx	light source surrounding A hours (ca.) B hours (ca.) C minutes (ca.)
700 Artificial light office 19	73754
3000 30W 20cm 438 12
10000	sunlight	overcast 133	4
100000		bright	6	36 Minutes	1

Column A: required time for full charge, column B: required time for permanent use, column C: required time for 1 day use

Important: please note:

1. The watch should be fully charged and set properly prior to first use.
2. In order to stop the watch the crown should be pulled out. This will save energy. Tor restart the watch please push back the crown and reset the time.
3. The watch should be worn outside a sleeve to be exposed to light.
4. It is strongly recommended to expose the watch to light for 3-4 hours per day if it is not worn.

DETOMASO SAN MARINO Automatic

Your new DETOMASO SAN Marino Automatic watch is a mechanical watch that does not require a battery.

Its mechanical movement is exposed to the environment and to the wear and tear of the watch owner such as changing temperature and atmospheric pressure, rapid movement or vibration.

As opposed to regular quartz watches, for this watch a slight time deviation is considered normal since it is more sensitive.

An automatic movement is wound by movement through wearing. Inside the watch is an oscillation mass that will wind the tension spring. This oscillation mass is initiated by arm movement. Some arm movement will be sufficient to start your watch.

It will automatically rewind as long as it is worn. As soon as your watch is taken off the arm the automatic movement will stop. If the watch has been fully wound, it will take several hours before the watch will stop.

You do not need to wear your watch at night as it has a movement reserve. If worn again the next day, your watch will work just fine.

Should your watch stop working for some reason, please follow the instructions above for first use.

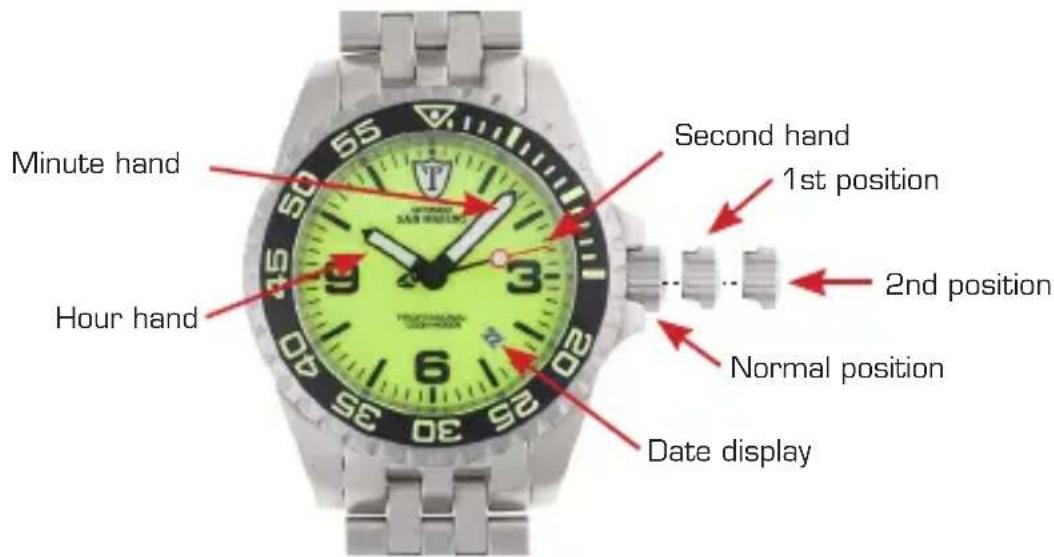

Operating instructions for the watch

Setting the date

1. Unscrew the crown counter clockwise.
   2.Pull out the crown into the 1st position.
2. Turn the crown until the desired date is set.
3. Slightly push back the crown and fasten clockwise.

Setting the time

1. Pull out the crown into the 2nd position.
2. Set the time by turning the crown.
3. Slightly push back the crown and fasten clockwise.

24 month warranty

We guarantee that your watch is made of high quality materials. Extensive quality controls guarantee that the watch is checked before being released by the manufacturer.

Nevertheless, material faults cannot always be avoided. Should your new watch show any faults, please consult our customer service department within the valid warranty period.

We provide a 24 month warranty from date of purchase on all material faults and production errors. This manufacturer's warranty applies regardless of statutory warranty rights. The warranty covers the functioning of the clockwork and the flawless workmanship of the watch. Not covered are: batteries, wear and tear of the casing, glass or watch strap as well as damage caused by improper use (accident, broken glass, water damage, pulled-out crown).

We will repair manufacturing faults free of charge within the warranty period. Should the watch be irreparable it will be replaced by a comparable model.

To obtain warranty services please return the product to the place of purchase, together with a copy of your sales receipt or other proof of purchase that shows the date of purchase. Alternatively you may send the watch to the service centre listed on the back of this booklet.

Table des matieres

Prelambule 21

Etanchéité 22

Disposal of Waste Electrical & Electronic Equipment of products for Household use (Applicable in the European Union only)

The symbol (crossed out wheeled-bin) on your product indicates that the product shall not be mixed or disposed with your household waste at their end of use.

This product shall be handed over to your local community waste collection point for the recycling of theproduct. For more information, please contact your Government Waste-Disposal department in yourcountry. Incorrect waste handling could possibly have a bad effect on the environment and human healthdue to potential dangerous substances. With your cooperation in the correct disposal of this product,you contribute to reuse, recycle and recover the product and our environment will be protected.

Disposal of Waste Electrical & Electronic Equipment of products for business use (Applicable in the European Union only)

For further information regarding the disposal of products for business handling, please contact your dealer or distributor in your country. This product shall not be mixed or disposed with commercial waste.

DETOMASO

Service Center

MAX Trader GmbH
