USER MANUAL Compasso Detomaso
Instructions for care 18
Operating instructions 19
24 months warranty 26
EN
Foreword
Congratulations on the purchase of your new DETOMASO watch. You are now the new owner of a high precision time keeper characterised by its innovative design.
We keep a long term stock of the most important spare parts for all our watches, guaranteeing repair over a period of many years.
In order to ensure that your new watch functions properly for many years, please read the following instructions carefully.
Waterproof properties
The water resistance of your DETOMASO watch has been tested to be 5 ATM.
This means that it is splashproof and that you may wash your hands or take a bath with it. However, the watch is not to be worn in the shower or when swimming or diving. Waterproofness is not a permanent characteristic; it should be tested annually and in particular before the watch is put under exceptional strain, as the seals deteriorate gradually in daily use. The seals are the important factor in guaranteeing the waterproofness of a watch. These age naturally and are also affected by perspiration and acids.
ISO 2281 stipulates which standards have to be met by a new watch. The level of waterproofness is given in atm and noted on the base of the casing. Your DETOMASO watch has been tested and has a water resistance of 5 ATM. The specification „5 ATM" is not to be confused with the diving depth; it is simply the definition of the inspection pressure. An inspection pressure of 5 ATM is reached at a depth of 50m . You cannot go diving with this watch.
In some cases a short-term higher pressure than the guaranteed inspection pressure may be enforced on the seals, for example when swimming or diving into water. Watches are at particular risk when the wearer dives into water after sunbathing. The combination of the impact pressure with the negative pressure caused by the sudden drop in temperature can quite easily cause damage. It is important to check and, if necessary, replace seals when the battery is replaced.
EN
Instructions for care
Your watch is a high precision electronic and mechanical masterpiece and should serve you well for a long time.
Please keep your watch away from magnetic fields, heat, water and chemicals. Do not submit it to sudden impact or abrasion. Watches should not be worn in bed.
If a battery operated watch stops or the low battery indicator shows, it should be taken to a specialist as soon as possible to prevent the battery from causing damage in the watch or to the environment.
Batteries should be replaced by a specialist at regular intervals of approx. 1 - 1 12 years. The seals can then be checked and, if necessary, replaced at the same time.
In the event of condensation forming underneath the glass [misting], the watch should be taken to a specialist as soon as possible to prevent the moisture from causing further damage.
The crown should always be firmly pressed in or screwed tight during use.

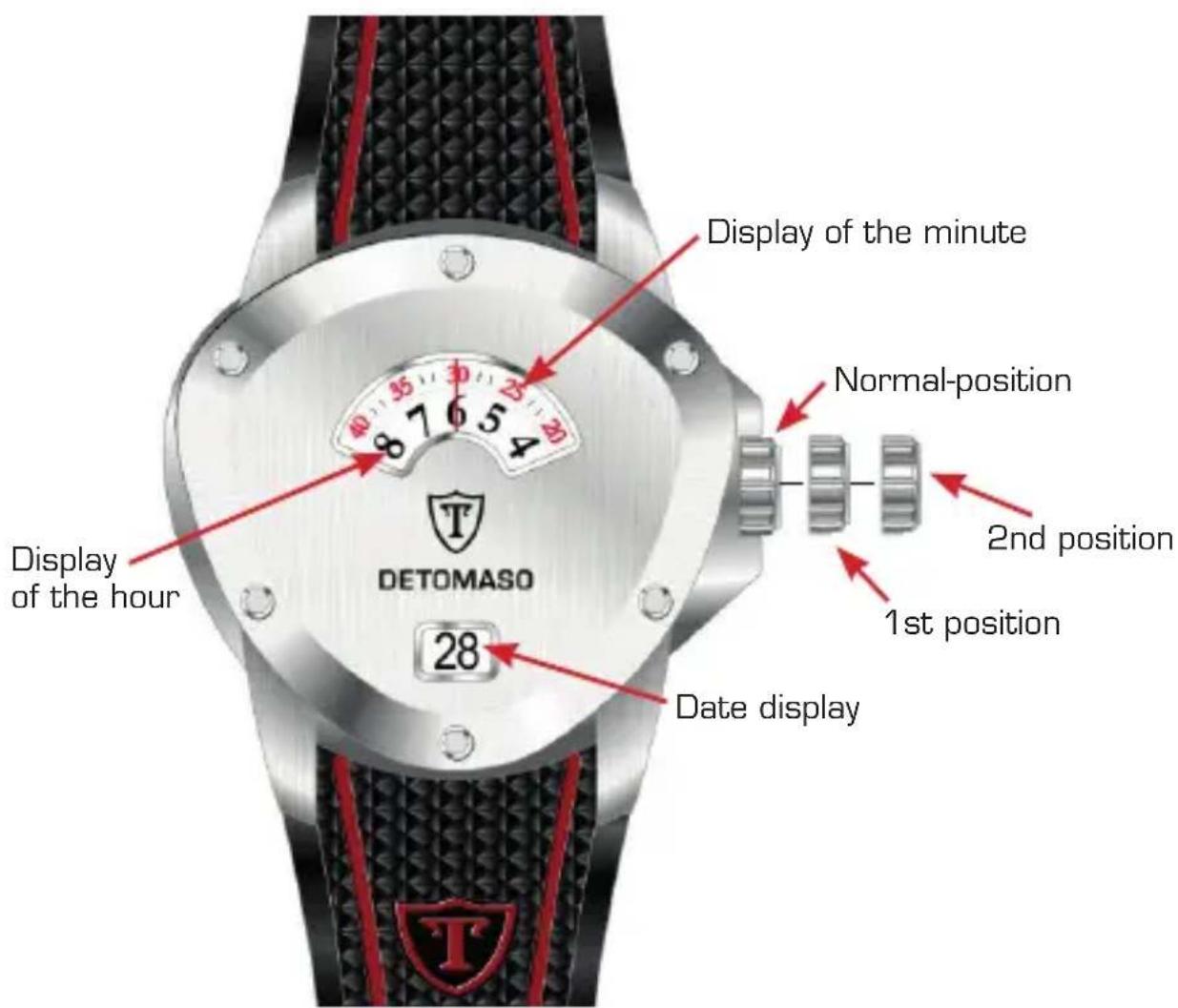

Operating instructions Compasso
EN
EN
Setting the date
- Pull out the crown in position 1.
- Turn the crown clockwise until the date is set.
- Push back the crown into normal position when the weekday is set.
Setting the time
- Pull out the crown in position 2.
- Set the time by turning the crown.
- Push back the crown into normal position when the time is set

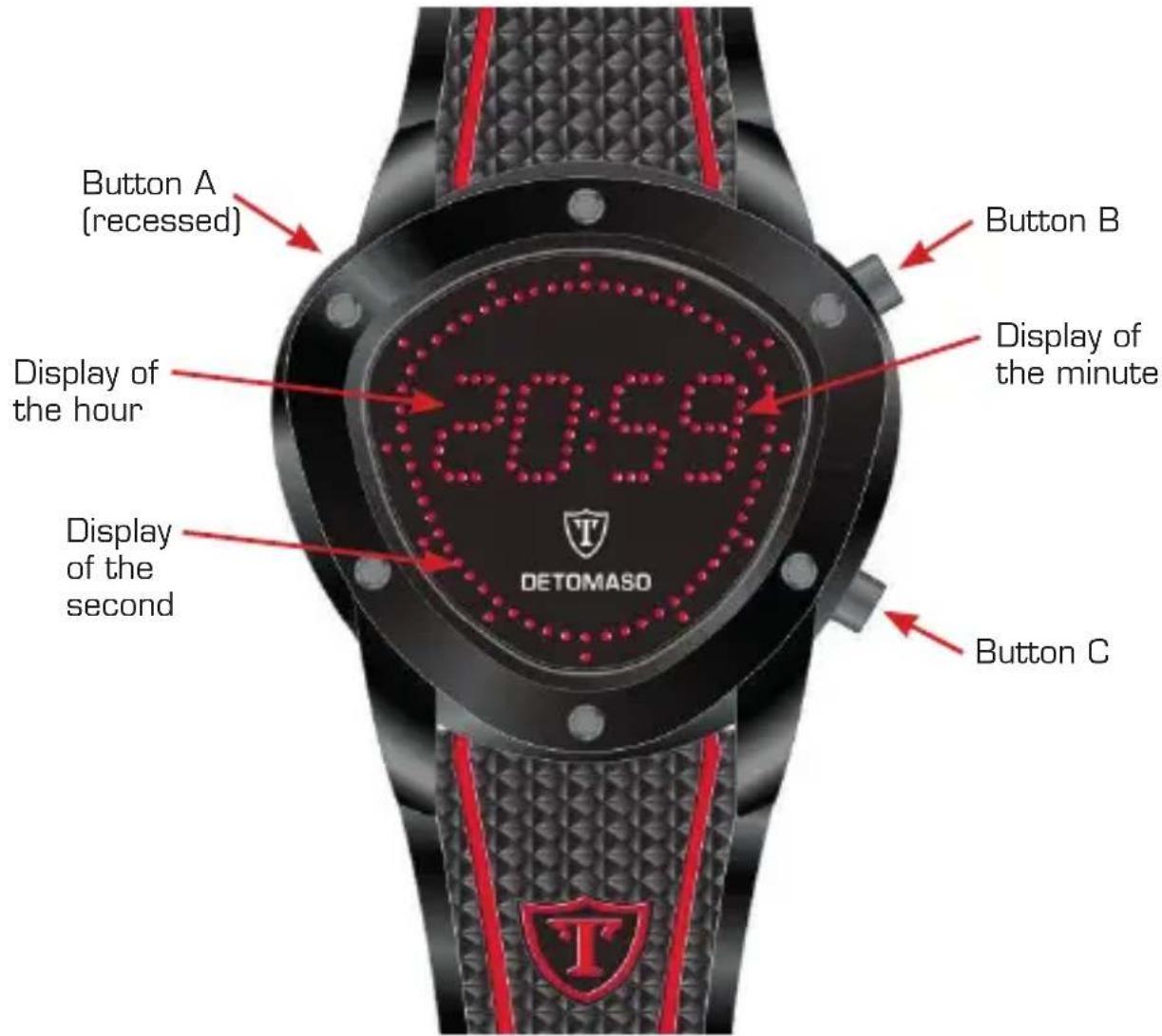

Operating instructions Compasso Digital
EN
EN

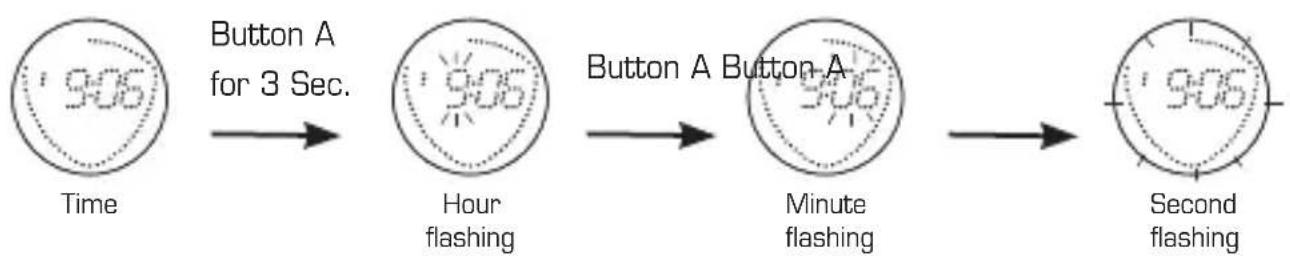

Setting the time
Press the recessed button A with the tip of a pen and hold for 3 seconds. The hour display will start flashing. Press button B or C in order to advance or reverse the hour.
Press button A again [with flashing hour display] in order to advance or reverse the minute display with button B or C.
Press button A again [with flashing minute display] in order to advance or reverse the second display with button B or C.
When the watch has been set it will automatically go back to the standard mode.
Setting the watch
Display of the time
Press button B to switch from 12 to 24 hour display.
Press button C to increase the illumination.
EN

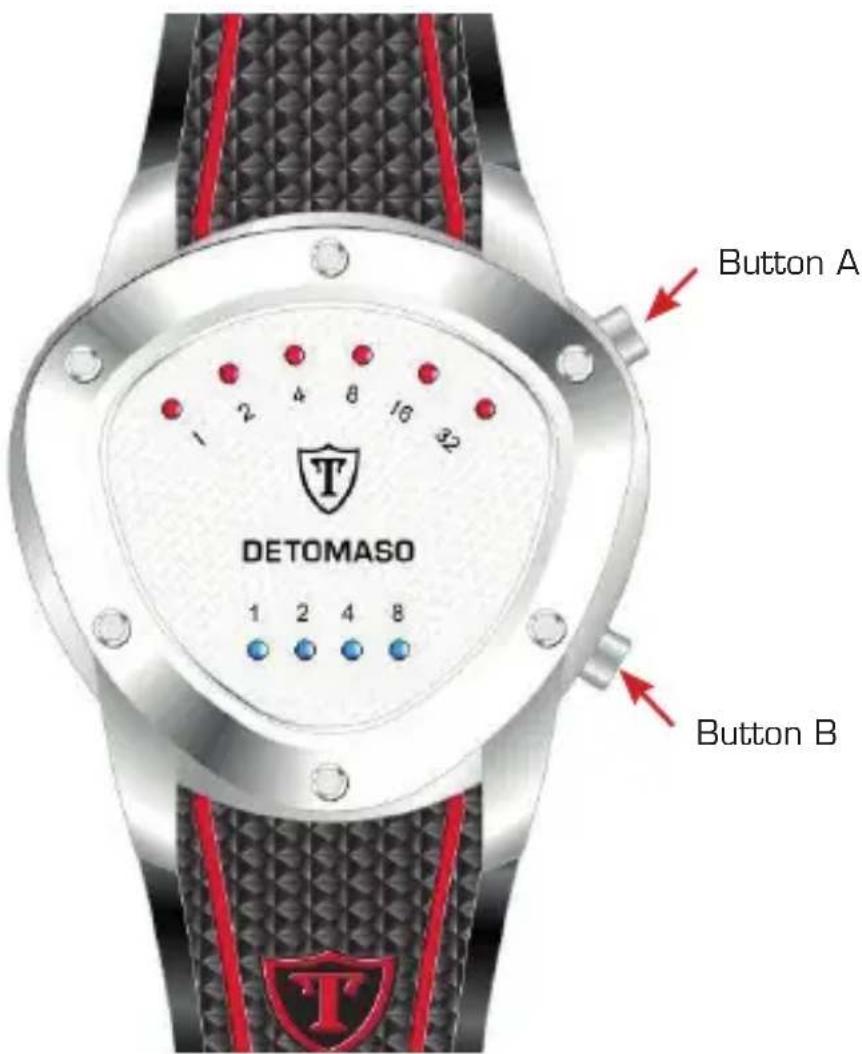

Operating instructions Compasso binary watch
EN
Function
Binary LED time display with hours and minutes.
Binary LED date display.
Display of time and date
Press button A or B to display the time.
While time is displayed press button B to display the date.
Press once more to display the time again.
In order to figure out the hour, minute, month or date, please add the digits above the illuminated LEDs. After 5 seconds without input the display will stop automatically.
Setting the time
Press button A for 3 seconds when you are in the time display setting. The LEDs for the hour will flash. Press button B to set the hour. Press button A to switch to the minute display and set with button B.
Setting the date
Press button A and B in sequence and then hold button A for 3 seconds. The LEDs for the month will flash. Press button B to set the month. Press button A to switch to the date display and set with button B.

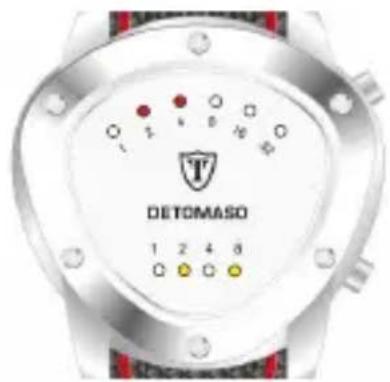

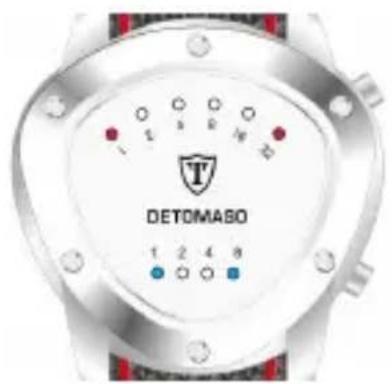

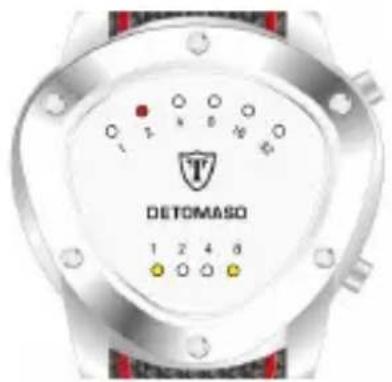

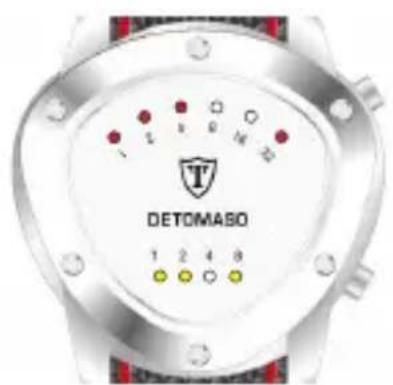

Sample
11:39
21:33
02.09.
06.10.
The hours are displayed in yellow/green for am and in red for pm.
EN
EN
24 month warranty
We guarantee that your watch is made of high quality materials. Extensive quality controls guarantee that the watch is checked before being released by the manufacturer.
Nevertheless, material faults cannot always be avoided. Should your new watch show any faults, please consult our customer service department within the valid warranty period.
We provide a 24 month warranty from date of purchase on all material faults and production errors. This manufacturer's warranty applies regardless of statutory warranty rights. The warranty covers the functioning of the clockwork and the flawless workmanship of the watch.
Not covered are: batteries, wear and tear of the casing, glass or watch strap as well as damage caused by improper use (accident, broken glass, water damage, pulled-out crown).
We will repair manufacturing faults free of charge within the warranty period. Should the watch be irreparable it will be replaced by a comparable model.
To obtain warranty services please return the product to the place of purchase, together with a copy of your sales receipt or other proof of purchase that shows the date of purchase. Alternatively you may send the watch to the service centre listed on the back of this booklet.
Table des matieres
Preambule 28
Etanchéité 29
Disposal of Waste Electrical & Electronic Equipment of products for Household use (Applicable in the European Union only)
The symbol (crossed out wheeled-bin) on your product indicates that the product shall not be mixed or disposed with your household waste at their end of use. This product shall be handed over to your local community waste collection point for the recycling of theproduct. For more information, please contact your Government Waste-Disposal department in yourcountry. Incorrect waste handling could possibly have a bad effect on the environment and human healthdue to potential dangerous substances. With your cooperation in the correct disposal of this product,you contribute to reuse, recycle and recover the product and our environment will be protected.
Disposal of Waste Electrical & Electronic Equipment of products for business use (Applicable in the European Union only)
For further information regarding the disposal of products for business handling, please contact your dealer or distributor in your country. This product shall not be mixed or disposed with commercial waste.
DETOMASO
Service Center
MAX Trader GmbH
