USER MANUAL Benchmark DTW1002 Detomaso

Instructions for care 14

Note on automatic watches 15

Operating instructions 16

24 month warranty 17

EN

Foreword

Congratulations for purchasing your new DETOMASO-WALTZ special edition watch. You are now the new owner of a high precision time keeper characterised by its innovative design.

We keep a long term stock of the most important spare parts for all our watches, guaranteeing repair over a period of many years.

In order to ensure that your new watch functions properly for many years, please read the following instructions carefully.

Water resistance

EN

The water resistance of your DETOMASO watch has been tested to be 10 ATM.

This means that it is splashproof and that you may wash your hands or take a bath or a shower with it. You may also swim with it but it is not suitable for diving. Water resistance is not a permanent characteristic; it should be tested annually and in particular before the watch is put under exceptional strain, as the seals deteriorate gradually in daily use.

The seals are the important factor in guaranteeing the water resistance of a watch. These age naturally and are also affected by perspiration and acids. ISO 2281 stipulates which standards have to be met by a new watch. The level of water resistance is given in ATM and noted on the base of the casing.

Your DETOMASO watch has been tested and has a water resistance of 10 ATM. The specification 10 ATM is not to be confused with the diving depth; it is simply the definition of the inspection pressure. An inspection pressure of 10 ATM is reached at a depth of 100m . You cannot go diving with this watch. In some cases a short-term higher pressure than the guaranteed inspection pressure may be enforced on the seals, for example when swimming or diving into water.

Watches are at particular risk when the wearer dives into water after sunbathing. The combination of the impact pressure with the negative pressure caused by the sudden drop in temperature can quite easily cause damage. It is important to check and, if necessary, replace seals when the battery is replaced.

EN

Instructions for care

Your watch is a high precision electronic and mechanical masterpiece and should serve you well for a long time.

Please keep your watch away from magnetic fields, heat, water and chemicals. Do not submit it to sudden impact or abrasion. Watches should not be worn in bed.

If a battery operated watch stops or the low battery indicator shows, it should be taken to a specialist as soon as possible to prevent the battery from causing damage in the watch or to the environment.

Batteries should be replaced by a specialist at regular intervals of approx. 1 - 1 12 years. The seals can then be checked and, if necessary, replaced at the same time.

In the event of condensation forming underneath the glass (misting), the watch should be taken to a specialist as soon as possible to prevent the moisture from causing further damage.

The crown should always be firmly pressed in or screwed tight during use.

Note on automatic watches

The automatic models are mechanical watches without a battery. Mechanical watches are subject to all kinds of influences from the environment and the wearer. These include fluctuations in temperature, varying air pressure, vibration and strain caused by the wearer. Unlike with quartz watches, slight tolerance is normal.

Automatic watches are wound during use. There is an oscillating weight in the clockwork which winds the mainspring when your arm moves. In order for your watch to work properly the mainspring has to be wound slightly. All that is necessary is for you to wear the watch and move your arm a little. The watch starts automatically. As long as the watch is worn it winds itself.

As soon as you take your watch off, the self-winding function stops working. If the watch has been worn long enough for it to be fully wound it will, however, run for many hours before it stops.

It is not a problem to take the watch off over night. The period of time between the mainspring being fully wound and completely unwound is called the power reserve. If you put the watch back on in the morning the watch will be automatically wound again during use. If the watch stops completely, then please simply follow the instructions above.

You may also wind your watch manually. While the crown is in the normal position, wind the watch by turning the crown clockwise. Be careful not to overwind the watch.

EN

Operating instructions

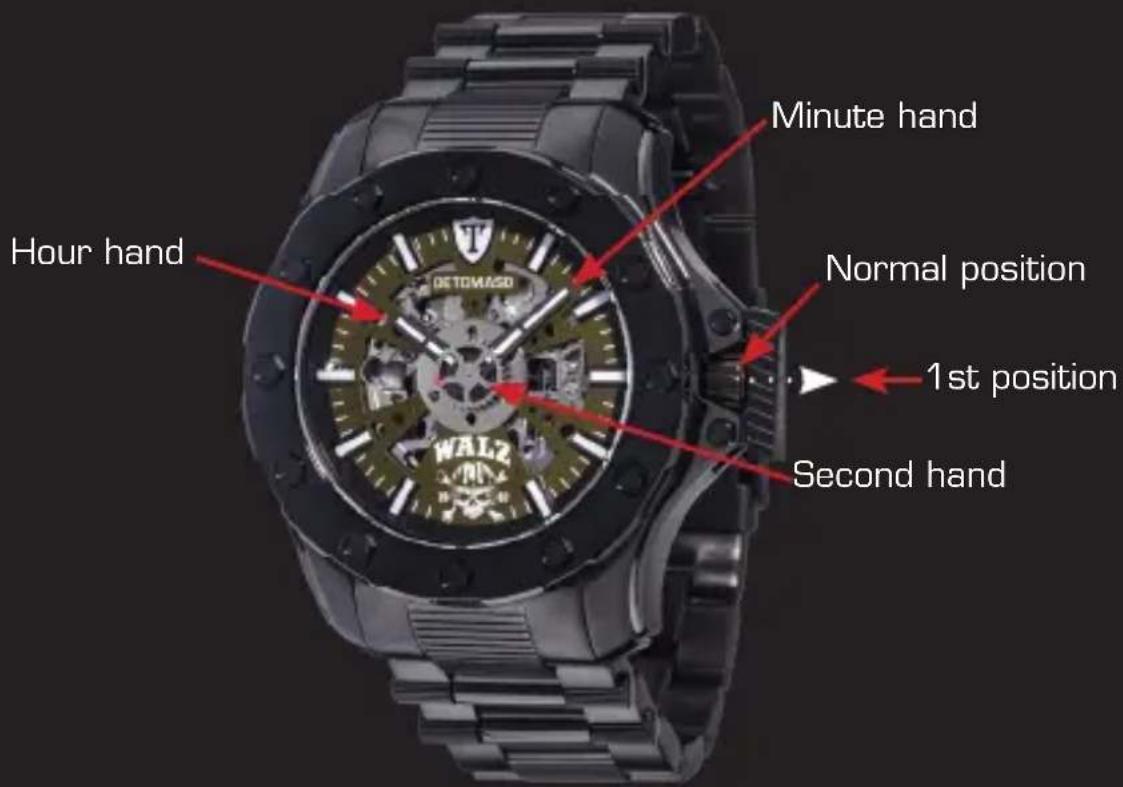

Setting the time

1. Pull out the crown into the 1st position
2. Move the hour and minute hand by turning the crown clockwise
3. Push back the crown into the normal position.

24 month warranty

We guarantee that your watch is made of high quality materials. Extensive quality controls guarantee that the watch is checked before being released by the manufacturer.

Nevertheless, material faults cannot always be avoided. Should your new watch show any faults, please consult our customer service department within the valid warranty period.

We provide a 24 month warranty from date of purchase on all material faults and production errors. This manufacturer's warranty applies regardless of statutory warranty rights.

The warranty covers the functioning of the clockwork and the flawless workmanship of the watch. Not covered are: batteries, wear and tear of the casing, glass or watch strap as well as damage caused by improper use (accident, broken glass, water damage, pulled-out crown).

We will repair manufacturing faults free of charge within the warranty period. Should the watch be irreparable it will be replaced by a comparable model.

To obtain warranty services please return the product to the place of purchase, together with a copy of your sales receipt or other proof of purchase that shows the date of purchase. Alternatively you may send the watch to the service centre listed on the back of this booklet.

Table des matieres

Prelambule 20

Etanchéité 21

Disposal of Waste Electrical & Electronic Equipment of products for Household use (Applicable in the European Union only)

The symbol (crossed out wheeled-bin) on your product indicates that the product shall not be mixed or disposed with your household waste at their end of use.

This product shall be handed over to your local community waste collection point for the recycling of the product. For more information, please contact your Government Waste-Disposal department in your country. Incorrect waste handling could possibly have a bad effect on the environment and human health due to potential dangerous substances. With your cooperation in the correct disposal of this product, you contribute to reuse, recycle and recover the product and our environment will be protected. Disposal of Waste Electrical & Electronic Equipment of products for business use (Applicable in the European Union only). For further information regarding the disposal of products for business handling, please contact your dealer or distributor in your country. This product shall not be mixed or disposed with commercial waste.

DETOMASO

Service Center

Temporex Uhren GmbH
