USER MANUAL PS53 BROTHER

ANSCHLIESSEN AN DAS STROMNETZ

ACHTUNG

"BEWAAR DEZE INSTRUCTIES"

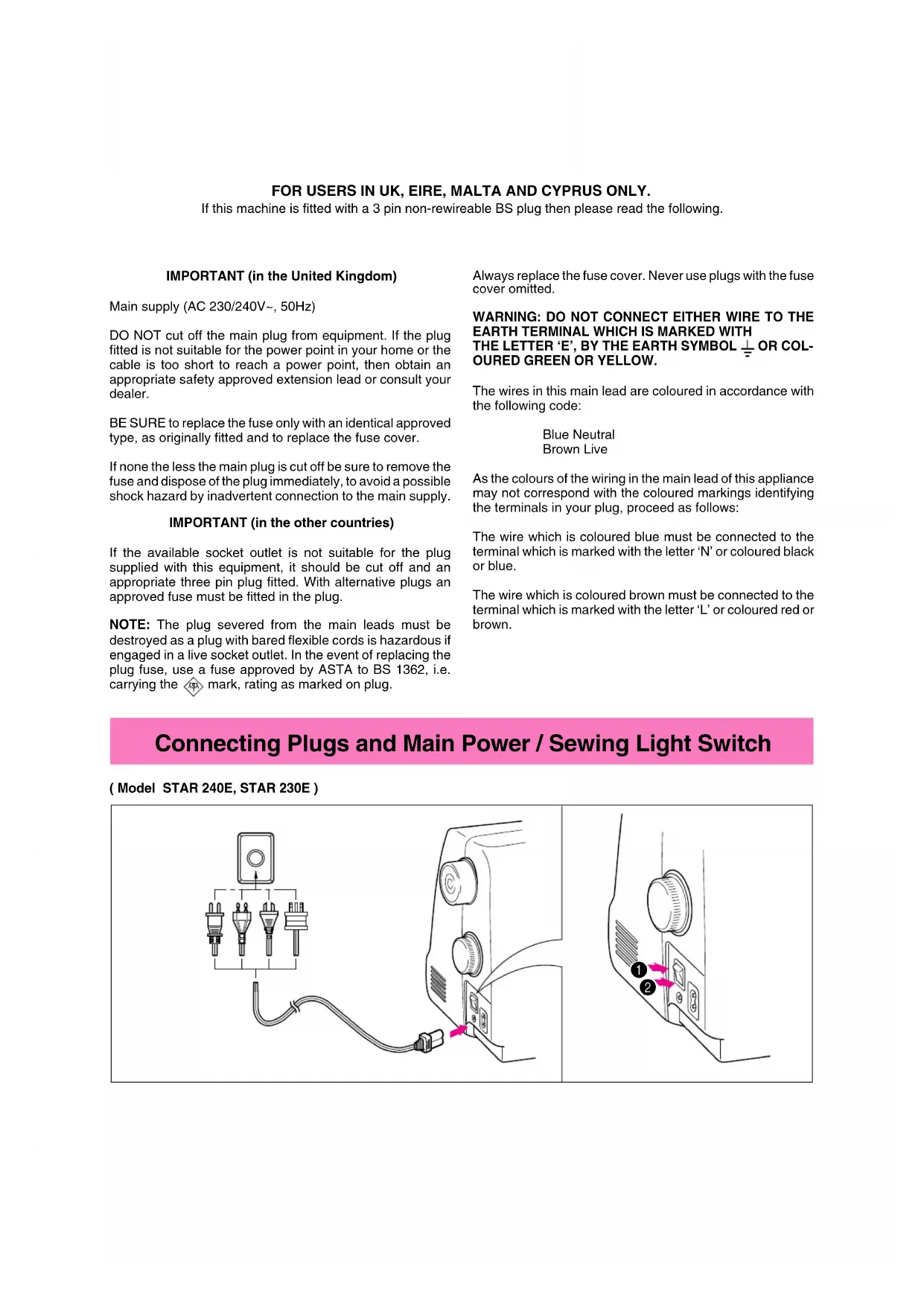

If this machine is fitted with a 3 pin non-rewireable BS plug then please read the following.

IMPORTANT (in the United Kingdom)

Main supply (AC 230/240V\~, 50Hz)

DO NOT cut off the main plug from equipment. If the plug fitted is not suitable for the power point in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted and to replace the fuse cover.

If none the less the main plug is cut off be sure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the main supply.

IMPORTANT (in the other countries)

If the available socket outlet is not suitable for the plug supplied with this equipment, it should be cut off and an appropriate three pin plug fitted. With alternative plugs an approved fuse must be fitted in the plug.

NOTE: The plug severed from the main leads must be destroyed as a plug with bared flexible cords is hazardous if engaged in a live socket outlet. In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, i.e. carrying the mark, rating as marked on plug.

Always replace the fuse cover. Never use plugs with the fuse cover omitted.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER 'E', BY THE EARTH SYMBOL OR COLOURED GREEN OR YELLOW.

The wires in this main lead are coloured in accordance with the following code:

Blue Neutral

Brown Live

As the colours of the wiring in the main lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter 'N' or coloured black or blue.

The wire which is coloured brown must be connected to the terminal which is marked with the letter 'L' or coloured red or brown.

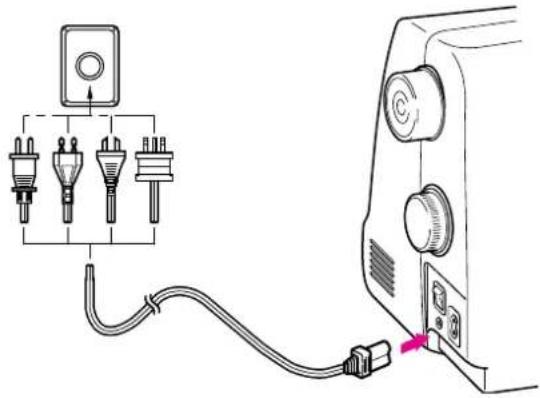

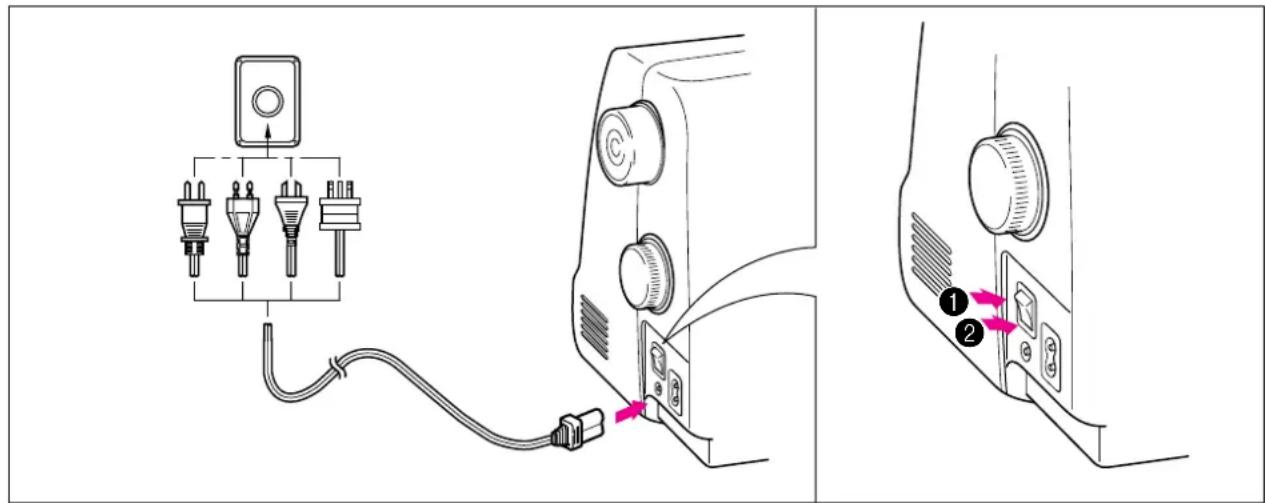

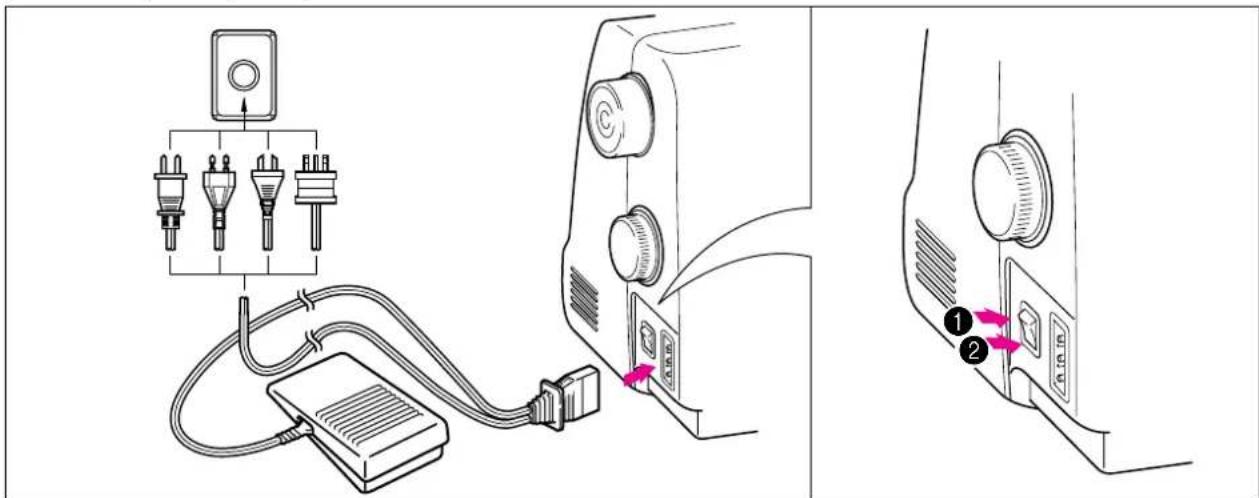

Connecting Plugs and Main Power / Sewing Light Switch

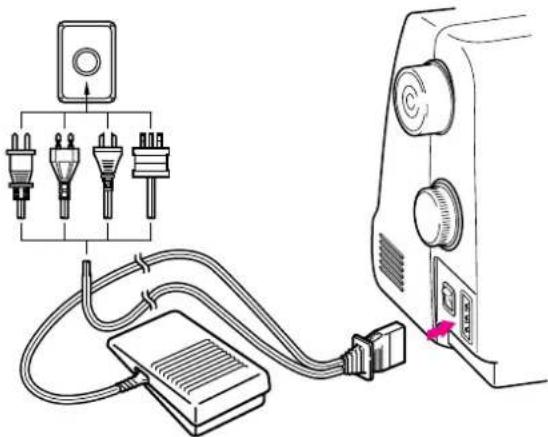

(Model STAR 240E, STAR 230E)

Diagram showing cable connection to a device with labeled components and directional arrows indicating connection points.

(Model PS-57, PS-55, PS-53)

Diagram showing cable connection to a projector with labeled components and directional arrows indicating connection points.

1. Connect the power cord or three-prong plug into the machine.

2. Connect the electrical supply plug into a wall outlet.

- When leaving the machine unattended, the main switch of the machine should be switched off or the plug must be removed from the socket outlet.

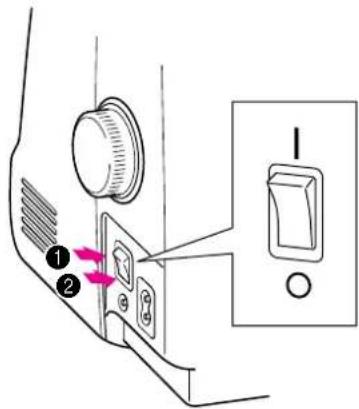

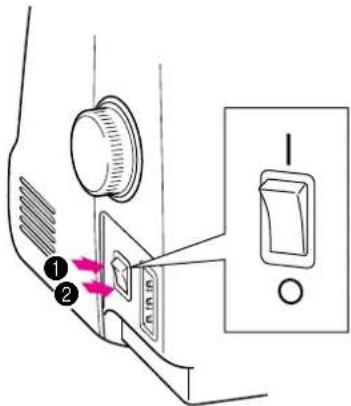

Turn on or off the switch for the main power and sew-light.

①Turn on ②Turn off

- When servicing the machine, or when removing covers or changing bulbs, the machine or the electrical set must unplugged.

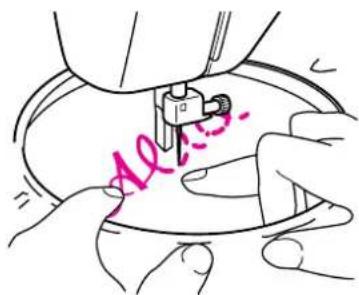

HEFTEN UND APPLIZIEREN

Patchwork (Assemblage) 60

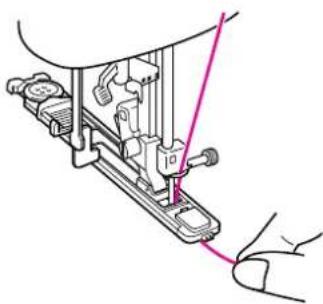

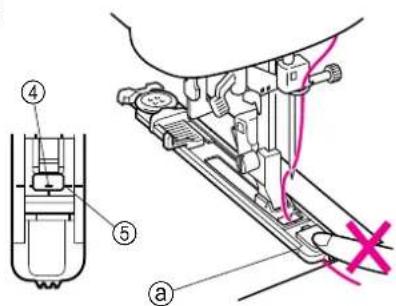

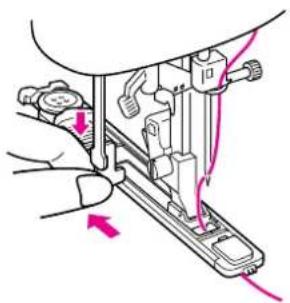

KNOOPSGATEN EN KNOPEN

Een knoopsgat maken

TOEBEHOREN EN APPLICATIONS

Technical diagram of a sewing machine with numbered parts for identification

Technical diagram of a sewing machine with numbered parts for identification and assembly reference.

HAUPTBESTANDTEILE

(Modell STAR 240E, STAR 230E)

①SPULER (Seite 33)

(Model STAR 240E, STAR 230E)

①SPOELWINDER (Pagina 34)

Technical diagram of a sewing machine with numbered parts for identification

Technical diagram of a sewing machine with numbered parts for identification

Pure electrical circuit lines without any symbols

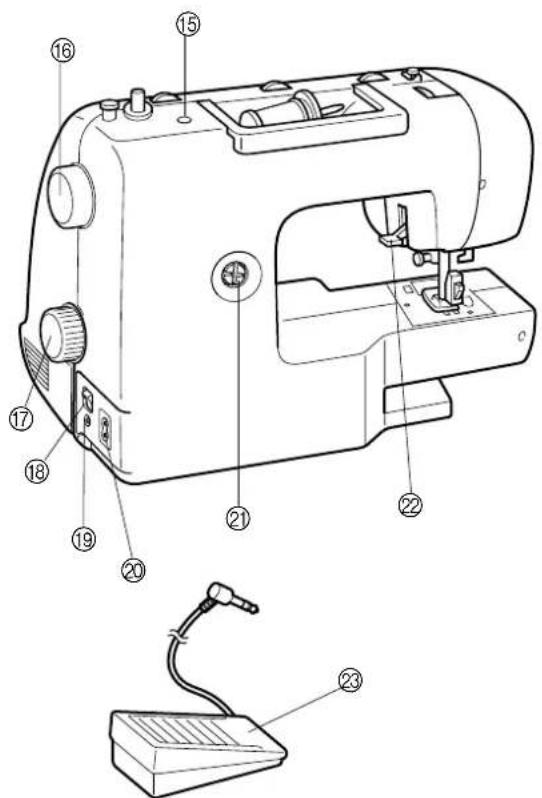

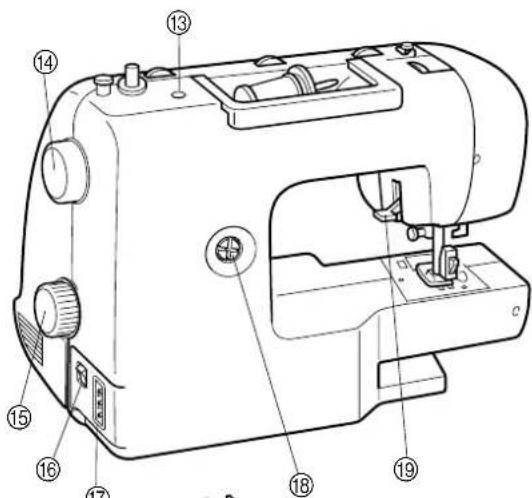

HAUPTBESTANDTEILE

(Modell PS-57, PS-55, PS-53)

①SPULER (Seite 33)

⑰CONTACT VOOR VOETPEDAAL (Pagina 8)

3D rendered image of a pink plastic mechanical component with internal channels and mounting brackets (no text or symbols)

⑥130012-054 ⑦130013-054

⑧X59476-051 ⑨130920-051

Illustration of a pink pen-like tool with black bands (no text or symbols)

⑩X55467-051 ⑪X54243-001

⑫X52769-656 ⑬X53984-054

①SA140 X81065-002

②SA129 X81021-002

③SA125 X80980-002

ZUBEHÖR

⑫ Tragekoffer (1 St.) (Modell STAR 240E, STAR 230E)

⑬Staubabdeckung (1 St.) (Modell PS-57, PS-55, PS-53)

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

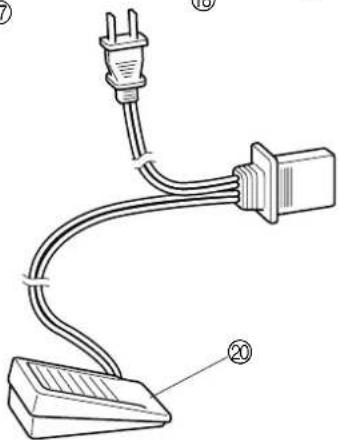

Voetpedaal: Model N5V

Onderdelencode: XA3931-051

(Model STAR 240E, STAR 230E)

Diagram showing connections between a power plug, three switches, and a device panel (no text or symbols present)

(Model PS-57, PS-55, PS-53)

Diagram showing connections between a device with four plug-in switches and a power connector, including a labeled switch.

(Model STAR 240E, STAR 230E)

Diagram showing a device with labeled components and directional arrows, including a switch and control panel.

(Model PS-57, PS-55, PS-53)

Diagram of a car interior showing labeled parts and directional arrows, likely for safety or cleaning instructions.

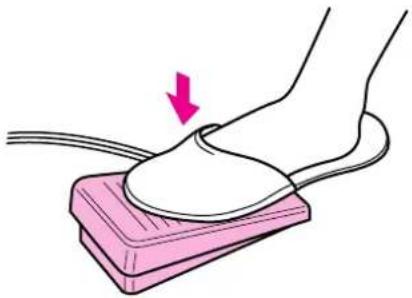

Illustration of a foot pressing a pink foot on a purple foot pushper, with a red arrow indicating force direction (no text or symbols)

(Model STAR 240E, STAR 230E)

Diagram showing a device connection with labeled parts, including a pink device labeled ① and a control panel labeled ②.

Pédale

(Modell STAR 240E, STAR 230E)

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

Voetpedaal: Model N5V

Diagram showing four types of pen-like shapes with cross and circle symbols, likely illustrating a folding or cutting process.

Diagram showing a hand holding a tool with labeled parts 1 and 2, likely illustrating a mechanical or optical setup.

Technical diagram showing a mechanical assembly with directional arrows and a magnified detail view labeled '1'

Technical diagram showing mechanical assembly with labeled components and directional arrows, including a magnified inset of component 3.

Diagram of a screwdriver tool with a tripod base and pink directional arrows indicating motion (no text or symbols)

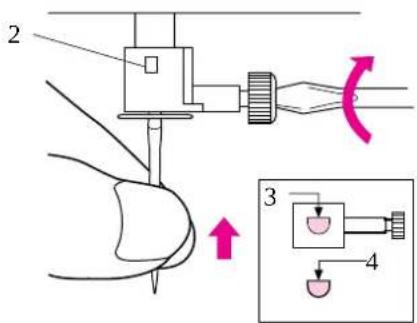

Nadel prüfen

Two-step illustration of a sewing machine needle stitching, showing hand positioning and tool path (no text or symbols)

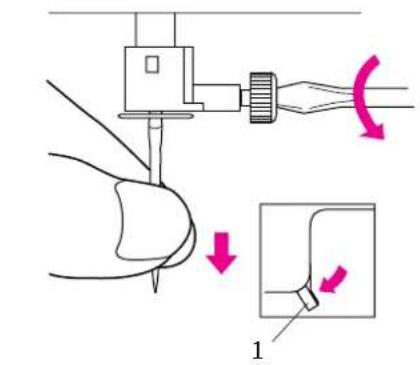

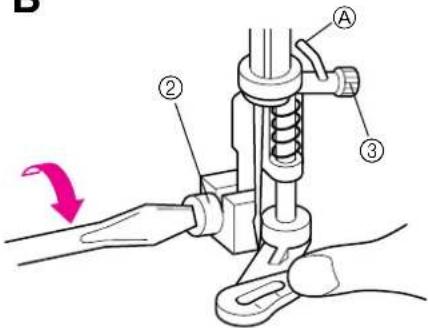

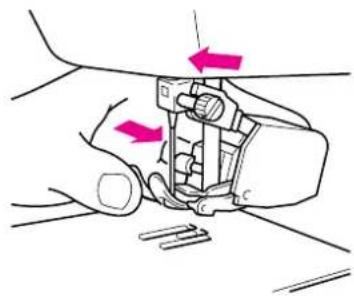

Nähfuß wechseln

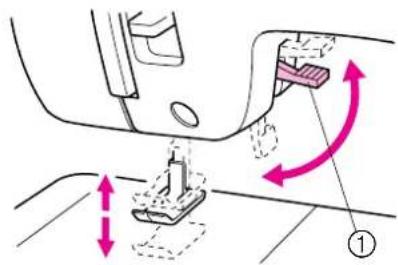

VORSICHT

Diagram of a sewing machine needle stitching a pink fabric bag, with no visible text or symbols

Diagram of a sewing machine's handle mechanism with numbered parts and rotation indicator

③ 4 3 2 1 ③ SS

VERSCHIEDENE REGLER

Stichmuster-Einstellrad

VORSICHT

(Modell STAR 230E, PS-55)

STICHMUSTER	STICHNAME	VOREINGESTELLTE BREITE [mm (Zoll)]	EMPFOHLENE SEITE IN DER LÄNGE [mm (Zoll)] ANLEITUNG
	1-STUFEN- 3-5 (Drehschalter 4-7) F-1,5 KNOPFLOCHAUTOMATIK (1/8-3/16) (1/64-1/16)		63
	GERADSTICH	6,5 1-4,5(1/4) (1/16-3/16)	50, 73, 75
	ZICKZACKSTICH	0-6,5 F-4,5(0-1/4) (1/64-3/16)	53, 72, 76, 77
	BLINDSAUMSTICH	3-6,5 F-2(1/8-1/4) (1/64-1/16)	54
	BIESENSTICH	3-6,5 F-3(1/8-1/4) (1/64-1/8)	55
	ELASTIKSTICH	3-6,5 F-2,5(1/8-1/4) (1/64-3/32)	56
	ELASTISCHER BLINDSTICH	3-6,5 F-1,5(1/8-1/4) (1/64-1/16)	54
	BOGENNAHT	3-6,5 F-1,5(1/8-1/4) (1/64-1/16)	58
	ELASTISCHE SCHRITTNAHTBRÜCKENSTICH 57PALISADENSTICH	3-6,5 F-3(1/8-1/4) (1/64-1/8)
	ELASTIK-MUSCHELSTICH	3-6,5 F-3(1/8-1/4) (1/64-1/8)	61
	PERLZIERSTICHPFEILSPITZENSTICH	3-6,5 F-1(1/8-1/4) (1/64-1/16)	59
	STRETCH-GERADSTICH	6,5(1/4)	SS Fixiert2,5 (3/32)
	DREIFACH-ZICKZACKSTICH	3-6,5(1/8-1/4) 2,5 (3/32)	SS Fixiert
	ÜBERWENDLINGNAHT	3-6,5(1/8-1/4) 2,5 (3/32)	SS Fixiert
	ÜBERWENDLINGNAHT	3-6,5(1/8-1/4) 2,5 (3/32)	SS Fixiert
	GRÄTENSTICH	3-6,5(1/8-1/4) 2,5 (3/32)	SS Fixiert
	KAMMSTICH	3-6,5(1/8-1/4) 2,5 (3/32)	SS Fixiert
	DEKORATIVER STICH	6,5(1/4)	SS Fixiert2,5 (3/32)
	HEXENSTICH	3-6,5(1/8-1/4) 2,5 (3/32)	SS Fixiert
	DEKORATIVER STICH	3-6,5(1/8-1/4) 2,5 (3/32)	SS Fixiert
	FLACHNAHT	3-6,5(1/8-1/4) 2,5 (3/32)	SS Fixiert
	DEKORATIVER STICH	6,5(1/4)	SS Fixiert2.5 (3/32)

(Model STAR 230E, PS-55)

PATROON STEEK		INGESTELDEBREEDTEIN HANDLEIDING [mm (inch)]	AANBEVOLEN PAGINA INLENGTE [mm (inch)] HANDLEIDING
	AUTOMATISCH KNOOPSGAT 3-5 (Knop 4-7) F-1,5IN 1 STAPPEN (1/8-3/16) (1/64-1/16)		64
	RECHTE STEEK	6,5 1-4,5(1/4) (1/16-3/16)
	ZIGZAGSTEEK	0-6,5 F-4,5(0-1/4) (1/64-3/16)
	BLINDE ZOOMSTEEK	3-6,5 F-2(1/8-1/4) (1/64-1/16)
	SCHELP-RIJGSTEEK	3-6,5 F-3(1/8-1/4) (1/64-1/8)
	ELASTISCHE STEEK	3-6,5 F-2,5(1/8-1/4) (1/64-3/32)
	BLINDZOOM STRETHSTEEK	3-6,5 F-1,5(1/8-1/4) (1/64-1/16)
	SCHELPSTEEK	3-6,5 F-1,5(1/8-1/4) (1/64-1/16)
	DOBBELE ACTIESTEEKRIMPELSTEEK 57VERBINDINGSSTEEK	3-6,5 F-3(1/8-1/4) (1/64-1/8)
	ELASTISCHE 3-6,5 F-3SCHELP-RIJGSTEEK (1/8-1/4) (1/64-1/8)		61
	SCHELPSTEEK 3-6,5 F-1PIJLKOPSTEEK	(1/8-1/4) (1/64-1/16)
	DRIEVOUDIGE STRETCHSTEEK	6,5(1/4)	SS Vast2,5 (3/32)
	DRIEVOUDIGE ZIGZAGSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	ELASTISCHE OVERLOCK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	ELASTISCHE OVERLOCK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	TAKSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	KAMSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	DECORATIEVE STEEK	6,5(1/4)	SS Vast2,5 (3/32)
	FAGOTSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	DECORATIEVE STEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	DECORATIEVE ZOOMSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	DECORATIEVE STEEK	6,5(1/4)	SS Vast2,5 (3/32)

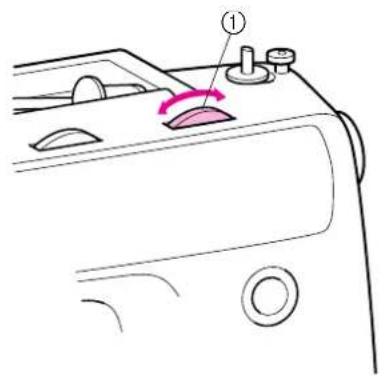

AANBEVOLEN STEEKLENGTES EN -BREEDTEN

(Model PS-53)

PATROON STEEK		INGESTELDEBREEDTEIN HANDLEIDING [mm (inch)]	AANBEVOLEN PAGIN LENGTHE [mm (inch)] HANDLEIDING
	AUTOMATISCH KNOOPSGAT 3-5 (Knopl 4-7) F-1,5 IN 4 STAPPEN (1/8-3/16) (1/64-1/16)		66
	RECHTE STEEK	6,5 1-4,5(1/4) (3/64-3/16)
	ZIGZAGSTEEK	0-6,5 F-4,5(0-1/4) (1/64-3/16)
	DOBBELE ACTIESTEEK	3-6,5 F-3(1/8-1/4) (1/64-1/8)
	BLINDZOOM STRETHSTEEK	3-6,5 F-1,5(1/8-1/4) (1/64-1/16)
	BLINDE ZOOMSTEEK	3-6,5 F-2(1/8-1/4) (1/64-1/16)
	SCHELP-RIJGSTEEK	3-6,5 F-3(1/8-1/4) (1/64-1/8)
	ELASTISCHE STEEK	3-6,5 F-2,5(1/8-1/4) (1/64-3/32)
	DRIEVOUDIGE STRETCHSTEEK	6,5(1/4) 2,5 (3/32)	SS Vast
	DRIEVOUDIGE ZIGZAGSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	FAGOTSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	KAMSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	ELASTISCHE OVERLOCK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	ELASTISCHE OVERLOCK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	TAKSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast

Diagram of a car dashboard with labeled parts and a pink arrow indicating rotation or adjustment.

Diagram of a car front panel with labeled component and directional arrow indicating rotation or movement

Diagram illustrating a mechanical or structural system with numbered components and spring-mass interaction, showing directional arrows.

Line drawing of a sewing machine needle with a hand operating the hook (no text or symbols)

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

Technical diagram of a sewing machine with labeled parts and directional arrows indicating movement or positioning.

Technical diagram showing sewing machine operation with labeled component ①

(Modell STAR 240E, STAR 230E)

Start-/Stopp-Taste

(Model STAR 240E, STAR 230E)

Start/Stop-toets

Druk op de knop Start/Stop om de machine te laten starten of stoppen.

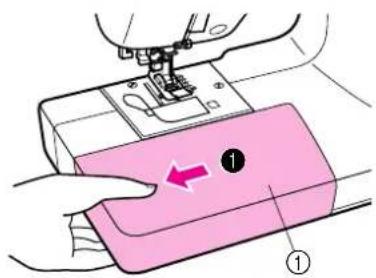

Technical diagram of a car door panel with labeled parts, showing structural components and part number 1

Diagram showing sewing process with labeled parts and directional arrow indicating movement

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

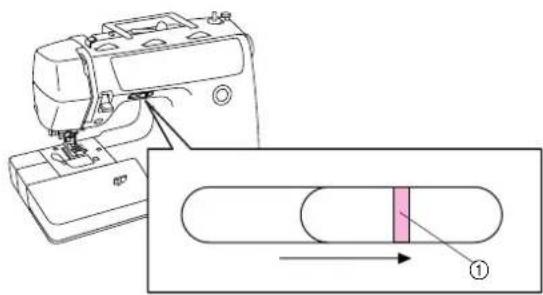

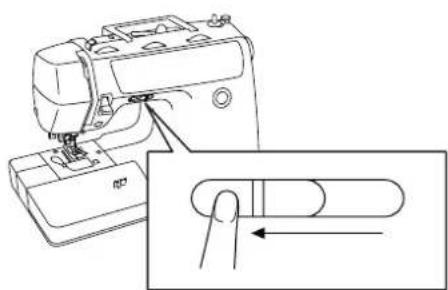

Snelheidsregeling

Line drawing of a sewing machine's handle and socket (no text or symbols)

(Model STAR 240E, STAR 230E)

Technical diagram illustrating mechanical assembly steps with numbered components and directional arrows indicating motion

(Model PS-57, PS-55, PS-53)

Technical diagram illustrating the step-by-step assembly of a mechanical component with labeled parts and directional arrows.

FADENFÜHRUNG

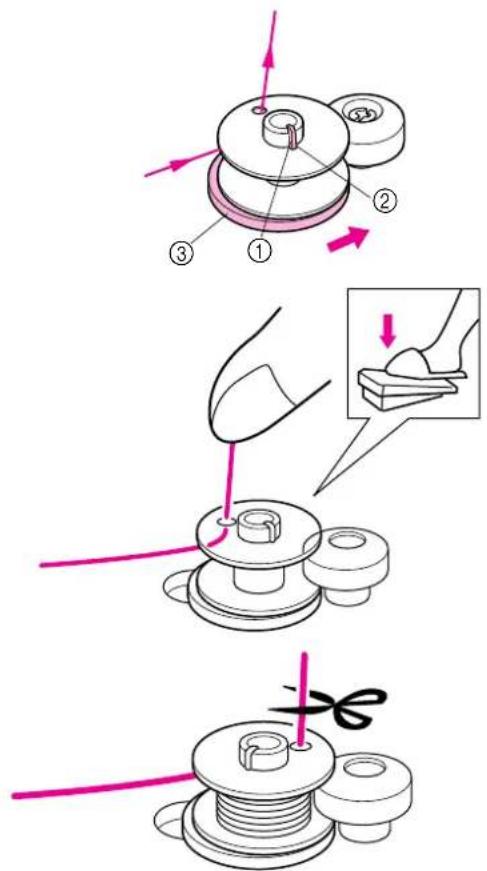

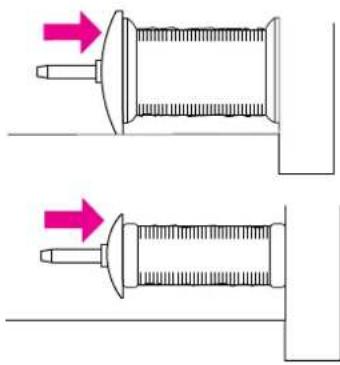

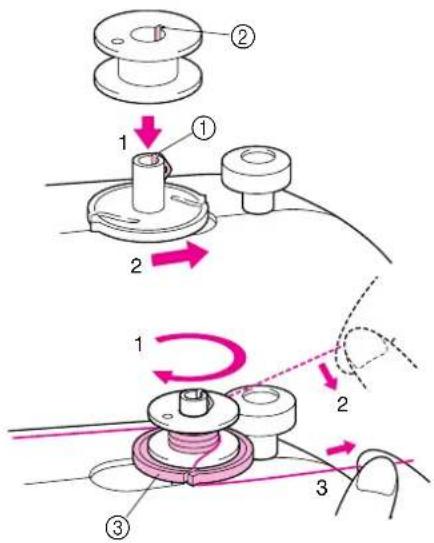

Aufspulen

VORSICHT

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

(Modell STAR 240E, STAR 230E)

Diagram showing sewing machine operation with labeled component and directional arrow

(Modell PS-57, PS-55, PS-53)

Illustration of a foot pressing down on a pink foot presser press, with a pink arrow indicating the press direction (no text or symbols present)

①

②

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

Diagram showing a hand holding a pink device with labeled parts ① and ②, indicating a step in a process.

Illustration of hands operating a mechanical device with a pink arrow indicating motion (no text or symbols)

Diagram of a mechanical device with a curved pipe and circular component, no text or symbols present

Diagram showing a hand holding a pink tool with labeled parts 1 and 2, indicating a process or operation.

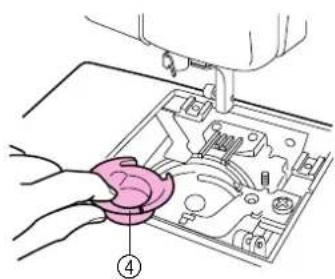

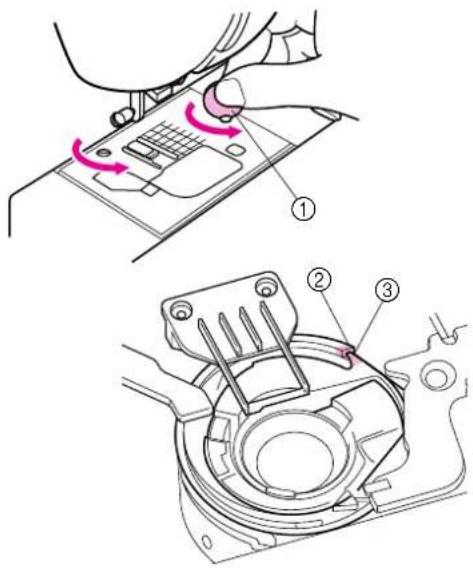

Unterfadenführung

VORSICHT

Technical diagram of a sewing machine with numbered parts and directional arrow indicating motion or movement

Technical diagram showing sewing machine needle positioning with directional arrows and labeled component ①

Diagram showing two mechanical components with arrows indicating direction of movement (no text or symbols)

Diagram showing a mechanical or fluid system with arrows indicating direction and motion, labeled with number ②.

Technical line drawing of a mechanical assembly with no visible text or symbols

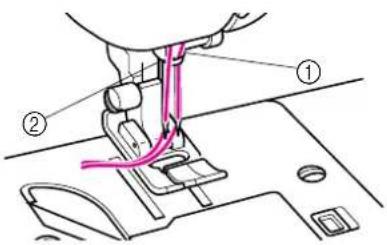

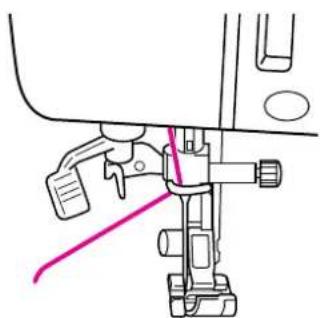

Oberfadenführung

Technical diagram of a sewing machine with numbered parts and motion indicator arrows

Technical diagram illustrating sewing process steps with labeled instructions and component diagrams

Diagram of a cylindrical mechanical component with internal dashed lines and dimension arrows (no text or symbols)

B

Diagram showing sewing process with labeled parts ① and ②, likely for garment or sewing instruction

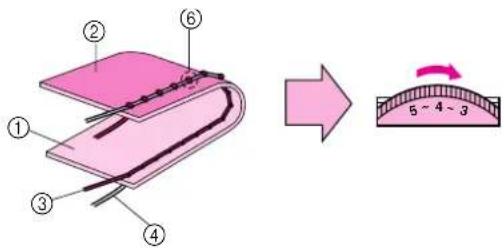

POUR PLACER UN PORTE-BOBINE SUPPLEMENTAIRE

Diagram illustrating a mechanical assembly process with numbered components and a scale reading showing 5-4-3 units.

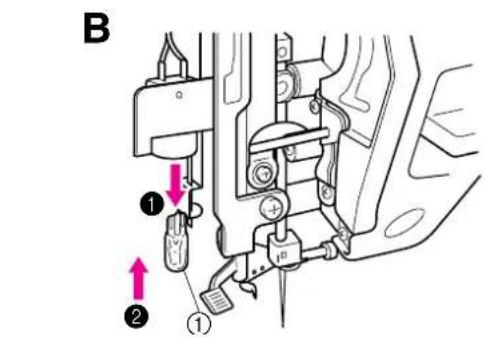

B

Diagram illustrating a mechanical assembly process with numbered components and a curved scale labeled 5-4-3.

C

Diagram of a layered electronic component with numbered parts labeled ① to ④

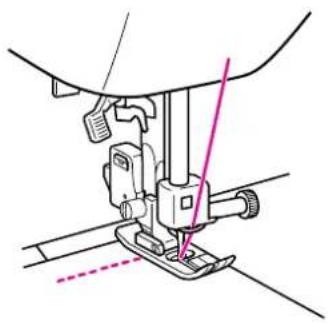

Tension des fils

Technical line drawing of a sewing machine needle and foot (no text or symbols)

Technical line drawing of a sewing machine needle and foot (no text or symbols)

Technical line drawing of a sewing machine needle and foot (no text or symbols)

Geradstich

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

Technical diagram showing hands operating a mechanical component with labeled parts and a dashed line indicating a step.

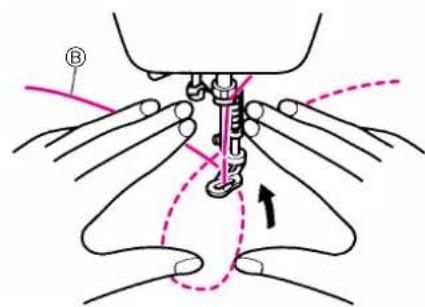

POUR RETIRER LE TISSU DE LA MACHINE

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

Line drawing of a sewing machine needle and foot, showing hand positioning and stitching (no text or symbols)

Two vertical spring symbols with dashed lines, no text or labels present

Zickzackstich

Line drawing of a sewing machine needle stitching on a hand (no text or symbols)

Blindsaumstich

Line drawing of a sewing machine needle stitching fabric (no text or symbols)

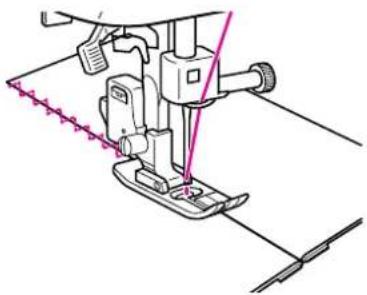

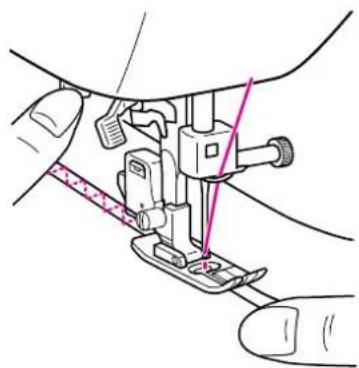

Point picot

Pure geometric L-shape diagram with no text, numbers, or symbols

B

Illustration of a sewing machine needle stitching a garment, with no visible text or symbols

C

Line drawing of a sewing machine needle stitching a thread (no text or symbols)

Point élastique

STOF AAN ELKAAR NAAIEN

Point renforcé

Line drawing of a sewing machine needle stitching fabric, showing stitching and stitching details (no text or symbols)

Feston

Two-step illustration of a sewing machine needle stitching on fabric, showing thread and stitching details (no text or symbols)

Points décoratifs

Patchwork (Assemblage)

Line drawing of a sewing machine needle and foot (no text or symbols)

B

Illustration of a hand pressing down on a pink fabric with serrated edge (no text or symbols)

C

Technical line drawing of a sewing machine needle and foot (no text or symbols)

Overlock élastique

Simple line drawing of scissors cutting a curved blade with pink zigzag pattern (no text or symbols)

Illustration of hands folding a pink fabric with dotted lines indicating texture (no text or symbols)

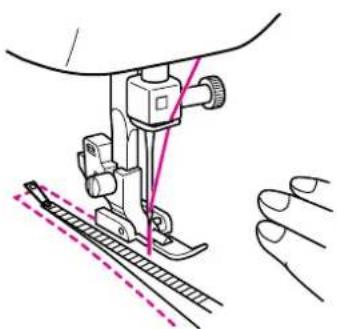

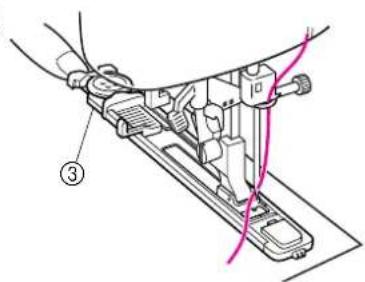

Point plume

Technical diagram of a mechanical device with labeled components and directional arrows

B

Technical line drawing of a sewing machine with no visible text or symbols

C

Technical diagram showing mechanical assembly with labeled parts and a red X mark indicating a specific component.

D

Illustration of a sewing machine needle and foot, showing fabric application with no text or symbols

Mechanical assembly diagram showing a hand operating a foot with a purple tool inserted (no text or symbols present)

(Modell STAR 240E, STAR 230E, PS-57, PS-55)

Technical diagram of a mechanical device with labeled parts and dimensional annotations

Diagram illustrating sewing process with labeled parts and magnified detail view

(Modèle PS-53)

Illustration of a hand holding a pen with a pink clip, no text or symbols present

Technical diagram of a sewing machine with numbered parts labeled ⑥, ⑦, and ⑧

Technical line drawings of sewing machine components including a handle, needle, and circular target (no text or symbols)

Technical diagram of a mechanical device with numbered components labeled ①, ②, and ③.

B

Line drawing of a sewing machine needle and foot, showing measurement setup (no text or symbols)

Simple line drawing of a hand holding a pink background with a dashed pink line crossing through it (no text or symbols)

Illustration of a sewing machine needle stitching a grid-patterned surface (no text or symbols)

Stopfen

Illustration of a sewing machine needle stitching fabric (no text or symbols)

Pink tulip-shaped graphic with dotted outline (no text or symbols)

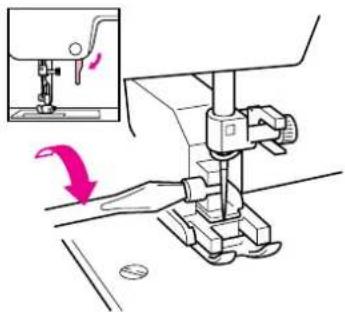

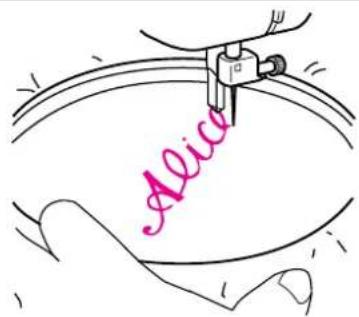

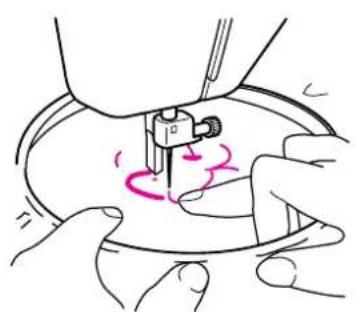

Appliques

Illustration of a sewing machine needle stitching a car wheel, with no text or symbols present.

Ae

Aeia

Alice

Line drawing of hands operating a sewing machine with a circular motion indicator (no text or symbols)

Illustration of a sewing machine needle stitching a pink flower shape (no text or symbols)

Technical diagram of a mechanical device with labeled parts ① and ②

Illustration of a sewing machine needle stitching a garment, with no visible text or symbols

B

Illustration of a hand using a mechanical device to interact with a tool, showing directional arrows (no text or symbols)

C

Diagram of a sewing machine needle insertion operation, showing base and workpiece positioning (no text or symbols)

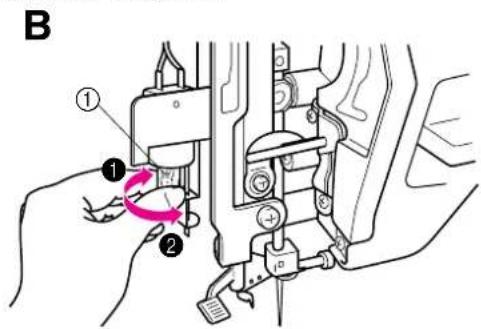

OPTIONALES ZUBEHÖR

Diagram showing a mechanical device with a rotation arrow and labeled component ①

B

Diagram of a mechanical device with labeled parts and directional arrow indicating motion

C

Diagram illustrating sewing technique with labeled parts and directional arrow

(Model STAR 240E, STAR 230E)

D

Line drawing of a sewing machine with a finger pressing a button (no text or symbols)

OPTIONALES ZUBEHÖR

(Model STAR 240E, STAR 230E)

A

B

C

Technical diagram showing a structural assembly with labeled components 6 and 7, likely for engineering or mechanical design.

OPTIONALES ZUBEHÖR

A (Model STAR 240E, STAR 230E)

B ① ② ①

(Model PS-57, PS-55, PS-53)

B ① ① ②

Technical line drawing of a mechanical component with a screw and lever, no text or symbols present

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

Line drawing of a sewing machine needle stitching a person's arm (no text or symbols)

B

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion

C

Illustration of a sewing machine needle stitching a component with a pink circular object (no text or symbols)

D

Technical diagram showing mechanical assembly steps with numbered components

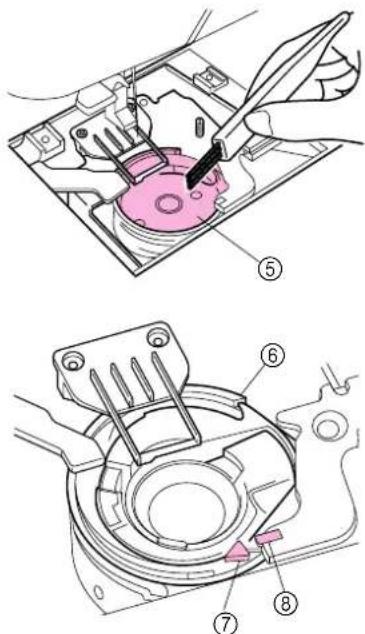

Reinigung

VORSICHT

Line drawing of a mechanical device with a separate 3D block nearby (no text or symbols)

(Model STAR 240E, STAR 230E)

Technical diagram showing exploded view of a mechanical assembly with labeled components

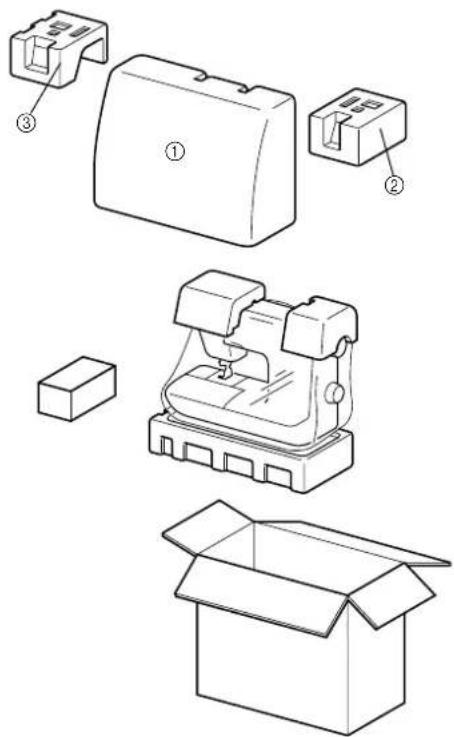

Emballage de la machine

Patchwork (Assemblage) 60

Pied quilting 1/4" 4,84
