Cesena - Watch Detomaso - Free user manual and instructions

Product Type	Wristwatch
Brand	Detomaso
Model	Cesena
Movement	Analog Quartz
Water Resistance	10 ATM (laboratory tested, not suitable for swimming)
Main Functions	Hour, minutes, seconds, date, second time zone (24h), alarm
Crown Type	Screw-down for water and dust protection
Battery	Standard battery to be replaced every 1 to 1.5 years at a specialized store
Date Display	Via crown, do not set between 9pm and 12:30am
Second Time Zone Setting	Button A, 24-hour hand
Alarm	Adjustable up to 12 hours in advance, activation via push button (2 beeps = on, 1 beep = off)
Manufacturer Warranty	24 months against manufacturing and material defects
Care Instructions	Protect from shocks, magnetic fields, heat, water, chemicals. Remove for sleeping. Change battery at first signs of weakness.
Gasket Check	Annual recommended, or when changing the battery
Condensation	If fog appears under the glass, take immediately to a specialized store
General Information	Spare parts available for several years, repair guaranteed

Frequently Asked Questions - Cesena Detomaso

Does 10 ATM water resistance mean I can swim with the watch?

No, 10 ATM water resistance is laboratory tested and not suitable for swimming, showering, or diving. The watch resists splashes and rain, but stronger pressure can damage the seals.

How do I set the time on the Detomaso Cesena?

Pull the crown to the 2nd position (unscrew it first if it's screw-down), turn it to set the time, then push it back to the normal position and screw it down.

How do I set the date?

Pull the crown to the 1st position, turn clockwise to the correct date. Caution: do not set the date between 9pm and 12:30am.

How do I use the second time zone?

Pull the crown to the 1st position, press and hold button A until the second time zone hand (24h) reaches the desired position, then release and push the crown back in.

How do I set and activate the alarm?

Pull the crown to the 1st position, turn it counterclockwise to set the alarm. A short press on the push button activates (2 beeps) or deactivates (1 beep) the alarm. The alarm sounds at the set time and stops with a press on the button.

What should I do if condensation appears under the glass?

Immediately take the watch to a specialized watchmaker to avoid internal damage from moisture.

When and how should I change the battery?

Change the battery every 1 to 1.5 years at a specialized store. Also have the gaskets checked and replaced if necessary.

How does the screw-down crown work?

The screw-down crown protects against water and dust. To use it, unscrew it by turning counterclockwise, make the adjustments, then screw it back fully clockwise.

What is the warranty period?

The manufacturer warranty is 24 months from the date of purchase, covering manufacturing and material defects. Batteries, normal wear, and damage from improper use are not included.

How do I care for my Detomaso Cesena watch?

Avoid shocks, magnetic fields, high heat, chemicals. Remove it for sleeping. If not used for a long time, store it in a dry place. Have the water resistance checked annually.

USER MANUAL Cesena Detomaso

Shield-shaped emblem with a central 'T' symbol (no text or numbers present)

DETOMASO

CESENA

Close-up of a black and white luxury watch with textured strap and wrist (no visible text or symbols)

Inhaltsverzeichnis

Vorwort 3

Wasserdichtigkeit 4

Pflegehinweise 5

Instructions for Care 12

Note on screwed down crowns 12

Instructions 13

24 months warranty....15

EN

Foreword

Congratulations on the purchase of your new DETOMASO watch. You are now the new owner of a high precision time keeper characterised by its innovative design.

We keep a long term stock of the most important spare parts for all our watches, guaranteeing repair over a period of many years.

In order to ensure that your new watch functions properly for many years, please read the following instructions carefully.

Waterproof properties

The water resistance of your DETOMASO watch has been tested to be 10 ATM.

This means that it is splashproof and that you may wash your hands or take a bath or a shower with it. You may also swim with it but it is not suitable for diving. Waterproofness is not a permanent characteristic; it should be tested annually and in particular before the watch is put under exceptional strain, as the seals deteriorate gradually in daily use. The seals are the important factor in guaranteeing the waterproofness of a watch. These age naturally and are also affected by perspiration and acids. ISO 2281 stipulates which standards have to be met by a new watch. The level of waterproofness is given in atm and noted on the base of the casing.

Your DETOMASO watch has been tested and has a water resistance of 10 ATM. The specification „10 ATM” is not to be confused with the diving depth; it is simply the definition of the inspection pressure. An inspection pressure of 10 ATM is reached at a depth of 100 m. You cannot go diving with this watch. In some cases a short-term higher pressure than the guaranteed inspection pressure may be enforced on the seals, for example when swimming or diving into water.

Watches are at particular risk when the wearer dives into water after sunbathing. The combination of the impact pressure with the negative pressure caused by the sudden drop in temperature can quite easily cause damage. It is important to check and, if necessary, replace seals when the battery is replaced.

EN

Instructions for care

Your watch is a high precision electronic and mechanical masterpiece and should serve you well for a long time.

Please keep your watch away from magnetic fields, heat, water and chemicals. Do not submit it to sudden impact or abrasion. Watches should not be worn in bed.

If a battery operated watch stops or the low battery indicator shows, it should be taken to a specialist as soon as possible to prevent the battery from causing damage in the watch or to the environment.

Batteries should be replaced by a specialist at regular intervals of approx. 1 - 1 12 years. The seals can then be checked and, if necessary, replaced at the same time.

In the event of condensation forming underneath the glass (misting), the watch should be taken to a specialist as soon as possible to prevent the moisture from causing further damage.

The crown should always be firmly pressed in or screwed tight during use.

Note on screwed down crowns

Some watch models have a screwed down crown to prevent dust and water from penetrating. In order to set the time, first unscrew the crown by turning it in an anti-clockwise direction. Now set the time as required and then press the crown gently back onto the thread and screw it down tightly in a clockwise direction.

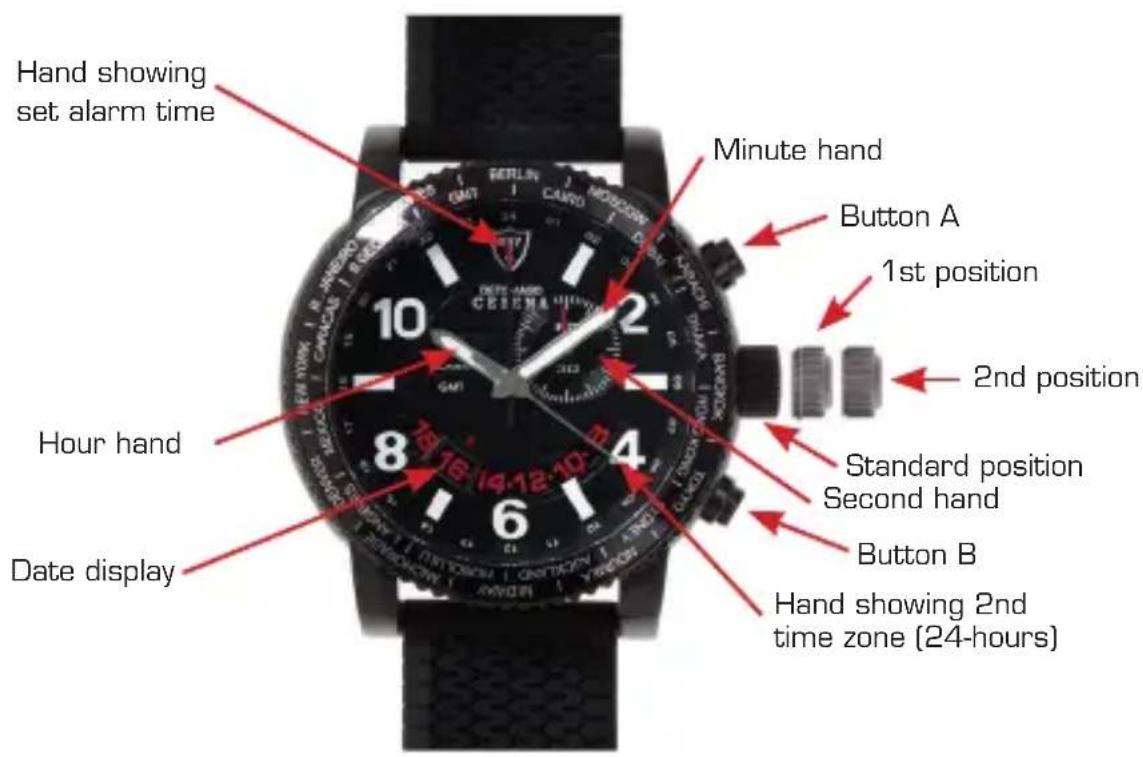

Instructions

Setting the time

1. Pull the crown out into the 2nd position.
2. Set the time by winding the crown.
3. Push the crown back into the standard position.

EN

Setting the date

1. Pull the crown out into the 1st position.
2. Wind the crown in a clockwise direction.
   Important: do not set the date between 9 pm and 12.30 am.
3. Push the crown back into the standard position.

Setting the 2nd time zone (24-hours)

1. Pull the crown out into the 1st position.
2. Press button A and hold it pressed until the hand showing the 2nd time zone begins to move. Release button A when the hand reaches the required position.
3. Push the crown back into the standard position.

Setting the alarm time

1. Pull the crown out into the 1st position.
2. Wind the crown in an anti-clockwise direction.
3. Push the crown back into the standard position.

Activating/deactivating the alarm

The alarm is activated or deactivated by pressing button B:

2 acoustic signals = alarm activated
1 acoustic signal = alarm deactivated

The alarm can be set a maximum of 12 hours before the desired alarm time. When this time is reached an acoustic signal sounds. Press button B to turn off the signal.

24 month warranty

We guarantee that your watch is made of high quality materials. Extensive quality controls guarantee that the watch is checked before being released by the manufacturer.

Nevertheless, material faults cannot always be avoided. Should your new watch show any faults, please consult our customer service department within the valid warranty period.

We provide a 24 month warranty from date of purchase on all material faults and production errors. This manufacturer's warranty applies regardless of statutory warranty rights. The warranty covers the functioning of the clockwork and the flawless workmanship of the watch. Not covered are: batteries, wear and tear of the casing, glass or watch strap as well as damage caused by improper use (accident, broken glass, water damage, pulled-out crown).

We will repair manufacturing faults free of charge within the warranty period. Should the watch be irreparable it will be replaced by a comparable model.

To obtain warranty services please return the product to the place of purchase, together with a copy of your sales receipt or other proof of purchase that shows the date of purchase. Alternatively you may send the watch to the service centre listed on the back of this booklet.

Table des matières

Préambule 17

Etanchéité 18

Disposal of Waste Electrical & Electronic Equipment of products for Household use (Applicable in the European Union only)

The symbol (crossed out wheeled-bin) on your product indicates that the product shall not be mixed or disposed with your household waste at their end of use.

This product shall be handed over to your local community waste collection point for the recycling of the product. For more information, please contact your Government Waste-Disposal department in your country. Incorrect waste handling could possibly have a bad effect on the environment and human health due to potential dangerous substances. With your cooperation in the correct disposal of this product, you contribute to reuse, recycle and recover the product and our environment will be protected.

Disposal of Waste Electrical & Electronic Equipment of products for business use

(Applicable in the European Union only)

For further information regarding the disposal of products for business handling, please contact yourdealer or distributor in your country. This product shall not be mixed or disposed with commercial waste.

Shield-shaped emblem with a central 'T' symbol (no text or numbers present)

DETOMASO

Service Center

MAX Trader GmbH

www.facebook.com/DetomasoWatches
