Lucca - Watch Detomaso - Free user manual and instructions

Brand	Detomaso
Model	Lucca
Product Type	Quartz watch
Water resistance	10 ATM (100 meters of test pressure, not suitable for swimming or diving)
Movement	Battery quartz
Power source	Battery (replacement recommended every 1 to 1.5 years at a specialized store)
Main functions	Time display with hands, 24h indicator, chronograph (stopwatch) with split time measurement
Time setting	Crown in position 2 to set the time and 24h indicator
Chronograph reset	Possible via buttons A and B when the crown is in position 2
Warranty	24 months (manufacturing defects and material faults, excluding battery, normal wear and tear, and damage from improper use)
Maintenance	Protect from impacts, magnetic fields, high temperatures, water, and chemicals. Check gaskets annually and during battery replacement
Repairability	Spare parts available for several years; repair guaranteed for a long period
Case materials	Not specified in the manual (stainless steel likely)
Glass type	Not specified (mineral glass likely)
Strap	Not specified (leather or metal depending on model)
Condensation	If condensation appears under the glass, bring immediately to a specialized store

Frequently Asked Questions - Lucca Detomaso

How to set the time on the Detomaso Lucca watch?

Pull the crown to the 2nd position. Turn it clockwise to advance the time. The hour hand is synchronized with the 24h indicator; make sure to position it correctly. Push the crown back to the 1st position once the setting is done.

How to use the chronograph?

Press button A to start the stopwatch. Press A again to stop it. Press B to reset the stopwatch to zero (the stopwatch must not be running). To measure intermediate times, press B while the chronograph is running to display the split time, then press B again to resume.

How to reset the chronograph if the hands do not return to zero?

Pull the crown to the 2nd position. Press button A or B to move the chronograph seconds and minutes hands to the zero position. A single press moves one step, a continuous press moves faster. Then push the crown back to the normal position.

Is the Detomaso Lucca watch water resistant?

Yes, it is tested to 10 ATM (100 meters of test pressure). However, this does not correspond to diving depth; it resists splashes and rain, but is not suitable for swimming, showering, bathing, or diving.

When and how to change the watch battery?

The battery should be changed every 1 to 1.5 years at a specialized store. During replacement, check and replace the gaskets if necessary to maintain water resistance.

What to do in case of condensation under the glass?

Bring the watch immediately to a specialized store. Moisture can damage the movement. Condensation indicates a seal failure.

How to maintain my Detomaso Lucca watch?

Protect it from impacts, magnetic fields, high temperatures, excessive water, and chemicals. Remove it for sleeping. Have the gaskets checked annually. If condensation forms, act quickly.

What is the warranty period?

The watch has a 24-month warranty against manufacturing defects and material faults from the date of purchase. Batteries, normal wear and tear (case, glass, strap), and damage from improper use (accident, water, etc.) are excluded.

Can I get spare parts for my watch?

Yes, Detomaso makes all spare parts available for several years and guarantees repair over a long period. Contact an authorized dealer or customer service.

How to claim the warranty?

Send the watch with your name, address, and a copy of the proof of purchase to the dealer or to the address indicated on the back of the manual. The warranty covers manufacturing defects; if the watch is not repairable, it will be replaced with a comparable model.

USER MANUAL Lucca Detomaso

Caring instructions 13

Operating instructions for the watch 14

Calibration (reset) of the Chronograph 16

24 months warranty 17

Foreword

Congratulations on the purchase of your new DETOMASO watch. Now you are the owner of a timepiece of maximum precision and innovative design.

We stock all important spare parts for each model to ensure professional repair service. Please read the following operating instructions carefully so we can guarantee proper functioning of your new watch for many years to come.

EN

Water resistance

The water resistance of your DETOMASO watch has been tested for 10 ATM.

This means that you may wash your hands or take a bath and a shower or swim with it and that it is spraywaterproof. However, diving is not suitable.

Water resistance is a non-lasting quality that requires annual check-ups, especially prior to exposition of external stress because the built-in sealing elements will decrease in their efficiency due to everyday use. Seals are used to guarantee the water resistance of a watch. These seals have a natural aging process and are prone to become porous due to the effects of sweat and acids.

The ISO 2281 regulates criteria and standards that new watches must meet. The resilience is stated in ATM on the base of the casing. Your DETOMASOwatch has a designated water resistance of 10 ATM. The stated pressure of "10 ATM" should not be mistaken for the diving depth. It is merely the definition of the test pressure. A test pressure of "10 ATM" is reached at a water depth of 100m . However, you cannot dive with this watch.

The guaranteed test pressure allowed to be imposed on the seals will be compromised during swimming or when jumping into water.

This is most likely to occur if one jumps into water after an extended period of sunbathing. The impact pressure and vacuum caused by cooling can cause damage.

Please check the seals every time you change the battery and renew them if necessary.

Caring instructions

Your watch is a masterpiece of electronics and the very best in precision mechanics that will be a reliable time keeper for years. Protect your watch against impact, magnetic fields, high temperatures, water and chemicals as well as against mechanical wear. Watches should always be taken off during sleep.

If a battery-operated watch stops or a low battery status is indicated it should immediately be serviced at a specialist shop to avoid that the empty battery causes damage to the watch or to the environment.

In any way the battery should be changed regularly at intervals of 1 - 112 years. Here again please check the seals every time you change the battery and renew them if necessary.

If there is condensation (fog under the glass), the watch must be taken to a specialist shop immediately to avoid that the humidity causes any damage. The crown should always be pushed in while wearing.

EN

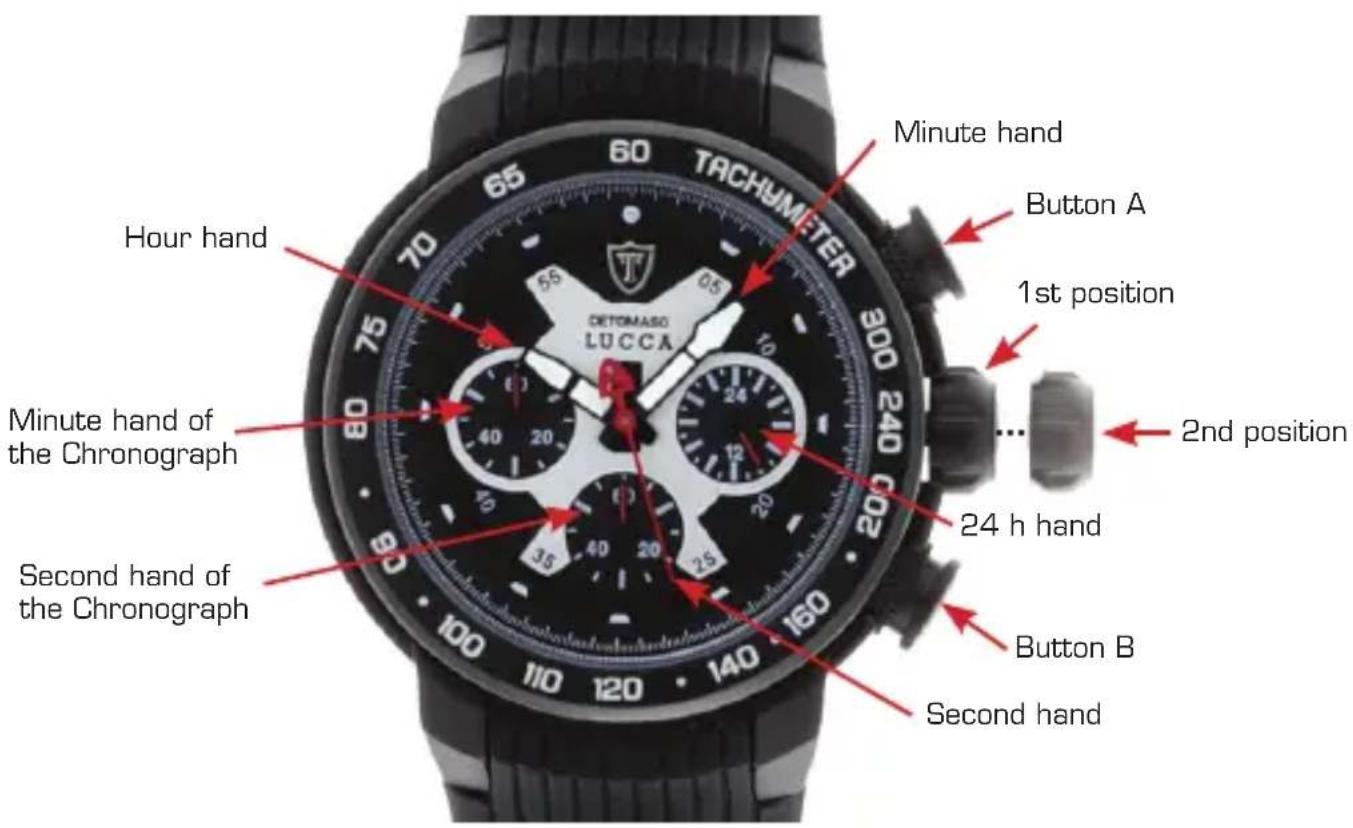

Operating instructions for the watch

Setting the time and the 24 h display

1. Pull out the crown into the 2nd position
2. Set the time by turning the crown. The 24 h hand will also turn.
3. Push back the crown into the 1st position after the desired time and proper 24h display have been adjusted.

Chronograph - simple use of the stop watch

1. Push button A to start the Chrono (stop watch)
2. Repush button A to stop the function
3. Push button B to reset to zero

Taking split time

1. Push button A to start the Chrono (stop watch)
2. Push button B to measure the split time
3. Repush button B for split release. Now the second hand advances rapidly to catch up on the elapsed time since the split time.
4. Repush button A to stop the Chrono
5. Push button B to reset to zero.

EN

Calibration (reset) of the Chronograph

This procedure should only be performed if the second hand of the chronograph does not return to the zero position after the chronograph has been reset or after battery change.

1. Pull out the crown to position 2.
2. Press button A or B to set the second hand to the zero position. A short push will give you a step by step advance whereas the hand can be advanced rapidly by continuously pushing one of the buttons.
3. Please make sure that the second hand and the minute hand of the chronograph are in the zero position. Now push back the crown into position 1. The chronograph has now been successfully calibrated.

24 month warranty

We guarantee that your watch is made of high quality materials. Extensive quality controls guarantee that the watch is checked before being released by the manufacturer.

Nevertheless material defects cannot always be avoided. Should your new watch show any defects, please consult our customer service within the valid warranty period.

We provide a 24 month warranty on all material defects and production errors with proof of purchase.

This manufacturer's warranty applies regardless of legal warranty regulations. The warranty covers the functioning of the clockwork and the flawless workmanship of the watch.

Not covered are: Batteries, wear and tear of the casing, glass or watch strap as well as damage caused by improper use (accident, broken glass, water damage, pulled-out crown).

Within the warranty period manufacturing defects will be repaired free of charge by us.

Should the watch be irreparable it will be replaced with a comparable model.

To obtain warranty services, please take or send the product, with a copy of your sales receipt or other proof of purchase that shows the date of purchase, to the store where purchased. Or send the watch to the service center listed in the back of this booklet.

Table des matieres

Praambule 19

Etanchéité 20

Disposal of Waste Electrical & Electronic Equipment of products for Household use (Applicable in the European Union only)

The symbol (crossed out wheeled-bin) on your product indicates that the product shall not be mixed or disposed with your household waste at their end of use.

This product shall be handed over to your local community waste collection point for the recycling of theproduct. For more information, please contact your Government Waste-Disposal department in yourcountry. Incorrect waste handling could possibly have a bad effect on the environment and human healthdue to potential dangerous substances. With your cooperation in the correct disposal of this product,you contribute to reuse, recycle and recover the product and our environment will be protected.

Disposal of Waste Electrical & Electronic Equipment of products for business use (Applicable in the European Union only)

For further information regarding the disposal of products for business handling, please contact your dealer or distributor in your country. This product shall not be mixed or disposed with commercial waste.

DETOMASO

Service Center

MAX Trader GmbH
