Perugia - Watch Detomaso - Free user manual and instructions

Frequently Asked Questions - Perugia Detomaso

USER MANUAL Perugia Detomaso

Shield-shaped emblem with a central 'T' symbol (no text or numbers present)

DETOMASO

PERUGIA

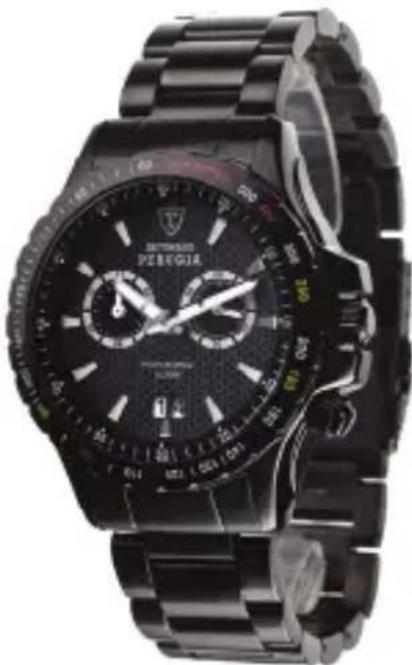

Black and white luxury wristwatch with engraved branding and mechanical components (no readable text beyond brand name)

Inhaltsverzeichnis

Vorwort 3

Wasserdichtigkeit 4

Pflegehinweise 5

Pure electrical circuit lines without any symbols

Caring instructions 14

Shortening of metal bracelets 15

Operating instructions for the watch....16

24 months warranty....19

EN

Foreword

Congratulations on the purchase of your new DETOMASO watch. Now you are the owner of a timepiece of maximum precision and innovative design.

We stock all important spare parts for each model to ensure professional repair service. Please read the following operating instructions carefully so we can guarantee proper functioning of your new watch for many years to come.

Water resistance

The water resistance of your DETOMASO watch has been tested for 10 ATM.

This means that you may wash your hands or take a bath and a shower or swim with it and that it is spraywaterproof. However, diving is not suitable.

Water resistance is a non-lasting quality that requires annual check-ups, especially prior to exposition of external stress because the built-in sealing elements will decrease in their efficiency due to everyday use. Seals are used to guarantee the water resistance of a watch. These seals have a natural aging process and are prone to become porous due to the effects of sweat and acids.

The ISO 2281 regulates criteria and standards that new watches must meet. The resilience is stated in ATM on the base of the casing. Your DETOMASO-watch has a designated water resistance of 10 ATM. The stated pressure of "10 ATM" should not be mistaken for the diving depth. It is merely the definition of the test pressure. A test pressure of "10 ATM" is reached at a water depth of 100 m. However, you cannot dive with this watch.

The guaranteed test pressure allowed to be imposed on the seals will be compromised during swimming or when jumping into water.

This is most likely to occur if one jumps into water after an extended period of sunbathing. The impact pressure and vacuum caused by cooling can cause damage.

Please check the seals every time you change the battery and renew them if necessary.

EN

Caring instructions

Your watch is a masterpiece of electronics and the very best in precision mechanics that will be a reliable time keeper for years. Protect your watch against impact, magnetic fields, high temperatures, water and chemicals as well as against mechanical wear. Watches should always be taken off during sleep.

If a battery-operated watch stops or a low battery status is indicated it should immediately be serviced at a specialist shop to avoid that the empty battery causes damage to the watch or to the environment.

In any way the battery should be changed regularly at intervals of 1 - 1 12 years. Here again please check the seals every time you change the battery and renew them if necessary.

If there is condensation (fog under the glass), the watch must be taken to a specialist shop immediately to avoid that the humidity causes any damage. The crown should always be pushed in while wearing.

Shortening of metal bracelets

Please have the shortening of a bracelet done at a local watch dealer as unprofessional handling may void your guarantee.

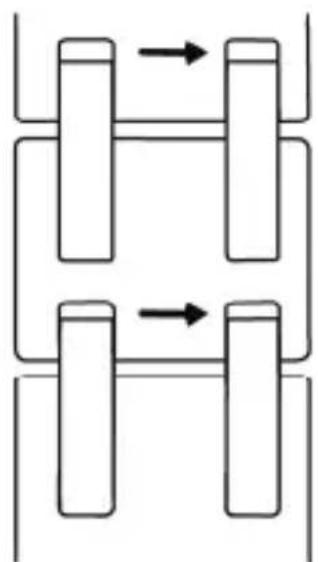

Bracelets with pins:

Pure diagram of two vertical cylindrical objects connected by horizontal lines with arrows indicating direction (no text or symbols)

To shorten the bracelet please push the side pins out of the band with a needle or very small screwdriver. Please pay attention to the engraved arrows on the inside of the metal band or to respective stickers. After shortening the pins have to be reinserted.

EN

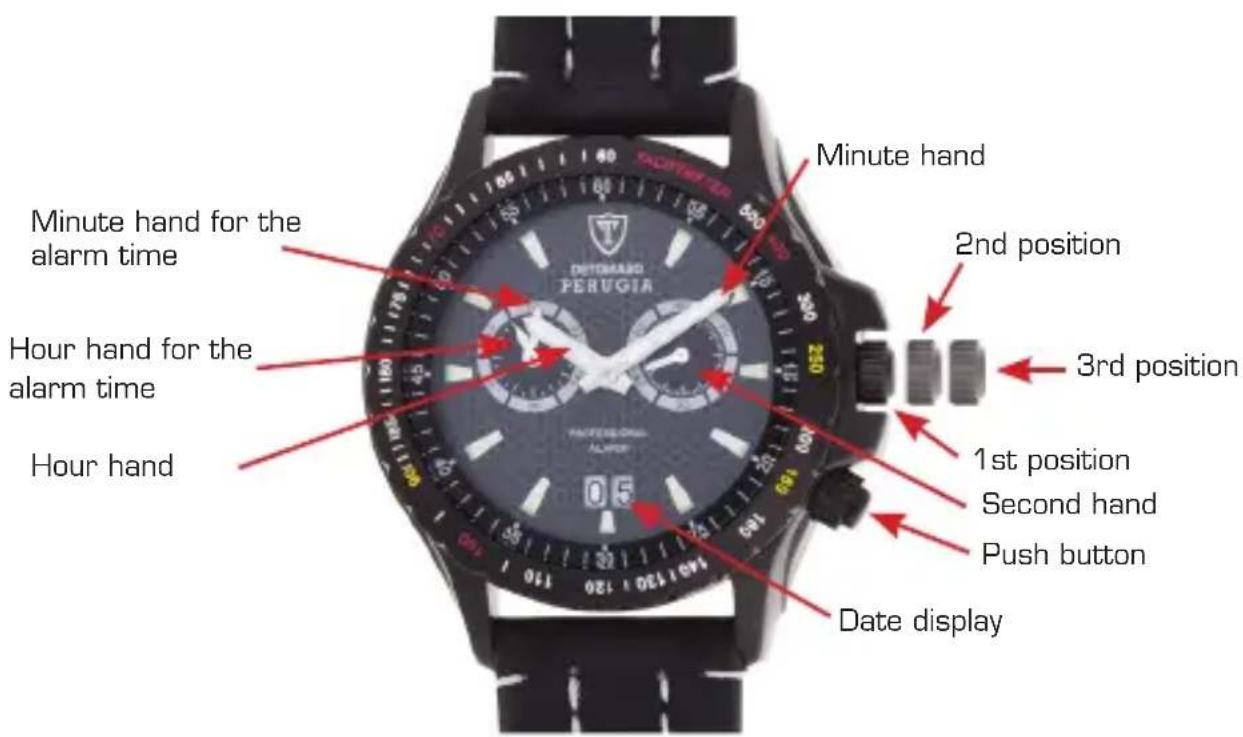

Operating instructions for the watch

Minute hand 2nd position 3rd position 1st position Second hand Push button Date display Minute hand for the alarm time Hour hand for the alarm time Hour hand 10:01:120 120 130 145 160 175 190 205 220 235 250 265 280 300 315 330 345 360 375 390 405 420 435 450 465 480 495 510 525 540 555 570 585 600 615 630 645 660 675 690 705 720 735 750 765 780 795 810 825 840 855 870 885 895 910 925 940 955 970 985 995 DETEOMATO PERUGIA

Setting the time

1. Pull out the crown into the 3rd position.
2. Set the time by turning the crown.
3. Push back the crown into the 1st position.

Setting the date

*When the date is set between 9 pm and midnight the date will not advance on the following day.

1. Pull out the crown into the 2nd position.
2. Turn the crown clockwise.
3. When the crown is pushed back into the 1st position the second hand will start to run.

Setting the reference time

What is the reference time?

The current time is displayed by the hour and minute hand. Parallel to the current time the reference time runs in the background: the alarm time refers to this reference time. Thus resetting the time also requires the identical correction of the reference time. If the reference time is not synchronised with the current time the alarm signal will not function at the set alarm time.

Note: Resetting the time requires an identical correction of the reference time. In order to set the reference time please proceed as follows:

1. Pull out the crown into the 3rd position. The display changes from alarm time to reference time.
2. Activate the setting mode: Press the push-button for at least 2 seconds. As soon as the small minute hand jumps forward one minute, this mode is active.
3. Short pressing (less than 1 second): the reference time is moved forward by the minute. Medium pressing (1–2 seconds): the reference time is moved forward by the hour. Long pressing (longer than 2 seconds): the reference time is moved forward until the push-button is released.
4. Push back the crown into 1st position; the display changes from reference time to alarm time.

EN

Setting the alarm time

1. Activate the setting mode: Press the push-button for at least 2 seconds. As soon as the small minute hand jumps forward one minute this mode is active.
2. Setting:

Short pressing (less than 1 second): the alarm time is moved forward by the minute.

Medium pressing (1-2 seconds): the alarm time will be moved forward by the hour.

Long pressing (longer than 2 seconds): the alarm time is moved forward until the push-button is released.

If the push-button is not activated for 10 seconds the setting mode of the alarm time deactivates. At the same time two beeps are emitted to indicate that the alarm is switched on.

Switching the alarm on/off

The alarm is switched on / off by briefly pressing the push-button:

2 beeps = alarm switched on

1 beep = alarm switched off

The alarm can be set up to 12 hours prior to the desired alarm time. Once the set alarm time has been reached a signal is emitted for 20 seconds. This signal is repeated after two minutes.

24 month warranty

We guarantee that your watch is made of high quality materials. Extensive quality controls guarantee that the watch is checked before being released by the manufacturer.

Nevertheless material defects cannot always be avoided. Should your new watch show any defects, please consult our customer service within the valid warranty period.

We provide a 24 month warranty on all material defects and production errors with proof of purchase.

This manufacturer's warranty applies regardless of legal warranty regulations. The warranty covers the functioning of the clockwork and the flawless workmanship of the watch.

Not covered are: Batteries, wear and tear of the casing, glass or watch strap as well as damage caused by improper use (accident, broken glass, water damage, pulled-out crown).

Within the warranty period manufacturing defects will be repaired free of charge by us.

Should the watch be irreparable it will be replaced with a comparable model.

To obtain warranty services, please take or send the product, with a copy of your sales receipt or other proof of purchase that shows the date of purchase, to the store where purchased. Or send the watch to the service center listed in the back of this booklet.

Table des matières

Préambule 21

Etanchéité 22

Pure diagram of two vertical cylindrical objects connected by horizontal bars, with arrows indicating direction (no text or symbols)

Pure electrical circuit lines without any symbols

Pure diagram of two vertical cylindrical objects connected by horizontal lines with arrows indicating direction (no text or symbols)

Disposal of Waste Electrical & Electronic Equipment of products for Household use (Applicable in the European Union only)

The symbol (crossed out wheeled-bin) on your product indicates that the product shall not be mixed or disposed with your household waste at their end of use.

This product shall be handed over to your local community waste collection point for the recycling of the product. For more information, please contact your Government Waste-Disposal department in your country. Incorrect waste handling could possibly have a bad effect on the environment and human health due to potential dangerous substances. With your cooperation in the correct disposal of this product, you contribute to reuse, recycle and recover the product and our environment will be protected.

Disposal of Waste Electrical & Electronic Equipment of products for business use (Applicable in the European Union only)

For further information regarding the disposal of products for business handling, please contact yourdealer or distributor in your country. This product shall not be mixed or disposed with commercial waste.

Shield-shaped emblem with a central 'T' symbol (no text or numbers)

DETOMASO

Service Center

MAX Trader GmbH

QR code image containing encoded data, no visible human-readable text

www.facebook.com/DetomasoWatches
