Product type	4-stroke marine diesel engine
Brand	Volvo Penta
Model	MD2040
Number of cylinders	4
Bore x Stroke	84 mm x 90 mm
Total displacement	1.50 litre
Weight (engine only, without oil or water)	179 kg
Idle speed	850 ± 25 rpm
Maximum speed range	3200 - 3600 rpm
Engine oil capacity (with filter)	6.4 litres
Fresh water system capacity	6.9 litres
Electrical system voltage	12 V
Recommended starter battery	70 Ah
Alternator (voltage / max current)	14 V / 60 A (840 W)
Starter (power)	2.0 kW
Recommended fuel	Diesel according to EN 590
Recommended oil quality	API CD, viscosity SAE 15W/40 or 20W/50
Safety alarms	High temperature, low oil pressure, charge fault

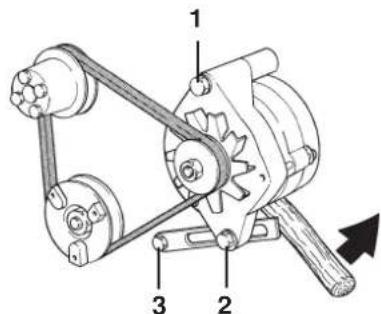

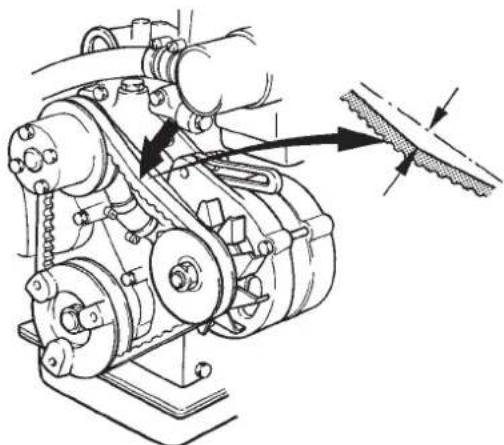

Routine maintenance	Oil change every 100 h, oil filter, fuel filter, belt, etc.
Corrosion protection	Protection anode in zinc (salt water) or magnesium (fresh water)

Frequently Asked Questions - MD2040 VOLVO

What is the startup procedure for the MD2040 engine?

Before starting, open the seacock and fuel valve. Check oil and coolant levels. Turn main switch on. For a dashboard with ignition, turn key to position I (check warning lights), then to position II (preheat 10 seconds max 30), then to position III to start. Release key once engine runs. Let it warm up at low speed.

What is the recommended cruising speed?

For good economy and optimal comfort, avoid full throttle. The recommended cruising speed is 300 to 500 rpm below the maximum full-load speed, i.e., about 2700-3300 rpm for the MD2040.

How to change the engine oil?

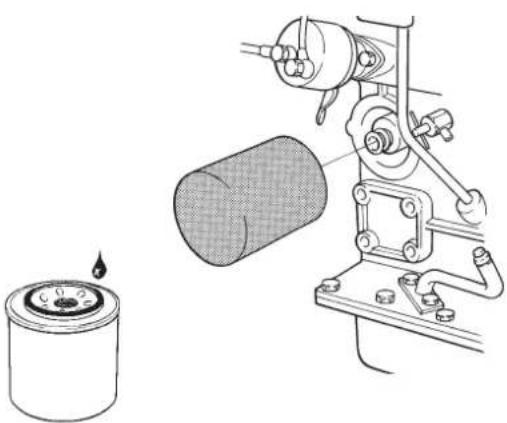

Warm up the engine to thin the oil. Stop engine. Extract oil through oil drain hose using a pump. Replace oil filter by unscrewing old one, clean surface, oil new gasket, screw by hand until contact then half turn more. Fill with new oil to MAX mark on dipstick. Start and check for leaks.

What is the coolant change frequency?

If using antifreeze mixture (glycol), change every two years. If using non-glycol anticorrosion mixture, change every year. Level should be just below filler neck or between MAX and MIN marks on expansion tank.

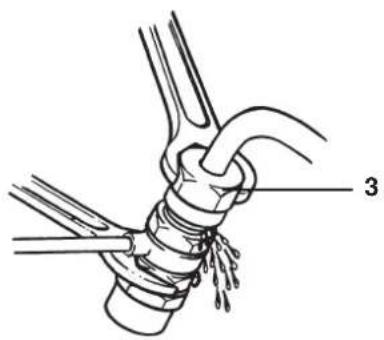

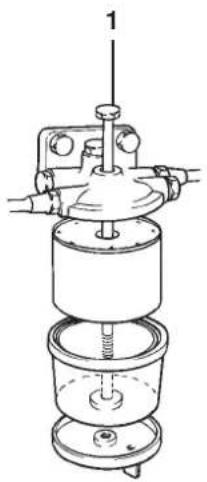

How to bleed the fuel system?

Open the bleed screw on the fuel filter about 3 turns. Operate the priming pump until fuel flows without bubbles. Tighten bleed screw. Loosen injector nuts, set throttle to max, and crank with starter until fuel comes out. Tighten nuts. Start engine and check for leaks.

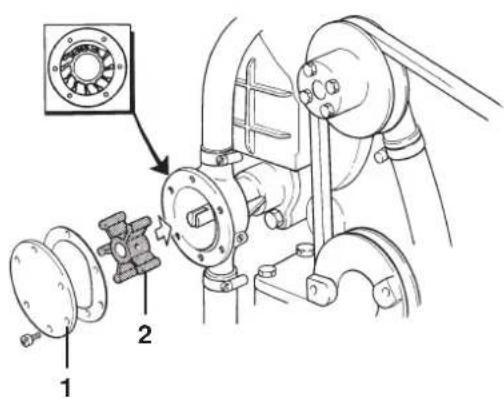

What are the symptoms of a worn seawater pump impeller?

A worn or cracked impeller can cause engine overheating because seawater flow is reduced. Check impeller at every coolant change (every 1 or 2 years). If damaged, replace. Always carry a spare impeller on board.

How to maintain the battery?

Keep battery clean and dry. Clean terminals with a brass brush and grease with Vaseline. Check electrolyte level (5-10 mm above plates) and top up with distilled water if necessary. Fully recharge battery if boat is unused for long. In winter, a discharged battery can freeze.

How to winterize the engine?

After dry storage, drain engine oil and outdrive oil. Replace oil filter and fuel filter. Clean and preserve seawater system with antifreeze mixture. Remove seawater pump impeller and store in cool place. Check antifreeze in freshwater circuit. Disconnect and charge battery. Grease propeller shaft.

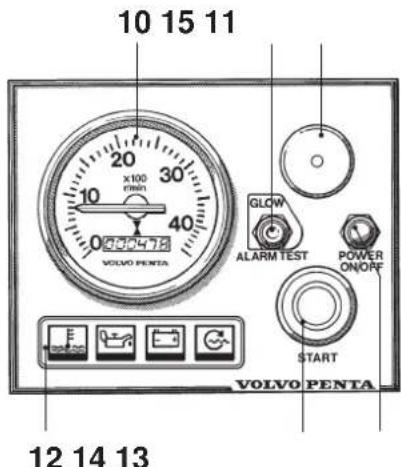

What do the audible alarm and warning lights indicate?

The audible alarm triggers when coolant temperature is too high, oil pressure insufficient, or alternator charge fault. Corresponding lights flash. In case of temperature alarm, reduce to idle; if persists, stop engine. In case of oil pressure, stop immediately.

Which propeller to use with the MD2040?

The propeller choice depends on hull type, load, and operating conditions. The engine must reach max speed range (3200-3600 rpm) at full load. Consult your Volvo Penta dealer for suitable propeller. The folding propeller requires replacement of the stopper and lock screw every 4 years.

USER MANUAL MD2040 VOLVO

MANUEL D'INSTRUCTIONS

MD2010, MD2020, MD2030, MD2040

Blank white image with no visible content, text, or symbols.

Illustration of a man fishing with a sailboat and fishing rod, no text or symbols present

Bienvenue à bord

Line drawing of a speedboat with visible exhaust trails (no text or symbols)

⚠️ N'oubliez pas

Simple line drawing of two birds in flight, one with wings spread and the other with tail feathers (no text or symbols)

Garantie

Simple line drawing of a knob with a label and directional arrow (no text or symbols)

Diagram of a mechanical assembly with rotating parts and directional arrows (no text or labels)

Mechanical assembly diagram showing a turning tool interacting with a motor (no text or symbols present)

Illustration of various mechanical and electrical components (no text or symbols)

Diagram of a kitchen appliance with control panel, keyboard, and socket (no text or symbols)

Line drawing of a kitchen appliance with buttons and a handle (no text or symbols)

Technical illustration showing two mechanical assembly steps: one with a knob and arrow, the other with a lever mechanism (no text or symbols)

Simple line drawing of a mechanical lever mechanism (no text or symbols)

Régime de croisière

Line drawing of a sailboat with multiple masts and sails, no text or symbols present

Manoeuvre

Arrêt

Illustration of three different mechanical or fluidic components: a pipe with a droplet, a valve mechanism, and a pump assembly (no text or symbols present)

Line drawing of a small sailboat with visible hull, hull supports, and dock (no text or symbols)

Simple line drawing of a boat with a person standing beside it (no text or symbols)

Par risque de gel

Simple line drawing of a curved arch with a stepped base (no text or symbols)

Technical line drawing of a mechanical assembly with gears and linkages (no text or symbols)

MD2010, MD2020

MD2030, MD2040

Technical line drawing of a mechanical device with hoses and a cup, no visible text or symbols

Technical illustration of a mechanical device with a cylindrical component and a droplet on top (no text or symbols)

Illustration of a fuel can labeled '90' and a bucket with a water tap (no text or symbols on the can itself)

Mechanical assembly diagram showing a valve mechanism with no visible text or symbols

Technical line drawing of a mechanical device with ports and housing (no text or symbols)

Technical line drawing of a mechanical device with hoses and a central component (no text or symbols)

1.

Technical line drawing of a mechanical device with labeled components (A), no readable text or symbols present.

Technical line drawing of a mechanical device with labeled component B (no text or symbols beyond label)

Line drawing of a mechanical lifting device with a bucket and lever (no text or symbols)

Simple line drawing of a bucket with a faucet inserted, no text or symbols present

Medical illustration of a surgical procedure with labeled component '3' (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical device with a container and tubing, no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical or electrical component with a switch and wiring, showing no text or symbols.

Two technical diagrams showing a device being switched by a tool, with no visible text or symbols.

Diagram of a bottle pouring liquid into a mechanical component with tubing (no text or symbols)

Batterie. Charge

BL = Bleu OR = Orange

LBL = Bleu clair R = Rouge

BN = Brun SB = Noir

LBN = Brun clair W = Blanc

GN = Vert Y = Jaune

GR = Gris

Sections non indiquées = 1,0 mm²

Rapport mm ^2 /AWG\*

*American Wiring Gauge

mm^2 AWG

1,0 1,516 (17)

2,515 (16)

1013

167

5

Sections non indiquées = 1,0 mm²

Diagram showing a propeller being heated by a flame inside a cylindrical container, with a small component nearby (no text or symbols)

Technical line drawing of a mechanical device with a cylindrical component and a vertical port (no text or symbols)

Line drawing of a hand with two fingers, one sleeve and one wristband (no text or symbols)

Illustration of two hands holding a pipe fitting, showing mechanical assembly (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

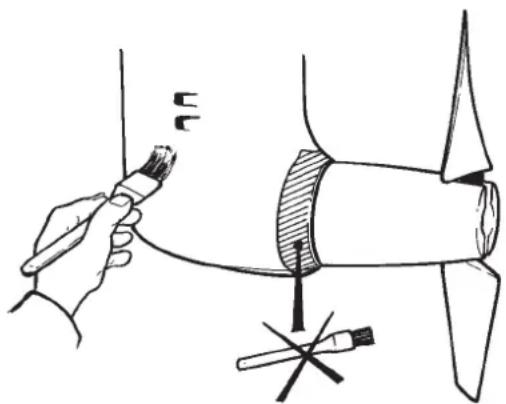

Protection anti-corrosion. Contrôle/Echange

Dépose

Line drawing of a person operating a crane lifting a small boat on a dock (no text or symbols present)

Illustration of a hand holding a tool next to a wind turbine blade and screwdriver (no text or symbols)

ASTM D 975 N° 1-D et 2-D

JIS KK 2204

Blank white image with no visible content, text, or symbols.
