USER MANUAL Bounzy EXIT

CHOKING HAZARD small parts

Adult assembly required retain for future reference

English4

Deutsch22

Nederlands40

François58

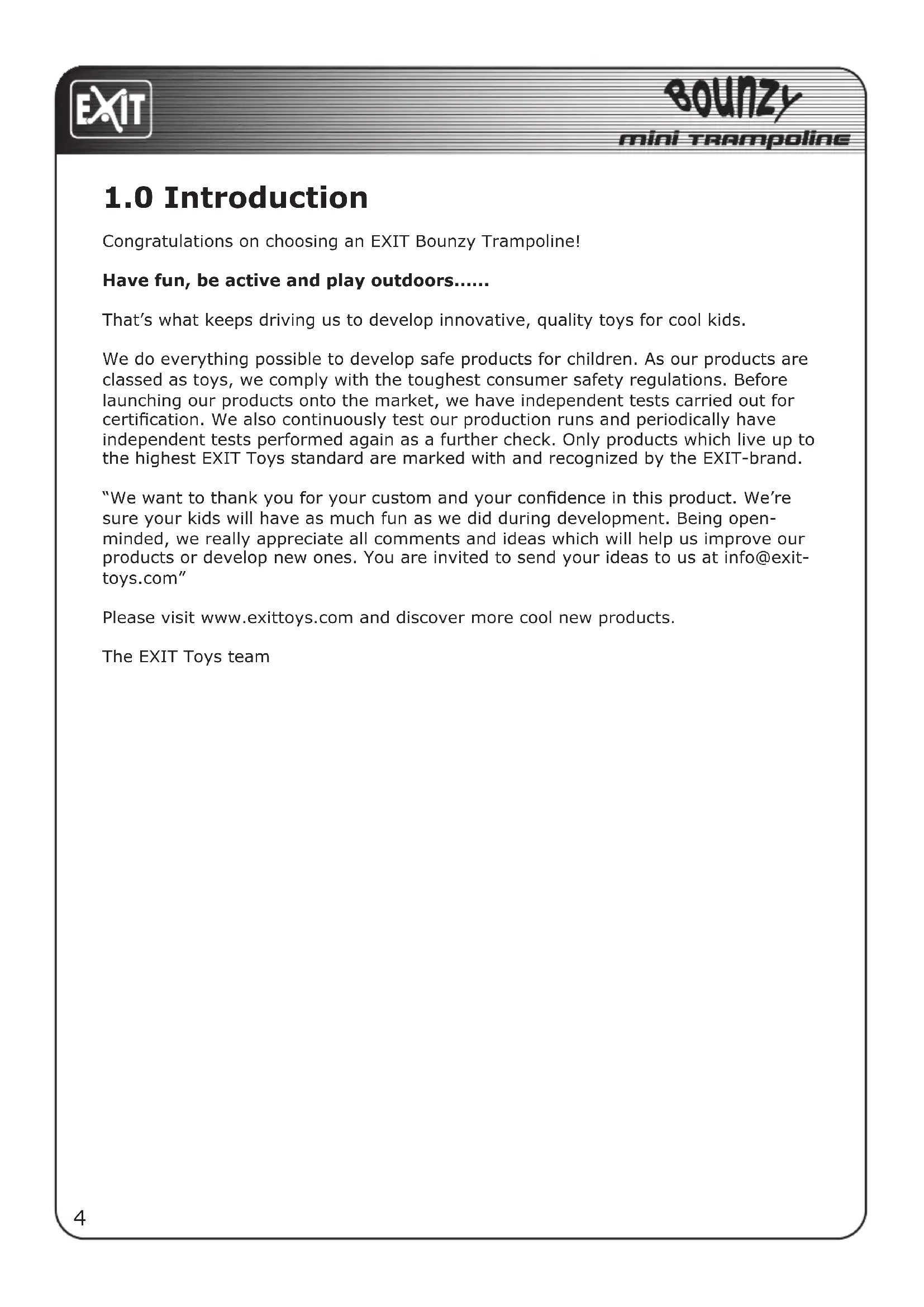

1.0 Introduction

Congratulations on choosing an EXIT Bounzy Trampoline!

Have fun, be active and play outdoors.....

That's what keeps driving us to develop innovative, quality toys for cool kids.

We do everything possible to develop safe products for children. As our products are classed as toys, we comply with the toughest consumer safety regulations. Before launching our products onto the market, we have independent tests carried out for certification. We also continuously test our production runs and periodically have independent tests performed again as a further check. Only products which live up to the highest EXIT Toys standard are marked with and recognized by the EXIT-brand.

"We want to thank you for your custom and your confidence in this product. We're sure your kids will have as much fun as we did during development. Being open-minded, we really appreciate all comments and ideas which will help us improve our products or develop new ones. You are invited to send your ideas to us at [e-mail]"

Please visit www EXITfoys.com and discover more cool new products.

The EXIT Toys team

2.0 Guidelines for safe use

Using your product as instructed in this manual will eliminate virtually all hazards. However, please bear in mind that children have a natural urge to play and that this may lead to unforeseen dangerous situations for which the manufacturer cannot be held responsible. Teach your children how to use the product and point out possible dangers to them.

Before assembling and using the product, please read and observe these main warnings:

WARNING

To avoid serious injury:

• Read and understand the manual before use.
  WARNING: Only for domestic use
  WARNING: CHOKING HAZARD! - Small parts. Not for Children under 3 years old.

• Protect children

• Prevent falls and strangulation - Exit through the door only, and use caution.

• Assist young children in and out of Safety net.

WARNING: Only one user at a time; danger of collision!
WARNING: Do not perform summersaults or other difficult jumps!
WARNING: Empty your pockets before use of the trampoline!

Continuous adult supervision is required.

Don't use the trampoline when it's wet.

• The trampoline is to be assembled by an adult prior to use.
  In case of missing or broken parts, please contact place of purchase for assistance.
  We are not liable for any injuries that may occur when using the trampoline.

• Max. User weight: 25 ~kg / 55 ~lbs .
• Age: 3 - 7 years.

2.1Warnings for safe use:

• BEFORE YOU BEGIN USING YOUR TRAMPOLINE: Read and understand the information provided in this manual. As with all physical sports and activities there is the risk of participants receiving an injury. To ensure your future enjoyment and the prevention of injury, be sure to follow appropriate safety rules and tips.
• The maintenance handbook must be retained.
  Always close the enclosure opening before use.
• ALWAYS CONSULT A DOCTOR/PHYSICIAN BEFORE PERFORMING ANY KIND OF PHYSICAL ACTIVITY.
• ALWAYS CHECK YOUR TRAMPOLINE BEFORE USE, PAYING SPECIFIC ATTENTION TO ALL THE BOLTS, JUMP MAT AND PADS POSITION. DON'T USE IF ANY PARTS ARE MISSING OR LOOK LIKE THEY SHOW WEAR AND TEAR.
• ALWAYS ENSURE THAT THE TRAMPOLINE IS USED BY ONLY ONE PERSON AT A TIME.
• ALWAYS ENSURE THAT WHENEVER THE TRAMPOLINE IS USED BY ANYONE AT ANY SKILL LEVEL THAT DO SO UNDER SUPERVISION.
• Stop exercising immediately should you feel unwell or if you feel pain in your joints and muscles. Dizziness is a sign of fatigue and you should stop bouncing and lay down on the ground should you feel dizzy.
• When using this trampoline ensure appropriate clothing is worn, preferably sports wear and socks. NEVER WEAR SHOES ON THE MAT.
• Please be warned that trampoline is spring based and will allow the user to jump to a greater height than that on the ground, so please bear this in mind and ensure that you are comfortable bouncing at low heights first.
• Proper assembly, care and maintenance of product, safety tips, warnings, and proper techniques for jumping on your trampoline are included in this manual for your safety and an extended product life span. All users and supervisors should therefore familiarize themselves with these instructions. Anybody who chooses to use the trampoline must be aware of their own limitations with regards to performing skills on this trampoline.
• This product is intended for home use only.
• Moving the Trampoline. If the trampoline and enclosure needs to be moved, it should be moved by two persons, kept horizontal, and lifted slightly. If necessary, the trampoline and enclosure can be taken apart for moving. To take the trampoline apart, follow the assembly steps in reverse order.

2.2 Use of the trampoline

INITIALLY, you should get accustomed to your trampoline and understand how much spring is in each bounce. The focus at this point should be body position and technique until each skill can be completed with ease and control.

BEFORE YOU TRY TO JUMP TOO HIGH the technique for stopping should be learnt as this will help prevent injury should you feel you are jumping out of control.
- As the user lands on the bed, the knees should be bent so that they stop and absorb the spring in the mat. The position is shown in the image to the left. Arms are held out for increased level of balance.
- This skill is used when the trampoline user wishes to stop bouncing on the trampoline due to fatigue, loss of control, etc.

SOMERSAULTS (FLIPS): DO NOT PERFORM somersaults of any type (backwards or forwards) on this trampoline. If you make a mistake when trying to perform a somersault, you could land on your head or neck. This will increase your chances of your neck or back being broken, which could result in death or paralysis

FOREIGN OBJECTS: DO NOT use the trampoline if there are pets, other people, or any objects underneath the trampoline. This will increase the chances of an injury occurring, DO NOT hold any foreign objects in your hand and DO NOT place any objects on the trampoline while in use. DO NOT place the trampoline under over-hanging objects like tree branches, wires, etc as these will increase your chances of being injured.

POOR MAINTENANCE OF TRAMPOLINE: A trampoline in poor condition will increase your risk of being injured. Please inspect the trampoline before each use for bent steel tubes, torn mat, loose or broken springs and overall stability of the trampoline.

RESTRICTING ACCESS: When the trampoline is not in use, always close the enclosure opening so that unsupervised children can not play on the trampoline.

2.3 Tips to reduce the risk of accidents

In order to reduce the risk of accident the "TRAMPOLINE USER" should:

• Always remain in control of their jumps and body position at all times.
• Not attempt to perform skills that are beyond their own level of competence.
• Read and understand the jump by taking off and landing in the middle of the trampoline.
• Always control their jump by taking off and landing in the middle of the trampoline.

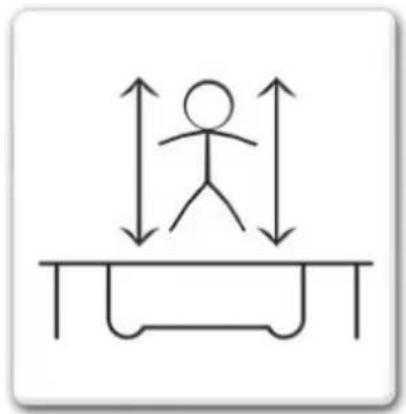

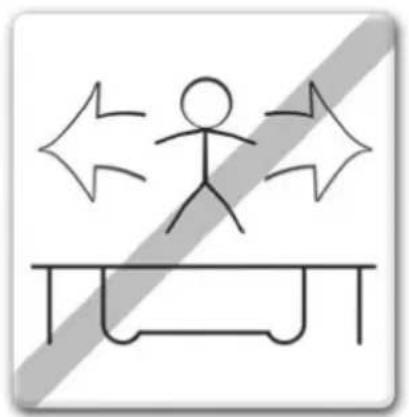

• Always jump vertically and refrain from bouncing towards the springs in any direction.
• Always consult a professionally certified trampoline instructor before attempting anything beyond basic techniques.

In order to reduce the risk of accident the "SUPERVISOR" should:

• Fully understand and enforce all the safety rules and guidelines.
• Advise the trampoline user and provide knowledge in what they are doing right and wrong to ensure the safety of trampoline user.
• Be aware and advise the trampoline user of all the safety warnings.

IMPORTANT: If the Trampoline can not be supervised there should be a method for securing it and preventing anyone from using the product until supervision is available.

2.4 Trampoline Safety Instructions

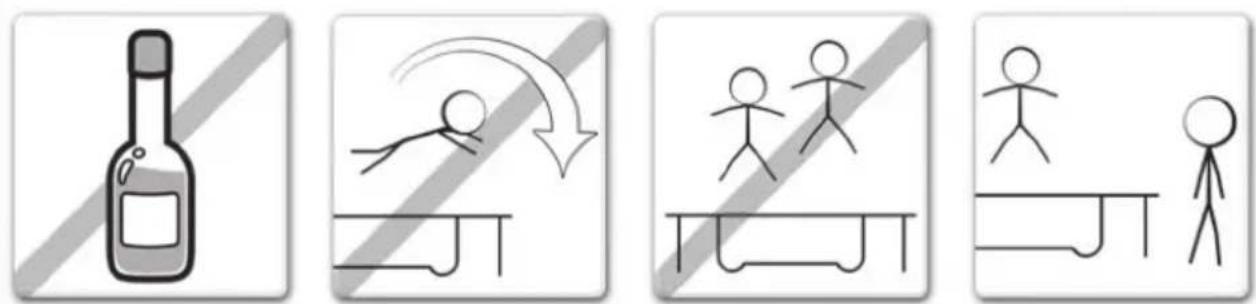

ADVISORY PRECAUTIONS WHILST USING THE TRAMPOLINE

• Do not use trampoline if you have consumed alcohol or narcotic substances
• You should climb on and off the trampoline in a controlled and careful manner. Never jump onto or off the trampoline and never use the trampoline as a means to bounce onto or into another object.
• Always learn the basic bounce and master each type of bounce before trying more difficult types of bounces. Review the basic skills section to learn how to do the basics.
• To stop your bounce, flex your knees when you land on your feet.
• Always be in control when you are bouncing on the trampoline. A controlled jump is when you land at the same spot that you took off from. If at any time you feel out of control, stop bouncing immediately.
• Do not jump or bounce for prolonged periods of time of too high for a number of jumps. Keep your eyes on the mat to maintain control. If you do not, you could lose your balance.
• Never have more than 1 person on the trampoline at any one time.

ADVISORY PRECAUTIONS WHILST SUPERVISING TRAMPOLINE

IMPORTANT: Familiarise yourself with the basic jumps and safety rules. To prevent and reduce the risk of injuries, ensure that all safety rules are enforced and the new users learn the basic bounces before trying more advanced techniques.

• ALL USERS need to be supervised, regardless of skill level or age.
• Never use the trampoline when it is wet, damaged, dirty or wore out. The trampoline should be inspected before use.
• Keep all objects that could interfere during use away from the trampoline at all times. Be aware of what is overhead, underneath and around the trampoline.
• To prevent unsupervised and unauthorized use, the trampoline should be secured at all time.

2.5 Accident classification & identification

MOUNTING AND DISCOUNTING:

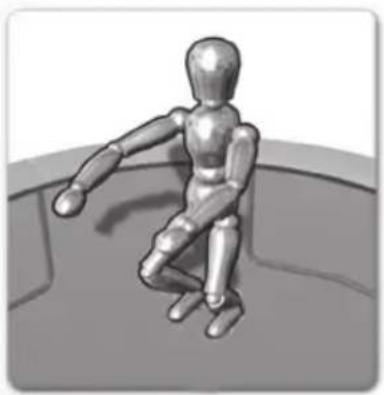

Be very careful when getting on and off the trampoline. DO NOT mount the trampoline by grabbing the frame pad, stepping onto the springs or by jumping onto the mat of the trampoline from an object(eg. A deck, roof, or ladder). This is considered highly dangerous. DO NOT dismount by jumping off the trampoline and landing on the ground. If small children are playing on the trampoline, they may need help in mounting and dismounting

USE OF ALCOHOL OR DRUGS:

DO NOT consume any alcohol or take any drugs (this includes medication that could affect the users co-ordination) when using this trampoline. This is considered highly dangerous since these foreign substances impair your judgements, reaction time and overall physical co-ordination.

MULTIPLE USERS:

Only one user at a time; danger of collision!

STRIKING THE FRAME:

When playing on the trampoline, STAY in the centre of the trampoline mat. This will reduce the risk of being injured by landing on the frame. Always keep the frame pads covering the frame of the trampoline. DO NOT jump or step onto the frame pad directly since it is not intended to support the weight of a person.

LOSS OF CONTROL:

DO NOT try difficult maneuvers until you have mastered the basics. If you do not follow these guidelines, you increase the risk of someone being injured.

WARNING: Take a break every 10 minutes.

3.0 Trampoline techniques

Basic Skills

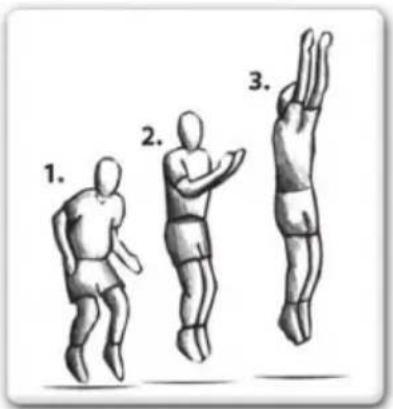

BASIC SKILL 1: The basic bounce

• Start from a standing position, with feet shoulder width apart head up and eyes on the trampoline bed.
• Swing arms forward and up above head in a circular motion.
• Bring legs and feet together in mid-air position and point toes.
• Land back on the mat with feet shoulder width apart (same as start position).
• Why not try moving onto the next skill once comfortable and proficient.

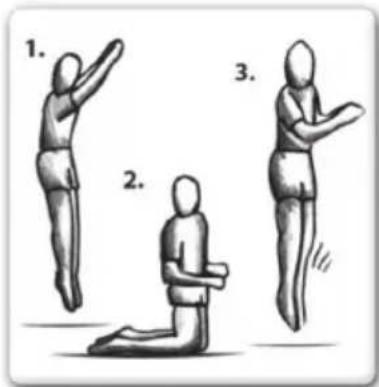

BASIC SKILL 2: The Knee Drop

• Start with a low basic bounce (as detailed in BASICSKILL1).
• Land on knees shoulder width apart, keeping back straight and a strong body position using arms out to the side or in front to maintain balance.
• Bounce back to basic bounce position by using bounce momentum and swinging arms above head.
  Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height.

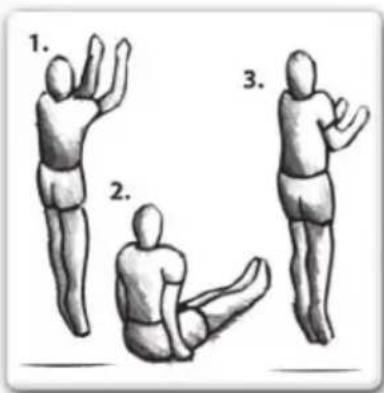

BASIC SKILL 3: The Seat Drop

• Start with a low basic bounce (BASIC SKILL 1) in the normal position.
• Land with legs out straight in front of you, with hands either side of your hips and back straight in a strong body position.
• Use the bounce momentum aided with a push from hands to return to a standing position.
  Once mastered at this height try bouncing a little higher, but remember to always stay in control of your height.

IMPORTANT: Please consult a trained trampoline instructor before attempting any more advanced skills to ensure highest possible safety levels are

4.0 General Information

• Self-securing nuts and screws are suitable only for one time setting-up, and must be replaced after breakdown of the trampoline and/or safetynet.
• It is recommended to place the trampolines on a flat and level surface with at least 2m distance to other superstructures, or barriers, e.g. fence, garage, house, tree branches, washing lines, or electrical cables.
• Exchange defective parts according to the supplier's recommendation.
• Changes to the trampoline (e.g. addition of an accessory) must be done according to the supplier's instruction.

5.0 Trampoline Assembly

STEP BY STEP CONSTRUCTION

Only assemble by adult.

To assemble this trampoline all you need is our special spring loading tool provided with this product. During periods of non-use, this trampoline can be easily disassembled and stored. Please read the assembly instructions before beginning to assemble the product.

Please refer to the table for part descriptions and numbers. The assembly instruction use these descriptions and numbers as reference.

Make sure you have all parts listed. If you are missing any parts, please contact place of purchase.

Please use gloves to protect your hands from pinch points during assembly. When you are ready to start, make sure that you have plenty of space and a clean dry area for assembly.

6.0 CARE AND MAINTENANCE

This trampoline was designed and manufactured with quality materials and craftsmanship. If proper care and maintenance is provided, it will provide all jumpers with years of exercise, fun, and enjoyment as well as reduce the risk of injury. Please follow the guidelines listed below:

This trampoline is designed to withhold a certain amount of weight and use. Please make sure that only one person at any one time uses the trampoline. Jumpers should either wear socks, gymnastics shoes, or be barefoot when using the trampoline. Please be aware that street shoes or tennis shoes should NOT be worn while using the trampoline. In order to prevent the trampoline mat from getting cut or damaged please do not allow any pets onto the mat. Also, jumpers should remove all sharp objects from their person prior to using the trampoline. Any type of sharp or pointed objects should be kept off the trampoline mat at all times.

Maintenance instructions

It is particularly important to follow the following maintenance instructions at the beginning of each season and periodically during the use season:

It is necessary to determine whether all nuts and bolts are tight, and if necessary they are tightened;
- It shall be verified that all spring-loaded connections (locking pin) are undamaged and not move while playing;
- Any cover screws and sharp edges must be checked and replaced if necessary;
- The maintenance manual shall be kept

Always inspect the trampoline before each use for worn, abused or missing parts. A number of conditions could arise that may increase your chances of getting injured. Please be aware of:

• Punctures, holes, or tears in the trampoline mat
• Sagging trampoline mat
• Loose stitching or any kind of deterioration of the mat
• Bent or broken frame parts, such as the legs
• Broken, missing, or damaged springs
  Damaged, missing, or insecurely attached frame pad
• Protrusions of any types (especially sharp types) on the frame, springs, or mat

IF YOU FIND ANY OF THE PREVIOUS CONDITIONS, OR ANYTHING ELSE THAT YOU FEEL COULD CAUSE HARM TO ANY USER, THE TRAMPOLINE SHOULD BE DISASSEMBLED OR SECURED FROM USE UNTIL THE CONDITION(S) HAS BEEN RESOLVED.

MOVING THE TRAMPOLINE

If you need to move the trampoline, two people should be used. All connector points should be wrapped secured with weather resistant tape, such as duct tape. This will keep the frame intact during the move and prevent the connector points from dislocating and separating. When moving, lift the trampoline slightly of the ground and keep it horizontal to the ground. For any type of other move, you should disassemble the trampoline.

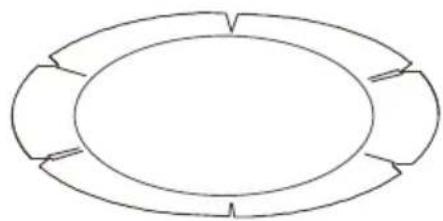

Parts list Trampoline

Part.Nr.	Description #
1 Frame 6
2 Rail 6
3 Leg 6

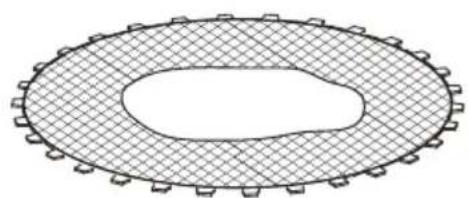

4 Mat with	net 1
5 Pad 1
6 Elastic with ball 32
7 Straight tube 6
8 Plastic beam 6
9 Foam 1 (490mm) 6
10 Foam 2 (510mm) 6
11 Foam 3 (570mm) 6
12 Self-tapping screw 20
13 Pole cap 6

Enclosed are the current specifications and product features available at time of printing, however, changes may be made in equipment, availability, specifications and features without notice.

(1)

(2)

(3)

(4)

(5)

(6)

(9)(7)(8)

(10)

(11)

(12)

(13)

Tools

STEP1

Lay two frames (1) on the ground in the positions as shown. Insert one end A of frame (1) into the end B of the other frame (1).

Repeat this step until the six frame sections are connected as shown.

Note: Make sure the frame is turned so the big-diameter tube is facing the ground.

1

Small diameter tube

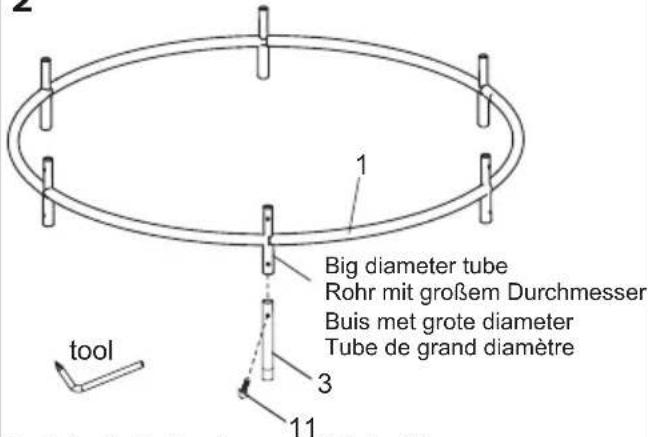

Insert leg (3) into big diameter tube of frame (1), then tighten with one self-tapping screw (11) by tool.

Repeat this step to assemble the remaining legs (3) to the frame (1) in same manner.

2

Fastening the Self-tapping screw(11) by tool(#).

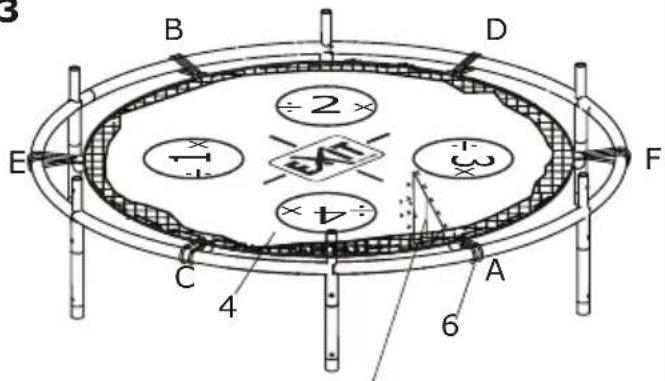

First, align the opening of the enclosure as shown to locate the middle position between the two legs.

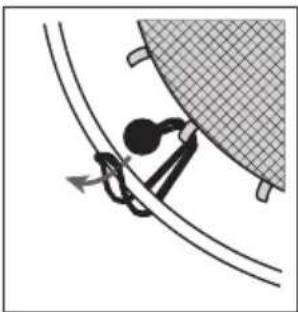

Then attach the mat via the net (4) to the frame using one elastic with ball (6) as shown in the enlarged drawing in the order of A-B-C-D-E-F. Each elastic with ball (6) is also located in the middle position between two legs.

Attach all the remaining elastic with balls (6) in the same manner to relative frame position.

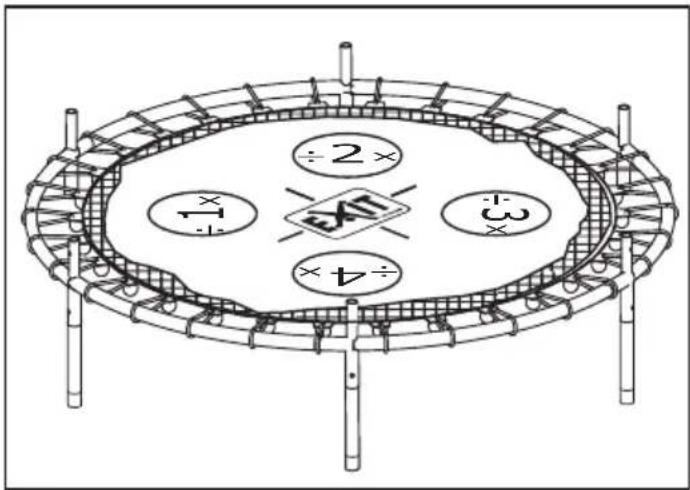

Note:

If the mat is not in the middle of the frame, take the time to adjust it by pulling the elastic with ball (6).

3

Opening of enclosure locate in middle position between two legs.
Öffnung der Umgrenzung in der Mitte zwischen zwei Stützen.
Opening van omheining aangebracht in het midden tussen twee poten.
Ouverture du filt de protection placé au milieu entre deux pieds.

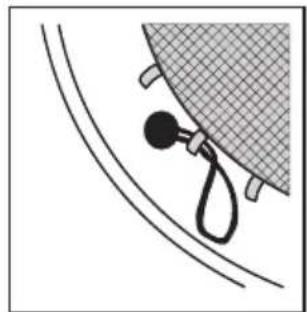

All the elastics with balls (6) should be located on the under side as shown.

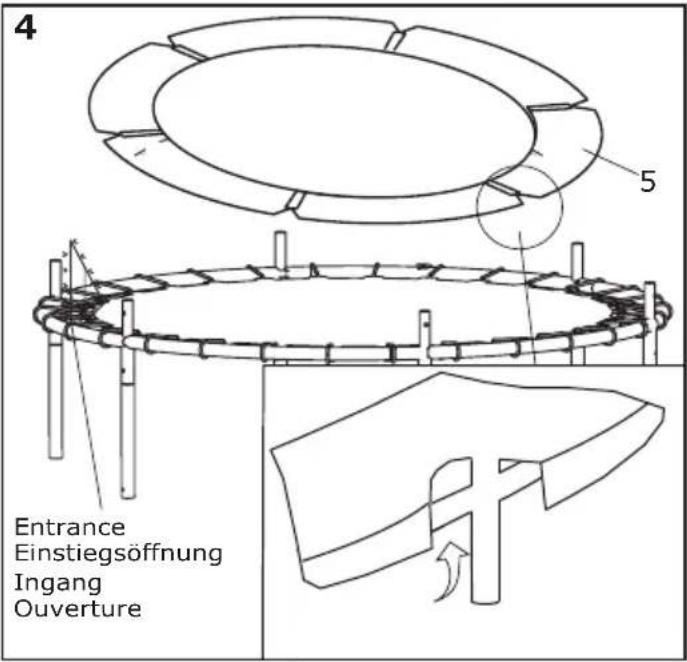

STEP4

Lay the pad (5) on the frame. Adjust the position of the pad so that the slits are directly above the legs as shown.

STEP5

Lay one straight tube (7) on the ground.

5.1

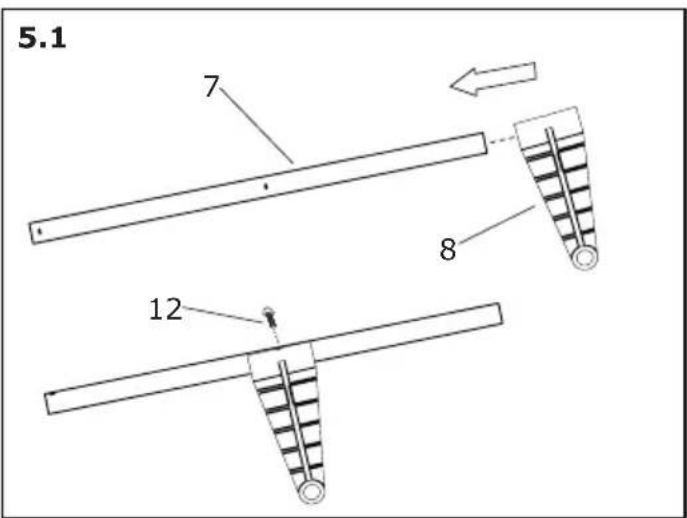

Sleeve a plastic beam (8) on the straight tube (7). Tighten with one self-tapping screw (12) using a tool.

5.2

Pull a Foam 1 490mm (9) over the straight tube (7) from the side with a hole on the tube.

Pull one Foam 2 510mm (10) over the straight tube (7).

Repeat this step to assemble the remaining foams and plastic beams.

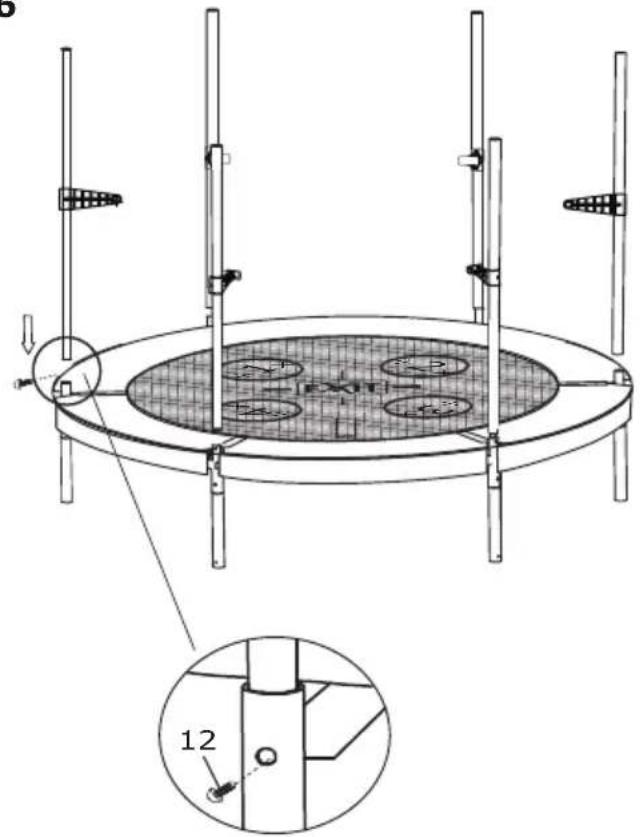

STEP 6

Insert the straight tube (7) into the frame (1). Make sure the holes on the straight tube (7) and on the frame (1) are aligned. Then tighten with one self-tapping screw (12) using a tool.

Repeat this step to assemble the remaining straight tubes.

6

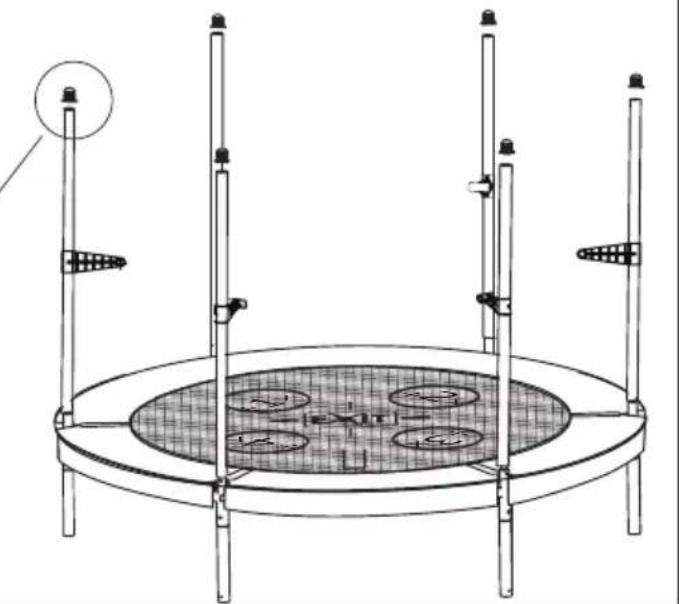

STEP7

Put the pole cap (13) on the top of the straight tube (7).

7

STEP 8

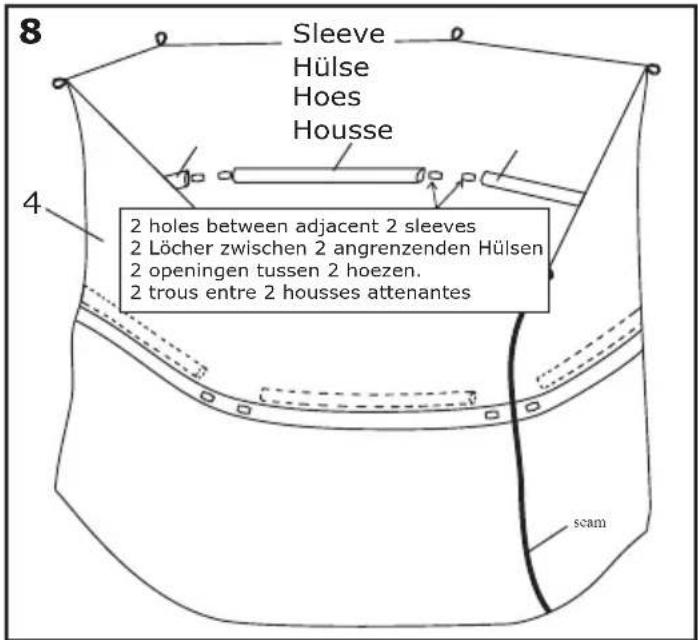

Unfold the net (4) and fold out the sleeve sewn inside of the net; there you will find all six sleeves. Please note there are two holes between the adjacent two sleeves.

STEP 9

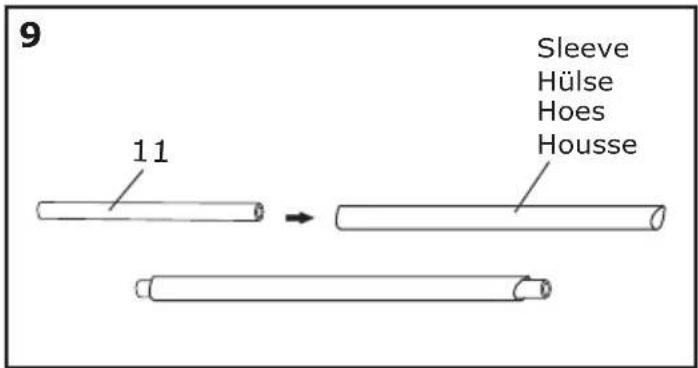

Slide Foam 3 570mm (11) into the sleeve inside the net.

Repeat this step until all six foams slide into the sleeves.

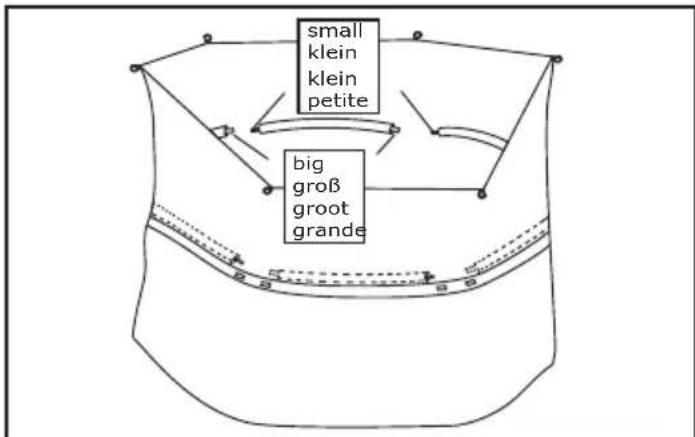

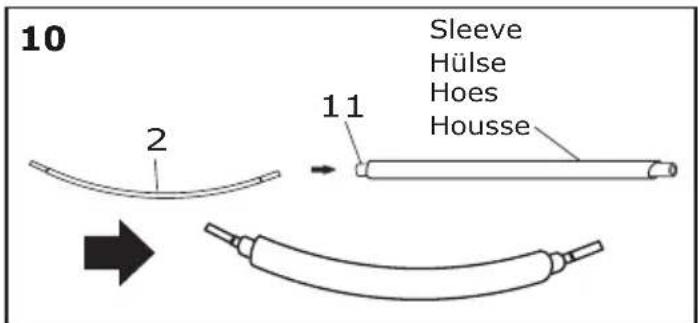

STEP 10

Insert the rail (2) into Foam 3 570mm (11) included in the sleeve as shown.

Repeat this step until all six rails are inserted into the sleeve.

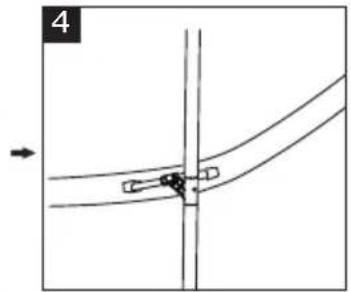

STEP 11

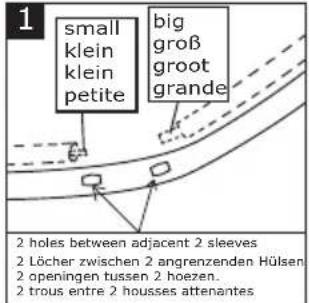

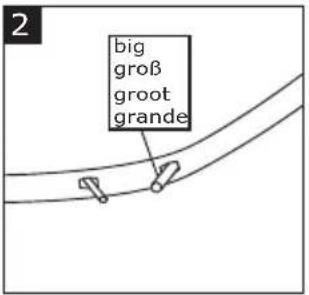

Run the big head and small head of adjacent rails (2) out of the net holes as shown. Then insert the big head into the plastic beam (8), then insert the small head into big head as shown.

Repeat this step to assemble the rest rails.

11

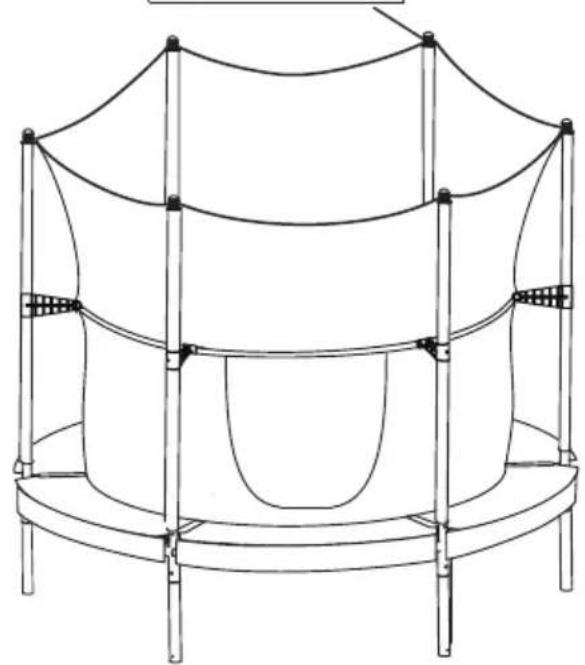

STEP 12

Insert the pole cap (13) through one strap ring on the top of the net as shown.

Make sure that all parts are securely attached. Familiarize yourself and all users with the trampoline and enclosure, with the safety precautions, use and instructional materials, and the care and maintenance instructions in this manual before using the trampoline and enclosure.

12

Congratulations! Your trampoline is now fully assembled.

7.0 Warranty

1. After the date of the purchase invoice, the owner of the EXIT Bounzy trampoline has a:

2. 1-year warranty on the breaking of the frame and on the jump mat.

3. 6-month warranty on the protective surround pad.

4. 6-month warranty on the tearing of the net.

5. The warranty applies only to the material and construction defects with respect to this product or its components.

6. The warranty becomes defunct if:

7. This product is used incorrectly and/or carelessly and is used in such a way that it does not comply with its purpose.

8. This product is not assembled and maintained according to the instruction booklet.
9. Technical repairs to this product are not carried out professionally.
10. Parts, which are mounted afterwards, do not comply with the technical specifications of the product concerned or are mounted incorrectly.
11. Defects are a result of climatic influences such as corrosion, UV rays or normal disintegration.

12. The product is rented out or was made available to various unspecified persons in any other manner.

13. EXIT Toys will repair or replace according to its choice all material and construction defects that have been ascertained by EXIT Toys during the warranty period.

14. The owner of the EXIT Toys Trampoline is only entitled to the warranty by presenting the product for inspection at a EXIT Toys dealer. It should be handed to the EXIT Toys dealer, accompanied by the original purchase invoice.
15. In case of material and construction defects that have been ascertained by EXIT Toys, the product or its components will be repaired or replaced - according to its choice - free of charge during the warranty period mentioned in Article 1.
16. If the claim for warranty is not justifiable, all the costs are at the expense of the owner.
17. This warranty cannot be transferred to third parties.
18. The trampoline is designed for personal use. It is not permitted to rent out or place the trampoline in public areas like schools or day-care centres. The guarantee and any other liabilities shall expire if the playhouse is rented out or used in public areas.

1.0 Einführung

WAARSCHUWING: neem elke 10 minuten even pauze.

3.0 TRAMPOLINETECHNIEKEN

BASISVAARDIGHEDEN

BASISVAARDIGHEID 1: de basissprong

STAP VOOR STAP OPBOUW

Fastening the Self-tapping screw(11) by tool(#).

Fastening the Self-tapping screw(11) by tool(#).

Dutch Toys Group B.V.

Fabriekstraat 17^e

P.O. Box 369, 7000 AJ Doetinchem

The Netherlands

[phone]

[e-mail]

www.exittoys.com
