20006A - Aroma diffuser Nesco - Free user manual and instructions

Frequently Asked Questions - 20006A Nesco

USER MANUAL 20006A Nesco

Model 20006A - White Oak

Model 30007B - Stone (not shown)

Model 40008C - Dark Oak (not shown)

Aromatic Diffuser User Manual

Water capacity: 20 oz. (600ml) max.

Room size: 30 - 45 ft². (10 - 15 M²)

Materials: ABS, PP

Table of Contents

Important Safeguards. 1

Parts 2

Before first time use 3

Operating Instructions 3

Care and Cleaning 3

Troubleshooting 4

One Year Limited Warranty 5

Table des matieres

• This product is designed for household use only - When using electrical appliances, basic safety precautions should always be followed, including the following:

• READ ALL INSTRUCTIONS.

• To protect against fire, electrical shock and personal injury, do not immerse this appliance, including cord and plug, in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. To avoid hazards, return appliance to SPAPRO™ Factory Service Department for examination, repair or adjustment.
• The use of accessory attachments not recommended by the manufacturer may result in fire, electric shock or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner or in a heated oven.
• Do not use appliance for other than its intended use, as described in this manual..

SAVE THESE INSTRUCTIONS

Polarized Plug: This appliance has a polarized plug (one blade is wider than the other). To reduce risk of electric shock, plug is intended to fit into polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not try to modify the plug in any way.

Short Cord Instructions: A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. Extension cords may be used if care is exercised in their use. If an extension cord is used, the marked electrical rating of the cord should be at least as great as the electrical rating of the appliance. The longer cord should be arranged so that it will not drape over the tabletop where it can be pulled on by children or tripped over unintentionally.

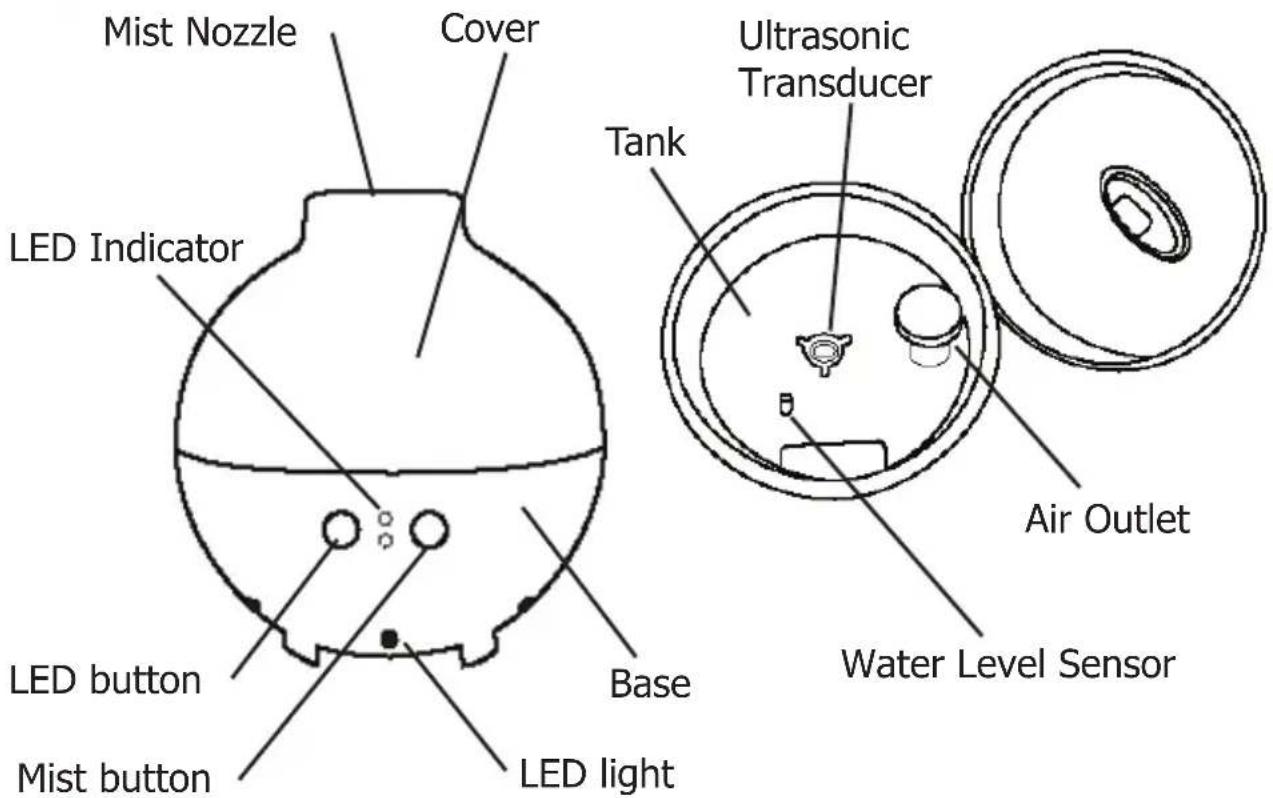

Parts
u

Using for the first time

• Remove all packing materials.
• Read all Important Safeguards and Operating Instructions before use.
• Wipe all surfaces with soft damp cloth or sponge. Dry completely before use.

Operating Instructions

1. Place the appliance on a flat surface.

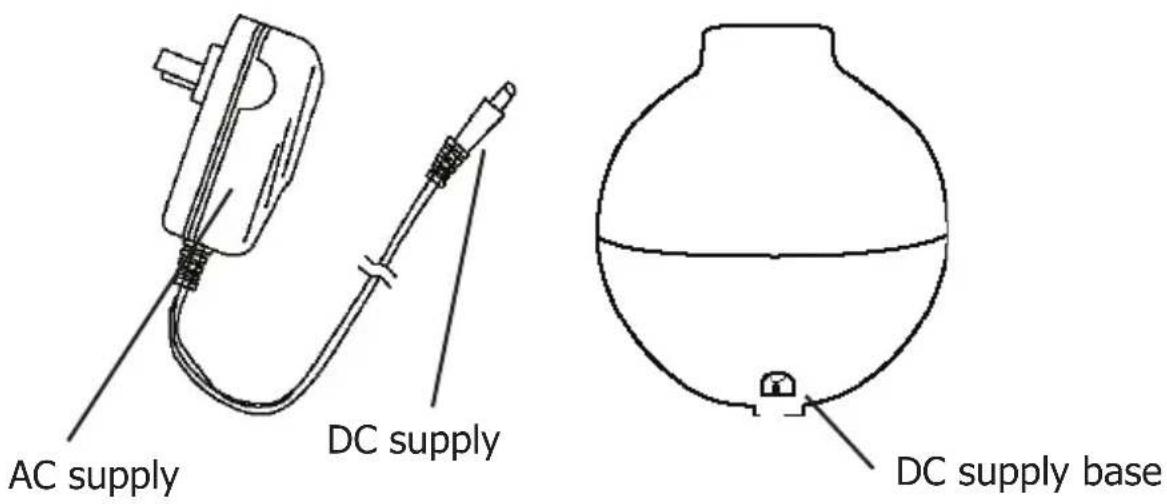

2. Insert plug of DC supply into the plug on base of the product.
3. Remove Cover by lifting and set aside.
4. Fill the tank with tap or bottled water to the maximum level of 20 ounces.
5. Never pour water into the side openings of the Air Outlet
6. Add 1-2 drops of essential oils into water. Always fill with water before adding oil.
7. Replace Cover, check that is positioned properly.
8. Plug the AC supply into 120V AC electrical outlet.
9. Press MIST / RIGHT button once for HIGH, twice for LOW and three times for OFF.
10. Press LED / LEFT button to turn ON lighting effect. Press again to turn OFF.
11. Appliance has Auto-Off when water level is low. To reset, re-fill tank and follow operating instructions above.

Maintenance and Cleaning

• Before cleaning and after use, unplug AC supply and remove DC supply from Base.
• Remove excess water from tank.
• Clean appliance with a soft damp cloth and wipe dry.
• Do not immerse Base in water or any other liquid. Never place in dishwasher!
• Clean diffuser with equal parts water and vinegar using a soft cloth regularly. Take care not to damage Air Outlet or Water Level Sensor.
• Do not use abrasive cleansers or scouring pads to clean any parts of the appliance..

Troubleshooting Guide

• Model numbers 20006A, 30007B and 40008C Aromatic Diffuser

Symptoms Possible reasons	Solutions
Indicator Light OFF, Not blowing, or No mist Power	is disconnected or no power Connect to power supply connection
Power ON, air blowing, LED flashing, no mist	Bubbles on the transducer, isolating from waterWater is too pure to make transducer work	Remove bubbles and add new waterReplace water with tap water
Power ON, air blowing, LED not flashing, no mist	Low amount or No water in tankWater is above MAX fill line (20 oz.)	Add water to tankRemove excess water from tank
Small amount of mist output Water in tank is above	MAX fill lineMist level set on LOWWater temperature is too coldDirty water or water stored too long	Remove excess water from tankSet Mist level to HIGHUse room temperature waterReplace with clean water
Abnormal noise Not enough water in tank	Unit is on uneven surface	Add water to tankPlace on flat level surface
Mist spilled from around the nozzle Gaps between	nozzle and water tank Soak nozzle in water before use
Water pooling on the support surface Too much m	mist outputAmbient air too much humidity	Reduce mist output levelKeep room ventilated
Water in the tank does not flow down	Hole in the cap of the tank is blocked	Clear the blocked hole in valve

ONE YEAR LIMITED WARRANTY

This appliance is warranted for one year from date of original purchase against defects in material and workmanship. This warranty does not cover transportation damage, misuse, accident or similar incident. This warranty gives you specific legal rights and you may have other rights, which vary from state to state. This product is intended for household use only, not for commercial use. Warranty does not cover commercial use.

Your new SPAPRO™ appliance comes equipped with numerous safety features. Any attempt to interfere with the operation of these safety features makes this warranty null and void. In the event we receive an appliance for service that has been tampered with, we reserve the right to restore it to its original state and charge for the repair.

For service in warranty - Defective products may be returned, postage prepaid, with a description of the defect to: The Metal Ware Corporation, 1700 Monroe Street, Two Rivers, Wisconsin 54241, for no-charge repair or replacement at our option.

Must include proof of purchase or copy of original bill of sale when returning product for warranty service.

Please call Customer Satisfaction at 1-800-288-4545 to obtain a Return Authorization before shipping.

• For service in warranty, follow instructions set forth in warranty. When ordering new parts, make sure that you always mention the model number of the product.
• Call us on our toll free number, 1-800-288-4545 and tell us about your problem.
• If we instruct you to send all or part of your appliance to us for repair or replacement, our Customer Satisfaction representative will provide a Return Authorization number (this number notifies our receiving department to expedite your repair). Pack your unit carefully in a sturdy carton with sufficient padding to prevent damage because any damage caused in shipping is not covered by the warranty.
• Print your name, address and Return Authorization number on the carton.
• Write a letter explaining the problem. Include the following: your name, address and telephone number and a copy of the original bill of sale.
• Attach the sealed envelope containing the letter inside the carton. Insure the package for the value of the SPAPRO™ appliance and ship prepaid to:

Attn: Factory Service Dept.

The Metal Ware Corporation

1700 Monroe Street

Two Rivers, WI 54241

MESURES DE PRECAUTION IMPORTANTES

Factory Service Dept.,: The Metal Ware Corporation, 1700 Monroe Street, Two Rivers, WI 5241
