USER MANUAL X72011G1S 3 Gc

Simple Time and Mini Sweep
Multifunction 5
Chronograph 12,6, 9 Three-Eye Chrono 1/10 sec

3,6,9 Three-Eye ChroNo
2,6,10 Three-Eye 1/5 sec
3,6,9 Three-Eye Chrono 1/10 sec

Automatic Movements. 10

Warranty 12

FRANCAIS

Quartz movements

Heure Simple & mini trotteuse
- Multifonction 14
Chronographe 12,6, 9 Three-Eye .Chrono. 1/10 sec

3,6,9 Three-Eye
2,6,10 Three-Eye Chrono 1/5 sec
3,6,9 Three-Eye Chrono 1/10 sec

Automatic Movements 37

Warranty 40

使用说明书

Quartz movements

Automatic Movements 47

保修 48

INDONESIA

Quartz movements

Simple Time and... Mini Sweep
Multifungsi 51
Chronograph 12,6, 9 Three-Eye Chrono.1/10..sec

3,6,9 Three-Eye Chrono 53
2,6,10 Three-Eye Chrono 1/5 sec
3,6,9 Three-Eye Chrono 1/10. sec

Automatic Movements 56

Garansi 58

JAPANESE

Quartz movements

Simple Time and... Mini Sweep
Multifunction 60
Chronograph 12,6, 9 Three-Eye Chrono.1/10..sec

3,6,9 Three-Eye Chrono 62
2,6,10 Three-Eye Chrono 1/5 sec
3,6,9 Three-Eye Chrono 1/10. sec

Automatic Movements 65

Warranty 67

KOREAN

Quartz movements

Simple Time and ....... Mini....Sweep
Multifunction 69
Chronograph 12,6, 9 Three-Eye .Chrono. 1/10. sec

3,6,9 Three-Eye .......Chrono
2,6,10 Three-Eye Chroo. 1/5 sec
3,6,9 Three-Eye Chrono.1/10..sec

Automatic Movements 74

Warranty 76

RUSSIAN

Quartz movements

Simple Time and....Mini....Sweep
- Multifunction 79
Chronograph 12,6, 9 Three-Eye Chrono.1/10. sec

3.6.9 Three-Eye .......Chrono
2,6,10 Three-Eye Chro.. 1/5 sec
3.6.9 Three-Eye Chrono 1/10 sec

Automatic Movements 84

Warranty 86

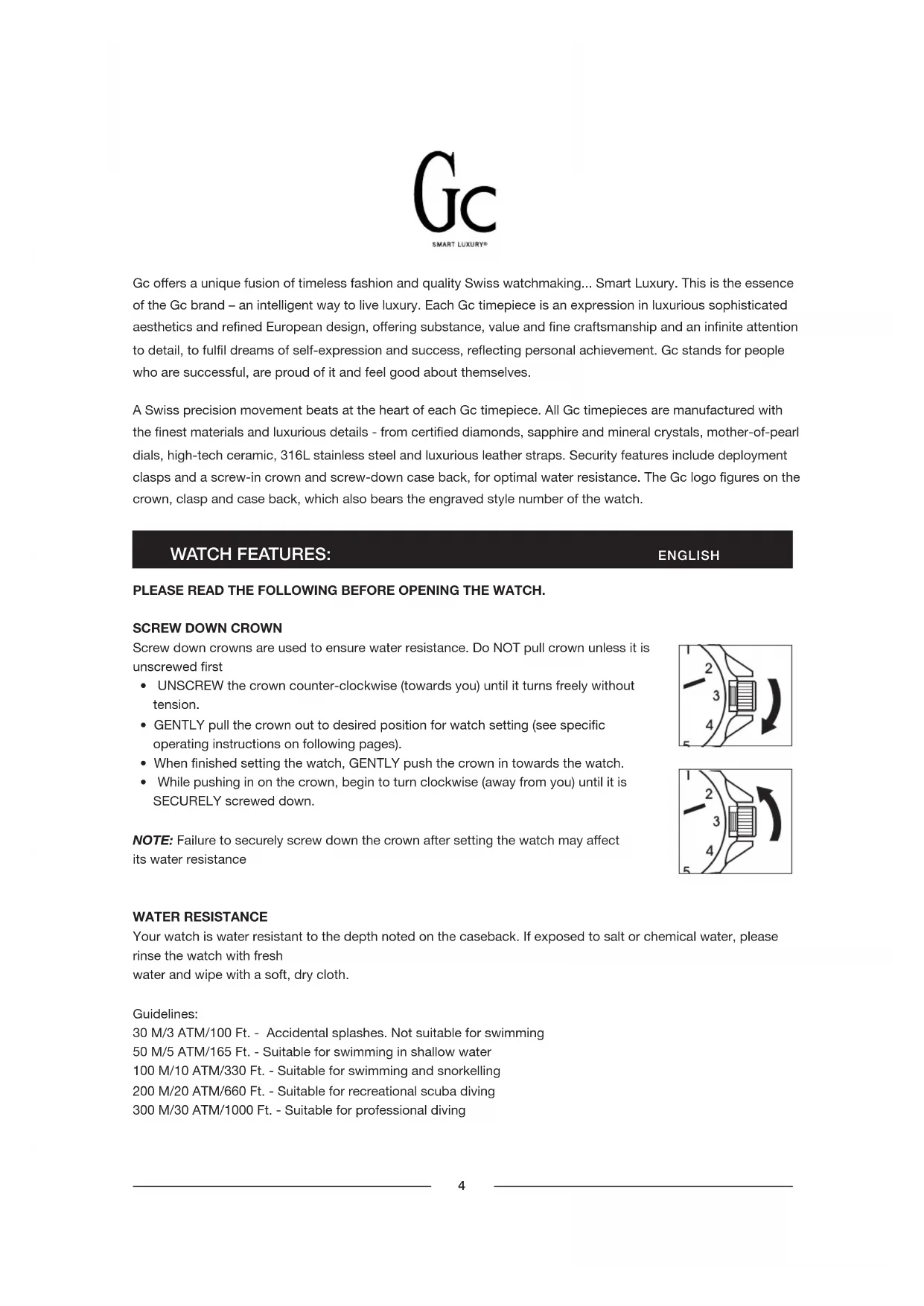

Gc offers a unique fusion of timeless fashion and quality Swiss watchmaking... Smart Luxury. This is the essence of the Gc brand – an intelligent way to live luxury. Each Gc timepiece is an expression in luxurious sophisticated aesthetics and refined European design, offering substance, value and fine craftsmanship and an infinite attention to detail, to fulfil dreams of self-expression and success, reflecting personal achievement. Gc stands for people who are successful, are proud of it and feel good about themselves.

A Swiss precision movement beats at the heart of each Gc timepiece. All Gc timepieces are manufactured with the finest materials and luxurious details - from certified diamonds, sapphire and mineral crystals, mother-of-pearl dials, high-tech ceramic, 316L stainless steel and luxurious leather straps. Security features include deployment clasps and a screw-in crown and screw-down case back, for optimal water resistance. The Gc logo figures on the crown, clasp and case back, which also bears the engraved style number of the watch.

WATCH FEATURES:

ENGLISH

PLEASE READ THE FOLLOWING BEFORE OPENING THE WATCH.

SCREW DOWN CROWN

Screw down crowns are used to ensure water resistance. Do NOT pull crown unless it is unscrewed first

• UNSCREW the crown counter-clockwise (towards you) until it turns freely without tension.
• GENTLY pull the crown out to desired position for watch setting (see specific operating instructions on following pages).
• When finished setting the watch, GENTLY push the crown in towards the watch.
• While pushing in on the crown, begin to turn clockwise (away from you) until it is SECURELY screwed down.

NOTE: Failure to securely screw down the crown after setting the watch may affect its water resistance

WATER RESISTANCE

Your watch is water resistant to the depth noted on the caseback. If exposed to salt or chemical water, please rinse the watch with fresh water and wipe with a soft, dry cloth.

Guidelines:

30 M/3 ATM/100 Ft. - Accidental splashes. Not suitable for swimming

50 M/5 ATM/165 Ft. - Suitable for swimming in shallow water

100 M/10 ATM/330 Ft. - Suitable for swimming and snorkelling

200 M/20 ATM/660 Ft. - Suitable for recreational scuba diving

300 M/30 ATM/1000 Ft. - Suitable for professional diving

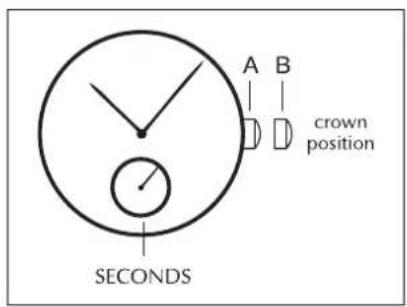

SIMPLE TIME & MINI SWEEP

To set the time:

1. PULL out crown to position 2.
2. TURN crown either way to correct time.
3. PUSH back crown to position 1.

MULTIFUNCTION

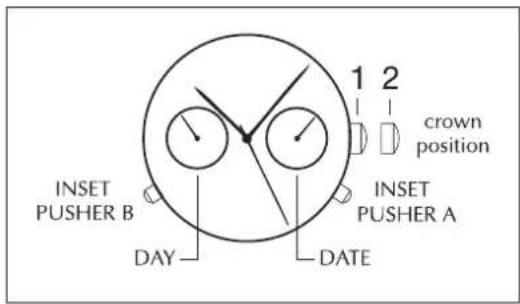

TWO-EYE DAY DATE

To set the time:

1. PULL out crown to position 2.
2. TURN crown clockwise to correct time. Day and date will also change.
3. PUSH back crown to position 1.

To set date:

1. PULL out the crown to position 2.
2. TURN crown clockwise to correct date.
3. PUSH in crown to position 1.

NOTE: Press inset pusher A with a pointy object to "quick change" date. Do not use this pusher between 11:30 p.m. and 5:30 a.m.

To set the day:

1. PULL out the crown to position 2.
2. Advance time 24 hours to change the day.
3. PUSH back crown to position 1.

NOTE: Press inset pusher B with a pointy object to "quick change".

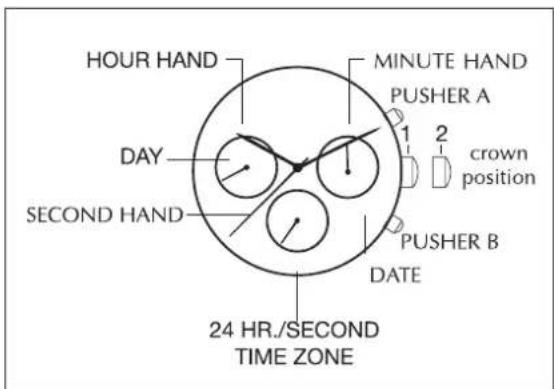

THREE-EYE DAY/DATE/SECOND TIME ZONE

To set the time:

1. PULL out crown to position 2.
2. TURN crown clockwise to correct time. Day and date will also change.
3. PUSH back crown to position 1.

To set the second time zone:

1. SET the crown to position 1.
2. PRESS pusher B step by step to advance the hour hand of the second time zone until the desired time is set.
3. stop pressing the button after finishing the setting.

NOTE: when using pusher B to set the second time zone hour, the centre minute hand must be set to between 55th minute and 5th minute at any hour.

To set the day and date:

1. PULL out the crown to position 2.
2. TURN crown clockwise to correct day or date. The day hand will advance one day when 4:30 in the morning is reached.
3. PUSH back crown to position 1.

NOTE: to "quick change" the date set the crown at position 1 then press pusher A.

CHRONOGRAPH

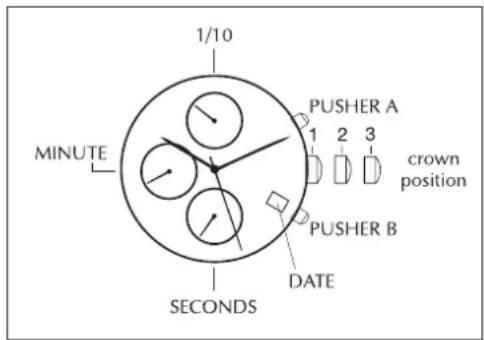

12,6,9 THREE-EYE CHRONO 1/10 SEC

NOTE:

Crown position '1', '2' & '3'

Pushers 'A' (top) and 'B' (bottom)

Left eye "30 minutes elapsed"

Right eye "1/10 seconds elapsed"

Center eye "seconds elapsed"

THIS CHRONOGRAPH WATCH HAS 3 FUNCTIONS:

Time, Calendar, Stopwatch

TIME:

To set the time:

1. PULL crown to position 3.
2. TURN crown either way to correct time (same for Day when this function is available).
3. PUSH back crown to position 1.

CALENDAR:

1. PULL crown to position 2.
2. TURN crown clockwise to correct calendar.
3. PUSH back crown to position 1.

STOPWATCH:

The stopwatch is capable of measuring:

1. One minute elapsed up to 30 minutes.
2. Chronograph hand 1/10 or 1/5 second.

Before using the stopwatch, reset the stopwatch hands to the '60' position by pressing pusher 'B'. If stopwatch hands move improperly, reset the hands as follows:

TO RESET STOPWATCH HANDS:

BIG CHRONOGRAPH HAND IN THE CENTER

1. PULL crown to position 2
2. PRESS pusher B until the chronograph hand is reset to '60'
3. RESET crown to position 1

COUNTER HAND 1/10 AT 12 O'CLOCK:

1. PULL crown to position 2
2. PRESS pusher A until the top eye hand is reset to '0'
3. RESET crown to position 1

COUNTER MINUTE HAND AT 9 O'CLOCK:

1. PULL crown to position 3
2. PRESS pusher A until the left eye hand is reset to '30'
3. RESET crown to position 1

STANDARD STOPWATCH MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A to stop timing
3. PRESS pusher B to reset

ACCUMULATED ELAPSED TIME MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A to stop timing
3. PRESS pusher A to restart timing
4. PRESS pusher A to stop 2nd timing
5. PRESS pusher B to reset

SPLIT TIME MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher B to 'split'
3. PRESS pusher B to begin again
4. PRESS pusher A to stop
5. PRESS pusher B to reset

TIMING 2 COMPETITORS:\*

1. PRESS pusher A to start timing of 1st event
2. PRESS pusher B to stop timing of 1st event; stopwatch continues to run internally
3. PRESS pusher A to start timing of 2nd event
4. PRESS pusher B to view time of 2nd event
5. PRESS pusher B to reset

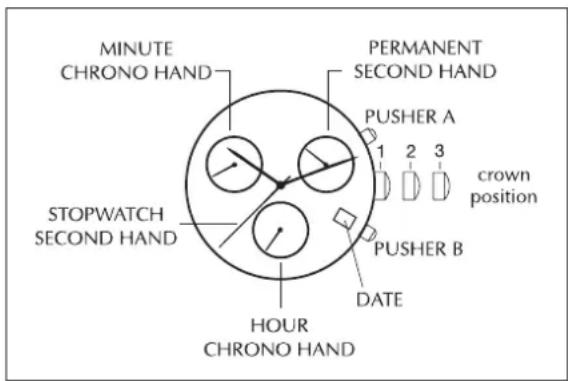

3,6,9 THREE-EYE CHRONO

NOTE:

Crown position 'A', 'B' and 'C'

Pushers A (Top right) & B (Bottom right)

6 o'clock eye - Hours elapsed up to 12 hours

9 o'clock eye - Minutes elapsed up to 30 minutes

3 o'clock eye - Permanent second hand

These instruction also apply to the 6, 9 Two-Eye

Chronograph movement. Please note that the only difference is that such movements do not have second eye.

THIS CHRONOGRAPH WATCH HAS 3 FUNCTIONS:

Time, Calendar, Stopwatch

TIME:

To set the time:

1. PULL crown to position 3.
2. TURN crown either way to correct time (same for Day when this function is available).
3. PUSH back crown to position 1.

CALENDAR:

1. PULL crown to position 2.
2. TURN crown clockwise to correct calendar.
3. PUSH back crown to position 1.

STOPWATCH:

This stopwatch is capable of measuring:

Chrono Hours elapsed up to 12 hours (6 o'clock eye)

Chrono Minutes elapsed up to 30 minutes (9 o'clock eye)

Stopwatch seconds up to 1 minute (Big second hand)

Before using the stopwatch, reset the stopwatch Chrono hands to the '12' and the '0' position.

STANDARD STOPWATCH MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A to stop timing
3. PRESS pusher B to reset

ACCUMULATED ELAPSED TIME MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A to stop timing
3. PRESS pusher A to restart timing
4. PRESS pusher A to stop 2nd timing
5. PRESS pusher B to reset

SPLIT TIME MEASUREMENT:

1. PRESS pusher A to start timing of the first and second events
2. PRESS pusher B to stop and record the timing of the 1st event
3. PRESS pusher B to catch up to the timing of the 2nd event
4. PRESS pusher A to stop the timing of the 2nd event and record the time
5. PRESS pusher B to reset. All stopwatch Chrono hands return to '12' and '0' position.

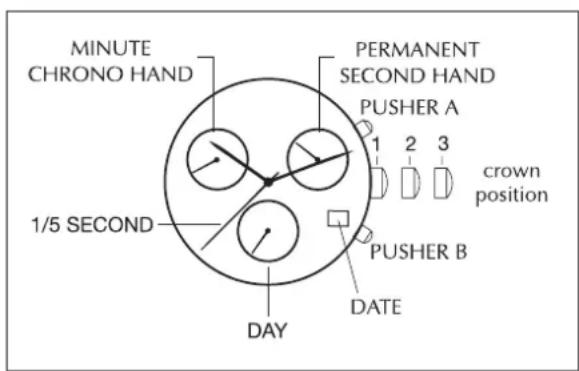

2,6,10 THREE-EYE CHRONO 1/5 SEC

NOTE:

Crown position 'A', 'B' and 'C'

Pushers A (Top right) & B (Bottom right)

6 o'clock eye -Day counter

10 o'clock eye - Minutes elapsed up to 30 minutes

2 o'clock eye - Permanent second hand

THIS CHRONOGRAPH WATCH HAS 3 FUNCTIONS:

Time, Calendar, Stopwatch

TIME:

To set the time:

1. PULL crown to position 3.
2. TURN crown either way to correct time (same for Day when this function is available).
3. PUSH back crown to position 1.

CALENDAR:

1. PULL crown to position 2.
2. TURN crown clockwise to correct calendar.
3. PUSH back crown to position 1.

STOPWATCH:

This stopwatch is capable of measuring:

Chrono Hours elapsed up to 12 hours (6 o'clock eye)

Chrono Minutes elapsed up to 30 minutes (9 o'clock eye)

Stopwatch seconds up to 1 minute (Big second hand)

Before using the stopwatch, reset the stopwatch Chrono hands to the '12' and the '0' position.

STANDARD STOPWATCH MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A to stop timing
3. PRESS pusher B to reset

ACCUMULATED ELAPSED TIME MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A to stop timing
3. PRESS pusher A to restart timing
4. PRESS pusher A to stop 2nd timing
5. PRESS pusher B to reset

SPLIT TIME MEASUREMENT:

1. PRESS pusher A to start timing of the first and second events
2. PRESS pusher B to stop and record the timing of the 1st event

1. PRESS pusher B to catch up to the timing of the 2nd event
2. PRESS pusher A to stop the timing of the 2nd event and record the time
3. PRESS pusher B to reset. All stopwatch Chrono hands return to '12' and '0' position.

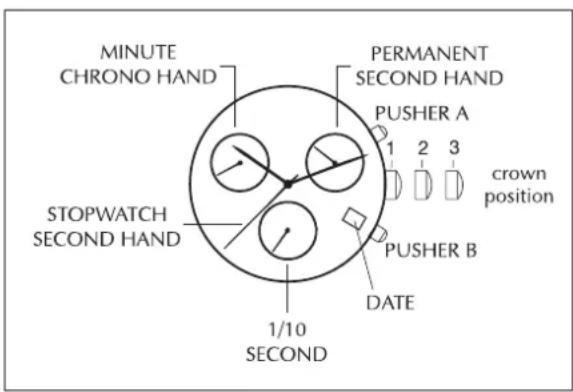

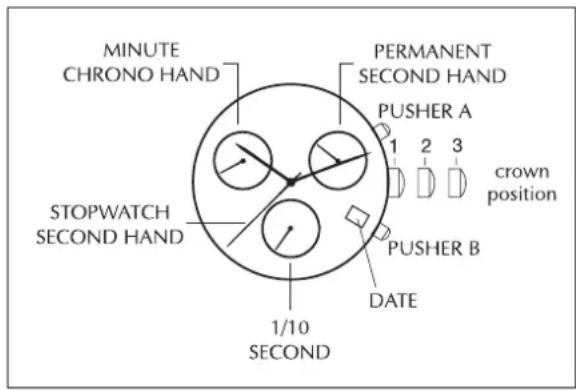

3,6,9 THREE-EYE CHRONO 1/10 SEC

NOTE:

Crown position 'A', 'B' and 'C'
Pushers A (top right) & B (Bottom right)
6 o'clock eye - 1/10 second elapsed up to 30 minutes
9 o'clock eye - Minutes elapsed up to 10 hours
3 o'clock eye - Permanent second hand

THIS CHRONOGRAPH WATCH HAS 3 FUNCTIONS:

Time, Calendar, Stopwatch

TIME:

To set the time:

1. PULL crown to position 3.
2. TURN crown either way to correct time (same for Day when this function is available).
3. PUSH back crown to position 1.

CALENDAR:

1. PULL crown to position 2.
2. TURN crown clockwise to correct calendar.
3. PUSH back crown to position 1.

STOPWATCH:

This stopwatch is capable of measuring:

Chrono 1/10 second elapsed up to 30 minutes (6 o'clock eye)

Chrono Minutes elapsed up to 10 hours (9 o'clock eye)

Stopwatch seconds up to 1 minute (Big second hand)

Before using the stopwatch, reset the stopwatch Chrono hands to the '12' and the '0' position.

STANDARD STOPWATCH MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A to stop timing
3. PRESS pusher B to reset

ACCUMULATED ELAPSED TIME MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A to stop timing
3. PRESS pusher A to restart timing
4. PRESS pusher A to stop 2nd timing
5. PRESS pusher B to reset

SPLIT TIME MEASUREMENT:

1. PRESS pusher A to start timing of the first and second events
2. PRESS pusher B to stop and record the timing of the 1st event
3. PRESS pusher B to catch up to the timing of the 2nd event
4. PRESS pusher A to stop the timing of the 2nd event and record the time
5. PRESS pusher B to reset. All stopwatch Chrono hands return to '12' and '0' position.

CORRECTIVE MODE FOR STOPWATCH CHRONO HANDS

On all Chrono movements, if the largest hands do not reset perfectly back to the 12 o'clock or zero position:

1. PULL crown to position 3.
2. If center stopwatch second hand or Chrono hands do not reset to the 12 o'clock or zero position, press pusher A and B simultaneously for at least 2 seconds.
3. The center stopwatch second hand will rotate by 360 degrees to activate corrective mode.
4. If center stopwatch second hand or Chrono hands are not located at

'12' or '0' position, either press pusher A continuously or repeatedly until the center stop second hand moves by each interval and returns to '12' and '0' position. Press pusher B once to activate corrective move of next minute Chrono hand, hour Chrono hand, or 1/10 second Chrono hand. Press pusher A continuously or repeatedly until the minute Chrono hand and hour Chrono hand or

1/10 second Chrono hand moves by each interval and returns to
'12' and '0' position.
5. PUSH back crown to position 1 to activate the adjustment.

AUTOMATIC

TIME CORRECTION

To set time:

1. UNSCREW and PULL out crown to position 3. The second hand will stop.
2. To adjust to the second, place second hand at 12H.
3. TURN crown to set the correct hour and minute.
4. PUSH back crown to position 1.

DATE CORRECTION

To set date:

1. UNSCREW and PULL out crown to position 2.
2. TURN crown clockwise to correct the date.
3. PUSH back crown to position 1 and screw tightly to the case.

WINDING

The Gc Automatic is equipped with a high-quality mechanism with automatic winding. With the slightest movement of your wrist, a silent rotor conveys power to the spring. When it is fully wound, the minimum power reserve is 38 hours. If the watch is not used during a certain time, we recommend winding your Gc Automatic manually by means of winding the crown in position 1.

AUTOMATIC / CHRONOGRAPH

TECHNICAL SPECIFICATIONS

The Gc Automatic Chronograph features:

-A Valjoux 7750 Chronograph movement with 28,800 vibrations per hour and 25 jewels

-A 42-hour power reserve indicator

Time Correction

Unscrew and pull the crown to position 3. The second hand will stop.

To adjust it to the second, place the second hand at 12. Set the hands to the correct hour and minute.

Date Correction

Unscrew and pull the crown to position 2. Turn it clockwise until the displayed date is correct. Then, push back the crown to position 1 and screw down tightly to the case.

CHRONOGRAPH FUNCTION

The Gc Automatic chronograph has a three-counter automatic chronograph movement indicating the hour at 6, the minute at 12 and the second at 9 o'clock.

TO USE THE STOPWATCH:

This stopwatch is capable of measuring:

Chrono Hours elapsed up to 12 hours (6 o'clock eye)

Chrono Minutes elapsed up to 30 minutes (12 o'clock eye)

Stopwatch seconds up to 1 minute (9 o'clock eye)

Before using the stopwatch, reset the stopwatch Chrono hands to the '12' and the '0' position.

STANDARD STOPWATCH MEASUREMENT

1. PRESS pusher A to start timing
2. PRESS pusher A again to stop timing
3. PRESS pusher B to reset

ACCUMULATED ELAPSED TIME MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A again to stop timing
3. PRESS pusher A to restart timing
4. PRESS pusher A again to stop 2nd timing
5. PRESS pusher B to reset

SPLIT TIME MEASUREMENT:

1. PRESS pusher A to start timing of the first and second events
2. PRESS pusher B to stop and record the timing of the 1st event
3. PRESS pusher B to catch up to the timing of the 2nd event
4. PRESS pusher A to stop the timing of the 2nd event and record the time
5. PRESS pusher B to reset. All stopwatch Chrono hands return to '12' and '0' position.

CORRECTIVE MODE FOR STOPWATCH ON A CHRONOGRAPH AUTOMATIC TIMEPIECE

On all Chronograph movements, if the largest hands do not reset perfectly back to the 12 o'clock or zero position:

1. PULL crown to position 3.
2. If center stopwatch second hand or Chrono hands do not reset to the 12 o'clock or zero position, press pusher A and B simultaneously for at least 2 seconds.
3. The center stopwatch second hand will rotate by 360 degrees to activate corrective mode.
4. If center stopwatch second hand or Chrono hands are not located at '12' or '0' position, either press pusher A continuously or repeatedly until the center stop second hand moves by each interval and returns to '12' and '0' position. Press pusher B once to activate corrective move of next minute Chrono hand, hour Chrono hand, or 1/10 second Chrono hand. Press pusher A continuously or repeatedly until the minute Chrono hand and hour Chrono hand or 1/10 second Chrono hand moves by each interval and returns to '12' and '0' position.
5. Press crown back to position 1 to activate the adjustment.

GENERAL INFORMATION

WINDING

The Gc Automatic chronograph is equipped with a high-quality mechanism with automatic winding. With the slightest movement of your wrist, a silent rotor conveys power to the spring. When it is fully wound, the minimum power reserve is 42-hours. The power reserve indicator on the dial indicates the level of power left before rewinding the watch is necessary. If it has not been worn recently, we recommend winding your Gc Automatic chronograph manually by winding the crown to position 1.

SCREW DOWN

The Gc Automatic chronograph has a screw down crown. It is important to screw it in correctly and fully after each adjustment to ensure that the watch remains water resistant. Do not pull the crown unless it

is unscrewed first. Unscrew the crown counter-clockwise (towards you) until it turns freely without tension, and then pull the crown out to desired position for watch settings. After time change, push the crown to position 1, keep it in this position and turn it clockwise. Screw it down until it is secure.

WATER RESISTANCE

Your Gc Automatic chronograph is water resistant to 100 Meters (10 ATM/330 feet of pressure). If exposed to salt or chemical water, please rinse the watch with fresh water and wipe with a soft, dry cloth.

DIAMONDS

Your Gc timepiece is crafted with genuine natural diamonds and reflects our dedication to quality and design. The diamonds in your Gc timepiece have been purchased from legitimate sources and are conflict free, based on the guarantee provided by the supplier of these diamonds.

Warranty

Your Gc watch is covered by an international guarantee against any manufacturing defects for a period of 24 months* from the date of purchase indicated on the guarantee card. Any part found to be defective within this period will be repaired or replaced at no charge. In order to benefit from this guarantee, you will be required to present the Gc Watches international guarantee certificate, duly completed, dated, stamped and signed by an authorized Gc Watches retailer.

THE GC WATCHES INTERNATIONAL GUARANTEE CERTIFICATE DOES NOT COVER:

• Defects arising from damage, mishandling, incorrect or abusive use (knocks, crushing, moisture in the case of non water resistant watches), alteration or repairs not performed by an authorized Gc Watches retailer
• Leather straps or bracelets
• Batteries
• Normal wear of base metal, surface-coated watches
• Theft or loss of the complete watch or components

*USA and CANADA warranty length is 10 years

Posisi Crown 'A', 'B' and 'C'

Tombol A (Kanan atas) & B (Kanan bawah)

Posisi Crown 'A', 'B' and 'C'

Tombol A (Kanan atas) & B (Kanan bawah)

Posisi crown 'A', 'B' and 'C'

Tombol A (Atas kanan) & B (bawah kanan)

SPLIT TIME MEASUREMENT:

1. PRESS pusher A to start timing of the first and second events
2. PRESS pusher B to stop and record the timing of the 1st event
3. PRESS pusher B to catch up to the timing of the 2nd event
4. PRESS pusher A to stop the timing of the 2nd event and record the time
5. PRESS pusher B to reset. All stopwatch Chrono hands return to '12' and '0' position.

MODE PENGOREKSI PADA JAM PENUNJUK CHRONO:

http://gcwatches.com/en/service

NOTE: Anchok of A Btien to 1000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

日 日

GC 3 = n t 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

GCInTeNtSeHbOChSernDd

YcTaHOBka DaTbI INHReHeJeN:

1.BbITAHNTE KOpOHky Ha no3nH2.
2.BPAUJAITE KOPONKy no yacOBo CTpeJIke, YTObbl BcITaBtB KoppeKTHbIe DaTy I DeHb HeJeIi.
3. HAXMNTE KOPONKU, BO3BpaTnB ee Ha no3n1n 1.

PIMMEAHHE: IJIg 6bICTpo CMeHbI DaTbI yCTaHOBnTe KopoHky Ha NOnu1o 1, 3aTeM HaxmTe KhoNky A.

12,6,9 XPOHOTPAΦ C TPEM INIHKATOPAMN - NOKA3bIBAET 1/10 CEKYHdbI

ПРИМЕЧАНО:

IcTeKUeB BmHyTax Do 30 MmHyT no XpoHOrpaFy (INHnIkaTOp OKoJIo OTMeTK "9 Yacob")

CekyHdbIdo1MmHyTbI(6oJIbwaCekyHdHaCTpeJka)

Peped pa6oToC cekyHdomepom yctaHOBITE erO CTpeJIKN xpoHOrpaFa B noLoXeHne "12" n "0"

CTAHAPTHA IPOUEyPA U3MEPEHNA BPEHNC NOMOULBO CEKYNDOMEPA:

1. HAXMITE KhoNky A, UTO6bHaHaatb OTCuET BpeMeHn.
2. HAXMITE KhoNky A ChOba, yTo6bl npeKpaTntb OTCHT BpEmHeH.
3. HAXMITE KhoNky B dIy c6pOca nokaahn.

PPOUeDyPA N3MEPEHnO OUsEro NCTEKUeRO BPEMeHN:

1. HAXMITE KhoNky A, YTO6bHaHaatb OTCueT BpeMeHn.
2. HAXMITE KhoNky A ChOba, yTo6bl npeKpaTntb OTCHT BPeMeHn.
3. HAXMITE KhoNky A, YTO6bI 3aHOBo HaayTb OTCyET BpemeHN.
4. HAXMITE KhoNky A ChOba, yTo6bl npeKpaTntB TOpoi OTCuET BpEmHn.
5. HAXMITE KhoNky B dIy c6pOca nokaahn.

IPOUeUYPA N3MEPEHNA3DJIbHO BPEMEHN:

1. HAXMITE KhoNky A, YTO6bI HaaytB OTCyET BpeMeHn NepBOr N BTOPO r Co6bITn.
2. HAXMNTE KONky B, yTo6bIOCTaHOBt b 3aNcTaB OTCuET BpeMeHn 1-TO CObITyra.
3. HAXMITE KhoNky B, YTO6bI DOrHaTb OTCHTbIaEMoe Bpemr BTOPO Co6bITnI.
4. HAXMITE KhONkY A, YTO6bI OCTaHOBNT OTCHT BpeMeHn 2-RO CO6bITnN 3anncatb BpeMn.
5. HAXMITE KhoIky B dIy c6poca noka3aHn. Bce cTpeIkn xpoHorpaΦa ceKynDomepa BO3BpaUOTcB noJoxKeHn "12" u "0".

2,6,10 XPOHOΓΑΦ C TPEMЯ ИДИΚATOPAMN, NOKA3bIBAET 1/5 CEKYHdbI

ПРИМЕЧАНО:

Пложжени Коронки '1, '2' n '3'

Khoika A (cBepxy cnpaba) n B (Bn3y cnpaba)

HnIkaTOp OKoJIO OTMeTKN "6 YacOB" - CteTnK nHei HeJeIi

HnIkaTOp OKoJIO OTMeTKN "10 YacOB" noka3bBaET nCTeKUee BpeMBA MHyTax Do 30 MHyT

HndkaTOp OKOLO OTMeTKN «2 Yaca» - nocToHHaCekyHaHaCTpeKa

DAHHbIE YAcBi C XPOHOrPAΦOM BbIIOJIHЯIOT 3ФУHKUIN:

OTcHTBpeMeHn,KaJIeHApbN cekyHdomeP

YcTaHOBKa BpeMeHi:

1. BbITAHITE KOpOHky B noJoxKeHne 3.
2. NOBOPAUNBAKOpOHky,yCTaHOBUTe BpEmr.
3. HAXMNTE Ha KopoHky, BO3BpaTnB ee 6paTH B noLoXeHne1.

KAJIENDApB:

1. BbITAHNTE KOpOHky B noJoxKeHne 2.
2. NOBOPAUBAR KOpOHky no yacobOu cTpeKe, yCTaHOBnTe KaIeHdApb.
3. HAXMITE Ha KopoHky, Bo3BpaTnB ee 6paTHo B nIoXeHne 1.

CEKyHDOMEP:

KhoNka A' (BBepy) u KhoNka B' (BHN3y)

HnDkaTOp Ha «6 Yacax» Noka3bIbae NTcTeKwne DecrTbe DOnl CeKyHDbI

HnDkaTOp Ha «9 Yacax» noka3bBaet NCTeKUne MInHyTbI

HnDnKaTOp Ha «3 Yacax» - nocToHHa cKyHnHa CTpeIka

DAHHbIE YAcBi C XPOHOrPAΦOM BbINOJIHЯIOT 3ФУHKUИN:

OTcHT BpeMeHn, KaJIeHApbI n cekyHdomep

YCTAHOBKA BPEMEH:

1. BbITIaHHTe KOpOHky B noJoxKeHne 3.
2. NOBOPAUBAR KopoHky, yCTaHOBUNe Bpemr.
3. HAXMNTE Ha KopoHky, Bo3BpaTnB ee 6paTH B noLoXKeHne1.

KAJIENDApB:

1. BbITIaHITE KOpOHky BNoJoxKeHne 2.
2. IOBOPAUBAR KOpOHky no YacBOB cTpeIke, yCTaHOBITe KaJIeHApb.
3. HAXMITE Ha KopoHky, Bo3BpaTb ee o6paTHo B nIoXKeHne 1.

CEKyHDOMEP:

AaHHbI cekyHdOmep MoKeT n3MepeTb:

IcTeKUeB BEmaB DceTbIX DoJx CeKHybl Do 30 MNHT (CteTnK Ha "6 Yacax")

IcTeKluee BpeM B MmHytax Do 10 yacob (ChetYnK Ha «9 Yacax»)

CekyHdbI do 1 MInHyTbI (6oJIbWaa CekyHdHa CTpeJka)

Ipeed pa6otoi c cekynomopom yctaHOBITE ero cTejIKxpoHOrpaFbNoloxeHne "12" n "0" CTAHAPTHA IPOUEDyPA N3MEPEHNA BPEMHN C NOMOUsbIO CEKYNDOMEPA:

1. HAXMITE KhoNky A, YTO6bHaHaatb OTCHTBpeMeHN.
2. HAXMITE KhoNky A ChObA, yTo6bl npeKpaTnB oTCuET BpEmHn.
3. HAXMITE KhoNky B dIy c6poca nokaahn.

PPOUEDYPA N3MEPEHNAOUIERO NCTEKUERO BPEMEHN:

1. HAXMITE KhoNky A, YTO6bHaHaatb OTCyET BpEmHeH.
2. HAXMITE KhoNky A ChObA, yTo6bl npeKpaTntb OTCHT BpEmHn.
3. HAXMITE KhoNky A, YTO6bI 3aHOBo HaHaTb OTCHTBpeMeHN.
4. HAXMITE KhoNky A CHOBA, yTo6bI ppeKpaTb BToPoI OTCeT BpEmHn.
5. HAXMNTE KhoNky B dIy c6pOca nokaahn.

TEXHNUECKNEXAPAKTEPNUKIN

Mexanhueckn xpoHorpaΦ Gc:

-Valjoux 7750 mexaHueckn xpoHorpa c 28,800 kOle6aHmB yac n 25 KaMHaMn
