USER MANUAL X72026G1S 3 Gc

Automatic Movements 10

Warranty 12

FRANCAIS

Quartz movements

Heure Simple & mini trotteuse
- Multifonction 14
Chronographe 12,6, 9 Three-Eye ......... Chrono. 1/10. sec.

3,6,9 Three-Eye
2,6,10 Three-Eye Chrono 1/5 sec
3,6,9 Three-Eye Chrono 1/10 sec

Automatic Movements 37

Warranty 40

使用说明书

Quartz movements

Automatic Movements 47

保修 48

INDONESIA

Quartz movements

Simple Time and... Mini Sweep
Multifungsi 51
Chronograph 12,6, 9 Three-Eye Chrono.1/10..sec

3,6,9 Three-Eye Chrono 53
2,6,10 Three-Eye Chrono 1/5..sec
3,6,9 Three-Eye Chrono 1/10..sec

Automatic Movements 56

Garansi 58

JAPANESE

Quartz movements

Simple Time and... Mini Sweep
Multifunction 60
Chronograph 12,6, 9 Three-Eye Chrono.1/10 .sec

3,6,9 Three-Eye Chrono 62
2,6,10 Three-Eye Chrono 1/5 sec
3,6,9 Three-Eye Chrono 1/10..sec

Automatic Movements 65

Warranty 67

KOREAN

Quartz movements

Simple Time and... Mini Sweep
- Multifunction 69
Chronograph 12,6, 9 Three-Eye .Chrono. 1/10. sec

3,6,9 Three-Eye .......Chrono
2,6,10 Three-Eye Chrono. 1/5. sec
3,6,9 Three-Eye Chrono.1/10 sec

Automatic Movements 74

Warranty 76

RUSSIAN

Quartz movements

Simple Time and... Mini. Sweep
- Multifunction 79
Chronograph 12,6, 9 Three-Eye Chrono. 1/10. sec

3,6,9 Three-Eye .......Chrono.
2,6,10 Three-Eye Chro.. 1/5 sec
3,6,9 Three-Eye Chrono 1/10 sec

Automatic Movements 84

Warranty 86

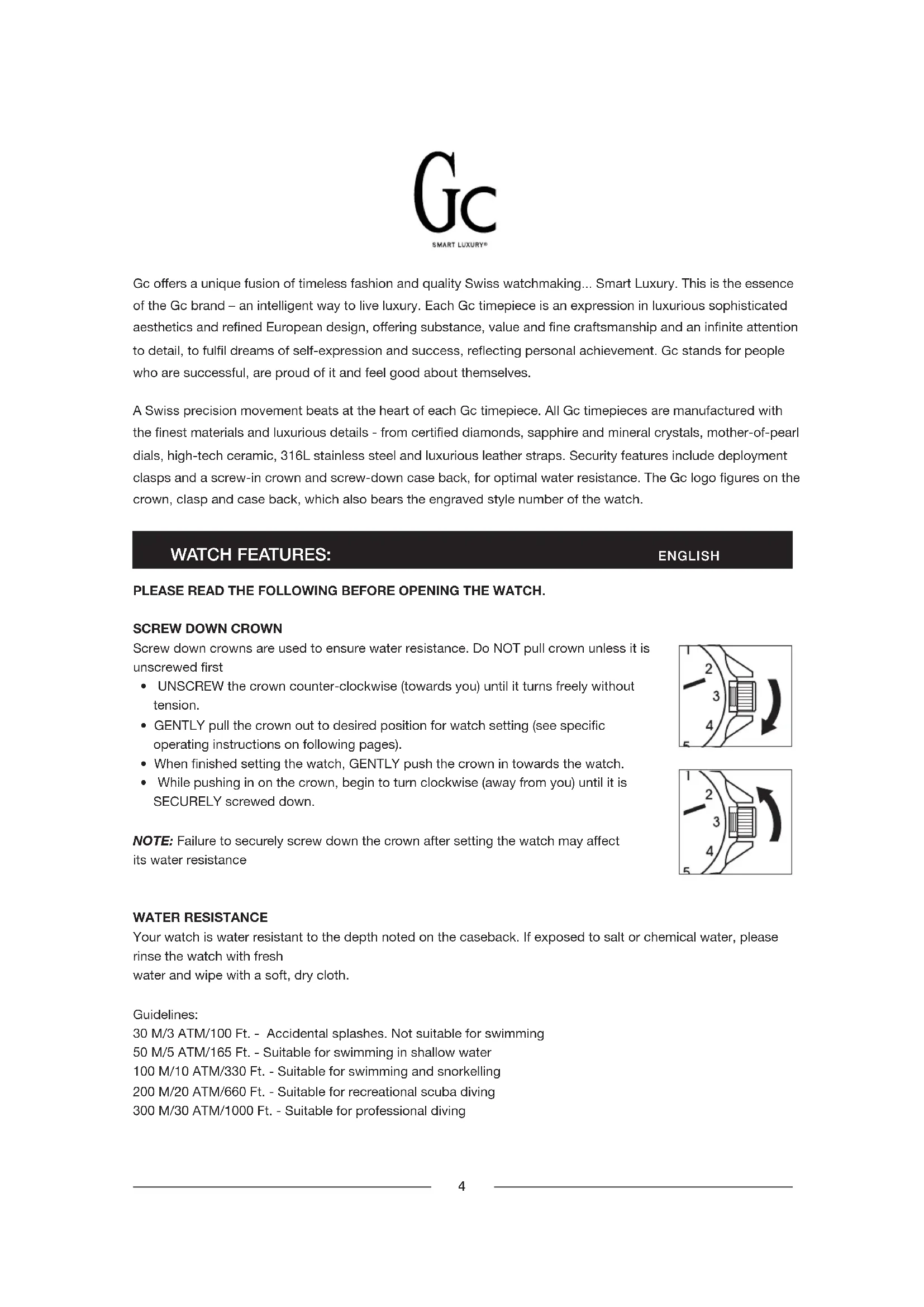

Gc offers a unique fusion of timeless fashion and quality Swiss watchmaking... Smart Luxury. This is the essence of the Gc brand – an intelligent way to live luxury. Each Gc timepiece is an expression in luxurious sophisticated aesthetics and refined European design, offering substance, value and fine craftsmanship and an infinite attention to detail, to fulfil dreams of self-expression and success, reflecting personal achievement. Gc stands for people who are successful, are proud of it and feel good about themselves.

A Swiss precision movement beats at the heart of each Gc timepiece. All Gc timepieces are manufactured with the finest materials and luxurious details - from certified diamonds, sapphire and mineral crystals, mother-of-pearl dials, high-tech ceramic, 316L stainless steel and luxurious leather straps. Security features include deployment clasps and a screw-in crown and screw-down case back, for optimal water resistance. The Gc logo figures on the crown, clasp and case back, which also bears the engraved style number of the watch.

WATCH FEATURES:

ENGLISH

PLEASE READ THE FOLLOWING BEFORE OPENING THE WATCH.

SCREW DOWN CROWN

Screw down crowns are used to ensure water resistance. Do NOT pull crown unless it is unscrewed first

• UNSCREW the crown counter-clockwise (towards you) until it turns freely without tension.
• GENTLY pull the crown out to desired position for watch setting (see specific operating instructions on following pages).
• When finished setting the watch, GENTLY push the crown in towards the watch.
• While pushing in on the crown, begin to turn clockwise (away from you) until it is SECURELY screwed down.

NOTE: Failure to securely screw down the crown after setting the watch may affect its water resistance

WATER RESISTANCE

Your watch is water resistant to the depth noted on the caseback. If exposed to salt or chemical water, please rinse the watch with fresh water and wipe with a soft, dry cloth.

Guidelines:

30 M/3 ATM/100 Ft. - Accidental splashes. Not suitable for swimming

50 M/5 ATM/165 Ft. - Suitable for swimming in shallow water

100 M/10 ATM/330 Ft. - Suitable for swimming and snorkelling

200 M/20 ATM/660 Ft. - Suitable for recreational scuba diving

300 M/30 ATM/1000 Ft. - Suitable for professional diving

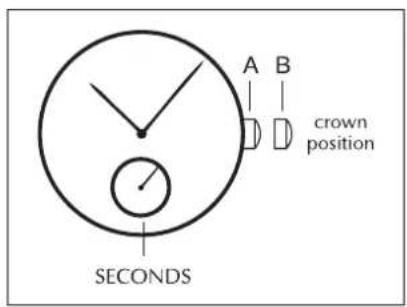

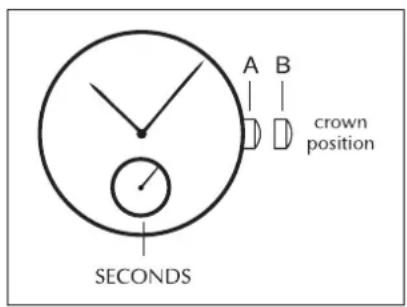

SIMPLE TIME & MINI SWEEP

To set the time:

1. PULL out crown to position 2.
2. TURN crown either way to correct time.
3. PUSH back crown to position 1.

MULTIFUNCTION

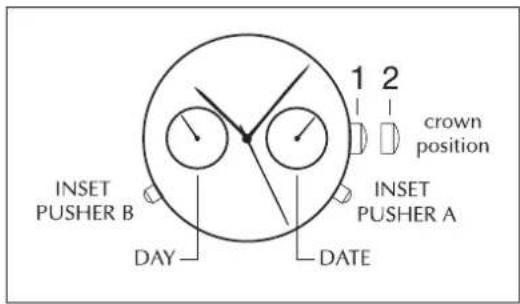

TWO-EYE DAY DATE

To set the time:

1. PULL out crown to position 2.
2. TURN crown clockwise to correct time. Day and date will also change.
3. PUSH back crown to position 1.

To set date:

1. PULL out the crown to position 2.
2. TURN crown clockwise to correct date.
3. PUSH in crown to position 1.

NOTE: Press inset pusher A with a pointy object to "quick change" date. Do not use this pusher between 11:30 p.m. and 5:30 a.m.

To set the day:

1. PULL out the crown to position 2.
2. Advance time 24 hours to change the day.
3. PUSH back crown to position 1.

NOTE: Press inset pusher B with a pointy object to "quick change".

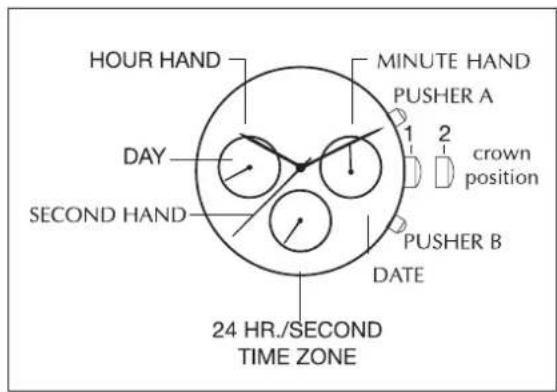

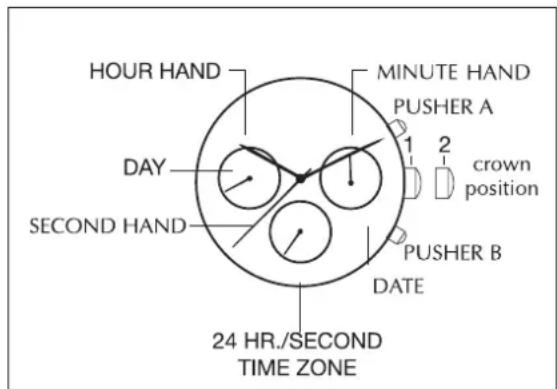

THREE-EYE DAY/DATE/SECOND TIME ZONE

To set the time:

1. PULL out crown to position 2.
2. TURN crown clockwise to correct time. Day and date will also change.
3. PUSH back crown to position 1.

To set the second time zone:

1. SET the crown to position 1.
2. PRESS pusher B step by step to advance the hour hand of the second time zone until the desired time is set.
3. stop pressing the button after finishing the setting.

NOTE: when using pusher B to set the second time zone hour, the centre minute hand must be set to between 55th minute and 5th minute at any hour.

To set the day and date:

1. PULL out the crown to position 2.
2. TURN crown clockwise to correct day or date. The day hand will advance one day when 4:30 in the morning is reached.
3. PUSH back crown to position 1.

NOTE: to "quick change" the date set the crown at position 1 then press pusher A.

CHRONOGRAPH

12,6,9 THREE-EYE CHRONO 1/10 SEC

NOTE:

Crown position '1', '2' & '3'

Pushers 'A' (top) and 'B' (bottom)

Left eye "30 minutes elapsed"

Right eye "1/10 seconds elapsed"

Center eye "seconds elapsed"

THIS CHRONOGRAPH WATCH HAS 3 FUNCTIONS:

Time, Calendar, Stopwatch

TIME:

To set the time:

1. PULL crown to position 3.
2. TURN crown either way to correct time (same for Day when this function is available).
3. PUSH back crown to position 1.

CALENDAR:

1. PULL crown to position 2.
2. TURN crown clockwise to correct calendar.
3. PUSH back crown to position 1.

STOPWATCH:

The stopwatch is capable of measuring:

1. One minute elapsed up to 30 minutes.
2. Chronograph hand 1/10 or 1/5 second.

Before using the stopwatch, reset the stopwatch hands to the '60' position by pressing pusher 'B'. If stopwatch hands move improperly, reset the hands as follows:

TO RESET STOPWATCH HANDS:

BIG CHRONOGRAPH HAND IN THE CENTER

1. PULL crown to position 2
2. PRESS pusher B until the chronograph hand is reset to '60'
3. RESET crown to position 1

COUNTER HAND 1/10 AT 12 O'CLOCK:

1. PULL crown to position 2
2. PRESS pusher A until the top eye hand is reset to '0'
3. RESET crown to position 1

COUNTER MINUTE HAND AT 9 O'CLOCK:

1. PULL crown to position 3
2. PRESS pusher A until the left eye hand is reset to '30'
3. RESET crown to position 1

STANDARD STOPWATCH MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A to stop timing
3. PRESS pusher B to reset

ACCUMULATED ELAPSED TIME MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A to stop timing
3. PRESS pusher A to restart timing
4. PRESS pusher A to stop 2nd timing
5. PRESS pusher B to reset

SPLIT TIME MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher B to 'split'
3. PRESS pusher B to begin again
4. PRESS pusher A to stop
5. PRESS pusher B to reset

TIMING 2 COMPETITORS:\*

1. PRESS pusher A to start timing of 1st event
2. PRESS pusher B to stop timing of 1st event; stopwatch continues to run internally
3. PRESS pusher A to start timing of 2nd event
4. PRESS pusher B to view time of 2nd event
5. PRESS pusher B to reset

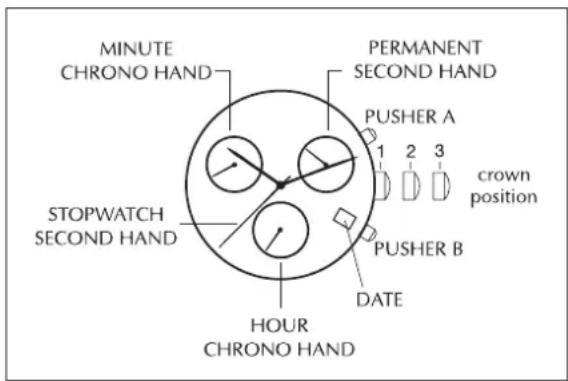

3,6,9 THREE-EYE CHRONO

NOTE:

Crown position 'A', 'B' and 'C'

Pushers A (Top right) & B (Bottom right)

6 o'clock eye - Hours elapsed up to 12 hours

9 o'clock eye - Minutes elapsed up to 30 minutes

3 o'clock eye - Permanent second hand

These instruction also apply to the 6, 9 Two-Eye

Chronograph movement. Please note that the only difference is that such movements do not have second eye.

THIS CHRONOGRAPH WATCH HAS 3 FUNCTIONS:

Time, Calendar, Stopwatch

TIME:

To set the time:

1. PULL crown to position 3.
2. TURN crown either way to correct time (same for Day when this function is available).
3. PUSH back crown to position 1.

CALENDAR:

1. PULL crown to position 2.
2. TURN crown clockwise to correct calendar.
3. PUSH back crown to position 1.

STOPWATCH:

This stopwatch is capable of measuring:

Chrono Hours elapsed up to 12 hours (6 o'clock eye)

Chrono Minutes elapsed up to 30 minutes (9 o'clock eye)

Stopwatch seconds up to 1 minute (Big second hand)

Before using the stopwatch, reset the stopwatch Chrono hands to the '12' and the '0' position.

STANDARD STOPWATCH MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A to stop timing
3. PRESS pusher B to reset

ACCUMULATED ELAPSED TIME MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A to stop timing
3. PRESS pusher A to restart timing
4. PRESS pusher A to stop 2nd timing
5. PRESS pusher B to reset

SPLIT TIME MEASUREMENT:

1. PRESS pusher A to start timing of the first and second events
2. PRESS pusher B to stop and record the timing of the 1st event
3. PRESS pusher B to catch up to the timing of the 2nd event
4. PRESS pusher A to stop the timing of the 2nd event and record the time
5. PRESS pusher B to reset. All stopwatch Chrono hands return to '12' and '0' position.

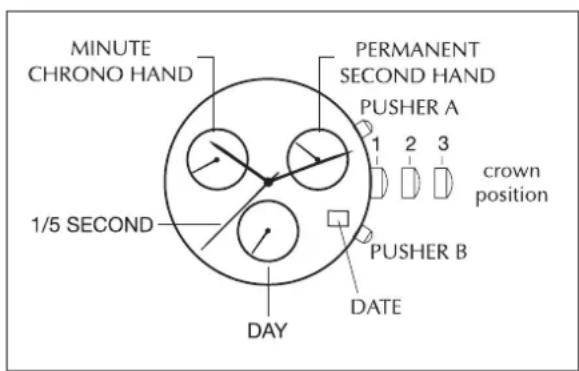

2,6,10 THREE-EYE CHRONO 1/5 SEC

NOTE:

Crown position 'A', 'B' and 'C'

Pushers A (Top right) & B (Bottom right)

6 o'clock eye -Day counter

10 o'clock eye - Minutes elapsed up to 30 minutes

2 o'clock eye - Permanent second hand

THIS CHRONOGRAPH WATCH HAS 3 FUNCTIONS:

Time, Calendar, Stopwatch

TIME:

To set the time:

1. PULL crown to position 3.
2. TURN crown either way to correct time (same for Day when this function is available).
3. PUSH back crown to position 1.

CALENDAR:

1. PULL crown to position 2.
2. TURN crown clockwise to correct calendar.
3. PUSH back crown to position 1.

STOPWATCH:

This stopwatch is capable of measuring:

Chrono Hours elapsed up to 12 hours (6 o'clock eye)

Chrono Minutes elapsed up to 30 minutes (9 o'clock eye)

Stopwatch seconds up to 1 minute (Big second hand)

Before using the stopwatch, reset the stopwatch Chrono hands to the '12' and the '0' position.

STANDARD STOPWATCH MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A to stop timing
3. PRESS pusher B to reset

ACCUMULATED ELAPSED TIME MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A to stop timing
3. PRESS pusher A to restart timing
4. PRESS pusher A to stop 2nd timing
5. PRESS pusher B to reset

SPLIT TIME MEASUREMENT:

1. PRESS pusher A to start timing of the first and second events
2. PRESS pusher B to stop and record the timing of the 1st event

1. PRESS pusher B to catch up to the timing of the 2nd event
2. PRESS pusher A to stop the timing of the 2nd event and record the time
3. PRESS pusher B to reset. All stopwatch Chrono hands return to '12' and '0' position.

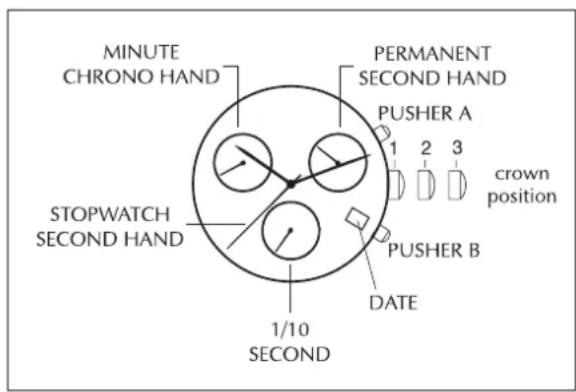

3,6,9 THREE-EYE CHRONO 1/10 SEC

NOTE:

Crown position 'A', 'B' and 'C'

Pushers A (top right) & B (Bottom right)

6 o'clock eye - 1/10 second elapsed up to 30 minutes
9 o'clock eye - Minutes elapsed up to 10 hours
3 o'clock eye - Permanent second hand

THIS CHRONOGRAPH WATCH HAS 3 FUNCTIONS:

Time, Calendar, Stopwatch

TIME:

To set the time:

1. PULL crown to position 3.
2. TURN crown either way to correct time (same for Day when this function is available).
3. PUSH back crown to position 1.

CALENDAR:

1. PULL crown to position 2.
2. TURN crown clockwise to correct calendar.
3. PUSH back crown to position 1.

STOPWATCH:

This stopwatch is capable of measuring:

Chrono 1/10 second elapsed up to 30 minutes (6 o'clock eye)

Chrono Minutes elapsed up to 10 hours (9 o'clock eye)

Stopwatch seconds up to 1 minute (Big second hand)

Before using the stopwatch, reset the stopwatch Chrono hands to the '12' and the '0' position.

STANDARD STOPWATCH MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A to stop timing
3. PRESS pusher B to reset

ACCUMULATED ELAPSED TIME MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A to stop timing
3. PRESS pusher A to restart timing
4. PRESS pusher A to stop 2nd timing
5. PRESS pusher B to reset

SPLIT TIME MEASUREMENT:

1. PRESS pusher A to start timing of the first and second events
2. PRESS pusher B to stop and record the timing of the 1st event
3. PRESS pusher B to catch up to the timing of the 2nd event
4. PRESS pusher A to stop the timing of the 2nd event and record the time
5. PRESS pusher B to reset. All stopwatch Chrono hands return to '12' and '0' position.

CORRECTIVE MODE FOR STOPWATCH CHRONO HANDS

On all Chrono movements, if the largest hands do not reset perfectly back to the 12 o'clock or zero position:

1. PULL crown to position 3.
2. If center stopwatch second hand or Chrono hands do not reset to the 12 o'clock or zero position, press pusher A and B simultaneously for at least 2 seconds.
3. The center stopwatch second hand will rotate by 360 degrees to activate corrective mode.
4. If center stopwatch second hand or Chrono hands are not located at

'12' or '0' position, either press pusher A continuously or repeatedly until the center stop second hand moves by each interval and returns to '12' and '0' position. Press pusher B once to activate corrective move of next minute Chrono hand, hour Chrono hand, or 1/10 second Chrono hand. Press pusher A continuously or repeatedly until the minute Chrono hand and hour Chrono hand or

1/10 second Chrono hand moves by each interval and returns to
'12' and '0' position.
5. PUSH back crown to position 1 to activate the adjustment.

AUTOMATIC

TIME CORRECTION

To set time:

1. UNSCREW and PULL out crown to position 3. The second hand will stop.
2. To adjust to the second, place second hand at 12H.
3. TURN crown to set the correct hour and minute.
4. PUSH back crown to position 1.

DATE CORRECTION

To set date:

1. UNSCREW and PULL out crown to position 2.
2. TURN crown clockwise to correct the date.
3. PUSH back crown to position 1 and screw tightly to the case.

WINDING

The Gc Automatic is equipped with a high-quality mechanism with automatic winding. With the slightest movement of your wrist, a silent rotor conveys power to the spring. When it is fully wound, the minimum power reserve is 38 hours. If the watch is not used during a certain time, we recommend winding your Gc Automatic manually by means of winding the crown in position 1.

AUTOMATIC / CHRONOGRAPH

TECHNICAL SPECIFICATIONS

The Gc Automatic Chronograph features:

-A Valjoux 7750 Chronograph movement with 28,800 vibrations per hour and 25 jewels

-A 42-hour power reserve indicator

Time Correction

Unscrew and pull the crown to position 3. The second hand will stop.

To adjust it to the second, place the second hand at 12. Set the hands to the correct hour and minute.

Date Correction

Unscrew and pull the crown to position 2. Turn it clockwise until the displayed date is correct. Then, push back the crown to position 1 and screw down tightly to the case.

CHRONOGRAPH FUNCTION

The Gc Automatic chronograph has a three-counter automatic chronograph movement indicating the hour at 6, the minute at 12 and the second at 9 o'clock.

TO USE THE STOPWATCH:

This stopwatch is capable of measuring:

Chrono Hours elapsed up to 12 hours (6 o'clock eye)

Chrono Minutes elapsed up to 30 minutes (12 o'clock eye)

Stopwatch seconds up to 1 minute (9 o'clock eye)

Before using the stopwatch, reset the stopwatch Chrono hands to the '12' and the '0' position.

STANDARD STOPWATCH MEASUREMENT

1. PRESS pusher A to start timing
2. PRESS pusher A again to stop timing
3. PRESS pusher B to reset

ACCUMULATED ELAPSED TIME MEASUREMENT:

1. PRESS pusher A to start timing
2. PRESS pusher A again to stop timing
3. PRESS pusher A to restart timing
4. PRESS pusher A again to stop 2nd timing
5. PRESS pusher B to reset

SPLIT TIME MEASUREMENT:

1. PRESS pusher A to start timing of the first and second events
2. PRESS pusher B to stop and record the timing of the 1st event
3. PRESS pusher B to catch up to the timing of the 2nd event
4. PRESS pusher A to stop the timing of the 2nd event and record the time
5. PRESS pusher B to reset. All stopwatch Chrono hands return to '12' and '0' position.

CORRECTIVE MODE FOR STOPWATCH ON A CHRONOGRAPH AUTOMATIC TIMEPIECE

On all Chronograph movements, if the largest hands do not reset perfectly back to the 12 o'clock or zero position:

1. PULL crown to position 3.
2. If center stopwatch second hand or Chrono hands do not reset to the 12 o'clock or zero position, press pusher A and B simultaneously for at least 2 seconds.
3. The center stopwatch second hand will rotate by 360 degrees to activate corrective mode.
4. If center stopwatch second hand or Chrono hands are not located at '12' or '0' position, either press pusher A continuously or repeatedly until the center stop second hand moves by each interval and returns to '12' and '0' position. Press pusher B once to activate corrective move of next minute Chrono hand, hour Chrono hand, or 1/10 second Chrono hand. Press pusher A continuously or repeatedly until the minute Chrono hand and hour Chrono hand or 1/10 second Chrono hand moves by each interval and returns to '12' and '0' position.
5. Press crown back to position 1 to activate the adjustment.

GENERAL INFORMATION

WINDING

The Gc Automatic chronograph is equipped with a high-quality mechanism with automatic winding. With the slightest movement of your wrist, a silent rotor conveys power to the spring. When it is fully wound, the minimum power reserve is 42-hours. The power reserve indicator on the dial indicates the level of power left before rewinding the watch is necessary. If it has not been worn recently, we recommend winding your Gc Automatic chronograph manually by winding the crown to position 1.

SCREW DOWN

The Gc Automatic chronograph has a screw down crown. It is important to screw it in correctly and fully after each adjustment to ensure that the watch remains water resistant. Do not pull the crown unless it

is unscrewed first. Unscrew the crown counter-clockwise (towards you) until it turns freely without tension, and then pull the crown out to desired position for watch settings. After time change, push the crown to position 1, keep it in this position and turn it clockwise. Screw it down until it is secure.

WATER RESISTANCE

Your Gc Automatic chronograph is water resistant to 100 Meters (10 ATM/330 feet of pressure). If exposed to salt or chemical water, please rinse the watch with fresh water and wipe with a soft, dry cloth.

DIAMONDS

Your Gc timepiece is crafted with genuine natural diamonds and reflects our dedication to quality and design. The diamonds in your Gc timepiece have been purchased from legitimate sources and are conflict free, based on the guarantee provided by the supplier of these diamonds.

Warranty

Your Gc watch is covered by an international guarantee against any manufacturing defects for a period of 24 months* from the date of purchase indicated on the guarantee card. Any part found to be defective within this period will be repaired or replaced at no charge. In order to benefit from this guarantee, you will be required to present the Gc Watches international guarantee certificate, duly completed, dated, stamped and signed by an authorized Gc Watches retailer.

THE GC WATCHES INTERNATIONAL GUARANTEE CERTIFICATE DOES NOT COVER:

• Defects arising from damage, mishandling, incorrect or abusive use (knocks, crushing, moisture in the case of non water resistant watches), alteration or repairs not performed by an authorized Gc Watches retailer
• Leather straps or bracelets
• Batteries
• Normal wear of base metal, surface-coated watches
• Theft or loss of the complete watch or components

*USA and CANADA warranty length is 10 years

Posisi Crown 'A', 'B' and 'C'

Tombol A (Kanan atas) & B (Kanan bawah)

Posisi Crown 'A', 'B' and 'C'

Tombol A (Kanan atas) & B (Kanan bawah)

Posisi crown 'A', 'B' and 'C'

Tombol A (Atas kanan) & B (bawah kanan)

SPLIT TIME MEASUREMENT:

1. PRESS pusher A to start timing of the first and second events
2. PRESS pusher B to stop and record the timing of the 1st event
3. PRESS pusher B to catch up to the timing of the 2nd event
4. PRESS pusher A to stop the timing of the 2nd event and record the time
5. PRESS pusher B to reset. All stopwatch Chrono hands return to '12' and '0' position.

MODE PENGOREKSI PADA JAM PENUNJUK CHRONO:

http://gcwatches.com/en/service

NOTE: Anchok of A Btien to 100000000000000000000000000000000000000000000000000000000000000000000000000000000000000

日 日

3aBnHnBaIOUaCra 3aBODHaKoPOnKa oEocneuBaet BbICOKyIO BoO3aHTy cAcOB. He BbITrNBAIte KOpOHky Do Tex Nop, Noka OHa 3aBnHcHeHa.

-OTkpyTte 3aBODHyIO KOpOHky NpTeM BpaSeHnI npOTNB HacOBn CTpeKN Do Tex nop, noka OHa He NaHTe CbODoHO BpaAaTbcra.
-Плавно Вьтаянite Корону Необхдмю NOЗию ДЯ BBINONHeHЯ HxKbIX yctahOBOK (CM. Инстукшю Ha COOTBETCTBYOUsx CTpaHua).
Korda BbBbINOHNHnHeo6xOdMble,HaCtpoNKn PnabHO BepHTe KOpOHky O6paTHO (BCTaBbTe B Kopnyc).
-При поз伞и Коронки, плотно-прнkaтои K Kopnyсу, начнайтse 3abnHvBaTb Коронку по часов стpeлke.

BHIMAHHE: EcIn Bbl nIIOx 3aKpyTnIN 3aBOdHyIO KOpOHky, 3TO MoKeT OTPuCaTeNbHO cKa3aTbCn Ha BOIo3aUInTe YacOB.

BOIO3AUNTA

Baunu oBnanaot BDO3aunTo, yka3aHNoHa 3aHne KpbuKe. Ecnu uacblNONAJIN B COJENYIO BOy nIN B DpyrO pactBOP - ONJIOCHNTe IN NOI NcTOn BOoN IN pOtpnte cyxO TKAHbIO.

PykoBOIOCTBO:

30 M/3 ATM/100 Ft. -Дун'tIMо nonaДанe 6pbI3r, HeIb3a B yacax MbITb pyKn nIbaTaB.

50 M/5 ATM/165 Ft. -MOXHO MbITbcr B dyue.

100 M/10 ATM/330 Ft. - MÖXHÖ NJIaBaTb HbIPrTa C MaCKoN.

200 M/20 ATM/660 Ft. - Moxho norgykaTcRc aKbaHrom.

300 M/30 ATM/1000 Ft. - MoXHO 3aHMaTbCn PpOceCCNoHaJbHbIM NpOpyKeHem C aKBaJahROM.

ПОНTO BPEMИ MIMHIMARTHIK

YcTaHOBKa BpEmHeH:

1. BbITAHNTE roJIOBky B noJIOJKeHne 2.
   2.BPAUJAR roJOBky B HxKHyIO CTOpOHy, yCTaHOBNTe Bpemr.
2. HAXMITE ha roJIOBky, BO3BpaTnB ee B noJoxKeHne 1.

MЛьТИФУHКЛNOHAJIbHbIe

DEHb/DAtA C DByMn HnNKATOPAMN

YcTaHOBKa BpeMeHn:

1. BbITIHTNE KOpOHky B noJoxKeHne 2.
   2.BPAUJAR KOpOHky no yacobOcCTpeJIke,ycTaHOBNTe Bpem. DeHb n DaT aTKKe N3MeHrTCr.

2. HAXMITE Ha KopoHky, BO3BpaTnB ee B nIoXeHne 1. YcTaHOBka DaTbI:

3. BbITRHTE kopoHky B noJoxKeHne 2.

4. BPAUJAR KopoHky no yacoboi cTpeJIke, ycTaHOBNTe DaTy.
5. HAXMITE Ha KopoHky, Bo3bpaTnB ee B noIooKeHne 1.

ПРИМЕЧАНЕ: Дя «бісточ мсөнbl Daы» HaЖмITE 3aocTe 3aoCTpeHHbIM npeMeTOM Ha KhoNky A. He noJIb3ayTeCb 3toI KhONKoi MekxNy 23:30 u 5:30.

UcTaHOBkaIHa:

1. BbITRHTE KOpOHky B noJoxKeHne 2.
   2.Порokутnte ВремВперед Ha 24淘汰，HTO6bI CMeHITb DeHb.
2. HAXMITE Ha KopoHky, BO3BpaTnB ee B noIIOKeHne 1.

ПРИМЕЧАНЕ: Дя «бісточ смени даты» HaЖмITE 3aoctpeHHbIM npeДметом Ha Khonky B. He noJIb3yITeCb 3ToI KhoNkoM MeKdy 23:30 n 5:30

CTPEM INHINKATOPAMN DEHb/DATA/BTOPOYACOBOI NORC

YcTaHOBKa BpeMeHn:

1. BbITIHTE KOpOHky B noJoxKeHne 2.
   2.BPAUJAR KopoHky no yacOBoi CTpeJIke, yCTaHOBNTe Bpem. DeHb n DaTa TaKxE n3MeHrTcR.
2. HAXMITE Ha KopoHky, BO3BpaTnB ee B noJoxKeHne 1.

YctaHObKa BTOPO YoacOBOr NoCa:

1. BbITRAHNTE KopoHky Ha no3nIu 1.
2. HAKIMAITE KhoNky Bwar 3a warom, TTo6bl yCTaHOBtBuacOByIO CTpeNky BTOPOrO YacOBOro IORca Ha HyXHoe Bpemr.
3. NpeecTaHbTe HaxKmMaTb KhoNkBy B, ecJIN bI npOn3BEnn Heo6xOaMlbE yCTaHOBKn.

PIMMEAHHE: ecn Bbl BbI CTabIaTe Bpem BTOPOY acoBOy 3OHbC nOMoSbIO KHOKNB, TTo CEHTpaJIbHa

MnHyTHa CTpeIka DoJXHa 6bItb B MeJy 55 n 5 MInHyTaMn.

YcTaHOBka DaTbI dHr HeJeIi:

1.BbITAHNTE KOpOHky Ha no3nH2.
2.BPAUJAITE KOPOHky no yacobO CTpeJIke, YTO6bI BbICTaBtB KoppeKTHbIe DaTy I DeHb HeJeIi.
3. HAXMNTE KOPONKU, BO3BpaTnB ee Ha no3n1n 1.

PIMMEAHHE: 6bIcTpo CMeHb DaTbYcTaHOBnTe KopoHky Ha no3uNIO 1, 3aTe HaxMnTe KhONKy A.

12,6,9 XPOHOPTPA C TPEM INIHKATOPAMN - NOKA3bIBAET 1/10 CEKYHdbI

ПРИМЕЧАНО:

IIOJoxHeHKe KopoHKn '1,2' n 3

Khonka A' (Bbepxy) u KhoNka B' (BHN3y)

JIeBbI INHnKaTOp Noka3bIbaeT "NCTeKUHe 30 MnHyT"

Правьй ИнданkaTOp nOKa3bIBaeТ «ИСТЕКШе DecятBLEdoJIneCEkyHdbl»

LcHTpaBHybIMHnKaTOp noka3Baet IcTeKUne cekyHbI

DAHHbIe YAcBIC XPOHOrPAΦOM BbINOJIHrIOT 3 ΦYHKU:

OTcuet BpeMeHH, KaIeHdapb n cekyHnomep.

BPEM:

YcTaHOBka BpeMeHN

1. BbITIaHHTE KOpOHky B noJoxKeHne 3.
   2.BPAUJA KopoHky B HuxHyIO CTOpOHy, yCTaHOBnTe BpEMr (ToKe camoe Ira IIN, ecNI DoCTynHa TaKaA fHHKpIy).
2. HAXMITE Ha KopoHky, Bo3BpaTnB ee B noIooKeHne 1.

KAJIENDApB:

1. BbITAHNTE kopoHky B noJoxKeHne PULL 2.
   2.BPAUJAR KOpONky no yacOBOn CTpeJIke,ycTaHOBInTe KaJIeHApb.
2. HAXMITE Ha KopoHky, BO3BpaTnB ee B noIooKeHne 1.

CEKYNDOMEP:

CekyHdomep MoKeT n3MepeTb:

1. VcTeKUee BpEma BmHyTax Do 30 MmHyT.
2. DecaTbe nn nTbe doi neKHyDbl (NOKa3bIbaIOCT cTepeJIko XpoHORpa).

IpeenncnoB3oBaHnem cekyHdomepa yctaHOBtce ctepnck cekyHdomepa B noJoxeHne «60», haxmna Ha KhoNky «B». Ecnn cTePNk DnBraKOTcHa TaK, KaK cJeNyET, ycTaHOBtce cTePNk cJeDyUOuM 06pa3OM:

TAHOBKA CTPEJOK CEKYHOMEPA:

BOLBJUO CTPEIKY XPOHORPAA NO UEHTPY (NJN B NIOLOXEHNE 60 CEKYH)

1. BbITIaHInTE KOpOHky B noJoxKeHne 2.
2. HAKIMAITE KhoNky B do tex nop, noka cTpeNka xpoHorpaFa He BcTaHet B noLoXeHne 60
3. BO3BPATNTE kopoHky B noJoxeHne RESET 1.

CTPEIKY OTCHTA DECAETbIX DOJIEN CEKYHd HA «12 YACOB»:

1. BbITIaHITE KOpOHky B noJoxKeHne 2.
2. HAXIMAIte KhoNky A do tex nop, noka cTpeIka npaBOrO INHdkaTopa He BCTaHET B noLoXeHne «0»
3. BEPHITE KopoHky B noJoxKeHne 1.

CTPEJIKY OTCHTA MMHUT JIEBOTO INHINKATOPA HA «9 YACOB":

1. BbITIaHITe KOpOHky B noJoxKeHne 3.
2. HAXIMAITE KhoNky A do Tex nop, noka cTpeJIka neBoro INHnIKAtopa Ha BCTaHET B noJIOXKeHne 30'.
3. BO3BPATITE kopoHky B noJoxKeHne 1.

CTAHAPTHA IPOUEyPA N3MEPEHNE BPEMEH C NOMOUBO CEKYHDMEPA:

1. HAXMITE KhoNky A, YTO6bHaHaatb OTCyET BpeMeHn.
2. HAXMITE KhoNky A, UTo6bI npeKpaTnB OTCHT BpemeHn.
3. HAXMITE KhoNky B dIy c6poca nokaahn.

PPOUEDYPA N3MEPEHNAOUIERO NCTEKUERO BPEMEHN:

1. HAXMITE KhoNky A, YTO6bHaHaatb OTCyET BpEmHeH.
2. HAXMITE KhoNky A, UTo6bI npEkapatntb OTCuET BpemeHn.
3. HAXMITE KhoNky A, YTO6bI 3aHOBo Haatab OTCyET BpEmHeH.
4. HAXMITE KhoNky A, UTo6bI npEkapTb HaaytBn BO BTOPO pa3 OTCHT BpEmHn.
5. HAXMITE KhoNky B dny c6poca nokaahn.

ФУHKЦЯ CNЛNT-XPOHOrPFAAИЛ PA3ДeJIbHOr BPEMeHn:

1. HAXMITE KhoNky A, YTO6bHa Haatb OTCyET BpeMeHn.
2. HAXMITE KhoNky BДЯ "pa3deneHn" BpeMeHn.
3. HAXMITE KhoNky B DnI TORO, YTO6bI HaAaTb NImpeHne ChOba.
4. HAXMITE KhoNky A, UTo6bI npeKpaTnB OTCuET BpemeHn.
5. HAXMITE KhoNky B dIy c6pOca nokaahn.

I3MEPEHNE BPEMEHN 2 yUACTHNIKOB COPEBBOAHN:*

1. HAXMITE KhoNky A, YTO6bI Haatb OTcHET BpEmH 1-fo co6bITnA.
2. HAXMITE KHOJky B, YTO6bIOCTaHOBtB OTCyET BpeMeHn IepBOrO co6bITn; cekyHdOmeP npoDoJIkaeT pa60TaTb BO BHyTpEHHem pexmme .
3. HAXMITE KhoNky A, YTO6bI Haatb OTCueB BpeMeHn 2-TO co6bITna.
4. HAXMITE KhoNky B, UTo6bI npOCMOtpeT bOTcHET BpEmHe 2-ro co6bITnA.
5. HAXMITE KhoNky B dIy c6poca nokaahn.

3,6,9 XPOHOPTPAΦ C TPEM INHДNKATOPAMN

ПРИМЕЧАНЕ:

HnIkaTOp OKoJIO OTMeTKN "6 YacOB" - CteTnK nHei HeJeIi

HnIkaTOp OKoJIO OTMeTKN "10 YacOB" NOKa3bBaET nCTeKUee BpeM B MmHyTax Do 30 MNHyT

INHnKaTOp OKOLO OTMeTKN «2 Yaca» - NOCToHaHaCekyHdaHaa CTpeIka

DAHHbIe YAcBi C XPOHOrPAΦOM BbINOJIHЯIOT 3ФYHKUIN:

OTcHTBpeMeHn,KaJIeHApbN cekyHdomeP

YcTaHOBKa BpeMeHn:

1. BbITIHTNE KopoHcy B noJIoXKeHne 3.
2. NOBOPAUBAR KopoHky, yCTaHOBITe BpEMr.
3. HAXMNTE Ha KopoHky, BO3BpaTnB ee 6paTH B noLoXeHne1.

KAJIENDApB:

1. BbITIHTNE KopoHcy B noJIoXeHne 2.
2. NOBOPAUBAR KOpOHky No yacobO BCTpeIke, yCTaHOBHTe KaJIeHApb.
3. HAXMITE Ha KopoHky, Bo3BpaTnB ee 6paTHo B nIoXeHne 1.

CEKyHDOMEP:

1. OTKPYTNTE 3aBOnHyo KopoHky N BbITrHNTe ee Ha no3nH2
   2.BPAUAIATEKOPOKHkyno yacOBoCTpeJIke Do yCTaHOBKn Heo6xoDMoN daTbI.
2. BEPHNTE KopoHky o6paTHo Ha no3uIIO 1 n 3aKpyTnTe KopoHcy.

ABTONO3aBO

MexaHnueckne yacbI Gc oshaJeHb BbICOKoTeXHOJOnuHbIM MexaHN3MOM, KOtOpbI o6ecneHBAeT abTomatueckn 3aOBm MexaHN3Ma. EcnI yacbI haxOJaTcRa 3aJAreTbe, To npI dBnJKeHN m o6ceNHaBaETcra abTomatueckn nO3aOBd Yacob. EcnI yacbI haxOJaTcB I NOKoe, To MNHMaNbHbI 3anac Xoda - 38 cacOB. EcnI yacbI haxOJInCb 6e3 DnIXeHnI N OCTaHOBUNcB, TO packpyTte KOPOHky, BbICTaBbTe BpeM, 3akpyTte KOPOHky, TpI pa3a IOBepHnTE KOPOHky NO cAcOBn CTpeJIke (3aBeDInTe aCsb), HadeHbTe YacbI Ha pyKy - MexaHN3M NaHET NODaOBITbcr ABTomatueckn.

MEXAHHUECKN XPOHOPTPA C ABTONO3ABODOM

TEXHNUECKNEXAPAKTEPNUKIN

Mexanhueckn xpoHorpaΦ Gc:

-Valjoux 7750 mexaHueckm xpoHorpa c 28,800 kOle6aHnMn B ac n 25 KaMHnM
