Download the instructions for your Watch in PDF format for free! Find your manual Moorea - Pequignet and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Moorea by Pequignet.
USER MANUAL Moorea Pequignet
Instruction/Garantie Moorea FR-ANG:Manuel Moorea auto
PEQUIGNET
MOOREA
MANUEL D'INSTRUCTIONS
Recommendations and servicing
In order to last, your timepiece or jewel must receive special care, and requires constant servicing. So we recommend you observe the advice below.
Water resistance
A watch's water resistance is a criterion prone to deteriorate with time; on the wrist, the watch is subjected on a daily basis to various attacks, according to the wearer (impacts of varying force, sweat, abrupt temperature changes, seawater, pool water, etc.) These factors influence premature ageing of the water resistance gaskets. That is why you need to have the water resistance of your watch checked on a regular basis by an approved Pequignet dealer.
NB:
-always screw in the crown or press it back in against the case to prevent water from penetrating into the mechanism.
-do not use the chronograph pushpieces or winding stem underwater.
-after immersion in seawater or a swimming pool, rinse your timepiece in lukewarm water and dry it with a soft cloth.
Instruction/Garantie Moorea FR-ANG:Manuel Moorea auto
Magnetic fields
Our environment is subject to interference from electromagnetic sources. This interference may have a direct impact on the operation of both self-winding and quartz watches.
A quartz watch may be disrupted when it enters a strong magnetic field; though it will return to normal operation when it leaves the field. So this interference will last while your watch is inside a magnetic field (e.g. from a speaker, computer, mobile phone, etc.).
A self-winding watch is also affected by powerful magnetic fields. In certain cases, the interference may magnetise certain steel parts in the movement,
such as the self-winding system oscillating weight ball bearing, and more particularly the balance-spring. The balance-spring loops may stick together, and the watch could rapidly gain/lose rate, or even stop.
PVD coating
PVD coating is a hardened surface coating, but can be prematurely worn through impacts or regular friction. The guarantee may not come into play.
"Prohibited" zone for manual date change on self-winding watches
We advise not changing the date manually between 21:00 and 03:00, to prevent any damage to the mechanism.
Power reserve for self-winding watches
Regularly wearing your timepiece will maintain the power reserve. If the watch has not been worn and it has stopped, we recommend winding it manually using the crown around twenty turns clockwise in order to guarantee its optimum rate, as you need to be aware that shaking your timepiece will not be sufficient to wind it to ensure that it runs at itsor
rect rate. The watch display would lose a lot of time, and very quickly stop. Pequignet agrees that the precision of our mechanical watches varies between plus or minus 30 seconds per day.
Day-to-day care instructions for leather or other animal skin straps
Avoid contact with water or any other liquid.
Avoid direct contact with cosmetics perfumes, make-up, detergents, solvents or other special industrial leather cleaners. (applies also to rubber straps).
Exposure to strong lighting or sunlight may cause discolouration.
Instruction/Garantie Moorea FR-ANG:Manuel Moorea auto
M O U V E M E N T Q u A R T Z
(HEURE, MINUTE)
1 - Position normale
1 - Normal position
2 - Mise à l'heure
2 - Setting the time
8
Instruction/Garantie Moorea FR-ANG:Manuel Moorea auto
M O U V E M E N T Q u A R T Z
(HEURE, MINUTE, DATE)
2 - Position for correction of date
3 - Position for correction of the time
10
Instruction/Garantie Moorea FR-ANG:Manuel Moorea auto

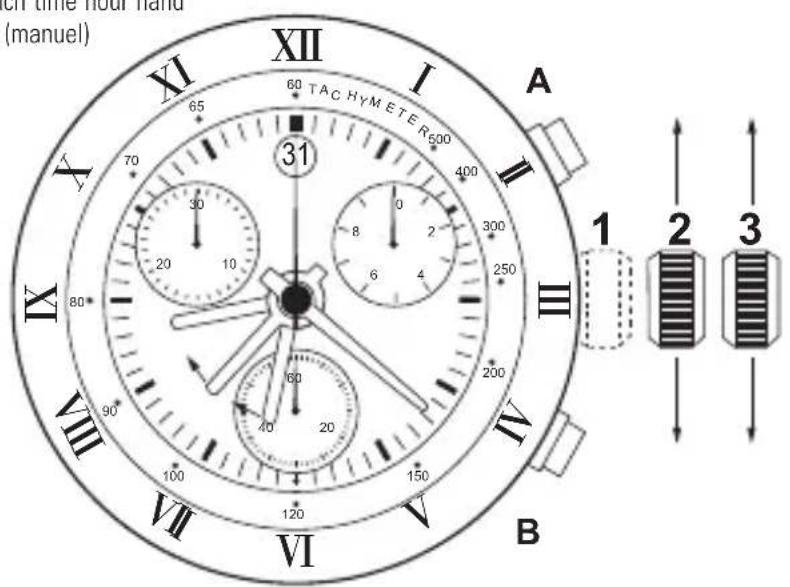

CORRECTIONS HEURE ET DATETIME AND DATE CORRECTIONS
Date changes each time hour hand passes midnight (manuel)
POSITION 1 POSITION 2 POSITION 3
Positionnormale
Normal Position
Correction de la date
Correction of the date
Correction of the time
Instruction/Garantie Moorea FR-ANG:Manuel Moorea auto

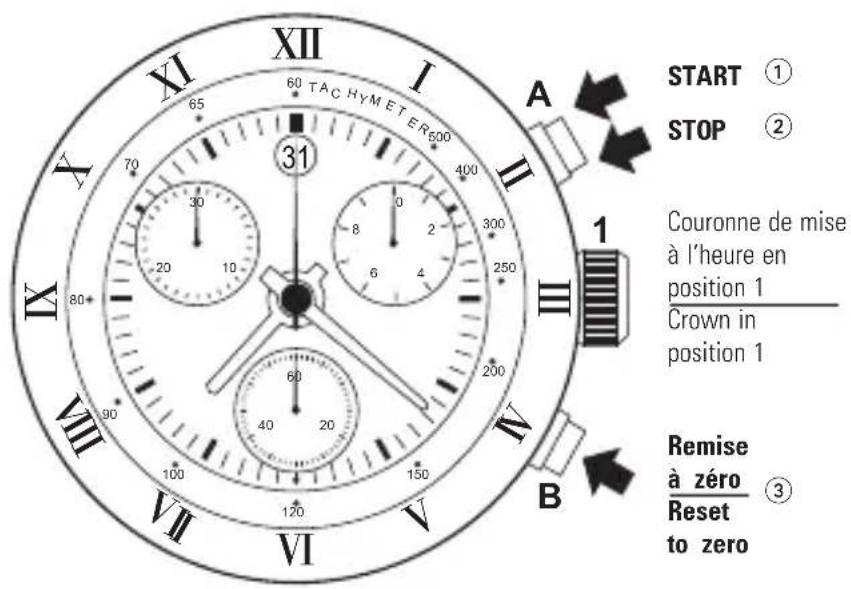

-FONCTIONCHRONOGRAPHESIMPLE SIMPLECHRONOGRAPHFUNCTION
ATTENTION:
Before each time is taken, the hands should be put back to their original position.
If necessary reset to zero with pushbuttonB to ③ order of functions
12
Instruction/Garantie Moorea FR-ANG:Manuel Moorea auto
FUNCTION RATTRAPANTE POUR TEMPS INTERMEDIAIRE SPLIT-TIME FUNCTION FOR INTERMEDIATE TIME READING
Push B to read intermediatetime E.G.
- 11 minutes
-26 seconds - 5/10 second
Start again functions 2 and 3 to read other intermediate times
Push B to reset to zero
Instruction/Garantie Moorea FR-ANG:Manuel Moorea auto
PEQUIGNET
MOOREA
GARANTIEINTERNATIONALE
GARANTIEINTERNATIONALE
As thenew owner of a Pequignet timepiece, please accept ourthanks for your trust.
Your Pequignet watch or jewel is guaranteed for 2 years from the date of purchase against any manufacturing flaw, under normal conditions of use. This guarantee will be valid only if the guarantee card has been completed correctly and in full by a Pequignet dealer. If this watch requires care, make sure to entrust it only to a brand dealer. Only they will be able to guarantee that this watch is serviced in accordance with Pequignet's requirements.
Theguarantee excludes:
- Battery replacements and water resistance
- Damage to the case, movement and bracelet due to mishandling, negligence, an accident or normal wear and tear
- Damage caused by an operation not performed by a Pequignet approved watchmaker-jeweller
- Leather straps
Remember that the accuracy and correct running of your watch are dependent on not only keeping to the rules of normal use but, in particular, on taking good care of it. This guarantee will be valid only if the guarantee card or sheet has been completed correctly and in full by a Pequignet dealer.
Should you claim on your guarantee, you will be asked to provide the following original documents: Purchase invoice and the guarantee card or sheet.
The guarantee may be extended for free by one year by completing the form on our website :
http://en.pequignet.com/international-warranty
The complete list of Pequignet official After-Sale service centres can be found on the website www.pequignet.com The guarantee conditions are subject to change over time; please check out our dedicated web page at any time in order to look up any amendments.
17
Instruction/Garantie Moorea FR-ANG:Manuel Moorea auto
INTERNATIONAL WARRANTY
DATE SERIAL N°
REFERENCE
NAME
SOLD BY
MOOREA
http://en.pequignet.com/international-warranty
Instruction/Garantie Moorea FR-ANG:Manuel Moorea auto
INTERNATIONAL WARRANTY
DATE SERIAL N°
REFERENCE
NAME
SOLD BY
MOOREA
http://en.pequignet.com/international-warranty
