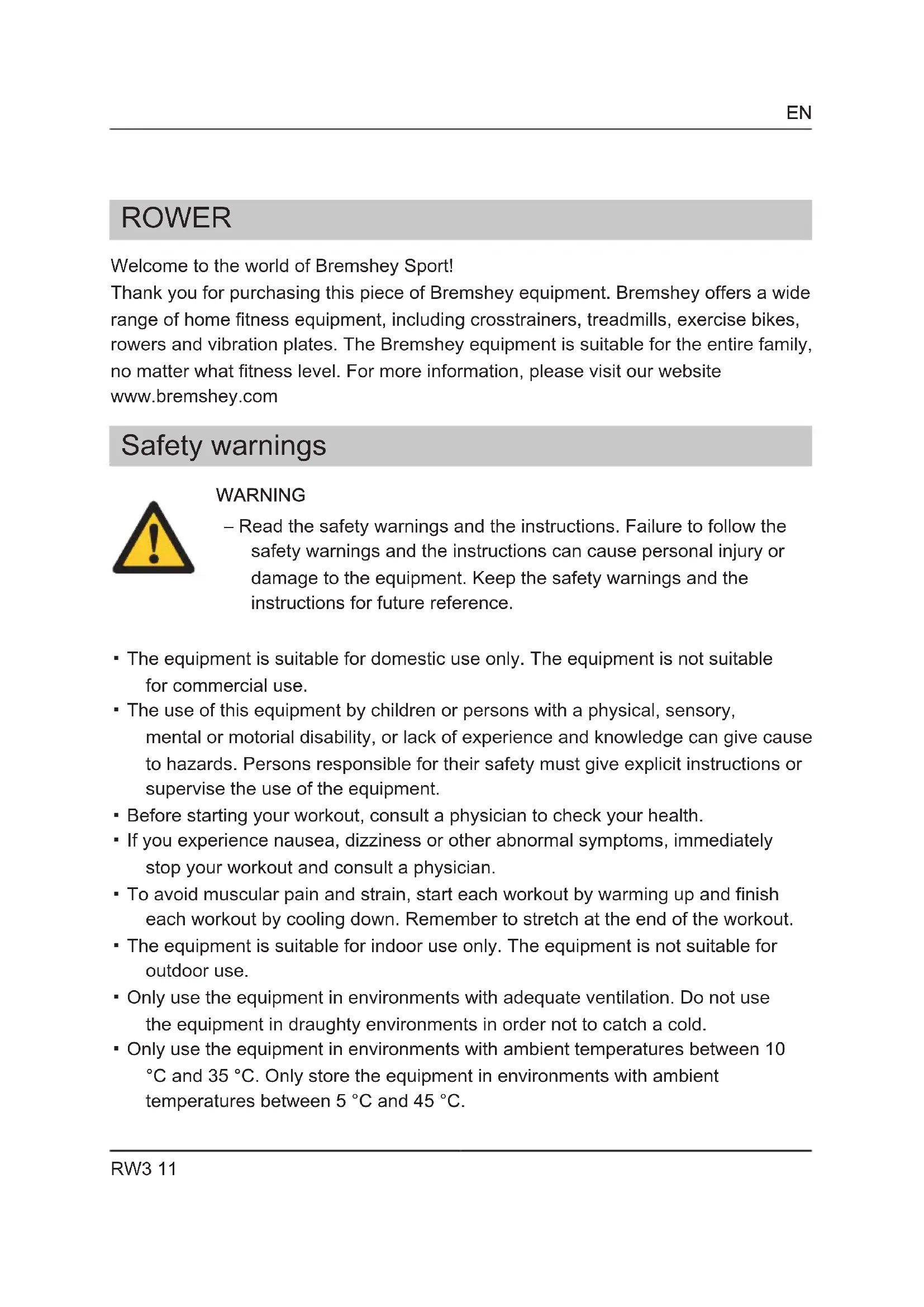

Welcome to the world of Bremshey Sport!

Thank you for purchasing this piece of Bremshey equipment. Bremshey offers a wide range of home fitness equipment, including crosstrainers, treadmills, exercise bikes, rowers and vibration plates. The Bremshey equipment is suitable for the entire family, no matter what fitness level. For more information, please visit our website www.bremshey.com

Safety warnings

WARNING

- Read the safety warnings and the instructions. Failure to follow the safety warnings and the instructions can cause personal injury or damage to the equipment. Keep the safety warnings and the instructions for future reference.

• The equipment is suitable for domestic use only. The equipment is not suitable for commercial use.
• The use of this equipment by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety must give explicit instructions or supervise the use of the equipment.
• Before starting your workout, consult a physician to check your health.
• If you experience nausea, dizziness or other abnormal symptoms, immediately stop your workout and consult a physician.
• To avoid muscular pain and strain, start each workout by warming up and finish each workout by cooling down. Remember to stretch at the end of the workout.
• The equipment is suitable for indoor use only. The equipment is not suitable for outdoor use.
• Only use the equipment in environments with adequate ventilation. Do not use the equipment in draughty environments in order not to catch a cold.

• Only use the equipment in environments with ambient temperatures between 10 °C and 35 °C. Only store the equipment in environments with ambient temperatures between 5 °C and 45 °C.

• Do not use or store the equipment in humid surroundings. The air humidity must never be more than 80%.

• Only use the equipment for its intended purpose. Do not use the equipment for other purposes than described in the manual.
• Do not use the equipment if any part is damaged or defective. If a part is damaged or defective, contact your dealer.
• Keep your hands, feet and other body parts away from the moving parts.
• Keep your hair away from the moving parts.
• Wear appropriate clothing and shoes.
• Keep clothing, jewelry and other objects away from the moving parts.
• Make sure that only one person uses the equipment at a time. The equipment must not be used by persons weighing more than 135 kg.
• Do not open equipment without consulting your dealer.

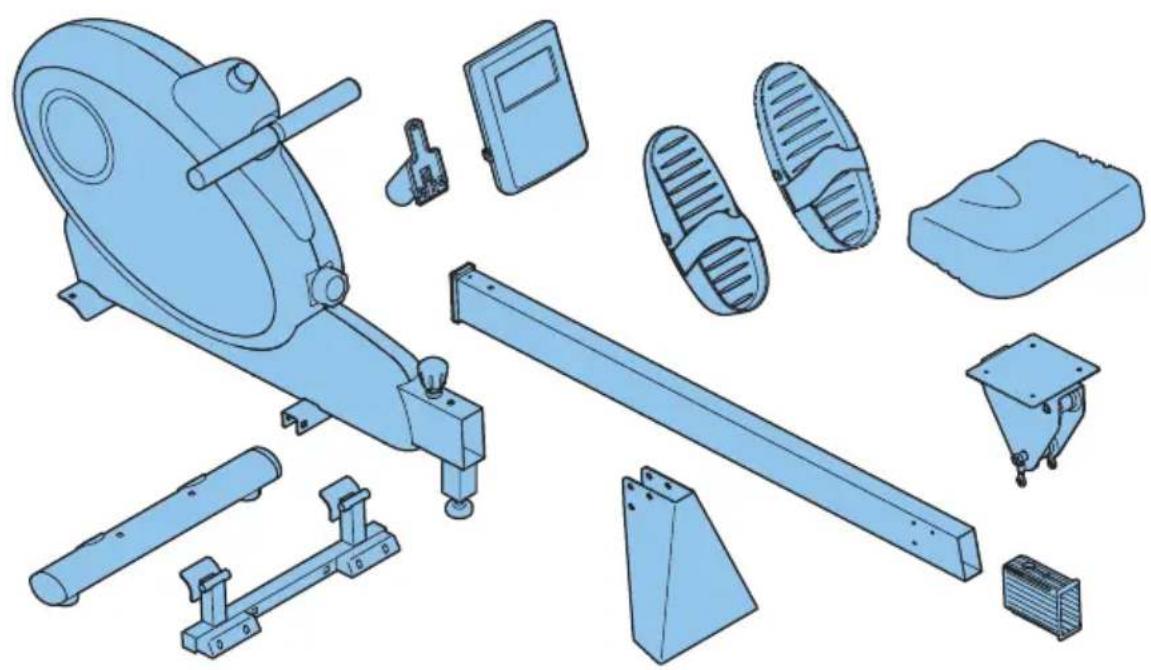

Package contents (fig. B & C)

• The package contains the parts as shown in fig. B.
• The package contains the fasteners as shown in fig. C. Refer to the section "Description".

NOTE

– If a part is missing, contact your dealer.

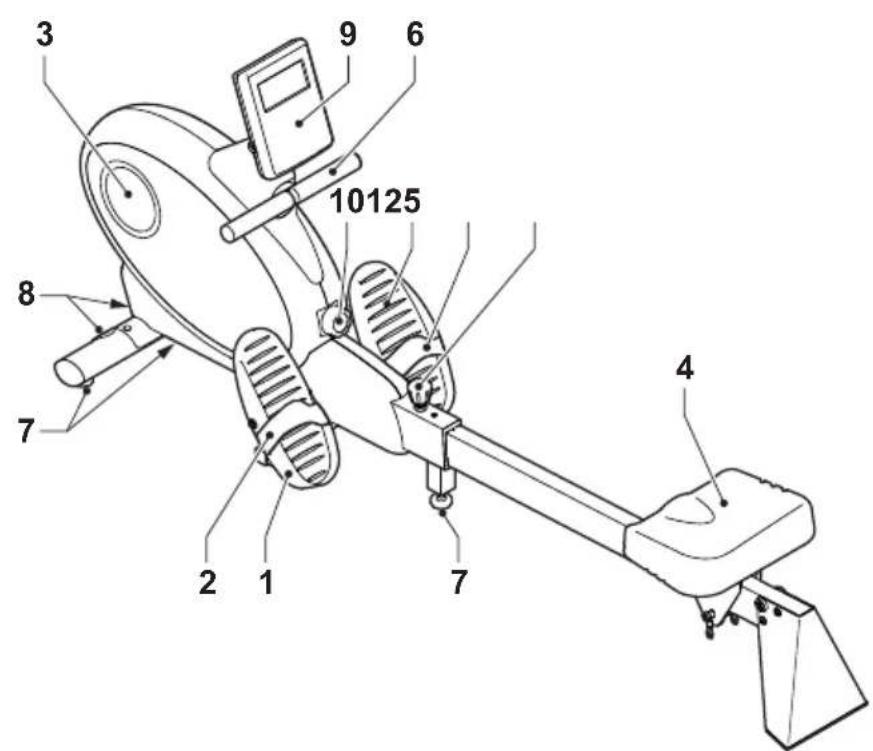

Description (fig. A)

Your rower is a piece of stationary fitness equipment used to simulate rowing without causing excessive pressure to the joints.

1 Pedal	6 Handlebar
2 Pedal strap	7 Support foot
3 Main housing	8 Transport wheel
4 Seat	9 Console
5 Rail adjustment knob	10 Resistance adjustment knob

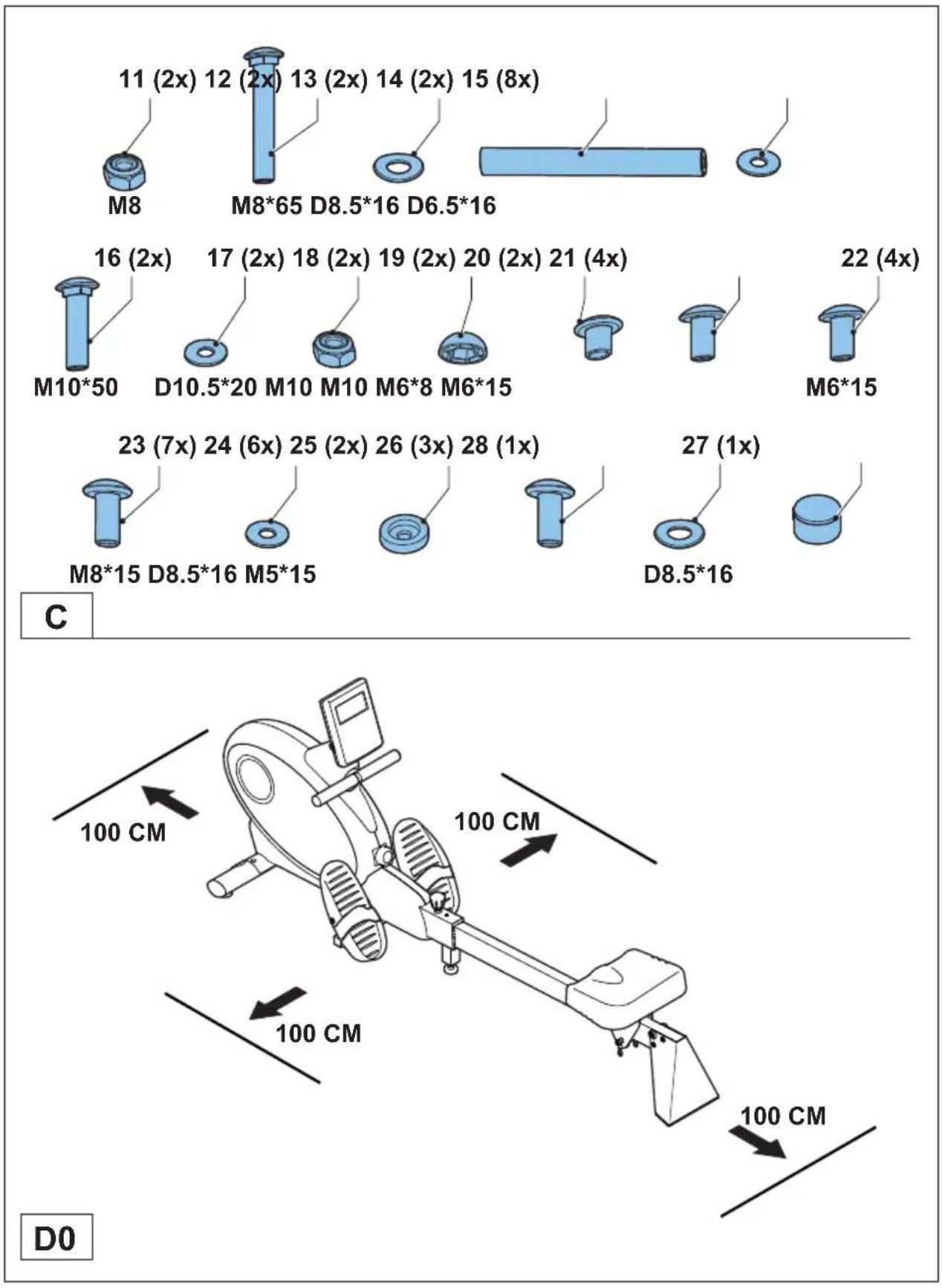

Fasteners (fig. C)

11 Locknut (M8)
20 Screw (M6*8)
12 Carriage bolt (M8*65)
21 Hex bolt (M6*15)
13 Curved washer (D8.5*16)
22 Cross-head screw (M6*15)
14 Pedal axle
23 Screw (M8*15)
15 Washer (D6.5x16)
24 Washer (D8.5x16)
16 Carriage bolt (M10*50)
25 Stopper
17 Washer (D10.5x20)
26 Screw (M5*15)
18 Locknut (M10)
27 Curved washer (D8.5*16)
19 Nut cap (M10)
28 Lubrication pot

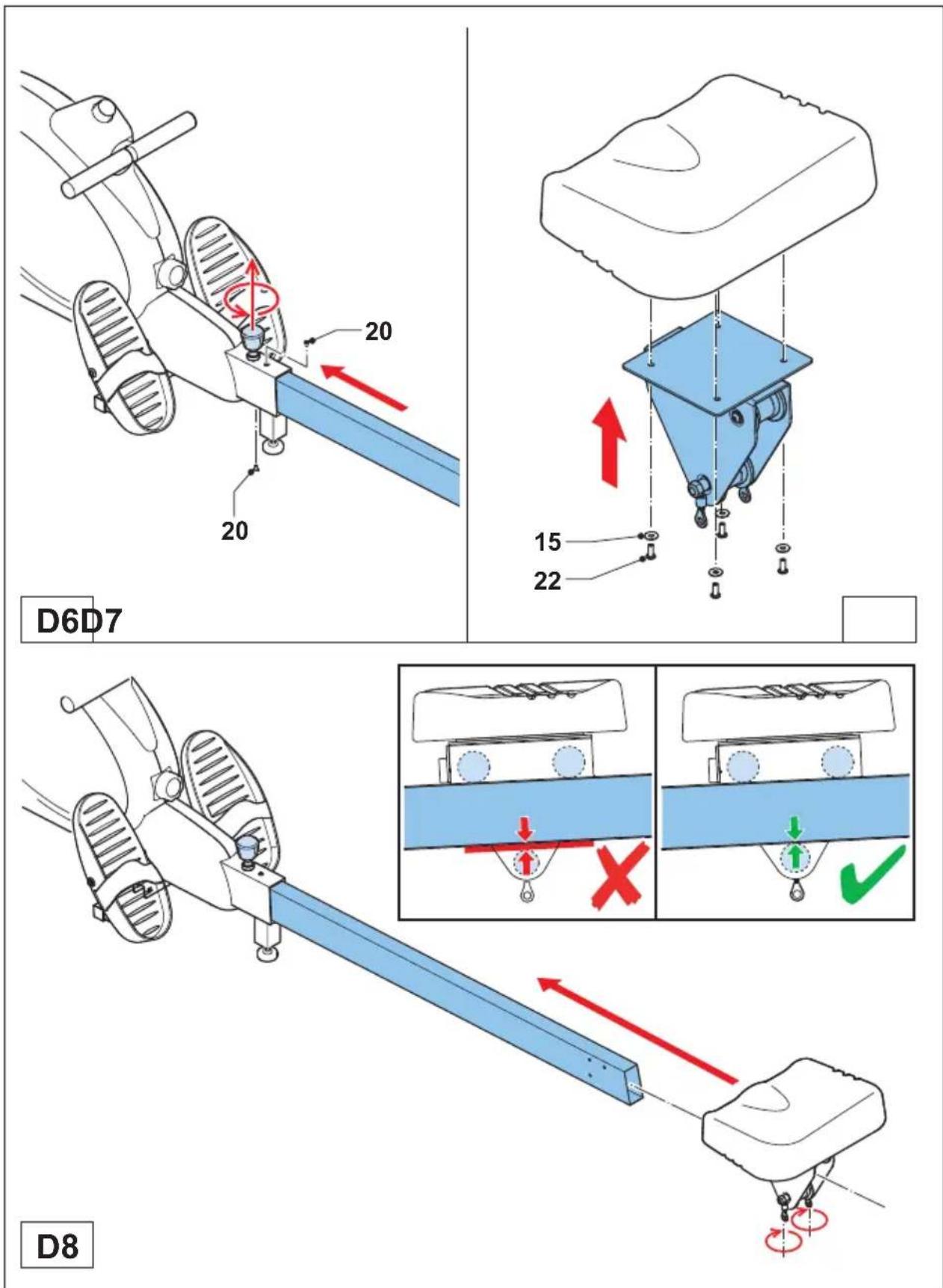

Assembly (fig. D)

WARNING

• Assemble the equipment in the given order.
• Carry and move the equipment with at least two persons.

CAUTION

• Place the equipment on a firm, level surface.
• Place the equipment on a protective base to prevent damage to the floor surface.
• Allow at least 100 cm of clearance around the equipment.

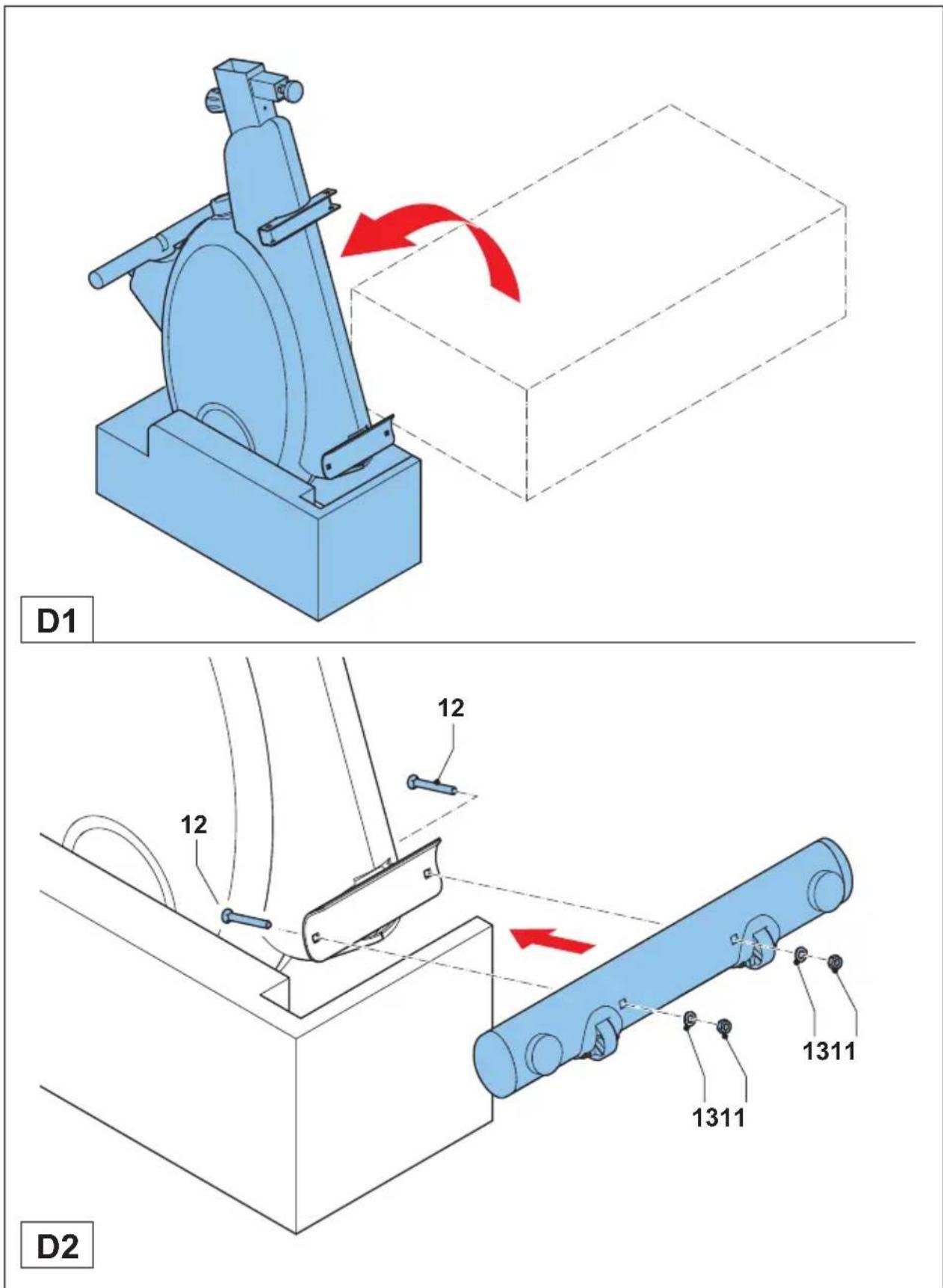

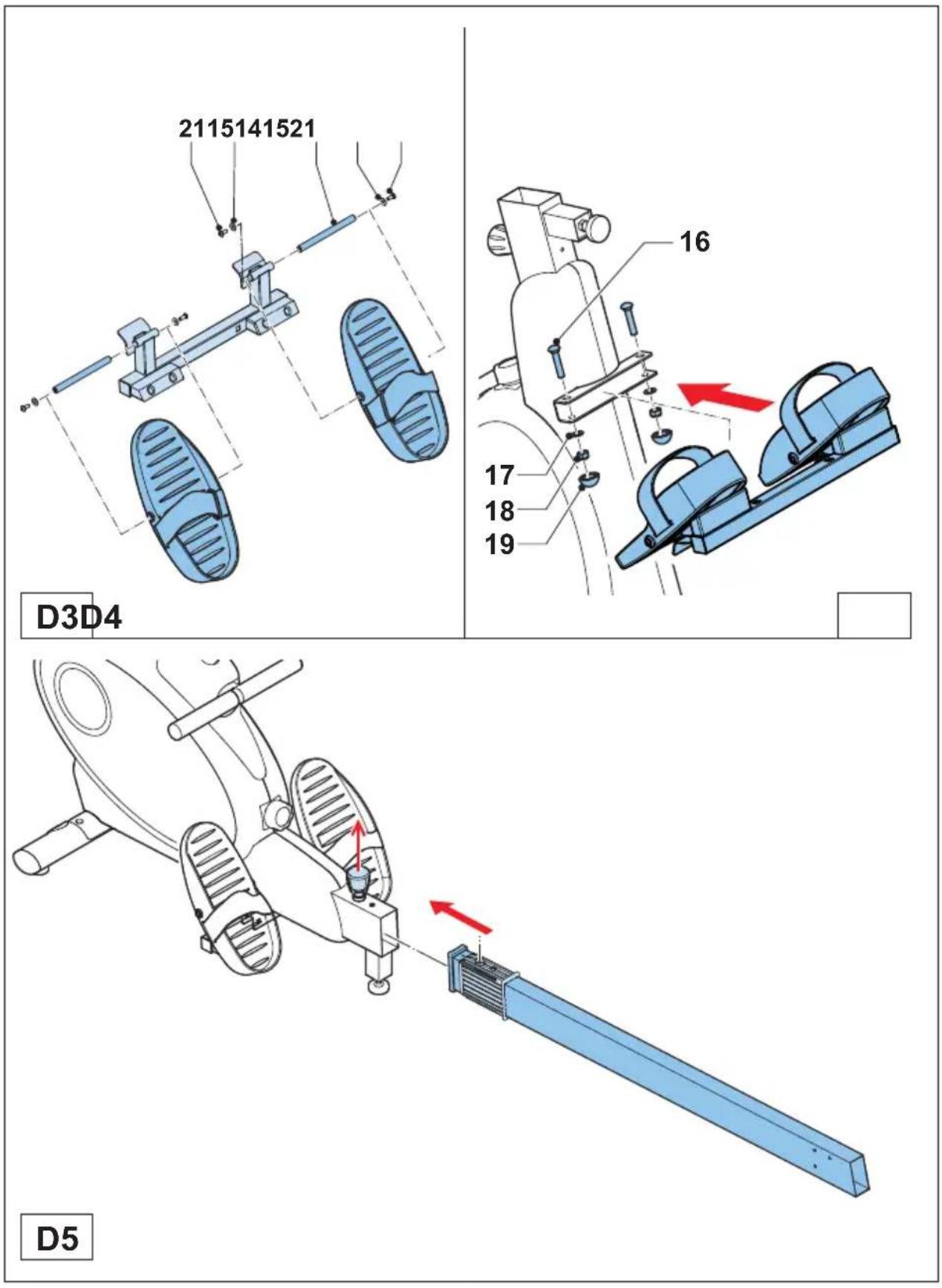

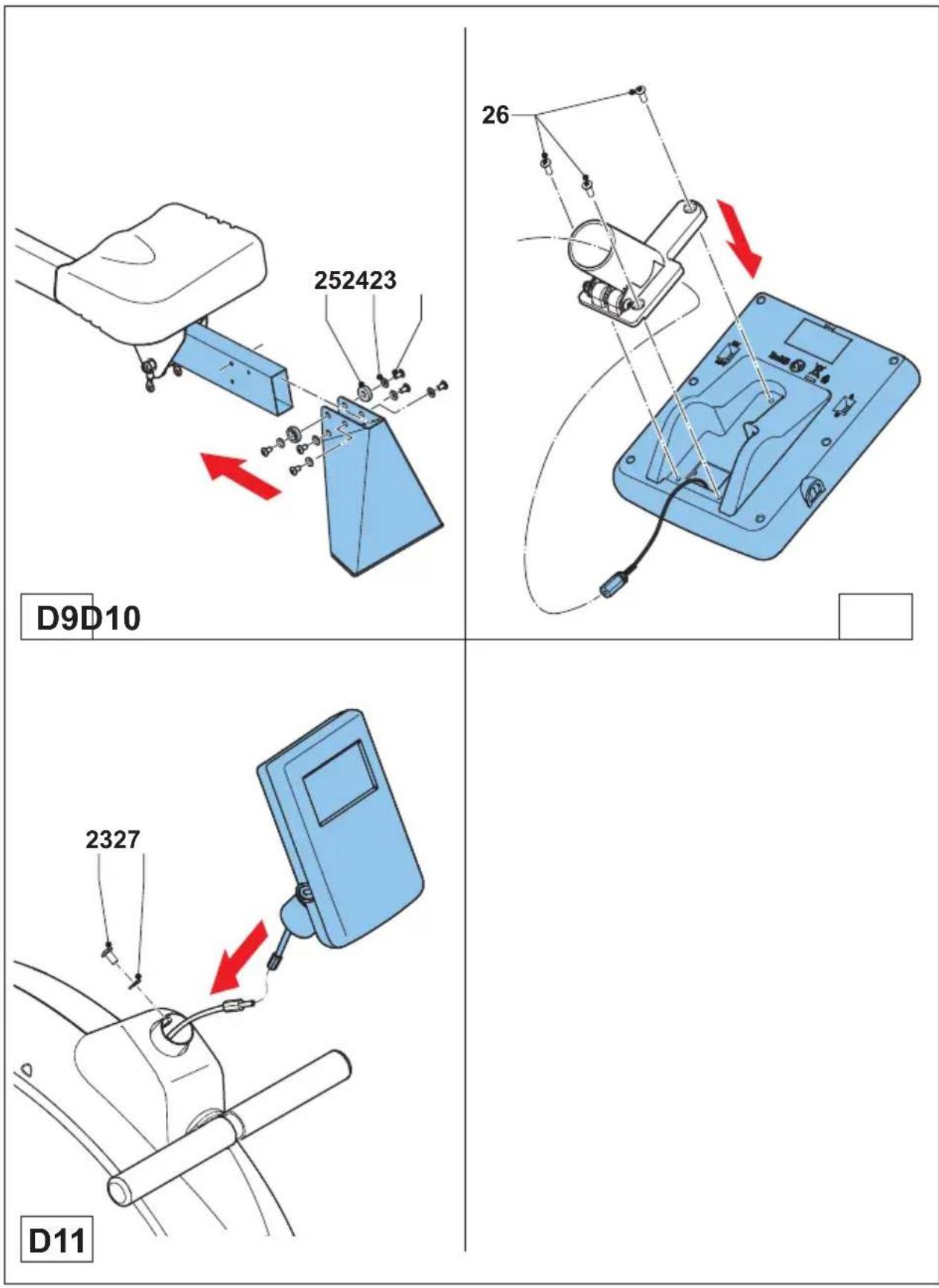

- Refer to the illustrations for the correct assembly of the equipment.

Workouts

The workout must be suitably light, but of long duration. Aerobic exercise is based on improving the body's maximum oxygen uptake, which in turn improves endurance and fitness. You should perspire, but you should not get out of breath during the workout.

To reach and maintain a basic fitness level, exercise at least three times a week, 30 minutes at a time. Increase the number of exercise sessions to improve your fitness level. It is worthwhile to combine regular exercise with a healthy diet. A person committed to dieting should exercise daily, at first 30 minutes or less at a time, gradually increasing the daily workout time to one hour. Start your workout at low speed and low resistance to prevent the cardiovascular system from being subjected to excessive strain. As the fitness level improves, speed and resistance can be increased gradually. The efficiency of your exercise can be measured by monitoring your heart rate and your pulse rate.

Heart rate measurement (heart rate chest belt)

WARNING

- If you have a pacemaker, consult a physician before using a heart rate chest belt.

CAUTION

- If there are several heart rate measurement devices next to each other, make sure that the distance between them is at least 1.5 metres.

- If there is only one heart rate receiver and several heart rate transmitters, make sure that only one person with a transmitter is within transmission range.

NOTE

• Always wear the heart rate chest belt under your clothes directly in contact with your skin. Do not wear the heart rate chest belt above your clothes. If you wear the heart rate chest belt above your clothes, there will be no signal.
• If you set a heart rate limit for your workout, an alarm will sound when it is exceeded.
• The transmitter transmits the heart rate to the console up to a distance of 1 metre. If the electrodes are not moist, the heart rate will not appear on the display.
• Some fibers in clothes (e.g. polyester, polyamide) create static electricity which can prevent accurate heart rate measurement.
• Mobile phones, televisions and other electrical appliances create an electromagnetic field which can prevent accurate heart rate measurement.

- Slightly moisten the electrodes on the transmitter belt with saliva or water.

- Fasten the transmitter with the belt just below the chest, firmly enough so that the electrodes are constantly touching the skin, but not so tight that you cannot breathe normally.

- Allow the electrodes to warm up properly to ensure accurate heart rate measurement.

Maximum heart rate (during training)

The maximum heart rate is the highest heart rate a person can safely achieve through exercise stress. The following formula is used to calculate the average maximum heart rate: 220 - AGE. The maximum heart rate varies from person to person.

WARNING

- Make sure that you do not exceed your maximum heart rate during your workout. If you belong to a risk group, consult a physician.

Category Heart rate zone Explanation
Beginner 50-60% of maximum heart rate		Suitable for beginners, weight-watchers, convalescents and persons who have not exercised for a long time. Exercise at least three times a week, 30 minutes at a time.
Advanced 60-70% of maximum heart rate		Suitable for persons who want to improve and maintain fitness. Exercise at least three times a week, 30 minutes at a time.
Expert 70-80% of maximum heart rate		Suitable for the fittest of persons who are used to long-endurance workouts.

Use

Adjusting the support feet (front)

If the equipment is not stable, the support feet at the front of the equipment can be adjusted.

1. Turn the support feet as required to put the equipment in a stable position.
2. Tighten the locknuts to lock the support feet.

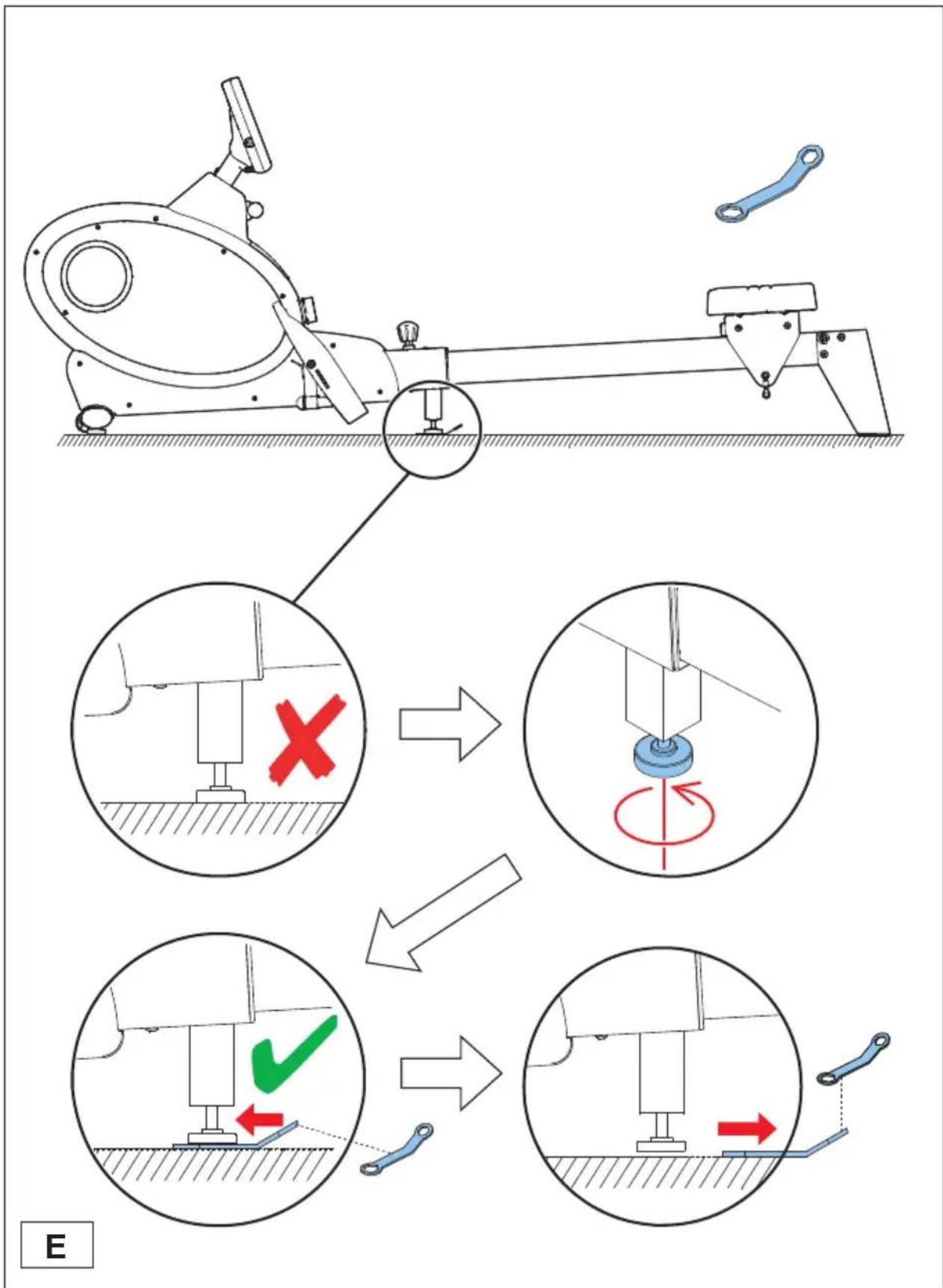

Adjusting the support foot (middle) (fig. E)

If the equipment is not stable, the support foot in the middle of the equipment can be adjusted.

1. Turn the support foot as required to put the equipment in a stable position.
2. Tighten the locknuts to lock the support foot.

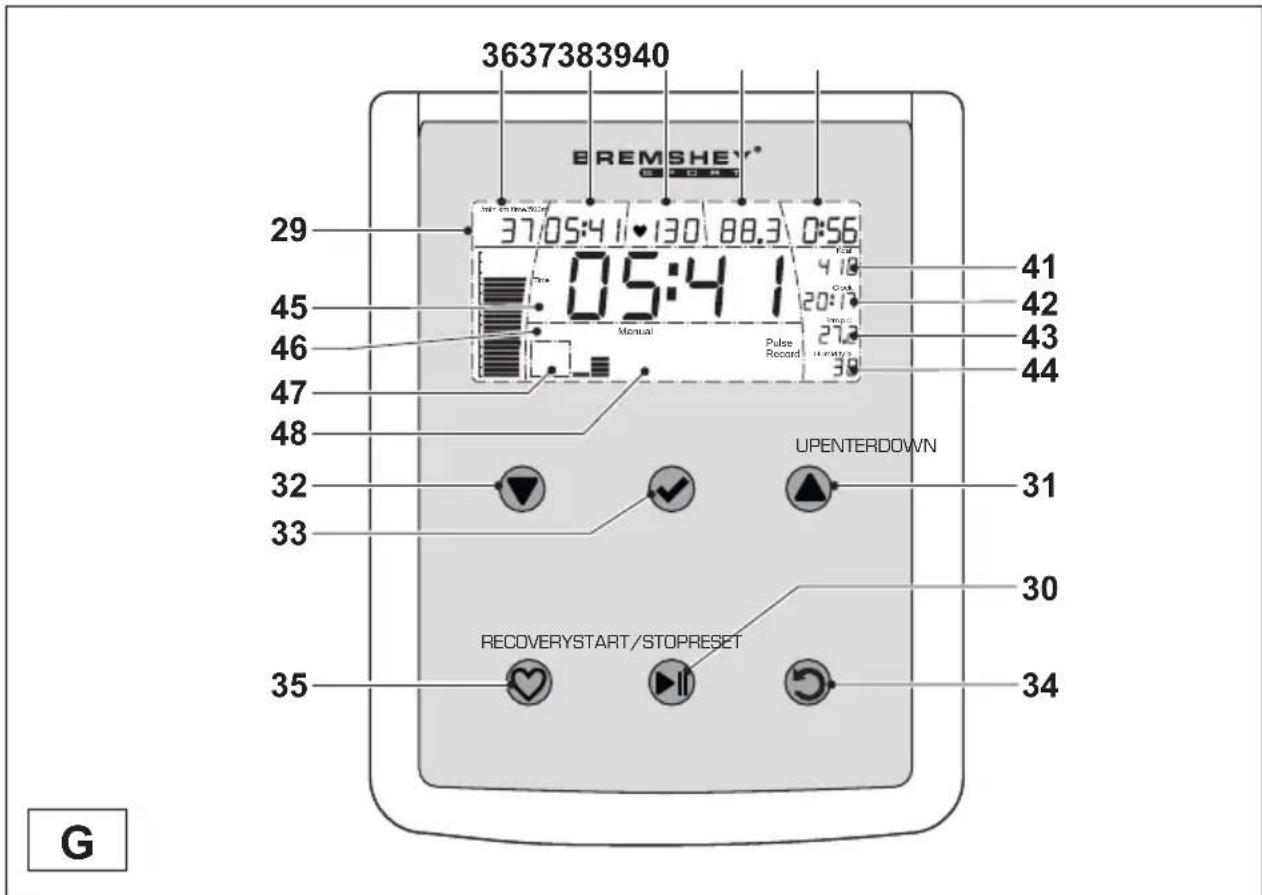

Console (fig. G)

3637383940 EREMSHEY 29 37:05:41 130 88.3 0:56 True 05:41 Manual Pulse Record UPENTERDOWN 32 33 35 RECOVERYSTART/STOPRESET 31 30 34 G

29 Display
30 START/STOP button
31 UP button
32 DOWN button
33 ENTER button
34 RESET button
35 RECOVERY button
36 Display item: STROKES
37 Display item: TIME
38 Display item: PULSE
39 Display item: DISTANCE
40 Display item: SPEED
41 Display item: CALORIES
42 Display item: CLOCK
43 Display item: TEMPERATURE
44 Display item: HUMIDITY
45 Display item: Workout value
46 Display item: Workout profile
47 Display item: Cumulative heart rate
48 Display item: Battery low warning

CAUTION

• Keep the console away from direct sunlight.
• Dry the surface of the console when it is covered with drops of sweat.
• Do not lean on the console.
• Only touch the display with the tip of your finger. Make sure that your nails or sharp objects do not touch the display.

NOTE

- The console switches to standby mode when the equipment is not used for 5 minutes. If the console is in standby mode, the display shows the room temperature.

Explanation of buttons

Button Explanation
ENTER Press the button to	confirm your selection.
START/STOP Press the button	to start the training. Press the button again to pause the training (max. 5 minutes). Press the button again to continue the training. Press and hold the button to stop the training.
RECOVERY Press the button	to calculate your recovery heart rate after a workout.
RESET Press the button to	return to the menu. Press and hold the button to reset the meter.

Explanation of display items

Display item Explanation
STROKES Strokes per minute	ate as a numbered value (/min) and as a graphical representation (bars).
TIME Duration (hh:mm and mm:ss) for the workout.
PULSE Heart rate limit (bpm)	during the workout. The heart symbol flashes simultaneously with your own heart rate. The arrow sign appears when your heart rate reaches above or below the set heart rate limits.
DISTANCE Distance (km or ml) for the workout.
SPEED/RPM Speed (km/h or mph) or RPM (rev/min) for the workout.
CALORIES Energy consumption (kcal) for the workout.
CLOCK Real-time clock.
TEMPERATURE Room temperature (°C or °F).
HUMIDITY Room humidity (%).
Workout value Selected workout value.
Workout profile Selected workout profile.
Cumulative heart rate Heart rate profile during the workout.
Battery low warning Warning sign to replace the batteries.

Setting the clock

1. Press and hold the ENTER button and the RESET button for 2 seconds to reset the meter.
2. Press the UP button or the DOWN button to set the clock.

Before use

1. Press the UP button or the DOWN button to select a menu item.

2. Press the ENTER button to confirm.

3. Press the UP button or the DOWN button to change the value for the selected menu item.

4. Press the ENTER button to confirm.

During use

The menu constantly shows the values for the menu items. The different values flash on the display one after another every 6 seconds.

1. Press the ENTER button to stop automatic scanning of the values for the different menu items.
2. Press the ENTER button as many times as required to show information for a specific menu item.
3. Turn the resistance adjustment knob to change the resistance.

NOTE

- If you set target values, an alarm will sound and the training stops automatically when the first of the specified target values is reached.

Manual Program

1. Press the UP button or the DOWN button to set the time. Press the ENTER button to confirm.
2. Press the UP button or the DOWN button to set the distance. Press the ENTER button to confirm.
3. Press the UP button or the DOWN button to set the energy consumption. Press the ENTER button to confirm.
4. Press the UP button or the DOWN button to set the heart rate limit. Press the ENTER button to confirm.
5. Press the START/STOP button to start the workout. If you have set target values, the values start to count down.

Recovery

The recovery heart rate can be calculated after a workout. The recovery heart rate can only be calculated if the heart rate measurement is activated and the heart rate is shown on the display. The recovery heart rate can range from F1 to F6. F1 is the best recovery heart rate.

1. Press the RECOVERY button. After 60 seconds, the display shows the recovery heart rate.

2. Press the RECOVERY button again to go back to the main menu.

Metric system \~ Imperial system

For speed and distance, metric units or imperial units can be used as default units of measurement.

1. Locate the KM/ML switch on the rear of the console.
2. Move the KM/ML switch to "KM" to use the metric system as the default system of measurement.
3. Move the KM/ML switch to "ML" to use the imperial system as the default system of measurement.
4. Remove the batteries from the rear of the console. Refer to the section "Replacing the batteries".
5. Insert the batteries into the console to apply the changes.

Celsius (°C) \~ Fahrenheit (°F)

For temperature, Celsius (°C) or Fahrenheit (°F) can be used as default units of measurement.

1. Locate the C/F switch on the rear of the console.
2. Move the C/F switch to "C" to use Celsius (°C) as the default system of measurement.
3. Move the C/F switch to "F" to use Fahrenheit (°F) as the default system of measurement.
4. Remove the batteries from the rear of the console. Refer to the section "Replacing the batteries".
5. Insert the batteries into the console to apply the changes.

Cleaning and maintenance

The equipment does not require special maintenance. The equipment does not require recalibration when it is assembled, used and serviced according to the instructions.

WARNING

- Do not use solvents to clean the equipment.

- Clean the equipment with a soft, absorbent cloth after each use.

• Regularly check that all screws and nuts are tight.
• If necessary, lubricate the joints.

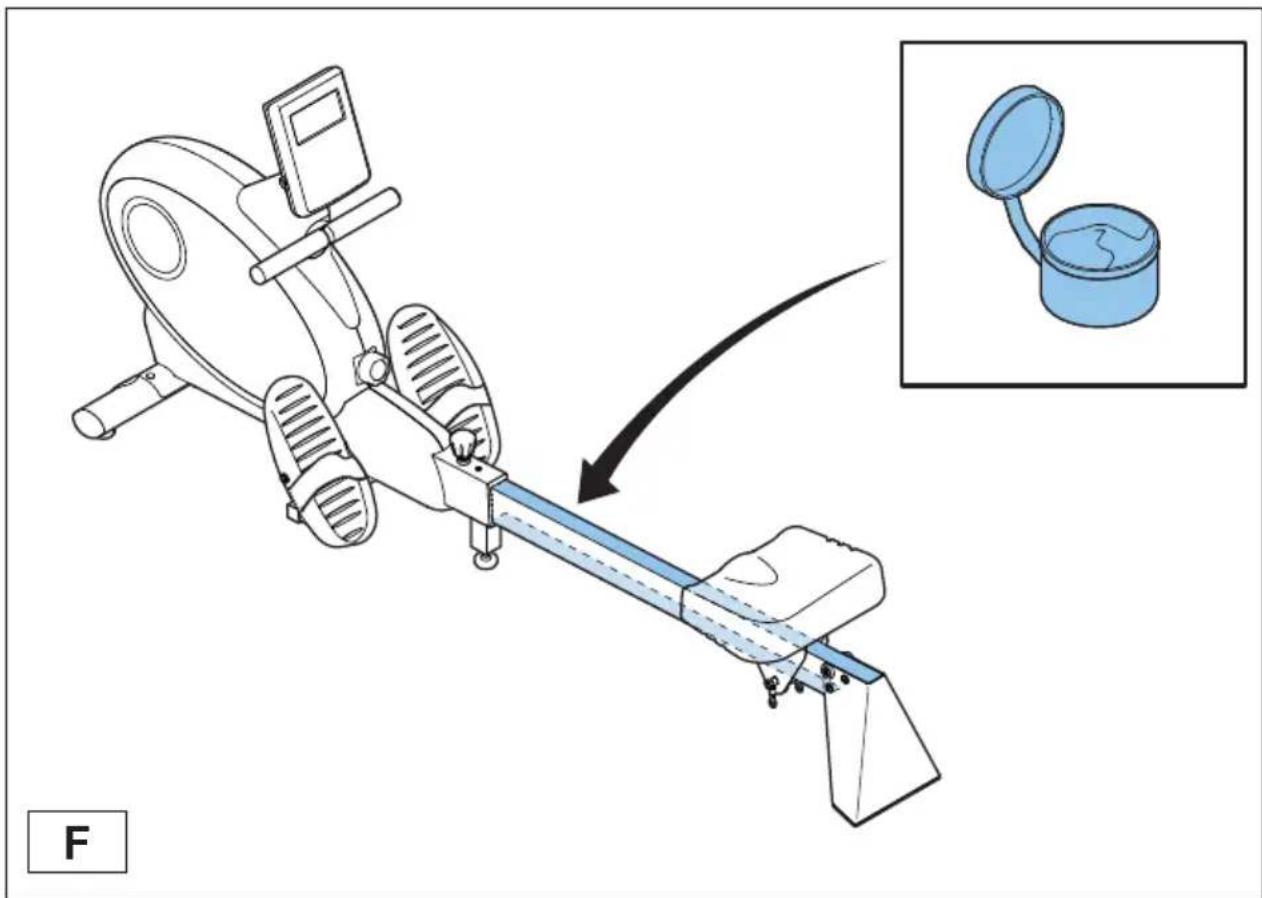

Lubrication (fig. F)

The equipment must be lubricated regularly, but only if necessary.

- If necessary, apply a little lubricant as shown.

Replacing the batteries

The console is equipped with 4 AA batteries at the rear of the console.

1. Remove the cover.
2. Remove the old batteries.
3. Insert the new batteries. Make sure that batteries match the (+) and (-) polarity markings.
4. Mount the cover.

Defects and malfunctions

Despite continuous quality control, defects and malfunctions caused by individual parts can occur in the equipment. In most cases, it will be sufficient to replace the defective part.

1. If the equipment does not function properly, immediately contact the dealer.
2. Provide the model number and the serial number of the equipment to the dealer. State the nature of the problem, conditions of use and purchase date.

Transport and storage

WARNING

- Carry and move the equipment with at least two persons.

1. Remain standing in front of the equipment on each side and take a sturdy grip at the handlebars. Lift the front of the equipment so as to lift the rear of the equipment on the wheels. Move the equipment and carefully put the equipment down. Place the equipment on a protective base to prevent damage to the floor surface.

2. Move the equipment carefully over uneven surfaces. Do not move the equipment upstairs using the wheels, but carry the equipment by the handlebars.

3. Store the equipment in a dry place with as little temperature variation as possible.

Technical data

Parameter Unit of	measurement	Value
Length (folded) cm	inch	209 (155)82 (61)
Width cm	inch	5421
Height cm	inch	8031
Weight kg	lbs	3986
Max. user weight kg	lbs	135300
Battery size AA

Warranty

The product has a warranty from the date of delivery (to be documented by invoice or delivery note). Further information on warranty terms can be obtained from your local dealer. The warranty terms may vary from one country to another. Damages caused by normal wear, overloading or improper handling are excluded from the warranty. Damages caused by material or manufacturing faults are covered by the warranty and will repaired or replaced at no cost.

Declaration of the manufacturer

Accell Fitness Division BV declares that the product is in conformity with the following standards and directives: EN 957 (HB). The product therefore carries the CE label.

04-2011

Accell Fitness Division BV

Purmerweg 1

1311 XE Almere

The Netherlands

Disclaimer

© 2011 Accell Fitness Division BV

All rights reserved.

The product and the manual are subject to change. Specifications can be changed without further notice.

RUDERGERÄT

Accell Fitness Division BV

Purmerweg 1

1311 XE Almere

Niederlande

Haftungsausschluss

© 2011 Accell Fitness Division BV

Accell Fitness Division BV

Purmerweg 1

1311 XE Almere

Nederland

Disclaimer

© 2011 Accell Fitness Division BV

Accell Fitness Division BV

Purmerweg 1

1311 XE Almere

Pays-Bas

© 2011 Accell Fitness Division BV

Accell Fitness Division BV

Purmerweg 1

1311 XE Almere

Holanda

© 2011 Accell Fitness Division BV

Accell Fitness Division BV

Purmerweg 1

1311 XE Almere

Paesi Bassi

© 2011 Accell Fitness Division BV

Accell Fitness Division BV

Purmerweg 1

1311 XE Almere

Nederländerna

Friskrivning

© 2011 Accell Fitness Division BV

Accell Fitness Division BV

Purmerweg 1

1311 XE Almere

Alankomaat

Vastuuvapauslauseke

© 2011 Accell Fitness Division BV

Accell Fitness North America Inc.

130 Hayward Ave, Suite 2

N2C 2E4

Kitchener, ON Canada

Tel: [phone]

Fax: [phone]

For contact information for other countries check our website:

www.accellfitness.com

www.bremshey.com
