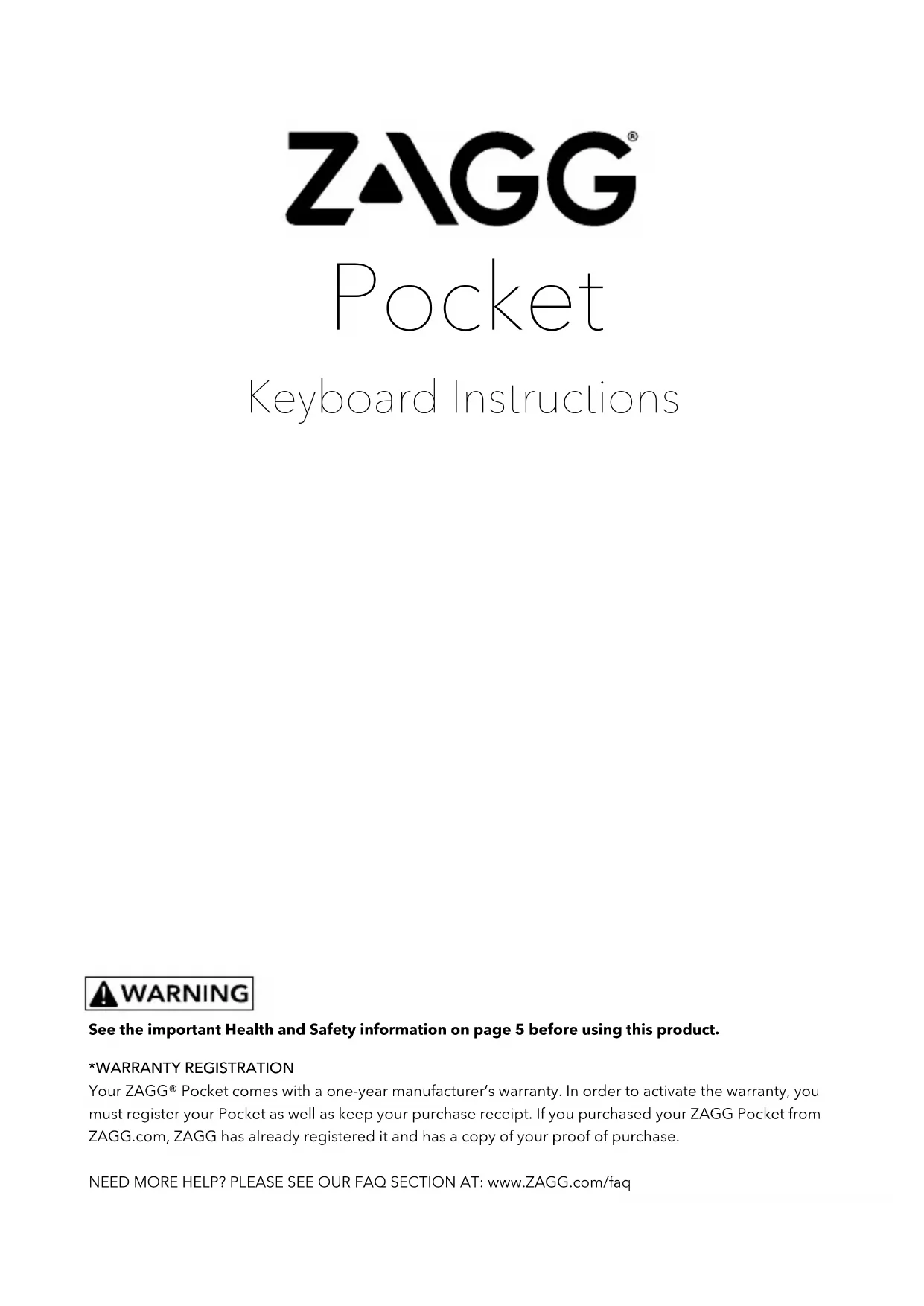

USER MANUAL Pocket Zagg

Keyboard Instructions

WARNING

See the important Health and Safety information on page 5 before using this product.

*WARRANTY REGISTRATION

Your ZAGG® Pocket comes with a one-year manufacturer's warranty. In order to activate the warranty, you must register your Pocket as well as keep your purchase receipt. If you purchased your ZAGG Pocket from ZAGG.com, ZAGG has already registered it and has a copy of your proof of purchase.

NEED MORE HELP? PLEASE SEE OUR FAQ SECTION AT: www.ZAGG.com/faq

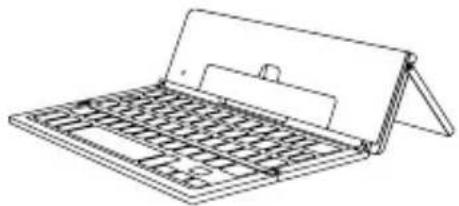

POWERING ON/OFF

Your Pocket keyboard is designed for ultimate portability; this includes powering on and off with ease. To turn your Pocket on, simply unfold it completely. Remove the gray paper strip, and press fn + Battery Key to wake from hibernation; An LED will light green to indicate it is on.

Note: You only need to wake your keyboard the first time you use it.

To turn your Pocket off, fold it up completely. As you close the last panel, the LED will light red to indicate the keyboard has powered off.

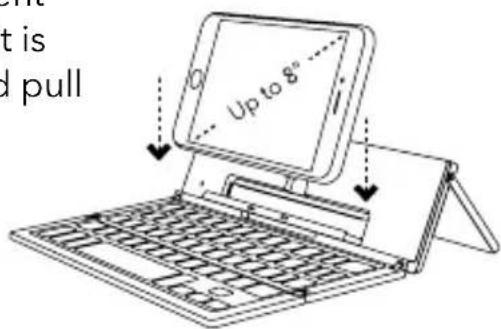

INSERTING YOUR DEVICE

Your Pocket is designed with a convenient stand and tray that hold your device at an ideal viewing angle. To use the stand, open your Pocket fully. On the third panel (the one with the ZAGG logo) lift the stand away from the keyboard's fold line (at the bottom of the panel).

To open the device tray, place your finger in the indent located in the inside center of the third panel (once it is unfolded). Using your finger, press down slightly and pull away from the panel and the tray will lower into position. Simply place your device in the tray in portrait or landscape orientation and enjoy a perfect viewing angle. For best experience, use in landscape mode. Press the tray back into its storage slot when you're done typing.

*Especially for small tablets up to 8 in., similar to an iPad mini. Not recommender for larger size tablets, such as an iPad Air.

PAIRING YOUR POCKET

Your Pocket keyboard is compatible with both Apple® and Android™ devices. You must select either iOS or Android operating system while in pairing mode.

1. Turn on the Bluetooth settings on your device. For many devices, this can be done by selecting: SETTINGS > BLUETOOTH > ON.

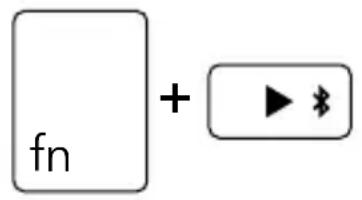

2. Press the fn and Bluetooth (right arrow) keys on your Pocket keyboard. A blue LED will begin flashing.

1. While in pairing mode:

For Apple: fn + 1 - Press and hold the fn and I key. A yellow light will flash 3 times indicating that your operating system is now in Apple mode.

For Android: fn + A - Press and hold the fn and A key. A purple light will flash 3 times indicating that your operating system is now in Android mode.

1. To finalize pairing, select "ZAGG Pocket" in your device's Bluetooth menu.
2. To switch between Apple & Android operating systems once you are paired, simply follow the pairing instructions for your desired operating system.

CHARGING YOUR POCKET

You Pocket features a powerful battery that delivers up to three months of typing between charges*. It also comes with a charging cable you can use to charge your keyboard quickly and conveniently. To charge your Pocket:

1. Plug the included micro USB cable into the charging port.
2. Plug the regular USB end of the cable into any 5V USB outlet.

3. The LED will light red to show your Pocket is charging. Wait until this light turns off indicating a full charge.

4. Remove the micro USB cable and enjoy your Pocket keyboard for up to three months before you need to charge it again.

5. If at any point your Pocket keyboard begins performing strangely, reset its system by recharging it.

6. Three month battery life is based on an average use of one hour per day. Condition the battery with regular charges.

BATTERY LIFE

Your Pocket keyboard will keep you typing for up to three months of regular use. You can check its remaining battery power any time you like. To check the battery life press fn + the battery key (ctrl). The LED will flash one of three ways.

1. Three green flashes indicate a full battery.
2. Three yellow flashes indicate low battery power.
3. Three red flashes indicate critical battery power. When your Pocket reaches a critical level, the red light will flash once every two minutes.

To help preserve battery life, your Pocket will enter sleep mode if left on and not used for several minutes. To awaken your Pocket, press any key. The Pocket's battery has no memory and may be charged whenever you wish.

TROUBLESHOOTING

If your device does not respond to your Pocket there may be a simple explanation such as a dead battery or an unsuccessful pairing. Please use the following to help troubleshoot your situation. If none of the following solve your issue, then please contact ZAGG Customer Service and one of our trained professionals will be happy to assist you.

1. Restart your device.
2. Fold up your Pocket to turn it off, and then unfold it to turn it back on. You should see the LED illuminate briefly; if not, charge your Pocket.
3. After charging, unfold your Pocket to turn it on. If the LED does not illuminate, and your keyboard doesn't pair and/or operate correctly, please contact ZAGG's customer service.
4. If your Pocket can't establish or maintain a Bluetooth connection, reset the

Bluetooth module by charging your keyboard.

1. Have your device forget your Pocket, and then re-pair it. See the Pairing section to review how to pair your Pocket keyboard with your device.

For more help please see our FAQ section at: www.zagg.com/faq

To reach a trained customer service representative, please use one of the following:

ZAGG.com/support/contact.php | [e-mail]

1-800-700-ZAGG [9244] | 00-1-801-839-3906 for international customers

For unparalleled scratch protection for your tablet, we recommend ZAGG's InvisibleShield®.

©2005 - 2015 ZAGG Inc All Rights Reserved.

PATENT PENDING | NASDAQ: ZAGG | MADE IN CHINA

Apple is a trademark of Apple Inc., registered in the U.S. and other countries.

Android is a trademark of Google Inc.

Bluetooth® is a trademark of Bluetooth SIG, Inc.

ZAGG and InvisibleShield are trademarks or registered trademarks of ZAGG Inc.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Please read the precautions and operation information before using your keyboard or any accessories that accompany it. Retain this information for future use.

1. Health warning: Take frequent breaks when using your keyboard. If you experience any discomfort, pain, tingling, numbness, or burning in your neck, shoulders, arms, wrists, hands, or any other part of the body, stop using your keyboard and consult a physician.
2. Use only micro USB chargers in connection with your keyboard.
3. Do not attempt to service your keyboard.
4. Do not disassemble or attempt to disassemble your keyboard.
5. Do not crush or puncture the keyboard.
6. Do not immerse your keyboard in water.
7. Do not put your keyboard in contact with water or other liquids as they could cause a short circuit, fire, or electric shock which could result in serious injury, death, or property damage.
8. Do not use liquid, or aerosol cleaners, or solvents on or near your keyboard. Clean only with a soft, dry cloth. Disconnect any cords before cleaning the keyboard.
9. Do not use your keyboard while operating a motorized vehicle, including automobile, boat, or airplane. Doing so could put you and others at risk of serious injury, death, or property damage.
10. Do not use or place your keyboard near any heat sources including, but not limited to, radiators, heat registers, stoves, other appliances, campfires, or barbeque grills.
11. To reduce the risk of fire or electric shock, wire or connect your keyboard to products only in the manner instructed in the documentation supplied herewith. Do not attempt to modify or adjust any ports. Any improper connections or adjustments may cause damage.
12. When you are ready to discard your keyboard, recycle your keyboard in a manner consistent with electronic recycling requirements or recommendations in your geographic area.
