20303 - Kettle KORONA - Free user manual and instructions

Product type	Electric kettle
Brand	KORONA
Model	20303
Maximum capacity	1.0 L
Water level indicator	Markings 0.5 L / 0.75 L / 1.0 L
Power	2200 W (estimated)
Voltage	220-240 V ~ 50/60 Hz
Material	Stainless steel (estimated)
Power base	360° with cordless connector
Automatic shut-off	Yes, after boiling
Overheat protection	Yes, shuts off if no water
Anti-scale filter	Removable, located in the spout
Indicator light	Yes, backlit power button
Cable length	Approximately 0.75 m
Dimensions (estimated)	22 x 15 x 22 cm
Weight (estimated)	0.8 kg
Maintenance	Clean with a damp cloth; descale regularly
Safety	Hot surface, steam, use on stable surface
Warranty	2 years against material and manufacturing defects
Use	Household use only

Frequently Asked Questions - 20303 KORONA

How to use the kettle for the first time?

Before first use, remove all packaging and rinse the inside of the kettle with clean water. Fill with water to the maximum level, boil, and discard the water. Repeat once to remove any manufacturing residues.

How to descale the kettle?

Use a commercial kettle descaler or diluted white vinegar. Fill the kettle with the solution, bring to a boil, and let it sit for 15 minutes. Rinse thoroughly several times with clean water.

What to do if the kettle turns off before boiling?

Check that the lid is properly closed and that the kettle is correctly placed on the base. This may also indicate that descaling is needed. If the problem persists, contact customer service.

Can the kettle heat without water?

No, the kettle is equipped with overheat protection. If it is turned on without water or with insufficient water, it shuts off automatically. Let it cool down before refilling.

How to clean the kettle?

Always unplug the appliance and let it cool down before cleaning. Use a damp cloth for the exterior. Never immerse the kettle or base in water. For the interior, regular descaling is recommended.

What is the maximum capacity?

The maximum capacity is 1.0 liter, indicated by the MAX mark on the water level indicator. Do not fill beyond to avoid overflow during boiling.

How to replace the anti-scale filter?

The anti-scale filter is located in the spout of the kettle. It can be removed by gently pulling it out. To reinsert, push it in until it clicks. Clean it regularly under running water.

Does the kettle have automatic shut-off?

Yes, the kettle shuts off automatically as soon as the water reaches boiling point. You can also turn it off manually at any time by flipping the switch to the O position.

Can I leave the kettle on the base after use?

Yes, you can leave the kettle on the base, but make sure it is turned off. The base does not heat. However, to save energy, unplug it if not in use.

Where to find spare parts?

Spare parts (filter, base, etc.) are available from KORONA customer service. Contact KORONA Service, Am Steinbach 9, 59872 Meschede-Enste, Germany, email: [e-mail], phone: [phone].

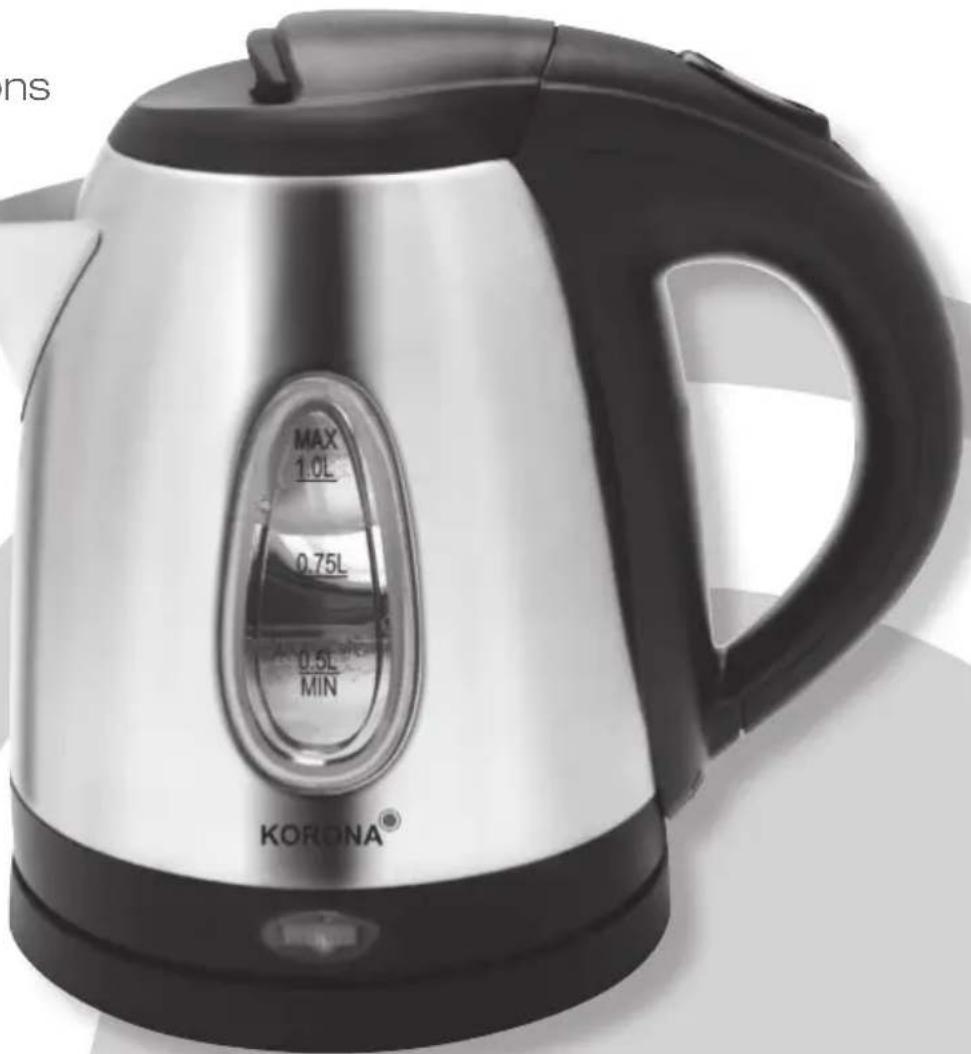

USER MANUAL 20303 KORONA

Black and white illustration of a glass teacup with tea leaves, no text or symbols present.

Exterior view of a modern stainless steel coffee maker with a black handle and control panel (no visible text or symbols on the device itself)

CE

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

for private household use!

Safety:

This symbol warns of hot surfaces. Risk of burns!

This symbol warns of evaporating steam!

General Safety Instructions

by incorrect use.

cause injuries to the user.

sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged

Caution! Danger of electric shock!

An electric appliance is not a toy!

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless

before cleaning.

surfaces to avoid any damage to the appliance.

anyone to trip when in use. Do not allow the cord to hang over sharp edges.

Do not use the appliance,

or repair the appliance yourself.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, risk of burns.

boiling water from spilling from the kettle. Danger of serious burns!

it with water.

off the appliance as soon as the boiling temperature has been reached, provided that you have thoroughly closed the lid. Otherwise boiling water could spill.

off the kettle, should it accidentally be operated without

minutes. Afterwards, your kettle is ready for use again.

KORONA® MAX 1.0L 0.75L 0.5L MIN 2 3 4 5 6 7 9 Dissolved Descriptions

Product Description

1. Kettle
2. Water level indicator

3. Lid

4. Handle

5. Indicator light

6. Power cord and plug

Before First Use

appliance is complete.

Do not place it on top of a metal surface.

boiling cycle. Do not use this water but pour it away.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Operation

the contact unit.

1. Connect it to the mains and switch on the water kettle by

up.

1. As soon as the water boils the appliance switches off automatically provided that you have thoroughly closed the

Attention: The boiling process is not stopped by only removing the unit from the power base. The unit must be switched off properly. Otherwise, once put back onto the base the unit will

in the next boiling cycle. However, always make sure that the water level is not too low.

Always unplug the appliance after use.

Dry-boil cut-out

off the kettle automatically, should it accidentally be operated without water or by not observing the minimum water level.

Afterwards, your kettle is ready for use again.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down. Never immerse the appliance in water. Danger! Electric Shock!

Clean the body of the appliance with a moistened soft cloth.

objects to clean the appliance.

water, if necessary, with a soft nylon brush. Dry it afterwards

DESCALING

remove limescale built up in the kettle.

To remove limescale, use a common gentle descaler, which

kettles of water, which you do not use but pour away. Use fresh water with each boiling cycle. This procedure is necessary to remove any descaler residues in the kettle.

Note: Descaler mixtures should not be poured down enamel coated sinks.

Storage

After use and after the appliance has completely cooled down

Keep it away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must

according to the EU directive on Waste Electric And

be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

instructions

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

guaranteed period, the customer must provide evidence of the

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede,

Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired
