USER MANUAL Night Sun SUNTEC

Thank you for purchasing this infrared heater. We hope you will be completely satisfied with this product. To ensure this, please read these instructions carefully before use and keep them in a safe place.

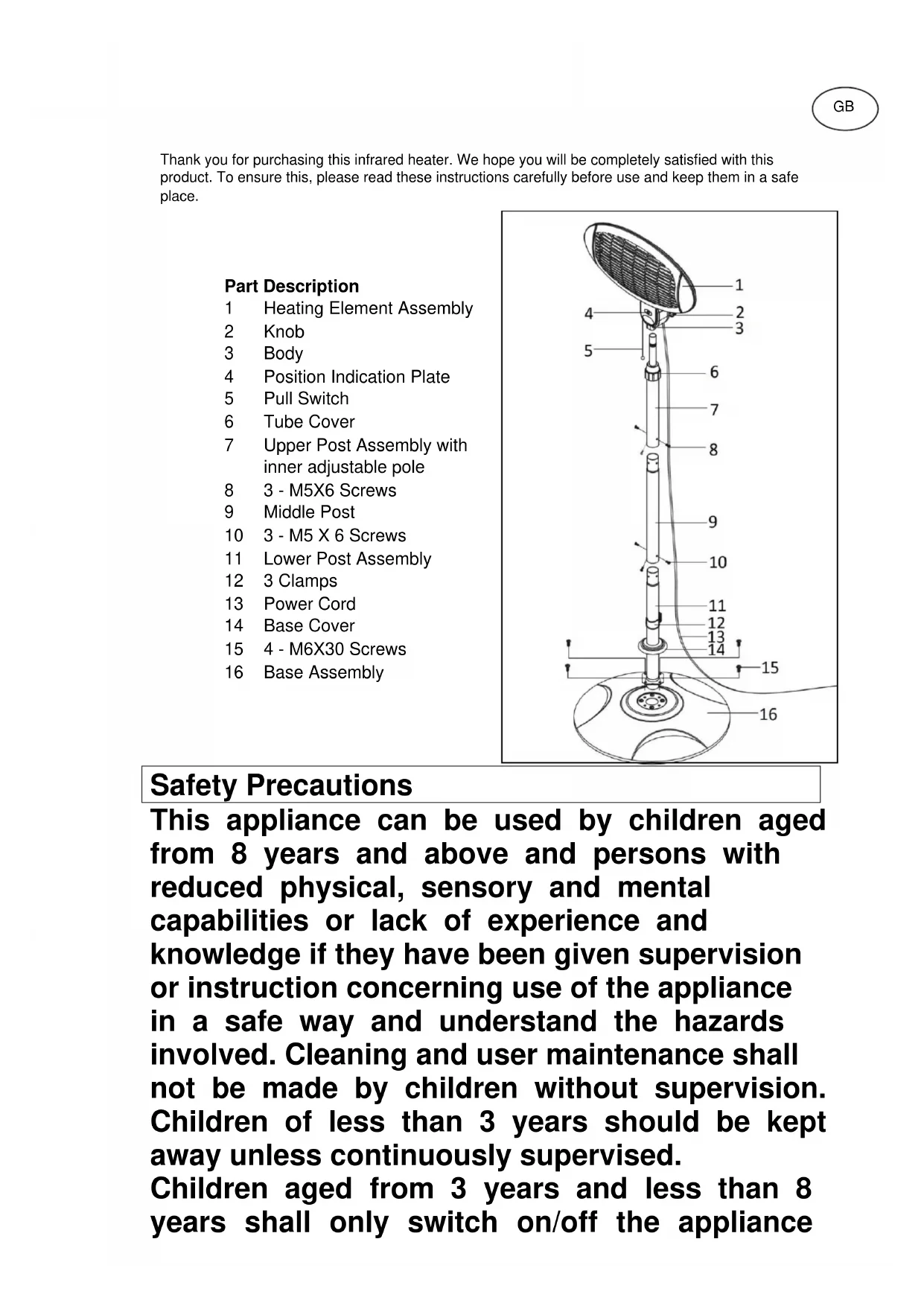

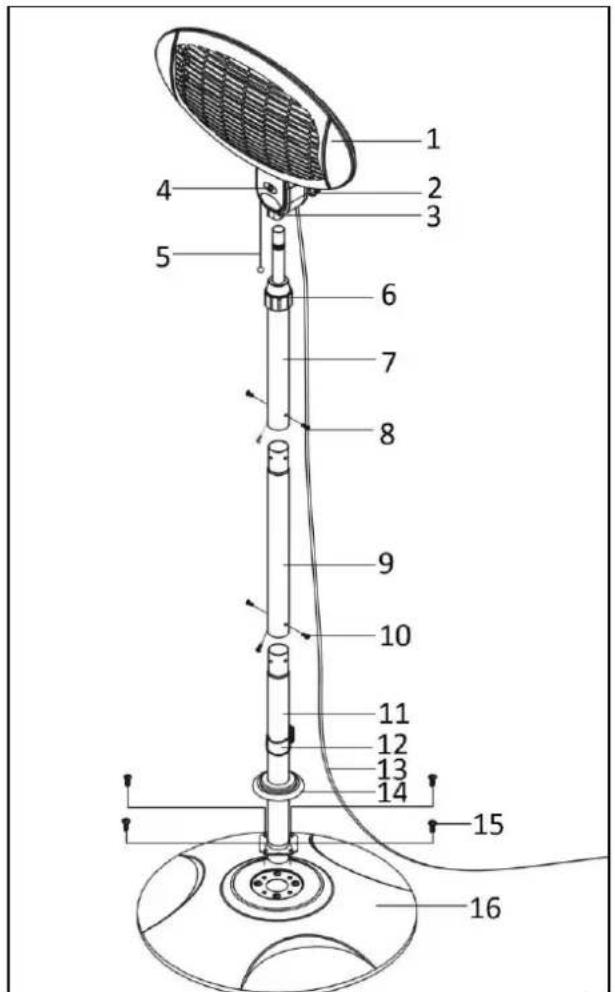

Part Description

1	Heating Element Assembly
2	Knob
3	Body
4	Position Indication Plate
5	Pull Switch
6	Tube Cover
7	Upper Post Assembly with inner adjustable pole
8	3 - M5X6 Screws
9	Middle Post
10	3 - M5 X 6 Screws
11	Lower Post Assembly
12	3 Clamps
13	Power Cord
14	Base Cover
15	4 - M6X30 Screws
16	Base Assembly

Safety Precautions

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance

provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

WARNING!

• This electrical appliance complies with electromagnetic compatibility standards.

• Never touch the heater when in operation (risk of burns).

• Never touch it with wet hands.

• Never rotate the heating part of the appliance during operation. To change the tilt angle of the heating part, we advise you to wait for 15 minutes after the appliance has been switched off.

• Never place anything on your heater's safety guard as this may cause overheating (e.g. towels). Never use your appliance to dry clothes or other fabric.

• Although the heating element has stopped glowing, it may still be on and potentially dangerous. Check that the selection indicator (5) is in position off before taking any action.

• Switch off your appliance:

o after use
in the event of malfunction
○ before cleaning it

• Never operate your appliance if it has fallen over.
• Never dismantle your appliance. An incorrectly repaired appliance may be dangerous to the user. If you encounter any problems, please contact your seller.
• The warranty will be void in the event of damage arising from improper use.
• Do not use this heater in the immediate surrounding of a bath, shower or swimming pool.
• This movable appliance is designed for the use in gardens and terraces. It may not be used indoors. The warranty will not apply to appliances used for professional usage. Although the heater may be used outdoors, the main plug must only be connected to the supply indoors.
• The heater is provided with an anti-tilt switch will switch off the heater if it is overturned, and will switch it on again automatically when it is restored to its upright position.

Voltage

Before using the appliance for the first time, ensure that your mains voltage corresponds to the voltage indicated on the appliance's rating label. Make sure to use an earthed socket.

SAFETY

CAUTION: Before fitting or removing the appliance, ensure that the heater's power line supplying the heater is disconnected. Check that the power line is connected to a 30mA differential circuit breaker.

• This appliance is designed for outdoor use. The installation and use of your appliance must comply with the applicable standards in your country.
• When the appliance is switched on, it reaches very high temperatures which can cause burns. Make sure that all users are aware of the risks.
• If you have any doubts concerning installation possibilities for this heater, please consult a qualified electrician.
• Children, the elderly and the infirm may not always be aware of the danger involved in using electrical appliances. Never allow this appliance to be used without supervision.
• The appliance must be positioned so that the plug is accessible.
• If the supply cord is damaged, do not use the appliance further and contact your seller.
• The heater must not be located immediately below a socket outlet.
• Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Do not place the appliance close to curtains and other combustible materials.
• Please use clamps to avoid pulling on the cable and thus preventing the appliance from tipping over.
• Do not use multiple sockets or extension cords.

Warning: In order to avoid overheating, do not cover the heater!

Installation

Before installing your appliance, you must disconnect the electrical supply at the circuit breaker.

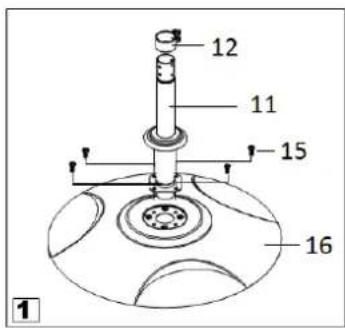

Insert the lower post assembly (11) into the base assembly (16) and then fix it tightly with the 4 M6X30 screws (15). Then insert the first clamp (12) into the lower post (11) (see fig.1).
- Join the Lower Post Assembly (11) and the Middle Post (9) together with 3 M5X6 screws (10) (see fig.2). Insert the second clamp to the Middle Post.
- Join the Upper Post Assembly (7) and the Middle Post (9) together with 3 M5X6 screws (8) (see fig.3). Insert the third smaller clamp to the Upper Post.

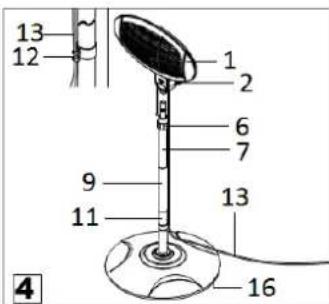

- Join the Heating Element Assembly (1) with the Upper Post Assembly (7), then fix them tightly by rotating the knob and put the power cord (13) into the clamps (12) (see fig.4).
The Heating Element Assembly can adjust its angle between 0^ and 45^ depending on your needs (see fig.5).

Operation

The appliance is switched on by means of the pull switch (5). The slight vibration noticeable when the appliance is switched on will stop after a few seconds.

Output

-Position 0: Stop
-Position 1:650W (normal power)
-Position 2:1300W (intermediate power)
-Position 3:2000W (full power)

Maintance

Your appliance dose not requires any particular maintenance. However, in the event of a malfunction, please consult an Approved Service Center.

In case of complaint

• You can claim the device within 24 months from date of purchase (receipt).
• A free replacement or repair will be excluded from prior improper product handling.
• Defects in wear parts, consumables, as well as cleaning, maintenance or replacement of said parts are therefore with costs.
  If you want to make a complaint, please bring the entire device in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website

www.suntec-wellness.de and learn more.

• Without a proof of purchase, generally there will be no repair or replacement.
• In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing defects will be eliminated by repair or, at our discretion, replacing the unit.
• The damage of accessories does not automatically lead to a free exchange of the whole device. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts are always to charge.
  The dealer or repair service can perform the repair after the expiration of warranty against charge.

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicates the disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment. Please ask your local council where your nearest disposal station is located.

As part of our extended producer responsibility, this product is indicated in accordance to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The aim is to avoid, reduce, and environmentally friendly disposal of electronic waste. Please help actively to protect the environment and dispose electronic waste through local collection points. The packaging and this manual can be recycled.

EC declaration of conformity

The device meets the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for CE marking this unit.

With publication of this manual supersedes all previous their validity. SUNTEC, SUNTEC Wellness, KLIKATRONIC and the Sun-Logo are registered trademarks. © 2020/01 SUNTEC WELLNESS GMBH

Liability is excluded for all printing errors and omissions.

Su dispositivo no requires anything, except for the use of a knife.

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, negligence of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:
