BT 3040 - Electric mower BRAUN - Free user manual and instructions

Product type	Electric trimmer (beard and hair)
Brand	Braun
Model	BT 3040
Power supply	Rechargeable battery, special power cord
Charging time	Approximately 8 hours
Runtime	Up to 80 minutes of cordless operation
Cutting lengths	Beard comb: 1–10 mm (in 0.5 mm steps); Hair comb: 11–20 mm (in 0.5 mm steps)
Adjustment wheel	Yes, integrated into the trimmer head
Trimmer head	Removable, can be used without comb for contours
Cleaning	Under running water (head and combs); cleaning brush included
Maintenance	Light oil regularly (not included)
Safety	Do not open the device; use only the special cord; do not use with damaged accessory
Warranty	2 years (excluding normal wear and damage from misuse)
Charging temperature	5 °C to 35 °C (recommended 15 °C to 35 °C)
Recycling	Do not dispose of with household waste; take to a collection point

Frequently Asked Questions - BT 3040 BRAUN

How long does it take to fully charge the BT 3040?

Full charge takes approximately 8 hours. The charging indicator turns off when the battery is full.

What is the runtime after a full charge?

The runtime is up to 80 minutes of cordless shaving or trimming.

Can I clean the trimmer under water?

Yes, the trimmer head and combs can be cleaned under running water. Make sure they are completely dry before reassembling. Unplug the device before any water cleaning.

How do I adjust the cutting length?

Turn the adjustment wheel (3) on the comb. The comb slides automatically to the desired height, from 1 to 10 mm (beard) or 11 to 20 mm (hair) in 0.5 mm steps.

Can I use the trimmer without a comb?

Yes, you can use the trimmer head without a comb for precision shaving (contours, sideburns, mustache).

What should I do if the trimmer does not charge?

Check that the ambient temperature is between 5 °C and 35 °C (ideally 15-35 °C). If the temperature is too low or too high, the battery may not charge properly.

How do I maintain the trimmer to extend its lifespan?

Regularly apply a few drops of light oil (not included) to the blades after cleaning. Clean the head and combs after each use.

Does the warranty cover worn blades?

No, the 2-year warranty does not cover normal wear (such as foils and cutter blocks) nor damage from improper use.

Can I use a charger other than the one supplied?

No, use only the special power cord supplied with the device. Using another charger may pose a risk of electric shock.

What should I do if there is a problem with operation?

Contact a Braun Service Center (tel. [phone], toll-free) or visit www.service.braun.com. Do not open the device yourself.

USER MANUAL BT 3040 BRAUN

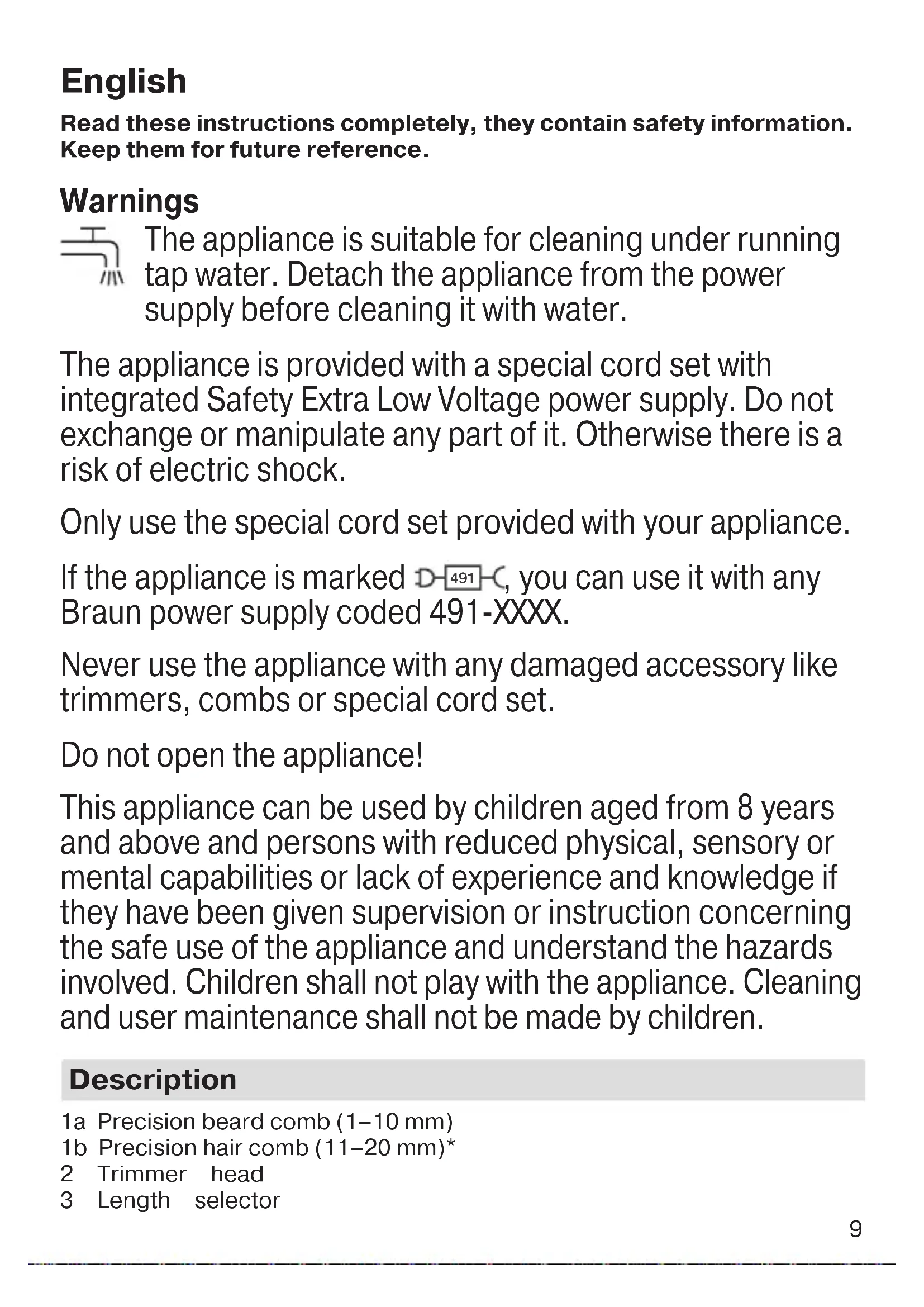

Read these instructions completely, they contain safety information. Keep them for future reference.

Warnings

The appliance is suitable for cleaning under running tap water. Detach the appliance from the power supply before cleaning it with water.

The appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock.

Only use the special cord set provided with your appliance.

If the appliance is marked D-491-C, you can use it with any Braun power supply coded 491-XXXX.

Never use the appliance with any damaged accessory like trimmers, combs or special cord set.

Do not open the appliance!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children.

Description

1a Precision beard comb (1-10 mm)
1b Precision hair comb (11-20 mm)*
2 Trimmer head
3 Length selector

4 On/off button
5 Charging indicator
6 Power socket
7 Special cord set (design can differ)

* not with all models

For electric specifications, see printing on the special cord set.

Charging

Recommended ambient temperature for charging is 5^ to 35^ .

The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15^ to 35^ . Do not expose the appliance to temperatures higher than 50^ for extended periods of time.

• Connect the appliance via the special cord set (7) to an electrical outlet.
• A full charge takes approx. 8 hours and provides up to 80 minutes of cordless operation time.
• The charging indicator (5) shows that the appliance is being charged. When the battery is fully charged, the charging indicator turns off.
• Once the appliance is completely charged, discharge it through normal use. Then recharge again to full capacity.

Usage

• Exchange the attachments only when the appliance is switched off.
• Place one of the precision combs (1a, 1b) over the trimmer head (2).

Beard Trimming / Hair Clipping

• Turn the length selector (3) to your desired cutting length. The comb slides automatically up or down.
• Length settings precision beard comb (1a): 1 to 10 mm in 0,5 mm steps.
• Length settings precision hair comb (1b): 11 to 20mm in 0,5 mm steps.
• Push the on/off button (4) to turn the appliance on.
• Trim against hair growth by guiding the flat comb part over the skin.
• Avoid clogging the comb with hair. Remove and clean it from time to time.

Precision and Contour Trimming

• For shaping sideburns, moustaches and partial short beards, use the trimmer head (2) without precision comb.

Cleaning and maintenance

• Switch off the appliance.
• Take off the head and combs.
• Use the brush to clean the head, combs and the appliance.
• The handle, head and combs can be cleaned under running water. Rinse until all residues have been removed. Let dry completely before reassembling them.
• To keep the trimmer working properly, oil it with light machine oil (not included) regularly.

Environmental notice

Product contains a battery and/or recyclable electric waste.

For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

Depending on availability replacement might result in a different color or an equivalent model.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

For Australia & New Zealand only:

Warranty

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The benefits given by this warranty are in addition to other rights and remedies of the consumer law.

For warranty claims please contact:

Procter & Gamble Australia Pty Ltd

Level 4, 1 Innovation Road

Macquarie Park, NSW 2113

Telephone (AU): 1800641820

Telephone (NZ): 0 800 108 909

Email (AU and NZ): Visit link

https://pgconsumersupport.secure.force.com/ContactUs/emailus

Our Warranty

This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty).

Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.

Our Warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages.
B. Breakages to shaver foils, glass jars, etc.
C. Normal wear due to moving parts.
D. Repairs undertaken by unauthorised service personnel or use of non genuine parts.
E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).

If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.

Repairs and service

If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense.

For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event please contact the Consumer Service free call number below for updated local service agent details.

Australian & New Zealand Service Agents

VICTORIA & TASMANIA

Statewide Services Pty Ltd trading as J A Appliances

17- 19 Hossack Avenue

Coburg North, VIC 3058

Tel. [phone]

Fax. [phone]

Email: [e-mail]

QUEENSLAND

Walters Import trading as Brisbane

Appliance Service Centre

449 Beaudesert Road

Moorooka QLD 4105

Tel. [phone]

Fax. [phone]

Email: [e-mail]

WESTERN AUSTRALIA

Mark 1 Appliances

Unit 1, 46 Abernethy Road

Belmont, WA 6104

Tel. [phone]

Fax. [phone]

Email: [e-mail]

NEW SOUTH WALES & ACT

Faulder Appliance Services Pty Ltd
Shop 4,

9 Evans Road,

Rooty Hill, NSW 2766

Tel. [phone]

Fax. [phone]

Email:[e-mail]

SOUTH AUSTRALIA & NT

Adelaide Service Centre

Shop B2,

Parkholme Shopping Centre

319 Oaklands Road, Parkholme

Adelaide, SA 5043

Tel. [phone]

Fax. [phone]

Email: [e-mail]

NEW ZEALAND

Key Service Ltd

34A Cryers Road

East Tamaki

Auckland

New Zealand

(PO Box 38569, Howick, Auckland,

New Zealand)

Tel. [phone]

Fax. [phone]

Email: admin@keyservic Ltd.co.nz
