Product Type	Network Switch
Brand	TP-Link
Model	JetStream Rackmount TLSF1024
Category	Unmanaged Switch
Number of Ports	24 RJ45 ports
Port Type	10/100 Mbps (Fast Ethernet)
Speed	10/100 Mbps
Installation	Desktop or 19-inch rack (1U)
Power Supply	100-240 V AC, 50/60 Hz (internal)
Power Consumption	Approximately 5 W (estimated)
Dimensions (W x D x H)	440 x 200 x 44 mm
Weight	Approximately 2.0 kg
Operating Temperature	0 to 40 °C
Operating Humidity	10% to 90% non-condensing
Mounting Hardware Included	Rack brackets, screws, rubber feet
Safety	Do not disassemble, avoid water
Warranty	Limited TP-Link warranty (duration on packaging)
Maintenance	Disconnect before cleaning, use a dry cloth
Cleaning	Soft dry cloth; do not use liquids
Repairability	Do not repair yourself; contact TP-Link support
Main Features	Unmanaged switching, auto MDI/MDIX detection

Frequently Asked Questions - JetStream Rackmount TLSF1024 TP-LINK

How to install the switch on a flat surface ?

Place the switch on a flat, sturdy surface. Remove the adhesive backing from the supplied rubber feet, turn the device over, and attach the feet to the four corners.

How to mount the switch in a rack ?

Check the rack's grounding and stability. Attach the mounting brackets to each side of the switch using the provided screws, then use suitable bolts (not included) to secure it to the rack.

What cables to use to connect devices ?

Use standard Ethernet cables (Category 5e or higher) with RJ45 connectors. The switch supports auto MDI/MDIX detection, so you can use straight-through or crossover cables.

How to power on the switch ?

Connect the supplied power cord to the switch's power port, then plug the other end into a power outlet. The switch powers on automatically.

What to do if a port does not work ?

Check that the cable is properly inserted and not damaged. Try connecting another device to the same port. If the problem persists, restart the switch by unplugging and plugging it back in.

Is the switch compatible with Gigabit Ethernet ?

No, this model is a Fast Ethernet (10/100 Mbps) switch. For Gigabit speeds, choose a Gigabit-compatible model (e.g., TL-SG1024).

Can I use the switch with a router ?

Yes, simply connect an Ethernet cable between a LAN port on your router and any port on the switch. The switch will extend your wired network without additional configuration.

How to clean the switch ?

Unplug the device before cleaning. Use a soft, dry cloth to wipe the surface. Do not use liquids, sprays, or abrasive cleaners.

What to do in case of failure or malfunction ?

Do not attempt to repair the device yourself. Contact TP-Link technical support or refer to the warranty for repair or replacement options.

What is the warranty period ?

The duration of the limited TP-Link warranty is indicated on the product packaging. Typically, it is 3 years for unmanaged switches, but check your packaging to confirm.

USER MANUAL JetStream Rackmount TLSF1024 TP-LINK

Unmanaged Rackmount Switch

CONTENTS

Deutsch. 01
English. 04
Espanol. 07
Elambdaviká. 10
Francais 13
Italiano 16
Portugues. 19
Suomi 22
Nederlands. 25
Svenska. 28
Norsk. 31
Dansk 34
Türkge. 37

Installation

- Tischmontage

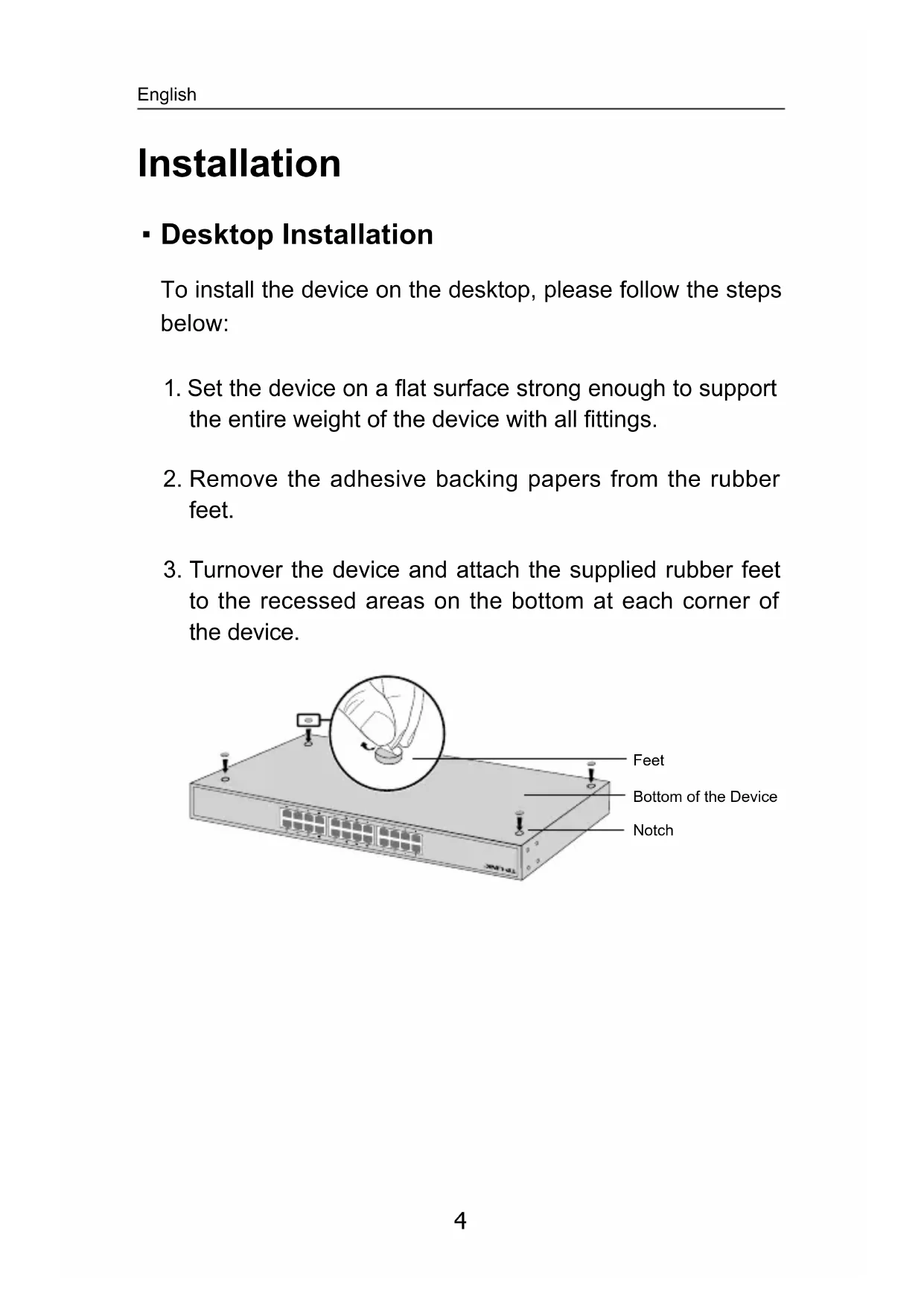

- Desktop Installation

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.

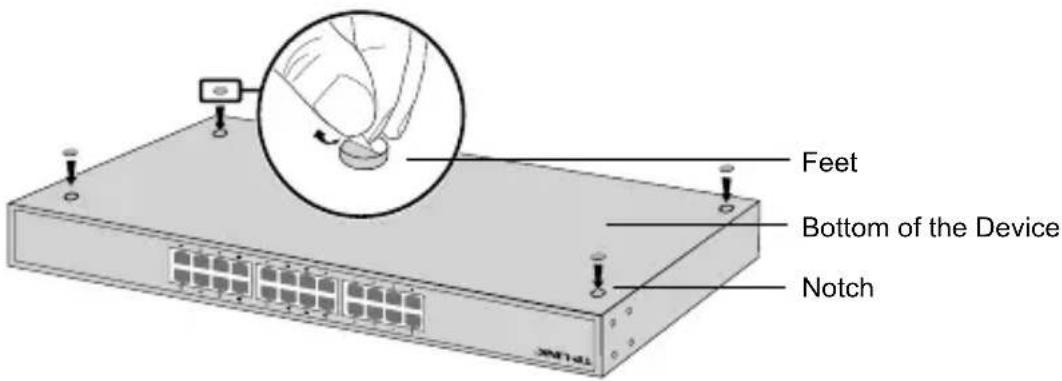

3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.
2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

- Ethernet Port

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

- Power On

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Instalación

- Desktop-installation

Foratt installeraenhetenpàdatorn,folj stegen nedan:

• When a product has a power on/off button, the power on/off button is one way to turn-off the product. For products without the on/off button, the only way to completely turn-off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.
• Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.
• Do not operate this product near water.

TP-LINK Limited Product Warranty

For TP-LINK Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-LINK warrants the TP-LINK branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-LINK's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.
