JC72 - Kettle BLACK & DECKER - Free user manual and instructions

Product type	Electric kettle
Brand	Black & Decker
Model	JC72
Capacity	1,7 L
Power	1850-2200 W
Voltage	220-240 V
Frequency	50/60 Hz
Weight	0,96 kg
Dimensions (H x W x D)	approx 22 x 15 x 15 cm
Material	Heat-resistant plastic
Color	White
Automatic shut-off	Yes
Power indicator light	Yes
360° swivel base	Yes
Overheat protection	Yes
Auto shut-off after boiling	Yes
Water level indicator	Yes
Detachable cord	Yes
Maintenance	Wipe with a damp cloth
Usage	Household use only

Frequently Asked Questions - JC72 BLACK & DECKER

How to use the JC72 kettle?

Fill the kettle with cold water between 250 ml and 1.7 L, close the lid, place it on the base, plug in and press the On/Off button. Shut-off is automatic after boiling.

What is the maximum capacity of the kettle?

The maximum capacity is 1.7 litres. Do not exceed the MAX mark to avoid boiling water splashes.

Can I boil anything other than water?

No, this kettle is designed only for boiling water. Do not put milk, soup or other liquids.

How to clean the kettle?

Unplug and let cool. Wipe the exterior with a damp cloth. Never immerse the kettle, base, cord or plug in water.

What to do if the kettle does not turn on?

Check the power outlet, the base connection, and that the kettle is correctly placed on the base. If the problem persists, contact an authorized repairer.

How to descale the kettle?

Use a suitable descaling product or diluted white vinegar. Boil the solution, let it act, rinse several times with clear water. Do not use abrasive products.

The kettle makes noise during boiling, is this normal?

Yes, a dull noise is normal. A clicking sound occurs when the automatic shut-off reactivates. This is perfectly normal.

Can I leave the kettle on the base after use?

Yes, you can leave it on the base. Make sure it is turned off. If you want to boil again, press the On/Off button again.

What is the warranty of the kettle?

Black & Decker offers a warranty of 24 months against defects in materials and workmanship, subject to domestic use and presentation of proof of purchase.

Where to find spare parts?

Contact an authorized Black & Decker repairer or visit www.2helpU.com to find the nearest service center.

USER MANUAL JC72 BLACK & DECKER

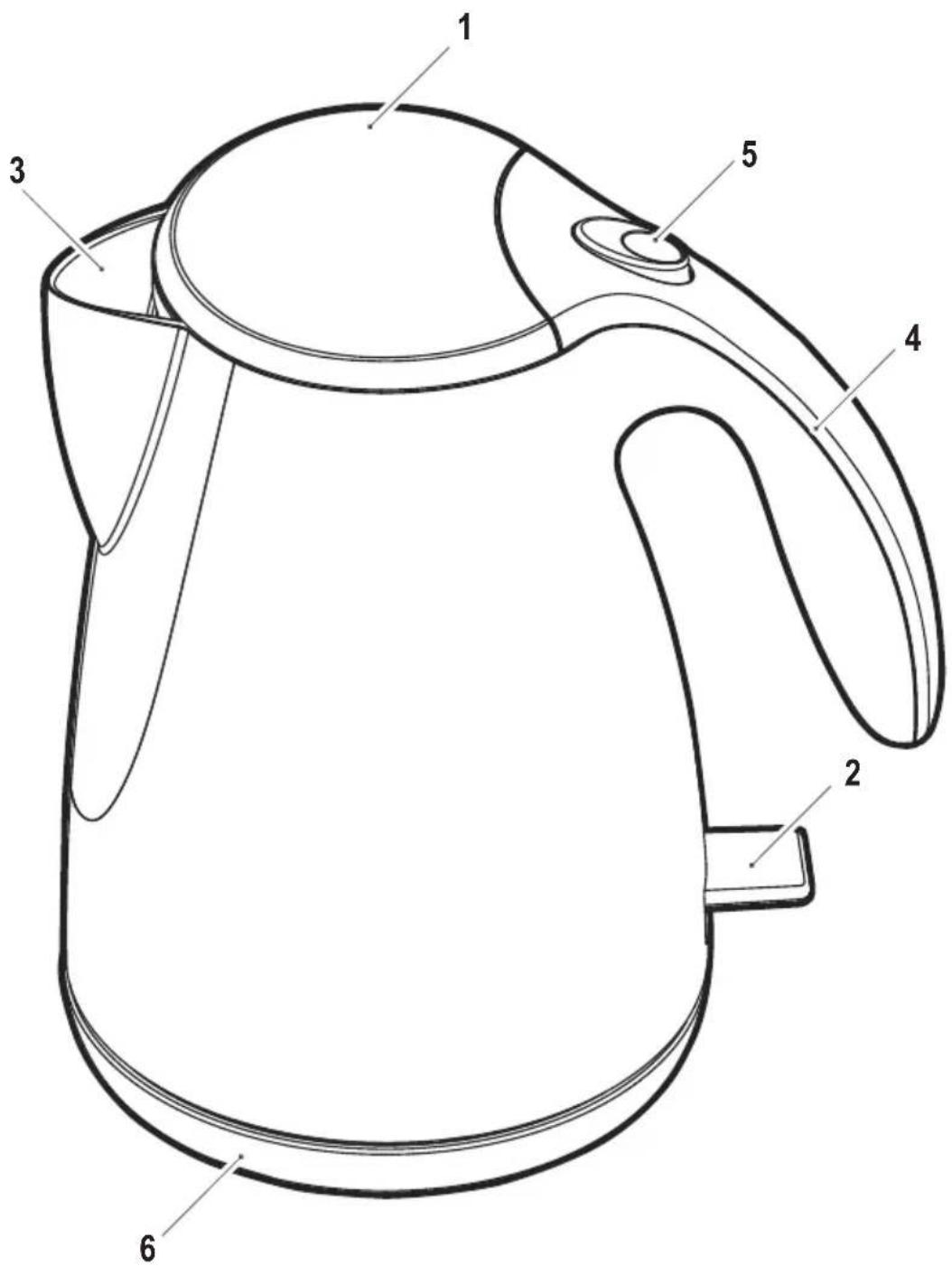

1. Lid
2. On/Off button and indicator light
3. Pouring spout
4. Handle
5. Lid release
6. Power base

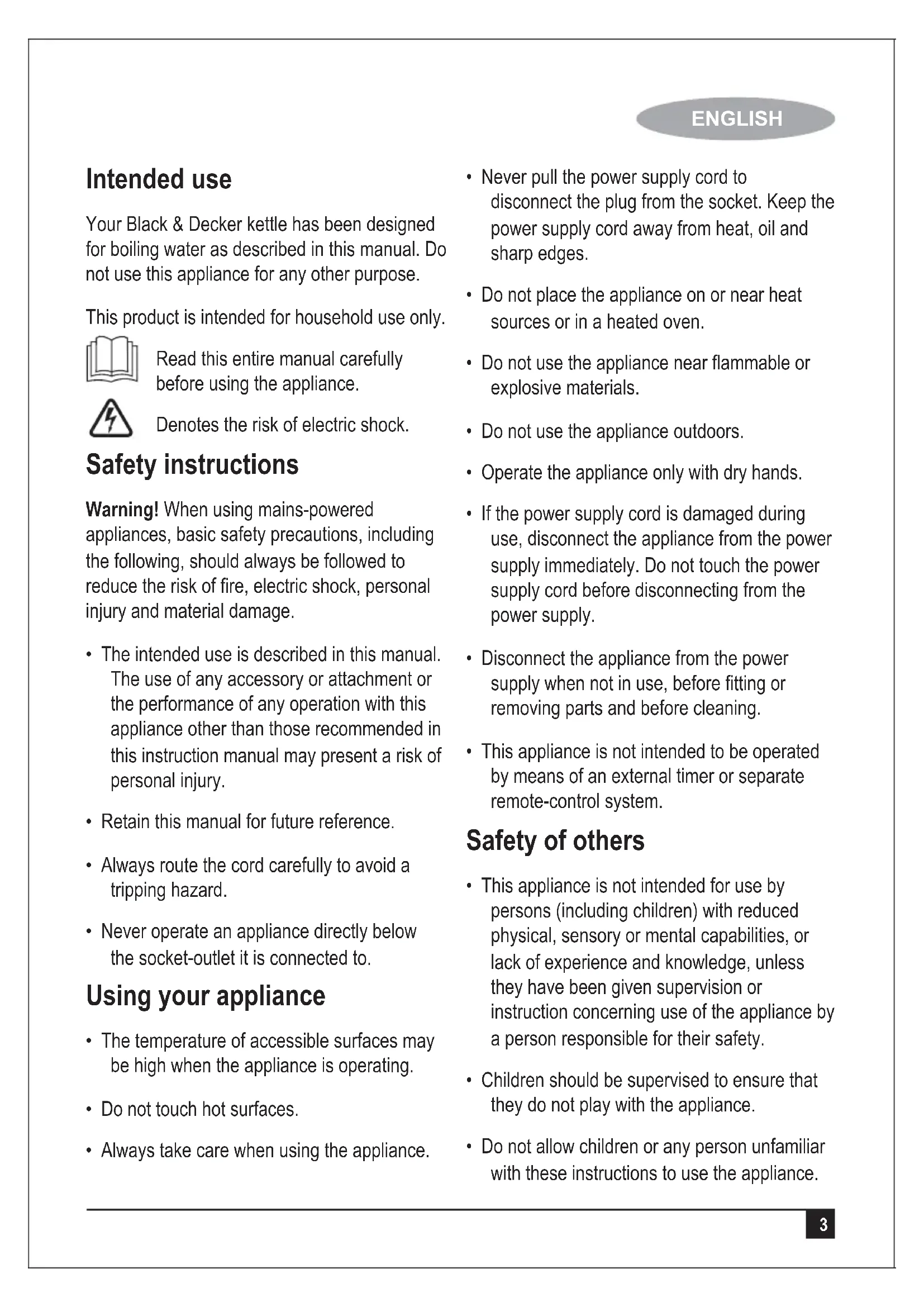

Intended use

Your Black & Decker kettle has been designed for boiling water as described in this manual. Do not use this appliance for any other purpose.

This product is intended for household use only.

Read this entire manual carefully before using the appliance.

Denotes the risk of electric shock.

Safety instructions

Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, personal injury and material damage.

• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
• Retain this manual for future reference.
  Always route the cord carefully to avoid a tripping hazard.
• Never operate an appliance directly below the socket-outlet it is connected to.

Using your appliance

• The temperature of accessible surfaces may be high when the appliance is operating.
• Do not touch hot surfaces.

• Always take care when using the appliance.

• Never pull the power supply cord to disconnect the plug from the socket. Keep the power supply cord away from heat, oil and sharp edges.

• Do not place the appliance on or near heat sources or in a heated oven.
• Do not use the appliance near flammable or explosive materials.
• Do not use the appliance outdoors.
• Operate the appliance only with dry hands.
• If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.
• Disconnect the appliance from the power supply when not in use, before fitting or removing parts and before cleaning.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.

Safety of others

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Do not allow children or any person unfamiliar with these instructions to use the appliance.

ENGLISH

• Do not allow children or animals to come near the work area or to touch the appliance or power supply cord.
• Close supervision is necessary when the appliance is used near children.

After use

• Switch off and remove the plug from the socket before leaving the appliance unattended and before changing, cleaning or inspecting any parts of the appliance.
• When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspection and repairs

• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
• Do not use the appliance if any part is damaged or defective.
• Have any damaged or defective parts repaired or replaced by an authorised repair agent.
• Before use, check the power supply cord for signs of damage, ageing and wear.
• Do not use the appliance if the power supply cord or mains plug is damaged or defective.

• If the power supply cord or mains plug is damaged or defective it must be repaired by an authorised repair agent in order to avoid a hazard. Do not cut the power supply cord and do not attempt to repair it yourself.

• Never attempt to remove or replace any parts other than those specified in this manual.

• Do not attempt to repair the appliance. Take it to your nearest Black & Decker-owned or authorised Service Centre for repair.

Electrical safety

This product must be earthed. Always check that the power supply corresponds to the voltage on the rating plate.
- Power plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (Class 1) appliances. Unmodified plugs and matching outlets will reduce the risk of electric shock.

Extension cables & Class 1 product

• A 3-core cable must be used as your appliance is earthed and of Class 1 construction.
• Up to 30m (100ft) can be used without loss of power.

To avoid the risk of electric shock, do not immerse the cord, plug or appliance in water or other liquid.
- If the supply cord is damaged, it must be replaced by the manufacturer or an authorized Black & Decker Service Center in order to avoid a hazard.

Mains plug replacement

If a new mains plug needs to be fitted:
- Safely dispose of the old plug

• Connect the brown lead to the live terminal of the new plug
• Connect the blue lead to the neutral terminal
• If the product is class I (earthed), connect the green/yellow lead to the earth terminal.

Note: If your product is class II double insulated (only 2 wires in the cord set), no connection is to be made to the earth terminal.

Follow the fitting instructions supplied with good quality plugs

Any replacement fuse must be of the same rating as the original fuse supplied with the product.

Warning! The above section on mains plug replacement is for authorized service centre persons.

Before first use

• Remove all packaging from the appliance.
• Clean the appliance before first use.
• Fill the kettle with cold water to the maximum fill mark. Do not over fill as described below.
• Close the lid (1). Boil the water as described below.
• Discard the boiled water and repeat the procedure.

Use

Warning! Always place the appliance on a flat, clean and non-slip surface before operating it.

Warning! Always allow the product and contents to cool before opening the lid / re-filling.

Warning! Always check the water level while using the appliance. Never use the appliance without sufficient water.

Warning! Steam may escape from the spout.

Warning! This Kettle must only be used with the Kettle base provided.

• Place the kettle base (6) on a suitable surface.
• Take the kettle to a water outlet. Open the lid (1) by pressing the lid release (5).
• Fill the kettle with cold water to the desired level.
• To prevent dry-boiling fill to at least 250ml (one cup).
• Do not fill the kettle beyond the maximum fill mark. If the kettle is overfilled, boiling water may be ejected from the pouring spout (3).
• Close the lid (1) and make sure it snaps into place.
• Place the kettle on the power base (6).
• Insert the plug into a suitable electrical outlet and push the on/off switch (2) to the on position (1).
  The power on indicator (2) will light.
• The water will start boiling, making a rumbling noise. Do not open the lid when the water is boiling.
• As soon as the water has boiled, the appliance will switch off and the power on indicator (2) will go out.
• Always ensure the Kettle has turned off before lifting it from the Kettle base.

ENGLISH

• To switch the appliance off during boiling, push the On / Off switch (2) the off position (O).
  If you do not want to use the boiled water immediately, the kettle may be left on the base. If you want to bring the water back to boil after a while, push the on / off switch (2) to on again.

Note: An audible "click" sound may be heard after the Kettle has boiled. This is caused by the re-setting of the auto shut-off and is quite normal.

Pouring boiling water

• Make sure the appliance is switched off.
  Take the kettle off the base.
• To avoid scalding, tilt the kettle slowly to pour the boiled water.
  After pouring, place the kettle back on the base and remove the plug from the socket.

Cleaning and maintenance

Before cleaning and maintenance, remove the plug from the socket and allow the appliance to cool.

Warning! Before cleaning and maintenance, switch the appliance off, remove the plug from the socket and allow the appliance to cool.

Warning! Do not immerse the appliance, the base, the cord set or the plug in water or any other liquid.

• Wipe the exterior with a damp cloth.

• Do not use scouring pads.

• If necessary, use a mild detergent to remove spots.

• Do not use any abrasive or solvent based cleaner.
• Do not immerse the appliance or power base in water or any other liquid.

Technical data

JC72

Voltage 220 – 240 Volts

Supply 50/60 Hz

Power consumption 1850 / 2200 W

Capacity 1.7 L

Weight 0.96 kg

Protecting the environment

arate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with other household waste. Make this product available for separate collection.

• Black & Decker provides a facility for recycling Black & Decker products once they have reached the end of their working life. This service is provided free of charge. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
• You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorized Black & Decker repair agents and full details of our after-sales service and contact are available on the Internet at: www.2helpU.com.

Warranty

Black & Decker is confident of the quality of its products and offers an outstanding warranty.

This warranty statement is in addition to and in no way prejudices your statutory rights.

The warranty is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker warranty to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

The product has been used for trade, professional or hire purposes;
The product has been subjected to misuse or neglect;
The product has sustained damage through foreign objects, substances or accidents;
Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the warranty, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual.

Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com.

FRANÇAIS

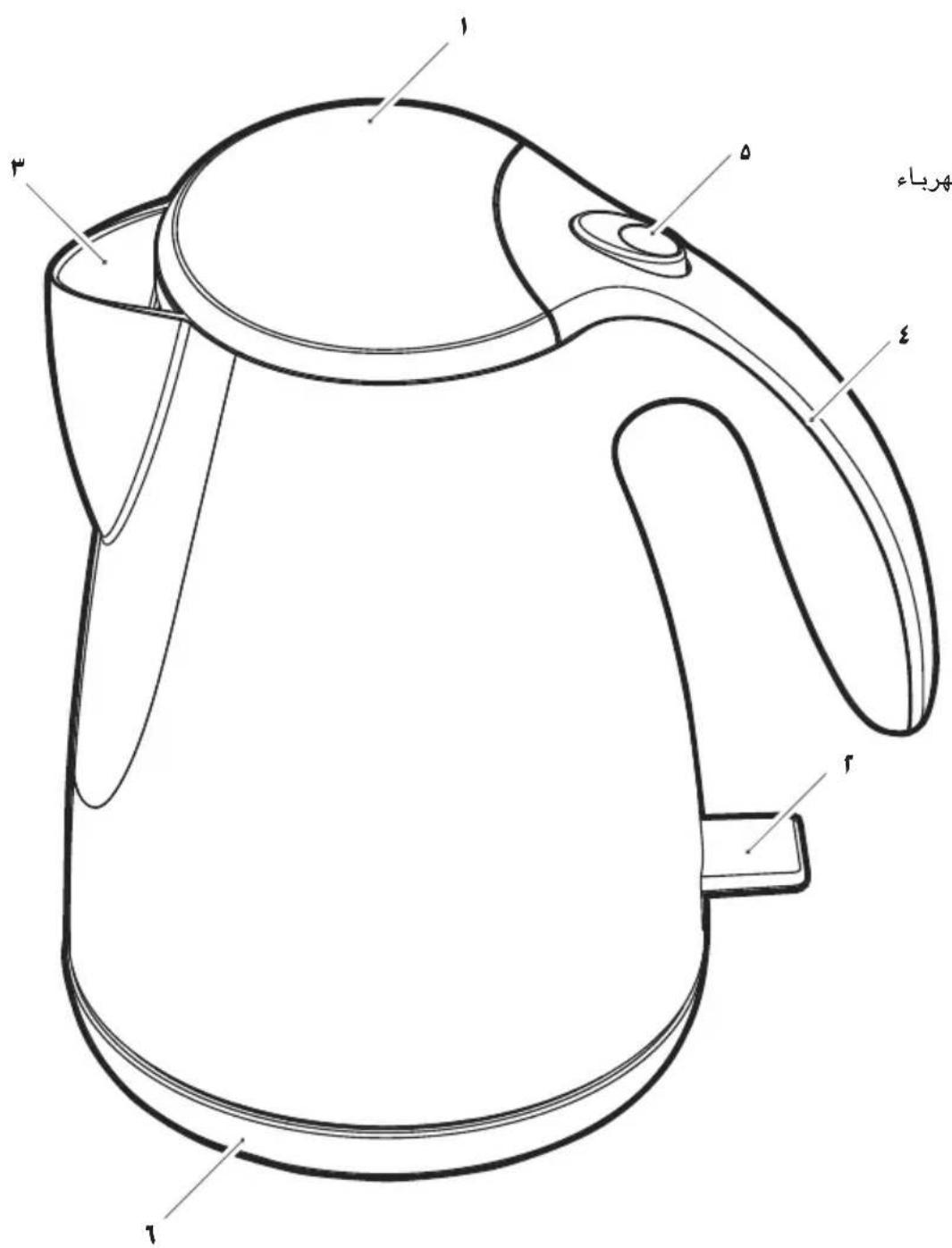

Identification de pieces

L L L (L) 1 aill jll

1/

1ogjooaiaiia jzjj 10

j 1

（）

aJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJ

.

1J 1

J 1

b0e 1222222222222222222222222222

puii Jg

.

J 1

11 11

gill 1c gssll lal jglj 2. Ll

.

GooosLsIeIeIeI.1）

.

Sj

p

g 1

J 100

1

Jolal Jolle

ARABIC

1

J 1

Sdu dyl joo ooggloo 50

aLgS11 a0x

gol no Lai j. iill l

1

a

iiaai liaiy

J.1K J.

aJ111 21 0 1

1 1

11y 1y8≤11 jaiol guiwliog aJ20all

aL 1

1 1

JAR A

1 4

（p1）

a11 1

a

a2 < a1 + 2 ②

1

Joo 1000

blal jil

JLL

:

aio no jirai ly Lilgall Jlabu 2

e 1

1

lg = 1

j 1

aJzjoo jgSb

a aal 1j21 Jauai 1

Joo

Ji j 15 g jg pae jn pl

LgS11 Lg

1

J 1

Jg j 1

an + 1 = an + a_n

ARABIC

JaiLJIa:Jia gill 1w

11w 1e 1c w 1.5y<11 jao 0 y

a

aJ 1

.

gai jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii jaii

JUeuiuui Lai

aagai jSLgjglgaiipui

.

1

J 1

11 11

1 1

Jaae 1

1 1

sulil 11 11 11 11 11 11 11 11

Jdall ss no n jil (Jlab21 p

a a

yJgss

Lil Lai jolg Jlsb 1c

jL 100

a

jglalplaiwlaLla

gaaal piai

L Ll 1

b00 j11 p11u 120 j111i

jglpuiuui Jc 10s L Julli

aLgllololalljglzdo

aXwll Lla

Jgj 1

L L

jlll

a

A

glaolao piaaai 5g jg j

jLgJlpliswLgJlLacJgJlLgJ

jol jlll l 1

a

.

jLai jiae yRy4yll Jy

aJogall jgll jiaol jglal jiai

.3

jllp

jll jll jll jll jll jll jll

a + 2 = 3

jll jll 1

jglal plisw ic jin s

ARABIC

jglz

1

gall 1000 g 111111111

Lall aag

11

bi = 12 - bi - 1

1

BLACK&DECKER

WARRANTY REGISTRATION CARD

YOUR NAME/

YOUR ADDRESS

POSTCODE

DATE OF PURCHASE

DEALER'S NAME & ADDRESS/

Names & Addresses for Black & Decker Service Concessionaries

ALGERIA: SARL Outillage Corporation, After Sale Service Center-08, Rue Mohamed Boudiaf - Cheraga, Algiers, Algeria, Tel: [phone], Fax: [phone]. AZERBAIJAN: Kontakt - NN LLC, M.Qashqay 43, Baku, Azerbaijan Az1000. Tel: [phone], Fax: [phone]. BAHRAIN: Alfouz Services Co. WLL., P.O. Box 26562, Tubli, Manama, Tel: [phone], Fax: [phone]. Kewalram & Sons Co. WLL P.O. Box 84, Manama, Kingdom of Bahrain, Tel: [phone], Fax: [phone]. BANGLADESH: Ultra Corporation, 8, Kushol Centre, Uttara, Dhaka 1230. Tel: [phone], Fax: [phone]. EGYPT: Anasia Egypt for Trading S.A.E., P.O. Box 2443, 9, Mostafa Refaat Street, Sheraton Heliopolis 11361, Cairo, Tel: [phone], Fax: [phone]. ETHIOPIA: Seif Sherif Trade PLC -Arada Sub City, Kebele 01-02, Global Insurance Bldg., 2nd Flr. Room 43, P.O.Box 2525, Addis Ababa, Ethiopia, Tel: [phone], Fax: [phone]. INDIA: Gryphon Appliances Ltd., D-6/4, Okhla Industrial Area, Phase-I, New Delhi-110020, Tel: [phone], Fax: [phone]. JORDAN: Bashiti Hardware, 93 King Abdullah 2nd St., Opp ELBA House, P.O. Box 3005, Tel: [phone] ext.11, Fax: [phone]. KENYA: Leading Concepts, P.O. Box: 40877-00100, Nairobi, Kenya. Tel: [phone], Fax: [phone]. KUWAIT: Al Omar Technical Co., P.O. Box 4062, Safat 13041, Kuwait, Tel: [phone], Fax: [phone]. The Sultan Centre, P.O. Box 26567-13126 Safat, Kuwait, Tel: [phone] Etn. 432, Fax: [phone]. LEBANON: Aces Service Centre, P.O. Box 90-102, Nahr El Mot, Seaside Highway, Pharaoh Building, Beirut. Tel: [phone], Fax: [phone]. LIBYA: Homeworld Co., Building No.5, Senidal St., Amr Ibn Elaas Road, Benghazi, Libya. Tel: [phone]. Service Center1 - Benghazi: Tel: [phone], Fax: [phone], Service Center2 - Tripoli: Tel: [phone], Fax: [phone]. MALTA: John G Cassar Ltd. 36-Victory Street, Qormi QRM 06, Malta. Tel: [phone], Fax: [phone]. MAURITIUS: J.M. Goupille & Co. Ltd., Rogers Industrial Park 1, Riche Terre, Mauritius, Tel: [phone], Fax: [phone]. MOROCCO: UATS 26 Rue Ennarjisse, Hay Erraihan, Beausejour - Hay Hassani-Casablanca, Morocco. Tel: [phone], Fax: [phone]. NEPAL: Universal Electrocom, Tripureshwor, Kathmandu, Nepal. Tel: [phone]. NIGERIA: Dana Electronics Ltd. (Lagos) 116/ 120, Apapa Oshodi Express Way, Isolo, Lagos, Nigeria. Tel: [phone]. (Abuja) 18, A.E. Ekukinam Street, Off Obsfemi Awolowo Road, Utako, Abuja, Nigeria. Tel: [phone]. (Kano) 9A - Mai Malari Road, Bompai, Kano, Nigeria. Tel: [phone]. OMAN: Oman Marketing & Service Co. (Omasco), P.O. Box 2734, Behind Honda Showroom, Wattayah, Oman. Tel: [phone], Fax: [phone]. Oman Marketing & Service Co. (Omasco), Al Ohi, Sohar, Oman. Tel: [phone], Fax: [phone]. Oman Marketing & Service Co. (Omasco) - Sanaya, Salalah, Oman. Tel: [phone], Fax: [phone]. PAKISTAN: Ammar Service & Spares - 60-Bank Arcade, Serai Road, Karachi, Pakistan. Tel: [phone], Fax: [phone]. PHILIPPINES: 476 J. P. Rizal St., cor Kakarong St. Brgy Olympia, Makati City. Tel: [phone]. QATAR: Al Muftah Service Centre - Al Wakrah Road, P.O. Box 875, Doha, Qatar. Tel: [phone], Fax: [phone]. SAUDI ARABIA: (Al Khobar) Al-Suwaqet Catering & Trading Co., P.O.Box 4228,King A.Aziz Street,Athor KhobarTel:[phone],Fax:[phone].Fawaz Ebrahim Al Zayani Trading Est.P.O.Box 76026,Athor Khobar #3l952Tel:+966-3-8l4o9l4Fax:+966-3-8l4o8z4. (Jeddah) Banaja Trading Co. Ltd., P.O.Box 366,Jeddah-2l4l1Tel:+966-2-65l1llll,Fax:+966-2-65O366B.(Riyadh) Banaja Trading Co. Ltd., P.O.Box 566,Riyadh-1l4zI,Tel: [phone]lZlAeHsF+96E-4POTCtHsT.SOUTH AFRICA:Trevco Power Tool Service 1 Steenbok Street Koedoespoort,Oirge,Pretoria South AfricaTel:+27-8G-8738ZG.Fax:+27-8G-5OOMYTHS.NRI LANKA:Delmege Construction Products (Pvt) Ltd., No 101 Vinayalankara Mawatha Colombo-lo,Sri Lanka.Tel:+94-ll-269336l-TService hotline:+94-77-2l l l.l TUNISIA:Societe Tunisienne De Manutention - Rue de la Physique,Nouvelle Zone Industrielle de Ben Arous-2O13 TunisiaTel:+2l6-7l386lOz/ 38OoZoFax:+2l6-7l38OAtlQxEzngySanaiyaAl AinTel:+97l-3ZlAeNpSnsdSanaiaYAMAXHouse No.5Plot No Iooi,,rtd Street Indstial AreaJinja RoadKampalaTel:+256-4lIzDzTioLsO.UAE:(Abu Dhabi) Light House Electrical,P.O.Box 12oAbu DhabiTel:+97l-2-67ZoLHcT.Fax:+97l-2-6ZoO6b.(AI Ain) Zillion Equipment and Spare Parts Trading LLC,P.O.Box 1974Opp.Bin Sadal/Timix Redymix Sanaiya,Ail AinTel:+97l-3ZlAeNpOgSntoDum (Dubai Black & Decker (Overseas) GmbH,P.O.Box 5AioDubaiTel:+97l-4BIZDFO/8IzDFOFax:+97l-4ZBZDVS.(Musaffah) Light House Electrical,P.O.Box 12oAbu DhabiTel:+97l-2L5AeRbtsFax:+97l-2L5AeRbts(FSharjah) Mc Coy Middle East LLC,P.O.Box 25793 SharjahTel:+97l-6-L5RfHax:+97l-6-L5RfHMcCoyMiddieEastLLPC.OBox Io58A.Ras Al KhaimahTel:+97l-7-ZLZHOSFAX:+97l-ZLZHOSFAX:+97l-ZLZHOSFAX:+97l-ZLZHOSFAX:+97l-ZLZHOSFAX:+
