USER MANUAL InterFace Excel 3773 BRAUN

Diagram showing a device being inserted into a rack, with no visible text or symbols

Illustration of a person applying oral care to the ear with a syringe (no text or symbols)

Illustration of a person using a tool to apply eye makeup application, showing the eyelid and facial features (no text or symbols)

d "Sit"

Diagram of a hand using a cleaning tool to clean or store items, showing no text or symbols

Illustration of a hand using a tool to adjust a mechanical component (no text or symbols visible)

g

Illustration of a hand holding a bottle and a coiled spring, with no text or symbols present.

Illustration showing a hand applying a toothpaste to a surface and a close-up of the device's internal structure.

Deutsch

Our products are designed to meet the highest standards of quality, functionality and design. We hope you enjoy your new Braun shaver.

Warning

• Keep the appliance dry.
• For safety reasons, periodically check the cord for damage and replace it, if it is loose in the shaver socket.

1 Description

1 Foil protection cap 6 Switch
2 Shaver foil 7 Charging light
2a InterFace trimmer 8 Shaver socket
3 Cutter block
4 Release button
5 Pop-out long hair trimmer

2 Charging the shaver

• When charging for the first time: Connect the shaver to the mains and charge it for at least 4 hours (switch position «off»). Then shave without the cord until the batteries are fully discharged. Then recharge to full capacity again (subsequent charges will take about 1 hour).
• The green charging light shows that the shaver is being charged. When the rechargeable battery is fully charged, the charging light goes off. If later on, the charging light comes on again, this indicates that the shaver is being recharged to maintain its full capacity.
• A full charge will give up to 30 minutes of cordless shaving time depending on your beard growth. However, the maximum battery capacity will only be reached after several charging/discharging cycles. Best environmental temperature range for charging is 15 °C to 35 °C.
• Wattage: 4 Watts

Voltage range during charging: 12–240 V ≈ / 50 or 60 Hz (automatic adaptation)

3 Shaving

3.1 Switch positions

off = Switch is locked.

foil shave = Shaver foil only.

combi shave = Combination shave (InterFace trimmer works in tandem with the shaver foil to first cut the longer problem hairs, which then allows the foil to shave the shorter hairs even closer) (b).

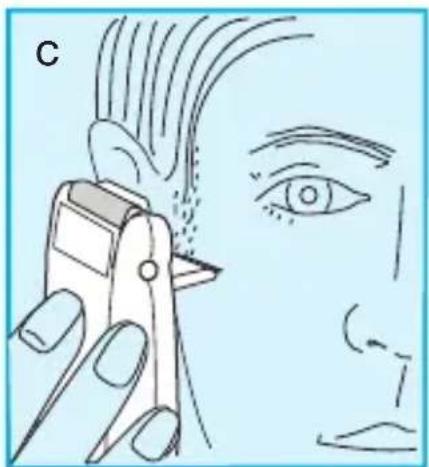

trimmer = The long hair trimmer is activated (for trimming sideburns, moustache and beard) (c).

3.2 Shaving with the cord

If the batteries are discharged, you may also shave with the shaver connected to the mains (100–240 V \~). (If the shaver should not run immediately, charge it with the switch position «off» for approx. 1 minute.)

Tips for the perfect shave

• We recommend that you shave before washing, as the skin tends to be slightly swollen after washing.

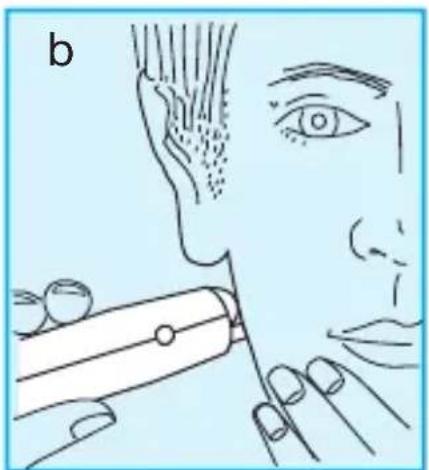

• Hold the shaver at right angles (90°) to the skin.
• Stretch your skin and shave against the direction of beard growth.
• To maintain 100% shaving performance, replace your foil and cutter block at least every 18 months or when worn.

4 Keeping your shaver in top shape

4.1 Cleaning

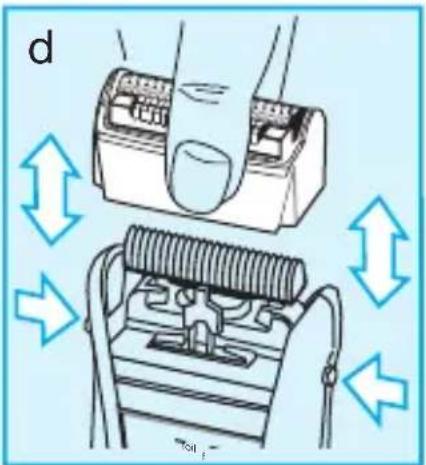

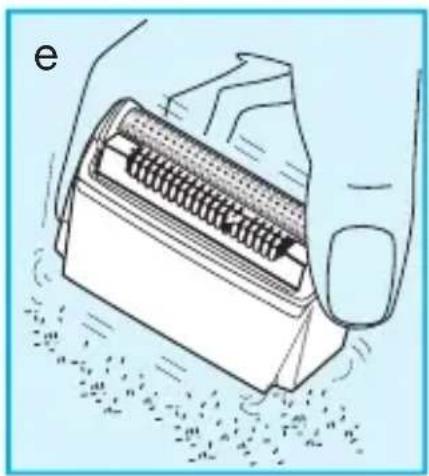

• After shaving, switch the shaver off. Press the release buttons, take off the shaver foil (d) and gently tap it out on a flat surface (e).

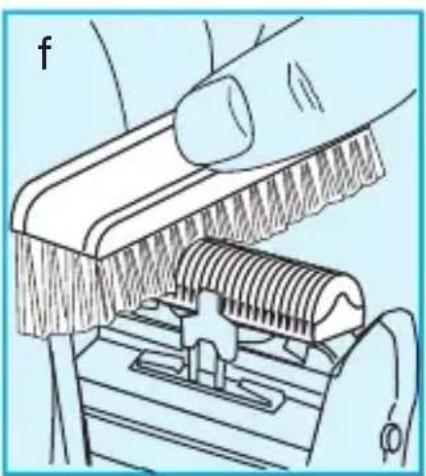

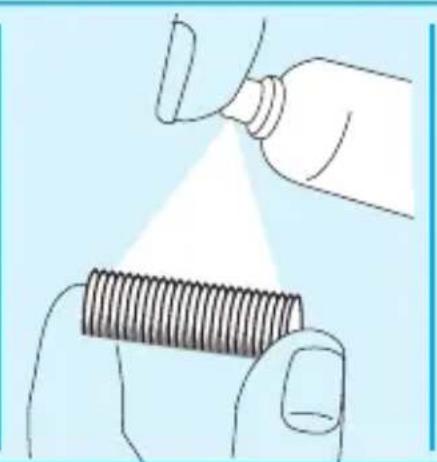

• Then thoroughly clean the cutter block with the brush (f). About every four weeks, clean the cutter block with Braun cleaning agents (g).
• Do not clean the shaver foil with the brush.

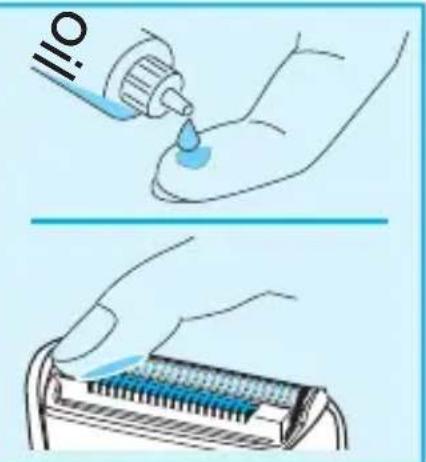

• If you have a very dry skin and you notice a reduced operation time of the shaver, you should put a drop of light machine oil onto the InterFace trimmer and shaver foil (g).

4.2 Replacing the shaving parts

• To maintain 100% shaving performance, replace your foil and cutter block at least every 18 months or when worn. Change both parts at the same time for a closer shave with less skin irritation. (Shaver foil and cutter block: part no. 3600)
• Press the release buttons, take off the shaver foil. Replace the new shaver foil in the right direction until it locks in place.

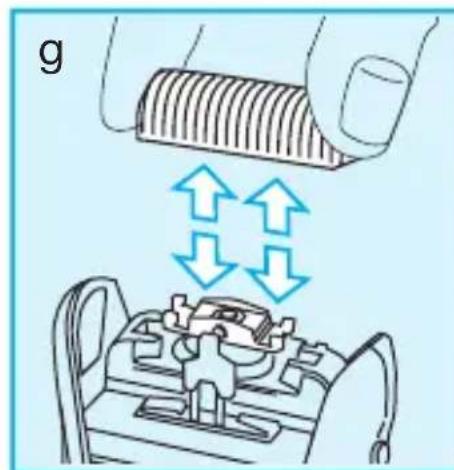

• To remove the cutter block, lift it off (g).
• To replace the cutter block, snap onto the holding studs.
  •

4.3 Preserving the rechargeable batteries

• In order to optimise the capacity and life of the batteries, the shaver should be fully discharged through regular use every 6 months approximately. Then recharge to full capacity again. This reconditions the rechargeable batteries.
• Do not expose the shaver to temperatures of more than 50 °C for long periods of time.

5 Environmental notice

This appliance is provided with nickel-hydride rechargeable batteries. To protect the environment, do not dispose of the appliance in the household waste at the end of its useful life. Open the housing as shown on page 44, remove and dispose of the batteries at your retail store or at appropriate collection sites according to national or local regulations.

Subject to change without notice.

This product conforms to the EMC-Directive 89/336/EEC and to the Low Voltage Regulation 73/23 EEC.

At the end of the product's useful life, please dispose of it at appropriate collection points provided in your country.

Guarantee

We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre.

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

Diagram illustrating electrical safety warning and disassembly steps, showing plug-in, switch, and screwdriver installation with blue arrows indicating process flow.

Diagram of a hand pressing down on a vehicle seatbelt, with an upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with blue arrows indicating direction, no text or symbols present

Diagram of a car interior showing airflow direction with arrows indicating movement (no text or symbols)

Cross-sectional diagram of a device showing internal components and wiring (no text or labels)

Diagram illustrating a mechanical device with labeled parts and directional arrows, including a paper roll and a waste bin.

Deutsch

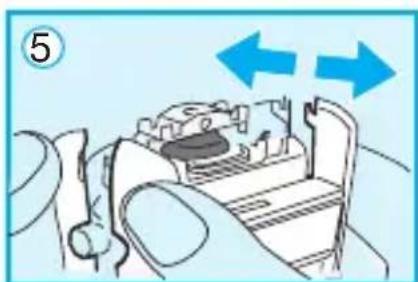

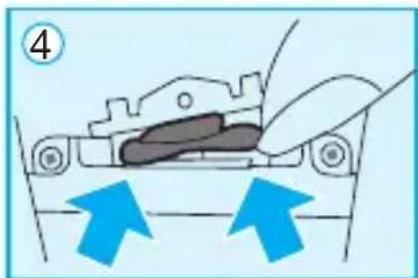

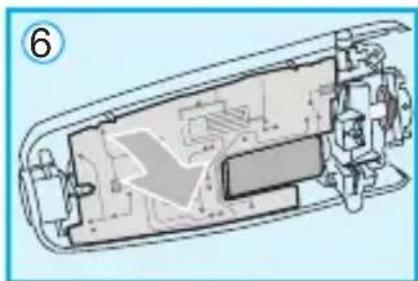

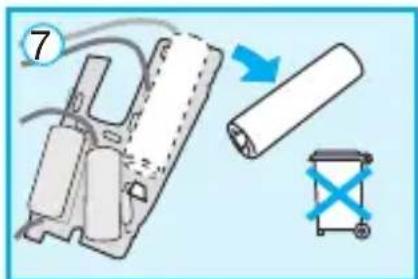

Battery removal at the end of the product's useful life

Caution: Opening the handle will destroy the appliance and invalidate the guarantee.
