USER MANUAL VKG 671 VESTFROST

GB Instructions for use

As the appliance contains a flammable refrigerant, it is essential to ensure that the refrigerant pipes are not damaged.

The quantity and type of the refrigerant used in your appliance is indicated on the rating plate.

Standard EN378 specifies that the room in which you install your appliance must have a volume of 1m^3 per 8 g of hydrocarbon refrigerant used in the appliances. This is to avoid the formation of flammable gas/air mixtures in the room where the appliance is located in the event of a leak in the refrigerant circuit.

WARNING:

Keep ventilation openings in the appliance's cabinet or in the built-in structure clear of obstruction

WARNING:

Do not use other mechanical devices or other means to accelerate the defrosting process than those recommended by the manufacturer

WARNING:

Do not damage the refrigerant system

WARNING:

Do not use electrical appliances inside the refrigerated storage compartment, unless they are of a type recommended by the manufacturer

WARNING:

Do not expose the appliance to rain

WARNING:

This appliance is not intended for use by children and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved

WARNING:

Danger risk of fire or explosion if flammable refrigerant are used. To be repaired only by trained personnel.

WARNING:

Do not store explosives, such as aerosol cans with flammable propellants in the unit.

WARNING:

Cleaning and user maintenance shall not be made by children without supervision

Always keep the keys in a separate place and out of reach of children
- Before servicing or cleaning the appliance, unplug the appliance from the mains or disconnect the electrical power supply
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard
- Relevant for Australia: Supply cord fitted with a plug complies with AS/NZS 3112.

• Frost formation on the interior evaporator wall and upper parts is a natural phenomenon. Therefore, the appliance should be defrosted during normal cleaning or maintenance.
• Please note that changes to the appliance construction will cancel all warranty and product liability
• This appliance is intended to be used exclusively for the storage of wine

CLASS 1 LED PRODUCT

Contents

Warning 2
Before starting the appliance 4
Get to know 5
Electrical connection. 6
Installation 6
Ventilation 7
Control panel 8
Reversing the door 9
Fault finding 13
Defrosting, cleaning and maintenance . 14
Warranty, spare parts 15
Disposal 16

Before starting the appliance

Before operating your new appliance, please read the following instructions carefully as they contain important information on safety, installation, operation and maintenance. Keep the instructions for future reference.

On receipt, check to ensure that the appliance has not been damaged during transport. Transport damage should be reported to the local distributor before the appliance is put to use.

Remove the transport protector before the appliance is put to use. Hang it on one of the shelves as it can be used to readjust the door.

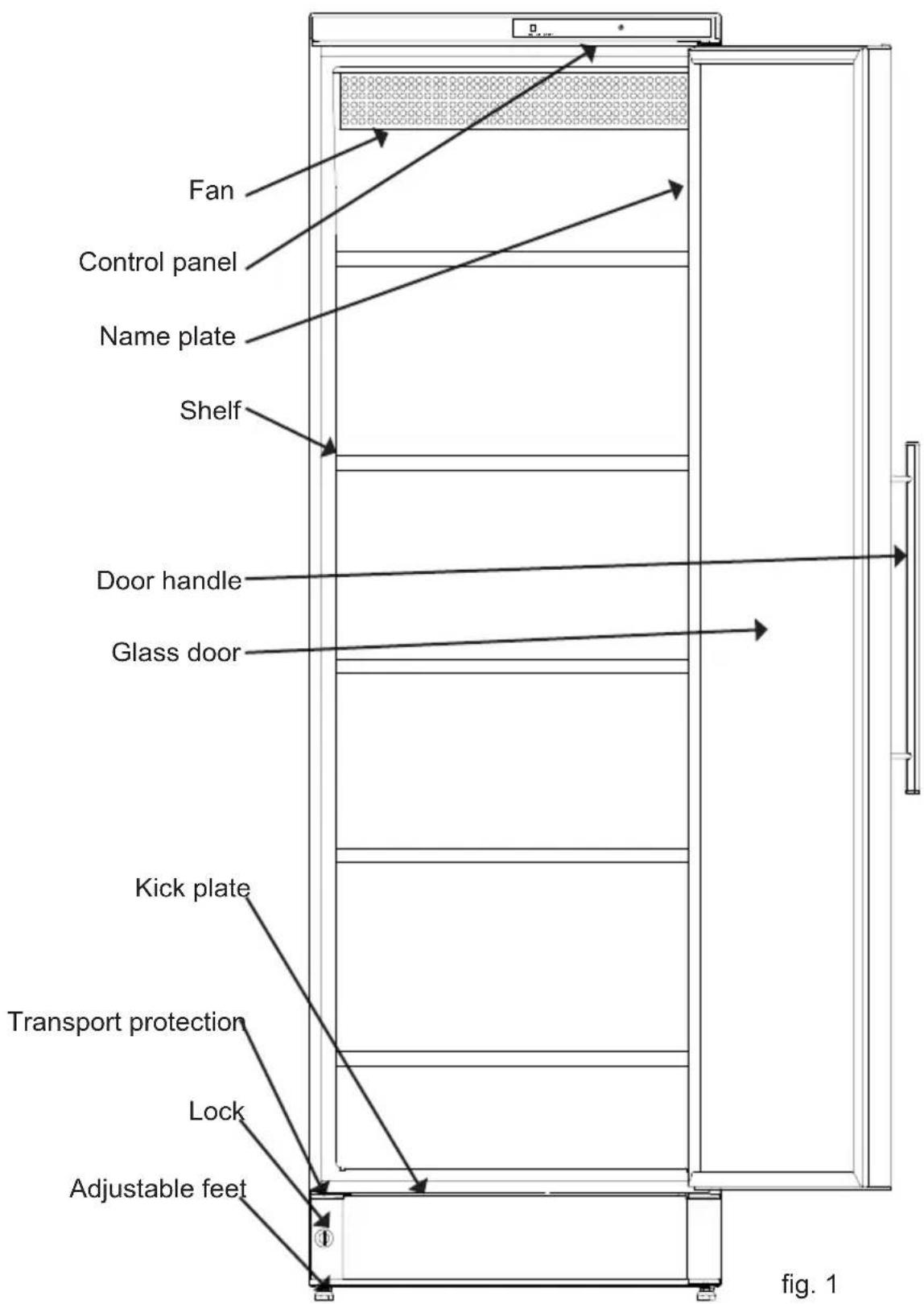

Get to know your wine or bottle cooler:

Electrical connection

Wiring and connections in power supply systems must be all applicable (local and national) electrical codes. Consult these codes lengths and sizes prior to cabinet installation.

This device complies with relevant EU directives including Low Voltage Directive 2014/35/EU and Electromagnetic Compatibility Directive 2014/30/EU

The socket should be freely accessible.

Connect the appliance only to 220/240 V / 50Hz alternating current via a correctly installed earthed socket.

The socket must be fused with a 10-13 A fuse.

If the appliance is to be operated in a non-European country, check on the rating plate whether the indicated voltage and current type correspond to the values of your mains supply.

Information regarding voltage, current or power are given on the rating plate

The power cord may be replaced by a technician only.

The rating plate provides various technical information as well as type and serial number.

Installation and start-up

Placement

For safety and operational reasons, the appliance shall not be exposed to rain.

The appliance should be placed on a level surface in a dry, well ventilated room (max. 70% relative air humidity). Never place the appliance close to sources of heat and avoid placing it in direct sunlight.

The surface on which the appliance is to be placed must be level. Do not use a frame or similar.

The appliance can be installed as a freestanding unit against a wall or side-by-side with other appliances (see fig. 4)

Room temperature

The climate class is stated on the name plate (see fig. 1). This specifies the optimum room temperature.

Note that the appliance operates best at room temperatures from 10^ to 32^ .

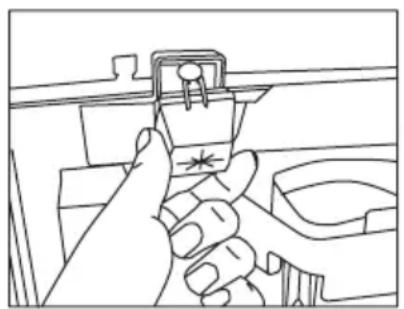

Installation of ventilation guard

Close the two ventilationguards placed on the rear of the appliance, to ensure sufficient air circulation

fig. 2

Ventilation

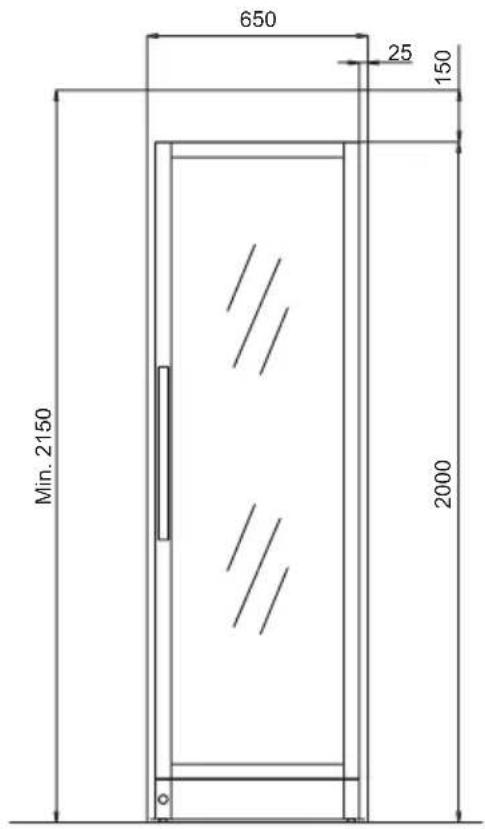

It is important that the appliance be well ventilated and that air can circulate unhindered above, below and around it. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. The figures below illustrate the clearance necessary to achieve the required air circulation.

OBS: There must be at least 30mm between the cabinet and the wall behind it.

fig. 3

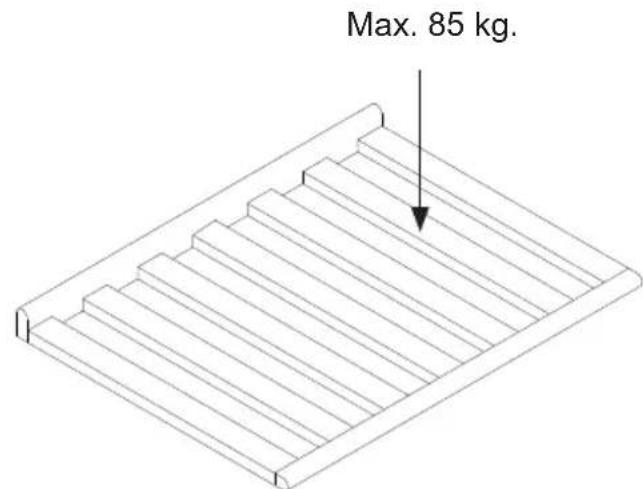

Side by side

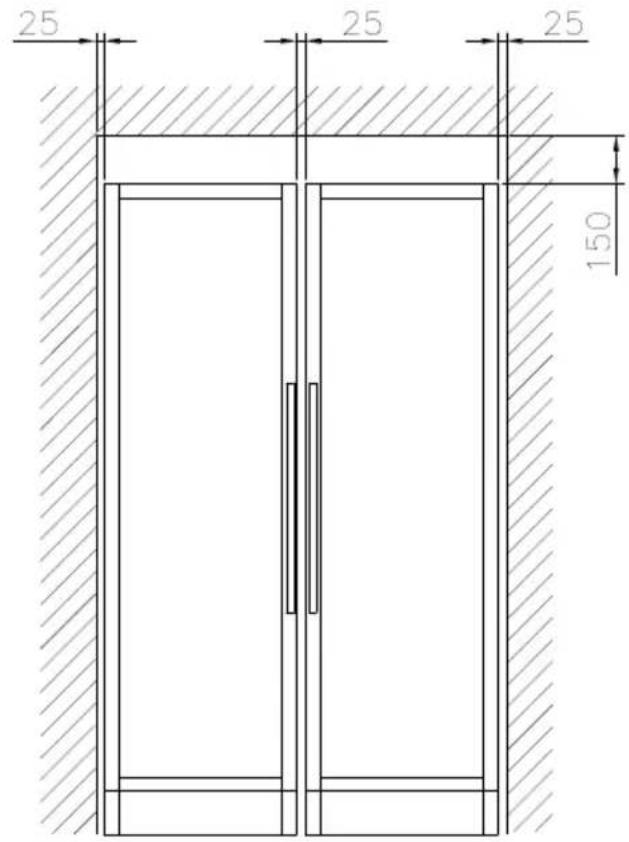

In side-by-side arrangement, there must be at least 25mm between and at the sides of the cabinets, so the doors can be opened freely

fig.4

Control panel

Connect the appliance to the socket outlet. A green light indicates that the appliance has been switched on.

The thermostat knob is adjustable from 0 (stop) to 7 (coldest). Find the position of the therm ostat which gives you the desired temperature. Start at position 4.

OBS:

Please note the inside temperatures can get low by high ambient temperatures. To avoid damage to the stored wine bottles, please adjust thermostat setting to get your target inside temperature!

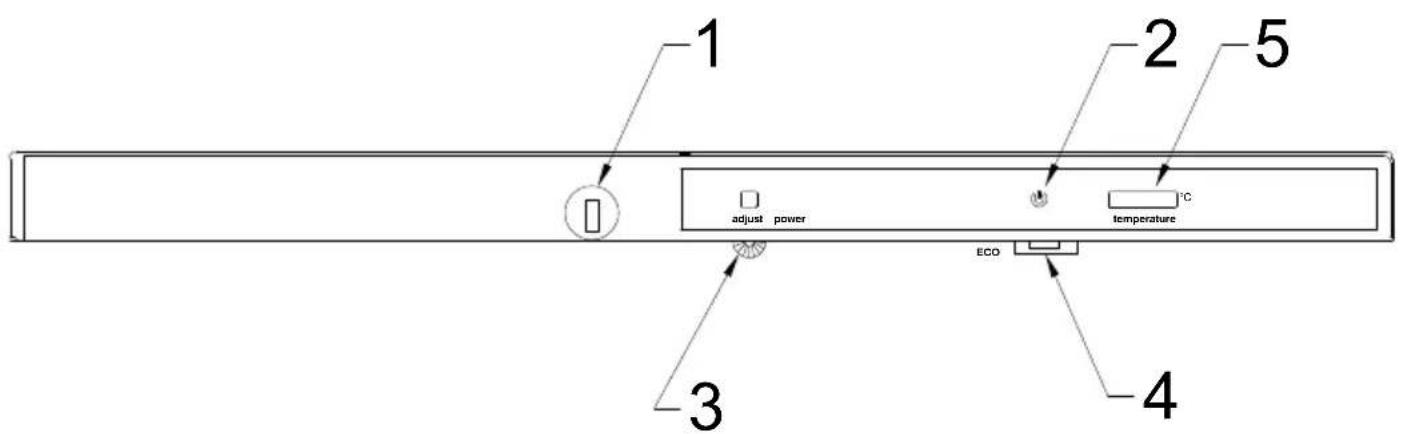

1. Lock (Not all Appliances has lock in top,)
2. Green light indicating power on
3. Thermostat button.
4. Light and fan switch
5. Thermometer

The ECO switch (4) is for turn the light and fan on and off at the same time.

ECO = Low energy consumption

Reversing the door

If reversing the door with the unit in normal position, then it is recommended to be two people.

Else the unit can be placed on its back on the floor. If this method is used the unit must be

placed in normal upright position at least two hours before connecting to power.

Left door hinge is optional. (See p.18)

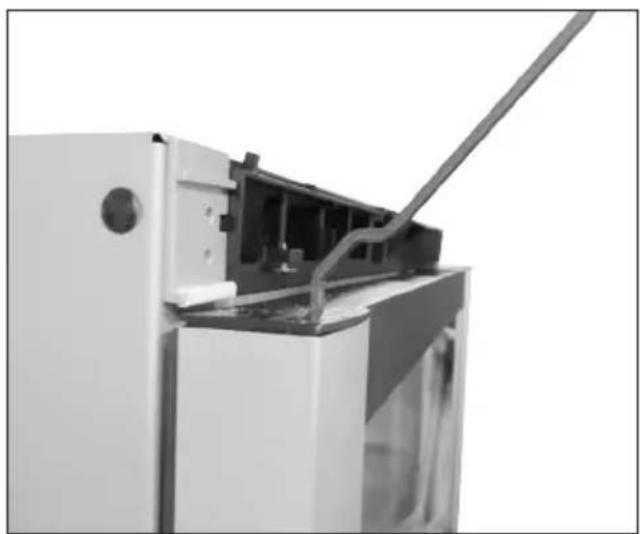

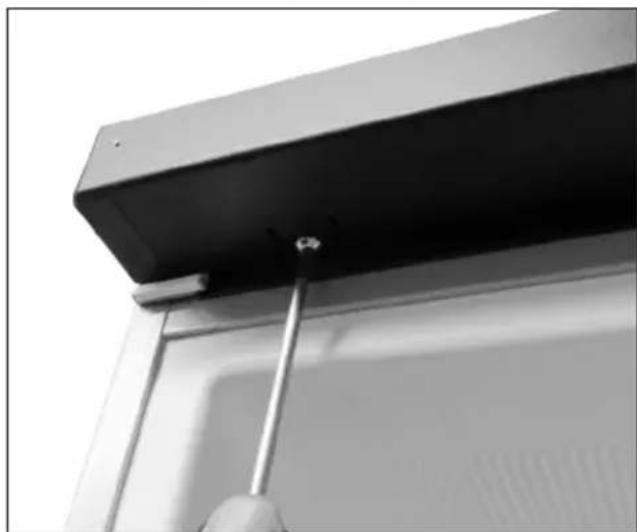

1. Disconnect the power supply Loosen the two screws in the top panel. Pull out carefully the top panel.

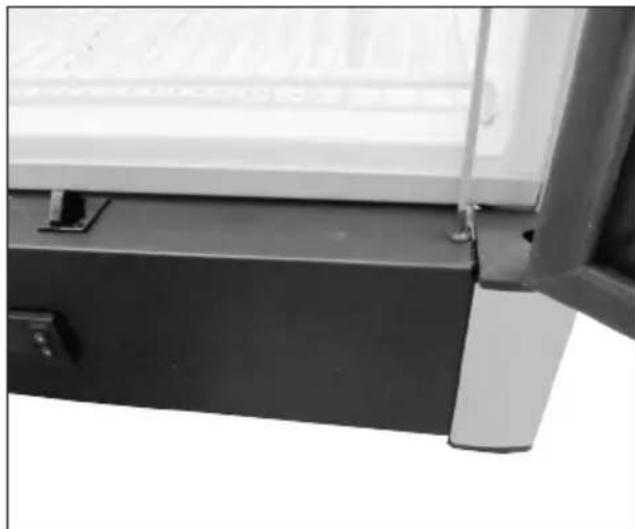

1. Unscrew the two screws in the lower panel.

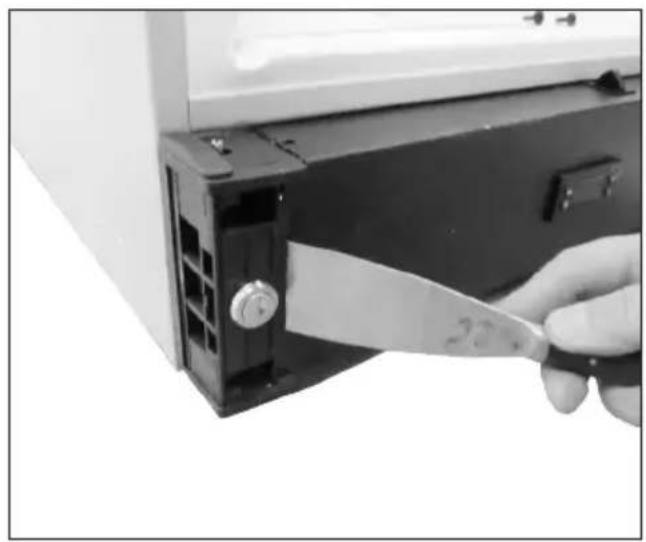

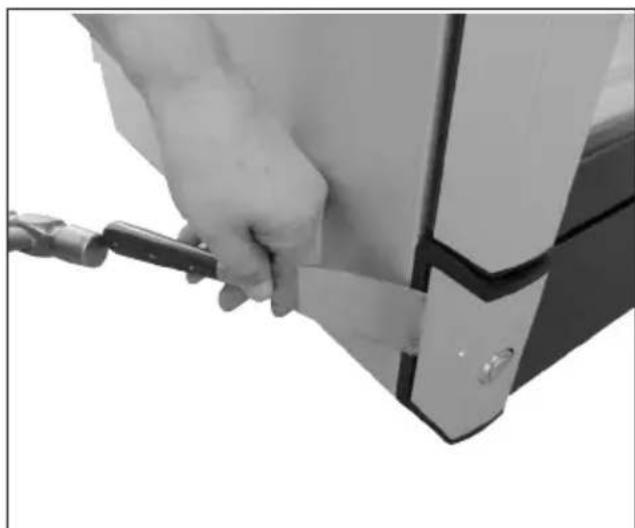

1. Remove the cover by using suitable tool and a hammer

1. Remove the lower panel by use of a suitable tool. Place the lower panel in front of the unit without pulling in the wires

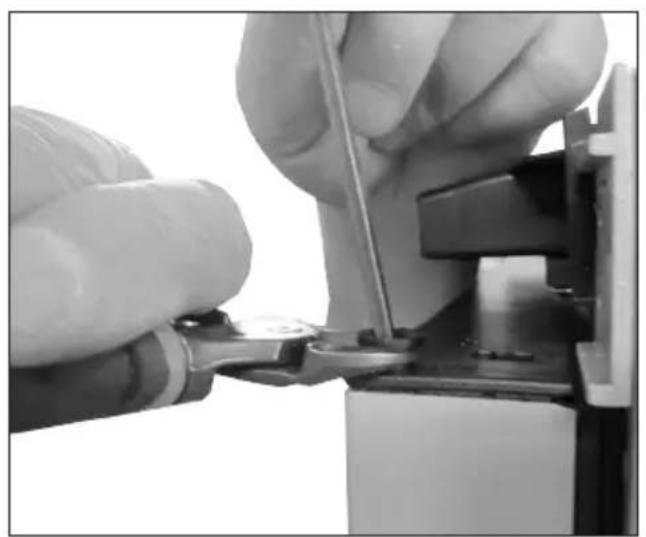

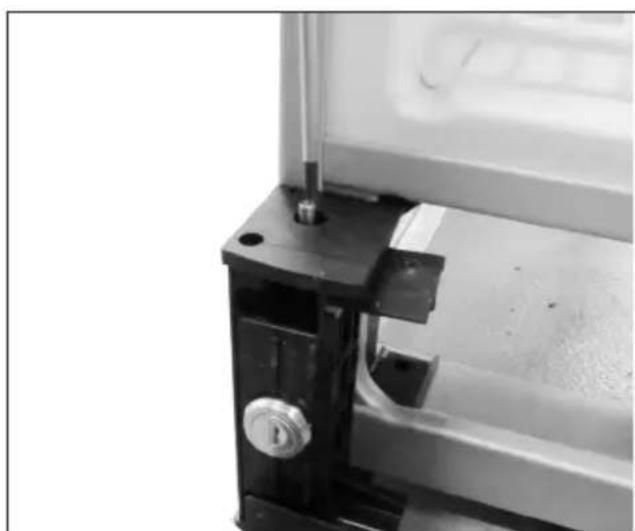

1. Unscrew the bracket in the top. NOTE: The door is now loose! Be careful that the door does not fall down!

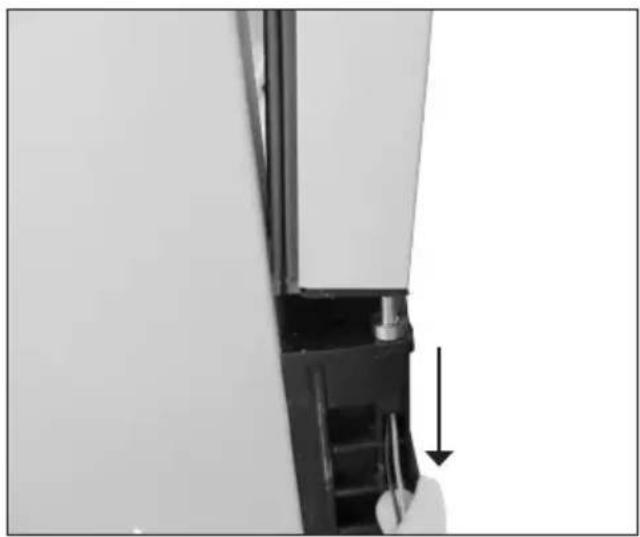

1. Remome the bush and door closer by use of a pincher. Place the bush in the opposite side of the door. Do not place the door closer yet.

2. Lift up the door. Place the door pin in the opposite side of the cabinet.

3. Rotate the door 180 degrees. Place the door, with the front facing down, on a soft surface.

1. Lift up the sliding part and move it to the opposite side

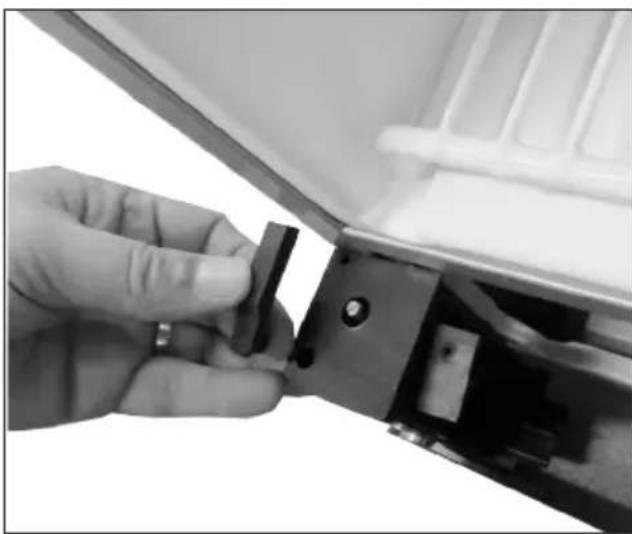

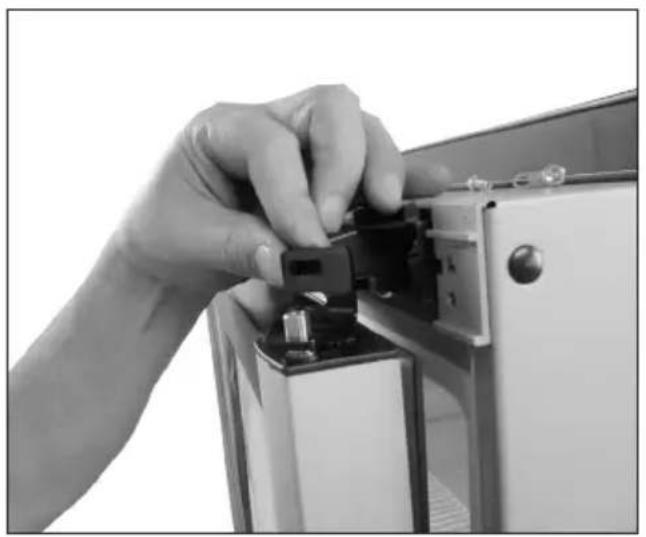

1. Unscrew the locking pin. Pull the lock out. Refit both parts on the opposite side.

1. Mount the door on the top of the door pin and at the same time draw the wires gently down so that it are not pinched. Press the door completely down over the door pin!

2. Put the door closer back in the door in the opposite side.

The door closer must be positioned as shown in the picture.

1. Place the left hinge on the top of the door closer.

The hinge is optional.

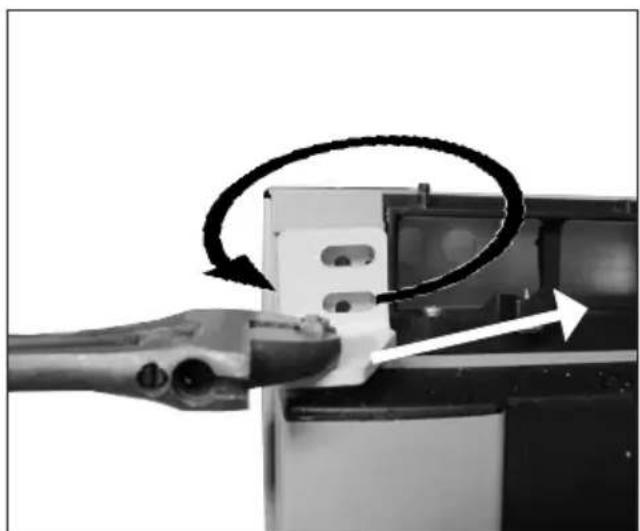

Twist the hinge ( a quarter turn) in place with a wrench and tighten it with the two screws.

The door is now fixed again.

1. Mount the lower panel and top panel.

If the unit has been laid down, it must stand upright for at least 2 hours before reconnecting to power.

Fault finding

Fault Possible cause	Remedy
The unit does not work	The appliance is switched off.	Press the on/off switch.
	Power failure; the fuse is blown; the appliance is not plugged in correctly.	Check that power is connected. Reset the fuse.
Water collects in the bottom of the cabinet.	The defrost water pipe is blocked.	Clean the defrost water channel and the drain hole on the rear wall of the cabinet.
Vibration or bothersome noise.	The appliance is not level. The appliance is resting against other kitchen elements.	Level the appliance using a spirit level.
	Containers or bottles inside the cabinet are rattling against one another.	Move the appliance away from the kitchen elements or appliances it is in contact with. Move containers and/or bottles apart.
Compressor runs continuously.	High room temperature. Ensure adequate ventilation.

Defrosting, cleaning and maintenance

Automatic defrosting.

The unit is defrosted automatically. Defrost water runs through a pipe and is collected in a tray above the compressor where the heat generated by the compressor causes it to evaporate. The defrost water tray should be cleaned at intervals.

Cleaning.

Before cleaning the appliance, unplug it from the main supply. The cabinet is best cleaned using warm water (max. 65^ ) with a little mild detergent. Never use cleaning agents that scour. Use a soft cloth. Rinse with clean water and dry thoroughly.

The defrost water channel, in which condensation from the evaporator runs, is located at the bottom of the rear inside wall of the cabinet and must be kept clean. Add a few drops of disinfectant, e.g. Rodalon, to the defrost water drain a couple of times a year, and clean the drain using a pipe cleaner or similar. Never use sharp or pointed implements.

The sealing strip around the door must be cleaned regularly to prevent discolouration and prolong service life. Use clean water. After cleaning the sealing strip, check that it continues to provide a tight seal.

Dust collecting on the condenser on the rear of the cabinet, the compressor and in the compressor compartment is best removed using a vacuum cleaner.

Warranty, spare parts and service

Warranty disclaimer

Faults and damage caused directly or indirectly by incorrect operation, misuse, insufficient maintenance, incorrect building, installation or mains connection. Fire, accident, lightening, voltage variation or other electrical interference, including defective fuses or faults in mains installations.

Repairs performed by others than approved service centres and any other faults and damage that the manufacturer can substantiate are caused by reasons other than manufacturing or material faults are not covered by the warranty.

Please note that changes to the construction of the appliance or changes to the component equipment of the appliance will invalidate warranty and product liability, and the appliance cannot be used lawfully. The approval stated on rating plate will also be invalidated.

Transport damage discovered by the buyer is primarily a matter to be settled between the buyer and the distributor, i.e. the distributor must ensure that such complaints are resolved to the buyer's satisfaction.

Before calling for technical assistance, please check whether you are able to rectify the fault yourself. If your request for assistance is unwarranted, e.g. if the appliance has failed as a result of a blown fuse or incorrect operation, you will be charged the costs incurred by your call for technical assistance.

Spare parts

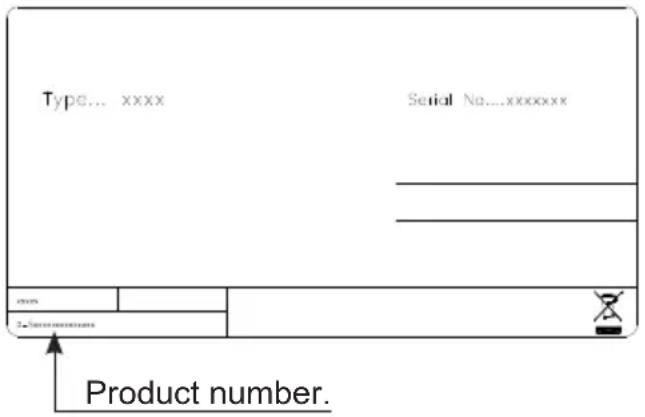

When ordering spare parts, please state the type, serial and product numbers of your appliance. This information is given on the rating plate. The rating plate contains various technical information, including type and serial numbers.

Disposal

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union.

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol :

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Warning
