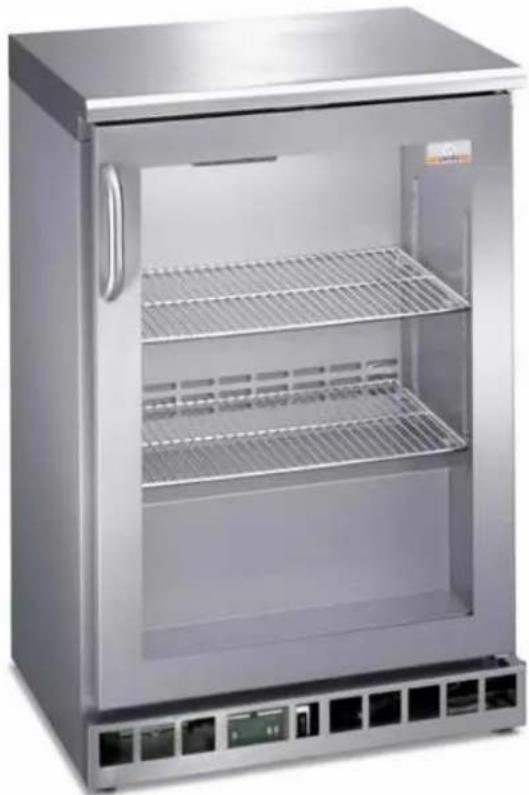

MF110 RGCS - Fridge Gamko - Free user manual and instructions

Product type	Refrigerator
Brand	Gamko
Model	MF110 RGCS
Dimensions (H x W x D)	850 mm x 560 mm x 600 mm
Net weight	35 kg
Net volume	110 L
Power supply	230 V ~ 50 Hz, 0.8 A
Climate class	N/SN (ambient temperature 10°C to 32°C)
Cooling type	Static cooling
Defrosting	Manual
Number of shelves	3 glass shelves
Vegetable drawer	1 transparent drawer
Interior light	LED
Adjustable thermostat	Yes, mechanical
Adjustable feet	2 adjustable front feet
Door opening direction	Reversible
Noise level	42 dB(A)
Refrigerant	R600a
Care and cleaning	Unplug before cleaning; use a soft cloth and soapy water
Safety	Compliant with CE standards; do not use steam cleaner
Spare parts and repairability	Door gaskets, thermostats and shelves available
General information	Manufactured in the Netherlands; compliant with WEEE Directive

Frequently Asked Questions - MF110 RGCS Gamko

What is the ideal temperature for storing food in the Gamko MF110 RGCS refrigerator?

The ideal temperature is between +2°C and +6°C. Use the thermostat to adjust according to the load and ambient temperature.

How to adjust the refrigerator thermostat?

Turn the thermostat knob located inside the cavity. Position 0 stops the appliance, numbers 1 to 5 increase cooling. Position 3 is recommended for normal use.

How to defrost the refrigerator?

Unplug the appliance and remove the food. Leave the door open to allow frost to melt. Never use a sharp object or steam cleaner. Dry the interior before plugging back in.

Why is the refrigerator making noise?

Sounds of gurgling or clicking are normal (gas circulation). A humming sound comes from the compressor. If the noise becomes abnormal, check that it is level and away from walls.

How long after transport should I wait before plugging in the appliance?

Let the appliance stand upright for 24 hours before plugging in, so the refrigerant gas stabilizes.

How to clean the interior of the refrigerator?

Unplug the appliance. Remove the shelves and drawers. Clean with a soft cloth soaked in warm water and mild soap. Rinse and dry thoroughly. Never use abrasive products.

What to do if the door does not close properly?

Check that food or shelves are not blocking the door. If the gasket is deformed, it can be replaced (spare part available). Clean the gasket regularly with soapy water.

How to reverse the door opening direction?

Unplug the appliance. Unscrew the hinges and transfer them to the opposite side. Consult the manual for the exact diagram. This operation requires two people and a screwdriver.

What to do in case of a power outage?

Avoid opening the door. Food stays cold for several hours. If the outage lasts more than 24 hours, check the food condition before consuming.

Where to find spare parts for the Gamko MF110 RGCS?

Contact Gamko after-sales service or authorized dealers. Common parts such as door gaskets, thermostats, and shelves are available. Always reference the model number.

USER MANUAL MF110 RGCS Gamko

Logo of Gamko featuring a stylized 3D cube design with no text or symbols beyond the brand name.

Exterior view of a stainless steel laboratory refrigerator with open doors and grilles (no visible text or labels)

Exterior view of a stainless steel laboratory refrigerator with a side door and control panel (no visible text or symbols)

C ∈

Types:

MF/110

MF/110G

1-98835

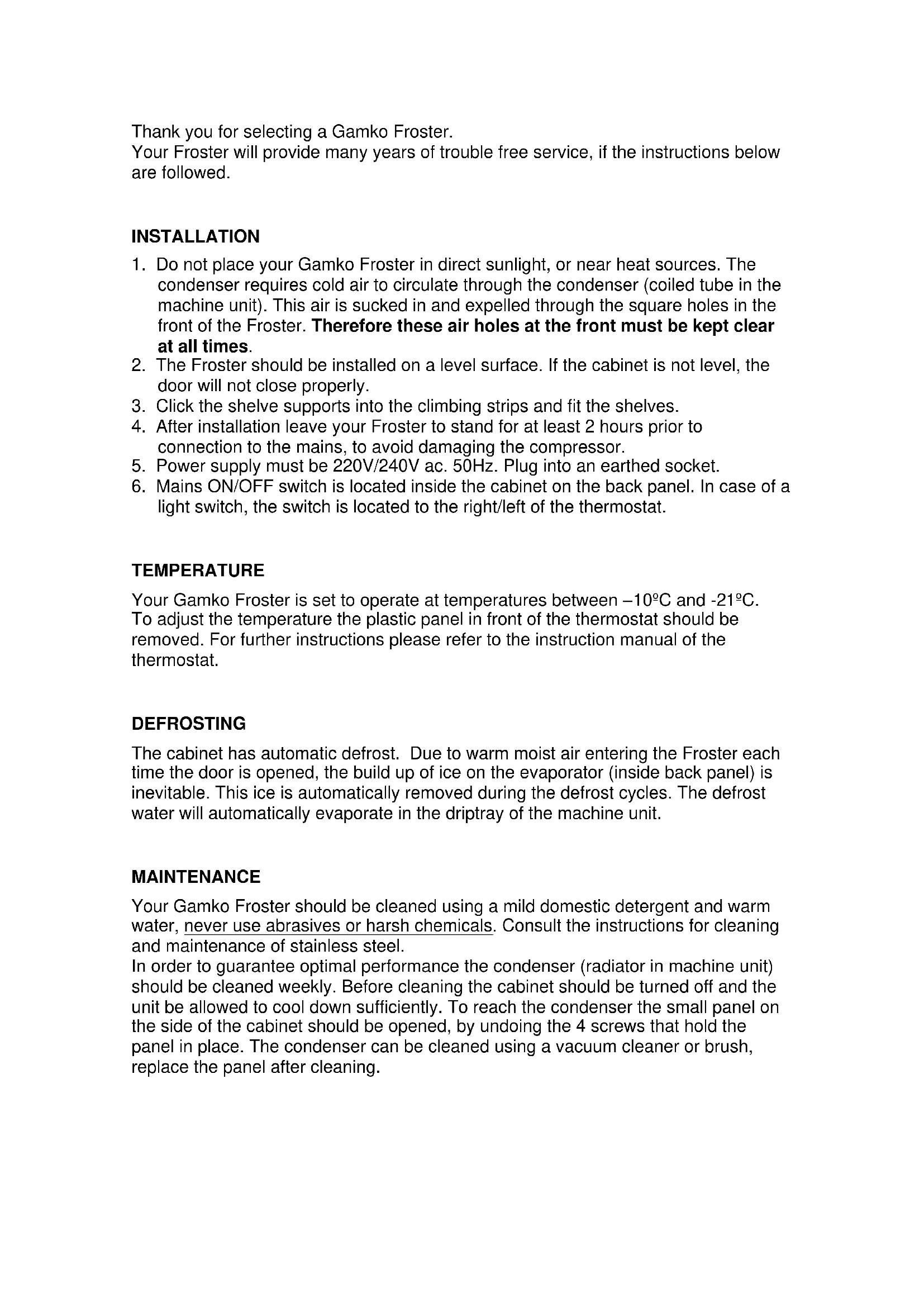

Thank you for selecting a Gamko Froster.

Your Froster will provide many years of trouble free service, if the instructions below are followed.

INSTALLATION

1. Do not place your Gamko Froster in direct sunlight, or near heat sources. The condenser requires cold air to circulate through the condenser (coiled tube in the machine unit). This air is sucked in and expelled through the square holes in the front of the Froster. Therefore these air holes at the front must be kept clear at all times.
2. The Froster should be installed on a level surface. If the cabinet is not level, the door will not close properly.
3. Click the shelf supports into the climbing strips and fit the shelves.
4. After installation leave your Froster to stand for at least 2 hours prior to connection to the mains, to avoid damaging the compressor.
5. Power supply must be 220V/240V ac. 50Hz. Plug into an earthed socket.
6. Mains ON/OFF switch is located inside the cabinet on the back panel. In case of a light switch, the switch is located to the right/left of the thermostat.

TEMPERATURE

Your Gamko Froster is set to operate at temperatures between -10^ and -21^ . To adjust the temperature the plastic panel in front of the thermostat should be removed. For further instructions please refer to the instruction manual of the thermostat.

DEFROSTING

The cabinet has automatic defrost. Due to warm moist air entering the Froster each time the door is opened, the build up of ice on the evaporator (inside back panel) is inevitable. This ice is automatically removed during the defrost cycles. The defrost water will automatically evaporate in the driptray of the machine unit.

MAINTENANCE

Your Gamko Froster should be cleaned using a mild domestic detergent and warm water, never use abrasives or harsh chemicals. Consult the instructions for cleaning and maintenance of stainless steel.

In order to guarantee optimal performance the condenser (radiator in machine unit) should be cleaned weekly. Before cleaning the cabinet should be turned off and the unit be allowed to cool down sufficiently. To reach the condenser the small panel on the side of the cabinet should be opened, by undoing the 4 screws that hold the panel in place. The condenser can be cleaned using a vacuum cleaner or brush, replace the panel after cleaning.

FAULT FINDING

If there are any problems always check first whether the Froster is properly plugged in and whether the socket is charged (e.g. by plugging in a different electrical appliance)

The temperature is too high but the setting of the thermostat is correct.

Possible causes

1. The cabinet has no power
2. The cabinet has been stacked too full with products
3. The door is not closed properly
4. The evaporator has frozen
5. The air grille at the front is obstructed
6. Faulty thermostat
7. Faulty fan motor
8. Faulty compressor

Solution

1. Check / repair power supply
2. Distribute products evenly in cabinet and take care that air circulation is not obstructed
3. Clean magnetic strips and/or replace if necessary
4. Defrost evaporator using manual defrost cycle, or remove plug from socket to allow evaporator to defrost
5. Remove the obstruction
6. Contact your supplier
7. Contact your supplier
8. Contact your supplier

The temperature is too low but the setting of the thermostat is correct.

Cause

Faulty thermostat

Solution

Contact your supplier

Water is leaking from the cabinet

Causes

1. Too few defrost cycles
2. The drip tray under the evaporator is blocked
3. The drip tray in the unit is blocked

Solution

1. Defrost more often by starting up a manual defrost cycle (see manual thermostat)
2. Contact your supplier
3. Clean drip tray in the machine unit

WARNING!!!

When work is carried out on the machine unit, always unplug the cabinet. The machine unit contains sharp parts and some of these can reach high temperatures (100°C). Make sure the unit has cooled down sufficiently before starting any work on these. Always replace any removed parts in their proper place.

Repairs should only be carried out by a qualified approved Gamko dealer.

Contact your supplier for further details.

EC DECLARATION CONFORMITY FOR MACHINERY

(Directive 2006/42/EC, Annex II, sub A.)

Manufacturer: Gamko BV

Address: Mon Plaisir 75

4879 AL

Etten-Leur

The Netherlands

Herewith declares that the following product

- MF/**

Is provided as defined in:

◆ The EC machines (Directive 2006/42/EC)
◆ Electromagnetic compatibility (Directive 2004/108/EEC)
◆ Directive low-voltage (Directive 2006/95/EEC)
◆ PED pressurised equipment (Directive 97/23/EC)
◆ RoHS directive 2002/95/EC

Etten-Leur, 31-01-2007

P. Naaijkens

Manager Engineering and Quality Control

IMPORTANT INFORMATION AND WARNING: READ BEFORE INSTALLING THE UNIT. KEEP IN A SAFE PLACE THE INFORMATION IN THIS BOOKLET IS NEEDED FOR END OF LIFE. DISPOSAL OR REUSE OF THE UNIT.

INFORMATION IMPORTANTE ET AVERTISSEMENT: LIRE ATTENTIVEMENT AVANT L'INSTALLATION DE L'UNITE'. CONSERVER LES INFORMATIONS CONTENUES DANS CETTE NOTICE DANS UN ENDROIT SÔR PENDANT TOUTE LA VIE DE L'APPAREIL. CE DOCUMENT SERVIRA EN FIN DE VIE POUR L'ELIMINATION OU LE RECYCLAGE DE L'UNITE'.

GB

Gamko Holding BV is very sensitive to environment and welcomes the 2002/96/EC Directive WEEE (Waste Electrical and Electronic Equipment). This product is compliant with EU directive 2002/96/EC. It must be collected separately after its use is completed, and cannot be disposed as unsorted municipal waste. The objectives of EU directive 2002/96/EC are to tackle the fast increasing waste stream of electrical and electronic equipment, increase recycling of electric & electronic equipment ("EEE"), and to limit the total quantity of waste EEE ("WEEE") going to final disposal. The crossed out whcled bin symbol that is affixed to the product means that this product falls under the Directive. The user is responsible for returning the product to the appropriate collection facility, as specified by your municipality or the distributor. In case of installation of a new product, it may be possible to have the distributor pick up old WEEE directly. The producer, importer and distributor of are responsible for collection and treatment of waste, either directly or through a collective system. The list of the Gamko Holding BV distributor in each country is shown in the attached table. In case of violation of the Directive, sanctions are set in each country. Gamko Holding BV is in general following the "CECED interpretation", and consider the WEEE applicable to Portable units. De humidifiers, WRACs (Window Room Air Conditioners), Split Systems up to 12 kW, plug in refrigerators and freezers. Nevertheless, there may be difference among member state laws. In case country law exclude some products from WEEE scope, country law must be followed, and WEEE obligations do not have to be followed for products that fall out of country low scope. This directive does not apply to products sold outside European Community. In case the product is sold out of Eu,

WEEE obligations do not have to be followed, while compliance with local regulation must be ensured. For additional information, please contact the municipal facility, the shop/dealer/ installer that have sold the product, or the producer. _ Country _ Name of Company responsible for WEEE.
