USER MANUAL SCB1910VX SABA

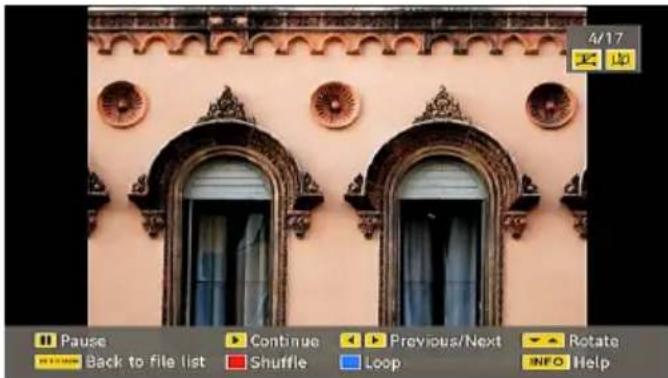

Pause (Touches): Suspend le diaporama.
PAL/SECAM B/G D/K K' I/I' L/L'
RéCEPTION DE CANAUX
VHF (BANDE I/III)
UHF (BANDE U)
HYPERBANDE
PANNEAU Ecran large 19" pouces
DIMENSIONS (mm)
CLASS 1 LASER PRODUCT
RISQUE D'LECTROCUTION
Safety Precautions 46
Power Source 46
Power Cord 46
Moisture and Water 46
Cleaning. 46
Heat and Flames 46
Lightning 46
Replacement Parts 46
Servicing 46
Waste Disposal 46
Information for Users in European Union
Countries 47
Disconnecting the Device 47
Headphone Volume 47
Installation 47
LCD Screen 47
Warning 47
Connection to a Television Distribution System (Cable TV etc.) from Tuner 47
Overview of the Remote Control 48
LCD TV and Operating Buttons 49
Viewing the Connections-Back Connectors 49
Viewing the Connections - Side Connectors 50
Power Connection 50
Aerial Connection 50
Connecting the LCD TV to a PC 51
Connecting to a DVD Player 51
Inserting Batteries into the Remote Control. 52
Switching the TV On/Off 52
To Switch the TV On 52
To Switch the TV Off 52
Using Side AV Connectors 52
Connecting Other Equipment via Scart 52
Input Selection 53
Basic Operations 53
Operation with the Buttons of the TV 53

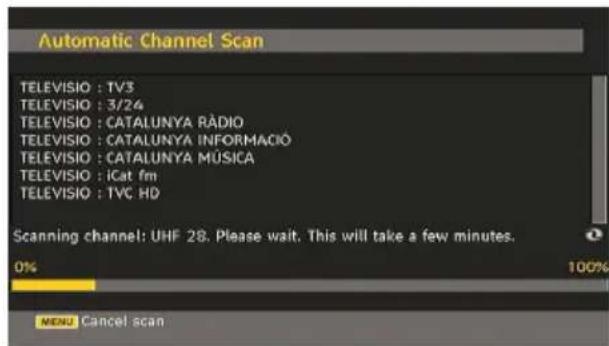

Initial Settings 53
General Operation 54
ElectronicProgramme Guide (EPG) 54

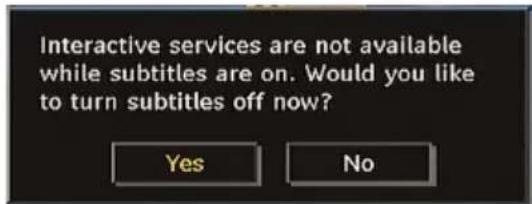

Displaying Subtitles 54
Digital Teletext (^** for UK only) 55
Analogue Teletext 55
Widescreen 55
IDTV Menu System 55

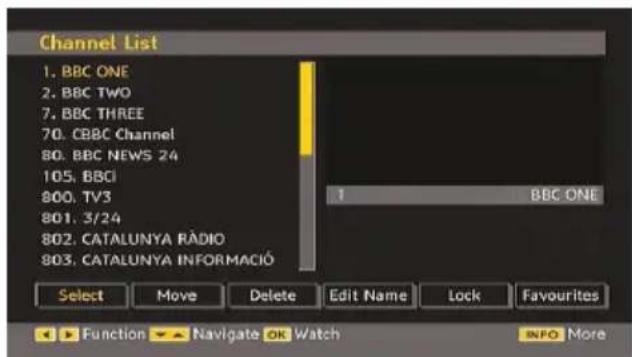

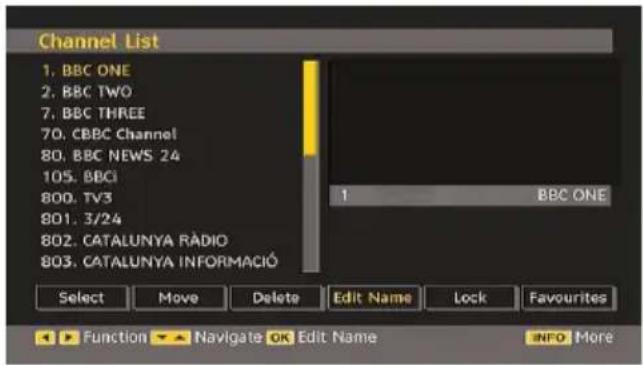

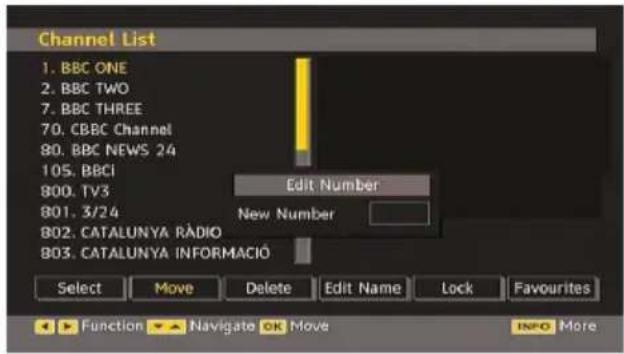

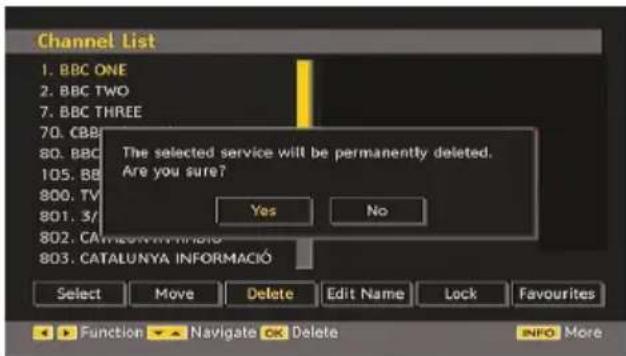

Channel List 55
Programme Guide 57

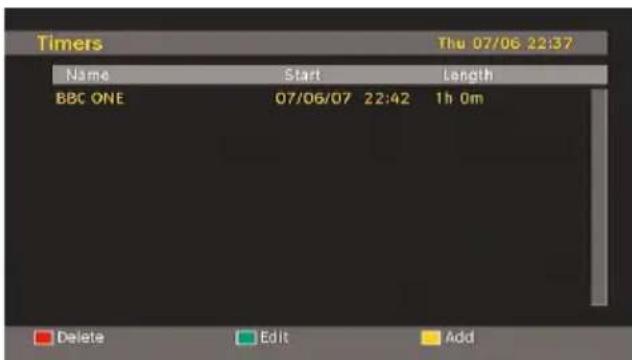

Timers 57
Conditional Access 57
TV Setup 58
Setup 58

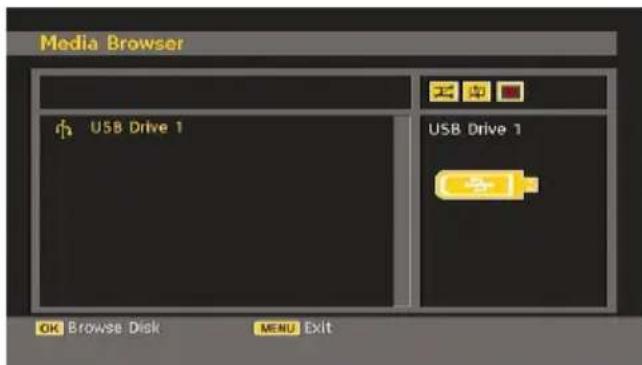

Media Browser 61

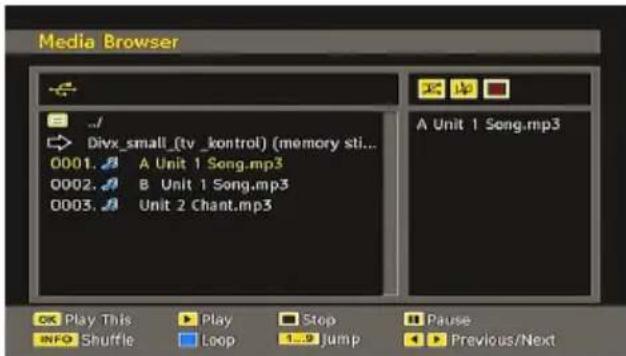

Playing MP3 Files 62

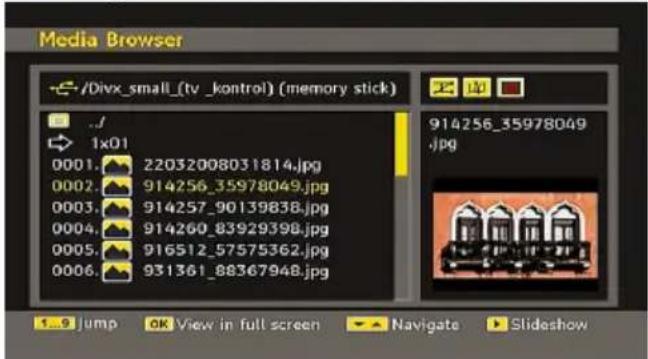

Viewing JPG Files 62
Slideshow Options 62
VideoPlayback 62
Analogue TV Menu System 63

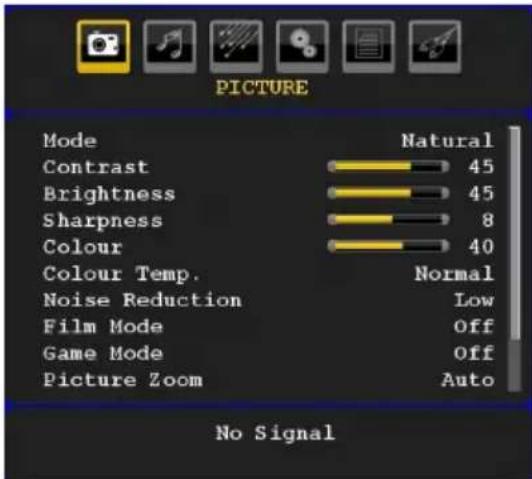

Picture Menu 63

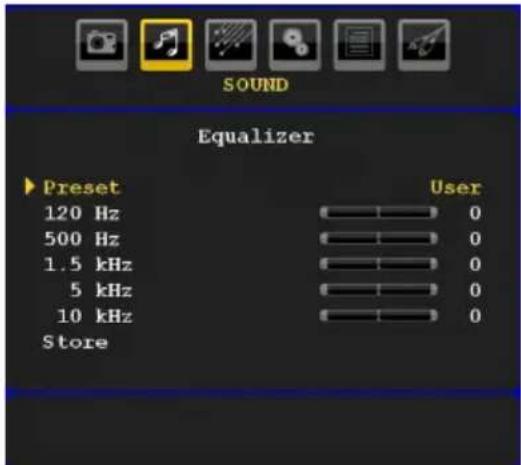

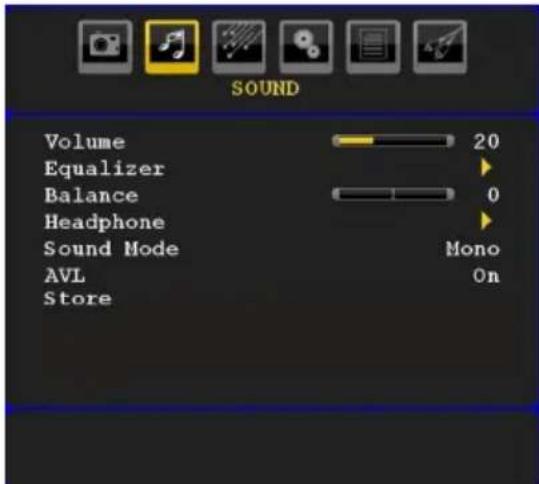

Sound Menu 63

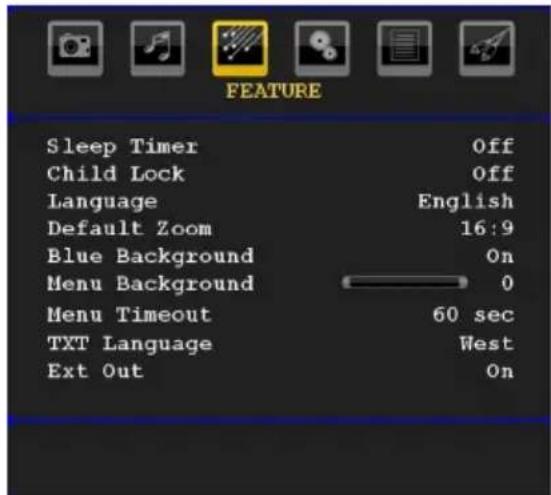

Feature Menu 64

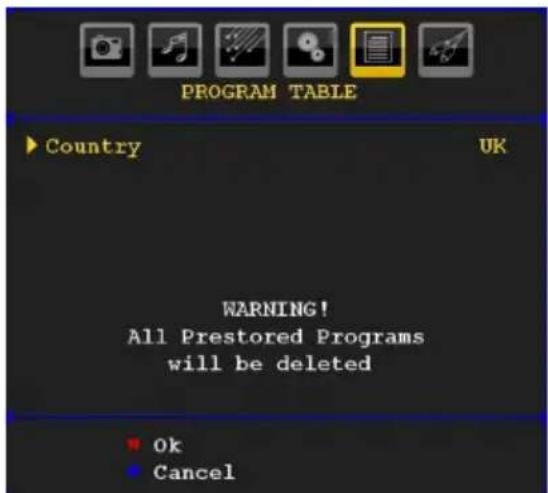

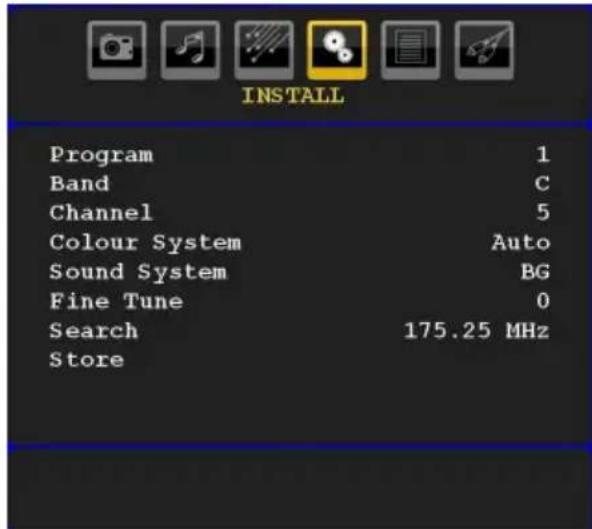

Install Menu 65
Source Menu 67
PC Mode Menu System 67

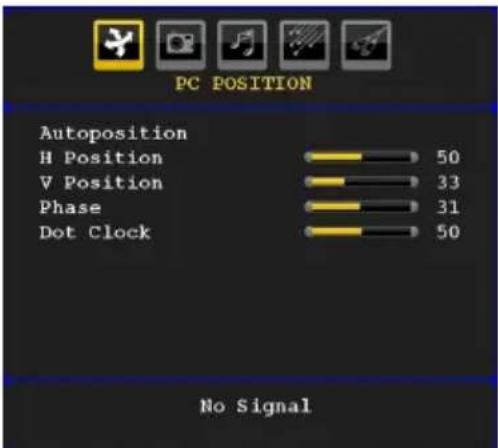

PC Position Menu 67
Displaying TV Information 67
Mute Function 68
Picture Mode Selection 68
Freezing Picture 68
Zoom Modes. 68
Auto 68
16:9 68
4:3 68
Panoramic. 68
14:9 68
Cinema 68
Subtitle 68
Zoom 68
Teletext 69
Tips 69
Image Persistence 69
No Power 69
Poor Picture 69
No Picture 69
Sound 69
Remote Control 69
Input Sources 69
Appendix A: PC Input Typical Display Modes 70
Appendix B: AV and HDMI Signal Compatibility (Input Signal Types) 71
Appendix C: Supported File Formats for USB
Mode. 72
Specifications 73
Please read the corresponding instructions of this handbook prior to the first usage of the device, even when the usage of electron devices is familiar to you. Notice especially the chapter SAFETY PRECAUTIONS. Carefully keep the handbook as future reference. When selling the device or giving it away, absolutely give these direction for use.

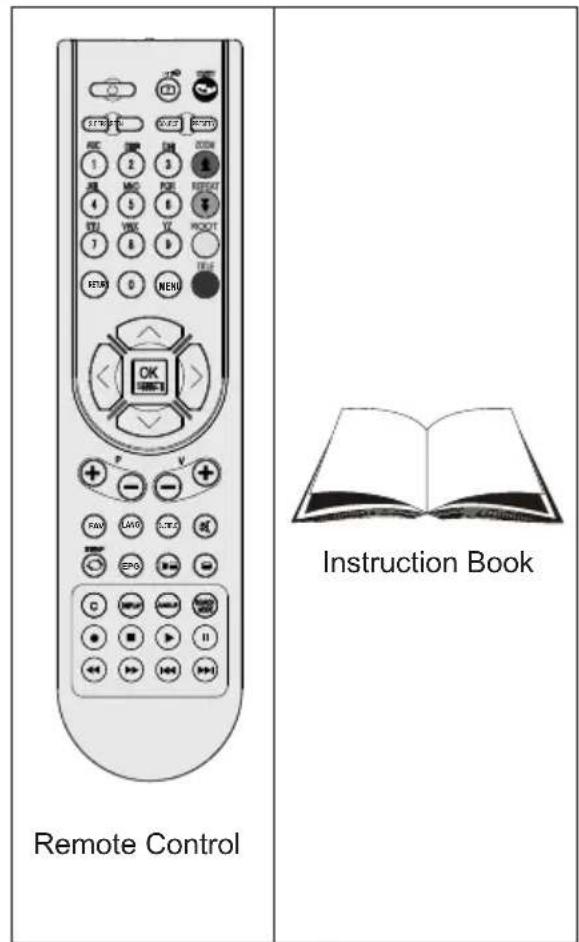

Accessories
Note: You should check the accessories after purchasing. Make sure that each accessory is included.
Features
Remote controlled colour LCD TV.
Fully integrated digital TV (DVB-T).
- HDMI connector for digital video and audio. This connection is also designed to accept high definition signals.
- USB input.
200 programmes from VHF, UHF(analogue).
- 500 programmes for digital mode (IDTV).
- OSD menu system.
- Scart socket for external devices (such as video, video games, audio set, etc.).
- Stereo sound system.
- Teletext, fastext, TOP text.
- Headphone connection.
Automatic programming system.
- Forward or backward manual tuning.
- Sleep timer.
Child lock.
Automatic sound mute when no transmission.
- NTSC playback.
AVL (Automatic Volume Limiting).
- When no valid signal is detected, after 5 minutes the TV switches automatically to standby mode.
- PLL (Frequency Search).
- PC input.
- Plug&Play for Windows 98,ME,2000,XP, Vista, Windows 7.
Game Mode (optional).
Introduction
Thank you for choosing this product. This manual will guide you for the proper operation of your TV. Before operating the TV, please read this manual thoroughly.
Please do keep this manual in a safe place for future references.
This device is intended to receive and display TV programs. The different connection options make an additional expansion of the reception and display sources possible (receiver, DVD player, DVD recorder, VCR, PC etc.). This device is only suitable for the operation in dry interiors.
This appliance is intended solely for private domestic use and may not be used for industrial and commercial purposes. We exclude liability in principle, if the device is not used as intended, or unauthorized modifications have been made. To operate your LCD-TV in extreme ambient conditions may cause the damage of the device.
Preparation

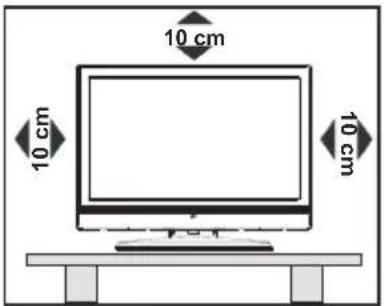

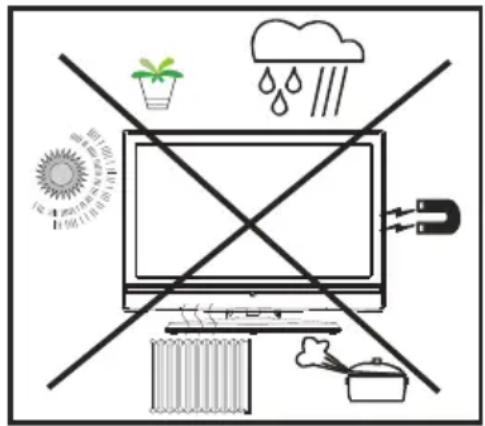

For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set.
Use this device in moderate climates.
Safety Precautions
Read the following recommended safety precautions carefully for your safety.
Power Source
The TV set should be operated only from a 220-240 V AC, 50Hz outlet. Ensure that you select the correct voltage setting for your convenience.
Power Cord
Do not place the set, a piece of furniture, etc. or the power cord (mains lead) or pinch the cord. The connection plug should be readily accessible to the power cord and mains. Handle the power cord by the plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet hands as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cords should be placed in such a way that they are not likely to be stepped on. A damaged power cord can cause fire or give you an electric shock. When it is damaged and needs to be replaced, it should be done by qualified personnel.
Moisture and Water
Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this device to rain or water, as this may be dangerous and do not place objects filled with liquids, such as flower vases, on top. Avoid from dripping or splashing.
If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.
Cleaning
Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth.
Ventilation
The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.
Heat and Flames
The set should not be placed near to open flames and sources of intense heat such as an electric heater. Ensure that no open flame sources, such as lighted candles, are placed on top of the TV. Batteries should not be exposed to excessive heat such as or the like.
Lightning
In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.
Replacement Parts
When replacement parts are required, make sure that the service technician has used replacement parts, which are specified by the manufacturer or have the same specifications as the original one. Unauthorized substitutions may result in fire, electrical shock or other hazards.
Servicing
Please refer all servicing to qualified personnel. Do not remove the cover yourself as this may result in an electric shock.
Waste Disposal
Instructions for waste disposal:
-
Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children.
-
Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environment friendly manner. Find out about the legal regulations which apply in your area.
-
Cold cathode fluorescent lamp in LCD PANEL contains a small amount of mercury; please follow the local laws or regulations for disposal. Don't try to recharge batteries. Danger of explosion. Replace batteries only with the same or equivalent type.
This symbol on the product or on its packaging means that your electrical and electronic device should be disposed at the end of its service life separately from your household wastes. There are separate collection systems for recycling in EU.
For more information, please contact the local authority or the dealer where you purchased the product.
Disconnecting the Device
The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.
Headphone Volume
Excessive sound pressure from earphones and headphones can cause hearing loss.
Installation
To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).
LCD Screen
The LCD panel is a very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.
Warning
Do not leave your TV in standby or operating mode when you leave your house.
Connection to a Television Distribution System (Cable TV etc.) from Tuner
Device connected to the protective earthing of the building installation through the mains connection or through other apparatus with a connection to protective earthing-and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard.
Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11).
The Standby / On button doesn't separate this device completely from mains. Moreover the device consumes power in the standby operation. In order to separate the device completely from mains, the mains plug has to be pulled from the mains socket. Because of that the device should be set up in a way, that an unobstructed access to mains socket is guaranteed, so that in case of emergency the mains plug can be pulled immediately. To exclude the danger of fire, the power cord should principally be separated from the mains socket prior to a longer period of non-usage, i.e. during vacations.
Electrical device not in the hands of children Never let children use electrical device unsupervised.
Children can't always recognize properly the possible dangers.
Batteries / accumulators can be life threatening when swallowed. Store batteries unreachable for small children. In case of swallowing a battery medical aid has to be sought immediately. Also keep the packaging foils away from children. There is danger of suffocation.

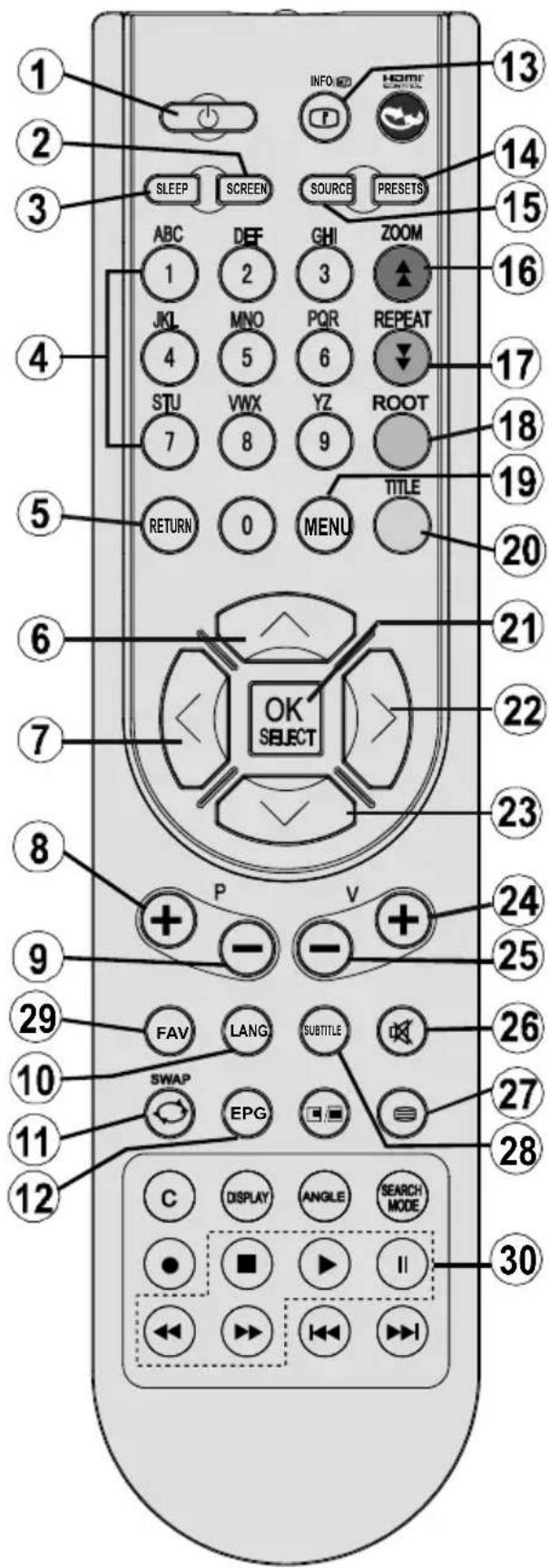

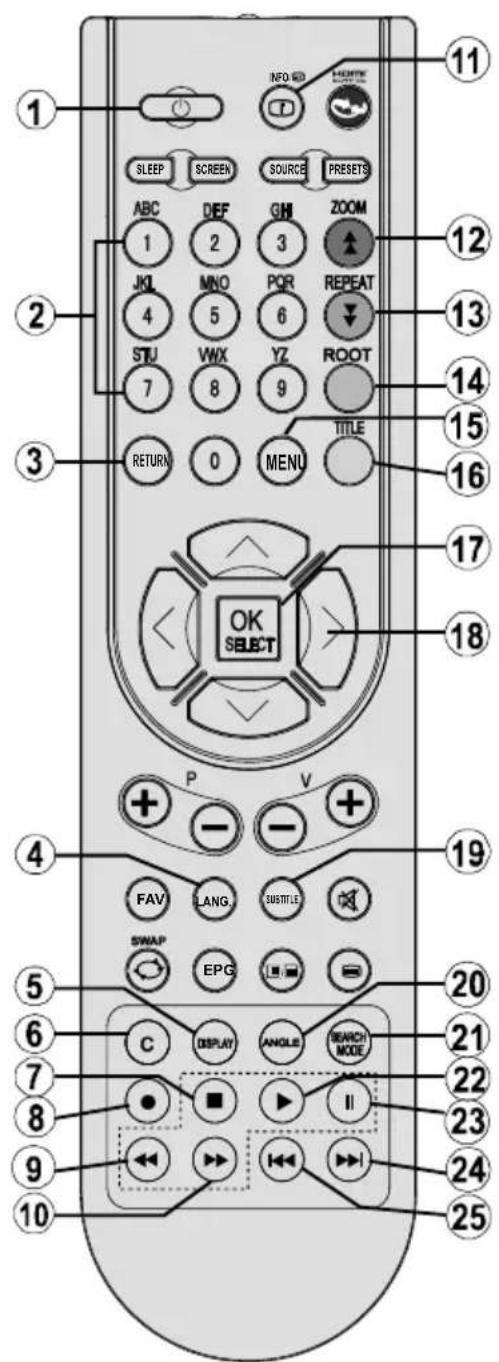

Overview of the Remote Control
Standby1.
Image size2.
Sleep timer3.
Numeric buttons4.
Return/Exit/TXTIndex5.
Cursor up / TXT up page6.
Cursor left 7.
Programme up / Page down (in DTV mode)8.
Programme down / Page up (in DTV mode)9.
Mono-Stereo/Dual I-II10.
Swap11.
Electronic programme guide (in DTV mode)12.
Info / TXT reveal13.
Picture mode selection14.
Source selection15.
Red / Sound 16.
Green / Picture 17.
- Yellow / Feature / Current language (in DTV mode) (*)
Menu19.
- Blue / Install
- OK / Select / Freeze Picture (analogue TV mode) / Hold (in TXT mode) / Channel List (DTV mode)
- Cursor right / TXT Subpage
- Cursor down / TXT Downpage
- Volume up
- Volume down
- Mute
- Teletext / Mix / PAT mode
- Subtitle (in DTV mode) / TXT Subtitle (analogue TV mode)
- FAV (^*) (Favourite Selection)(in DTV mode)
- Media Player buttons
(^) Only available for EU country options.
Note: Buttons that are not indicated with a number on the remote control illustration are not functional in TV mode.
Remote range is approximately 7m/23ft
LCD TV and Operating Buttons
| FRONT and REAR VIEW | SIDE VIEW | Control Buttons |
| + ① - ② ③ ④ | Up button1.
Down button2.
Programme/Volume / AV 3.
selection button
Standby/On button4.
Note:You can use “+/-” buttons to change volume. If you want to change channels, press P/V/AV button once and then use “+/-” buttons. If you hold the P/V/AV button about a few seconds, source OSD will be displayed. Main menu OSD cannot be displayed via control buttons. |

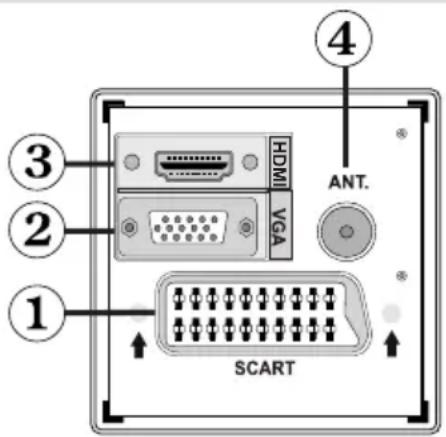

Viewing the Connections-Back Connectors
SCART socket inputs or outputs for external devices.1.
Connect the SCART cable between SCART socket on TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player).
Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.
PC Input is for connecting a personal computer to the TV set. 2. Connect the PC cable between the PC INPUT on the TV and the PC output on your PC. Component Video Inputs (YPbPr) are used for connecting component video.
You can use PC input to enable YPbPr signal connection with a device that has component output. Connect the YPbPr to PC cable between the PC INPUT on the TV and the component video outputs of your device. (YPbPr cable is not supplied)
HDMI3. : HDMI input
HDMI Input is for connecting a device that has an HDMI socket.
Your LCD Television is capable of displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 480i, 480p, 576p, 576i, 720p, 1080i, 1080p (optional) signals. No sound connection is needed for an HDMI to HDMI connection.
- RF Input connects to an antenna or a cable system.
Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable, as shown in the illustration in the following pages.
When you use the wall mount kit (optional) with the LCD TV, we would definitely recommend to plug all your cables into the back of the LCD before mounting to the wall.

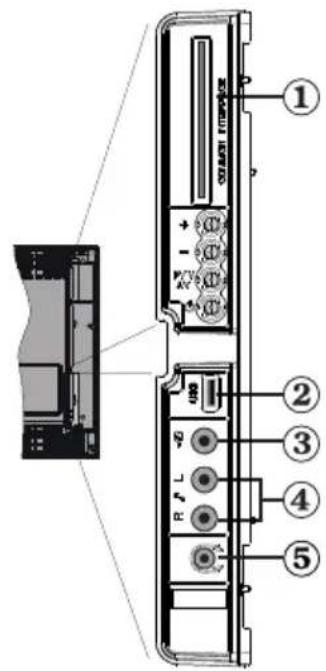

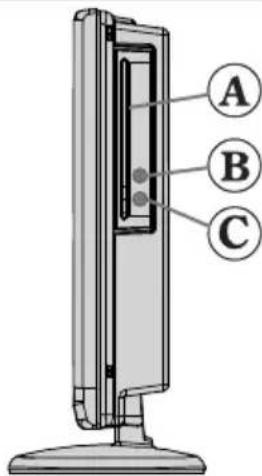

Viewing the Connections - Side Connectors
CI Slot is used for inserting a CI card. A CI card allows you to view all the 1. channels that you subscribe to. For more information, see "Conditional Access" section.
USB Input (functional in DTV mode only) (optional).2.
Video Input is used for connecting video signals of external devices.3. Connect the video cable between the VIDEO IN socket on the TV and the VIDEO OUT jack on your device.
Audio Inputs are used for connecting audio signals of external devices. 4. Connect the audio cable between the AUDIO INPUTS on the TV and the AUDIO OUTPUT jacks on your device.
Also to enable PC/YPbPr sound connection in such a case, use an appropriate audio cable between the connected device's audio outputs and the TV's audio inputs
Note: If you connect a device to the TV via the VIDEO or PC/YPbPr cable (YPbPr cable is not supplied) you should also connect your device with an audio cable to the AUDIO INPUTS of the TV to enable audio.
Headphone jack is used for connecting an external headphone to the 5. system. Connect to the HEADPHONE jack to use headphones.
Power Connection
IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.
After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains.
- Plug the power cable to the mains socket outlet.

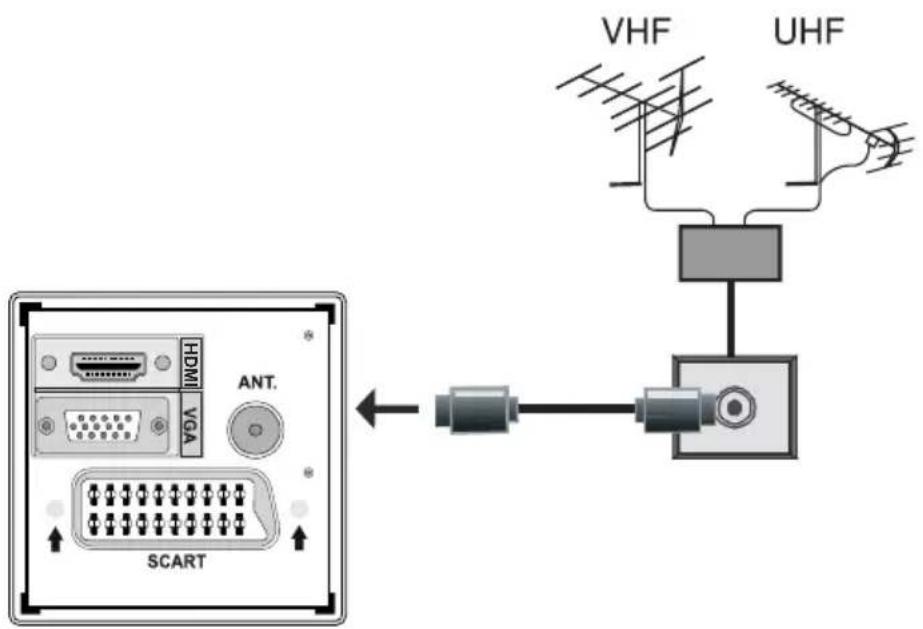

Aerial Connection
- Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.

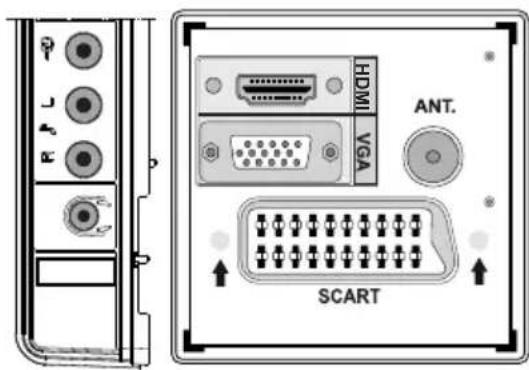

Connecting the LCD TV to a PC
For displaying your computer's screen image on your LCD TV, you can connect your computer to the TV set.
- Power off both computer and display before making any connections.
- Use 15-pin D-sub display cable to connect a PC to the LCD TV. Use an audio cable between audio inputs of the TV (side) and audio output of your PC to enable sound connection.
- When the connection is made, switch to PC source. See "Input selection" section.
- Set the resolution that suits your viewing requirement. Resolution information can be found in the appendix parts.

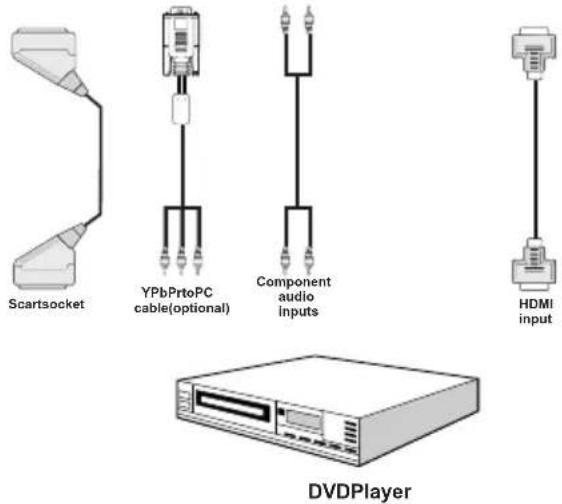

Connecting to a DVD Player
If you want to connect a DVD player to your LCD TV, you can use connectors of the TV set. DVD players may have different connectors. Please refer to your DVD player's instruction book for additional information. Power off both the TV and the device before making any connections.
Note: Cables shown in the illustration are not supplied.
- If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to DVD player as illustrated below, switch to HDMI source. See, "Input Selection" section.
- Most DVD players are connected through COMPONENT SOCKET. YPbPr can be use only when you connect a device that has a YPbPr output through the PC input with YPbPr to PC cable. To enable sound connection, use AUDIO IN located side of the TV (YPbPr cable is not supplied).
When the connection is made, switch to YPbPr source. See, "Input selection" section.
- You may also connect through the SCART socket. Use a SCART cable as shown below.
Note: These methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods.

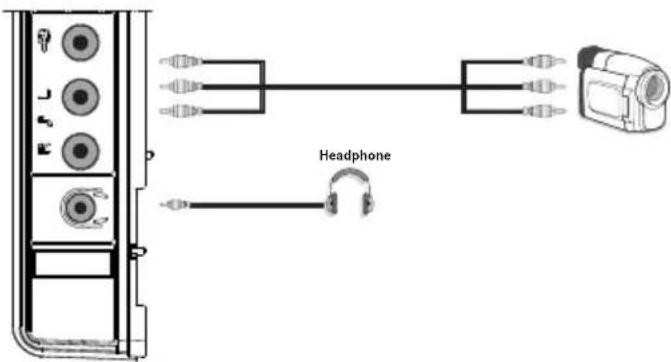

Using Side AV Connectors
You can connect a range of optional equipment to your LCD TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.
- For connecting a camcorder, connect to theVIDEO IN socket and the AUDIO SOCKET. For selecting the related source, see the section "Input selection" in the following parts.
- To listen the TV sound from headphones, connect to the HEADPHONE jack of theTV.

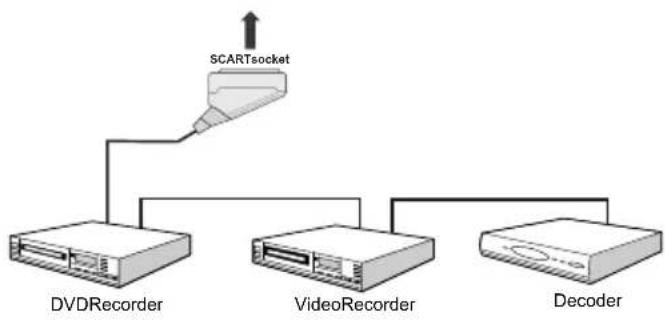

Connecting Other Equipment via Scart
Most devices support SCART connection. You can connect a; DVD recorder, a VCR or a decoder to your LCD TV by using the SCART socket. Note that cables shown in the illustration are not supplied. Power off both the TV and the devices before making any connections.
For more information, refer to your device's own instruction book.

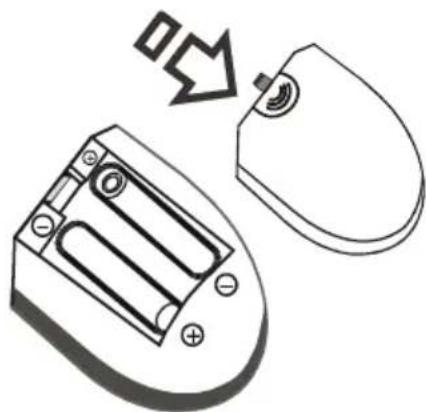

Inserting Batteries into the Remote Control
- Remove the battery cover located on the back of the remote control by gently pulling backwards from the indicated part.
- Insert two AAA/R3 or equivalent type batteries inside. Observe the correct polarity (+/-) when inserting batteries and replace the battery cover.
Note: Remove the battery from remote control when it is not to be used for a long period. Otherwise it can be damaged due to any leakage of batteries.
Switching the TV On/Off
To Switch the TV On
- Connect the power cord to the 220-240V AC, 50Hz . Then the standby LED lights up.
- To switch on the TV from standby mode either:
- Press the "O" button, P + / P - or a numeric button on the remote control.
- Press the "O" button, -P/CH or P/CH+ button on the TV. The TV will then switch on.
Note: If you switch on your TV via standby button on the remote control, the programme/source that you were watching last will be reselected.
By either method the TV will switch on.
To Switch the TV Off
- Press the button on the remote control or press the "O" switch on the TV, so the TV will switch to standby mode.
- To power down the TV completely, unplug the power cord from the mains socket.
Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active.

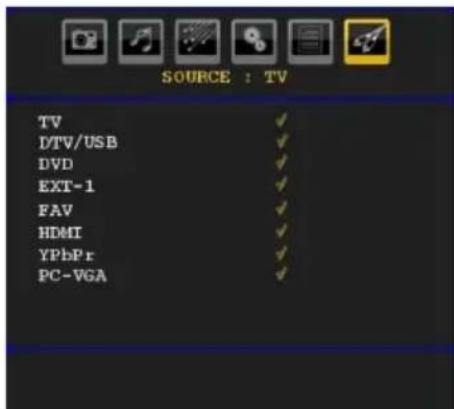

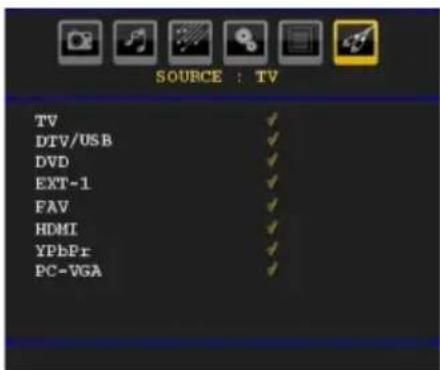

Once you have connected external systems to your TV, you can switch to different input sources.
- Press SOURCE button on your remote control for directly changing sources.
or
- Select "Source" option from the main menu by using or button. Use then or "▲button to highlight an input and press "▶button to select.
Note: You can mark desired source options by pressing the OK button. Therefore, when SOURCE button is pressed, only the marked source options will be available (except for the TV source).
Note: YPbPr mode can be use only when you connect a device that has a YPbPr output through the PC input with YPbPr to PC cable (YPbPr cable is not supplied).
Basic Operations
You can operate your TV using both the remote control and onset buttons.
Main menu OSD cannot be displayed via control buttons. + / - buttons will function as volume up/down as default. Even if you set other functions for these buttons, + / - buttons will perform as default after a short while.
Volume Setting
- Press +/- buttons to increase or decrease volume, so a volume level scale (slider ) will be displayed on the screen.
Programme Selection
- Press P/N/AV button once and then use +/- buttons to select the next or previous programme.
AV Mode
-
Hold the "P/V/AV" button, source OSD will be displayed.
-
Use "+" buttons to select the desired source.
Operation with the Remote Control
- The remote control of your TV is designed to control all the functions of the model you selected. The
functions will be described in accordance with the menu system of your TV.
- Functions of the menu system are described in the following sections.
Volume Setting
- Press "V+," button to increase the volume. Press "V-" button to decrease the volume. A volume level scale (slider) will be displayed on the screen.
Programme Selection (Previous or Next Programme)
- Press "P-" button to select the previous programme.
- Press "P +" button to select the next programme.
Programme Selection (Direct Access)
- Press numeric buttons on the remote control to select programmes between 0 and 9. The TV will switch to the selected programme. To select programmes between 10-500 (for IDTV) or 10-199 (for analogue), press the numeric buttons consecutively
- Press directly the programme number to reselect single digit programmes
Initial Settings
When the TV is turned on for the first time, the menu for the language selection appears on the screen. The message "Welcome please select your language!" is displayed in all language options sequentially in the OSD.
By pressing the or buttons highlight the language you want to set and press OK button. After then, "First time installation" OSD will appear on the screen. By pressing or buttons, select the country you want to set and press OK button (* for EU countries).
Note: If you would like to use your Television in an unlisted country, please set county option as Hungary, Romania, Slovenia, Albania, Germany or Finland.
Note: Country selection OSD will not be available for UK.
Press OK button on the remote control to continue and the following message will be displayed on the screen:
To select the "Yes" or "No" option, highlight the item by using or buttons and press the "OK" button.
The IDTV will automatically tune to the UHF or VHF* (^*) * for EU countries) transmission channels, searching
for digital terrestrial TV broadcasts and displaying the names of channels found. This process will take about a few minutes.
After Automatic Search is completed, the following message asking for analogue channel search appears on the screen:

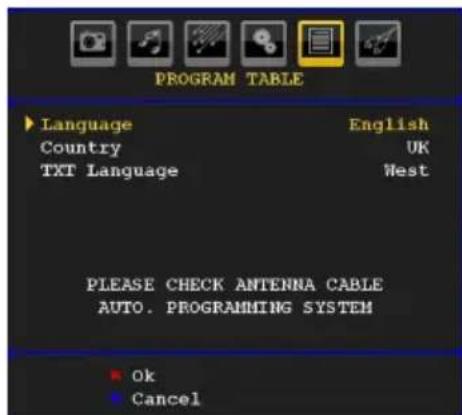

To search for analogue channels, select "Yes". TV switches to the analogue TV mode. The menu is displayed to search for analogue channels.
Select your Country, Language and Text language by using “ ” or “ ” and “ ” buttons. Press OK or RED button to continue. To cancel, press the BLUE button.
For more information on this process, see "Install Menu" section.
Note: For proper functioning of digital teletext in DTV mode, you should set country as UK in analogue AUTO PROGRAM (for UK broadcasts only).
Do not turn off the TV while initializing first time installation.
General Operation
Press the "SOURCE" button on the remote control and select DTV to switch the TV set to digital terrestrial television broadcasting.
- Whenever you change channel, using the P-/P+ button or the numeric buttons, the TV displays the broadcast picture along with an information banner at the bottom of the screen (available only in DTV mode). This will remain on the screen for a few seconds.
The information banner can also be displayed at any time while watching TV by pressing the "INFO" button on the remote control:
If the selected channel is locked, you must enter the correct four numeric code to view the channel. "Enter PIN" will be displayed on the screen in such a case:

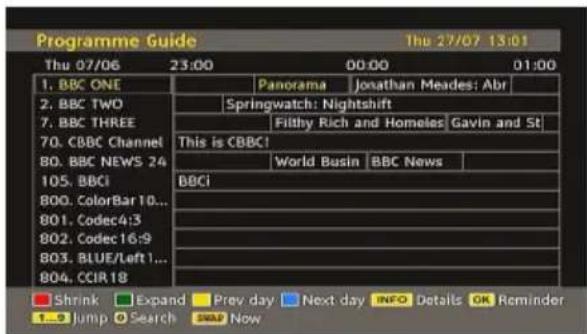

Electronic Programme Guide (EPG)
- Some, but not all, channels send information about the current and next events. Press EPG button to view the EPG menu. EPG appears on the screen. It is able to get Information of the channel - programs weekly by means of 7-DAY-EPG. All programs of channels are displayed. On the bottom of the screen; info bar, showing all the available commands, will be displayed.
RED button (Shrink): makes the info boxes smaller. GREEN button (Expand): makes the info boxes larger.
YELLOW button (Prev. Day): displays the programmes of previous day.
BLUE button (Next day): displays the programmes of the next day.
INFO (Details): displays the programmes in detail.
Numeric buttons (Jump): go to preferred channel directly via numeric buttons.
OK: view for current broadcast/reminders for future programs.
SWAP: jumps to the current broadcast.
- Press "0" button on the remote control to view Guide Search menu. Using this feature, you can search the programme guide database in accordance with the genre selected or with name match.
Displaying Subtitles
With digital terrestrial broadcasting (DVB-T), some programmes are being broadcasted with subtitles.

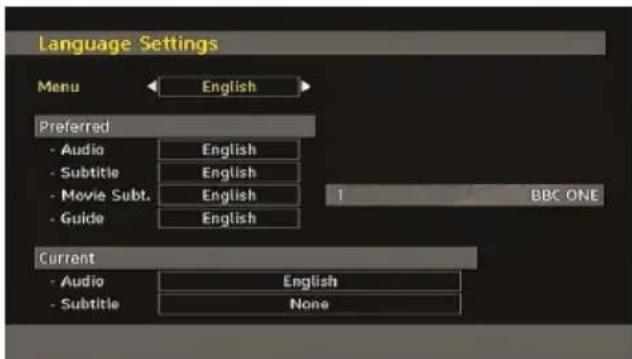

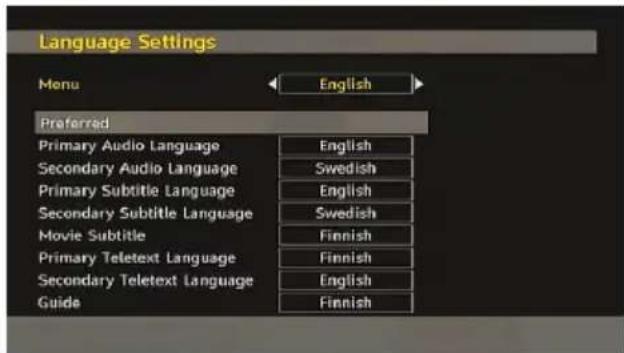

Press the "MENU" button to display the main menu, highlight the Setup and then Language menu using
"or" button and press the OK button to display the "Language settings" menu.
Highlight the "Subtitle" item in "Language settings" menu and use or "button to set Subtitle to the desired language.
Note: You can enable subtitles by pressing the SUBTITLE button of the remote control. Press SUBTITLE button again to disable subtitle function.
If "Subtitle" is on and a language option is set, pressing the "▶" button causes the following warning message display on the screen (** for UK only):
Digital Teletext (\*\* for UK only)
- Press the button.
The digital teletext information appears.
- Operate it with the coloured buttons, cursor buttons and OK button.
The operation method may differ depending on the contents of the digital teletext.
Follow the instructions displayed on digital teletext screen.
- When Press "SELECT" button or similar message appears on the screen, press the OK button.
- When the "●" button is pressed, the TV returns to television broadcasting.
- With digital terrestrial broadcasting (DVB-T), in addition to digital teletext broadcasting together with the normal broadcasting, there are also channels with just digital teletext broadcasting.
- The aspect ratio (picture shape) when watching a channel with just digital teletext broadcasting is the same as the aspect ratio of the picture viewed previously.
- When you press the " " button again, the digital teletext screen will be displayed.
Analogue Teletext
Use of teletext and its functions are identical to the analogue text system. Please do refer to the "TELETEXT" explanations.
Widescreen
Depending on the type of the broadcast being transmitted, programmes can be viewed in a number of formats. Press the "SCREEN" button repeatedly to change screen format.
When Auto is selected, the format being displayed is determined by the picture being broadcasted.
PLEASE NOTE: Menu size changes depending on the chosen image size.
Notice!
AC3 audio type is not supported. In this case, TV sound will be muted. If the broadcast includes AC3
stream, the following warning message will be displayed on the screen:
If there is no audio available, the following warning message will be displayed on the screen:.

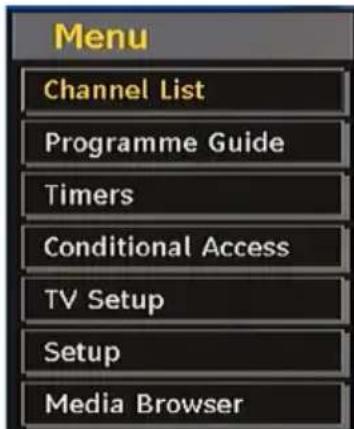

Press the "MENU" button. Main menu will be displayed.
Channel List
Using the or "▲ button on the remote control, make sure that the first item, Channel List, is highlighted and press the "OK" button to display the Channel List. Or you press the OK button during watching DVB-T broadcasting and get to the Channel List directly.
Navigating the Entire Channel List
Press "or " button for selecting the previous or next channel. You can press "RED" or "GREEN" button to move page up or page down.
To watch a specific channel, highlight it using or "▲" button and then press "OK" button, while the "Select" item on Channel List menu is highlighted by using "▲" or "▶" button.
Then the name and number of the selected channel will be displayed in the top-left and top-right of the channel display at the top-right of the screen, respectively.
Moving the channels in the channel list
- Press "or" buttons to select the channel that will be moved.
- Press "←" or "→" buttons to select the "Move" item on Channel List menu.
Following OSD will be displayed next to "OK" item to indicate that enter a number by using the numeric buttons on the remote control and press "OK" to confirm.
Note: If you enter the same programme number of the channel that you want to move, "... channel services will be replaced. Do you want to continue?" OSD will be displayed. Press OK to confirm or select "No" to cancel.
Deleting the Channels in the Channel List
- Press "▼or " button to select the channel that will be deleted.
- Press " or " button to select the "Delete" item on Channel List menu.
- Press the "OK" button to delete the highlighted channel in the channel list. Then the message below appears on the screen:
- Press or button to highlight the desired option. If "OK" button is pressed while "Yes" is highlighted, the highlighted channel is deleted. Selecting "No" cancels the deletion.
Renaming Channels
To rename a specific channel, the channel must be highlighted by pressing "or" button. Then highlight the Edit Name item by pressing "or" button as illustrated below. Press the "OK" button to activate the rename feature.
Now pressing or "▶ button moves to the previous/ next character. Pressing or "▲ button toggles the current character, i.e., 'b' character becomes 'a' by " and 'c' by " ". Pressing the numeric buttons '0...9' replaces the highlighted character with the characters printed above the button one by one as the button is pressed.
Press the "MENU" button to cancel the editing or OK button to save the new name.

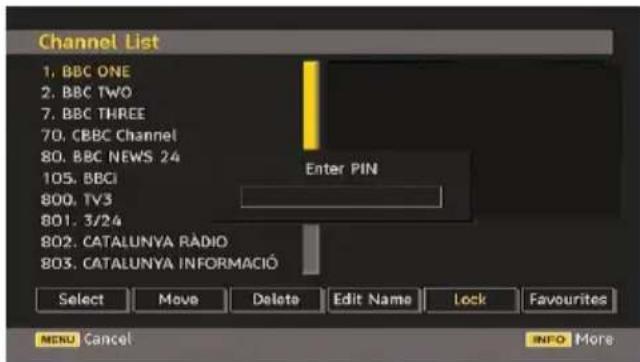

Adding Locks to Channels
Channel locking provides a password-protected access to channels selected by parents. In order to lock a channel you should know the parental lock password (default value is set to 0000 in the factory and can only be changed from the Configuration menu).
Select the channel to be locked by highlighting it and select the Lock option by pressing 一 ^ 一 or 一 ^ 一 button. When the OK button is pressed, a dialog OSD asking for the password will be displayed.
Enter the password by using the numeric buttons on the remote control. The lock icon will now be displayed next to the selected channel. Repeat the same operation to cancel the lock.

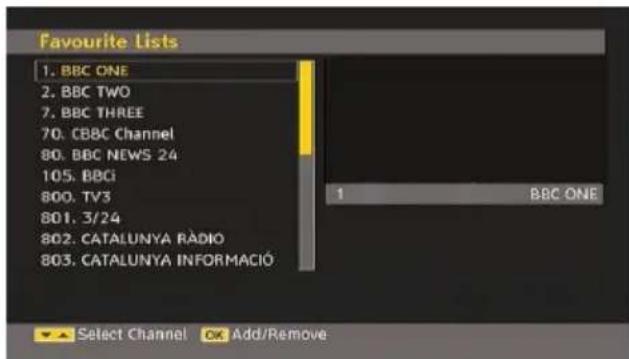

Setting Favourites
To set a favourite you should highlight the "Favourites" item at the bottom of the Channel List menu. Then press "OK" button and Edit Favourite List menu appears on the screen.
How to Add a Channel to a Favourites List
- By pressing or " buttons, highlight the channel that you want to add to the favourite list.
- By pressing "OK" button, the highlighted channel is added to the Favourite List.
F icon indicates that a channel is added to Favourite List.
Removing a Channel from Favourite List
- Highlight the channel that you want to remove from the favourite list and press OK button to remove. You can press "OK" button again to re-add a channel.
To activate Favourites, go to the Configuration menu and select Favourite mode. Use / to set Favourite mode as on. To cancel Favourites, set Favourite Mode to Off.
On Screen Help
For all menus, press the INFO button to display the help information about the menu functions.
Programme Guide
This section is same with the instructions given the General Operations page. Please see Electronic Programme Guide (EPG) section in the General Operations part.
Timers
To display timers window, activate the item from the main menu. To add a timer, press the YELLOW button on the remote control. Then "Add Timer" window appears.
Mode: Selects channel list mode.
Channel: " " or " keys will navigate the user through the TV or Radio list.
Date: Starting date is entered via the Left/Right and the numeric buttons.
Start: Starting time is entered via the Left/Right and the numeric buttons.
End: Ending time is entered via the Left/Right or and numeric buttons.
Duration: Duration between Start and End time.
Repeat: You can set a timer to be repeated as Once, Daily or Weekly.
Change/Delete:permits or prohibits any modifications for other users.
You can save the adjustments by pressing the GREEN key or cancel the process by pressing the RED button. You can edit the list via GREEN key and delete with the RED button.
Conditional Access
- Press the "MENU" button to display the main menu and use the "▼or" button to highlight the "Conditional Access" line and press the "OK" button:
Conditional Access
Some Digital Terrestrial channels operate on a Pay Per View basis. These require a subscription and a hardware decoder.
Obtain the Conditional Access Module (CAM) and the viewing card by subscribing to a pay channel company, then insert those to the TV using the following procedure.
- Switch off the TV and unplug from the mains.
- The CAM should be correctly inserted, it is impossible to insert fully if reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.
- Connect the TV to the mains supply, switch on and then wait for few moments until the card is activated.
- Some CAMs may require the following set up. Please set the CAM by entering the IDTV menu, Conditional Access then pressing the "OK" button. (CAM set up menu is not displayed when it is not required.)
- To see the viewing contract information: enter IDTV; press the "MENU" button, then highlight Conditional Access and press the "OK" button.
- When no module is inserted, "No Conditional Access module detected" message appears on the screen.
Refer to the module instruction manual for details of the settings.
Note: Insert or remove the CI module only when the TV is in STANDBY mode or disconnected from the mains.
TV Setup
You can use this item to display the TV functions.
The digital TV Setup menu screen is accessed from the main menu. Press the "MENU" button to display the main menu and use "▼" or "▲" button to highlight "TV Setup", press the "OK" button to display TV Setup menu screen.
TV Setup
You can find detailed information for all menu items in "Analogue TV Menu System" section.
Setup
The adjustments in this menu are given as the following:

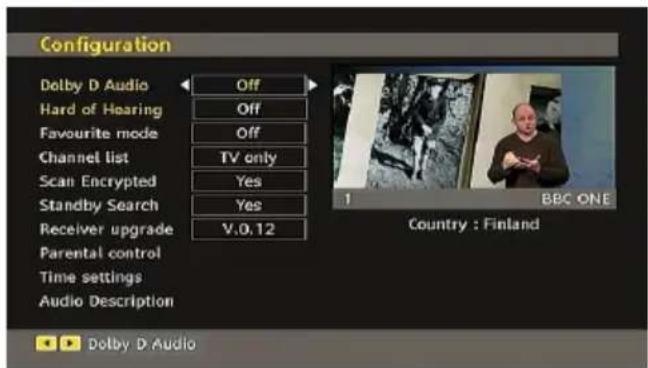

Configuration
You can configure the settings of your TV. Select Configuration from Setup menu and press "OK" to view this menu. Press the "EXIT" button on the remote control to exit.
Dolby D Digital (* for EU countries only) (Optional)
In the Configuration Menu, highlight the Dolby D item by pressing "▼or" buttons. Use the " " or " " buttons to set the Dolby Digital as On or Off. If the channel that you are watching supports Dolby Digital, you can turn this setting on.
Hard of Hearing (* for EU countries only)
Use "or" button to select Hard of Hearing and then press "or" button to set this setting as On or Off.
If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.
Favourite Mode
Use this function to enable or disable favourite mode. Press " / " button to set this function as on or off.
Channel List
Use "or" buttons to go to Channel List option. Use "or" buttons to toggle Channel List Mode. If you select "TV Only", with the "or" buttons, you navigate through only TV channels. If you select "Radio Only", with the "or" buttons, you navigate through only radio channels. If you select "Text Only", with the "or" buttons, you navigate through only text channels.
Scan Encrypted
Scan Encrypted Channel feature will always be ON after performing first time installation. When this setting is on, search process will locate the encrypted channels as well. If it is set as OFF manually, encrypted channels will not be located while in automatic search or manual search.
Use "▼" or "▲" button to select Scan Encrypted and then press "▼" or "▼" button to set this setting as On or Off.
Receiver Upgrade
Over Air Download (OAD)
This feature helps to keep your TV updated. It works automatically and searches for new information when available. Note that this setting is inactive to be modified. Please ensure that the TV is set to standby mode. The TV automatically powers up at 3.00 A.M. each day and searches for any new information which may be broadcasted and will download this to your receiver automatically. This operation will normally take approximately 30 minutes.
Note: Your TV may start in First Time Installation mode after OAD update.
Parental Control
Use "or" buttons to go to Parental Lock option. Press OK button to enter the menu. A dialog box asking for the lock key will be displayed. The key is set to "0000" initially. Enter PIN. If it is incorrect, "Wrong Pin" OSD will be displayed. If it is correct, the Parental Control menu will be displayed:
Maturity Lock (*)
(*) If you set Country option as UK in the first time installation, Maturity Lock option will not be visible. This setting is available only for EU countries.
When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, does not show video-audio.
In menu lock you can set locking for all menus, or the Installation Menu to restrict access to these menus. If the menu lock is disabled, there will be free access to the menu system. Use or " buttons to go to Menu Lock option. Use or " buttons to choose Menu Lock Mode.
DISABLED : All menus are unlocked.
ALL MENUS : All Menus are accessible only with the correct lock key. So the user cannot add, delete, rename, channels, cannot set timers.
INSTALLATION MENU: Installation menu is locked. So the user can't add channels. Changes will be updated after exiting 'Configuration Menu'.
Set PIN
Use or "▲buttons to go to "Set PIN" option. Press "OK" to display the "Set PIN" window. Use numeric buttons to enter new pin number you will need to input your new pin a second time for verification purposes. The factory default pin number is 0000, if you change the pin number make sure you write it down and keep it safe.
Time Settings (Optional)
In the configuration menu, highlight the Time Settings item by pressing “▲or “” buttons.
Press "OK" and Time Settings sub menu will be displayed on the screen. Current Time,Time Zone Setting and Time Zone will be available.
Use "▲" or "▼" buttons to highlight the Time Zone Setting. Time Zone Setting is set using "▲" or "▼" buttons. It can be set to AUTO or MANUAL.
When AUTO is selected, Current Time and Time Zone options will not be available to be set. If MANUAL option is selected as the Time Zone Setting, Time Zone can be altered:
- By pressing “▲” or “▼” buttons select Time Zone.
Use or buttons to change the Time Zone between GMT-12 or GMT+12. Current Time on the top of the menu list will then change according to the selected Time Zone.
Audio Description (Optional)
Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. The description narrator talks through the presentation, describing what is happening on the screen during the natural pauses in the audio (and sometimes during dialogue, if deemed necessary). You can use this feature, only if the broadcaster supports that additional
narration track. Use "▼" or "▲buttons to select an item. Then use "←" or "▶buttons to set.
Audio Description (Optional)
This function enables or disables the audio description feature by pressing the "or" buttons.
Preferred Language (Optional)
By pressing the or "▶buttons the preferred audio description language is being changed.
This setting can be used, only if it is available.
Relative Volume (Optional)
Using this option, the Audio Description volume level can be increased or decreased relatively, according to the general volume.
Standby Search (*)
(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.
Use "▼" or "▲" button to select Standby Search and then press "or " button to set this setting as On or Off. If you change Standby Search to Off, this function will be unavailable.
To use Standby search please make sure that you select Standby Search as On.
Language
In this menu the user can adjust the preferred language. Language is changed by pressing "OK" button.
Menu: shows the language of the system
Preferred
These settings will be used if available. Otherwise the current settings will be used.
- Audio: by pressing or keys change the audio language.
- Subtitle: alter the subtitle language with "or keys. The chosen language will be seen in subtitles.
Movie Subtitle (Optional)
- In order to display subtitles properly, use this setting to select a movie subtitle language.
- By pressing " or " button, select the desired language option.
- Guide: By pressing “<” or “>” buttons change the guide language.
Current
- Audio: if audio language is supported change the audio language by pressing “ ” or “ ” buttons
- Subtitle: if subtitle is backed up, alter the subtitle language with or buttons. The chosen language will be seen in subtitles.
Note: If the Country option is set to Denmark, Sweden, Norway or Finland, the Language Settings menu will function as described below:
Language Settings
In the configuration menu, highlight the Language Settings item by pressing "▼" or "▲buttons. Press "OK" and Language Settings submenu will be displayed on the screen:
Use "▼or"按钮 to highlight the menu item that will be adjusted and then press "▲or" button to set.
Notes:
- System Language determines the on-screen menu language.
Audio Language is used for selecting the soundtrack of channels.
Primary settings are the first priority when multiple choices are available on a broadcast. Secondary settings are the alternatives when the first options are not available.

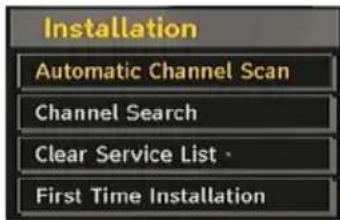

Installation
The Installation menu is mainly intended to help you for creating a Channel Table in the most efficient way
Select Installation from the Configuration menu by pressing "▼" or "▲buttons.
This menu includes the following items:
(*) For Denmark, Sweden, Norway or Finland.
Automatic Channel Scan
Automatic channel scan is started by pressing "OK" button while Automatic channel scan item is highlighted.
The following message appears on the screen:
Highlight Yes or No by using "or" buttons and press "OK" button to confirm.
If Yes is selected, automatic search starts.
Selecting No cancels automatic search.
After search is completed for digital channels, a message asking whether to search for analogue channels appears on the screen:
Press the "OK" button to search for analogue channels. The following menu appears on the screen for analogue channel search:
Select your Country, Language and Text language by using "or" and "or" buttons. Press "OK" or RED button to continue. To cancel, press BLUE button. The following menu will be displayed during the automatic tuning:
After APS is finalized, the programme table will appear on the screen. In the programme table you will see the programme numbers and names assigned to the programmes.
Channel Search
In manual channel scan, the number of the multiplex is entered manually and only that multiplex is searched for the channels. For each valid channel number, signal level and signal quality are shown on the screen.
In both manual and auto search any existing channel in the database is not re-stored to avoid redundant duplicates of that channel.
Clear Service List (*)
(*) This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.
Use this setting to clear channels stored. Press or "▲ button to select Clear Service List and then press OK. The following OSD message will be displayed on the screen:
Highlight NO and press OK to cancel. Select Yes by pressing "or button and press OK to delete all of the channels.
First Time Installation
The user can use this item to load default settings, which were loaded to the receiver at the factory.
To install factory settings, highlight "First Time Installation" menu item and press "OK" button, then you will be asked whether or not to delete the settings. Selecting "Yes" by pressing "OK" button while "Yes" is highlighted will delete the existing channel table.
Then you will be asked to confirm for deleting all channels and settings:
By selecting Yes and pressing the "OK" button, the existing channel table will be deleted. After factory settings are loaded, "First Time Installation" menu will be displayed.
The menu which is displayed for language selection appears on the screen at first. By using “▼” or “▲” buttons, select the desired language option, and press OK button to activate.
Afterwards, "First time installation" OSD will appear on the screen. By pressing or buttons, select the Country you want to set and press "OK" button (* only for EU countries).
Press the "OK" button to start installation. After search is completed for digital channels, a message asking whether to search for analogue channels appears on the screen. This process is same as described in Automatic Search section..
- To display Media Browser window, press either "MENU" button on the remote control and then select Media Browser by pressing or "▲button. Press "OK" button to continue. Media Browser menu contents (depending on the contents of your USB drive) will be displayed.
- Also, when you plug a USB device, the following screen will be displayed:
Select YES by pressing "or" button and press OK button. Media browser will be displayed.
- You can play music, picture and video files from a USB memory stick.
Note: If you plug USB stick while in analogue mode, the TV will automatically switch to digital TV mode.
Note: Some USB compliant devices may not be supported.
Note: If the USB stick is not recognized after power off/on or First Time Installation, first, plug the USB device out and power off/on the TV set. Plug the USB device in again.
Playing MP3 Files
Play This (OK button) : Plays the selected file.
Play (▶ button): Plays all media files in the folder starting with the selected one.
Pause ( button): Pause playing file.
Stop (■ button): Stop the playing file.
Previous/Next (▶buttons) : Jumps to previous or next file to play.
Shuffle (INFO button): Plays the files randomly. If shuffle mode is enabled, previous/next function will also jump to the tracks randomly.
Loop (■ button) : Plays the selected file repeatedly.
Viewing.JPG Files
Jump (1...9 buttons): jump to selected file using the numeric buttons.
OK: (OK button) views the selected picture in full screen.
Slideshow (▶ button): starts the slideshow with all pictures in the folder.
Slideshow Options
Pause button):Pause the slideshow.
Continue button): Continue with the slideshow.
Previous/Next (▶buttons) : Jump to previous or next file of slideshow.
Rotate (▼▲buttons): Rotate the picture using up/down buttons.
Return/Back: Back to file list.
Shuffle ( button) : Shows the files randomly and continuous in current folder and icon turns the highlighted icon. If during a slideshow the shuffle mode is enabled, the next pictures will be chosen randomly (If the loop function is not enabled, the slideshow will stop at the end. If the loop function is enabled, after the slideshow ends, it will start again and again).
Loop button): Slideshow goes on continuously and icon turns the highlighted icon.
Info: Activates the operations bar.

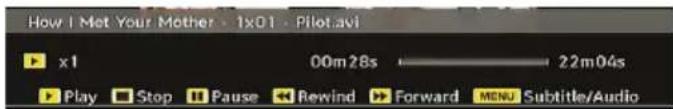

Video Playback
Play button) : Starts the video playback.
Stop ( button) : Stops the video playback.
Pause ( button) : Pause the video playback.
Rewind ( 卡 button): Goes backward.
Forward button): Goes forward.
Menu (MENU button) : Sets subtitle/Audio.
- You can set subtitles by using "OK" button before starting the playback or by using MENU button during the playback.
Note:
-Selected subtitles may not be displayed correctly in some cases.
-In order to display movie subtitles correctly, you should set a "Movie Subtitle" language. See the section, "Movie Subtitle" in "Language Settings" for selecting Movie Subtitle language.
Press "STOP" button to switch back to previous menu.
Mode
For your viewing requirements, you can set the related mode option.
Press "▼" or "▲" button to select Mode. Press "▼" or "▲" button to choose from one of these options: Natural, Cinema and Dynamic.
Contrast/Brightness/Sharpness/Colour/Hue
Press "or" button to select the desired option. Press "or" button to set the level.
Note: Hue option can only be visible when the TV receives an NTSC signal.
Colour Temp
Press or "▲ button to select Colour Temp. Press "or "to choose from one of these options: Normal, Warm and Cool.
Note:
- For normal colours, select Normal option.
- Setting Warm option gives white colours a slight red stress.
- Setting Cool option gives white colours a slight blue stress.
Noise Reduction
If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount.
Press "▼" or "▲" button to select Noise Reduction. Press "▲" or "▶" to choose from one of these options: Low, Medium, High or Off.
Film Mode
Films are recorded at a different number of frames per second to normal television programmes.
Press “ ” or “▲button to select Film Mode.
Press "or" button to set this feature On or Off.
Turn this feature on when you are watching.
films to see the fast motion scenes clearly.
Game Mode (optional)
Select Game Mode by pressing "or" button. Use "▲" or "▶" button to set Game Mode as On or Off. When Game Mode is set to On, specific game mode settings, which are optimized for better video quality, will be loaded.
Also; Picture Mode, Contrast, Brightness, Sharpness, Colour and Colour Temp settings will be invisible and disabled while Game Mode is on.
Note:
Picture mode selection button on the remote control will have no function while Game Mode is on.
Picture Zoom
Select Picture Zoom by pressing "or " button.
Use "▶" or "▶" buttons, to change picture zoom to Auto, 16:9, 4:3, Panoramic, 14:9, Cinema, Subtitle or Zoom.
Store
Press "▼ or "▶ button to select Store. Press "▶ or OK button to store the settings. "Stored..." will be displayed on the screen.
Reset
Press or "▲ button to select Reset. Press "or OK button to reset the picture modes to factory default settings.
Volume
Press "or " button to select Volume. Press " or " button to change the level of the Volume.
Equalizer
Press "▼or "▲ button to select Equalizer. Press "▶" button to view equalizer menu.
Press or button to change the preset. In equalizer menu, the preset can be changed to Flat, Classic, User, Music, Movie and Speech.
Select the desired frequency by pressing "▼" or "▲" button and increase or decrease the frequency gain by pressing "▲" or "▲" button.
Press the "MENU" button to return to the previous menu.
Note: Equalizer menu settings can be changed only when the Equalizer Mode is in User.
Balance
This setting is used for emphasizing left or right speaker balance.
Press "▼" or "▲" button to select Balance. Press "←" or "→" button to change the level of the balance
Balance level can be adjusted between -32 and 32.
Headphone
Press "▼or "▲ button to select Headphone. Press "▶ button to view the headphone menu.
Headphone sub-menu options are described below:
Volume
Press "or" button to select Volume. Press "▶" button to increase headphone volume level. Press "←" button to decrease headphone volume level. Headphone volume level can be adjusted between 0 and 63.
Sound Mode
Press "or " button to select Sound Mode. Using " or button, you can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.
AVL
Automatic Volume Limiting (AVL) function adjusts the sound to obtain fixed output level between programs (For instance, volume level of advertisements tend to be louder than programmes).
Press "▼" or "▲button to select AVL. Press " " on "▶ button to set the AVL as On or Off.
Store
Press "or" button to select Store. Press "or OK button to store the settings. "Stored..." will be displayed on the screen.
Sleep Timer
Press "▼or" button to select Sleep Timer. Use "▲or" button to set the Sleep Timer.
The timer can be programmed between Off and 2 hours (120 minutes) in steps of 10 minutes.
If Sleep Timer is activated, at the end of the selected time, the TV goes automatically to standby mode.
Child Lock
Press "or " button to select Child Lock.
Use "or" button to set the Child Lock On or Off. When On is selected, the TV can only be controlled by the remote control. In this case the control panel buttons will not work, except for the Standby/On button. When Child Lock is activated you are able to switch the TV into Standby mode with the Standby/On button. To switch the TV on again, you need the remote control.
Hence, if one of those buttons is pressed, Child Lock is On will be displayed on the screen when the menu screen is not visible.
Language
Press "or" button to select Language. Use "or" button to select the Language.
Default Zoom
While zoom mode is set as AUTO, the TV will set the zoom mode in accordance with the signal of the broadcast. If there is no WSS or aspect ratio information, the TV will then use this setting to adopt. Press "or" button to select Default Zoom. You can set Default Zoom to 16:9, 4:3, Panoramic or 14:9 by pressing "or" button.
Blue Background
If the signal is weak or absent, the TV will automatically change to a blue screen. To enable this, set Blue Background to On.
By pressing or button, select Blue Background. Press or button to set Blue Background as On or Off.
Press "or" button to select Menu Background. You can set menu background level by pressing " " or "button.
To set a specific display timeout for menu screens, set a value for this option.
Press "▼" or "▲" button to select Menu Timeout. Use "▲" or "▲" button to change menu timeout to 15 sec, 30 sec or 60 sec.
TEXT (Teletext) Language
Press "or" button to select Teletext Language. Use "or" button to change Teletext Language to West, East, Cyrillic, Turk/Gre, Arabic or Persian.
HDMI PC Full Mode (optional)
If you want to view PC screen in HDMI mode by using external connection, HDMI PC FULL MODE option should be On to adjust the screen ratio correctly. This item might be inactive in some resolutions.
Note: If you connect an HDMI device and switch the TV to HDMI mode, this feature will be visible (except for 480p/576p resolution).
Full Mode (optional)
If you connect a device via HDMI or YPbPr connectors and set 1080i/1080P resolutions, Full Mode item will be visible. You can set Full Mode as 1:1 or Normal by using "or If you select 1:1, screen ratio will be adjusted correctly. If you set Normal, screen ratio may expand.
Ext Out
Press "or " button to select Ext Out. Use " " or " button to set the Ext Out as On or Off.
Note:
For copying from a DVD or VCR device, you should choose desired source from source menu and turn "On" to EXT Out from feature menu.
Ext Out should be On in order to use Timers function in the DTV mode.
Program
Press "▶" button to select Program. Use "▶" or "▶" button to select the program number. You can also enter a number using the numeric buttons on the remote control. There are 200 programme storage between 0 and 199.
Band
Band can be selected either C or S. Press "or" button to set Band.
Channel
Channel can be changed by or button or numeric buttons.
Colour System
Press "or" button to select Colour System. Use "or" button to change the colour system to AUTO, PAL, SECAM or PAL60.
Sound System
Press "or" button to select Sound System. Press "or" button to change the sound system to BG,DK, I, L or L'.
Fine Tune
Press "▼or "▲ button to select Fine Tune. Press "▲" or "▶" button to adjust the tuning.
Search
Press "or" button to select Search. Use "or" button to start programme searching. You can also enter the desired frequency using the numeric buttons while Search item is highlighted.
Store
Press "▼ or "▶ button to select Store. Press "▶ or OK button to store the settings. "Stored..." will be displayed on the screen.

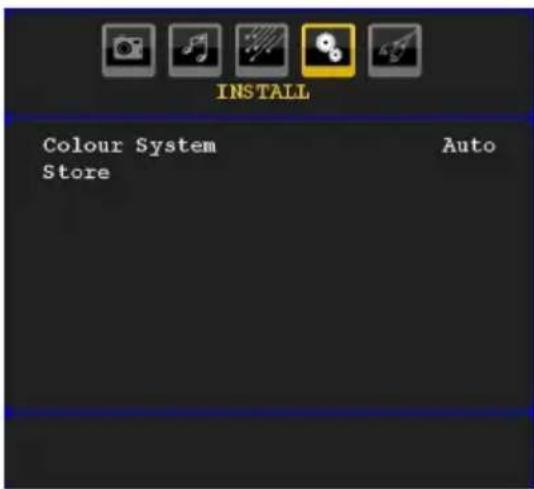

The following screen appears in the install menu when the TV is in AV modes. Note that limited options will be available. Switch to TV mode for viewing complete version of the Install menu.
Colour System
Press "▼or" button to select Colour System. Use "or" button to change the colour system to AUTO, PAL, SECAM, PAL60, NTSC 4,43 or NTSC 3,58.
Store
Press "or" button to select Store. Press " " or "OK" button to store the settings. "Stored..." will be displayed on the screen.

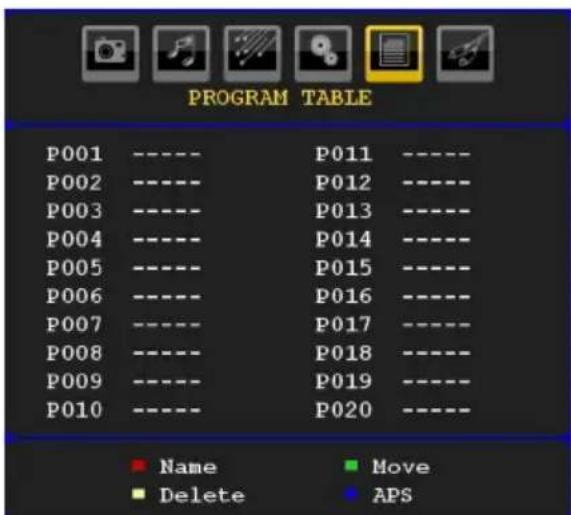

Program Table
Select Program Table by pressing "or " button. Press "▼" to display Program Table:
By moving the cursor in four directions you can reach 20 programmes in the same page. You can scroll the pages up or down by pressing the navigation buttons to see all the programmes in TV mode (except for the AV modes). By cursor action, programme selection is done automatically.
Name
To change the name of a programme, select the programme and press the RED button.
The first letter of the selected name will be highlighted. Press "▼" or "▲" button to change that letter and "▼" or "▲" button to select the other letters. By pressing the RED button, you can store the name.
Move
Select the programme which you want to move by navigation buttons. Press the GREEN button. By navigation buttons move the selected programme to the decided programme space and press the GREEN button again.
Delete
To delete a programme, press the YELLOW button. Pressing the YELLOW button again erases the selected programme from the programme list, and the following programmes shift one line up.
APS (Auto Programming System)
When you press the BLUE button for starting automatic tuning, Auto Programming System menu will appear on the screen:
Press "or" button to select your country. If you want to exit from A.P.S. function, press the BLUE button.
When you press OK or RED button for starting automatic tuning, all stored programmes will be erased and the TV will search for available channels. During the search, the following OSD will be displayed:
Whenever you press the BLUE button, APS function stops and Program Table appears on the screen. If you wait until the end of APS, Program Table will be displayed with the programmes found and located.
Select the sixth icon by pressing " 串 or " " button.
Source menu appears on the screen:
In source menu, highlight a source by pressing "or " button and switch to that mode by pressing " button. Source options are; TV, DTV/USB, DVD, EXT-1, FAV, HDMI, YPbPr and PC-VGA..
With the OK button you can set or remove a mark. When a mark is removed; this source does not appear in the OSD when you press the "SOURCE" button of the remote control.
Note: Once you have connected optional equipment systems to your TV, you should select the required input to view pictures from that source.
Note: YPbPr mode can be use only when you connect a device that has a YPbPr output through the PC input with YPbPr to PC cable (YPbPr cable is not supplied).
See "Connecting the LCD TV to a PC" section for connecting a PC to the TV set.
For switching to PC source, press "SOURCE" button on your remote control and select PC input. You can also use "Source" menu to switch to PC mode.
Note that PC mode menu settings are available only while the TV is in PC source.
Select the first icon by pressing or "▶" button. PC Position menu appears on the screen:
Autoposition
If you shift the picture horizontally or vertically to an unwanted position, use this item to put the picture into correct place automatically. This setting therefore automatically optimizes the display.
Select Autoposition item by using or "buttons. Press OK" or button.
Warning: Please ensure auto adjustment is performed with a full screen image to ensure best results.
H (Horizontal) Position
This item shifts the image horizontally to right hand side or left hand side of the screen.
Select H Position item by using "▼" or "▲" button. Use "▲" or "▼" button to adjust the value.
V (Vertical) Position
This item shifts the image vertically towards the top or bottom of the screen.
Select V Position item by using "▼" or "▲" button. Use "▲" or "▲" button to adjust the value.
Phase
Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.
Select Phase item by using "▼" or "▲buttons. Use "or" button to adjust the value.
Dot Clock
Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Select Dot Clock item by using "▼" or "▲buttons. Use "or" button to adjust the value.
For adjusting PC picture items, do the following:
Press " " or button to select the second icon. PC Picture menu appears on the screen.
Contrast, Brightness, Colour and Colour Temperature settings in this menu are identical to settings defined in TV picture menu under "Analogue TV Menu System".
Note: If you set Colour Temp as User, you can define R, G, B settings manually.
Sound, Feature and Source settings are identical to the settings explained in Analog Tv menu system.
Programme Number, Programme Name, Sound Indicator and Zoom Mode information is displayed on the screen when a new programme is entered or "INFO" button is pressed.
When you are in DTV Mode and press " " or "▲ button, the Information of the previous or next programme is displayed. To switch to the displayed, programme just press OK button.
Mute Function
Press "button to disable sound. Mute indicator will be displayed in the upper side of the screen.
To cancel mute, there are two alternatives; the first one is pressing the "OK" button and the second one is increasing the volume level.
Picture Mode Selection
By pressing PRESETS button, you can change Picture Mode settings in accordance with your viewing requirements. Available options are Dynamic Natural and Cinema.
Note: This feature cannot be set while in PC mode.
Freezing Picture
You can freeze the picture on the screen by pressing the "OK" button on the remote control. Press the "OK" button to freeze picture. Press again to quit freeze mode.
Note: This feature will not be available while in PC mode or watched movie from DVI source.
Zoom Modes
You can change the aspect ratio (image size) of the for viewing the picture in different zoom modes.
Press SCREEN button to directly change the zoom mode.
Available zoom modes are listed below.
Note:
In YPbPr and HDMi modes, while in 720p-1080i resolutions, only 16:9 mode is available.
Zoom mode cannot be changed while in PC mode.
Auto
When a WSS (Wide Screen Signalling) signal, which shows the aspect ratio of the picture, is included in the broadcast signal or the signal from an external device, the TV automatically changes the ZOOM mode according to the WSS signal.
- When the AUTO mode does not function correctly due to poor WSS signal quality or when you want to change the ZOOM mode, change to another ZOOM mode manually.
16:9
This uniformly stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the wide TV screen
- For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape.
4:3
Use to view a normal picture (4:3 aspect ratio) as this is its original size
Panoramic
This stretches the left and right sides of a normal picture (4:3 aspect ratio) to fill the screen. The top and bottom of the picture are slightly cut off.
14:9
This zooms up the wide picture (14:9 aspect ratio) to the upper and lower limits of the screen.
Cinema
This zooms up the wide picture (16:9 aspect ratio) to the full screen.
Subtitle
This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen.
Zoom
This option zooms to the picture.Note: You can shift to screen up or down by pressing "▼/”按钮 while picture zoom is selected as panaromic, 14:9, Cinema or Subtitle.
Teletext
Teletext system transmits information such as news, sports and weather on your TV. Note that if the signal degrades, for example in poor/adverse weather conditions, some text errors may occur or the teletext mode may be aborted.
Teletext function buttons are listed below:
Teletext / Mix / PAT Mode
Activates teletext mode when pressed once.
Press again to place the teletext screen over the programme (mix). Pressing this button again will split the screen into two windows, one displaying the teletext and the other displaying the current channel. Pressing again will quit the teletext mode.
"RETURN" - Index
Selects the teletext index page.
Subcode Pages
Selects subcode pages if available when the teletext is activated.
"INFO" - Reveal
Shows hidden information (e.g. solutions of games).
"SCREEN"-Expand
Press once to enlarge top half of the page, press again to enlarge the bottom half of the page. Press again to revert back to normal size.
+ / P- and numbers (0-9)
Press to select a page.
Note: Most TV stations use code 100 for their index pages.
You can use coloured buttons in accordance with the displayed functions. When TOP text system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when FASTEXT transmission is present.
Teletext Subtitle (in analogue TV mode only)
If you press "SUBTITLE" button, teletext subtitle information will be displayed on the bottom right part of the screen (if available). You can set the desired option by highlighting it using "▼or " button and then by pressing OK button.
Tips
Image Persistence
Please note that ghosting may occur while displaying a persistent image. LCD TVs' image persistence may disappear after a short time. Try turning off the TV for a while. To avoid this, do not leave the screen in still picture for extended periods.
No Power
If your TV system has no power, please check the main power cable and connection to the mains socket outlet.
Poor Picture
Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthy audio equipment or neon lights, etc.?
Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. Please retune the channels. The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.
No Picture
Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer.
No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.
Sound
You can not hear any sound. Did you perhaps interrupt the sound, pressing the "OK" button?
Sound is coming from only one of the speakers. Is the balance set to one extreme? See Sound Menu.
Remote Control
Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons at the top/bottom/left (optional) of the TV.
If you cannot select an input source, it is possible that no device is connected.
Check the AV cables and connections if you have tried to connect a device.
The display has a maximum resolution of 1600 X 1200. The following table is an illustration of some of the typical video display modes.
Your TV may not support different resolutions. Supported resolution modes are listed below.
If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.
| Index | Resolution | Frequency | Standard |
| Hor | Ver | Ver (Hz) | Hor(KHz) |
| 1 | 640 480 | 60 31.5 VESA | | | |
| 2 | 640 480 | 72 37.9 VESA | | | |
| 3 | 640 480 | 75 37.5 VESA | | | |
| 4 | 800 600 | 56 35.2 VESA | | | |
| 5 | 800 600 | 60 37.9 VESA | | | |
| 6 | 800 600 | 70 43.8 | | | |
| 7 | 800 600 | 72 48.1 VESA | | | |
| 8 | 800 600 | 75 46.9 VESA | | | |
| 9 | 832 624 | 75 49.7 MAC | | | |
| 10 | 1024 768 | 60 48.4 VESA | | | |
| 11 | 1024 768 | 70 56.5 VESA | | | |
| 12 | 1024 768 | 72 57.7 | | | |
| 13 | 1024 768 | 75 60.0 | | | |
| 14 | 1152 864 | 70 64.2 VESA | | | |
| 15 | 1152 864 | 75 67.5 VESA | | | |
| 16 | 1152 870 | 75 68.9 MAC | | | |
| 17 | 1280 768 | 60 47.7 VESA | | | |
| 18 | 1366 768 | 60 47.7 | | | |
| 19 | 1280 960 | 60 60.0 VESA | | | |
| 20 | 1280 1024 | 60 64.0 VESA | | | |
| 21 | 1280 1024 | 75 80.0 VESA | | | |
| 22 | 1600 1200 | 60 75.0 VESA | | | |
Resolutions above 60Hz may not be displayed.
| Source | Supported Signals | Available |
| EXT-1(SCART) | PAL 50/60 O | |
| NTSC 60 O | |
| RGB 50 O | |
| RGB 60 O | |
| FAV | PAL 50/60 O | |
| NTSC 60 O | |
| YPbPr | 480I 60Hz O | | |
| 480P 60Hz O | | |
| 576I 50Hz O | | |
| 576P 50Hz O | | |
| 720P 50Hz O | | |
| 720P 60Hz O | | |
| 1080I 50Hz O | | |
| 1080I 60Hz O | | |
| 1080P 50Hz O | | |
| 1080P 60Hz O | | |
| HDMI | 480I 60Hz O | | |
| 480P 60Hz O | | |
| 576I 50Hz O | | |
| 576P 50Hz O | | |
| 720P 50Hz O | | |
| 720P 60Hz O | | |
| 1080I 50 Hz O | | |
| 1080I 60Hz O | | |
| 1080P 24Hz O | | |
| 1080P 25Hz O | | |
| 1080P 30HZ O | | |
| 1080P 50HZ O | | |
| 1080P 60HZ O | | |
(X: Not Available, O: Available)
Note: In some cases a signal on the LCD TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.
| Media | File Extension | Format | Remarks |
| Video | Audio | (Maximum resolution/Bit rate etc.) |
| Movie | .mpg/ .dat/.vob | MPEG1 | MPEG Layer 1/2/3 | |
| MPEG2 MPEG2 | |
| .avi | XviD/ 3ivx PCM/MP3 XviD | Verson up to: 1.1.2 |
| MPEG4 PCM/MP3 | |
| MS ISO MPEG4 | PCM/MP3 S | Support SP and ASP |
| Music | -- PCM | Sample Rate: 8K ~ 48KHz | |
| .mp3 - | | MPEG 1/2 Layer 1/2/3 (MP3) | Sample Rate: 8K ~ 48KHz, Bit Rate: 64K~320Kbps |
| Photo | .jpg | Baseline JPEG | WxH = 8902x8902 up to 77Mega-pixel Support format: 444/ 440/ 422/ 420/ Grayscale |
| Progressive JPEG | Up to 4 Mega-pixel Support format: 444/ 440/ 422/ 420/ Grayscale |
| External Subtitles | .srt | | Support Text File Format, but do not support Picture File Format |
| .smi | |
| .sub | |
| .ssa | |
| .ass | |
Note: Necessary bitrates for some video types are higher than USB limits. For this reason, some video types cannot be played.
Specifications
TV BROADCAST PAL/SECAM B/G D/K K' I/I L/L
RECEIVING CHANNELS VHF (BAND I/III)
UHF (BAND U)
HYPERBAND
| Digital Reception | MHEG-5 ENGINE compliant with ISO/IEC 13522-5 UK engine Profile 1 | for UK Object c |
|
| Frequency range: 474-850 MHz for UK models |
| 170-862 MHz for EU models |
| Transmission standard: DVB-T. MPEG-2 |
| Demodulation: COFDM with 2K/8K FFT mode |
| FEC: all DVB modes |
| Video: MP@ML, PAL, 4:3/16:9 |
| Audio: MPEG Layer I&II 32/44.148kHz. |
NUMBER OF PRESET CHANNELS 200
CHANNEL INDICATOR On Screen Display
RF AERIAL INPUT 75 Ohm (unbalanced)
AUDIO German+Nicam Stereo
AUDIO OUTPUT POWER (W_RMS.) (10% THD) 2 x 2,5
POWER CONSUMPTION (W) 45 W (max)
< 1 W (Standby)
PANEL 19" wide display
DIMENSIONS (mm)
DxLxH (With foot): 155 x 460 x 354
Weight (Kg): 4,85
DxLxH (Without foot): 70 × 460 × 315
Weight (Kg): 4,70
Contents
Features 74
General Properties 74
Safety Information 75
Notes on Discs 75
On handling discs 75
On cleaning. 75
Licence Notification 75

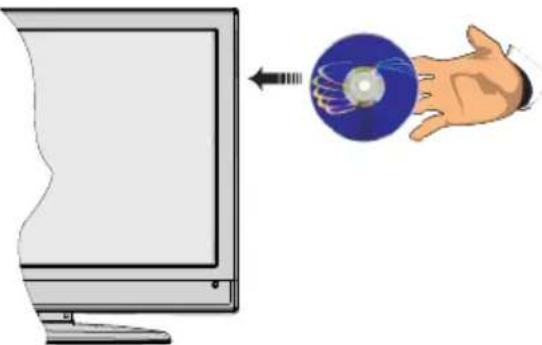

How to Watch a DVD 75
DVD Control Panel Buttons 76
Overview of the Remote Control 76
General Operation 77
GeneralPlayback 78
Basic Play 78
For your reference: 78
Notes on Playback: 78
Setup Menu Items 78

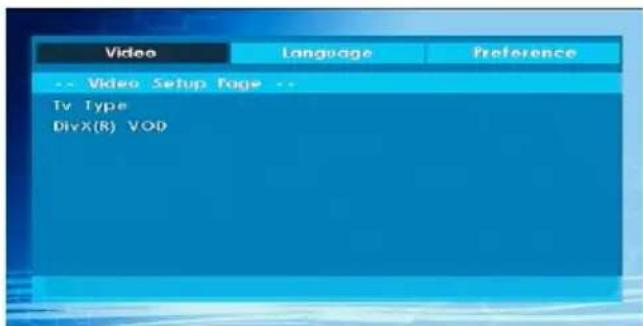

Video Setup Page 78
TV Type 78
DivX VOD 78

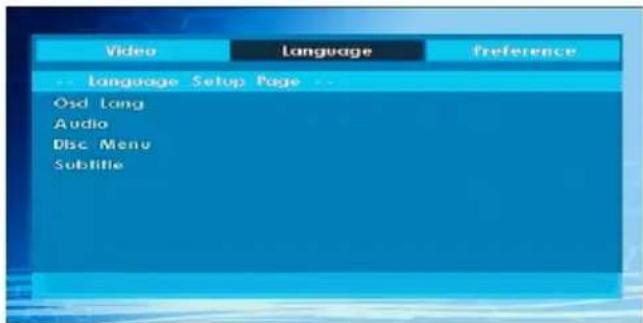

Language Setup 78
OSD LANG 78
AUDIO 78
DISC MENU 78
SUBTITLE 78

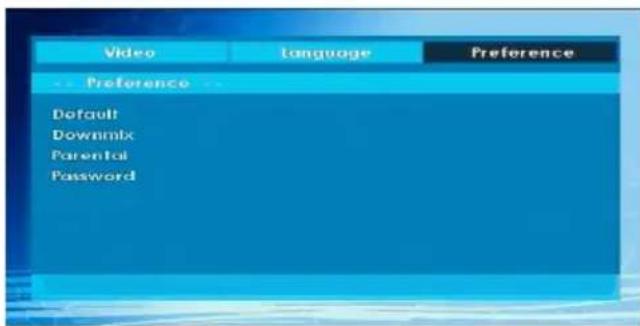

Preferences 79
DEFAULT 79
DOWNMIX 79
TOKEN (Change Password): 79
Troubleshooting 79
The picture quality is poor (DVD). 79
Disc does not play 79
Wrong OSD language 79
Some functions (Angle, Zoom etc) do not work 79
No picture 79
No sound 79
Distorted sound. 79
No response from remote control 80
If nothing works. 80
Definition of Terms 80
Disc Types Compatible with This Unit 81
Supported File Formats 82
Specifications 82
Features
General Properties
DVD / CD / CD-R / CD-RW / MP3 / JPEG / MPEG / DivX playback.
- NTSC/PAL playback (according to disc content)
LPCM audio via coaxial audio outputs. (optional)
- Multi-Audio (up to 8) support (According to disc content)
- Multi-Subtitle (up to 32) support (According to disc content)
- Multi-Angle (up to 9) support (According to disc content)
8 level parental control
- Fast forward and rewind in 5 different speeds. (2x, 4x, 8x, 16x, 32x)
- Slow motion playback in 4 different speeds. (1/2x, 1/4x, 1/8x, 1/16x forward)
- Frame by frame forward playback.
Search Mode
Repeat
Coaxial audio output (optional)
- Copied disks may be incompatible.
Note
- This DVD player may not support some MP3 recordings due to differences in recording formats or disc type.
- Please read the owner's manual about MP3 playback.
- CD-R/CD-RW discs recorded by CD-DA method can be played. Some CD-R/CD-RW discs may be incompatible due to laser pick-up and disc design.
DVD-R/RW discs recorded by DVD-Video method can be played. Some DVD-R/RW discs may be incompatible due to laser pick-up and disc design.
- Some discs may be incompatible with JPEG Viewer function due to different recording format or condition of the discs.
CAUTION
DVD Player is a class 1 laser product. However this product uses a visible laser beam which could cause hazardous radiation exposure. Be sure to operate the player correctly as instructed.
CLASS 1 LASER PRODUCT
Manufactured under license from Dolby Laboratories "Dolby", and the double-D symbol are trademarks of Dolby Laboratories.
RISK OF ELECTRIC SHOCK
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock of persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Notes on Discs
On handling discs
To keep the disc clean, handle the disc by its edge. Do not touch the surface.
- Do not stick paper or tape on the disc.
- If the disc is contaminated with any substance like glue remove before using it.
- Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature can rise quickly and damage the disc.
After playing, store the disc in its case.
On cleaning
- Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out.
- Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.
Licence Notification
- This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering and disassembly are prohibited.
How to Watch a DVD
When placing a disc into the loader, labeled side of the disc should be on the front:
When TV set is turned on, first switch to DVD source by using the SOURCE button on the remote control. Press play on the remote control, or directly press play button at the front panel. If there is no disc inside the loader, place a DVD first and press play.
A. Disc loader
B. Play / Pause
Plays/pauses the disc. When DVD menu (root menu) is active, this button functions as "button select" (selects the highlighted item in menu) if this is not prohibited by the disc.
C. Stop / Eject
Stop playing disc / Eject or Load the disc Note:
- You cannot eject the disc via the remote control.
While playing a file, you should press STOP button three times to eject.
Overview of the Remote Control
Standby1.
Numeric buttons2.
Return back3.
Language selection (Set language)4.
Display time / DVD menu5.
Clear6.
Stop7.
No function8.
Rapid Reverse9.
Rapid advance10.
Info11.
Zoom12.
- Repeat
- Root
- Menu
- Title
OK/Select17.
- Navigation Buttons
- Subtitle
Angle20.
- Search mode
- Play
- Pause
- Skip next
- Skip previous
General Operation
You can operate DVD, movie CD, music or picture CD's content by using the proper buttons on your remote control. Below are main functions of commonly used remote control buttons.
| Buttons on the Remote Control | DVDPlayback | MoviePlayback | PicturePlayback | MusicPlayback |
| Play Play Play Play |
| Pause Pause | Pause Pause | | | |
| Stop Stop Stop Stop |
| Skip backward/forward | Skip backward/forward | Previous / Next | Previous / Next | |
| Shifts the zoomed picture left or right (if available). |
| Highlights a menu item. / Shifts the zoomed picture up or down (if available). |
| Rapid advance / Rapid reverse |
| Views the scene from different angles (if available). | Changes slide effect (depends on the content). | X | |
| C Clears digit (if available). |
| Displays time / Views main setup menu |
| Time counter mode selection (during playback). Press repeatedly to switch between modes. |
| Audio language. | X | X | |
| Displays TV menu. |
| Enter / View / Play |
| Displays repeat options. |
| Returns back to the previous menu (if available). |
| Goes back to the root folder (if available). |
| Direct selection of scenes or time. | Selects the desired file. | Selects the desired file. | |
| Subtitle on-off. Press repeatedly to switch between subtitle options. | X | X | |
| Media source selection. |
| Displays disc menu (if available). | Displays disc menu (if available). | X | X | |
| Zooms picture. Press repeatedly to switch between zoom options. |
| Other Functions – Button Combinations
(During playback) |
| II + ➔ | Slow forward. |
| [ II + ➔] + << ➔ | Sets slow forward speed. |
| ➔ + ➔ | Sets rapid advance speed. |
| ← + ← | Sets rapid reverse speed. |
| ■ + ■ | Confirms stop command. |
| II + ➔ | Press ➔ repeatedly to advance manually. |
(*) You can switch to title by pressing numeric keys directly. You need to press 0 and then digit key to switch one digit titles (example: to select 5, press 0 and 5.
GeneralPlayback
Basic Play
Press on the power button1.
Please insert a disc to the loader.2.
The disc will be automatically loaded and play commences if the disc does not have any menus recorded on it.
A menu may appear on the TV screen after a few moments or the film may start immediately after the introduction of the Film Company. This behaviour depends on the disc content and may change.
Note: Step 3 and 4 is available only when a menu is recorded on the disc.
Press“/”/the number button
(s) to select the preferred title.
Press SELECT.4.
Play of the selected items now starts. The played item may be a motion picture, a still picture or another submenu depending on the disc.
For your reference:
If an action corresponding to a button is prohibited the symbol appears.
Notes on Playback:
No sound will be heard during Rapid advance 1. or Rapid reverse.
No sound will be heard during Slow motion play.2. Reverse slow motion play is not available.3.
In some cases, the subtitle language is not 4. changed immediately to the selected one.
-
When the preferred language is not selected even after pressing the button several times, it means that the language is not available on the disc.
-
When the player is restarted or the disc is changed, the subtitle selection is automatically changed back to the initial settings.
-
If a language is selected, not supported by the disc, the subtitle language will automatically be set to the disc's priority language.
-
Usually a circulation will happen while switching to another language, that is you can cancel the subtitle by pressing this button a number of times until "Subtitle Off" appears on the screen.
-
When the power is turned on or the disc is removed, the language heard is the one selected at the initial settings. If this language is not recorded on the disc, only the available language on the disc will be heard.
-
Some DVDs may not contain root and/or title menus.
-
Reverse stepping is not available.
- For your convenience:
If you attempt to enter a number greater than the total time of the current title, the time search box disappears and "Input Invalid" message appears on up-left corner of screen.
- Slide Show is disabled when the ZOOM mode is on.
Video Setup Page
TV Type
TV Type is only available as 'PAL'. The TV set also supports NTSC signal; however, the signal will be converted to PAL when it appears on the screen.
DivX VOD
DivX VOD provides the convenience of streaming video in terms of quality and performance.
Language Setup
OSD LANG
You can select the default OSD language of the player menus
AUDIO
You can select the default audio language if supported by the DVD disc.
You can select the DVD's disc menu language among these languages. Disc menu appears in the selected language, if supported by the DVD disc.
SUBTITLE
You can select the default subtitle language if supported by the DVD disc.
Preferences
DEFAULT
If you choose RESET and press SELECT, the factory-presents are loaded. Parental level and parental password does not change.
DOWNMIX
This mode can be selected when the digital audio output of the TV is used.
SURROUND: Surround sound output.
STEREO: Two channels stereo.

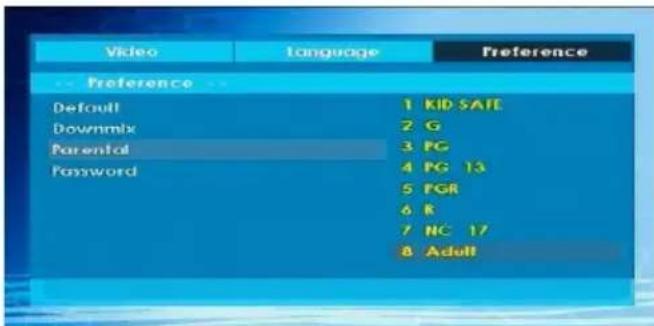

PARENTAL (Parental Level)
Playing some DVDs can be limited depending on the age of users. The "Parental Control" function allows playback limitation level to be set by the parent.
Parental Level can be adjusted to one of the eight levels. Level "8 ADULT" adjustment let you watch all the DVD titles ignoring the DVD disc's parental level. You can watch the DVD discs, which has the same or lower parental level than the player's level only.
PASSWORD (Change Password):
Using this item you can change the current password.
To change the password you will be prompted to enter your old password. After you have entered your old password, you can now enter the new 4-digit password.
You can use C key to delete the incorrect entry.
Note: Factory preset of the password is "0000". You have to enter XXXX digital password every time you want to change the parental level. If you forget your password please contact technical service.
Troubleshooting
The picture quality is poor (DVD)
- Make sure the DVD disc surface is not damaged. (Scratch, fingerprint etc.)
Clean the DVD disc and try again.
See instructions described in "Notes on Disks" to clean your disc properly.
- Ensure that the DVD disc is in the drawer with the label uppermost.
- A damp DVD disc or condensation may effect the equipment. Wait for 1 to 2 hours in Stand-by to dry the equipment.
Disc does not play
- No disc in the machine.
Place a disc into the loader.
- Disc incorrectly loaded.
Ensure that the DVD disc is in the drawer with the label uppermost.
- Wrong type of disc. The machine cannot play CD-ROMS etc.
- The region code of the DVD must match the player.
Wrong OSD language
- Select the language in the set-up menu.
- The language for the sound or subtitles on a DVD cannot be changed.
- Multilingual sound and/or subtitles not recorded on the DVD.
- Try to change the sound or subtitles using DVD's title menu. Some DVD's do not allow the user to change these settings without using the disc's menu
Some functions (Angle, Zoom etc) do not work
These functions are not available on the DVD.
- Angle can only be changed when the angle symbol is displayed.
No picture
- Have you pressed the correct buttons on the remote control? Try once more.
No sound
- Check the volume is set to an audible level.
- Make sure you have not switched the sound off accidentally.
Distorted sound
- Check that the appropriate listening mode setting is correct.
No response from remote control
- Make sure the remote control is in the correct mode.
- Check batteries are fitted correctly.
- Change the batteries.
If nothing works
If you have tried the above solutions and none seem to work, try switching your TV-DVD off and on again. If this does not work, contact your supplier or TV-DVD repair technician. Never attempt to repair a defective TV-DVD yourself.
Definition of Terms
Angle
Recorded onto some DVD discs are scenes, which have been simultaneously shot from a number of different angles (the same scene is shot from the front, from the left side, from the right side, etc.). With such discs, the ANGLE button can be used to view the scene from different angles.
Chapter Number
These numbers are recorded on DVD discs. A title is subdivided into many sections, each of which are numbered, and specific parts of video presentations can be searched quickly using these numbers.
DVD
This refers to a high-density optical disc on which high-quality pictures and sound have been recorded by means of digital signals. Incorporating a new video compression technology (MPEG II) and high-density recording technology. DVD enables aesthetically pleasing full-motion video to be recorded over long periods of time (for instance, a whole movie can be recorded).
DVD has a structure consisting of two 0.6-mm thin discs, which are adhered to each other. Since the thinner the disc, the higher the density at which the information can be recorded, a DVD disc has a greater capacity than a single 1.2 mm thick disc. Since the two thin discs are adhered to each other, there is the potential to achieve double-sided play sometime in the future for even longer duration play.
Subtitles
These are printed lines appearing at the bottom of the screen, which translate or transcribe the dialogue. They are recorded on the DVD discs.
Time Number
This indicates the playtime, which has elapsed from the start of a disc or a title. It can be used to find a specific scene quickly. (Not all discs permit the time search feature to be used. Availability is determined by the disc's manufacturer.)
Title Number
These numbers are recorded on DVD discs. When a disc contains two or more movies, these movies are numbered as title 1, title 2, etc.
Track Number
These numbers are assigned to the tracks, which are recorded on AudioCDs. They enable specific tracks to be located quickly.
LPCM
LPCM stands for Pulse Code Modulation and is digital audio.
MPEG
Short for Moving Picture Experts Group. This is an international standard for compression of moving images. On some DVDs digital audio has been compressed and recorded in this format.
DivX
DivX is a digital video compression technology based on MPEG-4 and developed by DivX Networks Inc.
Disc Types Compatible with This Unit
| DiscTypes
(Logos) | Recording
Types | DiscSizeMax | Playing
Time | Characteristics |
| DVD
VIDEO | Audio +
Video | 12cm | Single-sided;240min.
Double-sided;480min. | DVDcontainsexcellentsoundandvideo
duetoDolbyDigitalandMPEG-2System.
Variousscreenandaudiofunctionscanbe
easilyselectedthroughtheonscreen
menu. |
| 8cm | Single-sided;80min.
Double-sided;160min. |
| AUDIO-CD
COMPACT
DISC
DIGITALAUDIO | Audio | 12cm | 74min. | AnLPisrecordedasanalogsignalwith
moredistortion.CDisrecordedasa
DigitalSignalwithbetteraudio quality,
lessdistortionandlessdeteriorationof
audioqualityovertime. |
| 8cm | 20min. |
| MP3-CD
MP3
READABLE | Audio
(xxxx.mp3) | 12cm | It depends on MP3 quality. | MP3isrecordedasaDigitalSignalwith
betteraudioquality, lessdistortion and
lessdeteriorationofaudioquality
overtime. |
| 8cm |
| PICTURE-CD
JPEG
READABLE | Video
(stillpicture) | 12cm | It depends on JPEG
quality. | JPEGisrecordedasaDigitalSignalwith
betterpicturequalityovertime. |
| 8cm |
| DivX®
DIVX® | Audio +
Video | 12cm | It depends on DivX
quality | Video&AudiowithMPEG-4Compression
technology. |
| 8cm |
| Media | File Extension | Format | Remarks |
| Video | Audio | (Maximum resolution/Bit rate etc.) |
| Movie (Optional) | .mpg/ .dat/.vob | MPEG1 | MPEG Layer 1/2/3 | |
| MPEG2 MPEG2 | |
| .avi | XviD/ 3ivx PCM/MP3 XviD | Verson up to: 1.1.2 / DivX 3.1.x, 4.x, 5.x |
| MPEG4 PCM/MP3 | |
| MS ISO MPEG4 | PCM/MP3 S | Support SP and ASP |
| Music | -- PCM | Sample Rate: 8K ~ 48KHz | |
| .mp3 - | | MPEG 1/2 Layer 1/2/3 (MP3) | Sample Rate: 8K ~ 48KHz, Bit Rate: 64K~320Kbps |
| Photo | .jpg | Baseline JPEG | WxH = 8902x8902 up to 77Mega-pixel Support format: 444/ 440/ 422/ 420/ Grayscale |
| Progressive JPEG | Up to 4 Mega-pixel Support format: 444/ 440/ 422/ 420/ Grayscale |
| External Subtitles (optional) | .srt | | Support Text File Format, but do not support Picture File Format |
| .smi | |
| .sub | |
| .ssa | |
| .ass | |
Note: It is not guaranteed that all DivX formats are supported.
Specifications
| Types of Discs Supported | DVD: SS/SL 4.7" (DVD-5)
SS/DL 4.7" (DVD-9)
DS/SL 4.7" (DVD-10)
DS/DL 4.7" (DVD-18) | CD-DA
CD-R
CD-RW
MP-3/JPEG |
| Video Type | MPEG-2 Video Standard Decoding (MPEG-1 supported)
Full-Screen Video Display of 720 x 576 (PAL) & 720 x 480 (NTSC) pixels
50 and 60 Hz frame refresh rates (PAL & NTSC)
Digital bit-stream processing rate up to 108Mbits/sec
Line resolution more than 500 lines |
| Audio Type | MPEG Multichannel Decoding
LPCM |
| Audio Output | Analog Outputs:
24 bit /48, 44.1kHz down-sampling DAC |
