USER MANUAL Deli SANYO

Pourretirerlesplaques:

Pourmettrelesplaquesen place:

no.d'article:720.09 plaque de cuisson plate no.d'article:720.10 plaque de cuisson à rainures

IMPORTANT SAFETY PRECAUTIONS

Please read through this user manual thoroughly before using your Solis Deli Grill, so that you become familiar with your appliance and can use it safely. We thoroughly recommend that you keep these instructions and, if you pass the appliance on, that you also hand these instructions to the new owner.

For your own safety, please observe the following safety measures when using elec trical appliances:

1. To prevent electric shock, neither the appliance nor the power cord and the power plug must come into contact with water or other liquids. Danger of electric shock! Should the appliance while connected to the power resp. the power cord or the power plug come into contact with liquid, use dry rubber gloves to immediately pull the power plug out of the socket. Do not use the appliance again until you have had it's ability to function safely checked by Solis or a Solis approved service centre.
2. Never operate the appliance resp. pull or connect the plug with wet or moist hands or feet.
3. Before using the appliance, check if the voltage stated on the type plate of your appliance matches your mains voltage.
4. Do not let the power cord hang over table edges to prevent the appliance from being pulled down. Make sure that neither the power cord nor the plug come into contact with e.g. a stove top or a heater resp. with the appliance itself.
5. Always wrap the power cord around the cord wrap in the bottom of the cooled down appliance, never wrap it around the appliance itself.
6. Keep the appliance away from hot gas, hot ovens and other heat-emitting appliances or heat sources. Never use the appliance on a hot or wet surface. Never place the appliance near

moisture, heat and naked flames. Keep the appliance away from moving parts or appliances.

1. Never carry the appliance by the power cord and do not place anything on the power cord. Never pull on the power cord to disconnect the appliance from the power mains. Only pull on the plug.
2. We recommend that you do not use an extension cable with this appliance. Do not place the appliance directly underneath a power socket.
3. During use, the appliance must be placed on a solid, dry, stable, heat and moisture resistant surface. Place the appliance in the middle of the table, not near the corners of the table. The base as well as the surrounding surfaces and items should be impervious to splashes that might originate from the appliance. The base should not be covered with textiles (such as tablecloths).
4. The appliance is not designed for outdoor use. Do not use in vehicles or on boats.
5. Keep a minimum distance of 50~cm between the appliance and walls, curtains or other heat and steam sensitive materials and objects. Please note that air must be allowed to circulate freely around the appliance. Please note that enough free space has to be kept above the appliance to prevent damage to items (such as lamps) or the ceiling, caused by grease splashes or smoke. Never use the appliance to flammable
6. Never cover the appliance with cloths or the like while it is in use or in a still warm state.
7. Always pull the power plug while the appliance is unsupervised or out of use or if it needs to be disassembled, reassembled or cleaned. We recommend the use of a residual current device (RCD safety switch) to ensure additional protection during the use of electrical appliances. It is advisable to use a

safety switch with a rated residual operating current of 30mA maximum. For professional advice consult an electrician.

1. Do not make any adjustments to the appliance, cable, plug or accessories.
2. Improper use creates the risk of injury! No liability is assumed in the case of potential damages or injuries.
3. Never take hold of an appliance that has fallen into water or another liquid. Always use dry rubber gloves to pull the power plug before taking it out. Do not use the appliance again until you have had it's ability to function safely checked by Solis or a Solis approved service centre.
4. Never place the appliance in such a way that it might fall into water or come into contact with water or another liquid (e.g. in or next to a sink).
5. Never submerge the appliance, power cable or plug in water, or bring it into contact with water or other liquids.
6. Place the appliance so that it is never exposed to direct sunlight.
7. Never put sharp or pointed objects and tools into the appliance openings. The appliance may become damaged - danger of electric shock!
8. Never use kitchen utensils or barbecue tools on the grill plates and never use a knife to cut on the grill plates. Only use tools made from heat resistant plastic or wood. Never remove residues on the grill plates with metal items or knives resp. scrapers. The non-stick coating might be damaged.
9. Do not shake or move the appliance while it is in use. Never relocate the switched-on appliance! The surfaces of the Deli Grill get very hot and might cause burns.

10. Only use the appliance as described in this manual. Only use with the provided accessories or accessories recommended by Solis, incorrect accessories can lead to damage of the appliance, resp. to fire, electric shock or personal damage.

11. Never start the appliance using a remote or timer.

12. This appliance is only for domestic use and is not suitable for commercial use.
13. Remove and discard all packaging materials and potential stickers or labels before using the appliance for the first time.
14. Check your Deli Grill before each use and ensure that the appliance, power cord and plug are not damaged.
15. To prevent electric shock, do not use the appliance if cord or power plug are damaged or if the appliance has other faults, has fallen down or is damaged in any other way. Never attempt repairs yourself, but take your appliance to Solis or a Solis approved service centre in order to get it inspected or mechanically and electrically repaired.
16. People with limited physical, sensorial or mental capabilities as well as unknowing or inexperienced people and children must not use the Deli Grill except when supervised or thoroughly instructed on how to use the appliance by a person responsible for their safety. Additionally, they must be aware of the dangers arising from the appliance and know how to operate it safely. Cleaning and maintenance of the appliance must not be done by unsupervised children. Under no circumstances must the appliance be used or cleaned by children under the age of 8.
17. Keep the appliance and the power cord away from children during and even after use, while it is still warm - risk of burns!
18. Children must be supervised to prevent them from playing with the Deli Grill.

19. CAUTION: The temperatures of the appliance parts, grill plates and the splash guard are very high during the grilling process and even some time after! Do not touch the hot appliance parts. Always let the appliance cool down completely first - risk of burns!

20. Only use a fire blanket to extinguish the burning appliance.

21. Always switch the appliance off with the main switch and disconnect the power plug when not using the appliance or before cleaning it. Let the appliance cool down completely before disassembling, cleaning or moving the appliance.
22. Only connect the power plug resp. only switch the appliance on if it is placed on a dry, stable, heat and moisture resistant surface.
23. NOTE: When using the appliance for the first time, a little bit of smoke might develop. This is normal for appliances that heat up during use and will stop after a short period of time.
24. Pull the plug after every use. Only then, the appliance is fully switched off.
25. Keep the appliance clean. Always switch the appliance off and pull the plug from the power socket before cleaning and storing the appliance. Please refer to the notes given in the section "Cleaning and maintenance" on page 72 of this manual.
26. Potential discolouration of the grill plates and scratches are normal wear marks and are not covered by warranty.
27. Always fully unwind the power cord before connecting the power plug to the power socket.

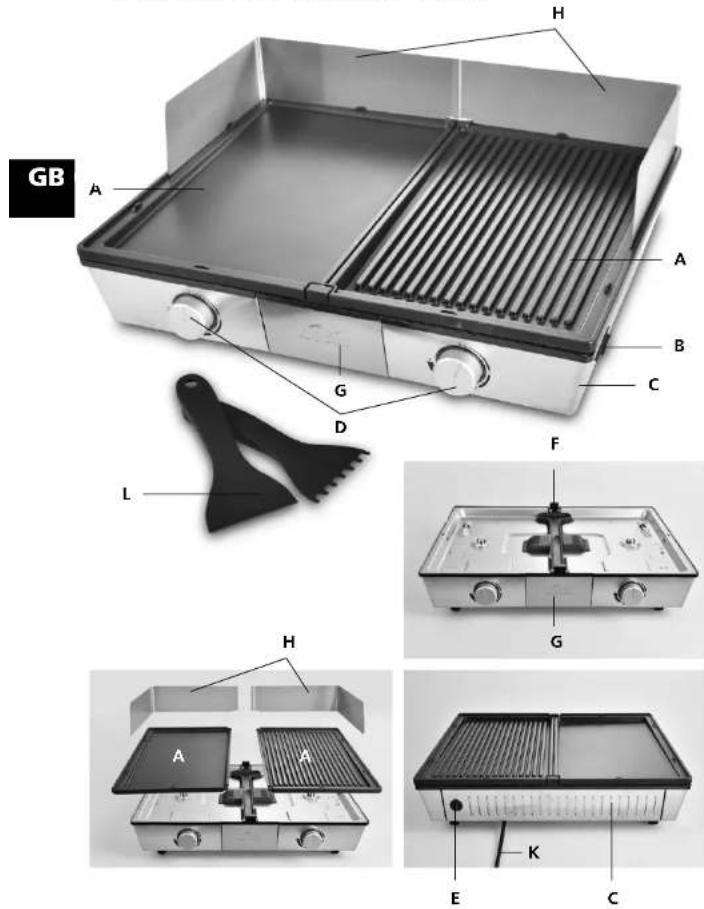

APPLIANCE DESCRIPTION

APPLIANCE DESCRIPTION

A 2 removable grill plates with grease outlet, made from massive, pressure cast aluminium with a non-stick coating: 1 flat grill plate, 1 grooved grill plate
B 2 release buttons for the grill plates, to the left and right of the chassis
C Chassis with ventilation slots on three sides and in the bottom
D 2 stepless temperature regulators for 2 separately controllable heating systems; with ready indicators
E Main switch for activating the appliance
F Grease gutter, removable
G Grease collection tray, removable
H Stainless steel splash guard, in two parts, removable
1 Feet with plastic knobs
J Cord wrap
K Power cord
L 2 plastic spatulas, to remove foods from the grill plates and to clean the grill plates:
flat spatula for the flat grill plate,
- grooved spatula for the grooved grill plate

THINGS WORTH KNOWING ABOUT YOUR SOLIS DELI GRILL

A 2 Grill plates, one with a flat surface and one with a grooved surface

The flat surface is ideally suited to grilling fish, seafood, vegetables etc.
The grooved surface is ideal for grilling meat.
The floor of each grilling plate is slightly angled and equipped with a grease outlet, so that the grease can be led through the grease outlet into the grease collection tray during grilling. This allows you to grill your foods healthily and low in fat.
The temperature of each grilling plate can be adjusted independently and stepplessly thanks to the temperature controllers.
The grill plates are made of massive, pressure cast aluminium, guaranteeing optimal heat transmission and retention.
The grill plates are equipped with a special non-stick coating.
The heating elements are integrated into the grill plates and optimally sealed.
- The grill plates can be swapped against each other (left/right).
The grill plates can be removed to be cleaned under running water and even in the dishwasher.
- Optionally, more flat and grooved grill plates can be ordered as accessories.

D 2 Temperature controllers with ready indicators, separately controllable

Each temperature controller controls the temperature of the grill plate above and can be adjusted stepplessly.
Each temperature controller is equipped with its own ready indicator: as long as the surround of the temperature controller is lit up plate. As soon as the surround light the set temperature (Traffic signal p

under the set value, the control light switches back to red and the grill plate is heated up until the set temperature is reached and the control light switches back to green.

Notes:

The thermostats automatically switch on and off to hold the set temperature.
- If you have plugged the appliance in and switched it on with the main switch but the temperature controllers are still set to "0", the ready indicators around the controller light up in green.

H Splash guard, in 2 parts

• The splash guard can be optionally mounted to the rear edge of the grill plates.
  The splash guard can be removed for cleaning; dishwasher safe.

F Grease gutter

If the grill plates are inserted with the grease outlets in the rear, the grease gutter beneath the grill plates guides the grease and oil coming from the grillables into the grease collection tray.
- The grease gutter can be removed from the appliance for easy cleaning; dishwasher safe.

G Grease collection tray

• The grease collection tray collects the grease and the oil of the grillables, either it comes through the grease gutter or directly through the grease outlet in the grill plates.
• The grease collection tray can be removed from the appliance for easy cleaning; dishwasher safe.

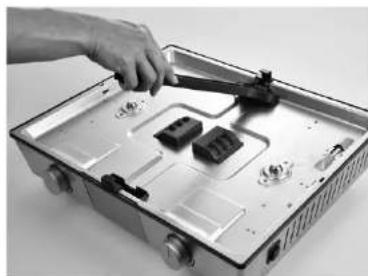

▲ DELI GRILL ASSEMBLY

1.Step:

Insert grease collection tray, insert grease gutter

2.Step:

Insert grill plates and lock them into place, listen for audible confirmation

1. Step:

If desired, mount the splash guard

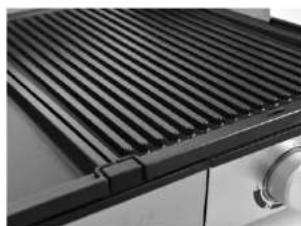

THIS IS HOW TO REMOVE RESP. MOUNT THE GRILL PLATES

Caution: Before removing or inserting the grill plates, the appliance has to be switched off, the power plug has to be pulled and the appliance has to be completely cooled down.

To remove:

Push the release button on the side of the appliance. Each grill plate has its own release button. Take the grill plate off of the appliance base.

To mount:

Place the grill plates on the appliance base so that the corners pointing inward lie in the upper and lower retaining jig of the appliance frame. Then, push down on the side of grill plates to make them audibly lock into place. Caution: The grease gutter has to be installed in the chassis before the grill plates are mounted.

THIS IS HOW TO MOUNT THE SPLASH GUARD

One at time, the halves of the splash guard are placed in the guide rail of one of the grill plates. The angled end of the splash guard points to the front and the overlap of the two splash guard halves is at the back, where the two grill plates meet.

BEFORE FIRST USE

• After all removable parts have been cleaned and the appliance has been properly assembled, it has to be heated before being used for the first time. This will burn off all production residues on the grill plates. Some smoke might develop, this is completely normal and stops after a short while.
• Take the grill plates from the appliance base. Clean the grill plates, the grease collection tray, the grease gutter as well as the plastic spatulas in hot dish water with a soft towel or sponge. Rinse all parts with clear water and dry them.
• Wipe the stainless steel surfaces of the chassis and the splash guard clean with a moist, soft towel.
• Place the appliance on an even, stable, dry, heat and moisture resistant work top.
• Install the grease gutter and the grease collection tray back in the appliance base.
• Mount the dry grill plates to the appliance and plug the power plug into a suitable power outlet.
• Switch the appliance on with the main switch and set both temperature controllers to the highest position (all the way to the right).
• Let the appliance heat up for 10 minutes, then set the temperature controller back to the position "0" (all the way to the left) and push the main switch back to "0" to switch the appliance off. Pull the plug and let the appliance cool down.
• Wipe the cool grill plates again with a moist towel.
• Your appliance is now ready for use.

STARTING UP

1. Place the clean appliance on a dry, stable and heat as well as moisture resistant table resp. worktop. Fully unwind the power cord.
2. Place the grease gutter and the grease collection tray in the appliance base.
3. Mount both grill plates to the appliance base so that they properly lock into place. Rub the grill plates (only one, if you do not need both) with a kitchen paper soaked in cooking oil.
4. Always mount both grill plates and never use the appliance with only one grill plate mounted.
   Note: If you insert the grill plates so that the grease outlets are directly above the grease collection tray, the grease of the grillables is directly led into the grease collection tray without passing the grease gutter.
5. If desired, place the splash guard on the edges of the grill plates. During grilling, grease splashes might occur. Please make sure that the surface on which the appliance is placed as well as the surroundings and nearby items are impervious against grease splashes.
6. Plug the power plug into a suitable power outlet.
7. Switch the main switch on the appliance backside to "1". The two ready indicators surrounding the temperature controllers light up in green if the temperature controllers are still set to "0" and the grill plates are not yet heated.
8. If you need both grill plates for grilling, please set both temperature controllers to the desired power. If you only require one grill plate, only use the temperature controller under the particular grill plate. The ready indicators surrounding the set temperature controllers light up in red to indicate that the grill plates are being heated up. Let the appliance heat up for approx. 15 minutes.
   Note: The thermostat automatically switches on resp. off to hold the set temperature.
9. When the ready indicator lights up in green, you can place your grillables on the respective grill plate. The grooved grill plate is especially well suited for meat, the flat grill place is for fish, seafood or vegetables.
10. Please use only utensils made from wood or heat resistant plastic to remove the grillables from the grill plates. Never use kitchen tools made from metal, these could damage the non-stick coating. For the same reason, do not, under any circumstances, cut directly on the grill plate and do not use any metal grilling utensils. Avoid prolonged contact of the plastic tools and the hot grill plates.

TIPS FOR PERFECT GRILLING

• Marinate or spice the meat before grilling but salt it only after you have taken it from the grill plate, otherwise the meat will lose too much of its juice.
• Bratwursts should be broached before grilling to prevent them from cracking.
• Ideally, take the grillables out of the freezer 30 minutes before grilling them. They will grill faster and you prevent thicker pieces of meat from staying cold inside.

SWITCHING THE APPLIANCE OFF

1. Turn the temperature controllers to "0" and switch the main switch to "0". The ready indicators surrounding the temperature controllers go out.
2. Pull the plug and let the appliance cool down completely before cleaning it. We recommend carefully cleaning the grill plates, the accessories and the appliance base after every use.

CLEANING AND MAINTENANCE

• Check if the power plug has been pulled and if the grill plates, the splash guard and the appliance base have cooled down completely.
• Remove the splash guard and push the release buttons to the left and right of the appliance to remove the cooled down grill plates. Remove the grease collection tray and the grease gutter from the appliance base.
• If the grill plates are heavily dirty, you can soak them in lukewarm water for some time or remove the dirt with a bit of oil and a kitchen paper. Under no circumstances use abrasive cleaners or solvents or steel scourers.
• Clean the grill plates, the splash guard, the grease collection tray and the grease gutter as well as the plastic spatulas in hot water, with a mild detergent and a soft sponge or towel. After that, rinse and dry everything carefully. The parts are dishwasher safe.
• Clean the stainless steel appliance base with a slightly wet towel, also the power cord, in case it got dirty. Avoid bringing the power plug into contact with liquid. Never submerge the appliance base, the power cord and the power plug in water or other liquids and do not spray water or other liquids onto the appliance parts. Risk of electric shock!
• Do not use aggressive cleaners or solvents as well as abrasive materials for any of the appliance parts. They might damage the surface.
• Afterwards, reassemble the appliance.

STORAGE

• When you do not need the Deli Grill, it has to be disconnected from the power outlet and cleaned and dried.
  The power cord should be wrapped around the cord wrap in the bottom of the completely cooled down appliance.
• Best store the completely cooled, cleaned and dry appliance fully assembled in the original packaging, including the accessories. Do not place any objects on the appliance.

ACCESSIONS

Art.-no. 720.09 Grill plate, flat

Art.-no.720.10 Grill plate, grooved

The accessories for your Solis Deli Grill are available from good specialist stores or from Solis. The contact addresses can be found at the end of this manual.

TECHNICAL SPECIFICATIONS

Model-no. Type 7951

Product description Table Grill

Voltage/frequency 220-240V/50/60Hz

Power Output 2000-2400 Watt

Dimensions (1 x h x d) approx. 49,5 x 18,5 x 40,5 cm

Weight approx. 9,5 kg

Technical changes reserved.

DISPOSAL

EU 2011/65/EU

Information for correct disposal of the product in accordance with the European Directive EU 2011/65/EU.

At the end of its working life this equipment must not be disposed of as an household waste. It must be taken to special local community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and enables its components to be recovered and recycled to obtain significant savings in energy and resources. In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin.

Solis of Switzerland Ltd reserves the right to carry out technical and visual changes and modifications to improve the product at any time.

SOLIS HELPLINE

This item stands out due to its long-life cycle and reliability. Despite this though, if a malfunction ever occurs, simply give us a call. Often a breakdown can be easily and quickly remedied with the right tip or technique without having to straight away send off the device for repair. We will give you all the advice and practical support you require. The contact addresses can be found at the end of this manual.

Keep the original packaging in a safe place so that you may use it in the event that transportation or shipping of the product becomes necessary.

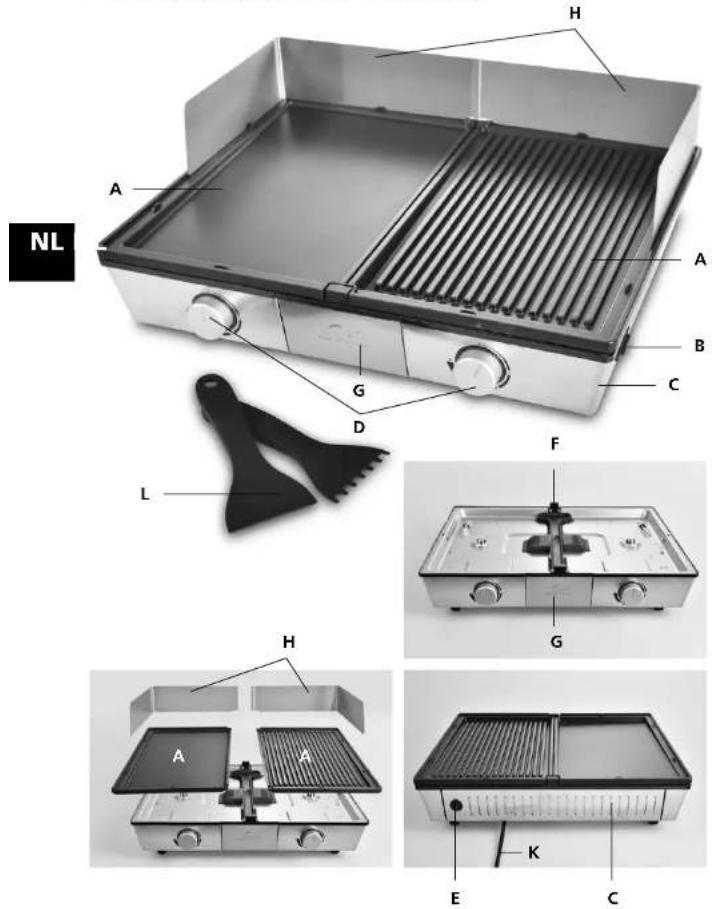

APPPARAATBESCHRIJVING

APPPARAATBESCHRIJVING

Solis customer service

Please contact us in advance of sending in products for return or repair. We will gladly give you the respective address. Alternatively, you can simply visi www.solis.com.
