USER MANUAL IM2ZF2BBG Zagg

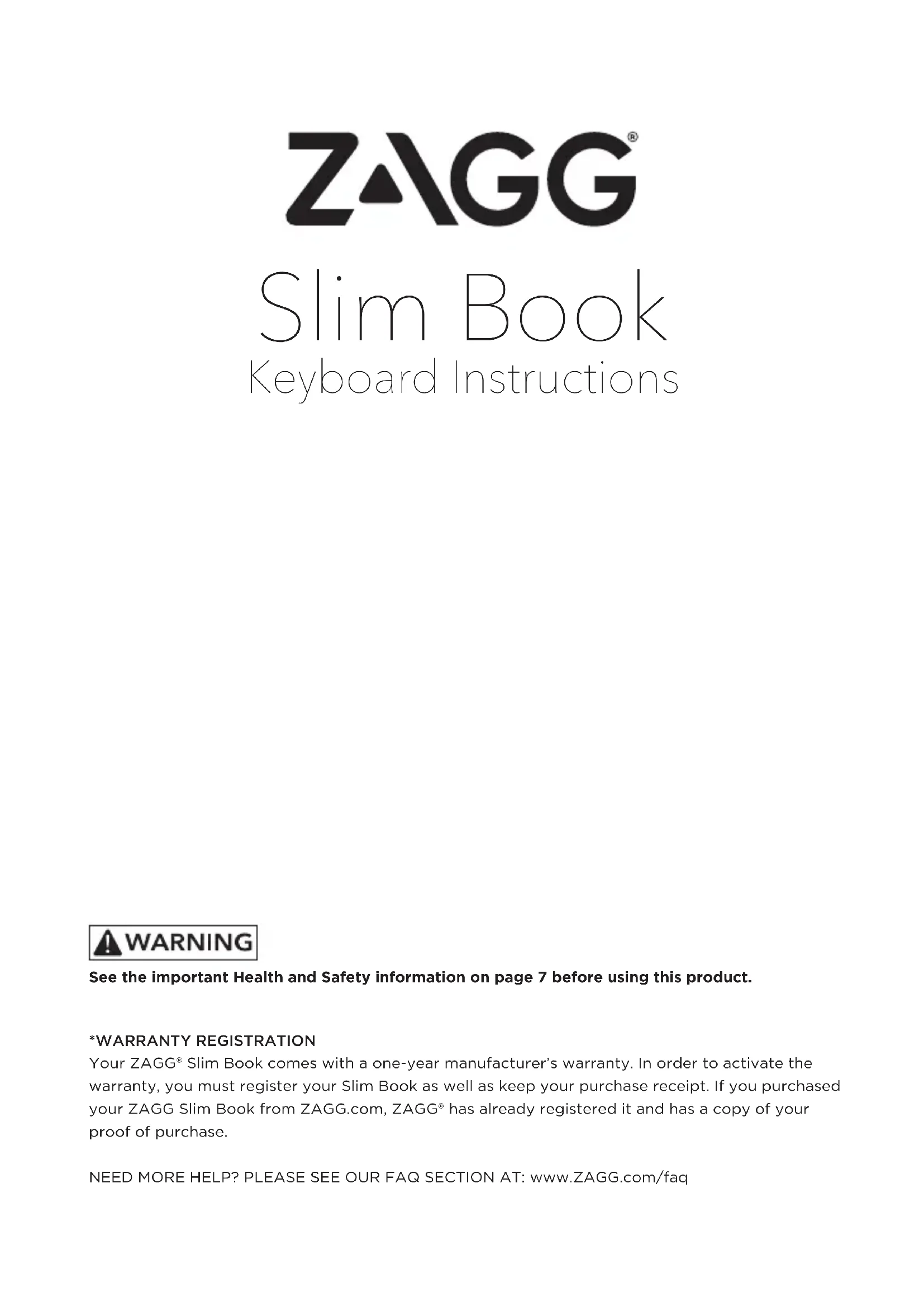

Keyboard Instructions Slim Book *WARRANTY REGISTRATION Your ZAGG® Slim Book comes with a one-year manufacturer’s warranty. In order to activate the warranty, you must register your Slim Book as well as keep your purchase receipt. If you purchased your ZAGG Slim Book from ZAGG.com, ZAGG® has already registered it and has a copy of your proof of purchase. NEED MORE HELP? PLEASE SEE OUR FAQ SECTION AT: www.ZAGG.com/faq See the important Health and Safety information on page 7 before using this product.INSERTING/REMOVING YOUR iPad® To insert your iPad® into the Slim Book open the Book’s case and remove it from the keyboard (to do this pull the case up and away from the keyboard). Then, line up your iPad with the holes in the case. Make sure the camera hole is aligned properly as well as the opening for the Lightning™ cable. When everything is aligned, set the bottom half of your iPad in the cover and apply light pressure to ensure it is properly settled. Snap the top half of your iPad into the cover. Check all corners to make sure they have seated properly. When your iPad is secure in the case, you can connect it with the keyboard by placing it in the magnetic trough. Powerful magnets will secure it in place, but also allow you to remove your iPad any time it benefits you. To easily remove your iPad from the case, separate the case from the keyboard, and then gently roll the rubber overmold away from the edges while pressing the tablet from behind. Grasp your tablet’s exposed side and lift/ pull away from the Slim Book.

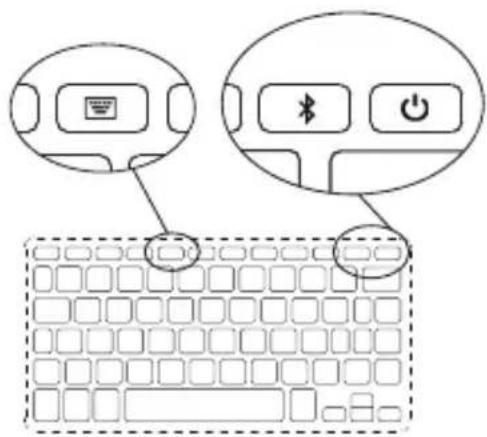

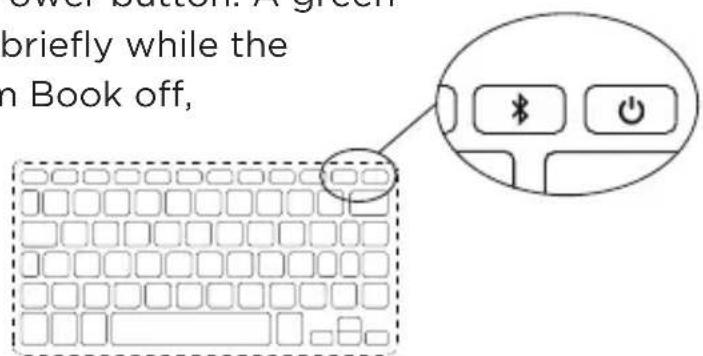

To turn your Slim Book on, press the Power button. A green LED on the battery key will illuminate briefly while the keyboard powers up. To turn your Slim Book o, press and hold the Power button for three seconds. A red LED will flash, indicating your Slim Book has turned o.DISCONNECTING YOUR KEYBOARD Your Slim Book features a case that protects your iPad even when it’s not connected to your keyboard. When you’d like to use the case without the keyboard, there are three ways you can disconnect your keyboard.

1. Press the Keyboard Hide/Show button.

Pressing this button will disengage the Slim Book keyboard and allow you to use your iPad’s on-screen keyboard. Press the Keyboard Hide/Show button again when you are ready to use the Slim Book’s keyboard.

2. Turn o the Bluetooth connection from

PAIRING YOUR ZAGG Slim Book Pairing your Slim Book with your iPad is easy. It should only need to be paired once, using the following directions. If the connection between your iPad and Slim Book is ever lost, repeat these steps.

1. On your iPad select: SETTINGS > BLUETOOTH > ON.

2. Press and hold the Bluetooth button for three seconds.

A blue LED under the Power key will flash until your Slim Book and iPad are paired.

3. Your iPad will display “ZAGG Slim Book”

as an available device. Select this option to complete pairing. 2BATTERY LIFE As mentioned, the Slim Book features a powerful, rechargeable battery that lasts up to two years between charges. To check your Slim Book’s remaining battery power press the battery key. The LED indicator will flash one of three ways.

1. Three green flashes indicate 50% or more battery life remaining.

2. Three yellow flashes indicate between 25%-49% battery life remaining.

3. Three red flashes indicate less than 25% battery life remaining. When

your Slim Book reaches critical battery level, the red light will flash once every five minutes.

CHARGING Your Slim Book features a powerful lithium polymer battery that lasts up to two years of normal use between charges*. It comes with a charging cable you can use to charge your keyboard quickly and conveniently. To charge your Slim Book, follow these steps:

1. Plug the micro USB connector into the charging port.

2. Plug the regular USB connector into any 5V USB outlet.

A red LED under the Power button will illuminate to indicate your Slim Book is charging. Wait until this light turns o, indicating a full charge. It usually takes 2-4 hours to completely charge your Slim Book.

4. Remove the micro USB connector and enjoy your Slim Book for up

to two years before you need to charge it again.

• Normal use is approximately one hour of use per day without the backlit feature. Using the backlit feature will impact battery life and will require more frequent charging.

CHARGING PORTSPECIAL FUNCTION KEYS

Your Slim Book keyboard has been designed with the following special function keys to give you more control of your iPad: HOME – Displays your iPad’s home screen. LOCK – Activates and deactivates your iPad’s sleep mode. KEYBOARD HIDE/SHOW – Hides or shows your iPad’s on-screen keyboard. FN + KEYBOARD HIDE/SHOW (iPad mini™ ONLY) – Hides or shows your iPad’s on-screen keyboard. PREVIOUS TRACK – Skips to the previous track on your selected playlist. PLAY/PAUSE – Starts or pauses your current playlist. NEXT TRACK – Skips to the next track on your current playlist. MUTE – Mutes your iPad’s audio. SEARCH (FOR iPAD MINI USE FN + SEARCH) – Opens your iPad’s search function. SIRI – Opens SIRI. BLUETOOTH – Press and hold for 3 seconds to pair. POWER – Turns your Slim Book keyboard on and o. VOLUME DOWN – Decreases your iPad’s volume. VOLUME UP – Increases your iPad’s volume. CAPS LOCK – Activates the Caps Lock feature. When Caps Lock is on a blue indicator light will remain lit until it is turned o. To turn Caps Lock o, simply press Caps again. WORLD SYMBOL – Toggles between international keyboards (when activated in your iPad’s settings).

FN + BATTERY SYMBOL –

Indicates remaining battery life.

FN + BACKLIGHT SYMBOL –

Activates your Slim Book’s backlight feature. Pressing this key once will turn on the backlights, pressing it again will turn o the backlights. NOTE: The backlights will automatically turn o after a couple seconds if not being used. Begin typing again to activate them.

To help preserve battery life, your Slim Book will enter sleep mode if left on and not used for several minutes. To awaken your Slim Book, press any key. The Slim Book’s battery has no memory and may be charged whenever you wish.5 TROUBLESHOOTING If your iPad does not respond to your Slim Book there may be a simple explanation such as a dead battery or an unsuccessful pairing. Please use the following to help troubleshoot your situation. If none of the following solve your issue, then please contact ZAGG Customer Service and one of our trained professionals will be happy to assist you.

1. Restart your iPad by holding down the home and power button until the

Apple® logo appears on the screen.

2. Turn your Slim Book o and back on. You should see the LED illuminate

briefly, if not, charge your Slim Book.

3. After charging, turn your Slim Book on. If the LED does not illuminate,

and your keyboard doesn’t operate correctly, please contact ZAGG’s customer service.

4. If your Slim Book cannot establish or maintain a Bluetooth® connection,

reset the Bluetooth module by charging your keyboard.

5. Forget and re-pair your Slim Book. On your iPad, select: SETTINGS >

BLUETOOTH > ON. If you see “ZAGG Slim Book” listed as an available device, touch the arrow to the right of it and choose to have your iPad forget the device.

6. Push the FN + PAIR buttons on your Slim Book and watch for the LED

7. Your iPad should display “ZAGG Slim Book” as an available device.

For more help please see our FAQ section at: www.zagg.com/faq To reach a trained customer service representative, please use one of the following: ZAGG.com/support/contact.php | [e-mail] 1-800-700-ZAGG [9244] | 00-1-801-839-3906 for international customers For unparalleled scratch protection for your iPad, we recommend ZAGG’s InvisibleShield®. ©2005 - 2014 ZAGG Inc All Rights Reserved. PATENT PENDING | NASDAQ: ZAGG | MADE IN CHINA iPad®, iPad Mini™ and Apple® are trademarks or registered trademarks of Apple, Inc. Bluetooth® is a trademark of Bluetooth SIG, Inc. ZAGG®, InvisibleShield®, and ZAGG Slim Book are trademarks or registered trademarks of ZAGG Inc. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.1. Health Warning: Take frequent breaks when using your keyboard. If you experience any discomfort, pain, tingling, numbness or burning in your neck, shoulders, arms, wrists, hands or any other part of the body, stop using your keyboard and consult a physician.

2. Use only micro-USB chargers in connection with your keyboard.

3. Do not attempt to service your keyboard.

4. Do not disassemble or attempt to disassemble your keyboard.

5. Do not crush or puncture the keyboard.

6. Do not immerse your keyboard in water.

7. Do not put your keyboard in contact with water or other liquids as they

could cause a short circuit, fire, or electric shock which could result in serious injury, death or property damage.

8. Do not use liquid or aerosol cleaners or solvents on or near your keyboard.

Clean only with a soft, dry cloth. Disconnect any cords before cleaning the keyboard.

9. Do not use your keyboard while operating a motorized vehicle, including

automobile, boat or airplane. Doing so could put you and others at risk of serious injury, death or property damage.

10. Do not use or place your keyboard near any heat sources including, but not

limited to, radiators, heat registers, stoves, other appliances, campfires or barbeque grills.

11. To reduce the risk of fire or electric shock, wire or connect your keyboard

to products only in the manner instructed in the documentation supplied herewith. Do not attempt to modify or adjust any ports. Any improper connections or adjustments may cause damage.

12. When you are ready to discard your keyboard, recycle your keyboard

in a manner consistent with electronic recycling requirements or recommendations in your geographic area. Please read the precautions and operation information before using your keyboard or any accessories that accompany it. Retain this information for future use. 7Keyboard Instructions FRENCH Slim Book
