Product Type	Bagged Canister Vacuum
Intended Use	Carpets and hard floors, household use only
Power Supply	Mains, polarized plug (voltage per rating plate)
Cord Length (approx.)	6 m (with yellow and red marks for max length)
Dust Bag Type	Disposable Type O Bag
Exhaust Filter Type	Washable F100 Filter
Washable Exhaust Filter	Yes, rinse with water and dry 24 h
Motor Protection	Auto-resetting Thermal Cut-off
Electrical Safety	Polarized plug to reduce shock risk
Automatic Shut-off in Case of Overheating	Yes, motor stops; unplug and let cool 30 min
Routine Maintenance	Replace dust bag and clean exhaust filter
Genuine Replacement Parts	Type O bag and F100 filter available at dirtdevil.com
After-Sales Service	Authorized repair center; support by phone or online
Warranty	Limited manufacturer's warranty (per terms indicated)
Dimensions (approx.)	35 x 28 x 20 cm (L x W x H) – main unit
Weight (approx.)	4.5 kg
Included Accessories	Hose, extension tube, crevice tool, and tools (per model)
Cord Storage	Automatic rewind with release button
Operating Environment	Indoors only, dry surfaces
Lubrication	Motor lubricated for life, do not add lubricant

Frequently Asked Questions - Express Bagged Canister DIRT DEVIL

How to replace the dust bag?

Unplug the vacuum. Pull the latch to open the compartment. Lift the bag holder, slide the bag off the holder. Insert the new bag (Type O) into the holder, aligning the end. Replace the holder and close the cover until it clicks.

How to clean the exhaust filter?

Unplug the vacuum. Open the filter cover by pushing the tabs. Remove the F100 filter, rinse both sides with clean water. Air dry for 24 hours before reinstalling.

What to do if the vacuum stops suddenly?

This may be due to the thermal cut-off activated by overheating. Turn off and unplug the vacuum. Check that the bag is not full, and that filters and hose are not clogged. Let it cool for 30 minutes. The cut-off resets automatically. If the problem persists, contact after-sales service.

Why does dust escape from the vacuum?

Check that the dust bag is not full and is correctly installed. Make sure the exhaust filter is in place and clean. Also check that the hose is properly connected to the intake.

What is the proper use of the power cord?

Pull the plug to unwind the cord. Never pull the cord itself. A yellow band indicates the cord is almost at full length; a red band means it is fully extended. To rewind, hold the plug and press the release button.

What accessories are included with the vacuum?

The Express Bagged Canister vacuum comes with a hose, an adjustable extension tube, and several tools (crevice tool, brush, etc.). Consult the manual for the full list.

Where can I find genuine replacement parts?

Genuine replacement parts, such as the Type O bag and F100 filter, are available at www.dirtdevil.com or by contacting customer service at 1 800 321-1134.

What to do if the vacuum no longer picks up properly?

Check that the dust bag is not full, the exhaust filter is not clogged, and the hose is not blocked. Clean or replace the affected items.

How to properly store the vacuum?

Unplug the vacuum. Rewind the cord by holding the plug. Store the vacuum in a dry, indoor location. Do not expose to frost. Place it at the bottom of stairs to prevent falls.

Where to register the warranty?

Register your product online at www.dirtdevil.com or by calling 1 800 321-1134. Keep your proof of purchase (receipt) to benefit from the limited warranty.

USER MANUAL Express Bagged Canister DIRT DEVIL

Congrats on purchasing your new Express™ Carpet + Hard Floor Canister. Inside, you'll find everything you want to know from the tools to how to.

So what are you waiting for? LET'S GO.

Warranty Registration

Be sure to register your product online at www.DirtDevil.com or call 1-800-321-1134 to register by phone. Hint: Attach your sales receipt to this Owner's manual. Verification of date of purchase may be required for warranty service of your Dirt Devil® product.

For quick reference, please record your product information below.

Model #:

Mfg. Code:

(Mfg. code located on the back or bottom of product)

NEED HELP?

Go to dirtdevil.com/support or contact our Customer Service Department at [phone]

8:00 a.m. - 7:00 p.m. EST Mon. - Fri.

REPLACEMENT PARTS CALLOUT

Find Genuine Replacement Parts at www.dirtdevil.com

This product uses the following parts:

DUST BAG: TYPE O

EXHAUST FILTER: F100

Table of Contents

Safety Instructions 4

Using Your Dirt Devil 6-7

Getting Started 6

Cord Release/Storage 7

Maintenance 8-12

How to Replace the Dust Bag 8

How to Clean the Exhaust Filter 10

Troubleshooting 12

Limited Warranty 13

French 16

Spanish 31

IMPORTANT SAFETY INSTRUCTIONS

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED

COMMERICALLY WARRANTY IS VOID.

SAVE THESE INSTRUCTIONS!

IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Fully assemble before operating.
• Operate cleaner only at voltage specified on data plate on bottom of cleaner.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close supervision is necessary when used by or near children. To avoid injury or damage, keep children away from product, and do not allow children to place fingers or other objects into any openings.
• Use only as described in this manual. Use only manufacturer's recommended attachments and products.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not place product on cord. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before cleaning or servicing.
• Do not handle plug or appliance with wet hands.
• Do not put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs or on floor. Do not place cleaner on stairs or furniture, as it may result in injury or damage.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or fine wood sandings or use in areas where they may be present.
• Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filters and/or dust bag in place.

WARNING: This product contains chemicals, known to the State of California to cause cancer and birth defects or other reproductive harm. WASH HANDS AFTER USING.

CAUTION: TO REDUCE THE RISK OF DAMAGE:

• Avoid picking up hard, sharp objects with this product, as they may cause damage.
• Store appropriately indoors in a dry place. Do not expose machine to freezing temperatures.
• Do not use sharp objects to clean out hose as they can cause damage.

WARNING: To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

NOTICE

A THERMAL PROTECTOR HAS BEEN DESIGNED INTO YOUR CLEANER TO PROTECT IT FROM OVERHEATING. WHEN THE THERMAL PROTECTOR ACTIVATES THE CLEANER WILL STOP RUNNING.

If this happens proceed as follows:

An auto reset thermal protector has been designed into your cleaner to protect it from overheating. When the thermal protector activates the cleaner suction motor will stop running.

If the vacuum stops running proceed as follows:

1. Turn cleaner OFF and unplug it from the electrical outlet. IMPORTANT: If left plugged in and turned on, the cleaner motor may start unexpectedly.
2. Empty dirt cup. Check fullness of bag, change if needed. Empty dirty water tank.
3. Inspect the nozzle inlet, nozzle connector, hose connector, hose, wand, and exhaust filter for any obstructions. Clear obstructions if present.
4. After the motor cools for 30 minutes, the thermal protector will deactivate and cleaning may continue. Plug the cleaner back into the electrical outlet.

If the thermal protector continues to activate after following the above steps your cleaner needs servicing.

If the thermal protector continues to activate after following the above steps, your cleaner needs servicing.

Getting Started

1 Insert hose into inlet until it clicks.

2 Attach extension wand to the hose handle.

3 Adjust extension wand by pressing lock button. Release lock button to lock extension wand.

4 Place tools on by pushing firmly on the hose/wand end.

YOUR EXPRESS

IS READY

TO CLEAN!

LET'S GO.

NEED HELP?

Go to dirtdevil.com/support or contact our Customer Service Department at [phone] 8:00 a.m. - 7:00 p.m. EST Mon. - Fri.

Pick up the conversation on...

Twitter@DirtDevil

Facebook.com/DirtDevil

Cord Release/Storage

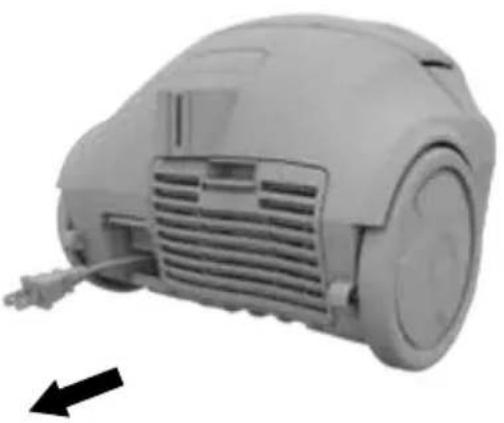

1 Grasp the end of the plug and pull to release the cord from cord reel.

IMPORTANT

WHEN PULLING ON THE CORD, YELLOW TAPE WILL IDENTIFY WHEN THE CORD IS ALMOST FULLY EXTENDED. WHEN RED TAPE IS VISIBLE ON THE CORD, THE CORD HAS REACHED ITS FULL LENGTH. DO NOT PULL THE CORD OUT ANY FURTHER.

2 To return the cord for storage, hold plug and press down cord release button on top of canister.

WARNING

HOLD PLUG WHEN REWINDING ONTO CORD REEL DO NOT ALLOW PLUG TO WHIP WHEN REWINDING.

How to Replace the Dust Bag

WARNING TO REDUCE THE RISK OF PERSONAL INJURY - UNPLUG BEFORE CLEANING OR SERVICING.

1 Lift the latch upward to access dust bag.

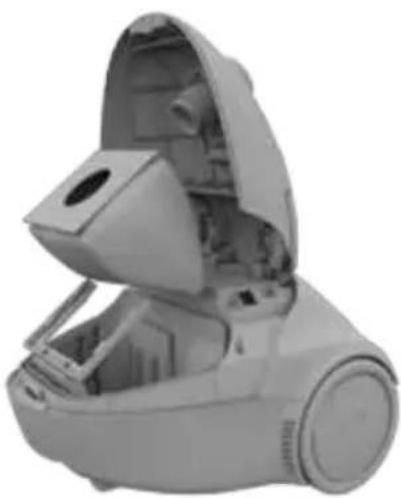

2 Swing the dust bag holder up and slide the dust bag out of the dust bag holder.

This would be a good point to check the condition of your rinsable exhaust filter. Dirty? Check out pages 10 & 11 for cleaning steps.

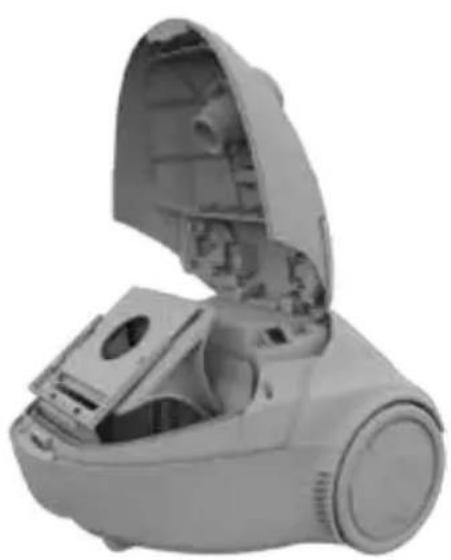

3 Slide the new dust bag into the dust bag holder until it's flush with the edge of the dust bag holder.

Push the dust bag holder down and close the lid until it latches. Make sure dust bag is not pinched in the door when closing.

How to Clean the Exhaust Filter

WARNING TO REDUCE THE RISK OF PERSONAL INJURY - UNPLUG BEFORE CLEANING OR SERVICING.

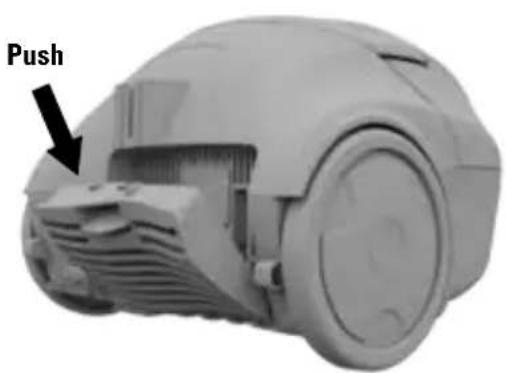

1 Push the tab on the front of the cover to pivot cover out.

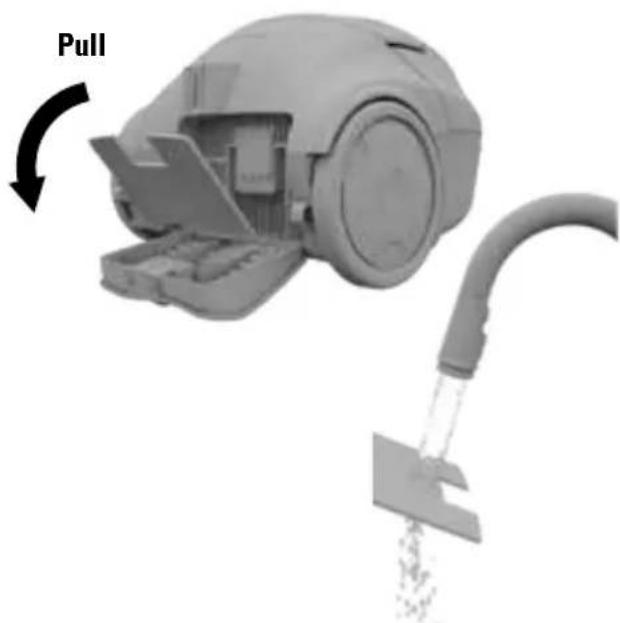

2 Pull out the exhaust filter, rinse dirt from both sides and let air dry for 24 hours before reinstalling or until dry.

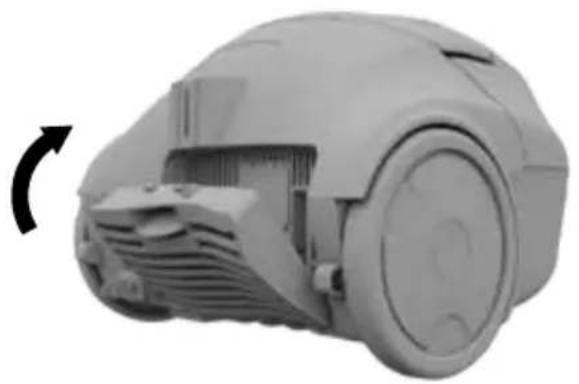

3 Put the dry exhaust filter back. Now line up the exhaust filter cover with the bottom tabs first and then snap back into place.

LUBRICATION

The motor is equipped with bearings which contain sufficient lubrication for its lifetime. The addition of lubricant could cause damage. Do not add lubricant to motor.

Any other servicing should be done by an authorized representative. If appliance is not working as it should, has been dropped, damaged, left ourdoors, or dropped into water, take it to a service center prior to continuing use.

Troubleshooting

Any other servicing should be done by an authorized service representative. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.

WARNING TO REDUCE THE RISK OF PERSONAL INJURY-UNPLUG BEFORE CLEANING OR SERVICING.

Problem Possible Cause Possible Solution

Vacuum won't run 1. Power cord not firmly 1. Plug unit in firmly. plugged into outlet.
2. No voltage in wall plug. 2. Check fuse or breaker in home.
3. Blown fuse or tripped 3. Replace fuse/reset breaker in home. breaker.
4. Thermal Protector activated. 4. Unplug and allow vacuum to cool for 30min. (This will reset the thermal protector)
Dust escaping from vacuum	1. Dust Bag is full. 1. Replace dust bag.
	2. Dust Bag is not installed 2. Review Dust Bag removal & replacement. correctly.
	3. Hose not installed correctly. 3. Review Hose installation.
	4. Rinsable Exhaust Filter not 4. Review Rinsable Exhaust Filter Removal and Cleaning. installed completely.
Vacuum tools won't pick-up	1. Hose clogged. 1. Remove hose and tools; remove obstruction.
	2. Dust bag is full. 2. Replace dust bag.
	3. Rinsable Exhaust Filter is 3. Remove rinsable exhaust filter and clean. clogged.

Warranty

LIMITED WARRANTY

WHAT THIS WARRANTY COVERS

When used and maintained in normal household use and in accordance with the Owner's Manual, your Dirt Devil® product is warranted against original defects in material and workmanship. During the Warranty Period, We will provide labor and parts, at no cost to you, to correct any such defect in products purchased in the United States, U.S. Military Exchanges and Canada.

HOW TO MAKE A WARRANTY CLAIM

If this product is not as warranted, take or send the product to a Dirt Devil® Authorized Warranty Service Dealer along with proof of purchase. For an automated referral to authorized service outlets in the U.S.A., phone: [phone] OR visit Dirt Devil® online at www.DirtDevil.com. For additional assistance or information concerning this Warranty or the availability of warranty service outlets, phone the Dirt Devil® Consumer Response Center, Phone [phone], Mon-Fri 8am-7pm EST.

WHAT THIS WARRANTY DOES NOT COVER

This Warranty does not cover: use of the product in a commercial operation (such as maid, janitorial and equipment rental services), brushroll, belt, bags, filters, improper maintenance of the product, damage due to misuse, acts of God, nature, vandalism or other acts beyond the control of Royal Appliance Mfg. Co. ("Royal", "we"), owner's acts or omissions, use outside the country in which the product was initially purchased and resales of the product by the original owner. This warranty does not cover pick up, delivery, transportation or house calls.

This warranty does not apply to products purchased outside the United States, including its territories and possessions, outside a U.S. Military Exchange and outside of Canada. This warranty does not cover products purchased from a party that is not an authorized retailer, dealer, or distributor of Royal products.

OTHER IMPORTANT TERMS

This Warranty is not transferable and may not be assigned. This Warranty shall be governed and construed under the laws of the state of Ohio. The Warranty Period will not be extended by any replacement or repair performed under this Warranty. THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMEDY PROVIDED BY ROYAL. ALL OTHER WARRANTYES, EXPRESSED OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, ARE DISCLAIMED. IN NO EVENT WILL ROYAL BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER OR ANY PARTY CLAIMING THROUGH OWNER, WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT OR STRICT PRODUCTS LIABILITY OR ARISING FROM ANY CAUSE WHATSOEVER. Some states do not allow the exclusion of consequential damages, so the above exclusion may not apply to you. This warranty gives you specific rights; you may also have others that vary from state to state.

Find Genuine Replacement Parts at www.dirtdevil.com

This product uses the following parts:

DUST BAG TYPE O

EXHAUST FILTER F100

Call our Customer Service Department at [phone]

8:00 a.m. - 7:00 p.m. EST Mon. - Fri.

www.dirtdevil.com

OUR VACS SPEAK VOLUMES

Pick Up the Conversation On...

Facebookcom/DirtDevil

Twitter@DirtDevil

EXPRESS
