USER MANUAL SENSEO TWIST BY KENZO TAKADA HD7870/91 PHILIPS
For more support go to:
www.philips.com/senseo-twist/support

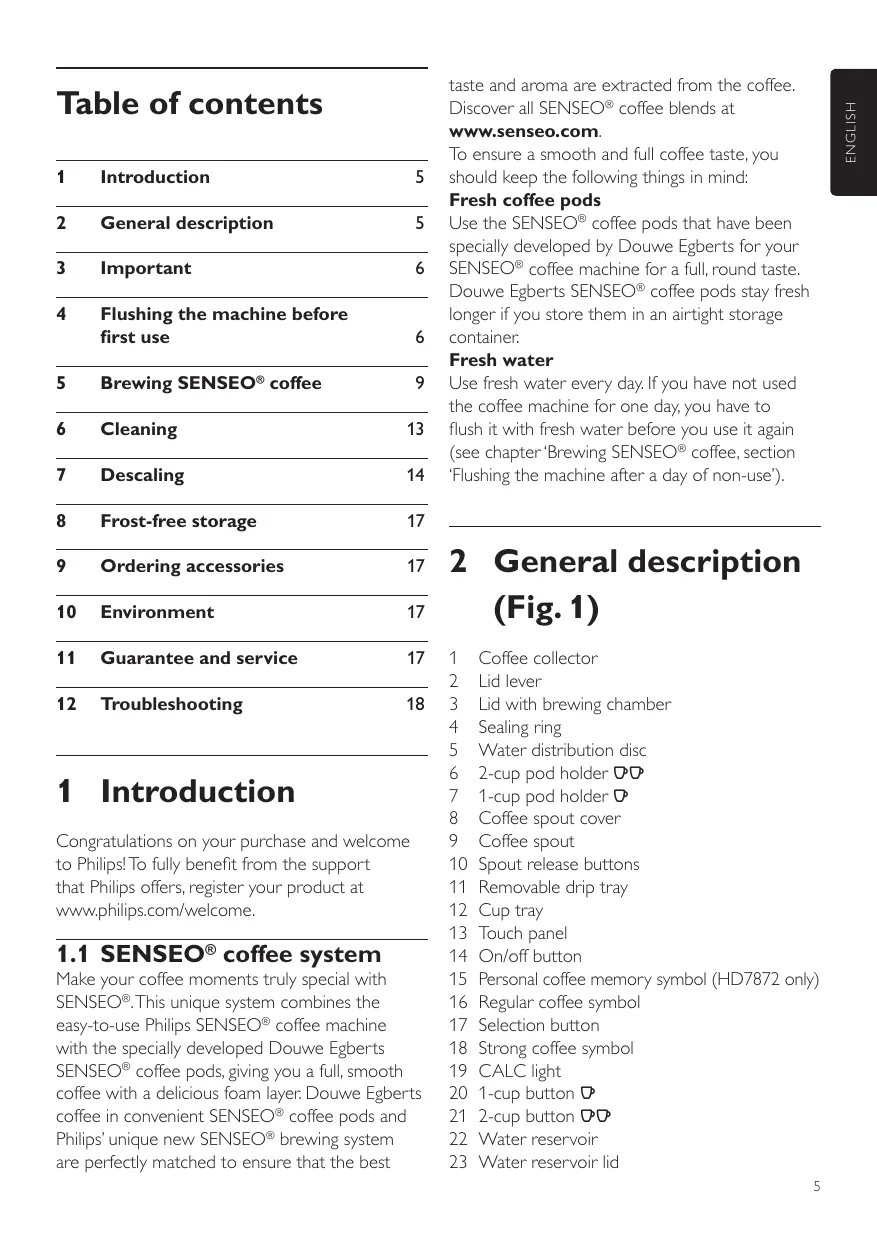

Table of contents
1 Introduction 5
2 General description 5
3 Important 6
4 Flushing the machine before first use 6
5 Brewing SENSEO® coffee 9
6 Cleaning 13
7 Descaling 14
8 Frost-free storage 17
9 Ordering accessories 17
10 Environment 17
11 Guarantee and service 17
12 Troubleshooting 18
1 Introduction
Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.
1.1 SENSEO® coffee system
Make your coffee moments truly special with SENSEO®. This unique system combines the easy-to-use Philips SENSEO® coffee machine with the specially developed Douwe Egberts SENSEO® coffee pods, giving you a full, smooth coffee with a delicious foam layer. Douwe Egberts coffee in convenient SENSEO® coffee pods and Philips' unique new SENSEO® brewing system are perfectly matched to ensure that the best
taste and aroma are extracted from the coffee. Discover all SENSEO® coffee blends at
www.senseo.com.
To ensure a smooth and full coffee taste, you should keep the following things in mind:
Fresh coffee pods
Use the SENSEO® coffee pods that have been specially developed by Douwe Egberts for your SENSEO® coffee machine for a full, round taste. Douwe Egberts SENSEO® coffee pods stay fresh longer if you store them in an airtight storage container.
Fresh water
Use fresh water every day. If you have not used the coffee machine for one day, you have to flush it with fresh water before you use it again (see chapter 'Brewing SENSEO® coffee, section 'Flushing the machine after a day of non-use').

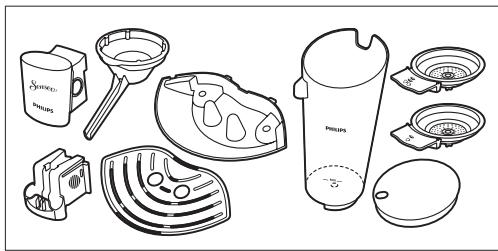

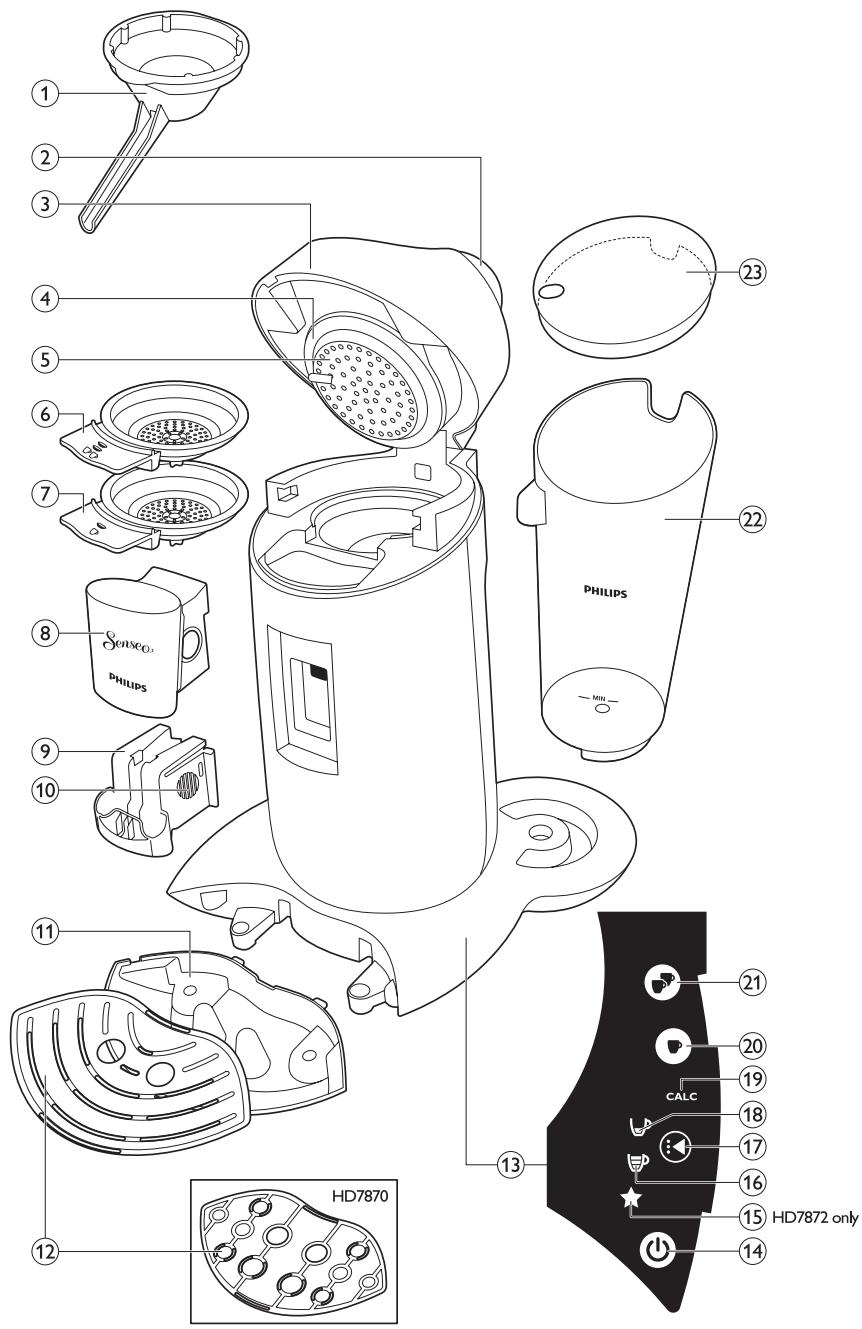

2 General description (Fig. 1)
1 Coffee collector
2 Lid lever
3 Lid with brewing chamber
4 Sealing ring
5 Water distribution disc
6 2-cup pod holder
7 1-cup pod holder
8 Coffee spout cover
9 Coffee spout
10 Spout release buttons
11 Removable drip tray
12 Cup tray
13 Touch panel
14 On/off button
15 Personal coffee memory symbol (HD7872 only)
16 Regular coffee symbol
17 Selection button
18 Strong coffee symbol
19 CALC light
20 1-cup button
21 2-cup button
22 Water reservoir
23 Water reservoir lid
3 Important
Read this user manual carefully before you use the machine and save it for future reference.
Danger
- Never immerse the machine in water or any other liquid.
Warning
- Check if the voltage indicated on the bottom of the machine corresponds to the local mains voltage before you connect the machine.
- This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the machine.
- Do not use the machine if the plug, the mains cord or the machine itself is damaged.
- If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
Caution
After unpacking the machine, never put your SENSEO® machine on its side. Always keep it in upright position, also during transport.
Always return the machine to a service centre authorised by Philips for examination or repair. Do not attempt to repair the machine yourself, otherwise your guarantee becomes invalid.
- Do not use the machine in combination with a transformer, as this could cause hazardous situations.
Always put the machine on a flat and stable surface.
- Do not use the machine at altitudes higher than 2200 metres above sea level.
- Never pour milk, coffee, hot water or carbonated water into the water reservoir.
- Never flush the machine or let it brew coffee when the spout is not in place.
This machine is intended for normal household use only. It is not intended for use in environments such as staff kitchens of shops, offices, farms or other work environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other residential environments.
3.1 Compliance with standards
This machine complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the machine is safe to use based on scientific evidence available today.
The energy consumption of this machine in off mode is less than 1 watt. This means that this machine complies with European Directive 2009/125/EC, which sets the ecological design requirements for energy-using products.
4 Flushing the machine before first use
It is important that you flush your SENSEO® coffee machine before first use. After the flushing cycle (which only takes approx. 2 minutes), the machine is ready for brewing SENSEO® coffee.
Caution:
Never interrupt the flushing cycle halfway. If you do, the boiler does not fill itself properly.

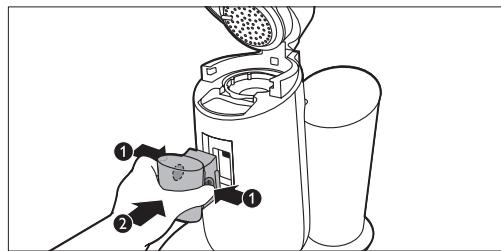

1 Attach the spout to the machine. Grab the two ridges of the inner part of the spout and squeeze them lightly (1). Place the spout on the machine and release the two ridges (2).
Caution:
Never flush the machine or let it brew coffee when the spout is not in place.

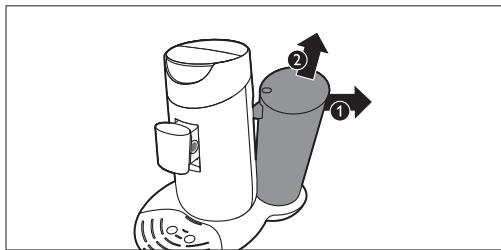

2 Tilt the top of the water reservoir backwards (1) and lift the water reservoir off the machine (2).
3 Fill the water reservoir to the top with cold tap water.
4 Place the lid on the water reservoir before you put the water reservoir back onto the machine.

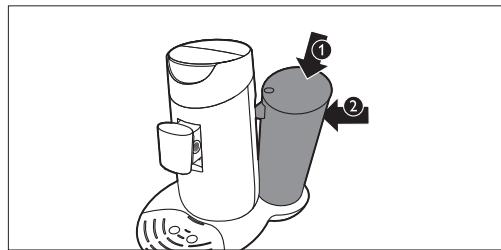

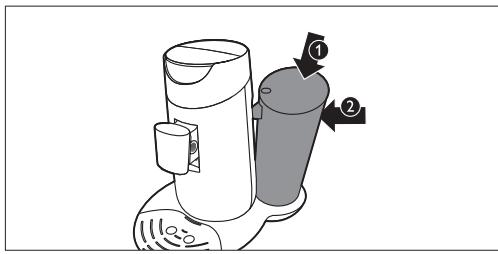

5 Tilt the water reservoir and place the bottom back onto the machine (1). Then press the top of the water reservoir towards the machine (2).

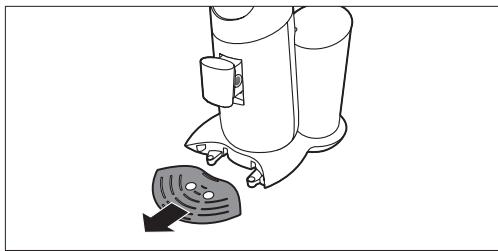

6 Remove the drip tray.
7 Place a bowl with a capacity of at least 1.5 litres under the coffee spout.
8 Make sure a pod holder, without pod or pods, is in place.
9 Put the plug in an earthed wall socket.

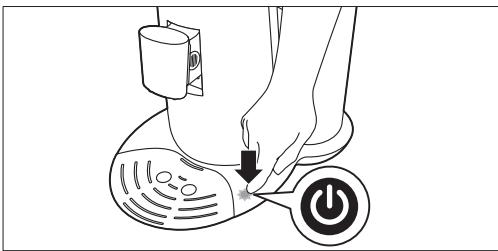

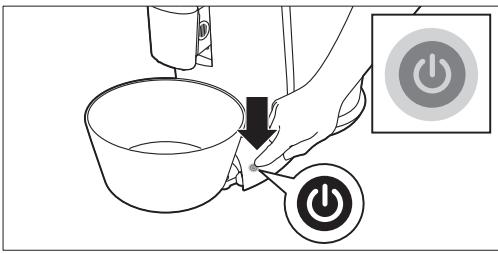

Press the on/off button . The button lights up to indicate that you have to flush the machine.
- When all the water in the water reservoir has been used up, the flushing cycle is finished and the machine switches off.

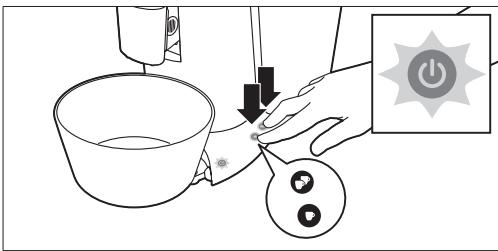

To start flushing, press the 1-cup button and the 2-cup button briefly at the same time.
12 Fill the water reservoir with fresh tap water, put the lid on it and place it back onto the machine.
- The on/off button starts flashing to indicate that the flushing cycle has started.
During the flushing cycle, the boiler fills itself with water from the water reservoir and cold water comes out of the coffee spout. During the flushing cycle, the machine produces more noise than during a regular brewing cycle.
Your SENSEO® machine is now ready for use so that you can brew your first cup of delicious coffee.
5 Brewing SENSEO® coffee
While the SENSEO® coffee machine is heating up, you can select the coffee strength you prefer and the number of cups you want to brew. The machine then brews the cup or cups immediately after it has heated up.

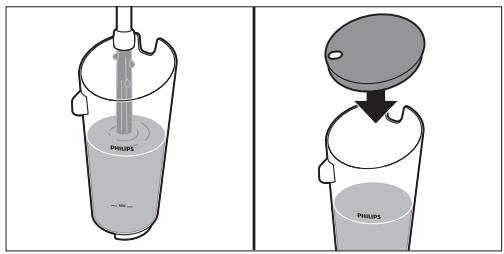

1 Make sure that the water reservoir is filled with fresh cold tap water beyond the MIN level and that the lid is on the water reservoir.
Tip:
Use fresh water every day.
Put the plug in an earthed wall socket.

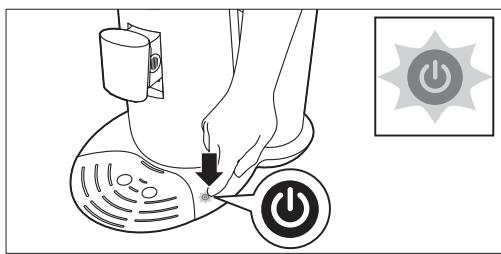

Press the on/off button . The on/off button flashes slowly while the water heats up.
Note:
If the on/off button flashes rapidly, the water reservoir does not contain enough water for brewing one cup of coffee.

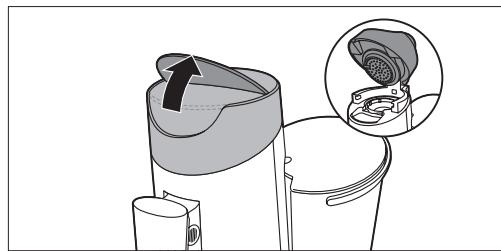

Pull the lid lever upwards to open the lid. The lid opens automatically.

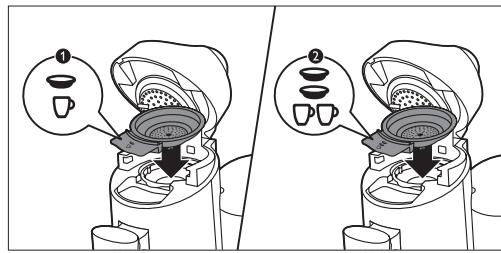

5 If you want to make one cup of SENSEO® coffee, place the 1-cup pod holder in the machine (1). If you want to make two cups, put the 2-cup pod holder in the machine (2). Make sure the pod holder is clean.

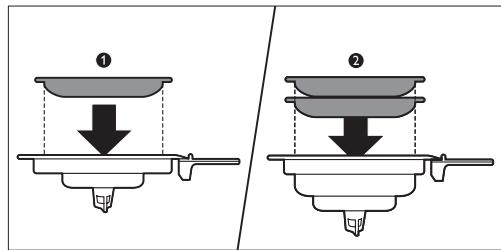

6 Place 1 coffee pod in the 1-cup pod holder (1) or place 2 coffee pods in the 2-cup pod holder (2). Place the pod or pods properly in the centre of the pod holder, with the convex side pointing downwards. Press the pod or pods lightly into the pod holder.
Note:
Make sure the coffee in the pod or pods is evenly distributed.
Caution:
Never put normal ground coffee or use torn pods in the SENSEO® machine, as this causes it to become blocked.

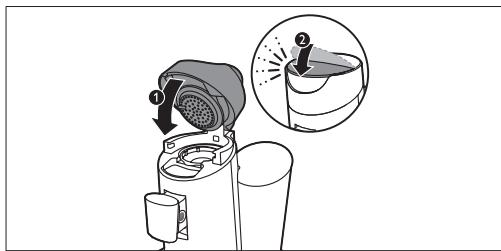

7 Close the lid (1) and lock the lever (2).
Warning:
Make sure the lid is closed properly and the lid lever is locked before you start brewing coffee.

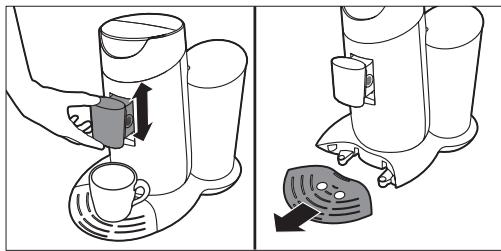

Place one cup or two cups under the spout openings. You can adjust the height of the coffee spout by sliding it upwards or downwards. You can also remove the drip tray to be able to place higher cups.
Note
The cups you use should have a capacity of at least 150ml when you brew regular coffee or 100ml when you brew strong coffee. Do not use cups that are too large, as they cause the coffee to get cold more quickly.

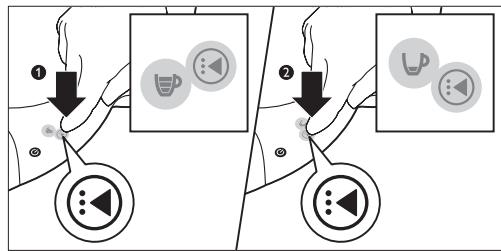

Press the selection button to select the desired coffee strength. Select the cup symbol with three bars for a regular cup of coffee (125ml) (1). Select the cup symbol with one bar for a strong cup of coffee (60ml) (2).

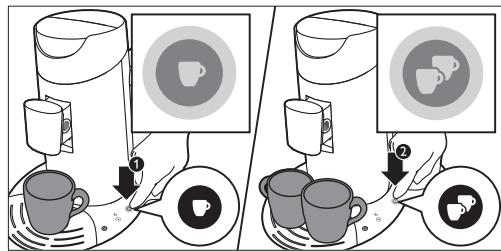

10 When you have selected the desired coffee strength, press the 1-cup button for one cup (1) or press the 2-cup button for two cups (2).
11 When the water has heated up and the on/off button lights up continuously, the machine starts brewing coffee.
Tip:
You can interrupt the brewing cycle at any time. To do this, press the same cup button (1-cup button or 2-cup button) that you pressed to start brewing coffee. However, if you do this, the machine does not complete the interrupted brewing cycle if you switch it on again or press the same cup button again.
Note:
Do not remove the water reservoir during a.
brewing cycle.

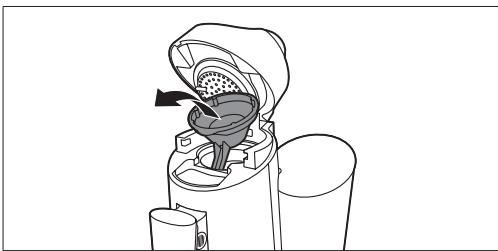

12 When the coffee is ready, remove the used coffee pod or pods. Simply lift the pod holder out of the machine and empty it.
Caution:
There may still be some hot water/coffee on the coffee pod or pods.
13 After use, press the on/off button to switch off the machine.
Note:
If you do not use the machine, it switches off automatically after 15 minutes to save energy.
5.1 Personal coffee memory (HD7872 only)
You can program the machine to brew the amount of coffee you prefer (up to 145ml). Simply experiment and find out what you like best. We advise you to brew at least 60ml for optimal taste and temperature.
While programming, you can only use the 1-cup button. When you have completed the programming process, you will be able to brew one or two cups with the programmed amount of coffee.
Note:
It is not possible to program your personal coffee memory while the machine is heating up. Wait until the on/off button lights up continuously.
1 Place 1 coffee pod in the 1-cup pod holder and place 1 cup under the spout openings.

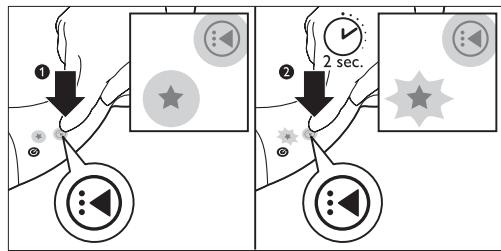

To enter the programming mode, first select the personal coffee memory symbol (star symbol) with the selection button (1). Keep the selection button pressed for 2 seconds until the star symbol starts flashing (2) and you hear a beep. Then release the selection button.

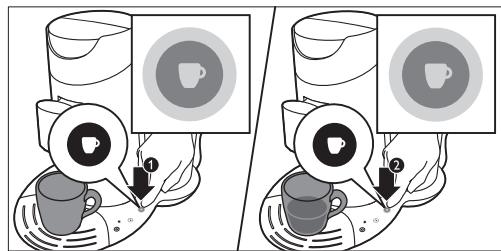

Press the 1-cup button to make the coffee flow into the cup (1). When the cup contains the amount of coffee you prefer, press the 1-cup button again (2). Your preferred amount of coffee has been set.
From now on, your SENSEO® machine brews one or two cups with this amount of coffee when you select the personal coffee memory symbol with the selection button.
Note:
If you want to change the set amount of coffee, simply perform steps 1-3 again.
5.2 Flushing the machine after a day of non-use
If you have not used the coffee machine for one day, flush it to make sure that the boiler is filled with fresh water.
To flush the machine, brew two cups of hot water in the following way:

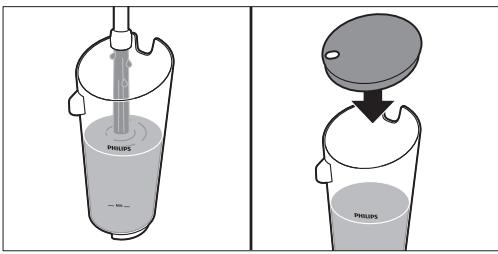

1 Fill the water reservoir with cold tap water beyond the MIN level (1). Put the lid on it (2) and put it the water reservoir back onto the machine.

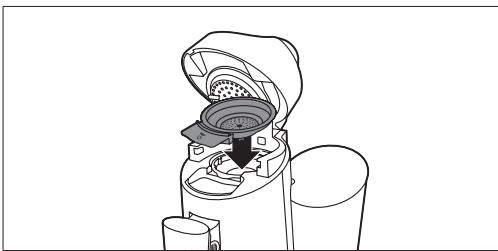

2 Put the 1-cup pod holder or the 2-cup pod holder in the machine without pods.
3 Close the lid and lock the lever.

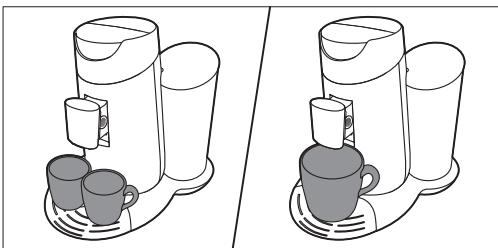

Put two cups or a large mug under the coffee spout to collect the water.

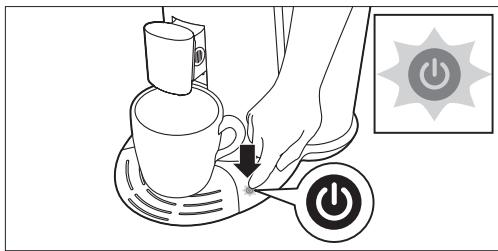

Press the on/off button . The on/off button flashes slowly while the water heats up.
6 Make sure that the coffee strength you have selected is regular coffee (cup symbol with three bars).

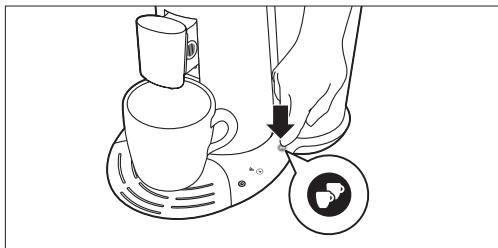

7 Press the 2-cup button to brew two cups of hot water.
8 When the water has heated up, the on/off button lights up continuously and the coffee machine starts operating.
9 Throw away the water in the cups. Now the machine is ready for use again.
6 Cleaning
Regular cleaning of your SENSEO® is important to ensure that the SENSEO® coffee always tastes optimally and to optimise the lifetime of the coffee machine.
Warning:
Never immerse the SENSEO® coffee machine in water.
Always unplug the machine before you clean it.
2 Clean the outside of the machine with a moist cloth.
3 Remove the coffee collector.

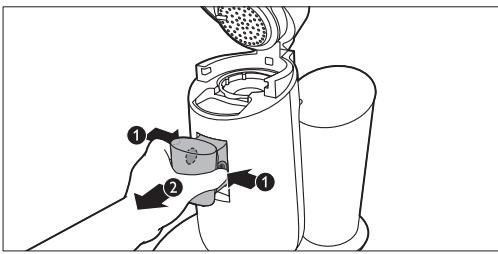

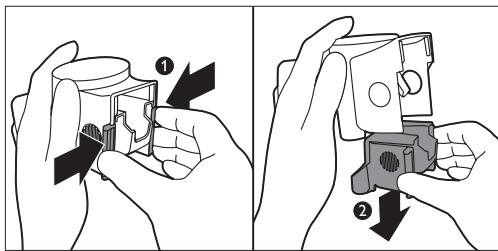

4 To remove the coffee spout, press the release buttons (1) and pull the coffee spout off the machine (2).
5 To disassemble the coffee spout, grab the two ridges of the inner part of the spout and squeeze them lightly (1). Move the inner part downwards to remove it from the outer part of the spout (2).
6 Clean the water reservoir and its lid, the coffee spout, the coffee collector, the drip tray, the cup tray and the pod holders in hot water or in the dishwasher.
Caution:
Be careful not to damage the valve in the bottom of the water reservoir if you use a washing-up brush to clean the water reservoir.
Note:

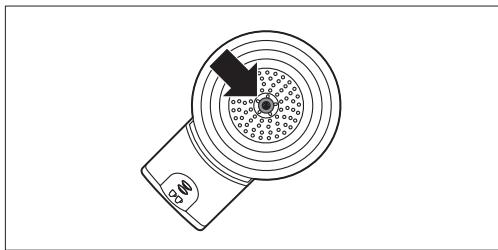

Check if the sieve in the centre of the pod holder is clogged. If this is the case, unclog the sieve by rinsing the pod holder under the tap. If necessary, use a washing-up brush to clean the sieve

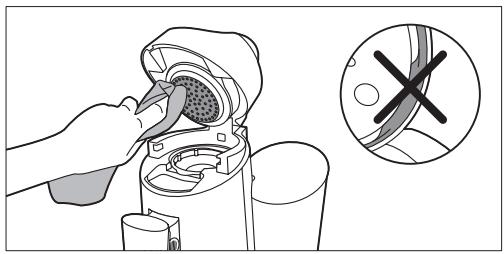

7 Clean the water distribution disc and the rubber sealing ring with a moist cloth.
Caution:
Do not remove the rubber sealing ring and be careful not to damage the tab on the water distribution disc.
8 Clean the water inlet on the machine with a moist cloth.
7 Descaling
Scale builds up inside the machine during use. It is essential to descale the SENSEO® coffee machine when the CALC light goes on. Use SENSEO® Descalera (HD7012, HD7011, HD7006) only.
When to descale

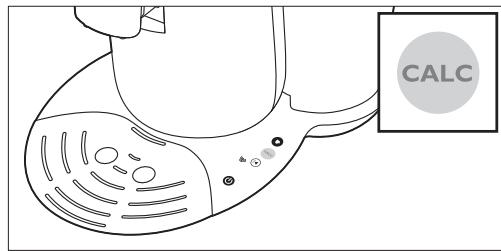

- Descale the SENSEO® coffee machine as described below when the CALC light goes on (after you have brewed approx. 400 cups of SENSEO® coffee).
Why to descale
Your reasons to descale:
It prolongs the life of your SENSEO® coffee machine
It ensures maximum cup volume
It ensures maximum coffee temperature
- The machine produces less sound during brewing
It prevents malfunctioning
If the descending procedure is not performed correctly, scale residue remains behind in the machine. This causes scale to build up more quickly and may cause permanent and irreparable damage to the machine.
Use the correct descending agent
Use SENSEO® Descaler (HD7012, HD7011, HD7006) only. It has been developed to ensure better machine performance and operation. Each descending mixture can be used only once. For more information about this descaler, visit our website www.philips.com.
Warning:
Never use a descending agent based on mineral acids such as sulphuric acid, hydrochloric acid, sulphamic acid and acetic acid (e.g. vinegar). These descending agents may damage your SENSEO® coffee machine.
7.1 Descaling procedure
The descending procedure consists of a descending cycle and two flushing cycles. Do not interrupt the descending cycle and do not switch off the machine before you have performed the two flushing cycles.

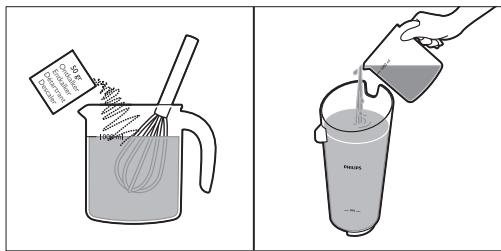

Mix 50 grams of citric acid with 1 litre of water in a measuring jug. Stir until the powder has dissolved. Fill the water reservoir with the descaling mixture.
2 Tilt the water reservoir and place the bottom back onto the machine (1). Then press the top of the water reservoir towards the machine (2).

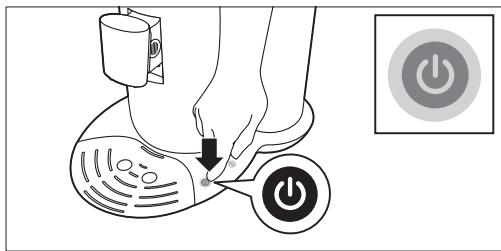

Press the on/off button .The on/off button flashes slowly while the water heats up. The machine is ready for descaling when the on/ off button lights up continuously.

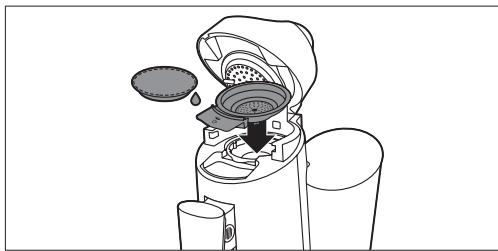

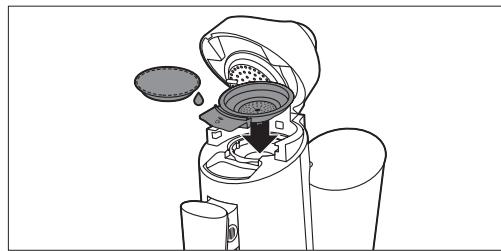

4 Place the 1-cup pod holder with a used coffee pod in it in the coffee machine. Close the lid and make sure it is properly locked.
Note:
Always put a used coffee pod in the pod holder when you descale the machine. This pod serves as a 'filter' to prevent the sieve or hole in the pod holder from getting clogged with scale residue.
Warning:
Make sure the lid is closed properly and the lid lever is locked before you start descending.
5 Remove the drip tray.
6 Put a bowl with a capacity of at least 1.5 litres under the spout to collect the descending mixture.

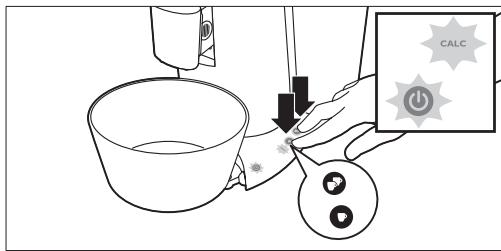

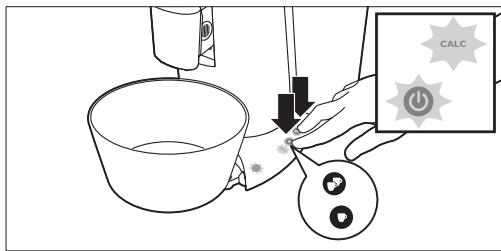

When the on/off button lights up continuously, press the 1-cup button and the 2-cup button at the same time for 3 seconds until you hear a beep. Release the buttons as soon as their lights as well as the selected strength go out. This means that the descaling procedure has been activated correctly.
- The CALC light and the on/off button start flashing to indicate that the descending cycle is in progress.
During the descending cycle, the water comes out of the machine in intervals.
- When all the water in the water reservoir has been used up, the descending cycle is finished. The on/off button starts to flash rapidly.
Note:
If you press the 1-cup and 2-cup button longer than 3 seconds, the machine does not start the descending cycle. If this happens, press the 1-cup button and the 2-cup button at the same time for 3 seconds again.
7.2 Flushing after descaling
1 Rinse the water reservoir under the tap and then fill it to the top with fresh tap water.
Notes:
Do not refill the water reservoir with used hot water or the used descending mixture.
2 Tilt the water reservoir and place the bottom back onto the machine (1). Then press the top of the water reservoir towards the machine (2).
3 Place the 1-cup pod holder with a used coffee pod in it in the coffee machine. Close the lid and make sure it is properly locked.

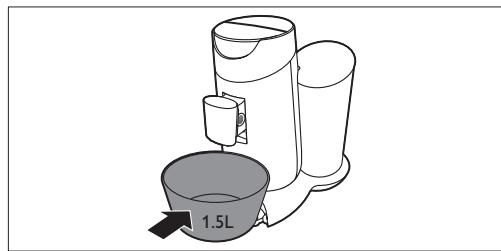

Put a bowl with a capacity of at least 1.5 litres under the spout to collect the water.
Press the 1-cup button and the 2-cup button at the same time for 3 seconds until you hear a beep to start the flushing cycle.
6 Remove the used pod and clean the pod holder after the flushing cycle to prevent the sieve in the centre from getting clogged.
7 Repeat steps 1 to 6 once more to ensure a clean machine.
8 After the descending cycle and the flushing cycles, the CALC light goes out and the machine switches off automatically.
8 Frost-free storage
After you have flushed the machine for the first time (see chapter 'Flushing the machine before first use'), it may only be used and stored in a frost-free place to prevent damage.
9 Ordering accessories
To purchase accessories for this machine, please visit our online shop at
www.shop.philips.com/service.
If the online shop is not available in your country, go to your Philips dealer or a Philips service centre. If you have any difficulties obtaining accessories for your machine, please contact the Philips Consumer Care Centre in your country. You find its contact details in the worldwide guarantee leaflet.
10 Environment
- Do not throw away the machine with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.
11 Guarantee and service
If you need service or information or if you have a problem, please visit the Philips website at www.philips.com/support or contact the Philips Consumer Care Centre in your country. You find its phone number in the worldwide guarantee leaflet. If there is no Consumer Care Centre in your country, go to your local Philips dealer.
The purchase of the Philips SENSEO® coffee machine does not exhaust any of the rights of Sara Lee/Douwe Egberts or Philips under any of their patents nor does it confer upon the purchaser a licence under these patents.
Always return the machine to a service centre authorised by Philips for examination or repair.
Do not attempt to repair the machine yourself, otherwise your guarantee becomes invalid.
12 Troubleshooting
12.1 SENSEO® coffee machine
This chapter summarises the most common problems you could encounter with the machine. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.
| Problem | Solution |
| My cup overflowed when I used the machine for the first time. | You probably tried to brew a cup of coffee without flushing the machine first. Before you start brewing coffee, you have to flush the machine. When you switch on the machine again, the on/off button either lights up continuously or flashes slowly or rapidly. |
| If the on/off button lights up continuously, you have to carry out the flushing procedure (see chapter 'Flushing the machine before first use'). |
| If the on/off button flashes slowly or rapidly, you do NOT have to carry out the flushing procedure. If the on/off button flashes slowly, the water is heating up. If it flashes rapidly, there is not enough water in the water reservoir or the water reservoir is not placed on the machine properly. |
| Water continued to flow from the spout when I used the machine for the first time. | If water continued to flow from the spout until the water reservoir was empty, the machine was performing the flushing cycle. Before you start brewing coffee, you have to flush the machine. When you switch on the machine again, the on/off button either lights up continuously or flashes slowly or rapidly. |
| If the on/off button lights up continuously, you have to carry out the flushing procedure (see chapter 'Flushing the machine before first use'). |
| If the on/off button flashes slowly or rapidly, you do NOT have to carry out the flushing procedure. If the on/off button flames slowly, the water is heating up. If it flashes rapidly, there is not enough water in the water reservoir or the water reservoir is not placed on the machine properly. |
| The on/off button flashes slowly. | You have used the SENSEO® coffee machine at an altitude higher than 2200 metres above sea level. This has caused the water in the machine to start boiling before it has reached the required temperature, which prevents the machine from functioning properly. Switch off the machine and no longer use it at altitudes higher than 2200 metres above sea level. |
| The CALC light flashes. | You have pressed the 1-cup button and the 2-cup button at the same time. This started the descending cycle. If you did not intend to start the descending cycle, simply press the on/off button to switch off the machine. If you did intend to start the descending cycle, do not interrupt this cycle but let the appliance operate until the water reservoir is empty. |
| The CALC light does not go out after descending. | The CALC light does not go out if the descending procedure has not been performed correctly. To perform the descending procedure correctly: |
| 1. Make sure that you do not interrupt the descending cycle or switch off or unplug the machine during the descending cycle. During the descending cycle, hot water comes out of the coffee spout at intervals and the machine stops descending 3 to 4 times to let the descending mixture act and to heat up again. |
| 2. Make sure that you start the descending cycle by pressing the 1-cup button and the 2-cup button at the same time. See chapter 'Dscaling' for a complete description of the descending procedure. |
| 3. Make sure that you use three full water reservoirs to complete the descending procedure: one reservoir filled with descending mixture and two reservoirs filled with fresh water. |
| The on/off button continues to flash rapidly. | Make sure that there is enough water in the water reservoir and that the water reservoir is placed properly. |
| Make sure that the ambient temperature is not lower than 5°C. If it is, the machine does not function properly. |
| Water leaks from the coffee machine. | If you notice coffee or water leaking from your SENSEO® machine, try to establish where the leakage occurs. This is important, as the location of the leakage determines the solution. |
| 1. If the leakage occurs near the lid or the spout, make sure that: |
| 1a. The sieve in the centre of the pod holder is not clogged. If it is, unclog the sieve by holding the pod holder under a running tap. |
| 1b. The coffee pod has been put properly in the centre of the pod holder. |
| 1c. The sealing ring has not got stuck under the edge of the water distribution disc (see figure 1 at the beginning of this user manual). |
| 1d. The spout and the coffee collector have been placed correctly. |
| 2. If the leakage occurs near the bottom of the water reservoir or under the machine, make sure that: |
| 2a. There is not too much water in the water reservoir. |
| 2b. You do not place the water reservoir onto the machine too roughly. If you place the water reservoir too roughly, water may splash out of the water reservoir. |
| 2c. The water reservoir is not damaged or broken. Normally, water should not start to drip from the water outlet in the bottom of the water reservoir within 30 seconds after filling. |
| I cannot open the lid. | A vacuum may have temporarily formed under the lid. Switch off the machine. Pull up the lever and wait 24 hours before you open the lid. You may need to use quite some force. |
| Make sure that you do not move the SENSEO® machine. Moving the machine, placing it outdoors or in a cool or cold environment does not accelerate the unlocking of the lid. |
| For this not to happen again, always make sure that the pod holders are clean and that the sieve in the centre of the pod holders is not clogged. |
| The coffee machine produces less coffee than before. | Perhaps the sieve in the centre of the pod holder is clogged. If this is the case, unclog the sieve by rinsing the pod holder under a running tap. Use a washing-up brush to clean the sieve, if necessary. |
| Descale the machine (see chapter 'Dscaling'). |
| I cannot close the lid properly. | Check if a used coffee pod is sticking to the water distribution disc. If this is the case, remove the used pod. |
| Check if you used the correct pod holder. Use 2 pods in combination with the deeper 2-cup pod holder DQP. |
| The SENSEO® coffee is not strong enough. | Make sure that you have selected the coffee strength that you prefer. You can choose between regular and strong coffee. You can also increase or decrease the coffee strength by setting your preferred amount of coffee with the personal coffee memory function (HD7872 only). |
| Make sure that you have used the correct number of pods and have pressed the right button. Use 2 pods in combination with the 2-cup pod holder DQP and the 2-cup button DQP. |
| Make sure that you have placed the coffee pod or pods properly in the centre of the pod holder, to prevent water from escaping along the edge of the pod or pods. When you use two coffee pods on top of each other, make sure that the convex sides of both pods point downwards and press the pods lightly into the pod holder. |
| Make sure that you have not used the same coffee pod twice by accident. |
| Make sure that the coffee in the pod is evenly distributed. |
| If you prefer a more robust flavour, SENSEO® coffee pods with a stronger blend are available. |
| The coffee is not hot enough. | If you have used the machine for quite some time and the temperature of the coffee decreases, we advise you to descale the machine. See chapter 'Dscaling'. Descale your SENSEO® coffee machine regularly. |
| Do not use cups that are too large, as they cause the coffee to get cold more quickly. Make sure that the cups have a capacity of at least 150ml. |
| Use thin-walled cups. Thin-walled cups absorb less heat from the coffee than thick-walled cups. |
| Make sure the size of the cup matches the amount of coffee. Do not brew a small amount of coffee in a large cup. |
| If you drink coffee with fresh milk, preheat the milk in the cup in a microwave. |
| You can preheat the coffee machine by first brewing a cup of coffee without placing a coffee pod in the pod holder. In this way you also heat up your coffee cup. |
| The touch panel does not work. | If there is water on the touch panel, the buttons do not work. Make sure that the touch panel is dry and also make sure your hands are dry when you use the touch panel. |
| Make sure that you press the selection button and not the symbols to the left of the selection button. |
| I accidentally activate the touch panel when I clean it. | This happens because the touch panel is very sensitive and the buttons only require a light touch to be activated. There is no problem when this happens, the machine will not start brewing coffee. |
| Unplug the machine before you clean it. |
| HD7872 only: The personal coffee memory button does not produce the amount of coffee I prefer. | Please read section 'Personal coffee memory' in chapter 'Brewing SENSEO® coffee' and try to set the amount of coffee you prefer again. |
Indholdsfortegnelse
Fyld违法犯罪, including the use of a computer, software, or other means to gain money from anyone.
9 Commanded accessoires
