USER MANUAL HV120 Duronic

Creative Consumer Products

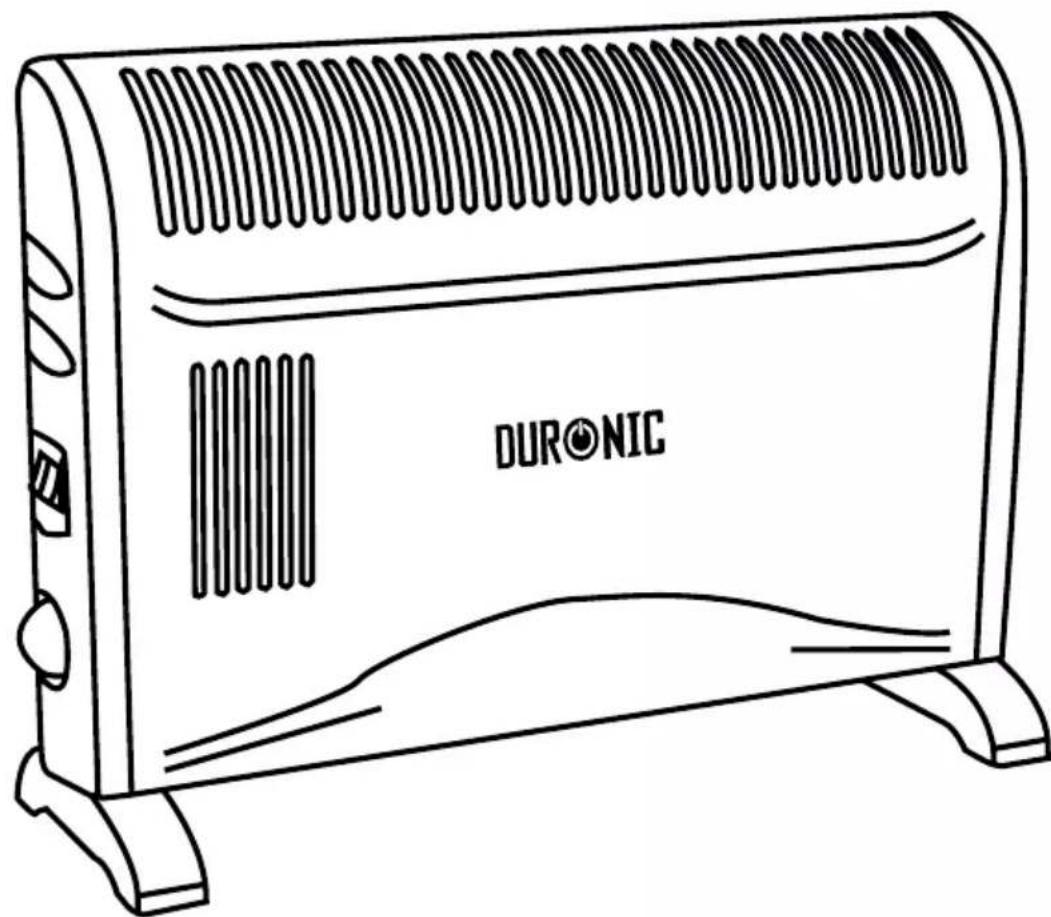

Convection Heater - HV120

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

DURNIC

DURONIC

Contents

English Manual 5

General Safety Assembly

• Do not cover, restrict the air inlet/outlet or use the appliance to dry clothes.
• Do not use without feet attached.
• Only use in the upright position on a flat level surface.
• Make sure that children and pets are closely supervised when the heater is in use.
• Do not use the appliance near flammable or heat sensitive items
• Do not position directly next to power sockets, shelving or other obstructions to airflow.
• Do not use the heater in the immediate surroundings of a bath, a shower, or a swimming pool.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or metal capabilities, or lack of experience and knowledge, unless they have been given supervisions or instruction concerning use of the appliance by a person responsible for the safety. NOTE
• For maximum benefit, close windows and doors when the heater is in use.
• Do not cover the ventilation holes as this will cause overheating and will activate the cut out.

DO NOT plug the heater into an extension lead or adapter as the heater is too powerful. Using an extension lead or adapter with the heater is a fire hazard and may cause damage to the device the the user.

Electrical Safety

• For indoor use only.
• Switch off and unplug when not in use.
• Do not use if the cord is damaged.
• No not use heater in humid or wet environments

• If the appliance cord is damaged, it must be replaced by an electrician or similarly quality person to avoid hazard.

• Carefully turn the radiator on it's side to fit the feet

• Position each foot as shown in fig1. and secure using the self tapping screws provided
• Two screws are required for each foot and this unit must not be used without the feet firmly attached.

To Use

• Turn the heater to the "OFF" position before plugging in.

• The operating temperature is selected by a combination of the heater switches and thermostat. The hottest setting will be when the heater switches are both on and the thermostat is turned to "Maximum".

• To determine the correct working temperature for your conditions, turn the heater to "High" and the thermostat to "Maximum" when the room has reached the required temperature turn the thermostat slowly to the left until the temperature is off. The temperature will now be kept constant.

• If you want to lower the operating temperature select the heater switch only and repeat the above procedure.

• The heater is fitted with an automatic cutout in the event that it overheats. If this activates, turn the heater to the off position and unplug. Allow the heater to cool and remove anything restricting the airflow before using the heater again. If the automatic cut out operates repeatedly contact a quantified electrician for advice.

DURNIC

Using The Turbo function

This is operated by means of the switch with the fan symbol beside it. The fan will only operate with the thermostat in the "ON" position and can be used when the heating elements are "ON" to blow warm air into the room.

Cleaning And Maintenance

For maximum efficiency, clean the fan regularly.

• Switch power switches to "OFF" position, unplug and allow the heater to cool.
• Wipe surfaces with a soft cloth. Do not use detergent or abrasives as this will scratch the surface.
• Ensure the intake grills free front dust, as this will reduce the airflow. Light accumulated dust can be removed with soft cloth or vacuum cleaner.
• Allow surface to fully dry before using the heater again.

Maintain The Life Of Your Heater

• Avoid knocking or scratching the heater.
• Do not in dusty environment.
• When not in use cover heater and store in clean, cool and dry area.

DURONIC

Wall Mounting

The heater is supplied with 4 sets of fixing brackets, screws and plastic wall plugs to enable it to be mounted onto a wall if required.

If the heater is intended to mount onto the wall, the feet should not be fitted. The position must be chosen carefully. It must not be in front of or below a power socket and must not be below a shelf, curtains or any other obstruction. Also refer to the safety instructions.

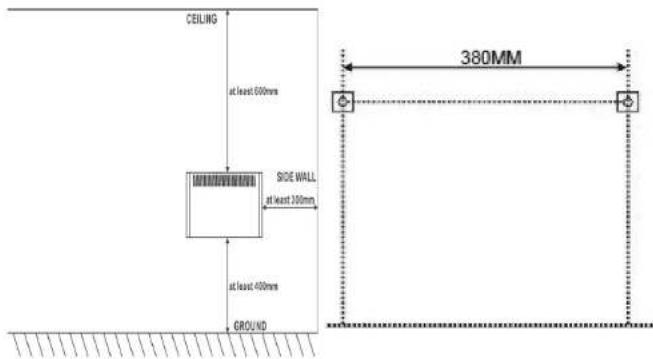

Having decided on the location of the heater it is necessary to drill 2 fixing holes with the distance of 380mm on a horizontal line at a minimum height of 400mm from the floor, at a minimum distance of 600mm from ceiling and 300mm from side wall (see below). Allowance must be made for any floor coverings, carpet etc and if any skirting boards are present, the fixing holes must be a minimum of 400mm above the top edge of the skirting board. Using the plastic plugs and fixing screws provided, attach 2 of the fixing brackets to the wall. The other pair of fixing brackets must be attached to the base of the heater using the feet retaining screws so that the brackets project out at the rear of the heater and space the bottom edge away from the wall. If required, these brackets may also be secured to the wall using the remaining fixing screws and plastic wall plugs.

DURNIC

Output

220-240V - 50Hz 1800-2000W

-Position 1:7500W (normal power)
-Position 2:1250W (intermediate power)
-Position 3:2000W (full power)

Environment

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact you local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions: 1. The product must be supplied with the written with indication of number

1. The product must be returned to the retailer with original proof of purchase. 2. The product must be installed and used in accordance with the rules

2. The product must be installed and used in accordance with the instructions contained in this operating manual.

3. It must be used only for domestic purposes.

4. It does not cover wear and tear, malicious damage, misuse, neglect, Inexpert repairs or concealable parts.

5. China Methyls
6. Shine-Mart Ltd are not liable to carry out any type of servicing work under the guarantee
7. Valid in the UK only

This product is fitted with BS:1363 plug and fuse

Imported by Shine-Mart Ltd, RM3 BSB

Information on waste Disposal for Consumers of

Electrical & Electronic Equipment

This mark on a product and/or accompanying documents indicates that when it

s to be disposed of , it must be treated as Waste .Electrical & Electronic Equipment ( NEEFI )

Electrical & Electronic Equipment, (WEEE),

Any WEEE marked products must not be mixed with general household waste, but Kent generate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling: please take all WEEE marked

waste to your Local Authority. Toxic waste site

where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they

will be helping to save valuable resources and preventing any potential negative

and the environment, or a waste may contain
