Product type	Immersion blender
Brand	Bosch
Model	MSM87140
Main functions	Mixing, grinding, chopping, pureeing, whisking, emulsifying
Speed adjustment	Continuous from lowest position (♦) to 12, with turbo button
Included accessories	Blending shaft, mixing bowl, lid, whisk with gear, puree accessory, universal grinder XL and L (depending on model), multifunction accessories
Blade material	Stainless steel
Safety	Overload protection with automatic cooling, safety lock
Cleaning	Blending shaft and bowl dishwasher safe; base unit wipe with damp cloth
Power supply	Electric, mains
Warranty	According to conditions of country of purchase
Spare parts available	Universal grinder (ref. 753122) and other accessories
Maximum temperature for hot liquids	80°C before immersion
Recommended use	Common household preparations (sauces, soups, purees, drinks, doughs)
Maintenance	Not necessary, regular cleaning
Detachable blending shaft	Via release buttons
Mixing bowl	With lid for storage
Whisk with gear	For making mayonnaise, etc.
Puree accessory	For pureeing
Universal grinder	For chopping raw foods
Adjustable speed	Control dial
Turbo button	For the universal grinder
Overload protection	Appliance turns off, let cool for 1 hour
Do not use in microwave	Mixing bowl is not microwave safe
Precaution	Do not immerse base unit in water

Frequently Asked Questions - MSM87140 BOSCH

How to clean the blending shaft?

The blending shaft can be washed in the dishwasher or with a brush under running water. Never immerse the base unit in water. Dry the blending shaft upright, blade facing upward.

Can I blend hot liquids?

Yes, but wait until the temperature drops below 80°C before immersing the blender. Never blend in a pot still on the stove.

What to do if the appliance turns off during use?

The overload protection has activated. Unplug the appliance and let it cool for about 1 hour before using again.

What accessories are included with the MSM87140?

Depending on the model, accessories may include: blending shaft, mixing bowl, lid, whisk with gear, puree accessory, universal grinder XL and L, and multifunction accessories. Check the contents of your package.

Can I use the blender to chop onions?

Yes, use the universal grinder (if provided) to chop onions, garlic, or herbs. The blending shaft is more for liquid or puree preparations.

How to adjust the speed?

Use the control dial for continuous speed adjustment from lowest to 12. The turbo button (b) is recommended for the universal grinder.

Can I wash the mixing bowl in the dishwasher?

Yes, the mixing bowl and its lid are dishwasher safe. The base unit should be wiped with a damp cloth.

How to detach the blending shaft?

Press the release buttons simultaneously on the base unit to remove the blending shaft.

What is the power of the MSM87140?

The power is not specified in the manual. Check the rating plate on the appliance for details.

Where can I buy spare parts?

Spare parts, such as the universal grinder (ref. 753122), are available from Bosch after-sales service. Contact your dealer or visit the Bosch website.

USER MANUAL MSM87140 BOSCH

Close-up of fresh vegetables including a whole onion, green leaves, and a glass of orange juice (no text or symbols visible)

Register your new Bosch now: www.bosch-home.com/welcome

Bosch brand El Bausch brand stand mixer and its empty cooking pan (no visible text or symbols)

Close-up of fresh green leafy vegetables in a bowl, no text or symbols visible

MSM 87...

MSM 88...

BOSCH

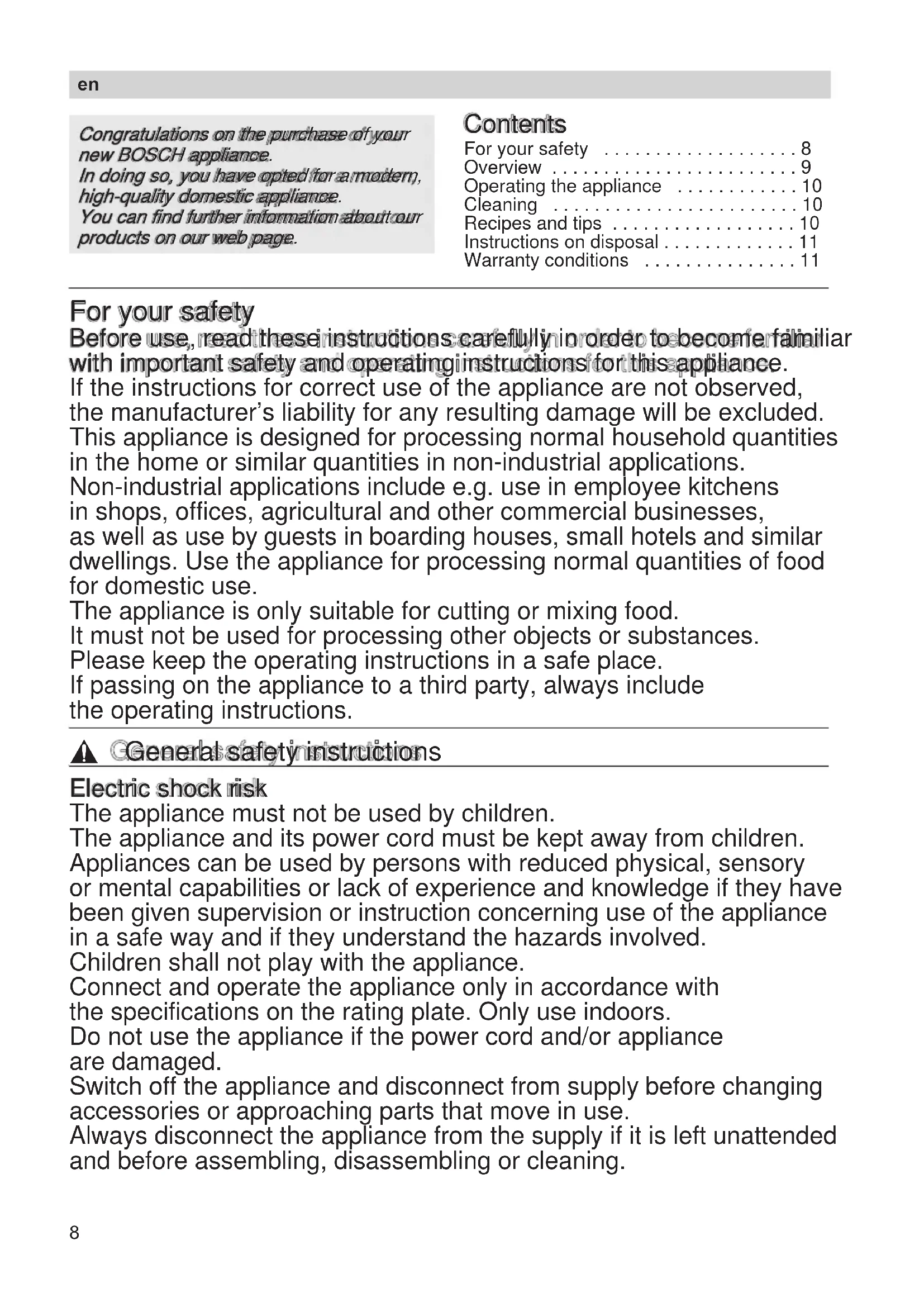

Congratulations on the purchase of your new BOSCH appliance. In doing so, you have opted for a modern, high-quality domestic appliance. You can find further information about our products on our web page.

Contents

For your safety ....8 Overview ....9 Operating the appliance ....10 Cleaning ....10 Recipes and tips ....10 Instructions on disposal ....11 Warranty conditions ....11

For your safety

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications.

Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings. Use the appliance for processing normal quantities of food for domestic use.

The appliance is only suitable for cutting or mixing food.

It must not be used for processing other objects or substances.

Please keep the operating instructions in a safe place.

If passing on the appliance to a third party, always include the operating instructions.

©General safety instructions

Electric shock risk

The appliance must not be used by children.

The appliance and its power cord must be kept away from children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

Connect and operate the appliance only in accordance with the specifications on the rating plate. Only use indoors.

Do not use the appliance if the power cord and/or appliance are damaged.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Do not place the power cord over sharp edges or hot surfaces.

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person.

Only our customer service may repair the appliance.

⚠️ Safety instructions for this appliance

Risk of injury

Electric shock risk

Do not use the hand blender with damp hands and do not operate it at no load.

Do not immerse the appliance in liquid above the blender foot-base unit connection point. Never immerse the base unit in liquids and do not clean in the dishwasher.

Caution when processing hot liquids. Liquids may splash during processing.

Never place blender foot on hot surfaces or use in very hot food.

Leave hot food to cool down to at least 80 °C before processing with the blender! Before using the hand blender in a cooking pot, take the pot off the hotplate.

Operate the hand blender with original accessories only.

Do not attach or remove tools until the appliance is at a standstill.

Recommendation: Never switch on the appliance for longer as you need to processing the ingredients.

The blender jug is not suitable for use in the microwave.

Risk of injury from sharp blades/rotating drive!

Never grip the blade in the blender foot. Never clean the blades with bare hands. Use a brush.

These operating instructions refer to various models. An overview of the different models can be found on the illustrated pages (Fig.C).

Overview

Please fold out the illustrated pages.

Fig. A

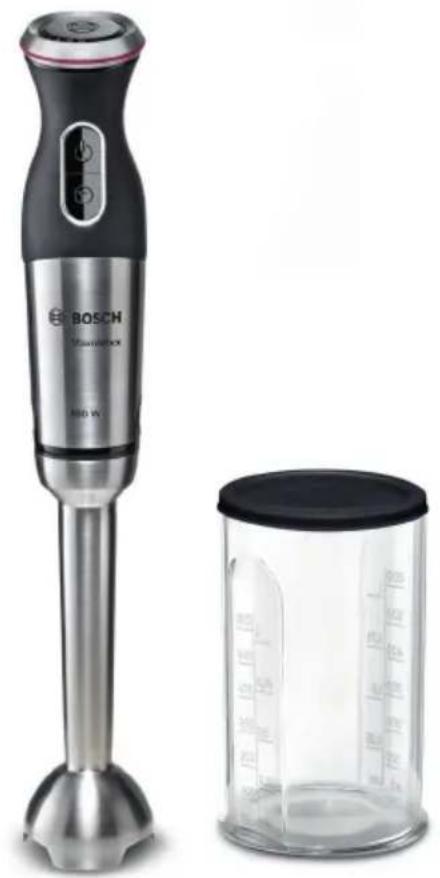

1 Base unit
2 Power cord
3 Speed control

Operating speed can be adjusted steplessly between the lowest (●) and highest (12) speed (only in conjunction with button 4a).

4 ON button

a Controllable speed (with speed control 3)
b Turbo speed

The hand blender remains switched on as long as an On button (a or b) is pressed.

The turbo speed is used for the universal cutter (if included in delivery).

5 Release buttons

To remove the blender foot, simultaneously press both release buttons.

6 Blender foot

Attach the blender foot and lock into position.

7 Blender blade

8 Blender jug

Using the blender jug will prevent the ingredients from splashing.

9 Lid

Place the lid on the blender jug to keep in the processed food.

en

For some models:

10 Whisk with gear
11 Masher attachment with gear

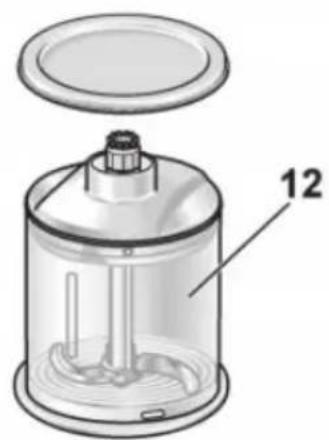

12 Universal cutter XL with lid
13 UUniversal cuttel L with lid and ice crush blade

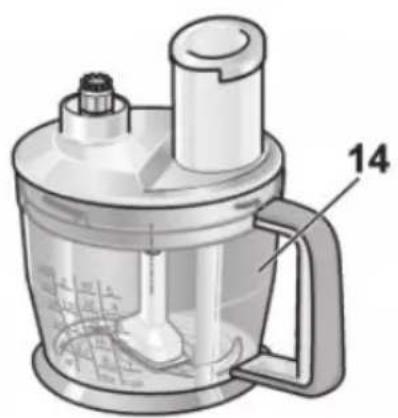

14 Multifunction accessory with tools

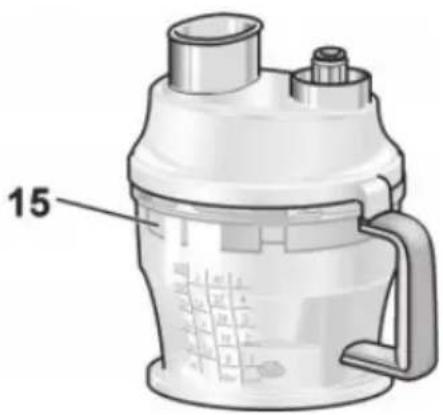

15 Multifunction accessory with tools and dicer

If the universal cutter is not included with the hand blender, it can be ordered from customer service (order no. 753122).

With the universal cutter use the appliance at full power to prepare honey spread (according to the recipe).

You can find the recipe in the operating instructions of the universal cutter.

Place the lid on the universal cutter to keep in the processed ingredients.

Operation

The appliance is suitable for blending mayonnaise, sauces, mixed drinks, baby food, cooked fruit and vegetables.

For puréeing soups.

Use the universal cutter for cutting/chopping raw food (onions, garlic, herbs)!

It is recommended to use the supplied blender jug. However, other suitable receptacles can also be used.

Warning!

The bottom of the receptacle which you use must not have any bumps or recesses.

● Before using the appliance for the first time, clean all parts of it.

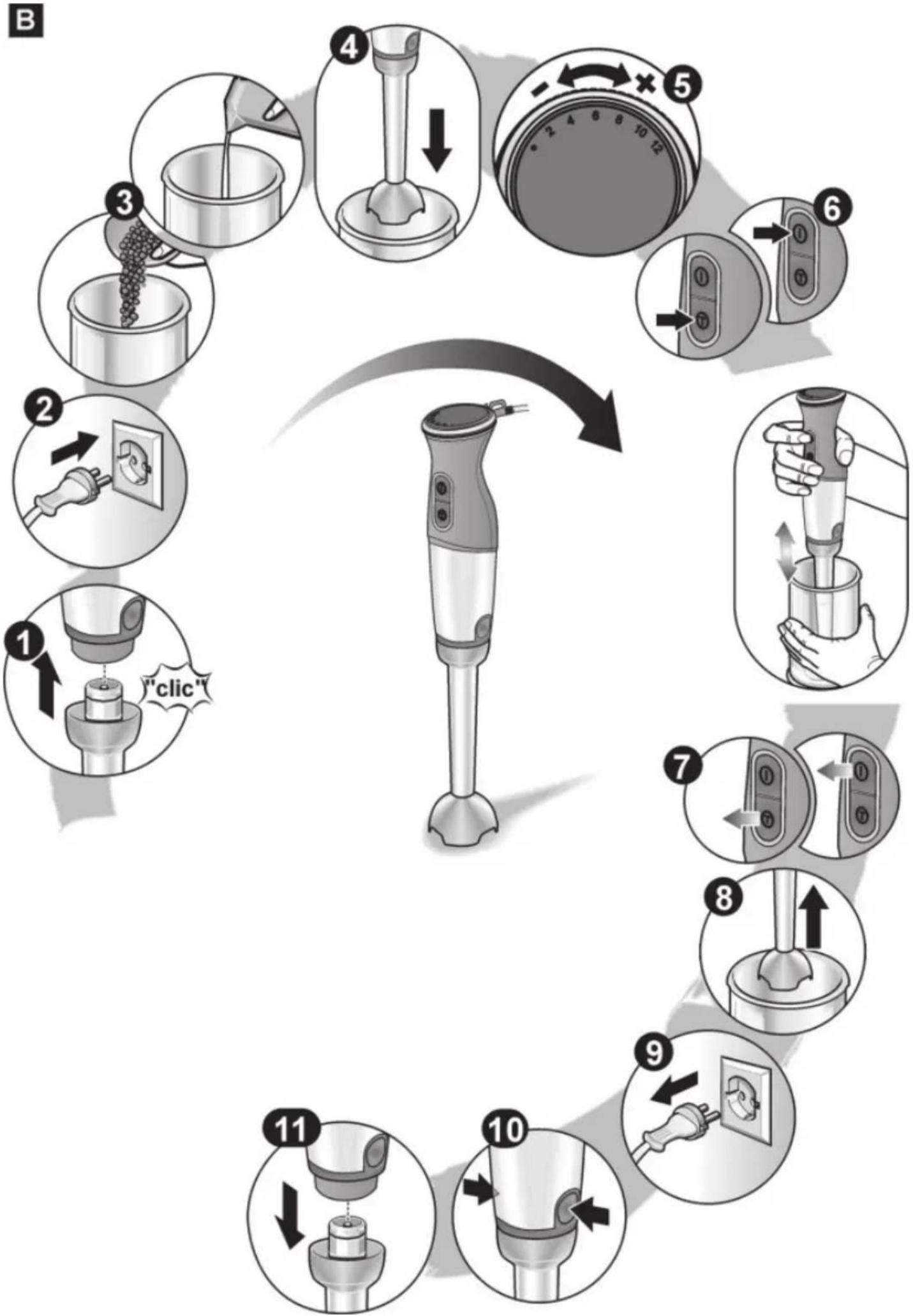

Fig. B

• Completely unwind the power cord.
• Place the blender foot on the base unit and lock into position.
• Insert the mains plug.
• Place food in the blender jug or another tall receptacle.

i The appliance works better if there is some liquid in the ingredients.

• Set the required speed with the speed control (Fig. B-5).
  It is recommended to use a low speed setting for liquids, hot food and for mixing (e.g. muesli in yoghurt). The high speed settings are recommended for the processing of more solid foods.

• Firmly hold the hand blender and jug.

• Switch on the hand blender by pressing the required On button.
  When switching on the hand blender, hold it at a slight angle to prevent it from "sticking" to the bottom of the blender jug. The hand blender remains switched on as long as the On button is pressed.
  To prevent the ingredients from splashing, do not press the On button until the blender foot has been immersed in the ingredients. Always switch off the hand blender before taking it out of the processed food.

• Release the On button after processing. After using the appliance:
• Remove mains plug.
• Press the release buttons and remove the blender foot from the base unit.

Cleaning

i

Important information

The appliance requires no maintenance. Thorough cleaning protects the appliance from damage and keeps it functional.

Electric shock risk

Never immerse the base unit in liquids and do not clean in the dishwasher.

Before cleaning the appliance, pull out the mains plug! Do not use a steam cleaner!

Warning!

Surfaces may be damaged.

Do not use abrasive cleaning agents.

If processing e.g. red cabbage or carrots, the plastic parts will become discoloured by a red film which can be removed with a few drops of cooking oil.

• Pull out the mains plug!
• Wipe the base unit with a damp cloth and then wipe dry.
• Blender jug and lid can be washed in the dishwasher.
• Clean the blender foot in the dishwasher or with a brush under running water.
• Dry the blender foot in an upright position (blender blade face up) so that any trapped water can run out.

Note:

Appliances with spiral cable:

Never wind the cable around the appliance!

Troubleshooting

Fault Remedial actionial action

Appliance switches off during use.

The overload protection feature has been activated.

• Switch off the appliance and pull out the mains plug.
• Leave the appliance to cool down for approx.
  1 hour in order to deactivate the overload protection device.
• Switch on appliance again.

If the fault cannot be eliminated, please contact customer service.

Recipes and tips

Mayonnaise

1 egg (egg yolk and egg white)

1 tbs. mustard

1 tbs. lemon juice or vinegar

200–250 ml oil

Salt, pepper to taste

Ingredients must be at the same temperature!

• Put the ingredients in the jug.
• Place hand blender in the bottom of the jug and switch on (turbo speed) until the mixture emulsifies.
• Slowly raise the switched on blender as far as the upper edge of the mixture and lower again until the mayonnaise is ready.

Tip: According to this recipe you can also make mayonnaise with egg yolk only.

However, use only half the amount of oil.

Vegetable soup

300 g potatoes

200 g carrots

1 small stick of celery

2 tomatoes

1 onion

50 g butter

2 | water

Salt, pepper to taste

• Skin and seed the tomatoes.
• Chop up cleaned and washed vegetables and sauté in the hot butter.

• Add water and salt.

• Leave to cook for a good 20–25 min.
  • Take the pan off the cooker.

• Purée the soup in the pan with the blender.
• Season with salt and pepper.

Crêpes dough

250 ml of milk

1 egg

100 g flour

25 g melted cooled butter

- Put all ingredients in the jug in the indicated sequence and blend to a smooth dough.

Blended milk drinks

1 glass of milk

6 large strawberries

or

10 raspberries or

1 banana (sliced)

- Put the ingredients in the jug and blend.

- Add sugar to taste.

Tip:

For a milk shake add a scoop of ice cream or use very cold milk.

Instructions on disposal

This appliance is identified according to the European guideline 2012/19/EU on waste electrical and electronic equipment – WEEE.

The guideline specifies the framework for an EU-wide valid return and re-use of old appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Warranty conditions

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.

The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to alterations.

www.bosch-home.com/tr

www.bosch-yetkiliservisi.com

waste electrical and electronic)

he - 1 ...... בָרְשׁב
he - 1 ...... כְרִיָה אַת
he - 2 ......
he - 2 ......הכלהה
he - 3 ..... "17"
he - 3 ......הכלהה
he - 3 ......הַרְׁהָה
he - 4 ......הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה
he - 4 ...... בְּרָה אַלְבָר

(waste electrical and electronic equipment - WEEE)

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

AERTECH SH.P.K.

Rruga Qemal Stafa

Pallati i ri perball Prokuroris se

Pergjithshme

Hyrjā C Kati 10

Tirana

Tel.: [phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com.au

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Info-Line: 061 100 905

Fax: [phone]

mailto:[e-mail]

European Trade Center Building,

5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.bosch.home.bg

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk or call

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel:. [phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests,

Spares and Accessories

Tel.: [phone]*

Fax: [phone]

www.bosch-home.co.uk

*0.03 € per minute at peak.

Off peak 0.0088 € per minute

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhāra t, भारत

BSH Household Appliances

Mfg. Pvt. Ltd.

Arena House, 2nd Floor, Main Bldg,

Plot No. 103, Road No. 12, MIDC,

Andheri East

Mumbai 400 093

www.bosch-home.com/in

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon, لبنان

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

LU Luxembourg

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

тел./факс: [phone]

mailto:[e-mail]

ME Crna Gora, Montenegro

Elektronika komerc

UI. Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil: 069 324 812

mailto:ekobosch.servis@

t-com.me

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

PL Polska, Poland

SA Kingdom Saudi Arabia,

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.

P.O.Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljelectronics.com.sa

SE Sverige, Sweden

www.bosch-home.com/tr

A chelis Taiwan Co. Ltd.

4th floor, No. 112 Sec 1

Chung Hsiao E Road

Taipei ROC 100

Tel.: [phone]

mailto:[e-mail]

UA Ukraine, Україна

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

Milutina Milankovića 11 ^4

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-sr@

bshg.com

www.bosch-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.bosch-home.com/za

[e-mail]

Technical diagram of a blender with labeled parts including a digital timer, lid, and measuring cup

Illustration of a whisk with a numbered label pointing to the handle (no text or symbols on the object itself)

Illustration of a mechanical device with a lid and labeled component '12' (no text or symbols beyond label)

Technical illustration of a kitchen mixer with labeled component (no text or symbols beyond label)

Technical diagram of a mechanical component with a cylindrical shaft and base, labeled with number 11 (no text or symbols beyond label)

Diagram of a mechanical device with a lid and labeled component (13), no readable text or symbols present.

15

MSM87110	X	X
MSM87130	X	X	X
MSM87140	X	X
MSM87146	X	X
MSM87160	X	X	X
MSM87165	X	X	X	X
MSM87180	X	X	X
MSM88110	X	X
MSM88130	X	X	X
MSM88160	X	X	X
MSM88166	X	X	X
MSM88190	X	X	X		X
MSM88195AU	X	X	X	X	X
MSM881X1	X	X	X			X
MSM881X2	X	X	X			X
MSM87110
MSM87130
MSM87140	×
MSM87146					×
MSM87160	×
MSM87165	×
MSM87180	×			×
MSM88110						×
MSM88130						×
MSM88160	×					×
MSM88166					×	×
MSM88190			×			×
MSM88195AU			×
MSM881X1		×
MSM881X2		×
