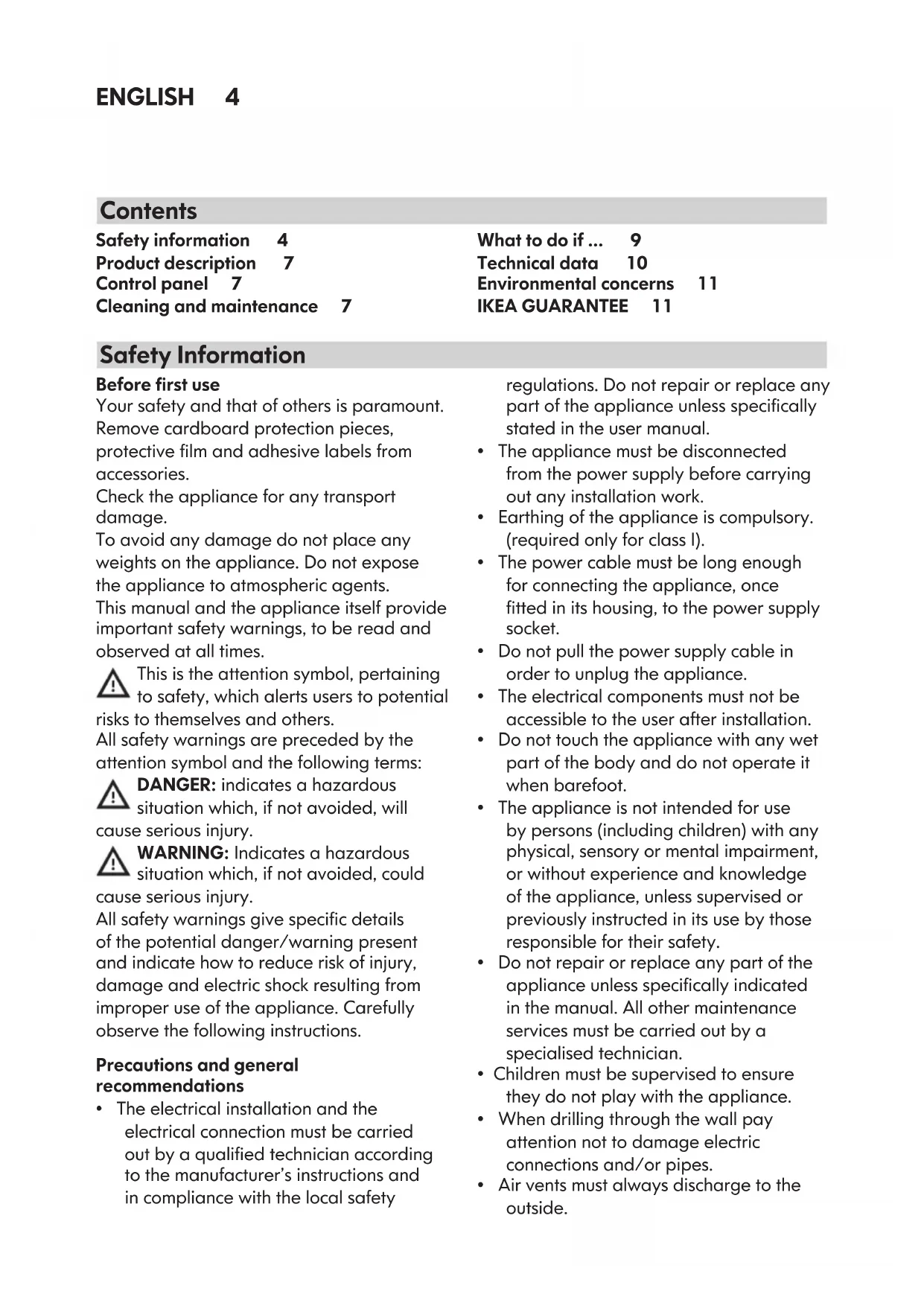

ITENGLISH 4 DEUTSCH 14 FRANÇAIS 24 ITALIANO 40ENGLISH 4 Beforerstuse Your safety and that of others is paramount. Remove cardboard protection pieces, protective lm and adhesive labels from accessories. Check the appliance for any transport damage. To avoid any damage do not place any weights on the appliance. Do not expose the appliance to atmospheric agents. This manual and the appliance itself provide important safety warnings, to be read and observed at all times. This is the attention symbol, pertaining to safety, which alerts users to potential risks to themselves and others. All safety warnings are preceded by the attention symbol and the following terms:

DANGER: indicates a hazardous

situation which, if not avoided, will cause serious injury.

WARNING: Indicates a hazardous

situation which, if not avoided, could cause serious injury. All safety warnings give specic details of the potential danger/warning present and indicate how to reduce risk of injury, damage and electric shock resulting from improper use of the appliance. Carefully observe the following instructions. Precautionsandgeneral recommendations

• The electrical installation and the electrical connection must be carried out by a qualied technician according to the manufacturer’s instructions and in compliance with the local safety regulations. Do not repair or replace any part of the appliance unless specically stated in the user manual.

• The appliance must be disconnected from the power supply before carrying out any installation work.

• Earthing of the appliance is compulsory. (required only for class I).

• The power cable must be long enough for connecting the appliance, once tted in its housing, to the power supply socket.

• Do not pull the power supply cable in order to unplug the appliance.

• The electrical components must not be accessible to the user after installation.

• Do not touch the appliance with any wet part of the body and do not operate it when barefoot.

• The appliance is not intended for use by persons (including children) with any physical, sensory or mental impairment, or without experience and knowledge of the appliance, unless supervised or previously instructed in its use by those responsible for their safety.

• Do not repair or replace any part of the appliance unless specically indicated in the manual. All other maintenance services must be carried out by a specialised technician.

• Children must be supervised to ensure they do not play with the appliance.

• When drilling through the wall pay attention not to damage electric connections and/or pipes.

• Air vents must always discharge to the outside. Safetyinformation 4 Productdescription 7 Controlpanel 7 Cleaningandmaintenance 7 Whattodoif... 9 Technicaldata 10 Environmentalconcerns 11 IKEAGUARANTEE 11 SafetyInformation ContentsENGLISH 5

• The manufacturer rejects all responsibilities for any damage caused by improper use or wrong settings.

• Appropriate maintenance and cleaning ensure the good working order and the best performance of the appliance. Regularly clean all stubborn surface dirt to avoid grease build up. Remove and clean or change the lter regularly.

• Never ame cook food (ambé) under the appliance. Using free ames might cause re.

• Failure to observe the instructions for cleaning the hood and replacing the lters may result in a re.

• Exhaust air must not be vented through a ue used for removal of fumes produced by gas combustion appliances or other combustible materials, but must have a separate outlet. All national regulations governing extraction of fumes must be observed.

• There shall be adequate ventilation if the hood is being used at the same time as other appliances using gas or other combustible materials. The negative pressure of the room must not exceed 4 Pa (4x 10-5 bars). For this reason ensure that the room is well ventilated.

• Do not leave frying pans unattended when frying, as the frying oil may catch re.

• Before touching the light bulbs, ensure that they are cold.

• Do not use or leave the hood without the light bulb correctly tted, as this may cause electric shock.

• The hood is not a work surface, therefore do not place any objects on top of it or overload it.

• During all installation and maintenance operations wear appropriate working gloves.

• This appliance is not suitable for outdoor use.

WARNING: when the hob is in use,

accessible parts of the hood may become hot. Installationandconnection After unpacking the appliance, check for any transport damage. In the event of problems, contact the After-sales Service. To prevent any damage, only remove the appliance from its polystyrene foam packaging at the time of installation. Preparingforinstallation

WARNING: this is a heavy product; the

hood should only be lifted and installed by two or more people. The minimum distance between the hob and the bottom part of the hood must not be less than 65 cm for burning gas or other fuels and 50 cm for electric cookers. Before installation also check the minimum distances stated in the manual of the cooker. If the installation instructions for the cooker specify a greater distance between cooker and hood, this distance must be observed. Electricalconnection Make sure the power voltage specied on the appliance rating plate is the same as the mains voltage. This information can be found on the inside of the hood, under the grease lter. Power cable replacement (type H05 VV-F) must be carried out by a qualied electrician. Contact an authorized service centre. If the hood is tted with an electric plug, connect the plug to a socket complying with current regulations, located in an accessible place. If no plug is tted (direct wiring to the mains), or if the socket is not located in an accessible place, a qualied electrician should install a standardised double pole power switch that will enable complete isolation from the mains in case of categoryENGLISH 6 III overvoltage conditions, in accordance with wiring rules. Use The hood has been designed to be installed and used either as a “Exhausted model”, or as a “Recirculation model”. Exhaustedmodel(seesymbol in installationbooklet) Cooking steam is sucked and channelled outside the house through a discharge duct (not supplied), tted to the hood steam outlet. Ensure that the discharge duct is correctly tted to the air outlet, unit using an appropriate connection system. Important:If already installed, remove the charcoal lter/s. Recirculationmodel(seesymbol in installationbooklet) The air is ltered through one or more the charcoal lters, and then resent into room. Important:Ensure appropriate air circulation around the hood. Important:If the hood is supplied without charcoal lters, these must be tted before the hood can be used. Filters are available in shops. The hood should be installed away from particularly dirty areas, windows, doors and heat sources. The accessories for wall xing are not included because walls made of different materials require different types of xing accessories. Use xing systems suitable for the walls of your home and the weight of the appliance. For more details, contact a specialized dealer. Keep this booklet for future consultation.ENGLISH 7 Productdescription

Grease lter. Controlpanel

Extraction power 2 selection button

Extraction power 3 selection button

WARNING:- Never use steam

cleaning equipment. - Disconnect the appliance from the power supply. IMPORTANT: do not use corrosive or abrasive detergents. If any of these products accidentally comes into contact with the appliance, clean immediately with a damp cloth.

• Clean the surfaces with a damp cloth. If it is very dirty, add a few drops of washing up detergent to the water. Finish off with a dry cloth. IMPORTANT: do not use abrasive sponges or metallic scrapers or scourers. Over time, these can ruin the surface.

• Use detergents specically designed for cleaning the appliance and follow the manufacturer instructions. IMPORTANT: clean the lters at least monthly to remove any oil or grease residuals. Cleaningandmaintenance

Tocleanthegreaselter The metal grease lter has an unlimited life and must be washed once a month by hand or dishwasher at low temperature and with a short cycle. With cleaning in a dishwasher the grease lter may become dull; this does not effect its ltering capacity. Greaseltermaintenance:

1. Disconnect the hood from the electric

power supply. 2 Remove the grease lters: pull the spring release handle downwards, then remove the lter.

3. After cleaning the grease lter, remount

in reverse order ensuring the entire extraction surface is covered. Charcoalltermaintenance(ifthehoodis installedinrecirculationmode)

1. Remove the grease lters.

2. Fit (bayonet attachment) 1 adaptor each

conveyour side. Lock in place.

3. Fit (bayonet attachment) 1 charcoal lter

each conveyour side. Lock it on adaptor.

5. Ret the grease lters,

Charcaol lter is neither lavable nor regenerable. Replace it every 4 months. Lampmaintenance Disconnect the hood from the electricity. Warning Prior to touching the light bulbs ensure they are cooled down.

1. Use a small screwdriver or other suitable

tool to prise off the cover.

2. Snap-t the cover back on.

3. Use only max 12V-10W- G4 halogen

bulbs. Important: make sure you don’t touch the lamp with your bare hands.ENGLISH 9 Problem Possiblecause Solution The appliance does not work There is no mains electrical power Check for the presence of mains electrical power. Turn off the appliance and restart it to see if the faults persists. The appliance is not connected to the electrical supply Check if the appliance is connected to the electrical supply. Turn off the appliance and restart it to see if the faults persists. The hood’s suction level is not enough The suction speed is too low Check the suction speed and adjust as necessary. The metal lters are dirty Check that the lters are clean If not, clean the lters in the dishwasher. The air vents are obstructed Check the air vents for any obstructions and remove as necessary. The light does not work The light bulb is broken Check the light bulb and replace it if necessary. The light bulb is not correctly tted Check that the light bulb has been correctly tted. If not, t the light bulb in right way. Whattodoif... BeforecontactingtheAfter-salesservice: Switch the appliance on again to see if the problem has disappeared. If not, switch it off again and repeat the operation after an hour. If your appliance still does not work properly after carrying out the checks listed in the troubleshooting guide and switching the appliance on again, contact the After-sales service, clearly explaining the problem and specifying:

• the type and serial number of the appliance (given on the rating plate);

The technical information is situated in the rating plate on the internal side of the appliance.ENGLISH 11 Environmentalconcerns Disposalofpacking The packing material is 100% recyclable and is marked with the recycle symbol . The various parts of the packing must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal. Scrappingtheproduct - This appliance is marked in compliance with European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). - By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment. Scrappingofhouseholdappliances

• This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. Before scrapping, cut off the power supply cable.

• For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchased the appliance. Declarationofconformity

• This appliance has been designed, manufactured and marketed in compliance with: - safety objectives of the “Low Voltage” Directive 2006/95/CE (which replaces 73/23/CEE and subsequent amendments); - the protection requirements of Directive “EMC” 2004/108/EC. Electrical safety of the appliance can only be guaranteed if it is correctly connected to an approved earthing system. IKEAGUARANTEE HowlongistheIKEAguaranteevalid? This guarantee is valid for ve (5) years from the original date of purchase of your appliance at IKEA, unless the appliance is named LAGAN in which case two (2) years of guarantee apply. The original sales receipt, is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance. Whichappliancesarenotcoveredbythe IKEAve(5)yearsguarantee? The range of appliances named LAGAN and all appliances purchased in IKEA before 1st of August 2007. Whowillexecutetheservice? IKEA service provider will provide the service through its own service operations or authorized service partner network.ENGLISH 12 Whatdoesthisguaranteecover? The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specied under the headline “What is not covered under this guarantee?” Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA. WhatwillIKEAdotocorrecttheproblem? IKEA appointed Service Provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA Service Provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product. Whatisnotcoveredunderthisguarantee?

• Normal wear and tear.

• Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electrochemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.

• Consumable parts including batteries and lamps.

• Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible color differences.

• Accidental damage caused by foreign objects or substances and cleaning or unblocking of lters, drainage systems or soap drawers.

• Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.

• Cases where no fault could be found during a technician’s visit.

• Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where non-original parts have been used.

• Repairs caused by installation which is faulty or not according to specication.

• The use of the appliance in a non- domestic environment i.e. professional use.

• Transportation damages. If a customer transports the product to his home or another address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer’s delivery address, then damage to the product that occurs during this delivery will be covered by IKEA.

• Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA appointed Service Provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the appointed Service Provider or its authorized service partner will reinstall the repaired appliance or install the replacement, if necessary. These restrictions do not apply to fault-free work carried out by a qualied specialist using our original parts in order to adapt the appliance to the technical safety specications of another EU country.ENGLISH 13 Howcountrylawapplies The IKEA guarantee gives you specic legal rights, which cover or exceed all the local legal demands. However these conditions do not limit in any way consumer rights described in the local legislation. Areaofvalidity For appliances which are purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country. An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with: - the technical specications of the country in which the guarantee claim is made; - the Assembly Instructions and User Manual Safety Information. ThededicatedAFTERSALESforIKEA appliances Please don’t hesitate to contact IKEA appointed After Sales Service Provider to:

• make a service request under this guarantee;

• ask for clarications on installation of the IKEA appliance in the dedicated IKEA kitchen furniture;
