Product Type	LCD TV with DVD player, SD/MMC/MS card slot and USB port
Brand	MT Logic
Model	TFDVD1522MT
Power Supply	DC 12V via mains adapter (not included)
Built-in speakers	2 x 5W
Video inputs	Composite (CVBS), S-Video, VGA, HDMI, SCART
Audio input	RCA (L/R) for composite and S-Video, PC audio input for VGA
Outputs	Headphone output, digital coaxial audio output
Connectivity	USB port, SD/MMC/MS card reader
Compatible disc formats	DVD, Super VCD, VCD, CD, CD-R/RW, MP3, JPEG
TV reception	Analog tuner (PAL BG/DK/I, NTSC) with 75Ω antenna
Teletext	Yes
Remote control	Multifunction, AAA batteries x2 (not supplied)
DVD functions	Play, pause, fast forward/reverse, slow motion, repeat, zoom, angle, subtitles, multi-language audio
Display	15-inch LCD screen (estimated from model)
Picture formats	Full Screen, Zoom 1/2, Auto, 4:3, 14:9, 16:9, Subtitles
Picture modes	Personal, Movie, Sports, Soft, Game
Sound modes	Personal, Voice, Music, Theater
Timer	Sleep timer, OSD timer
Child lock	Yes, with PIN code
Maintenance	Unplug before cleaning, use a soft dry cloth. Do not use chemical products.
Remote control batteries	2 AAA batteries (not supplied)
Supplied accessories	Mains adapter, remote control, manual

Frequently Asked Questions - TFDVD1522MT MT Logic

How to connect a PC to the TV?

Use a VGA cable (not supplied) to connect the VGA output of your PC to the VGA input of the TV. Also connect the PC audio cable to the corresponding audio input. Then select the input mode VGA via the INPUT button.

How to perform automatic channel search?

Open the LCD menu (MENU button), go to 'FUNCTION' then 'First installation'. Check 'Program Search' and press OK. The TV will automatically search and store available channels.

What to do if the remote control does not work?

First check the batteries: replace the two used AAA batteries with new ones, respecting polarity. If the problem persists, remove obstacles between the remote and the TV.

How to clean the TV screen?

First unplug the device. Use a soft dry cloth to gently wipe the screen. Never use chemical products, alcohol, or rough cloths that could scratch the surface.

How to activate the child lock?

In the LCD menu, go to 'FUNCTION' then 'Child safety'. A PIN code is required (default: 0000). You can then lock certain channels or access to settings.

What disc formats are compatible with the DVD player?

The player accepts DVD, Super VCD, VCD, CD, CD-R/RW, as well as MP3 and JPEG files. Audio and video formats are encoded in MPEG 1, MPEG 2 and CD-DA.

How to use the A-B repeat function?

During DVD playback, press the A-B button once at the start point A, then a second time at the end point B. The playback will then repeat the A-B section. Press again to cancel.

How to adjust sound and picture according to my preferences?

Open the LCD menu (MENU button) and select 'PICTURE' to adjust contrast, brightness, color, etc. Choose a preset mode or adjust manually. For sound, go to 'SOUND' and adjust volume, bass, treble, and balance.

How to use the DVD menu?

Press the DVD SETUP button to open the OSD menu of the DVD player. You can configure language (OSD, audio, subtitles), audio output type, parental control, and restore default settings.

How to connect a USB device?

Insert a USB flash drive into the USB port on the front of the TV. Then select the input mode DVD (via INPUT) and use the remote to navigate files. Supported formats are MP3 and JPEG.

USER MANUAL TFDVD1522MT MT Logic

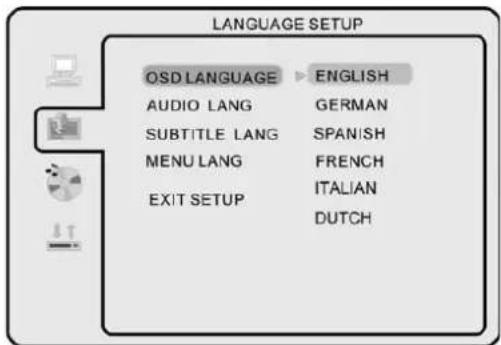

De standardinstelling is Engels.

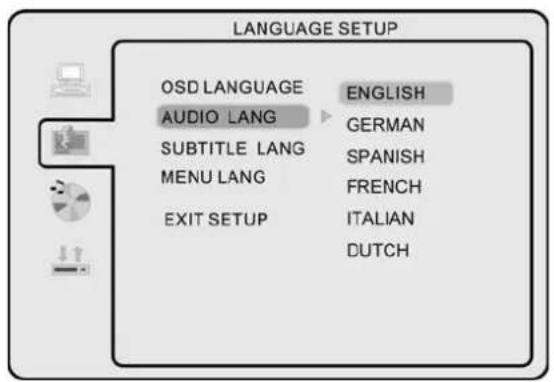

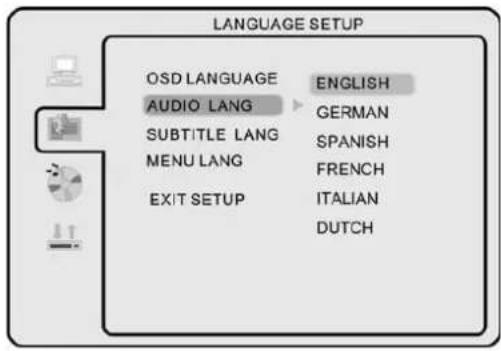

Audio Taal

De standardinstelling is Engels.

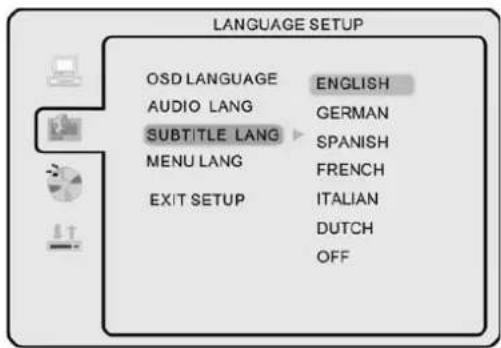

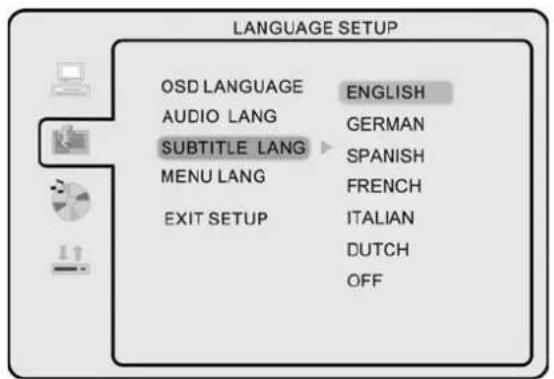

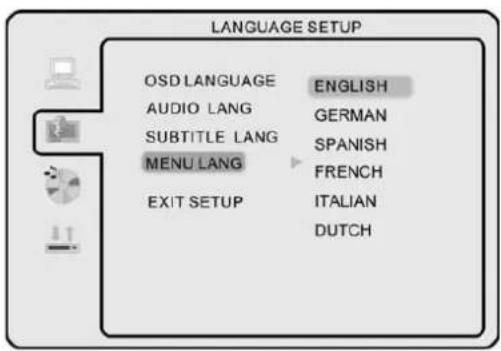

Ondertiteling

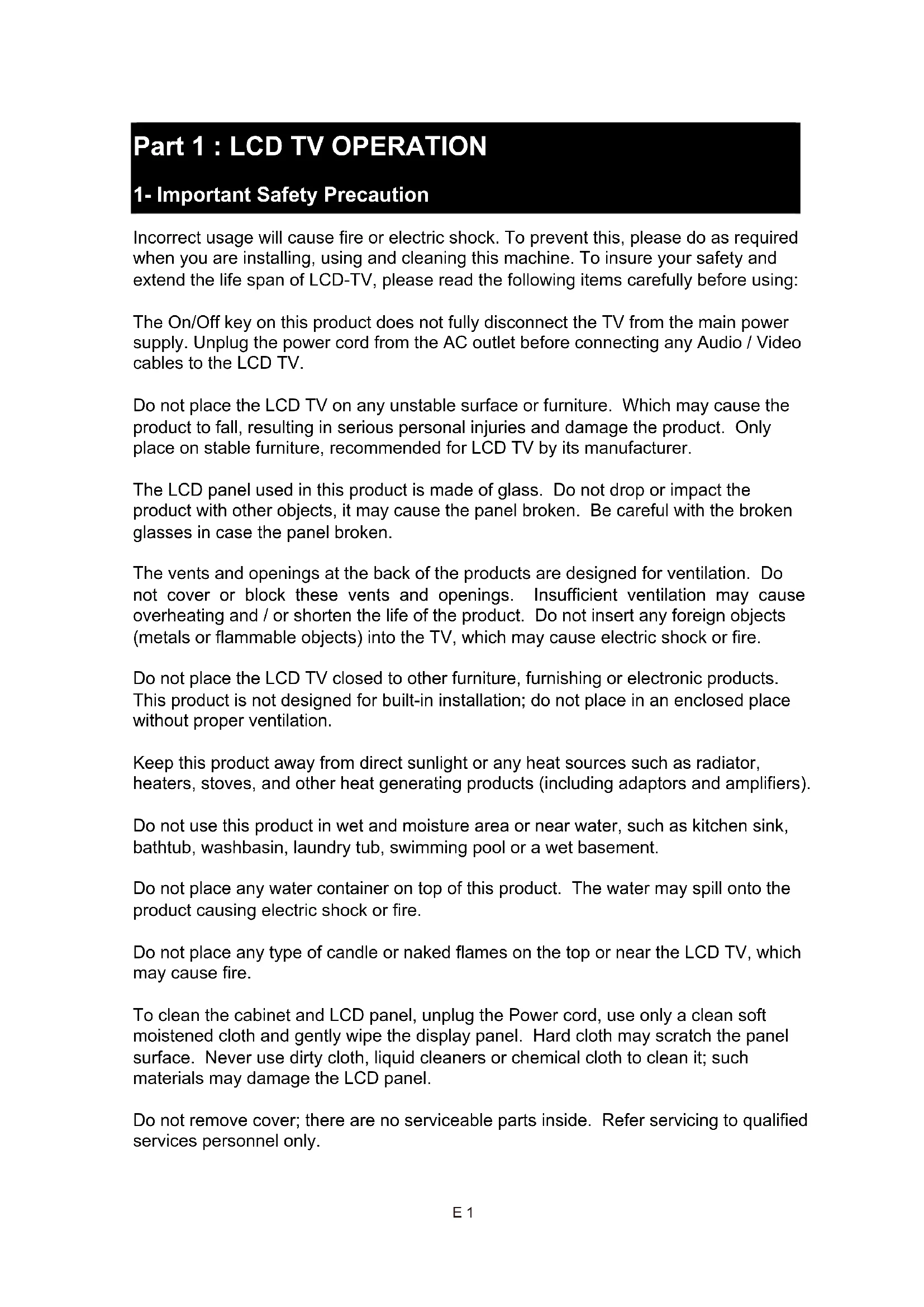

1- Important Safety Precaution

Incorrect usage will cause fire or electric shock. To prevent this, please do as required when you are installing, using and cleaning this machine. To insure your safety and extend the life span of LCD-TV, please read the following items carefully before using:

The On/Off key on this product does not fully disconnect the TV from the main power supply. Unplug the power cord from the AC outlet before connecting any Audio / Video cables to the LCD TV.

Do not place the LCD TV on any unstable surface or furniture. Which may cause the product to fall, resulting in serious personal injuries and damage the product. Only place on stable furniture, recommended for LCD TV by its manufacturer.

The LCD panel used in this product is made of glass. Do not drop or impact the product with other objects, it may cause the panel broken. Be careful with the broken glasses in case the panel broken.

The vents and openings at the back of the products are designed for ventilation. Do not cover or block these vents and openings. Insufficient ventilation may cause overheating and / or shorten the life of the product. Do not insert any foreign objects (metals or flammable objects) into the TV, which may cause electric shock or fire.

Do not place the LCD TV closed to other furniture, furnishing or electronic products. This product is not designed for built-in installation; do not place in an enclosed place without proper ventilation.

Keep this product away from direct sunlight or any heat sources such as radiator, heaters, stoves, and other heat generating products (including adaptors and amplifiers).

Do not use this product in wet and moisture area or near water, such as kitchen sink, bathtub, washbasin, laundry tub, swimming pool or a wet basement.

Do not place any water container on top of this product. The water may spill onto the product causing electric shock or fire.

Do not place any type of candle or naked flames on the top or near the LCD TV, which may cause fire.

To clean the cabinet and LCD panel, unplug the Power cord, use only a clean soft moistened cloth and gently wipe the display panel. Hard cloth may scratch the panel surface. Never use dirty cloth, liquid cleaners or chemical cloth to clean it; such materials may damage the LCD panel.

Do not remove cover; there are no serviceable parts inside. Refer servicing to qualified services personnel only.

2- Main functions

1- Can be connected with analog RGB input
2- Can be connected with CVBS and S-VIDEO input
3- Can be connected with HDMI input.
4- Can receive SCART signal
5- Can receive TV signal
6- Support DVD / Card / USB Playback
7- Built-in 2 × 5W speakers, 2 sets audio input
8- Full function Infra-red remote control
9- Coaxial Audio output

3-Fitting the Remote Control Batteries

The remote unit is operated with 2 × AAA size batteries.

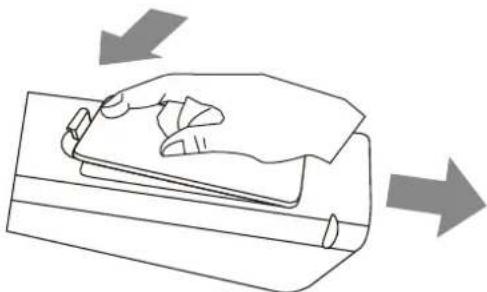

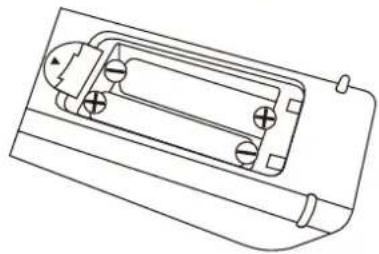

1. Push and hold the hook, the battery cover is opened.
2. Insert batteries according to the polarity marks.
3. Replace the cover.

Remarks:

Battery replacement is necessary when the remote control fail to operate the TV set.

Battery Cautions

Incorrect use of batteries can cause chemical leakage, which will corrode the Remote Control Unit or cause the batteries to burst.

1. Batteries shall always replace as a pair. Always use new batteries when replacing the old set.

2. Do not combine a used battery with a new one or mix battery type (Zinc Carbon with Alkaline).

3. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.
4. Dispose the used batteries according to your local authorities guidelines. Do not put it into your household waste.

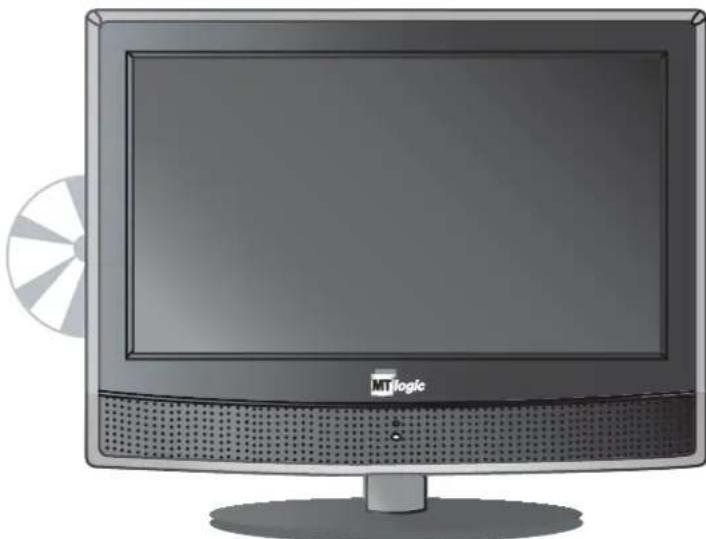

4- Product Overview

5- Control Panel Overview

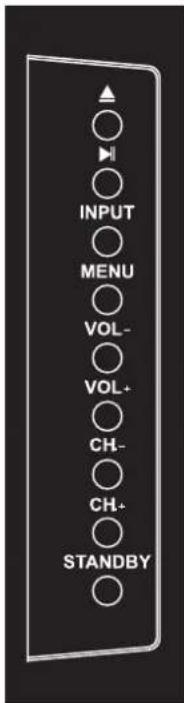

1. Control Panel Functions:

1-EJECT-DVD eject button
2- PLAY/PAUSE - DVD play/pause button
3- INPUT - Select the input signals: TV/SCART/CVBS/S-VIDEO/VGA/HDMI/DVD
4- MENU - Enter into MENU
5- VOL - Volume down / Left orientation
6- VOL - Volume up / Right orientation
7-CH. - TV channel down
8-CH. - TV channel up
9- STANDBY - Switches the TV to standby and on again

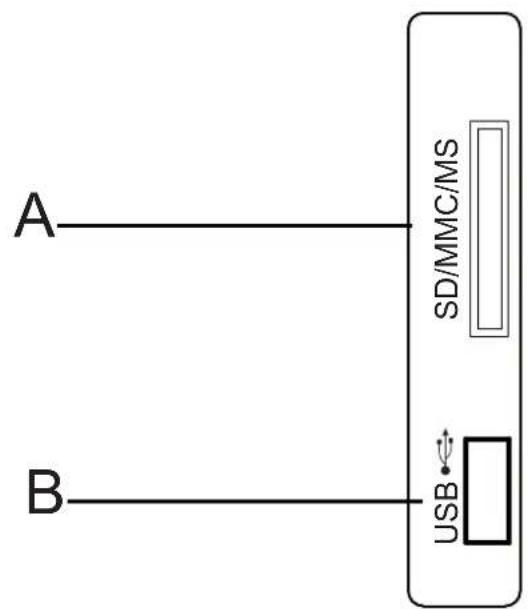

(2) Card, USB Panel Illustration:

A. SD/MMC/MS Card Slot
B. USB

Indicator Light Status

When the unit is on, the indicator light turns green. The indicator light is red when the TV is in standby mode.

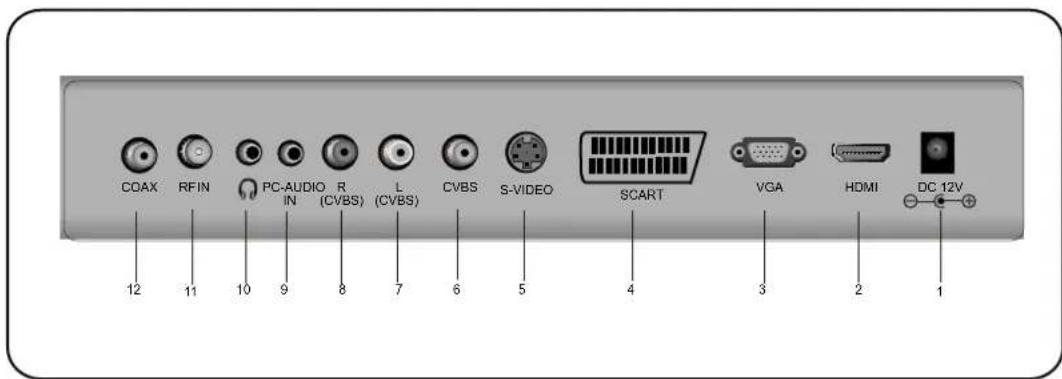

(3) Illustration of Connectors

Connector's descriptions

1. DC 12V power input for the LCD TV, connect power supply adaptor here.
2. High Quality Audio/Video input socket for connecting an external device fitted with an HDMI output.
3. DB15 VGA interface.
4. Scart input interface; connect your AV system with Scart output.
5. S-VIDEO input, connect video input from external device here.
6. CVBS / Composite video inputs, connect your AV system.
7. Left Audio Channel input for Composite video & S-video mode.
8. Right Audio Channel input for Composite video & S-video mode.
9. Audio input for VGA mode, connect to your PC audio output.
10. Headphone output
11. 75 Ω aerial input, connect antenna connector or aerial interface here to receive cable / aerial signal.
12. DVD Coaxial Output, connecting to Coaxial input of your Amplifier.

6- Remote Control Overview

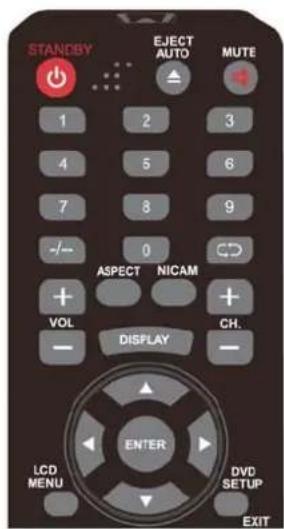

Remote control Illustration

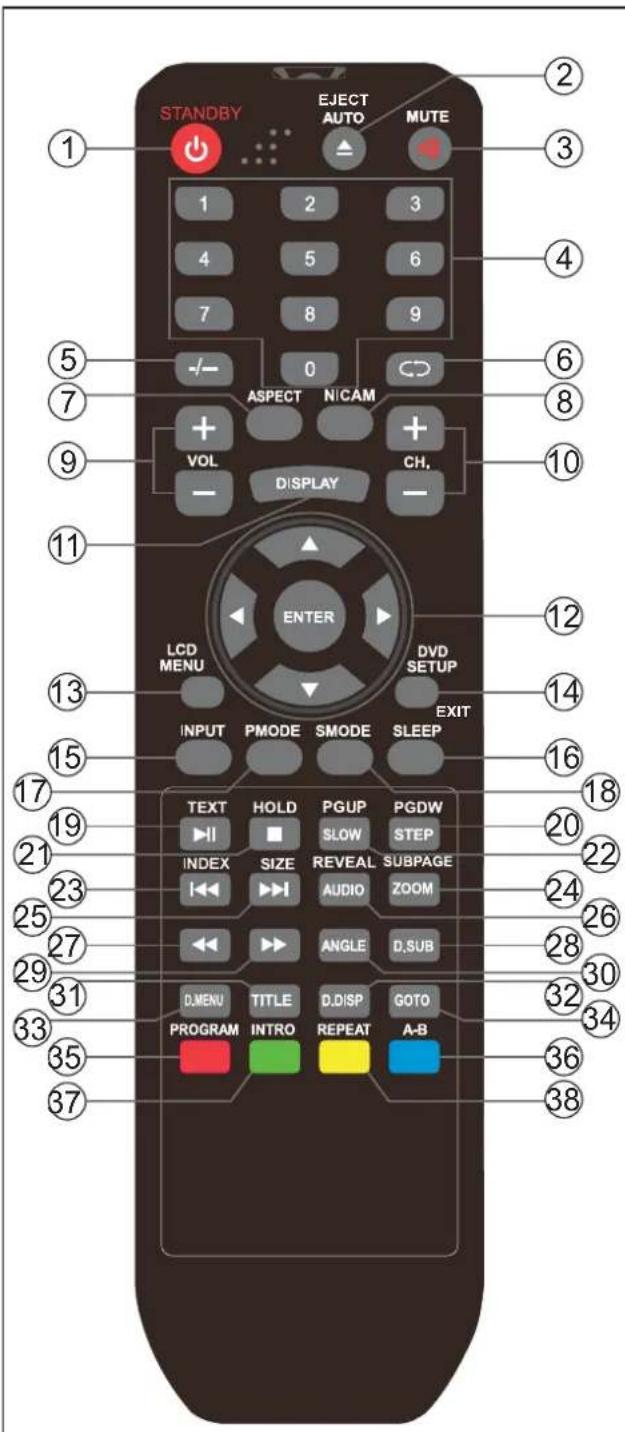

Keys description on the remote control

1. STANDBY	Switch the TV to standby and on again
2. AUTO / EJECT	AUTO Adjust(PC MODE)/Eject the DVD
3. MUTE	Mute button
4. 0-9	TV channel number or teletext page number select
5. -/--	One / two digit TV channel selection
6. Return	View last TV Channel
7. ASPECT	Change display size
8. NICAM	NICAM
9. VOL+ / VOL-	Volume up / Volume down
10. CH+ / CH-	TV channel up / TV channel down
11. DISPLAY	Display current TV channel information
12. ▲▼ ▲ ▲ / ENTER	Navigation & Enter buttons
13. LCD MENU	OSD menu
14. DVD SETUP/EXIT	DVD- OSD menu /Menu exit
15. INPUT	Input mode selection
16. SLEEP	Sleep time
17. PMODE	Picture mode selection
18. SMODE	Sound mode selection
19. TEXT/HI	Switch to the Teletext with text mode DVD- PLAY & PAUSE button
20. STEP/PGDW	DVD- STEP/Text page down
21. ■ / HOLD	DVD- STOP/Hold on or off for current page display
22. SLOW/PGUP	DVD-SLOW/Text page up
23. <</INDEX	DVD- Previous Chapter /Request index page
24. ZOOM	DVD-Zoom in and out
25. >>/SIZE	DVD-Next chapter/Change display size
26. AUDIO /REVEAL	DVD - Audio channel selectionReveal or hidden the hidden words
27. ←	DVD-Fast Reverse button
28. D.SUB	DVD-sub-title
29. >	DVD-Fast forward button
30. ANGLE	DVD-Display current playback angle
31. TITLE	DVD-Title Menu
32. D.DISP	Display current DVD information
33. D.MENU	DVD-Disc menu
34. GOTO	DVD-GOTO
35. RED/PROGRAM	Correspond to the differently colored subjectsDVD-Program Playback button
36. AB	Correspond to the differently colored subjects/AB/DVD-AB Selection Playback
37. INTRO	Correspond to the differently colored subjects/INTRO/CD/VCD-Intro/Scan/9 picture display
38. REPEAT	Correspond to the differently colored subjects/ REPEAT/DVD Repeat playback

7- Connection between different input signals

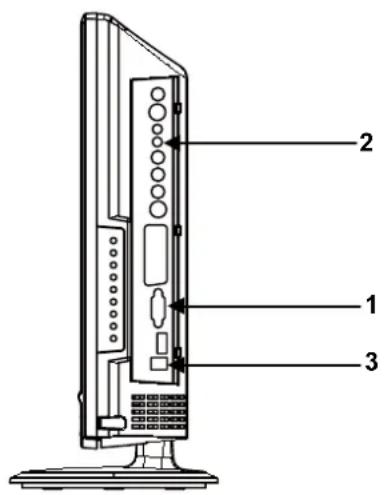

A) Connect with PC signal

You can use your LCD-TV as a monitor for your personal computer using a VGA cable(not supplied).

1. VGA input (Remember to tighten the screws.)
2. PC Audio Input
3. DC12V power input

Connection steps:

• Read the user guide supplied with your computer and ensure that it has a VGA connector;
• Make sure that the power of the LCD-TV and the PC are off;
• Connect a D type 15-pin VGA interface cable (not supplied) to the VGA video interface connector on the PC. Then connect the other end to the VGA video interface connector on the back of the LCD-TV. Tighten the screws on the VGA connectors once they are firmly connected;
• Connect the DC 12V power input with the adaptor come with your LCD TV.
• Turn on the power of the LCD-TV first, and then turn on the power of the PC;
• Press the INPUT button to set the video input mode of the LCD-TV to "VGA";
• Use the VOL- / VOL+ on the control panel or remote controller to adjust the volume.

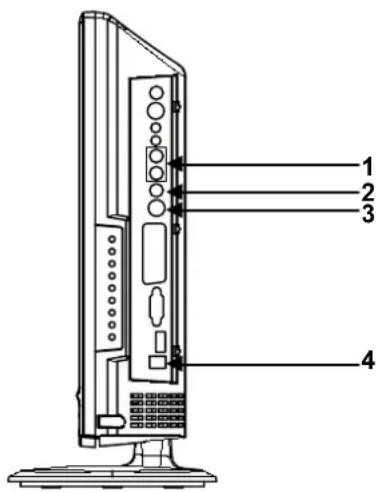

B) Connect to external AV devices using Composite and S-Video inputs

1. Left & Right Audio input.
2. CVBS / composite video input.
3. S-video Input.
4. DC12V power input

Connection steps:

• Read the user guide supplied with your AV devices and ensure that it has Composite or S-Video connectors;
• Make sure that the power of the LCD-TV and the AV device are off;
• Connect a Composite video cable (not supplied) to the yellow composite video connector input on the back of the LCD-TV. Now insert the other end of the composite cable into the yellow composite connector output on the AV device;
• Alternatively connect a S-Video Cable (not supplied, provide better image quality) to the S-Video connector on the back of the LCD-TV. Now insert the other end of the S-Video cable into the S-Video connector on the AV device;
• Connect the RCA audio cables (not supplied, white and red connectors) from the AV devices' RCA audio output connectors to the RCA audio input connectors on the back of the LCD-TV;
• Turn on the power of the LCD-TV first, and then turn on the power of the AV device;
• Press the INPUT button to set the video input mode of the LCD-TV to "S-VIDEO" mode or "CVBS" mode;

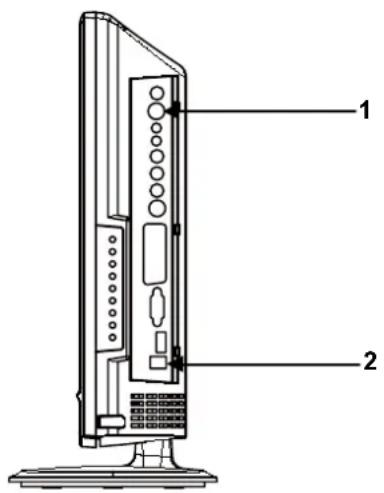

(C) Connect with TV signal

1. Antenna / 75Ω aerial input.
2. DC 12V power input.

Connection steps:

• Make sure that the power of the LCD-TV is off;
• Connect an antenna cable (CATV) to the corresponding interface connector (75 Ω ANT) on the back of the LCD-TV. Connect the other end of the antenna cable to the antenna connector on the wall or on your digital cable / satellite receiver. Now you are able to view regular cable TV;
• Turn on the power of the LCD-TV;
• Press the INPUT button to set the video input mode of the LCD-TV to "TV" mode. The channel number appears in the top right side of the screen;
• When channels are not programmed a blue screen will appear with go around white screen with the text "TV-NO SYNC".

On the LCD MENU you can read how the channels can be programmed (auto search or manual search).

It is recommended first to let the channels automatically to be searched.

• You can use key CH + / CH- button or the number keys on the remote control to select the channel you want to watch;

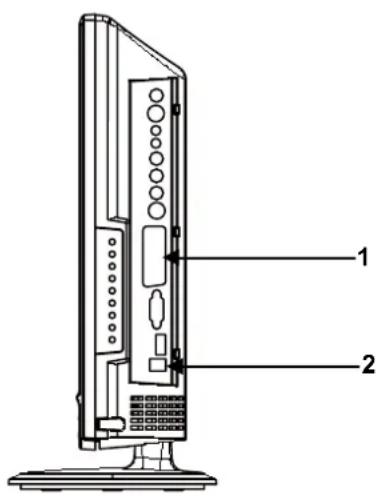

(D) Connect with SCART signal

1. Scart input.
2. DC 12V power input.

Connection steps:

• Read the user guide supplied with your AV devices and ensure that it has a scart connector;
• Make sure that the power of the LCD-TV is off;
• Connect a SCART cable to the corresponding interface connector on the back of the LCD-TV;
• Turn on the power of the LCD-TV;
• Press the INPUT button to set the video input mode of the LCD-TV to "SCART" mode;

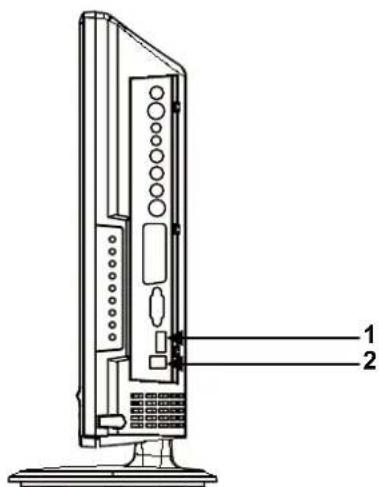

E) Connect with HDMI signal

1. HDMI input
2. DC 12V power input.

Connection steps:

• Read the user guide supplied with your AV devices and ensure that it has a HDMI connector;
• Make sure that the power of the LCD-TV is off;
• Connect a HDMI cable to the corresponding interface connector on the back of the LCD-TV;
• Turn on the power of the LCD-TV;
• Press the INPUT button to set the video input mode of the LCD-TV to "HDMI" mode;

8- Basic operating instructions

Turn on the LCD-TV

When the STANDBY button is pressed and the LCD-TV is turned on, the indicator light on the front of the LCD-TV changes from red to green.

When the LCD-TV is turned on, the input mode is displayed on the screen.

When the LCD-TV is turned off using the STANDBY button, the LCD-TV will go into standby mode and the indicator light turns red.

Switch Among Different Inputs :

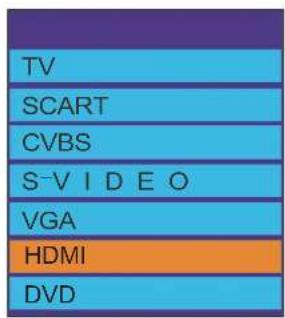

TV /SCART / CVBS / S-VIDEO / VGA / HDMI /DVD

Press the Input button to display the inputs mode menu, then press / key to select a input source and press Enter key to confirm.

Audio control

1. Press the VOL+ button to increase the volume.

A number will appear on screen indicating the volume level.

1. Press the VOL - button to decrease the volume.

A number will appear on screen indicating the volume level.

Mute

1. Press the MUTE button to mute the sound temporarily. A Mute icon appears on the screen.

2. Press the MUTE button again to restore the sound. The Mute icon disappears.

Note

When you turn the LCD-TV off, the mute function is canceled automatically.

Select the TV channel you want

You can use the number keys on the remote control to directly select TV channels. The LCD-TV can store up to 99 channels (1 to 99), and you can press the keys on the remote control or on the panel to make a selection.

1- Press the relevant key on the remote control if you want to choose any channel from 1 to 9. (For example: if you want to choose channel 8, just press the key number 8).

2- If you want to choose a channel bigger than 9, please press the - / - - button until - - - is indicated on the screen. Enter the two digits of the channel number you want to watch. (For example: select channel 16).

ASPECT

Press to display proportion.(Fullscreen ; Zoom1 ; Zoom2; Auto; 4 : 3 ; 14 : 9 ; 16 : 9 ; Subtitle)

NICAM

Usually set to stereo to provide the best reproduction, but if reception deteriorates or if the service is not available the switch to Mono. Mono(M1) and (M2) can also be selected if a mono signal is being transmitted.

9-TELETEXT

Teletext features may vary depending on the Broadcasting Companies and is only available if the channel selected is transmitting Teletext. Pressing the TEXT button whilst in Teletext operation will switch the current status to TV. When in Teletext mode, the volume may still be altered to the desired listening level.

Page Selection

Pages can be selected by entering the page number, using the number keys on the remote control.

Size Button

Press Size to change display size: normal => large top => large bottom => normal.

Reveal Button

Press Reveal to reveal hidden words e.g. quiz page answers. Press again to hide.

Red/Green/Yellow/Cyan Buttons

These four buttons correspond to the differently coloured subjects.

Hold Button

Press Hold to remain the Teletext page when viewing multi-page information Press again to return to automatic page update.

Index Button

Press Index to return to the main index page.

Depending on the way information is transmitted, this may have to be pressed more than once to return to the main index page.

Sub page Button

When Teletext information exceeds more than one page, it may take some time for the automatic changing of the sub pages to reach the sub page you require.

It is possible to enter your required sub page and continue watching the normal programme until the correct sub page is found.

Select the required page number using buttons 0-9.

If the top of the page indicates that sub pages are being transmitted yet the page does not change, then the number at the top of the page is there to indicated that the broadcaster has updated the page's contents, there are no sub pages

Press Subpage, page number -/-- will be displayed at the Bottom right of the screen.

Enter desired subpage number before the page number -/-- disappears.

To select page 6 enter 0,0,0 and 6.

Text Button

Press TEXT to enter or turn off Teletext mode

10- Menu operations

You can modify certain parameters of the LCD-TV in the menu system. Please read the following descriptions to get an understanding of each adjustable parameter.

Input mode: PC (VGA)

1. Press the LCD MENU key to display the main menu.
2. Use the RIGHT ARROW key to select the PICTURE, the SOUND, the PC POSITION, the TIMER or the FUNCTION.
3. Press the EXIT key to exit the menu.

NAME OF MENU	PICTURE OF MENU		INSTRUCTIONS
PICTURE	Picture Mode Picture Mode Standard Contrast 49 Brightness 50 Colour 50 Tint 50 Sharpness Normal Enter		1. Picture Mode Use the Up / Down arrow keys to set the PICTURE MODE indication to yellow. Use the Left / Right arrow keys to select one of PMODE. (Personal, Movie,Sport,Mid,Game,Standard). 2. Contrast Use the Up / Down arrow keys to set the CONTRAST indication to yellow. Use the Left / Right arrow keys to adjust the contrast. The contrast increases as the number increases. 3. Brightness Use the Up / Down arrow keys to set the BRIGHTNESS indication to yellow. Use the Left / Right arrow keys to adjust the brightness. The brightness increases as the number increases. 4. Colour Use the Up / Down arrow keys to set the COLOUR SETTING indication to yellow. Use the Left/Right arrow keys to adjust the color. The color increases as the number increases. 5. Tint Use theUp/Down arrow keys to set the TINT indication to yellow.Use the Left/Right arrow keys to adjust the tone of color when your system is in NTSC. 6. Sharpness Use the Up / Down arrow keys to set the SHARPNESS indication to yellow. Use the Left / Right arrow keys to adjust the sharpness. (Normal,Sharp,Sharpest,Soft)
PICTURE	PICTURE Brightness 50 Colour 50 Tint 50 Sharpness Normal Colour Temperature Normal DNR Off Select Adjust		7. Color temperature Use the Up/Down arrow keys to set the COLOR TEMPERATURE indication to yellow Use the Left / Right arrow keys to select an optimum COLOR TEMPERATURE mode which suit your eyes for viewing among Normal, Warm and Cold. 8. DNR(Digital Noise Reduction) Use the Left / Right arrow keys to reduce the video noise level when the broadcast signal received is weak.
NAME OF MENU	SOUND OF MENU	INSTRUCTIONS
SOUND	SOUND Volume 51 Sound Mode Personal Bass 50 Trebie 50 Balance 50 Select Enter		1. Volume Use the Up / Down arrow keys to set the VOLUME indication to yellow. Use the Left / Right arrow keys to adjust the volume. 2. Sound Mode Use the Up / Down arrow keys to set the SOUND MODE indication to yellow. Use the Left / Right arrow buttons to select one of SOUND MODE. (Normal,Sharp,Sharpest,Soft). 3. Bass Use the Up / Down arrow keys to set the BASS indication to yellow. Use the Left / Right arrow keys to adjust the bass. This can only be adjusted in the PERSONAL mode. 4. Treble Use the Up / Down arrow keys to set the TREBLE indication to yellow. Use the Left / Right arrow keys to adjust the treble. This can only be adjusted in the PERSONAL mode. 5. Balance Use the Up / Down arrow keys to set the BALANCE indication to yellow. Use the Left / Right arrow keys to adjust the balance.
NAME OF MENU	PC Position OF MENU		INSTRUCTIONS
PC Position	PC Position Auto Sync Begin Phase 6 Clock 50 H Position 50 V Position 50 Position Reset Select Execute		1. Auto Sync Use the Up / Down arrow keys to set the Auto Sync Indication to yellow. Use the Right arrow key to adjust the setting automatically. 2. Phase Use the Up / Down arrow keys to set the PHASE indication to yellow. With this function any horizontal interference can be corrected and the contours of characters sharpened by means of the Left / Right arrow keys. 3. Clock Use the Up / Down arrow keys to set the CLOCK indication to yellow. With this function the clock can be adjusted by means of the Left / Right arrow keys. 4. H Position Use the Up / Down arrow keys to set the H POSITION indication to yellow. With this function the image width can be adjusted by means of the Left / Right arrow keys. 5. V Position Use the Up / Down arrow keys to set the V POSITION indication to yellow. With this function the image height can be adjusted by means of the Left / Right arrow keys. 6. Position Reset Use the Up / Down arrow keys to set the RESET indication to yellow. Use the Right arrow key to return to the default settings.
NAME OF MENU	TIMER OF MENU		INSTRUCTIONS
TIMER	TIMER Sleep Timer 0 Min. OSD Timer 30Sec Select Enter		1. Sleep Timer Use the Up/Down arrow keys to set the Sleep Timer indication to yellow.Use the Left /Right arrow keys to select the sleep timer. 2. OSD Timer Use the Up/Down arrow keys to set the OSD Timer indication to yellow.Use the Left/Right arrow keys to select the OSD Timer screen.
NAME OF MENU	FUNCTION OF MENU		INSTRUCTIONS
FUNCTION	FUNCTION Language English Video Size Fullscreen Blue Screen On Child Lock First Time Installation Reset → Select Enter		1. Language Use the Up / Down arrow keys to set the LANGUAGE indication to yellow. Use the Left / Right arrow keys to change the menu to one of the following Languages: DUTCH, ENGLISH, FRENCH, GERMAN, ITALIAN, SPANISH. 2. Video Size Use the Up/Down arrow keys to set the VIDEO SIZE indication to yellow.Use the right key to select the screen display mode. which best corresponds to your viewing requirements. 3. Blue Screen Use the Up / Down arrow keys to set the BLUE SCREEN indication to yellow. When there is no signal, the screen will be blue. You can switch this function ON / OFF by means of the Left / Right arrow keys. 4. Child lock Use the Up/Down arrow keys to set the CHILD LOCK indication to yellow.Use the Right arrow key to enter CHILD LOCK menu. The lock and pin code functions help
NAME OF MENU	FUNCTION OF MENU		INSTRUCTIONS
FUNCTION	FUNCTION Language Video Size Blue Screen Child Lock First Time Installation Reset → Select → Enter		prevent unauthorized • Viewing of the TV when the remote control is not accessible. • Viewing of locked channels. • Changes being made to the setup menus. 5. First Time Installation Use the Up/Down arrow keys to set the FIRST TIME INSTALLATION indication to yellow. Press the Right arrow key. A new screen appears on and you can initial Channel Search will scan for,sort and save any available channels.Use the Up/Down arrow keys to move up and down the display to highlight desired options. Press the Left/Right arrow keys to select or deselect the options.If ANALOG PROGRAM SEARCH is selected,use the Down arrow key to highlight OK and press the ENTER key. The TV will initially search for the analog stations. On completion of the search the TV will default to Channel 1 on the analog service. 6. Reset Use the Up/Down arrow keys to set the RESET indication to yellow.Use the Right arrow key to RESET picture settings to the factory default.
	First Time Installation Country Language Delete Analog Program Analog Program Search OK Cancel Select → Adjust

Input mode: SCART/CVBS/SVIDEO/HDMI

1. Press the LCD MENU key to display the main menu.
2. Use the Right arrow key to select the PICTURE, the SOUND, the TIMER or the FUNCTION.
3. Press the EXIT key to exit the menu.

NAME OF MENU	PICTURE OF MENU		INSTRUCTIONS
PICTURE	Picture Mode Picture Mode Standard Contrast 49 Brightness 50 Colour 50 Tint 50 Sharpness Normal Enter		1. Picture Mode Use the Up / Down arrow keys to set the PICTURE MODE indication to yellow. Use the Left / Right arrow keys to select one of PMODE. (Personal, Movie, Sport, Mid, Game, Standard) 2. Contrast Use the Up / Down arrow keys to set the CONTRAST indication to yellow. Use the Left / Right arrow keys to adjust the contrast. The contrast increases as the number increases. 3. Brightness Use the Up / Down arrow keys to set the BRIGHTNESS indication to yellow. Use the Left / Right arrow keys to adjust the brightness. The brightness increases as the number increases. 4. Colour Use the Up / Down arrow keys to set the COLOUR SETTING indication to yellow. Use the Left/Right arrow keys to adjust the color. The color increases as the number increases. 5. Tint Use theUp/Down arrow keys to set the TINT indication to yellow. Use the Left/Right arrow keys to adjust the tone of color when your system is in NTSC. 6. Sharpness Use the Up / Down arrow keys to set the SHARPNESS indication to yellow. Use the Left / Right arrow keys to adjust the sharpness. (Normal, Sharp, Sharpest, Soft)
PICTURE	PICTURE Brightness 50 Colour 50 Tint 50 Sharpness Normal Colour Temperature Normal DNR 4 Off Select Adjust		7. Color temperature Use the Up/Down arrow keys to set the COLOR TEMPERATURE indication to yellow Use the LEFT/RIGHT ARROW keys to select an optimum COLOR TEMPERATURE mode which suit your eyes for viewing among Normal, Warm and Cold. 8. DNR(Digital Noise Reduction) Use the LEFT/RIGHT ARROW keys to reduce the video noise level when the broadcast signal received is weak.
NAME OF MENU	SOUND OF MENU	INSTRUCTIONS
SOUND		1. Volume Use the Up / Down arrow keys to set the VOLUME indication to yellow. Use the Left / Right arrow keys to adjust the volume. 2. Sound Mode Use the Left / Right arrow keys to select one of SOUND MODE. (Personal,Voice,Music,Theatre) 3. Bass Use the Up / Down arrow keys to set the BASS indication to yellow. Use the Left / Right arrow keys to adjust the bass. This can only be adjusted in the PERSONAL mode. 4. Treble Use the Up / Down arrow keys to set the TREBLE indication to yellow. Use the Left / Right arrow keys to adjust the treble. This can only be adjusted in the PERSONAL mode. 5. Balance Use the Up / Down arrow keys to set the BALANCE indication to yellow. Use the Left / Right arrow keys to adjust the balance.
NAME OF MENU	TIMER OF MENU	INSTRUCTIONS
TIMER	TIMER Sleep Timer 0 Min. OSD Timer 30Secl Select Enter	1. Sleep Timer Use the Up/Down arrow keys to set the SLEEP TIMER indication to yellow.Use the Left /Right arrow keys to select the SLEEP TIMER. 2. OSD Timer Use the Up/Down arrow keys to set the OSD TIMER indication to yellow.Use the Left/Right arrow keys to select the OSD TIMER screen.
NAME OF MENU	FUNCTION OF MENU	INSTRUCTIONS
FUNCTION	FUNCTION Language English Video Size Fullscreen Blue Screen On Child Lock First Time Installation Reset → Select → Enter	1. Language Use the Up / Down arrow keys to set the LANGUAGE indication to yellow. Use the Left / Right arrow keys to change the menu to one of the following Languages: DUTCH, ENGLISH, FRENCH, GERMAN, ITALIAN, SPANISH. 2. Video Size Use the Up/Down arrow keys to set the VIDEO SIZE indication to yellow.Use the right key to select the screen display mode. which best corresponds to your viewing requirements. 3. Blue Screen Use the Up / Down arrow keys to set the BLUE SCREEN indication to yellow. When there is no signal, the screen will be blue. You can switch this function ON / OFF by means of the Left / Right arrow keys. 4. Child lock Use the Up/Down arrow keys to set the CHILD LOCK indication to yellow.Use the Right arrow key to enter CHILD LOCK menu. The lock and pin code functions help
NAME OF MENU	FUNCTION OF MENU	INSTRUCTIONS
FUNCTION	FUNCTION Language Video Size Blue Screen Child Lock First Time Installation Reset →Select Enter	prevent unauthorized •Viewing of the TV when the remote control is not accessible. •Viewing of locked channels. •Changes being made to the setup menus. 5. First Time Installation Use the Up/Down arrow keys to set the FIRST TIME INSTALLATION indication to yellow. Press the Right arrow key. A new screen appears on and you can initial Channel Search will scan for, sort and save any available channels.Use the Up/Down arrow keys to move up and down the display to highlight desired options. Press the Left/Right arrow keys to select or deselect the options. If ANALOG PROGRAM SEARCH is selected, use the Down arrow key to highlight OK and press the ENTER key. The TV will initially search for the analog stations. On completion of the search the TV will default to Channel1 on the analog service. 6. Reset Use the Up/Down arrow keys to set the First Time Installation indication to yellow.Use the RIGHT ARROW key to reset picture settings to the factory default.
	First Time Installation Country Language Delete Analog Program Analog Program Search OK Cancel Select Adjust

Input mode: TV

1. Press the LCD MENU key to display the main menu.
2. Use the RIGHT ARROW key to select the PICTURE, the SOUND, the SETUP, the TIMER or the FUNCTION.
3. Press the EXIT key to exit the menu.

NAME OF MENU	PICTURE OF MENU		INSTRUCTIONS
PICTURE	Picture Mode Picture Mode Standard Contrast 49 Brightness 50 Colour 50 Tint 50 Sharpness Normal Enter		1. Picture Mode Use the Up / Down arrow keys to set the PICTURE MODE indication to yellow. Use the Left / Right arrow keys to select one of PMODE. (Personal, Movie, Sport, Mid, Game, Standard) 2. Contrast Use the Up / Down arrow keys to set the CONTRAST indication to yellow. Use the Left / Right arrow keys to adjust the contrast. The contrast increases as the number increases. 3. Brightness Use the Up / Down arrow keys to set the BRIGHTNESS indication to yellow. Use the Left / Right arrow keys to adjust the brightness. The brightness increases as the number increases. 4. Colour Use the Up / Down arrow keys to set the COLOUR SETTING indication to yellow. Use the Left/Right arrow keys to adjust the color. The color increases as the number increases. 5. Tint Use the Up/Down arrow keys to set the TINT indication to yellow.Use the Left/Right arrow keys to adjust the tone of color when your system is in NTSC. 6. Sharpness Use the Up / Down arrow keys to set the SHARPNESS indication to yellow. Use the Left / Right arrow keys to adjust the sharpness. (Normal, Sharp, Sharpest, Soft)
PICTURE	PICTURE Colour 50 Tint 50 Sharpsness Normal Colour Temperature Normal DNR Off 1 Select Adjust		7. Color temperature Use the Up/Down arrow keys to set the COLOR TEMPERATURE indication to yellow Use the Left / Right arrow keys to select an optimum COLOR TEMPERATURE mode which suit your eyes for viewing among Normal, Warm and Cold. 8. DNR(Digital Noise Reduction) Use the Left / Right arrow keys to reduce the video noise level when the broadcast signal received is weak.
NAME OF MENU	SOUND OF MENU	INSTRUCTIONS
SOUND	SOUND Volume 51 Sound Mode Personal Bass 50 Treble 50 Balance 50 → Select Enter		1. Volume Use the Up / Down arrow keys to set the VOLUME indication to yellow. Use the Left / Right arrow keys to adjust the volume. 2. Sound Mode Use the Up / Down arrow keys to set the SOUND MODE indication to yellow. Use the Left / Right arrow keys to select one of SOUND MODE. (Personal, Voice, Music, Theatre). 3. Bass Use the Up / Down arrow keys to set the BASS indication to yellow. Use the Left / Right arrow keys to adjust the bass. This can only be adjusted in the PERSONAL mode. 4. Treble Use the Up / Down arrow keys to set the TREBLE indication to yellow. Use the Left / Right arrow keys to adjust the treble. This can only be adjusted in the PERSONAL mode. 5. Balance Use the Up / Down arrow keys to set the BALANCE indication to yellow. Use the Left / Right arrow keys to adjust the balance.
NAME OF MENU	SETUP OF MENU		INSTRUCTIONS
SETUP	SETUP Country Netherlands Auto Tuning Manual Tuning Program Edit Select Enter		1. Country Use the Up/Down arrow keys to set the Country indication to yellow.Use the Left / Right arrow keys to select the country for tuning. 2. Auto Tuning Use the Up / Down arrow keys to set the AUTO TUNING indication to yellowPressed the Right arrow key. A new screen will appear. Press the ENTER key to begin auto tuning. 3. Manual Tuning Use the Up/Down arrow keys to set the MANUAL TUNING indication to yellowPressed the Right arrow key. A new screen will appear. Program Use the Up/Down arrow keys to highlight Program. Use the Left/Right arrow keys to change the channel number. Sound System Use the Up/Down arrow keys to highlight Sound System. Use the Left/Right arrow keys to change the sound system. In the Netherlands, the BG system is used. Ensure that the system is set to BG before you select a channel. Colour System Use the Up/Down arrow keys to highlight Colour System. Use the Left/Right arrow keys to change the colour system. In the Netherlands, the PAL system is used. Ensure that the system is set to PAL before you select a channel. Program Label This option allows you to name a channel, you can also rename the program which you have named. Use the Up/Down arrow keys to highlight Program Label and press the Right arrow key to enter it. Use the numeric buttons to input the numbers directly or use the Up/Down arrow keys to select the letters. Use the Left/Right arrow keys to move the cursor.Press Menu to return to previous menu. AFT(Auto Fine Tune) This option due to weak signals or a wrong antenna configuration, some of the channels may not be turned to the best reception condition. AFT function allows you to fine tune channel selected. Use the Up/Down arrow keys to highlight AFT. Use the Left/Right arrow keys to select ON or OFF. Manual Search
SETUP	Manual Tuning Program 6 Sound System BG Colour Sy stem PAL Program La bel AFT Off Manual Search 328.25 MHz ← AdjustS 0-9 Input		Use the Down arrow key to highlight MANUAL SEARCH. Press either the Right arrow key to search upwards or the Left arrow key to search downwards. Each press of the key will increment the frequency 0.6 MHz. When the new program has been located and is of good sound and picture quality, press the EXIT key to store and exit the feature. 4. Program Edit Use the Up/Down arrow keys to set the PROGRAM EDIT indication to yellow. Press the Right arrow key. A new screen will appear. After tuning the receivers, this function allows you to sort the TV Programs according to your preferences. Use the Up/Down arrow keys to select the channel to be Preference. • To skip the channel, press the YELLOW key and X will appear next to the channel number in the flags column When using the CH+/CH- keys any selected channel will be skipped. To remove the skip feature on a channel, press the YELLOW key again. The X symbol will disappear. • To lock the channel, press the BLUE key to lock the channel, and a padlock symbol will appear next to the channel number in the flags column. Press the BLUE key again to unlock the channel. • To move the channel, press the Right arrow key and use Up/Down arrow keys to move the highlight station to the desired location. Press the Right arrow key again to confirm the move.
	Channel List Flags ATV 1 x 2. x 3. x 4. x 5. x 6. x 7. x 8. → Lock → Move
	SETUP Country Netherlands Auto Tuning Manual Tuning Program Edit → Select Enter
NAME OF MENU	TIMER OF MENU		INSTRUCTIONS
TIMER	TIMER Sleep Timer 0 Min. OSD Timer 30Sec Select Enter		1. Sleep Timer Use the Up/Down arrow keys to set the Sleep Timer indication to yellow.Use the Left/Right arrow keys to select the SLEEP TIMER 2. OSD Timer Use the Up/Down arrow keys to set the OSD Timer indication to yellow.Use the Left/Right arrow keys to select the OSD Timer screen.
NAME OF MENU	FUNCTION OF MENU		INSTRUCTIONS
FUNCTION	FUNCTION Language English Video Size Fullscreen Blue Screen On Child Lock First Time Installation Reset Select Enter		1. Language Use the Up / Down arrow keys to set the LANGUAGE indication to yellow. Use the Left / Right arrow keys to change the menu to one of the following Languages: DUTCH, ENGLISH, FRENCH, GERMAN, ITALIAN, SPANISH. 2. Video Size Use the Up/Down arrow keys to set the VIDEO SIZE indication to yellow.Use the right key to select the screen display mode, which best corresponds to your viewing requirements. 3. Blue Screen Use the Up / Down arrow keys to set the BLUE SCREEN indication to yellow. When there is no signal, the screen will be blue. You can switch this function ON / OFF by means of the Left / Right arrow keys. 4. Child lock Use the Up/Down arrow keys to set the CHILD LOCK indication to yellow.Use the Right arrow key to enter CHILD LOCK menu. The lock and pin code functions help prevent unauthorized • Viewing of the TV when the remote control is not accessible. • Viewing of locked channels. • Changes being made to the setup menus.
NAME OF MENU	FUNCTION OF MENU		INSTRUCTIONS
FUNCTION	First Time Installation Country Netherlands Language English Delete Analog Program Analog Program Search OK Cancel Select → Adjust		5. First Time Installation Use the Up/Down arrow keys to set the FIRST TIME INSTALLATION indication to yellow. Press the Right arrow key. A new screen appears on and you can initial Channel Search will scan for, sort and save any available channels.Use the Up/Down arrow keys to move up and down the display to highlight desired options.Press the Left/Right arrow keys to select or deselect the options. If ANALOG PROGRAM SEARCH is selected, use the Down arrow key to highlight OK and press the ENTER key. The TV will initially search for the analog stations. On completion of the search the TV will default to Channel 1 on the analog service. 6. Reset Use the Up/Down arrow keys to set the RESET to yellow.Use the Right arrow key to reset picture settings to the factory default.
	FUNCTION Language English VideoSize Fullscreen Blue Screen On Child Lock First Time Installation Reset → Select Enter

11- Product specifications

Items		Relevant illustrations
LCD		40 cm LCD TV Widescreen 16:9
Resolution		1366*768(best resolution 1366*768)
Features	Compatible areas	Multinorm
	TV standard	PAL B / G - D / K / I - SECAM L
	Channel amount	99
Input interface	PC	DB15 VGA input interface
	AV video, S-video	Composite video input interface, S-video input interface
	TV	75Ω ANT.
	SCART	21 Pin socket (Audio/Video in, Audio/Video out, RGB in)
	Audio	Audio(1) Left,right audio input interface Audio(2) Left,right audio input interface
	HDMI	High Quality Audio/Video input socket for connecting an external device fitted with an HDMI output
Headphone Output		headphone output interface
Speaker Output		5W x 2
OSD language		English, German, Spanish, French, Dutch, Italian
Power supply		DC 12 V / Adaptor for 230 Volt
Power consumption		< 40 W
Accessories		Remote control, AC adapter, AC cable, 2xAAA Battery, IB, Warranty card

Part 2 : DVD OPERATION

This Product can play the following format of DVD Disc.

Disc type	Disc Size	Recorded Time	Recorded Content	Remarks
DVD	12cm	Single side: 120mins. Approx.	DVD format: Compressed digital Audio and Video
		Double side: 240mins. Approx
Super VCD	12cm	45mins. Approx.	MPEG 2 Compressed Digital Audio and Video	Included: SVCD, CVD
VCD	12cm	74mins. Approx.	MPEG 1 Compressed Digital Audio and Video	Included: VCD2.0, VCD1.1, VCD1.0, DVCD
CD	12cm	74mins. Approx.	CD-DA: Digital Audio
HD-CD	12cm	74mins. Approx.	HD-CD: Digital Audio
MP3 / JPEG	12cm	600mins. Approx.	Compressed digital Audio

Notice: Also support DVD-R, CD-R, and CD-RW playback.

Card reader module support SD, MS and MMC Card and has a USB connection.

1- Basic operating instructions

1. DVD on

Turn on the LCD TV, switch to the DVD mode for the DVD operation.

2. Insert Disc

Insert the Disc to the Disc slot (Printed side facing towards the front of the TV); the player will load the disc automatically. There will have an on screen indication "CLOSE" then "READ". After loading the disc content, it will switch to play mode automatically. If the disc is already placed inside, the disc will be read automatically.

Note 1: For some discs, after loading the content of the disc, need to press PLAY or select from the disc menu to start.

Note 2: Please make sure when inserting the Disc, the printed side of the disc should be facing the front of the TV. When inserting the Disc incorrectly, you may damage the DVD mechanism.

3. Play

According to the disc content, the disc menu will display for your selection. When playing the disc, you may use PAUSE button to toggle between Play and Pause mode. This product also supports Menu, Title, and Sequential and Program playback.

1. Menu Playback (For DVD, Super VCD and VCD2.0 discs)

<1>Press MENU button

For DVD discs, the screen will display the DVD Disc Menu (Root Menu)
- For Super VCD & VCD2.0 discs, the screen will display the Super VCD, VCD2.0 Disc Menu (PBC: [OFF]) (Press the MENU button to display the PBC status.)
- Playback the Super VCD & VCD2.0 discs, the default PBC status is ON.

<2> For DVD discs, use the navigation buttons to select and Play the highlighted contents; For Super VCD & VCD2.0 discs, use the numeric buttons to play your favorite content directly. (Note: PBC should be OFF.)
<3> Press ENTER or PLAY button to start from the highlighted content.
<4> Returns to the Root Menu when playing the disc.

For DVD discs, press MENU to display the Disc Menu.
- For Super VCD & VCD2.0 discs, when PBC is ON, press MENU to display the Disc Menu.

<5> STOP

• Press STOP button once to stop. Press PLAY button to resume from where you stopped.
• Press STOP button Twice to stop. Press PLAY button to start from beginning.

In order to protect the disc, press STOP button then press EJECT button to take the disc out. When the disc is ejected, hold the disc edge slightly and take it from the eject direction to prevent scratches.

When not using the DVD function (in stand-by mode or using others modes for a long time), please take out the disc to protect the DVD loader and the disc.

2. Title Playback (For DVD Disc only)

Press TITLE button, there will have an on screen indication "TITLE".
Press the direction or numeric buttons to select your favorite title.
- Then will play from the first chapter of the selected title.

3. Sequential Playback (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs, Memory Card and USB)

For Super VCD & VCD discs, if PBC is "ON" status, press PLAY button will enter the disc menu. Press MENU button to turn PBC OFF. Press PLAY button to start in sequent.

For others, while it stopped, press PLAY button to start in sequent.

4. Program Playback (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs, Memory Card and USB)

Using Program playback, you can select max. 16 tracks from the disc to playback in programmed order.

OSD for Program playback

If it is in PBC ON status, using program playback will turn to PBC OFF automatically.

According to the highlight area input the title and chapter number by numeric buttons, press PLAY button to start; or move to the by navigation buttons, press ENTER button to start. (Program up to 16 tracks)

While playing the program, you may press PROGRAM button to display the program menu for edit.

To clear the program by moving to and press ENTER button. Or press STOP button to end the program. When press PLAY button again, the disc will play by sequent.

While playing the program, there will have an on screen indication "PRG PLAY" and the current title and chapter number.

2- Functions operating instructions

1. Play (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs, Memory Card and USB)

2. For DVD disc, press PLAY button from root or title menu; while playing the DVD, you may play your favorite title directly with title selection by pressing the TITLE button.

3. For Super VCD & VCD discs, while playing the disc, you may play your favorite tracks by numeric buttons. (Note: When using the Program playback or when it is PCB ON status, you can only use PREV or NEXT buttons to change the track)
4. For CD, CD-G & HD-CD discs, while playing the disc, you may play your favorite tracks by numeric buttons.
5. For MP3 / JPEG disc, you may play your favorite tracks by numeric buttons from the content menu.

Note: From track 1-10, use numeric buttons directly; For tracks over 10, press - / -- button first. (e.g. Track 15, press - / -- then 5)

If input track number is not valid, it will not function.

1. Previous / Next (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs, Memory Card and USB)

While playing the disc;

Press PREVIOUS button to play to the last Title / Chapter / track.
Press NEXT button to play to the next Title / Chapter / track.

For super VCD & VCD discs, in PBC OFF status;

If the current track is the first one, press PREVIOUS button will stop the playback.
- If the current track is the last one, press NEXT button will stop the playback.

For DVD discs, the above functions may vary due to different DVD disc's structure.

1. Forward / Backward (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs, Memory Card and USB)

While playing the disc, you may use forward or backward function.

• There are 4 speeds for forward. Press forward button to toggle between different speeds in sequent. (FORWARDx2 - FORWARDx4 - FORWARDx8 - FORWARDx20 - Play)

While in forward, you may press PLAY to resume normal speed.
For CD, HD-CD, MP3, forward also have audio output.

For DVD discs, if forward to last title / chapter, it will start from the beginning.

For Super VCD & VCD discs, in PBC ON status, if forward to the last track, it will start from the beginning.

• There are 4 speeds for backward. Press backward button to toggle between different speeds in sequent. (BACKWARDx2 - BACKWARDx4 - BACKWARDx8 - BACKWARDx20 - Play)

While in backward, you may press PLAY to resume normal speed.
For CD, HD-CD, MP3, backward also have audio output.

For DVD discs, if backward to first title / chapter, it will start from the beginning.

For Super VCD & VCD discs, in PBC ON status, if backward to the first track, it will start from the beginning.

Note: During Forward or Backward, the sound will be off.

1. Slow motion (For DVD, Super VCD & VCD discs)

While playing the disc, you may use slow motion function.

• There are 6 speeds for slow motion. Press SLOW button to toggle between different speeds in sequent. (SF1/2 - SF1/3 - SF1/4 - SF1/5 - SF1/6 - SF1/7 - Play)
  While in slow motion, you may press PLAY to resume normal speed.

Note: During Slow motion, the sound will be off.

1. Pause (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs, Memory Card and USB)

FOR CD, CD-G, HD-CD & MP3/JPEG discs, press PAUSE button to pause; press PLAY button to resume.

FOR DVD, Super VCD, VCD discs, press PAUSE button to pause; press STEP button to

playback frame by frame; press PLAY button to resume.

1. Repeat (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs, Memory Card and USB)

Press REPEAT button once to display the current repeat mode.

• For Super VCD, VCD, CD, CD-G, HD-CD, discs, while playing in sequent, you may use the repeat playback.

There are 2 repeat modes, press REPEAT to toggle between different modes in sequent. (REPEAT (OFF) - REPEAT (1) - REPEAT (ALL)).

• For DVD discs, you may setup the repeat playback mode.

There are 2 repeat modes, press REPEAT to toggle between different modes in sequent. (REP: (OFF) - REP: (CHAPTER) - REP: (TITLE) - REP: (ALL)).

For MP3 / JPEG discs, while playing the disc, you may use the repeat playback.

There are 3 repeat modes, press REPEAT to toggle between different modes in sequent. (REPEAT (OFF) - REPEAT (1) - REPEAT (DIR) - REPEAT (ALL)).

1. D.DISP (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs, Memory Card and USB)

Press D.DISP button to activate the on screen roll-down menu for the current Title, Chapter, time and other information.

For DVD discs, (2 pages)

Press D.DISP button once to display first page:

Disc type, Title -/-(Current / Full), Chapter-/-(Current/Full), Full disc time.

Press D.DISP button again to display second page:

Audio-/--(Current/Full) or OFF, Language, Audio type, Subtitle-/--(Current/Full) or OFF.

Press D.DISP button again to turn off the on screen display.

For Super VCD discs, (2 pages)

Press D.DISP button once to display first page:

Disc type, Track -/-(Current / Full), Mute status, PBC status, Repeat mode status, Current track time.

Press D.DISP button again to display second page:

Audio-/--(Current/Full) or OFF, Audio type, Language, Subtitle-/--(Current/Full) or OFF.

Press D.DISP button again to turn off the on screen display.

For CD, CD-G, HD-CD, MP3 / JPEG discs

Press D.DISP button once to display first page:

Disc type, Track -/-(Current / Full), Mute status, Repeat mode status, Current track

time.

Press D.DISP button again to turn off the on screen display.

1. Goto (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs, Memory Card and USB)

This function allows you to play your favorite Title / Chapter / track. Press GOTO button to activate the on screen scroll-down menu for edit. According to the highlighted area, input your favorite Title / chapter / Track number by numeric buttons or input the playback time. After editing, press ENTER to start. If the input is invalid, it will not function.

Note: While editing, the GOTO button is not function.

If it is in PBC ON status, this function will switch the it to OFF.

1. Intro (For Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs, Memory Card and USB)

For Super VCD & VCD discs, while the disc had stopped, press INTRO button.

The screen will split to 9 small display to play each track by 3 sec. according to the tracks order.
If it is in PCB ON status, this function will switch it to OFF. (Note: If started the disc menu, preview will not function)
Press PREV/NEXT button to navigate the 9 small screens.
Press PLAY buttons to playback the current selection.
Press 1-9 button to activate corresponding small screen directly.

• For CD, CD-G, DTC-CD, HD-CD discs, while the disc had stopped, press INTRO button. It will start to play each track by 15 sec. according to the tracks order.

Press numeric buttons directly to select the tracks for preview
Press PLAY button to playback the current track
While playing the discs, you may also press INTRO button to activate this function. (Note: if the current track started over 15 sec. this function will start from next track.)

1. Audio (For Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs, Memory Card and USB)

Press AUDIO button once to display current audio mode.
Press again to toggle between different audio modes in sequent.

For Super VCD & VCD discs: (Stereo - L - R - Auto L - Auto R)
For CD, CD-G, HD-CD, MP3 discs: (Stereo-L-R)

Note: Switching to Auto L / R audio channel may be vary due to different discs contents.

Bilingual VCD discs can use AUDIO button to switch between different languages.

1. Language (For DVD, Super VCD discs)

Press AUDIO button once to display current language.
Press again to toggle between different languages mode in sequent.

Note: For Multi-languages DVD & Super VCD discs, press AUDIO button to select your favorite language.

1. Subtitle (For DVD, Super VCD discs)

2. Press SUBTITLE button once to display current sub-title.
   Press again to toggle between different subtitle modes in sequent.

Note: For Multi-languages subtitle DVD & Super VCD discs, press SUBTITLE button to select your favorite subtitle language.

1. Angle (For DVD discs, Memory Card and USB)

2. Press ANGLE button once to display current playback angle.

3. Press again to toggle between different playback angle code in sequent. (e.g. Angle -/-(Current/Full) or OFF)

Note: Only for DVD with multi-angle, press SUBTITLE button to select your favorite playback angle. Selectable playback angle depends on the availability of the DVD contents.

1. Mute (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs, Memory Card and USB)

2. Press MUTE button to mute the audio output. There will have an on screen symbol indicate, "MUTE".

3. Press again to cancel, or Press VOL + / VOL - to cancel and adjust the volume.
   In case there is no audio output, try to press MUTE button to cancel mute.

4. Zoom (For DVD, Super VCD, VCD, MP3/JPEG discs, Memory Card and USB)

Press ZOOM button to zoom in the picture.
- There are 6 zoom modes, press ZOOM button to toggle between different zoom modes in sequent. (Zoom2 - Zoom3 - Zoom4 - Zoom1/2 - Zoom1/3 - Zoom1/4 - Zoom OFF)
- In Zoom2-4, You may use the navigation buttons to pan the picture for your favorite portion.

1. Repeat A - B (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs, Memory Card and USB)

2. In normal Playback, fast forward or fast reverse, press A-B button at where you want to start the repeat portion. There will have an on screen indication "REPEAT A -".

3. In normal Playback, fast forward or fast reverse, press A-B button again at where you want to stop the repeat portion. There will have an on screen indication "REPEAT A-B".

The repeat function started to playback the portion from A to B automatically.

• Press A-B button again to cancel. There will have an on screen indication "A - B CANCEL".

For Super VCD, VCD & CD discs, repeat A-B is only function within the same track. When playing the others, repeat A-B will cancel automatically.
For Super DVD discs, repeat A-B is only function within the same Title /Chapter. When playing the others, repeat A-B will cancel automatically.

1. Volume (For DVD, Super VCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs, Memory Card and USB)

Press VOL - / VOL + buttons to adjust the output volume.

Note: Playback DVD discs in original code, is not adjustable.

3- MP3 / JPEG Playback

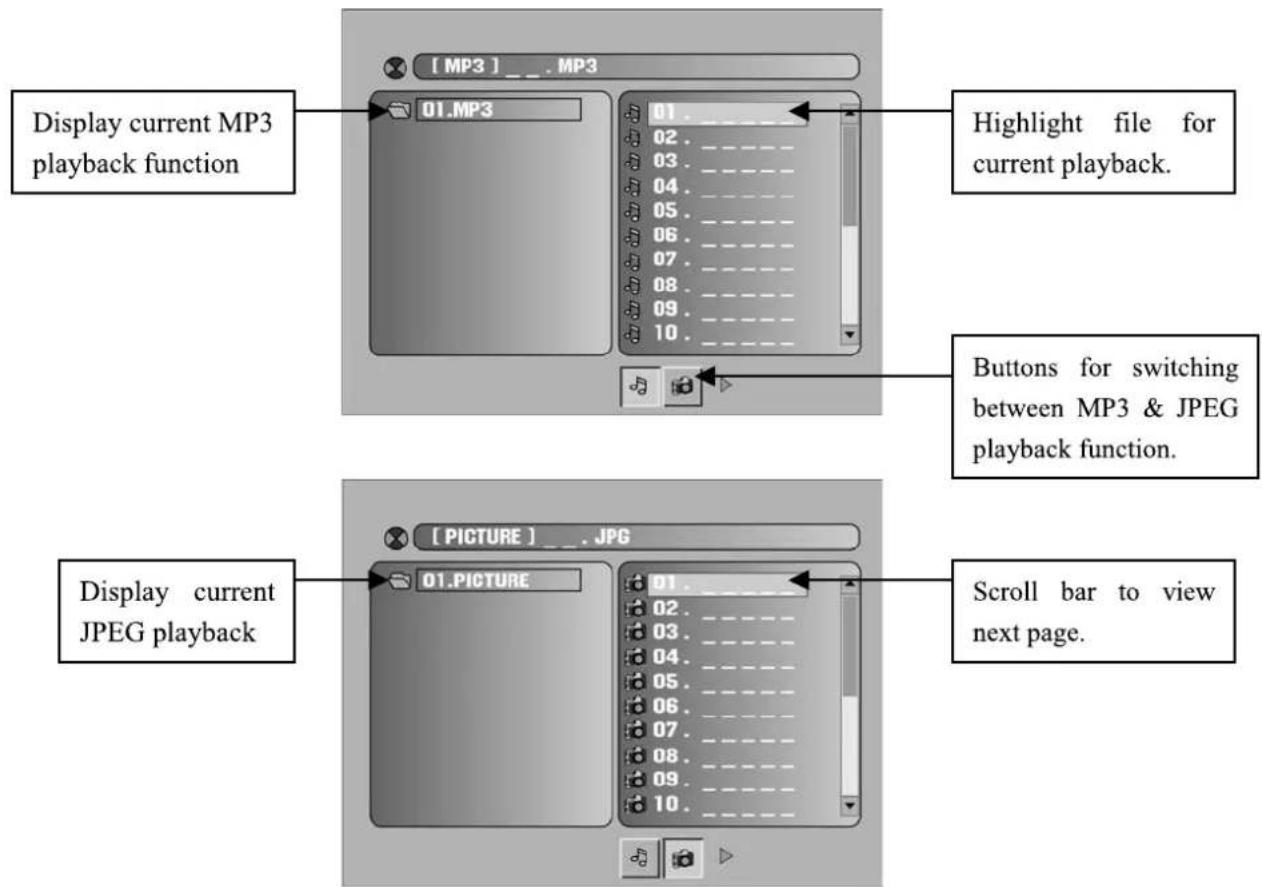

After loading the MP3 / JPEG disc, it will start to scan for the stored MP3 / JPEG folders. Then will firstly display the MP3 contents automatically and start to play the first file (highlighted file). Screen as follow.

Using the navigation buttons to check you favorite folder and playback the first file or move to the your favorite file.

Note:

Press buttons to move the highlight to folders, documents or mode selection.
- Press numeric buttons to select the contents directly. For number over 10, press -- button first. (e.g. File number 15, press -- then 5.)
- When playback MP3 files, there is no picture display, only audio output.
- Playing the JPEG discs, press PROGRAM button to select slide effects. There are

17 slide modes, press PROGRAM button to toggle between different modes in sequent. (Start from top - Start from bottom - Start from left - Start from right - Start from upper left corner - Start from upper right corner - Merge from left / right - Horizontal blades - Vertical blades - Merge form 4 corners - Random Playback - Slide effect OFF)

• When play or pause with picture playback, you may use navigation butoons to flip / rotate the picture.

按钮to flip horizontally
按钮to flip vertically
按钮torotateleft 90^
按钮 to rotate right 90^

• When play or pause with picture playback, you may use MENU button to enter preview mode to display 12 pictures. Press NEXT / PREV button to select next / previous page or press numeric buttons to view the corresponding pictures.

Note 1: The above functions may vary according to DMP & USB contents.

Note 2: The maximum JPEG image size that can be displayed is 1280 × 1024

4- Card Reader and USB Playback

The card reader can read SD / MS / MMC 3 kinds of cards and also USB storage.

Switch the unit in ON position.

Push the INPUT button until the DVD function appears.

Remove the DVD disc when available in the drawer. Plug in the USB player or Memory card.

Plug in the USB player or Memory card.

The unit will now automatically detect the USB player or Memory card.

Playback document formats included:

1. DVD-audio and DVD-video data format : compressed digital audio and compressed digital video.
2. Super VCD data format : MPEG 2 compressed digital audio and compressed digital video, for SVCD and CVD.
3. MPEG 1 data format : MPEG 1 compressed digital audio and compressed digital video, for VCD2.0, VCD1.1, VCD1.0 and DVCD.
4. Audio data format: for CD-DA, HDCD
5. MP3 / JPEG format : MP3 compressed digital audio and JPEG still pictures.

Note: The maximum JPEG image size that can be displayed is 1280 x 1024

Important

The USB port of this product is fully compatible with the USB 1.1 and 2.0. standard. If MP3 players connected to this port are not written in compliance with the official USB 1.1 or 2.0. standard it may occur that those MP3 players do not work on this port.

This is not a defective of this product.

The MP3 player does not comply with the official USB 1.1 or 2.0 standard.

5-Function Settings

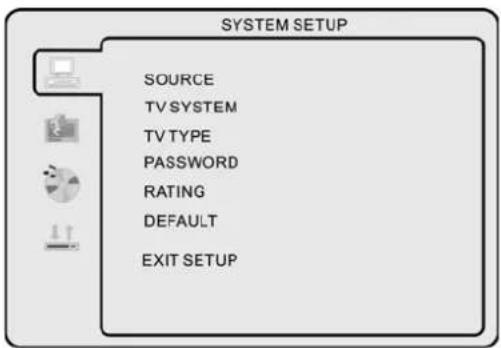

1. DVD Function General Setup

• Press DVD -SETUP button to activate the DVD player OSD menu;

• Press / button to move and highlight between different sub-menu. Press / ENTER button to enter the highlighted sub-menu.
• Press DVD-SETUP button to exit the OSD menu, or move the highlight to EXIT SETUP then press ENTER button to exit.

Note: In Setup mode, the following functions will be cancel or pause :

TITLE, SUB-TITLE, D.DIS P, PLAY, SETUP, STOP, SLOW / STEP, NICAM / AUDIO, FF, FR, PREV, NEXT, GOTO, ZOOM, ANGLE, PROGRAM, PREVIEW, REPEAT, REPEAT A-B.

2. Others Functions Setup

System Setup

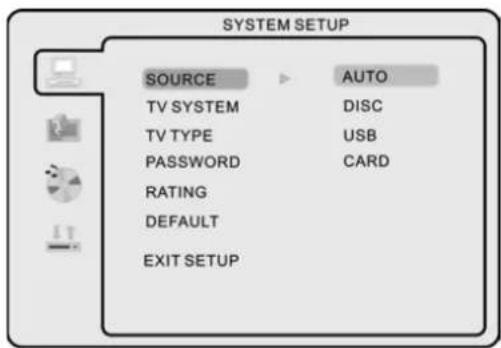

Source

Select according to what type of media you want to playback:

(Disc, USB, MEMORY CARD)

Default setting is DISC.

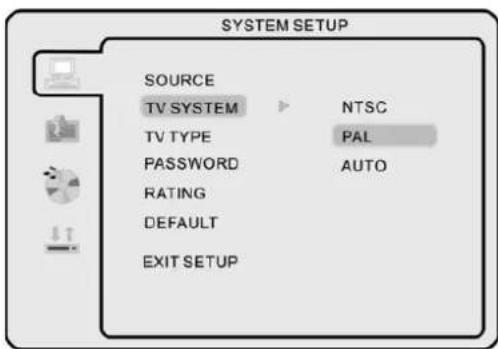

TV color system

Select according to your TV color system:

(NTSC, PAL, Auto for Multi-system)

Default setting is PAL.

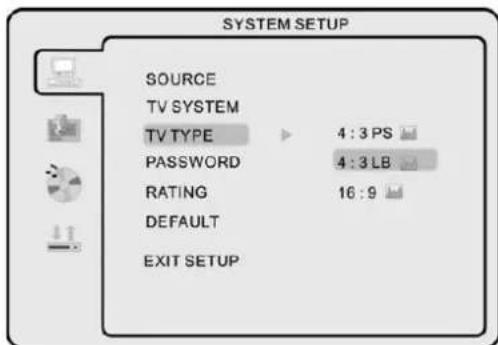

TV Type

4:3PS: suitable for normal TV, when playback wide screen movie, the left and right of the screen will be cropped.
4:3LB: suitable for normal TV, when playback wide screen movie, the top and bottom will have a black border.
16:9 : suitable for connecting a wide screen TV / Display.

Note:

oPlayback screen size may vary according to the discs contents.
For discs with 4:3 contents, using any mode would only display a 4:3 screen.
Screen ratio selection should be according to the connected TV / Display aspect ratio.

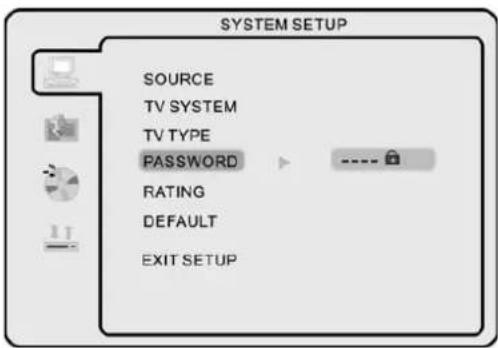

- Password

The default setting is locked. No Rating selection or change password could be done. To edit the Rating setting, please enter default password "0000" by numeric buttons, then press ENTER button to confirm.
To change password, input any 4-digit number when the lock is unlocked. Once the 4-digit number in entered, that will be your new password.

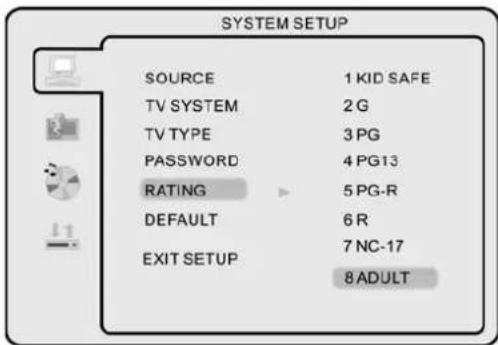

Rating

Playback for some discs with rating, you can select the rating setting according to your preference.

Rating restriction divided in eight different categories from KID SAFE to ADULT.

Note: Only editable when password is unlocked. And only can function when password is locked.

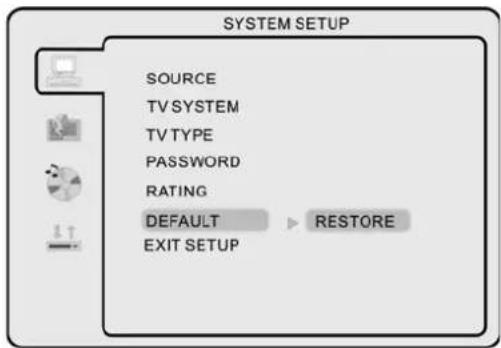

• Default Setting

Press ENTER button to restore factory default.

7. Language Setup

Press DVD-setup button to enter the DVD OSD menu.

• OSD Language

Use navigation buttons to select the OSD LANGUAGE setup icon, press ENTER button to confirm. There are 6 languages for your selection, press & buttons to toggle between different languages. (ENGLISH - GERMAN - SPANISH - FRENCH - ITALIAN - DUTCH) Press ENTER button to confirm.

Note: If the selected language is not included in you DVD disc content, it will select the default language of the disc automatically.

The default language setting is ENGLISH.

Audio Language

Use navigation buttons to select the AUDIO LANG setup icon, press ENTER button to confirm. There are 6 languages for you selection, press & buttons to toggle between different languages. (ENGLISH - GERMAN - SPANISH - FRENCH - ITALIAN - DUTCH) Press ENTER button to confirm.

Note: If the selected language is not included in you DVD disc content, it will select the default language of the disc automatically.

The default language setting is ENGLISH.

- Subtitle Language

Use navigation buttons to select the SUBTITLE LANG setup icon, press ENTER button to confirm. There are 6 languages for you selection, press & buttons to toggle between different languages. (ENGLISH - GERMAN - SPANISH - FRENCH - ITALIAN - DUTCH - OFF) Press ENTER button to confirm.

Note: If the selected language is not included in you DVD disc content, it will select the default language of the disc automatically.

The default language setting is ENGLISH.

• Menu Language

Use navigation buttons to select the MENU LANG setup icon, press ENTER button to confirm. There are 6 languages for you selection, press & buttons to toggle between different languages. (ENGLISH - GERMAN - SPANISH - FRENCH - ITALIAN - DUTCH) Press ENTER button to confirm.

Note: If the selected language is not included in you DVD disc content, it will select the default language of the disc automatically.

The default language setting is ENGLISH.

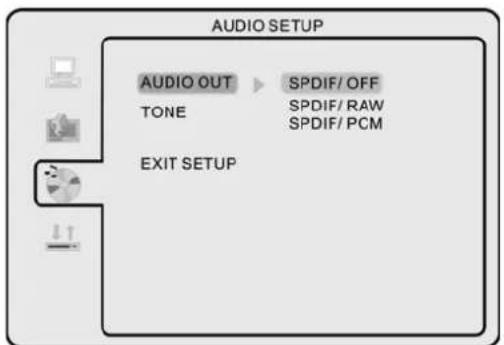

8. Audio Setup

Audio Output, Use navigation buttons to select the AUDIO OUT setup icon, press ENTER button to confirm.

There are 3 modes for your selection; use navigation buttons to select different modes, press ENTER button to confirm. (SPDIF / OFF - SPDIF / original code - SPDIF / PCM) SPDIF / OFF: Coaxial output off.

SPDIF / Original code: When connected the coaxial output to your audio amplifier, playing back the discs with Dolby, MPEG contents, the coaxial output the original signal to your amplifier. Your Amplifier must have the corresponding decoding function.

SPDIF / PCM: When connected with 2 channels digital stereo amplifier, playing back the discs with Dolby, MPEG contents, the coaxial output with 2 channel to your amplifier.

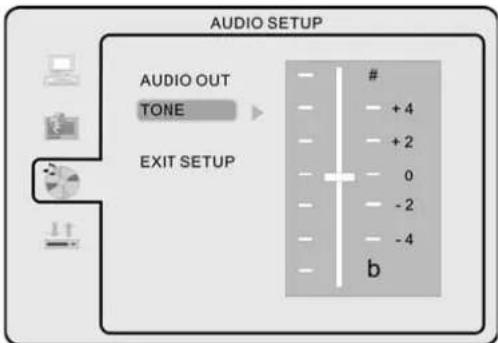

Tone

Use & buttons to adjust the Tone setting.

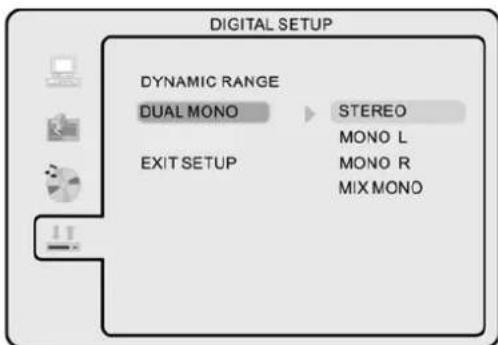

9. Dolby Digital Setup

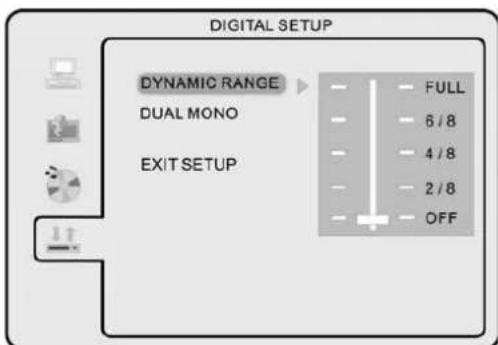

Dynamic Range

When switch the compress mode to "Audio output", adjust the compress ratio for different effect. When selected FULL, the peak signal value is smallest. When selected OFF, the peak signal value is biggest.

You can select four different audio output, STEREO, MONO L, MONO R, MIX MONO.

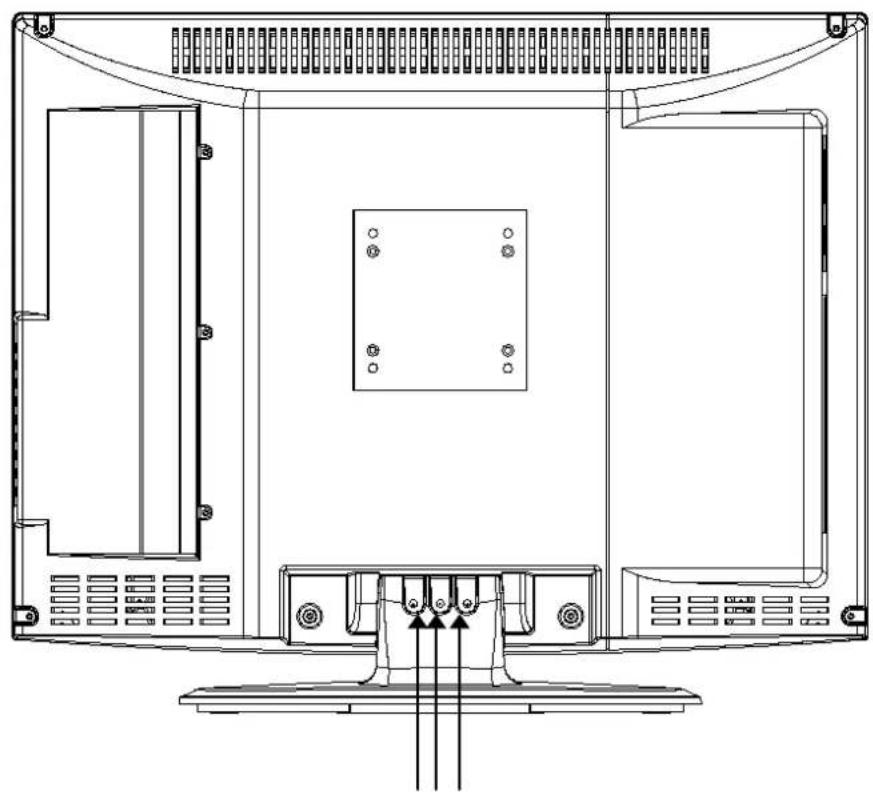

Wall Mount

Screw taps x 4 for wall mounting

Remove the stand by taking out the 3 screws

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its life cycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about methods for disposal.

The materials are recyclable as mentioned in its marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment.

Please inquire at the community administration for the authorized disposal location.

First Time Installation

Country

Language

Delete Analog Program

Analog Program Search

Netherlands

OK

Cancel

8 - Instructions commands standards

Enclenchez la TVLCD.

4-Lecture Card Reader
