USER MANUAL EVAP2 Vornado

READ AND SAVE THESE IMPORTANT INSTRUCTIONS

Evaporative Vortex Humidifier Owner's Guide

LIRE ET CONSERVER CES INSTRUCTIONS IMPORTANTES

Designed, engineered and supported in Andover, Kansas.

Questions or comments?

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following:

DO read all instructions before using this Humidifier.
DO turn the Humidifier off if the relative humidity exceeds 60% . Humidity levels above 60% may allow moisture to build up indoors and condense on surfaces, where microorganisms can settle and grow. For accurate humidity readings, use a hygrometer which is available at most hardware stores and home centers.
DO unplug the Humidifier prior to moving, cleaning or refilling.
DO unplug and empty this Humidifier when not in operation.
DO empty water from the unit if the Humidifier is to be turned off and left for more than 12 hours, as leaving the water will encourage the growth of microorganisms. If this happens, thoroughly clean and disinfect the unit. (Refer to the WEEKLY MAINTENANCE.)
DO remove the Water Reservoir first if you need to move the Humidifier to another location.
This Humidifier requires periodic cleaning. Refer to the WEEKLY MAINTENANCE instructions provided. DO NOT clean the Humidifier in any manner other than as instructed in this manual.
DO NOT use this Humidifier on an uneven surface. Always place this Humidifier on a firm, flat surface.

DO NOT defeat the safety purpose of the polarized plug. This product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a SAFETY FEATURE. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact an electrician to replace the obsolete outlet.
DO NOT operate the Humidifier with a damaged cord or plug, after the Humidifier malfunctions, or has been dropped or damaged in any manner. Return to Vornado for examination, electrical or mechanical adjustment or repair.

DO NOT run power cord under carpeting.
DO NOT cover cord with throw rugs, runners or similar objects. Arrange the power cord away from traffic areas, so it will not become a tripping hazard.
DO NOT place the Humidifier near heat sources such as stoves, radiators or heaters.
DO NOT pour water through the top Outlet Air Grill on the Power Head.
DO NOT use undiluted bleach or ammonia, strong detergents, abrasive cleansers, gasoline, paint thinner or other solvents to clean this Humidifier. Use only water and mild detergents to perform daily maintenance on your Humidifier.

important inStRuctionS

DO NOT ATTEMPT TO DISASSEMBLE THE POWER HEAD. DOING SO WILL VOID YOUR WARRANTY AND COULD CAUSE DAMAGE AND/ OR PERSONAL INJURY. The Power Head contains no user serviceable parts. If you experience a problem, please see the limited warranty for information.
DO NOT repeatedly remove and replace the Water Reservoir. This will overfill the Base and water will spill out.

Humidifiers should be kept away from children and not be placed in a child's room without supervision.

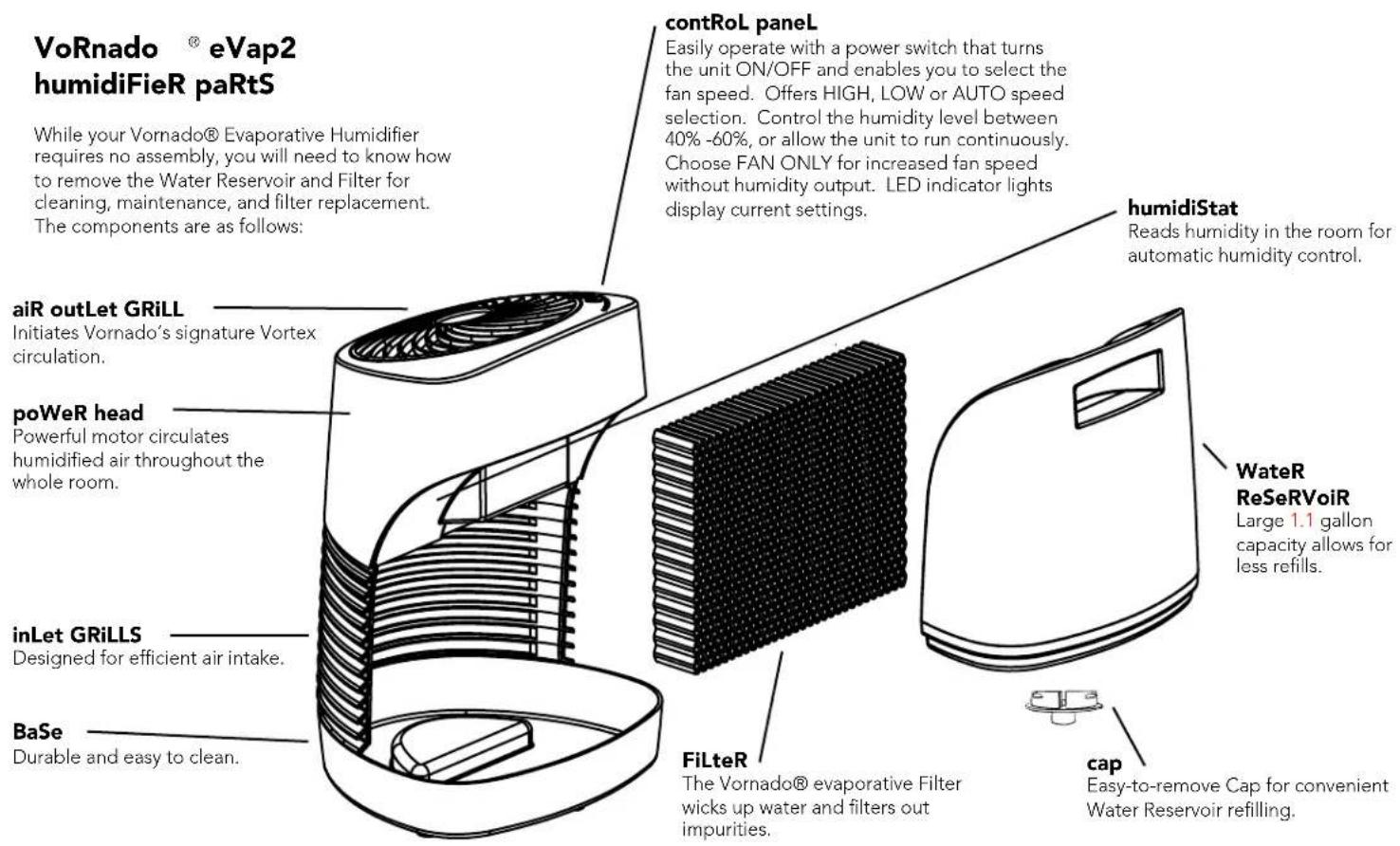

See page 5 for parts listing and identification.
If you have any questions regarding this product, please call Vornado Consumer Service, toll-free at 1-800-234-0604, or [e-mail].

SaVe theSe inStRuctionS

BeFoRe opeRatinG

DO NOT lift the Humidifier out of the carton by the recessed handle on the Water Reservoir. This will cause the Reservoir to detach from the unit and might cause the Humidifier to drop and become damaged. Reach under the Humidifier in the carton, grasp and lift from the bottom.

Your new Humidifier uses a sizable volume of water, so we recommend checking the Base and Water Reservoir for leaks that may have occurred due to damage caused in shipping.

Please note a visual inspection may not reveal hairline fractures.

to check FoR LeaKS:

Place Humidifier on a water-resistant surface.

Remove the Water Reservoir and fill with water to inspect for leaks (For instructions see FILLING AND INSTALLING THE WATER RESERVOIR.)
Next, pour several cups of water into the Base to inspect for leaks.

not LeaKinG?

Empty water from Base and install the full Water Reservoir (See FILLING AND INSTALLING THE WATER RESERVOIR for complete instructions).

LeaKinG?

In the slight chance your Humidifier has leaks, contact Vornado Consumer Service and we will immediately replace these parts. 1-800-234-0604 or [e-mail]

GettingStaRted

The following pages will provide instruction on:

Filling & Installing the Water Reservoir

How to Use

Operating Guidelines

Operating Notes and Suggestions

Cleaning

End of Season Maintenance

Filter Replacement

FiLLinG & inStaLLinG the WaterReSeRVoiR

This Humidifier has a 1.1 gallon capacity and 2 gallon output in 24 hours. When it needs refilling, follow these simple instructions: Unplug the Humidifier. Be sure the Humidifier is placed on a firm, flat and level surface (we recommend the floor). As with any water filled appliance, spills can occur, so be careful when filling and installing the Water Reservoir, and cleaning or moving the Humidifier.

addingG Water

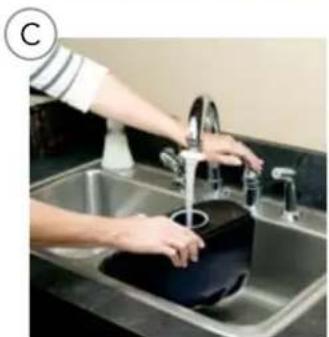

Remove the Water Reservoir by grasping the recessed handle and pulling towards you. (A). Turn the Reservoir upside down. Remove the Cap (B). If refilling the Reservoir, empty any water left inside the Reservoir prior to refilling. Place the Reservoir in the sink upside down. Fill the Reservoir with cool tap water (C). Once filled, insure the Gasket, the rubber ring around the Cap, is in position and replace and fasten the Cap. Some downward pressure may be needed to compress the Gasket prior to rotating the Cap 1/4 turn clockwise to the fully installed position.

inStaLLinG the WaterReSeRVoIR

Lower the Reservoir into the Base, positioning the fill port over the raised bump. The bump will activate the water outlet valve inside the Cap once in a nested position. Insure the Reservoir is setting firmly in the Base.

QuicK daily maintenance

1. Empty Reservoir before refilling with clean water. Rinse, wipe clean and dry with clean cloth or paper towel.
2. Refill Reservoir with cool, clean tap water. Do not overfill.
3. Lower humidity control settings or turn off Humidifier if moisture forms on walls or windows.

HOW TO USE

STEP1

Position the unit to not blow directly on objects or plants. Plug the unit into a 110-120 volt AC outlet.

STEP2

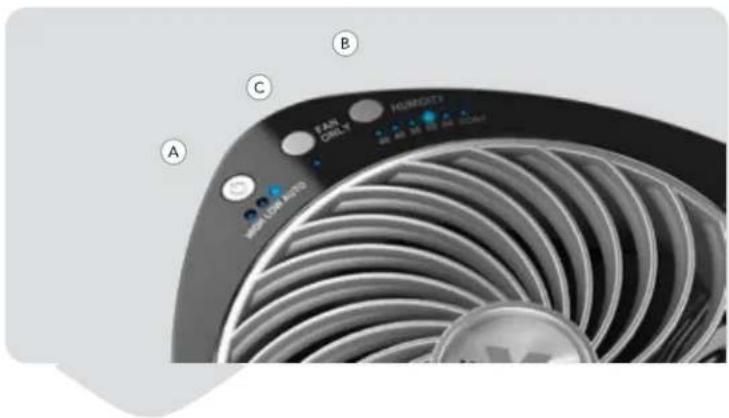

To turn unit on, press the Power button (A). The indicator lights for Fan Speed (A) and Humidity level (C) will turn on in the default setting - HIGH fan speed, Continuous humidity.

STEP3

Adjust settings for desired operation.

Power Button, Fan Speed - HIGH, LOW and AUTO

Select the fan speed by pressing the power button until the desired setting is illuminated.

HIGH - operation for fast humidification for larger rooms. High speed operation will evaporate 2 gallons of water (+/- 10%) in 24 hours of continuous operation. (This assumes room conditions of 70^ F and 30% relative humidity.)

LOW - operation for quiet, nighttime use or smaller rooms. On LOW operation, your Humidifier may run without refilling for extended periods.

AUTO - operation for more precise humidity control. Fan speed will fluctuate between high, low and off to better maintain set humidity level with the minimal amount of fan noise.

HUMIDITY Level Control - 40% - 60%, or Continuous

Set the humidity level by pressing the HUMIDITY button until the desired humidification level is illuminated. The Humidifier will operate until the desired humidity level is reached. At this point, the fan will turn off, or to low speed if the fan is set to AUTO mode. The humidity level indicator light will remain on. If the fan does not turn on, the humidity setting may be lower than the room humidity level. Increase the humidity set point until the fan turns on. This is an indication of the level of humidity already in the room.

FAN ONLY

Select for Vornado's signature vortex circulation without humidity output. In FAN ONLY mode - Fan Speed (A) and Humidity (B) operation will not be available. The fan speed will run at a higher setting and there will be no humidity output. To ensure no humidity output, remove the filter and thoroughly dry the inside of the Base. (For instructions on how to remove the filter, see FILTER REPLACEMENT on page 11.)

opeRatinG GuideLineS

READ BEFORE USING

A Humidifier is quite useful in supplying necessary moisture to dry air. It should be used with proper care to prevent over-humidification. A good rule of thumb would be to gauge the condensation or frost on windows. Adjust your Humidifier to a point where this condition is at a minimum. These adjustments should be made when major changes in outdoor temperatures occur. Humidifiers can be placed in any living area that has a location that is convenient and provides distribution of the moist air to the living area.

The measured output of a Humidifier is based upon continuous operation at standard rating conditions. With normal variations of indoor and outdoor conditions, the Humidistat controlled Humidifier will not run continuously, at maximum output, unless the controls are set to do so.

Initial Humidity requirements: When initially installed or when placed in operation at the beginning of each season, the Humidifier equipped with a Humidistat may run constantly for a day or so and thus evaporate large quantities of moisture. When the home and its furnishings have absorbed moisture and become stabilized at the desired humidity level, the amount of water used will diminish and the Humidifier operation will maintain the desired humidity level.

If you do not follow the recommended care and maintenance guidelines, microorganisms may be able to grow in the water within the Humidifier's Reservoir and Base. (See CLEANING for care instructions.)

opeRatinG noteS and SuGGeStionS

There are several things to be aware of as your Vornado® Evaporative Humidifier is operating.

It is normal to hear a bubbling or gurgling sound as water is dispensed into the Base.

If you operate your Humidifier continuously, it may need to be refilled with water every day. Simply look through the Reservoir to be certain that there is an adequate water supply for operation.

Protect the Water Reservoir from damage. Any holes or other damage to the Reservoir may cause it to dispense water onto the floor or other surfaces.

When installing the Filter, make certain it is in the proper position, flush along the open Inlet Grill and resting flat on the Base.

On first use, the Filters may give off a mild odor. The odor is not harmful and will go away after the first few hours of operation. If the odor is exceptionally strong, you can help eliminate most or all of it by soaking the Filters for 20 to 30 minutes in a solution of 1 gallon water to 2 teaspoons white vinegar. Rinse thoroughly.

If you shut your Humidifier off with water in the unit and do not turn it back on for 12 hours or longer, you may experience some growth of algae or bacteria. If this happens, we recommend a thorough cleaning of the unit. (See CLEANING instructions.)

We recommend you operate your Humidifier continuously. This helps maintain humidity all day long, costs only pennies a day, and will not harm the unit.

cLeaningG

Cleaning is recommended for proper operation of your Vornado® Humidifier. We suggest following the AHAM (Association of Home Appliance Manufacturers) cleaning regiment several times during the season.

STeP 1 - Turn the Humidifier OFF and unplug the unit.

STeP 2 - Remove the Water Reservoir and Filter. (See page 11 for instructions).

STeP 3 - Empty the Base and Water Reservoir and rinse with clean tap water.

As noted, depending on the quality of water in your home, impurities can build up quickly or may take some time. It is possible that some scale may form on the inside of the Base.

TO CLEAN BASE

1. Mix a solution of one (1) 8 oz. cup of undiluted white vinegar and 1 gallon of water. Fill the Base with the solution; discard any remaining solution. Let solution stay for 20 minutes.
2. Empty after 20 minutes and clean all interior surfaces with soft brush. Dampen soft cloth with undiluted white vinegar and wipe out Base to remove scale.
3. Rinse thoroughly with clean warm water to remove scale and cleaning solution before disinfecting the Base.

DISINFECTING THE BASE

1. Mix a solution of 1 teaspoon chlorine bleach and 1 gallon of water. Fill the Base with the solution, discard any remaining solution. Let solution stay 20 minutes. Wet all surfaces.
2. Empty Base after 20 minutes. Rinse with water until bleach smell is gone. Dry with clean cloth or paper towel.
3. We recommend replacing the Filter after use, but to prolong the life of the Filter, disinfect by washing it in a solution of one teaspoon of chlorine bleach in one gallon of water. Rinse thoroughly to get rid of the bleach odor.
4. Install the Filter and Water Reservoir. For proper operation, all components must be properly installed.

end of SeaSon maintenance

1. Follow weekly maintenance instructions at end of humidification season or when Humidifier will not be used for at least one week or more.
2. Let Humidifier dry completely before storing. Do not store with water inside Reservoir or Base.
3. Store in cool, dry location.
4. Remove and discard the Filter if it is not suitable for reuse. Do not store the Humidifier with a wet Filter. If the Filter is suitable for future use, remove and empty water from the Base and Water Reservoir, replace the Water Reservoir, turn the Power knob to the high fan speed and allow the unit to run until the Filter is completely dry. Don't forget to purchase new Vornado Filters now so your Humidifier will be ready for the next season. Visit vornado.com to purchase new filters or sign up for the Automatic Filter Replacement Program.
5. Clean Humidifier before next season begins.

FiLteR RepLacement

The Filter may accumulate minerals and other impurities that occur naturally in any water supply. While your Humidifier came equipped with a Filter, you will eventually have to replace it, as they last approximately 4-8 weeks, depending on use. You will know the Filter needs to be replaced when it becomes hard and is no longer absorbing the water effectively. Replace the Filter with only a genuine Vornado® brand Filter. While other brands may fit our units, these filters do not carry the same quality and life as our own and can diminish the Humidifier's performance.

TO REPLACE THE FILTER

STEP1-Unplug the unit.

STEP 2 - Remove Water Reservoir (A).

STEP 3 - Remove and discard used Filter.

STEP 4 - Install a new genuine Vornado Filter by slightly bending the Filter to match the curve of the unit. Make sure the Filter fits flush against the bottom of the unit and snug against the Inlet Grill.

STEP 5 - Replace the Water Reservoir.

TO EXTEND FILTER LIFE

Problem: The additional sodium in chemically softened water may cause Filters to harden or become mushy.

Solution: Try using untreated or tap water.

Problem: Hard water or water with excessive minerals such as lime or iron may shorten Filter life.

Solution: Try Bacteriostat or Water Treatment found at most hardware or home specialty stores. Or periodically remove the Filters and clean, by soaking them in cool tap water (enough to cover the Filters) and two teaspoons of white vinegar. Let stand 20 minutes, then rinse in cool water. Allow excess water to run off and dry before replacing them in the Base. DO NOT wring.

Problem: Leaving the Filters too long in a filled Humidifier without the fan running may cause mold, mildew, and deterioration.

Solution: If Humidifier is filled, do not leave it off for more than eight hours.

TO FIND REPLACEMENT FILTERS

Check your local retailer for Vornado Filters or order by contacting Vornado Consumer Service at: www.vornado.com, [e-mail] or by calling 1.800.234.0604.

VORNADO'S AUTOMATIC FILTER REFILL PLAN

This Program offers a convenient and hassle-free way to receive regular shipments of genuine Vornado Humidifier Filters, direct to your door! Eliminate the hassle of remembering to reorder. Maintain the high efficiency of your Vornado Humidifier by regularly replacing used Filters with fresh new ones.

HOW IT WORKS

You select a plan and Vornado will send replacement Filters at the recommended maintenance interval. To sign up or for more information visit www.vornado.com or call 1-800-234-0604. Cancel anytime.

VoRnado aiR LLC 5-YeaR Limited WaRRantY

Vornado Air LLC ("Vornado") warrants to the original consumer or purchaser this Vornado Evaporative Vortex Humidifier Evap 2 ("Product") is free from defects in material or workmanship for a period of five (5) years. If any such defect is discovered within the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost. Repairs not covered by the warranty or outside the warranty period will require a fee to cover the cost of materials, labor, handling and shipping.

This warranty does not apply to defects resulting from abuse of the Product, modification, alteration, repair or service of the Product by anyone other than Vornado, mishandling, improper maintenance, commercial use of the Product, damages which occur in shipment or are attributed to acts of God.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VORNADO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some states do not allow the exclusion or limitation of incidental or
consequential damages, or allow limitations on how long an implied warranty
lasts, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights, and you may have other rights that vary from state
to state.
For warranty or repair service, call 1-800-234-0604 or email consumerservice@
vornado.com to obtain a Return Authorization ("RA") form. Please have or include your Product's model number and serial number, as well as your name,
address, city, state, zip code and phone number when contacting Vornado for
warranty service. After receiving the RA form, ship your Product to:
Vornado Air LLC
Attn: Warranty & Repair
415 East 13th Street
Andover, KS 67002

For your convenience, please have your model number and serial number when contacting Vornado with service inquiries. To assure proper handling, packages must be clearly marked with the RA number. Packages not clearly marked with 12 I English

the RA number may be refused at the receiving dock. Please allow 1-2 weeks for repair and return of your Product after the Product is received. For your records: Staple or attach your original sales receipt to this Owner's Guide. Please also write your products's serial number below (located on product specs decal).

Serial No.

Product registration available online at www.vornado.com
© 2009 Vornado Air LLC Andover, KS 67002
Patent Pending. Specifications subject to change without notice.
Designed, engineered and supported in the U.S.A. Manufactured in China.
Vornado® is a trademark owned by Vornado Air LLC.
