USER MANUAL HB15 HARPER

In order to let the product better working for you, please read the instruction before using it. Please put away well the instruction after reading for consulting in later days.

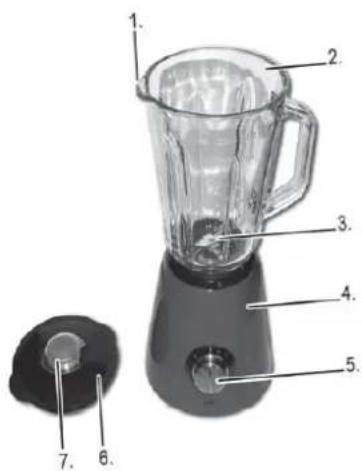

PART ITEMS

1	Spout
2	Jar
3	Blade
4	Motor base
5	Speed knob
6	Jar cover
7	Measuring cup

ATTENTION

• Wrong operation and improper handling can cause problems with the appliance and injury to the user.
• The unit may be used only for the intended purposes. No liability is accepted for

damages arising from improper use or faulty handling.

• Before connecting to the mains, please check whether the type of supply and the mains voltage match with the details given on the nameplate on the appliance.

• Do not immerse the appliance and mains plug in water or other fluids. Should the appliance still fall in water some time, pull out the power plug immediately and have the appliance checked by an expert before using it again. There is danger to life from electrical shock!

• Do not try to open the housing yourself! Do not introduce any kind of objects into the housing.

• Do not use the appliance with wet hands, on moist floor or when the ambience is humid.

• Do not hold the mains plug with wet or moist hands.

• Check the mains plug and mains adapter regularly for damages. If the supply cord or plug is damaged, it must be replaced by manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not operate the appliance, if power cable or the mains plug shows damage or the unit falls to the floor or has been damaged otherwise. In such cases, bring the unit to the workshop for checking and repairs, if necessary.

• Do not ever try to repair the unit yourselves. There is danger from electrical shock!

• Do not let the power cord hang over sharp edges and keep it away from hot objects and open flames. Pull the plug itself to remove it from the plug socket.

• Installation of a spike protector will offer additional protection with a nominal trigger current of not more than 30Ma in the house installation. Please consult your installing electrician.

• The cable as well any extension cable required should be laid such that there will not be any risk of anyone pulling it inadvertently or tripping over it.

• If a long extension cable is used, it must be suitable for the power supply in question. Otherwise it causes overheating of the cable and/or plug.

• Set the unit on a rigid, flat and heat-proof surface, not near open flames(such as gas oven) and operate it out of reach of children.

• This appliance is suitable neither for commercial use nor for use outdoors.

• Children cannot sense the dangers caused by improper handling of electrical devices.

Children should be supervised to ensure that they do not play with the appliance.

• This appliance is not intended for use by persons (including children) with reduce physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Pull out the plug out of the socket, when the appliance is not in use and also before cleaning.

• Caution! The appliance is on power so long as it is connected to the power circuit.

• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

• Avoid to potential injury from misuse.

• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

• Switch off the unit before pulling out the mains plug.

• Use only spare parts from the manufacturer or his local dealer.

• Never carry the unit by its power cord.

• Do not remove individual housing components.

Caution:

Switch off the unit before clean it to avoid dangers. When the plug or power cord have damage, do not use the unit, even not to disassembly by yourself, must be inform the after- service center to handle.

SPECIAL SECURITY PRECAUTIONS

Caution: The blades of the jug are very sharp. There is a danger of injury! While the blades are turning, never touch the jug from the inside and never put any objects inside.

Only use equipment endorsed by the manufacturer.

Only use the unit with tightly closed lid and inserted closure.

The unit is equipped with a security function. The unit can only be switched on if the jug is put on the engine base properly. If the unit cannot be switched on, pull the power cable and check the connection between jug and engine base.

INSTALLATION

1. Clean the Measuring cup, Lid and Blending glass cup(except main body)and so on before first using.
2. To make sure the unit is turned off and not to connect before installation.
3. First ring the Glass cup sealed ring into blade base, then enclose the blade base into Blending glass cup, last rock the Blending glass cup slightly causing it to lock into place.

4. Put the Blending glass cup base on the top of motor mainbody; please pay attention to match the position of blending glass cup and the bulge of the motor mainbody. Fill the jug with the desired foods. Please ensure the water not spill over from cup. (Maximal water capacity can not exceed 1500 ml) DO NOT USE THE UNIT WITHOUT ANY MATERIAL INSIDE.

5. Put the lid on top of the blending glass cup and push it down. Insert the closure into the lid and turn till it locks into place.

6. Place the measuring cup on the center of lid, anticlockwise rock the measuring cup slightly.

OPERATION

1. Connect the power.
2. This unit have safety design, it do not working if the blending glass cup is not install on motor main body properly.
3. turn the turning knob */0/1/2 to position 0 in order to make sure the unit is turned off.
4. Fill the jug with the desired foods.
5. Put the lid on top of the blending glass cup and fix it. Place the measuring cup on the center of lid, anticlockwise rock the measuring cup slightly.
6. Turning the knob to required speed(P—pluse,1—low speed,2—high speed)

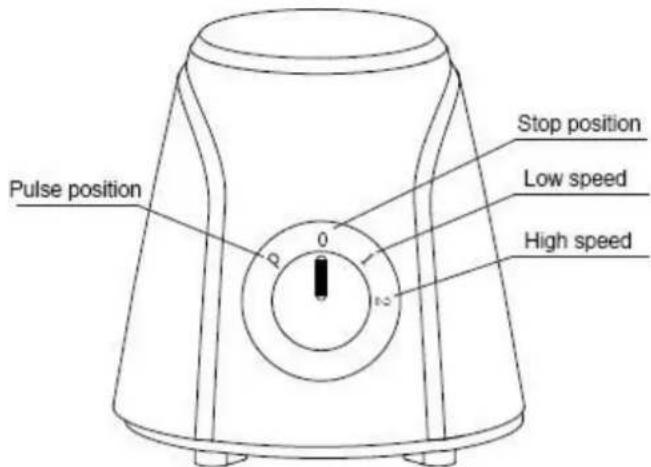

Speed adjust:

P—pulse -Stainless steel blade operate with transitorily highest speed, suitable for ice.

1—low speed - Stainless steel blade operate with low speed, suitable for elementary blending.

2—high speed - Stainless steel blade operate with high speed, suitable for symmetrical blending.

0—turn off the unit.

CAUTION :

1. Over-filled can block the operation, please turn off the unit and do not connect the plug, take out some of material, then operating.
2. Do not use unit continuous more than 1 minute

CLEANING AND STORAGE

• In addition to this, you must refer to the security precautions.
• Do not clean Motor main body, power cord and plug with water.
• Clean the engine base with a soft, wet piece of cloth and some mild cleaning agent.
• Fill the jug half-full with hot water and a little cleaning agent. Let the unit run on speed 2 until the jug is clean.
• The base with the blades can be taken apart. Screw of the base counter-clockwise. Take out the blades together with sealing ring facing upwards.
• Now clean jug, lid, closure, base and blades with sealing ring with hot water and

some cleaning agent. Dry well before re-using. Caution! The blades inside of the jug are very sharp.

• Never use aggressive cleaning agents.

WARNING

• Do not to touch the sharp blade. When clean, please wipe by dishcloth, to avoid accidentally injure.

SPECIFICATIONS

Rated voltage: 220-240V~50Hz
Power 450W max
Capacity : 1.5L
- Operating time : 1 minute
Class protection II:
