SK7321 - Kettle SINBO - Free user manual and instructions

Brand	Sinbo
Model	SK7321
Product type	Electric kettle
Capacity	1.7 liters
Power	2000 W
Voltage	AC 230 V, 50 Hz
Automatic shut-off	Yes
Power indicator light	Yes
Cordless base	Yes
Cord storage	Yes
Water level indicator	Yes
Anti-scale filter	Yes, removable
Lid	Push-button
Spout	Yes
Dry boil protection	Yes
Body material	Plastic
Cleaning	Damp cloth, regular descaling
Warranty	2 years

Frequently Asked Questions - SK7321 SINBO

How to descale my Sinbo SK7321 kettle?

Use a descaler suitable for plastic kettles. Follow the instructions on the packaging. After descaling, empty the kettle, rinse it several times with clean water, then boil clean water and empty it to remove any chemical residue.

Why won't my kettle turn on?

Check that the lid is properly closed, the kettle is correctly placed on its base, the cord is plugged in, and the on/off button is pressed. If the problem persists, contact customer service.

Can I open the lid during boiling?

No, never open the lid when the water is boiling to avoid steam burns. Wait for automatic shut-off or turn off the kettle and let it cool before opening.

What is the maximum water capacity?

The maximum capacity is 1.7 liters, indicated on the water level indicator. Do not exceed this limit to avoid overflow.

How to clean the outside of the kettle?

Clean the outside with a damp cloth and a little mild detergent if necessary. Dry thoroughly. Never immerse the kettle or base in water.

What to do if the power cord is damaged?

Do not use the appliance. Have the cord replaced by your retailer, after-sales service, or a qualified electrician to avoid any danger.

The kettle turns off before the water boils, why?

This is often due to limescale buildup. Descale the kettle and clean the bottom. If the problem persists, contact customer service.

Can I pour water through the spout?

Yes, you can fill the kettle through the spout, but open the lid for easier filling. Be careful not to exceed the maximum level.

Is the anti-scale filter removable?

Yes, the filter is removable. Remove it regularly to clean under running water or with a soft brush, to maintain kettle performance.

How to manually turn off the kettle?

Lift the kettle from its base, the button automatically returns to the off position. You can also press the on/off button if you can reach it, but it is better to lift the kettle.

USER MANUAL SK7321 SINBO

Black-and-white portrait of a smiling woman holding a cup of tea (no text or symbols visible)

for Turkey

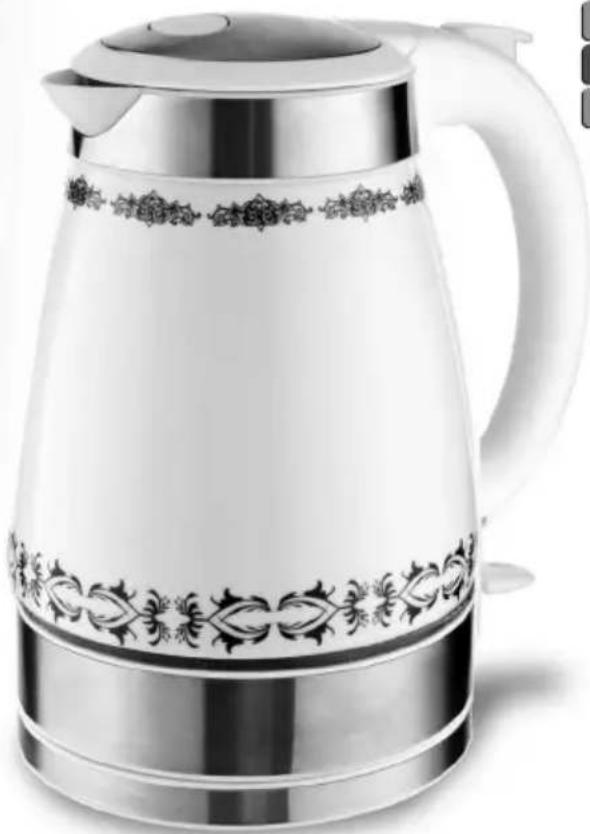

Decorative silver kettle with floral pattern and handle, no visible text or symbols

TR

EN

FR

NL

DE

ES

RU

UA

AR

HR

Değerli Müsterimiz,

Children being supervised not to play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

This appliance is intended to be used in household and similar applications such as: (IEC 60335-2-15/A2)

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

CİHAZIN ÖZELLİKLERİ

Nominal voltaj : AC230V, 50Hz

Güç : 2000W

Kapasite : 1.7L

When using electrical appliance, basic safety precautions should always be followed, including the following:

1. To protect against electrical hazards do not immerse the mains plug, power base, or kettle in water or any other liquid. Do not use in the bathroom or near any source of water. Do not use outdoors.
2. Do not touch hot surfaces. Use handles or knobs.
3. Do not open the lid while the water is boiling.
4. Take care when pouring pour slowly, and do not overfill the kettle.
5. Water can remain hot for a considerable time after boiling and can present a scald hazard. Keep the kettle, the power base, and the mains lead away from the edge of worktops and out of the reach of children.
6. Do not allow the mains lead to hang over the edge of the table or worktop, or any where it may be accidentally caught or tripped over.
7. Close supervision is necessary when any appliance is used near children.
8. Unplug the power base from the wall socket when not in use, before repositioning and before cleaning. Allow the kettle to cool down fully before cleaning and before storing away.
9. Ensure that the lid is closed before switching the kettle on, otherwise it may not switch off.
10. Check that the kettle is properly located on the power base before switching it on.
11. Do not switch on unless the kettle contains at least 1 cupful of water, otherwise you may damage it.
12. Do not fill above the bottom of the max mark on the water level indicator (1.7 Liter)
13. Remove the kettle from its power base before filling or pouring.
14. Do not place the kettle, power base or mains lead on or near any hot surface, hotplate, hot hob or burner.
15. Do not use the kettle for any purpose other than heating water.
16. Use the kettle only with power base supplied (and vice versa)
17. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions. Or has been damaged in an manner. If the mains lead is damaged, it must be replaced by a special lead available from the Service department
18. Ensure that the lid is closed before switch

APPLIANCE DESCRIPTION

1. Spout
2. Ltd
3. Push Button of Lid
4. Handle
5. ON/OFF Switch
6. Water level Indicator
7. Cordless Power Base
8. Power Indicator
9. Power Cord

1 2 3 4 6 5 7 8 9

BEFORE USE

Remove all packaging from the kettle and its power base. Before using the kettle for the first time, or if it has been out of use for a long time, fill to the max mark and boil, then discard the boiled water and rinse the kettle out with cold water.

HOW TO USE

Positioning

* Position the power base as close to a wall socket as possible.
* Route the mains lead so that it dose not overhang the work surface, and cannot be caught accidentally. Shorten the mains lead by winding it round the cord storage area under the power base, and bring it out of the cord exit cut into the base.

Opening the lid

Remove the kettle from the power base (9). If the switch (7) has been pushed down inadvertently, it will spring up, into the OFF position.

Warning: If the kettle has just boiled, it will be full of steam, which will escape as soon as the lid is opened.

Hold the handle firmly in one hand, grip the lid knob in the other, and pull the lid straight up. As soon as it separates from the kettle, move it out of the steam.

Filling

* Open the lid and fill the kettle via the lid aperture.
* Watch the level in the water level indicator. You must use at least one cup of water, but the water level must be below the max mark.
* Do not overfill the kettle. If the kettle is overfilled, there is a risk that boiling water may be ejected.
* Replace the lid and press it down. Check that it is fully closed; otherwise the kettle may not switch off when it boils.

Switching on

* Check that the switch is in the "OFF" position (lifts the kettle from the power base and set it down again).
* Plug the power base into the wall socket. If necessary, switch the socket on. Gently position the kettle on the power base, taking care not to spill any water.
* Press the switch down. The switch will light up, and the kettle will start to heat up.
* When the water has boiled the kettle will switch off automatically, the switch will return to the "OFF" position and the light will go out.

Switching off

* If you need to switch the kettle off at any time before the water boils, simply lift it front the power base and set it down again. The switch will pop up, into the "OFF" position

GENERAL

* When you lift the kettle from the base, you may see moisture on the surface of the base. This is the steam used to switch the kettle off automatically, which then condenses and is allowed to escape via vents in the underside of the kettle, do not lift it backwards, as this may allow water to pass through the steam aperture on to the control area. Should this occur, the kettle must be allowed to dry before use.

* To avoid the risk of splashing, pour slowly and do not over-tilt the kettle.

MISUSE

1. Do not switch the kettle on unless it contains at least one cup of water. Misuse of this kind will shorten the life of the element.
2. If the kettle is accidentally switched on when it does not contain sufficient water, a boil-dry device will automatically switch it off. Wait until the kettle has cooled down before filling, as the element will be hot and spitting may occur

CARE AND CLEANING

Cleaning

1. Switch the kettle off (lift it from the power base), unplug the power base from the wall socket and let the kettle cool down completely before cleaning.
2. Wash the outside and inside surfaces of the kettle with a damp cloth. If necessary, you may use a little household detergent. To clean the filter, see "Water filter" below. If you use detergent inside the kettle, rinse thoroughly afterwards to remove all trace if the detergent.
3. Ensure that all connectors and sockets are kept dry.
   Do not immerse the kettle or power base in water or any other liquid.
   Do not use harsh or abrasive cleaners or solvents.
   It should not be cleaned into water or it can not be cleaned by the dishwasher.

Descaling

Scale build-up will cause the element to overheat, reducing its working life. It may also cause the safety cut out to operate prematurely, switching the kettle off before the water boils

As the element is mounted beneath the kettle, there are no awkward nooks and crannies for the scale to get a foothold. It can build up only on the walls and floor of the kettle, where it can be seen and dealt with.

To minimize scale build-up:

1. Empty the kettle after each use; do not allow water to stand in the kettle overnight; use filtered water instead of ordinary tap water.
2. Descale the kettle regularly using a proprietary brand of descaler suitable for use in plastic-bodied products. In areas of very hard water descaling may be necessary as often as once a month.
3. When decaling, follow the instructions on the packet of descaler. When descaling has finished, empty the kettle and rinse it out several times with fresh water, then fill with fresh water, boil. And discard the water. This should ensure the no chemical residues are left in the kettle.

Please note: Products returned during the guarantee period with faults that are directly related to scale built-up will be subject to a repair charge.

Water filter

The scale particles that remain suspended in the water may give it a cloudy or greasy appearance, depending on the hardness of the water.

The filter fitted to your kettle will prevent these parties passing into your drink. You must ensure that the filter is kept clean and clear of deposits otherwise the performance of your kettle may be adversely affected, your drinks may contain scale particles, and the water inside the kettle may look cloudy.

You should clean the filter whenever there are any noticeable deposits left on it, and especially if pouring is affected in any way.

SPECIFICATIONS

Rated voltage : AC230V, 50Hz

Power: 2000W

Capacity : 1.7L

This appliance is to be stored and used under the following conditions: temperature-not less than +5°C relative humidity-not greater than 80%; aggressive impurities in the air: not allowable.

As the manufacturer is constantly working on Improvement of its products, the design and technical specifications are subject to change without prior notice.

FRANÇAIS

SINBO SK 7321 BOUILLOIRE MODE D'EMPLOI

LIRE ATTENTIVEMENT TOUTES LES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL

CONSIGNES DE SÉCURITÉ IMPORTANTES

BESCHRIJVING VAN HET APPARAAT

Labeled diagram of a kettle with numbered parts for identification

United Favour Development Limited

Unit B, 10/F Lee May Building 788-790

Nathan Road, Mongkok, Kowloon, HK.

- UYGUNLUK BEYANI / CE CONFORMITY - SGS-CSTC Standards Technical Services

Co., Ltd.

198 Kezhu Rd., Scientech Park, Guangzhou Economic&Technology Development District

Guangzhou, Guangdong, China

LVD GZES1105002931HS
