WK 1020 - Kettle Efbe-Schott - Free user manual and instructions

Product type	Electric kettle
Brand	Efbe-Schott
Model	WK 1020
Power supply	Mains, detachable cord
Power	Approx. 1500-2000 W (estimate)
Capacity	Approx. 1.7 L (estimate)
Material	Plastic and stainless steel (estimate)
Weight	Approx. 0.8 kg (estimate)
Dimensions	Approx. 22 x 15 x 25 cm (estimate)
Main functions	Automatic shut-off, overheat protection, power indicator light, removable particle filter, graduated water level window
Maintenance and cleaning	Clean with a soft cloth; do not immerse; regular descaling with specific product or vinegar
Safety	Overheat protection, automatic shut-off in case of boiling or dry operation, locking lid
Spare parts and repairability	Removable particle filter; separate base; repair by qualified service
General information	Manual available in French, German, English, Dutch and other languages on request

Frequently Asked Questions - WK 1020 Efbe-Schott

How to use the kettle for the first time?

Fill the kettle with cold water, boil it, then empty it. Repeat 2 to 3 times before first use.

Why does the kettle not turn on?

Check that the kettle is correctly placed on its base, that the switch is on, and that the plug is connected. If the problem persists, wait 10 minutes after an automatic shut-off to allow the protection device to cool down.

How to clean the kettle?

Unplug and let cool. Clean the plastic parts with a soft cloth. Use a soft brush for limescale deposits. Never immerse the kettle or its base in water.

How to descale the kettle?

Use a commercial descaling product or vinegar (2-3 ml). First pour water, add the product, then heat. Rinse twice with clear water after descaling.

How to clean the filter?

Open the lid, remove the filter by gently pressing from inside to front, then rinse under running water. Replace before use.

What to do if the kettle heats up empty?

The overheat protection automatically stops the appliance. Unplug it, set the switch off, wait 10 minutes, then fill with cold water. If the problem persists, contact after-sales service.

How much water should I put in the kettle?

Fill between the MIN and MAX marks. Do not exceed the MAX level to avoid splashing boiling water.

Can I use the kettle with another base?

No, the kettle should only be used with the base provided for safety reasons.

How to replace the power cord if damaged?

A damaged cord must be replaced by qualified service (manufacturer or importer after-sales service) to avoid any risk.

What to do in case of malfunction or defect?

Return the complete appliance in its original packaging with the receipt to your retailer or after-sales service. The warranty covers manufacturing and material defects during the legal period.

USER MANUAL WK 1020 Efbe-Schott

Front cover page (first page)

Assembly page 1/20

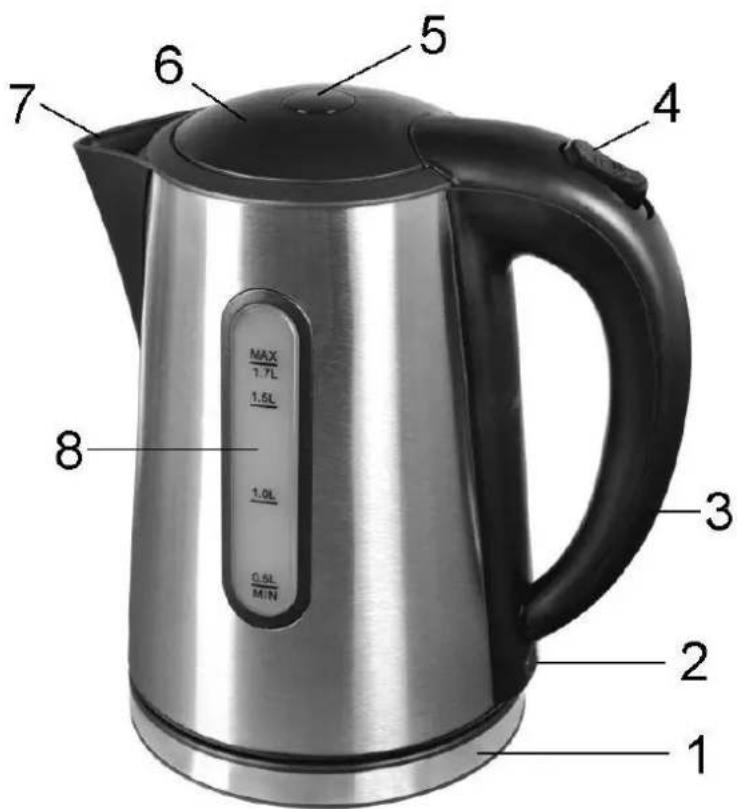

1 2 3 4 5 6 7 8 MAX 1.7L 1.5L 1.0L 0.5L MIN

Abb. ähnlich

D

1 Base
2 Pilot light
3 Handle
4 On-off switch
5 Release button for lid
6 Lid
7 Nozzle-spout with particle filter
8 Viewing window with scale

FR

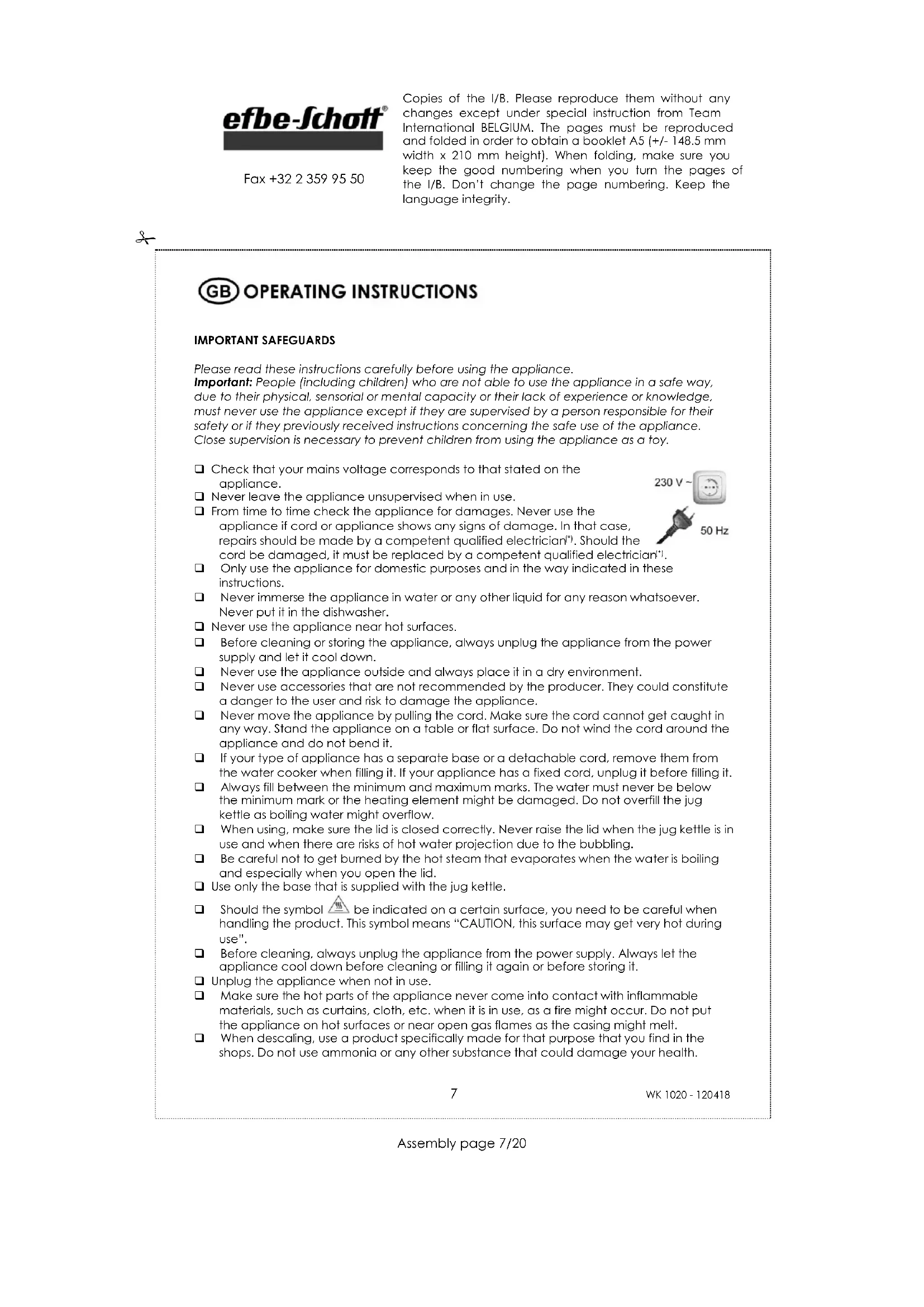

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

☐ Check that your mains voltage corresponds to that stated on the appliance.

☐ Never leave the appliance unsupervised when in use.

From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician ^1 . Should the cord be damaged, it must be replaced by a competent qualified electrician

☐ Only use the appliance for domestic purposes and in the way indicated in these instructions.

☐ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never put it in the dishwasher.

□ Never use the appliance near hot surfaces.

Before cleaning or storing the appliance, always unplug the appliance from the power supply and let it cool down.

☐ Never use the appliance outside and always place it in a dry environment.

☐ Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

☐ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Stand the appliance on a table or flat surface. Do not wind the cord around the appliance and do not bend it.

☐ If your type of appliance has a separate base or a detachable cord, remove them from the water cooker when filling it. If your appliance has a fixed cord, unplug it before filling it.

□ Always fill between the minimum and maximum marks. The water must never be below the minimum mark or the heating element might be damaged. Do not overfill the jug kettle as boiling water might overflow.

☐ When using, make sure the lid is closed correctly. Never raise the lid when the jug kettle is in use and when there are risks of hot water projection due to the bubbling.

☐ Be careful not to get burned by the hot steam that evaporates when the water is boiling and especially when you open the lid.

☐ Use only the base that is supplied with the jug kettle.

Should the symbol be indicated on a certain surface, you need to be careful when handling the product. This symbol means "CAUTION, this surface may get very hot during use".

Before cleaning, always unplug the appliance from the power supply. Always let the appliance cool down before cleaning or filling it again or before storing it.

□ Unplug the appliance when not in use.

☐ Make sure the hot parts of the appliance never come into contact with inflammable materials, such as curtains, cloth, etc. when it is in use, as a fire might occur. Do not put the appliance on hot surfaces or near open gas flames as the casing might melt.

☐ When descaling, use a product specifically made for that purpose that you find in the shops. Do not use ammonia or any other substance that could damage your health.

(1) Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician.

BEFORE THE FIRST OPERATION

For the perfect taste, operate the jug kettle with fresh water in order to clean any residue left from the manufacturing process. When the appliance has cooled down, repeat the process 3 times with fresh water, before rinsing.

OPERATION

• Always remove the jug from the power base before filling it or before any operation.
- Open the lid by pressing its release button and fill the tank with fresh water, paying attention not to fill under the minimum mark and above the maximum mark on the water level indicator.
- Close the lid by pressing it down until you hear a click. Make sure it closes correctly.
- Put the jug onto the power base, plug into the wall socket and switch on by pressing down the switch situated on the handle. The red pilot light comes on indicating the appliance is operating.
- The jug kettle will switch off automatically when the water has boiled. However, you can stop the jug kettle anytime by putting the switch in the off position.
- For instant reboiling, wait until the water has cooled down and switch on the appliance again.

SAFETY CUT-OUT

• This jug kettle is protected with an automatic safety device that switches off the appliance if it is accidentally switched on without water. Please bear in mind that only the thermostat is switched off in case of overheating, whereas the switch stays in the ON-position (I).
• In this case, switch off the appliance by putting the switch in the OFF position (0) and wait about 10 minutes for the heating element to cool. Then pour in sufficient cold water to cover the heating element. This will reset the safety device.
  • The kettle may then be used as normal.

CLEANING AND MAINTENANCE

• Before attempting any cleaning operation, make sure the appliance is unplugged from the supply socket and fully cooled down.
• To clean the exterior surfaces, simply wipe over with a soft damp cloth and dry thoroughly. Residues on the interior surfaces can be removed with a soft brush.
• Never use abrasive products.
• On no account must the jug kettle or its power base be immersed in water.
  • The flocked parts are water-resistant and can be cleaned with a damp cloth.

FILTER

• Your appliance is provided with a filter. When you want to boil water, settle the filter first.
• When the lid is open, you can remove the particulate filter by gently press out from the inside to the front at the top and rinse under running water.
• The filter should be rinsed clean regularly.

DESCALING

When scale becomes visible in the jug, you have to descale it. To remove scale from the jug kettle, use products made especially available for this purpose, liquid descaling products or for the sake of environmental protection you can use vinegar.

When descaling, please pay attention to the following points:

• First pour some water in the appliance, and add the descaling product afterwards.
- Make sure to dilute the product sufficiently. Please follow the instruction manual of the descaling product.
- When using vinegar, do not use more than 2-3 ml.
- Caution, the mixture might froth during heating.
• After descaling, rinse the appliance twice with fresh water.

PROTECTION OF THE ENVIRONMENT - DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

TERMS OF GUARANTEE

For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents.

If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only be valid if the receipt or a copy of a repair bill is handed over with the appliance that needs repair.

Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer service in our firm in Bad Blankenburg.

In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged. Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

AFTER THE LEGAL PERIOD OF GUARANTEE

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.
