USER MANUAL Starter SP Osann

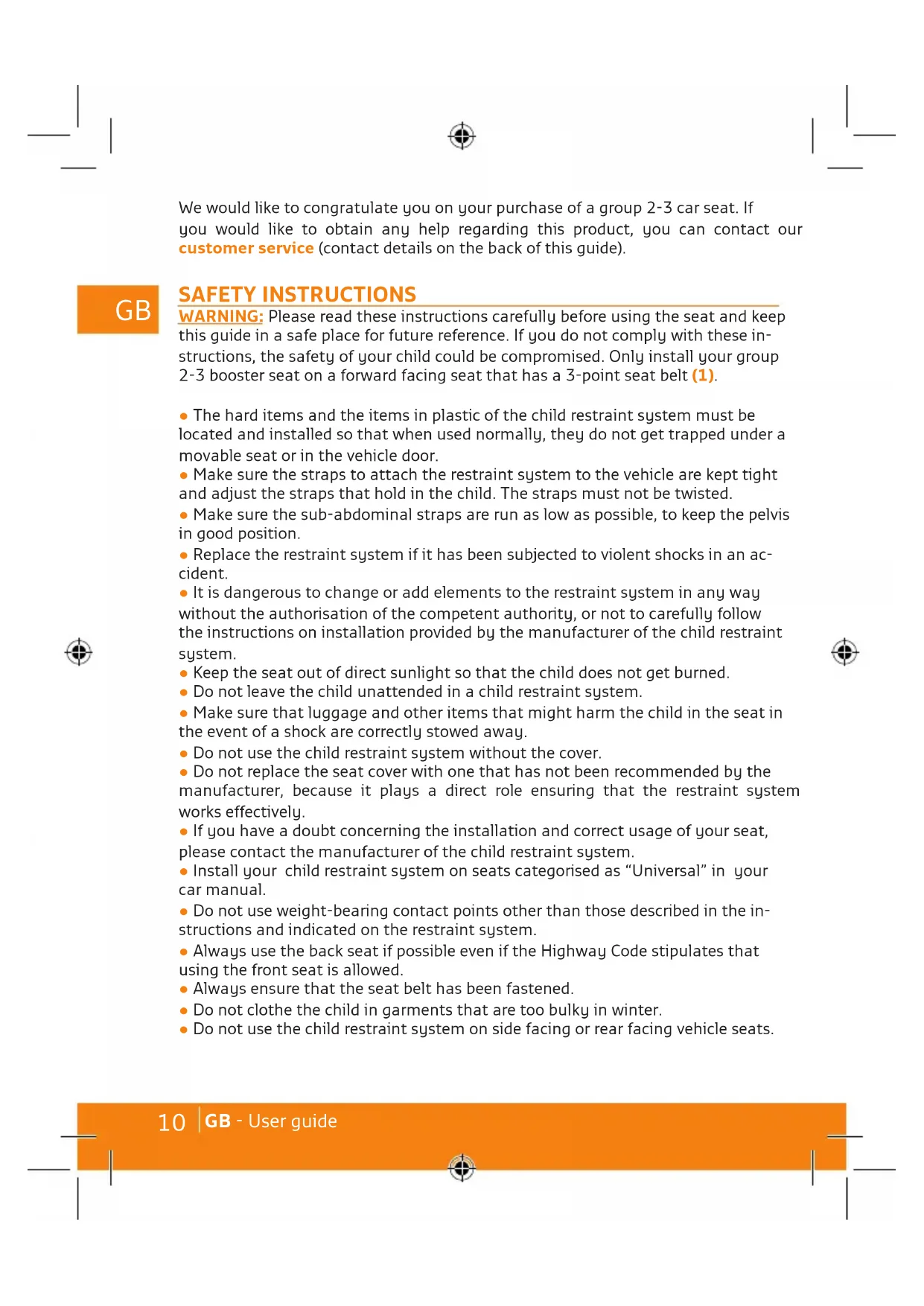

We would like to congratulate you on your purchase of a group 2-3 car seat. If you would like to obtain any help regarding this product, you can contact our customer service (contact details on the back of this guide). SAFETY INSTRUCTIONS

WARNING: Please read these instructions carefully before using the seat and keep

this guide in a safe place for future reference. If you do not comply with these in- structions, the safety of your child could be compromised. Only install your group 2-3 booster seat on a forward facing seat that has a 3-point seat belt (1).

• The hard items and the items in plastic of the child restraint system must be located and installed so that when used normally, they do not get trapped under a movable seat or in the vehicle door.

• Make sure the straps to attach the restraint system to the vehicle are kept tight and adjust the straps that hold in the child. The straps must not be twisted.

• Make sure the sub-abdominal straps are run as low as possible, to keep the pelvis in good position.

• Replace the restraint system if it has been subjected to violent shocks in an ac- cident.

• It is dangerous to change or add elements to the restraint system in any way without the authorisation of the competent authority, or not to carefully follow the instructions on installation provided by the manufacturer of the child restraint system.

• Keep the seat out of direct sunlight so that the child does not get burned.

• Do not leave the child unattended in a child restraint system.

• Make sure that luggage and other items that might harm the child in the seat in the event of a shock are correctly stowed away.

• Do not use the child restraint system without the cover.

• Do not replace the seat cover with one that has not been recommended by the manufacturer, because it plays a direct role ensuring that the restraint system works effectively.

• If you have a doubt concerning the installation and correct usage of your seat, please contact the manufacturer of the child restraint system.

• Install your child restraint system on seats categorised as “Universal” in your car manual.

• Do not use weight-bearing contact points other than those described in the in- structions and indicated on the restraint system.

• Always use the back seat if possible even if the Highway Code stipulates that using the front seat is allowed.

• Always ensure that the seat belt has been fastened.

• Do not clothe the child in garments that are too bulky in winter.

• Do not use the child restraint system on side facing or rear facing vehicle seats.11 User guide - GB

Your Group 2-3 booster seat (2)

1. Height adjustable head support

In-car installation Gr. 2-3, from 15 to 36 kg (from approximately 3 to 12 years) Your car seat is fitted with an adjustable headrest that has been designed to sup- port your child throughout growth by providing maximum lateral protection. Raise the adjustable headrest to its highest position (3). Place the car seat against the back seat of the vehicle (4) and feed the diagonal strap of the belt through the headrest guide (5) (6). Sit your child in the car seat. Make sure that the child’s back is fully in contact with the back of the car seat. Pull and fasten the vehicle seat belt. Pass the diagonal strap of the belt under the arm rest opposite the belt guide used. The waist strap of the belt passes under both armrests (7). Lower the adjustable headrest and adjust it to the height of your child (8). It should be positioned so that it surrounds your child’s head, providing maximum lateral protection, whilst guiding the diagonal belt over the child’s shoulder so that it doesn’t extend onto the child’s neck (9) (10). Tighten the vehicle seat belt (11). Make sure that the seat belt is properly tightened, that it is not twisted and that it is not positioned at the level of your child’s neck. To remove your child from the car seat, simply unbuckle the seat belt and place it at the side of the car seat. The belt will remain suspended from the headrest belt guide (12). CAUTION: Secure your car seat with the vehicle seat belt at all times, even when your child is not in the car seat. An unsecured car seat can cause injuries in the event of a collision. Storage of the instruction manual Store this instruction manual, depending on the model of your vehicle, either in the pouch provided, or by slipping it into between the shell and the cover of the seat (13). Maintenance advice All the material parts can be removed. Slight stains can be removed using a damp sponge soaked in soapy water or it can be washed by hand at 30° in soapy water. Do not use bleach, do not iron, do not machine wash, and do not tumble dry.12 GB - User guide

• This car seat is a “Universal” child restraint system. It has been approved in ac- cordance with regulation N°44/04, and is suitable for general use in vehicles and is compatible with the majority (some exceptions) of vehicle seats.

• It is more likely that the seat is perfectly compatible if the vehicle manufacturer states that its vehicles are suitable for taking “Universal” child restraint systems.

• This restraint system is classified as “Universal” in accordance with the strictest approval criteria, whereas earlier models do not correspond to these new provi- sions.

• It can only be adapted to vehicles with 3-point safety belts that are either fixed or have a roller mechanism and that have been approved compliant with the UN/ ECE N° 16 or other equivalent standards.
