Product Type	Combined stroller with baby carrier
Brand	Bergsteiger
Model	Rio
Category	Stroller
Maximum child weight (stroller)	15 kg
Recommended age (stroller)	6 to 36 months
Maximum child weight (baby carrier)	10 kg
Baby carrier standard	ECE R44/04
Harness type	5-point safety harness
Folding system	Locking mechanism with blocking levers
Reversible handlebar	Yes, with locking and anti-fold safety
Backrest adjustment	Progressive (sport stroller) or 3 positions (depending on version)
Adjustable footrest	Yes, with adjustment buttons
Seat extension (carrycot)	Included, converts sport stroller into carrycot
Swivel wheels	Yes, with locking function
Delivery contents	Chassis, carrycot, sport stroller equipment, baby carrier (chassis, sunshade, footmuff), sport stroller (footmuff), diaper bag, mosquito net, rain cover, seat extension, safety bar, storage basket
Care and cleaning	Clean with lukewarm water and mild soap, avoid abrasives and direct sunlight for drying
Spare parts and repairability	Available via [e-mail]; tires repairable with bicycle repair kit
Main safety instructions	Never leave child unattended; use the harness; apply brakes before placing/taking child

Frequently Asked Questions - Rio Bergsteiger

What is the maximum child weight for the Rio stroller?

The maximum child weight for the stroller is 15 kg. For the baby carrier, the maximum weight is 10 kg.

From what age can the stroller be used in the sitting position?

The sitting position is not suitable for children under 6 months. For younger children, use the carrycot or baby carrier.

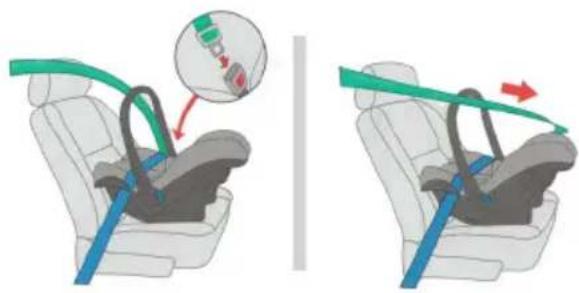

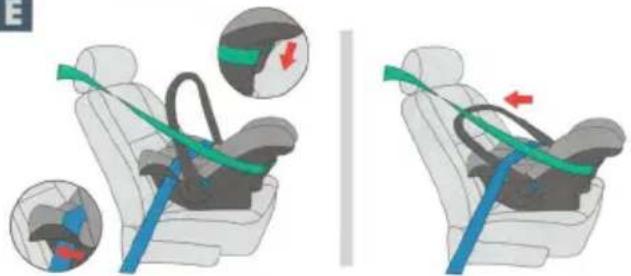

How to install the baby carrier in the car?

Place the baby carrier rear-facing, disable the airbag, push the passenger seat all the way back, pass the lap belt through the front guides and the diagonal belt through the rear guide, then tighten the belt. The handle must be in the 'auto' position.

How to clean the Rio stroller?

Clean the outer fabric and frame with lukewarm water and a mild soap using a soft cloth. Do not use abrasives, chlorine, or denatured alcohol. Do not dry the stroller in direct sunlight.

How to fold and unfold the stroller?

To unfold, place your foot on the rear axle and pull the handlebar upward until the lock clicks. To fold, pivot the reversible handlebar backward, lower the backrest, then pull both blocking levers upward and let the stroller slide down slowly.

How to adjust the stroller backrest?

To adjust the backrest, pull the metal lever located under the backrest (sport stroller) or the plastic lever for versions with 3 positions. The backrest can be adjusted progressively or in three positions.

How to install the seat extension (carrycot)?

Place the seat extension into the safety bar supports until the plastic supports click into place. Use the snap buttons to secure the fabric and prevent the diaper bag from slipping.

What to do in case of a flat tire?

The inner tube of the tire can be repaired or replaced using a bicycle repair kit. Replace tires with worn tread.

How to adjust the baby carrier safety harness?

To loosen, adjust the adjuster buckle and pull both straps forward. To tighten, pull the tension adjustment strap located at the bottom of the carrier. Ensure the straps are not twisted and lie flat on the shoulders.

Where to order spare parts for the stroller?

Contact customer service at [e-mail] for spare parts. Wear parts such as tires are also available through your local dealer.

USER MANUAL Rio Bergsteiger

Baby wearing a brown fur hat, resting on a woven basket with floral background (no text or symbols)

Congratulations on your new pram! We are confident that you will experience many years of joy with our model.

We know exactly how important it is to show the world your baby and for your baby to have a look around. That's why you and your baby are so important to us! Our prams combine safety, comfort and a modern design in order to completely meet your demands as modern parents. We want you to lead your new family life with every liberty and the same amount of satisfaction that you are used to.

Not using the pram properly can entail a considerable amount of risk. So please take the time to read this instruction manual carefully. Your pram will provide you with optimal safety, if you follow the instructions described here.

Important!

Please read this instruction manual carefully before using the pram for the first time. Failure to observe these instructions can lead to serious injury of your child or damage to the pram.

• Remove the packaging of the pram (danger of suffocation).
• Never leave the child in the pram unattended!
• The pram seat is suitable for children in the age group 6 to 36 months. For younger children, the seat unit must be used!
• The weight of the child must not exceed 15 kilogrammes.
• This pram is intended for one child only.
• If you put in an additional mattress, you do so at your own risk.
  • Overloading the chassis or folding it incorrectly can damage the pram.
• Please to not place any objects on the canopy!
  • Always use the 5-point harness when the child is able to sit up by itself.
• Make sure that the pram is assembled properly.
• Make sure that the brakes are always engaged before the child is placed in the pram or lifted out of it.
• When using escalators or stairs, the child must be taken out of the pram.
• Engage all brakes when parking the pram.
• Do not use the pram while running (jogging) or skating.
• Please keep the pram away from fire!

Care instructions

• This pram requires regular maintenance.
• Lubricating/greasing the movable components/parts (i.e. brakes) regularly prolongs the service life of the pram and makes folding and unfolding it easier.
• Please replace or repair damaged screws and parts.
• Carefully check the brake systems, safety harnesses, wheels, locking devices, the seat surface, and the click buckles. They must be in good condition at all times.
• The brake parts, wheels and tyres are wear parts and must be replaced if necessary.
• To prevent the fabric from bleaching, avoid parking the pram where it is exposed to direct sunlight.
• The pram must not be put into use if it is not working properly or if it is damaged.
• If a tyre is punctured, the inner tube can be repaired or replaced using a bicycle repair kit. The tyre should be replaced, if the tread is worn down.

Cleaning

• The exterior fabric and the chassis should be cleaned with lukewarm water and a mild soap. Use a soft cloth to do so.
• Please do not use abrasive cleaners, chlorine cleaning agents (bleaches) or spirits to remove dirt or sand.
• Please do not expose the pram to intense sunlight for drying.
• If the pram is used on the beach in the sand, please wash off all metal parts of the pram by hosing them down or using warm soapy water. Please dry the pram thoroughly afterwards.

Chère Cliente, Cher Client,

D Lieferumfang:

GB Scope of delivery:

1. Chassis
2. Pushchair attachment
3. Carrycot
4. Seat unit (chassis)

5. Seat unit (sun protection)

6. Seat unit (footmuff)

7. Pushchair (footmuff)
8. Diaper bag
9. Insect net
10. Rain cover (carrycot)

Close-up of a hand adjusting a glass dome component with a white arrow pointing to it, labeled Abb. 1 Abb. 2 (no other text or symbols)

Close-up of a hand adjusting a black bicycle tire component (no visible text or symbols)

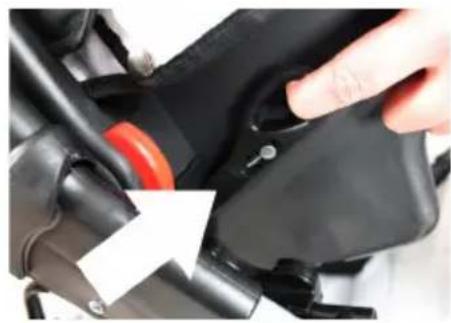

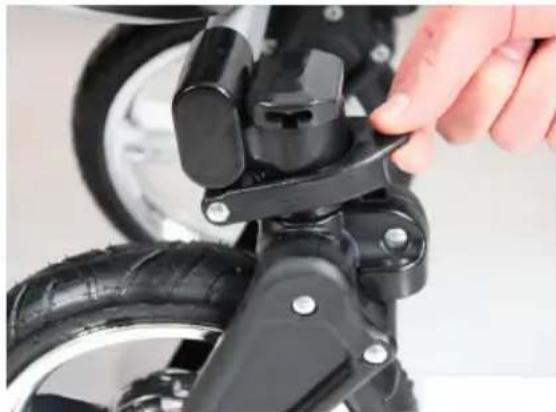

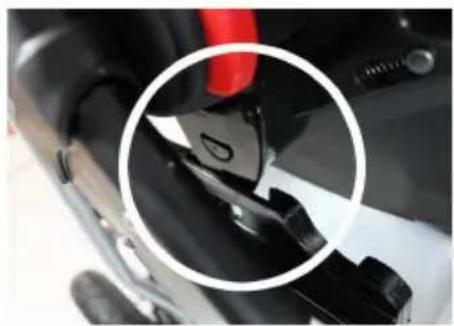

GB Attaching the wheels (rear) and locking the swivel wheels

To attach the rear wheels, slide them forcefully over the respective axles. To remove the wheels, pull them off the axles while simultaneously pressing the locking knob towards the axle (see Fig.1). The swivel wheels are lockable. To do this, position them parallel to the direction of travel and lock them using the plastic lever (see Fig. 2).

Close-up of a black mechanical component with a white circular highlight (no visible text or symbols)

Close-up of a mechanical component with a magnified circular detail highlighting a specific part (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with a red circular knob and white arrow indicator (no text or symbols visible)

GB Inserting the seat unit

The seat unit can be attached in two directions. On the left and right side of the chassis there are two elongated openings into which the seat unit can be easily inserted. The seat unit is released from the chassis by means of two levers on the seat unit which must be pulled simultaneously in longitudinal direction.

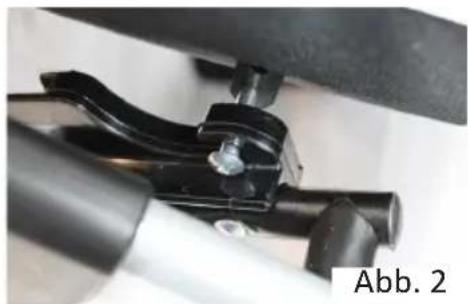

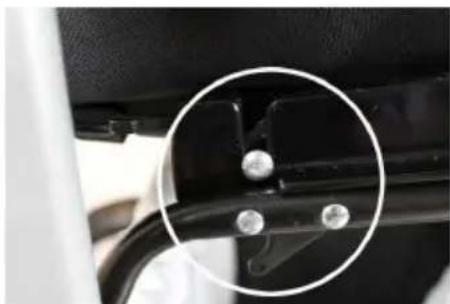

GB Adjusting the backrest (pushchair)

The backrest (only for pushchair attachment) can be gradually adjusted by pulling the metal lever located under the backrest.

Close-up of a person adjusting a black mechanical device with white fabric (no visible text or symbols)

Close-up of a baby stroller with white bedding and black handle, no visible text or symbols

Close-up of a mechanical clamp or bracket assembly with black and white components, labeled 'Abb. 2' (no readable text or symbols beyond label)

Close-up of a mechanical component with two small spherical holes, circled in white (no text or symbols visible)

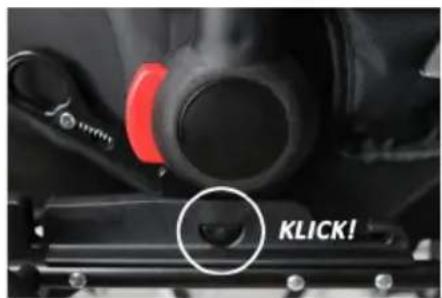

GB Inserting the pushchair attachment and the carrycot

The pushchair attachment and the carrycot are assembled by means of the clever one-click mechanism. For this purpose, first insert the two metal pins on the side of the carrycot or the pushchair attachment into the openings provided on the chassis (on front of chassis first - Fig. 2). Then you can slowly lower the attachment so that the metal pins also click into the chassis at the rear.

Close-up of a hand holding a black cable with two screws, next to a white arrow pointing downward (no text or symbols visible)

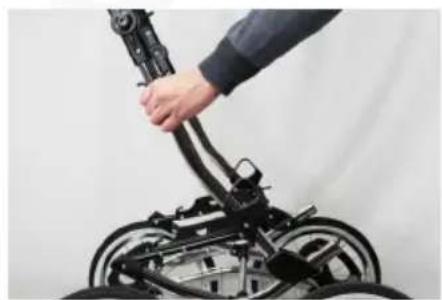

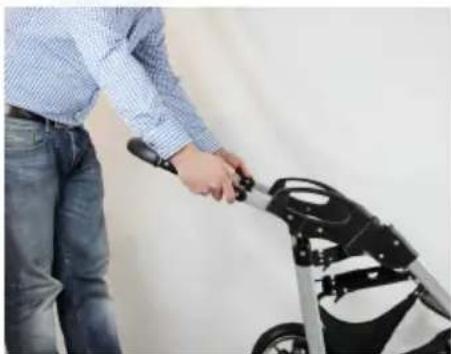

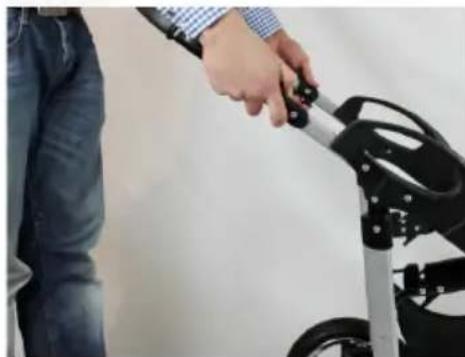

GB Removing the various attachments

Removing the attachment is just as simple.

Press the plastic lever downward until it locks into place. The lever is located at the position of the chassis where the two metal pins of the attachment are clicked into the rear of the frame.

Close-up of a hand holding a black and silver bicycle weight lever (no text or symbols visible)

Person adjusting a black and silver bicycle component, no visible text or symbols

Person interacting with a robotic device (no visible text or symbols)

GB Unfolding and folding the pram

Take hold of the pram chassis on both sides. On the left side of the chassis, there is a lock that secures the pram against folding unintentionally. Take hold of the lock, press your index finger in the direction of the chassis and pull the lock towards your body. The chassis can now be carefully collapsed.

D Lieferumfang:

GB Scope of delivery:

1. Pram (chassis)
2. Shopping basket
3. Seat unit
4. Safety bar

5. Diaper bag

6. Rain protection

7. Weather footmuff
8. Seat extension
9. Soft changing bag
10. Mosquito net

Black and orange stroller with silver wheels and black leather covers, displayed against a plain background (no text or symbols visible)

Person pushing a black and orange wheeled scooter with wheels, no visible text or symbols

Person pushing a stroller with a numbered green circle highlighting the number 3 (no text or symbols on the vehicle itself)

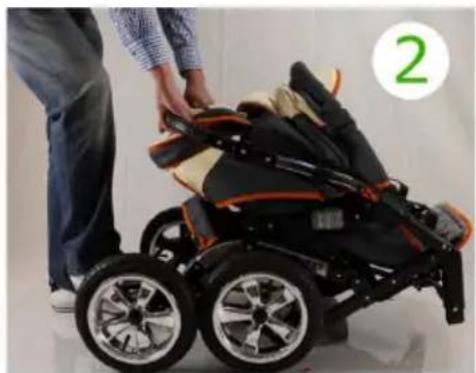

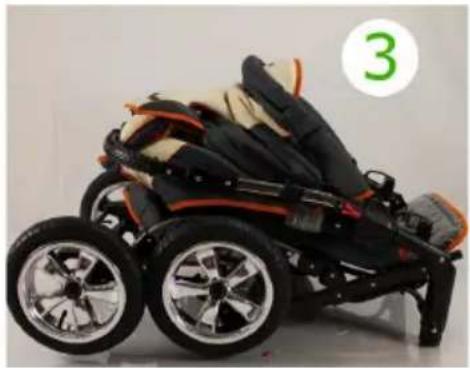

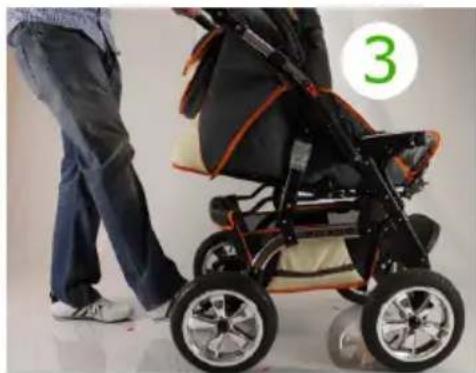

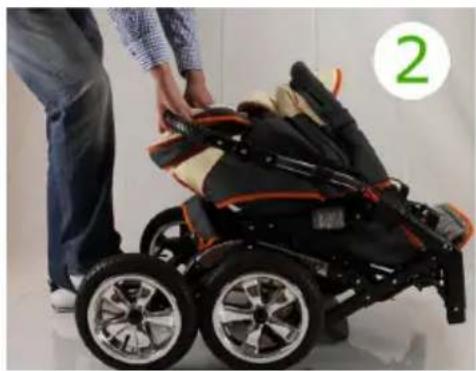

To unfold the pram, press your foot against the rear axle and pull the handlebar upward until the locking device visibly and audibly locks into place. Important: Only use the pram when the locking device (handle for assembly) has properly locked into place!

Person standing beside a stroller with a person in the background, no visible text or symbols

Person pushing a black and orange children's stroller with a green circular badge labeled '2' (no text or symbols on the device itself)

Black and orange stroller with two wheels, no visible text or symbols

Please swivel the handlebar to the rear side of the pram first and then lower the backrest all the way down. Now pull the two locking levers (see arrow) upward and let the pram slide slowly downward.

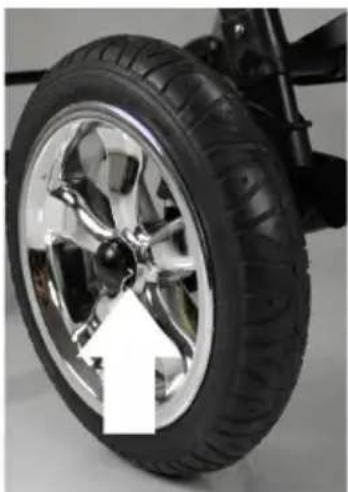

GB Attaching and removing the wheels

To attach the wheels, slide them forcefully over the respective axle. To remove the wheels pull them off the axles while simultaneously pressing the locking knob towards the axle.

Close-up of a car tire with a metallic rim and white arrow pointing to the wheel (no text or symbols visible)

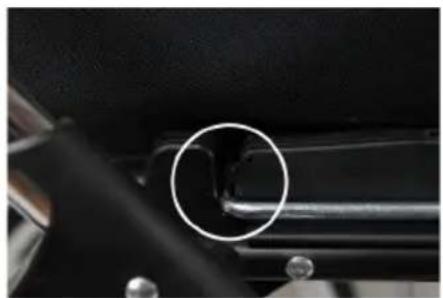

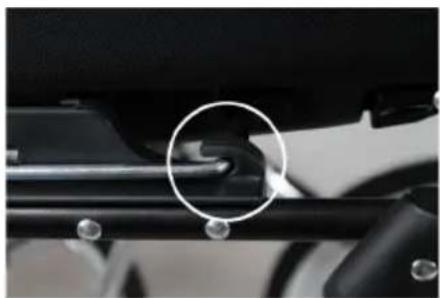

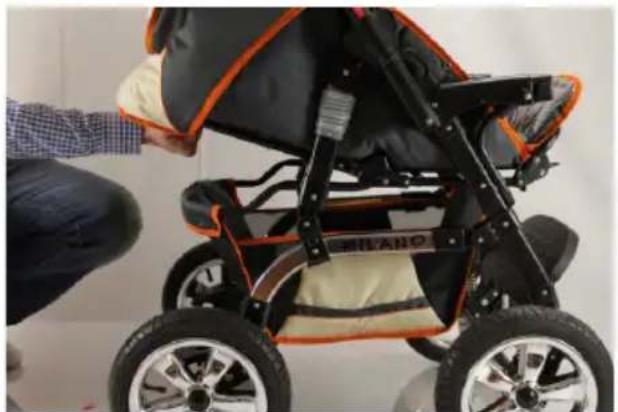

GB Adjusting the backrest

To adjust the backrest, please pull the metal lever located under the backrest and press it upward.

The backrest can be adjusted to three positions.

Close-up of a person adjusting a black and orange striped stroller with 'MILANO' branding (no visible text or symbols on the device itself)

Caution: The sitting position is not suitable for children under the age of 6 months.

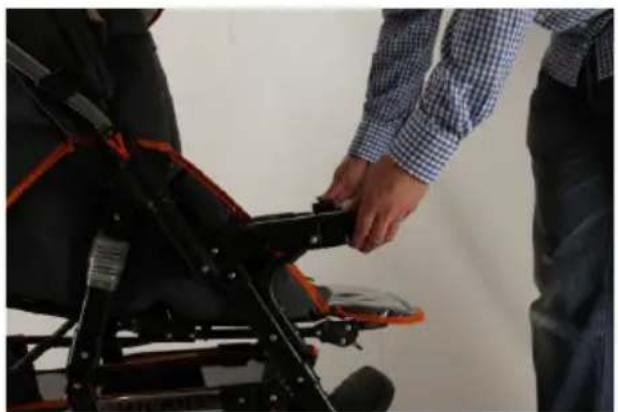

GB Assembling the buggy bar and the seat extension

To assemble the buggy bar or the seat extension, please press the two buttons of the supports on the pram at the same time and push the respective bar

Person adjusting a black mechanical component with red straps, another person visible in background (no text or symbols)

ends over them. Alternatively, you can also fasten one side first and then push the other side on.

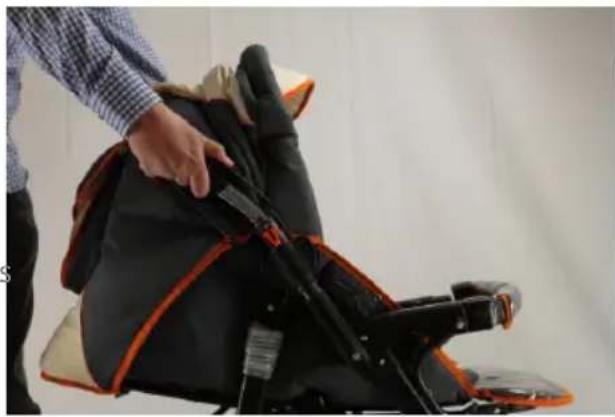

GB Operating the swivel handlebar

To adjust the swivel handlebar, pull the two safety levers on the sides and swivel the bar completely to the opposite side until it locks into place again.

Person adjusting a black and orange athletic seat device, no visible text or symbols

GB Operating the footrest

The position of the footrest can also be adjusted. For this purpose, press the two adjustment knobs below the footrest and move the footrest to the desired position. To bring the footrest back to the original position, pull it up until it locks into place again.

GB Scope of delivery:

Close-up of a baby stroller with hand adjusting the seatbelt, showing no text or symbols on the device itself.

Black and white stroller with two wheels, no visible text or symbols

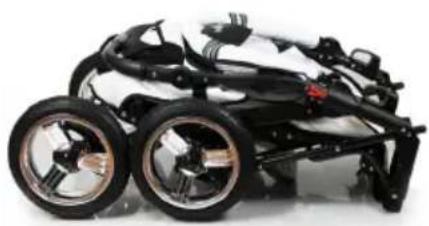

GB Unfolding and folding the pram

To unfold the pram, secure its position on the ground by pressing your foot against the rear axle and pull the handlebar upward until the locking device visibly and audibly locks into place. Important: Only use the pram when the locking device has properly locked into place! To fold the pram, please swivel the handlebar to the rear side of the pram and lower the backrest all the way down. Now pull the two locking levers (see Figure) towards you and let the pram slide slowly downward.

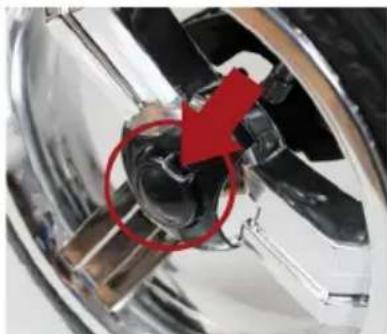

GB Attaching and removing the wheels

To attach the wheels, slide them forcefully over the respective axle. To remove the wheels, pull them off the axles while simultaneously pressing the locking knob towards the axle.

Close-up of a mechanical component with a red arrow highlighting a specific area, no visible text or symbols.

Close-up of hands adjusting a medical device with a red circle highlighting a black component (no visible text or symbols)

GB Attaching the seat extension

The seat extension converts the pushchair attachment into a pram. Simply insert it into the sockets of the safety bar until the plastic supports lock into place. Use the pushbuttons to attach the fabric. That way, the soft changing bag is protected against slipping out. The assembly is identical to that of the buggy bar.

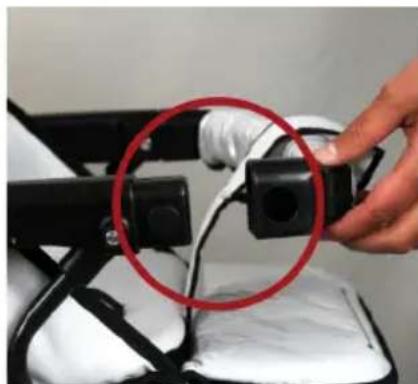

GB Adjusting the backrest

Close-up of a person's arm being held, with a red circle highlighting the hand area (no text or symbols visible)

To assemble the buggy bar or the seat extension, please press the two buttons of the supports on the pram at the same time and push the respective bar ends over them. Alternatively, you can also fasten one side first and then push the other side on.

Close-up of a hand holding a black cable with a red circle highlighting a cable (no text or symbols visible)

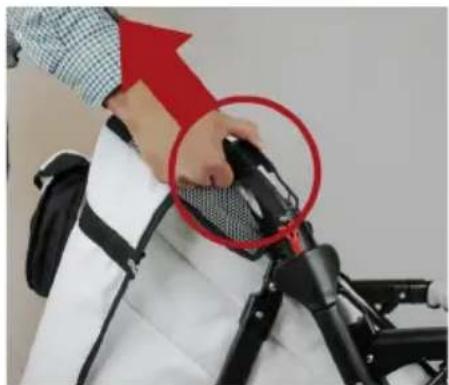

GB Operating the swivel handlebar

To adjust the swivel handlebar, pull the two safety levers on the sides and swivel the bar completely to the opposite side until it locks into place again. The swivel handlebar can be protected against swivelling unintentionally by means of the safety pins on both sides.

Close-up of a person adjusting a black and white safety harness with a red circle highlighting the component (no text or symbols visible)

GB Adjusting the footrest

The position of the footrest can also be adjusted. For this purpose, press the two adjustment knobs below the footrest and move the footrest to the desired position. To bring the footrest back to the original position, pull it up until it locks into place again.

(D) Lieferumfang:

GB Scope of delivery:

1. Chassis
2. Carrycot
3. Pushchair attachment
4. Seat unit (chassis)

5. Seat unit (sun protection)

6. Seat unit (footmuff)

7. Pushchair (footmuff)
8. Diaper bag
9. Insect net
10. Rain cover (carrycot)

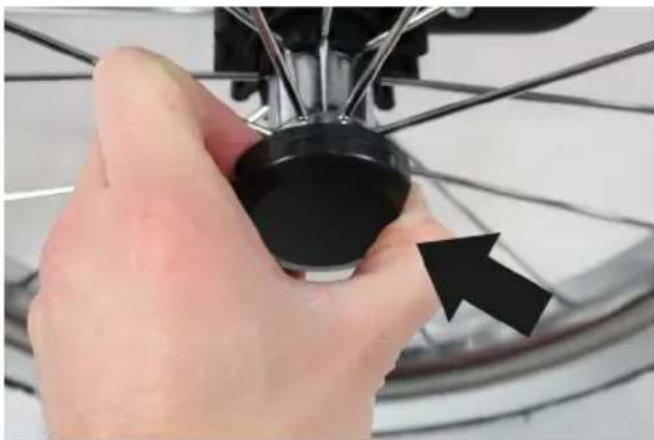

GB Attaching the wheels

To attach the wheels, slide them forcefully over the respective axle while simultaneously pressing the locking knob towards the axle.

To remove the wheels, please press the locking knob again and pull the wheel off the axle.

Close-up of a hand holding a bicycle wheel knob with a black arrow pointing to the handle (no text or symbols visible)

F Montage des roues

Close-up of a black mechanical component with a white arrow pointing to a specific part, no visible text or symbols.

Close-up of a hand inserting a small component into a black mechanical component (no visible text or symbols)

GB Inserting the seat unit

The seat unit can be attached in two directions. On the left and right side of the chassis there are two elongated openings into which the seat unit can be easily inserted. The seat unit is released from the chassis by means of two levers on the seat unit which must be pulled simultaneously in longitudinal direction.

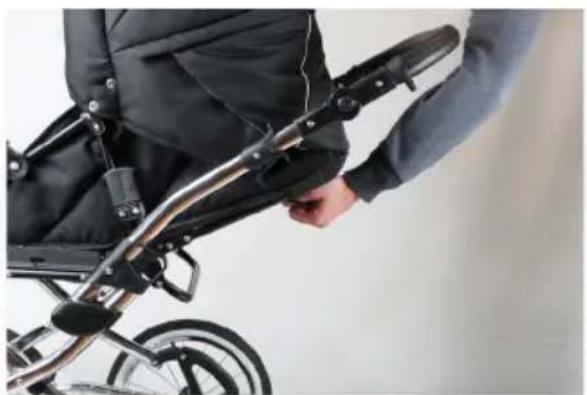

GB Adjusting the backrest

The backrest (only for pushchair attachment) can be gradually adjusted by pulling the metal lever located under the backrest.

Person in a wheelchair being assisted by a person using a bicycle (no visible text or symbols)

Close-up of a bicycle seatbelt with black plastic components and a white patterned seat cover (no text or symbols visible)

Close-up of a mechanical component with a highlighted circular area, showing no visible text or symbols.

Close-up of a mechanical component with a white circle highlighting a small feature, no visible text or symbols.

GB Inserting the pushchair attachment and the carrycot

The pushchair attachment and the carrycot are assembled by means of the clever one-click mechanism. For this purpose, first insert the two metal pins on the side of the carrycot or the pushchair attachment into the openings provided on the chassis (on front of chassis first - Fig. 1). Then you can slowly lower the attachment so that the metal pins also click into the chassis at the rear.

Close-up of a hand adjusting a black mechanical component with a white arrow pointing to a detail (no visible text or symbols)

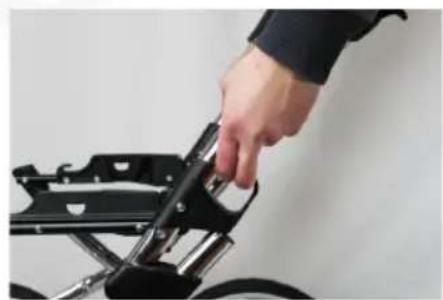

GB Removing the various attachments

Removing the attachment is just as simple. Press the plastic lever downward until it locks into place. The lever is located at the position of the chassis where the two metal pins of the attachment are clicked into the rear of the frame.

Close-up of a hand adjusting a black bicycle frame (no visible text or symbols)

Close-up of a hand adjusting a black bicycle frame (no visible text or symbols)

Close-up of a hand adjusting a bicycle wheel assembly (no visible text or symbols)

GB Unfolding and folding the pram

Take hold of the pram chassis on both sides. On the left side of the chassis, there is a lock that secures the pram against folding unintentionally. Take hold of the lock, press your index finger in the direction of the chassis and pull the lock towards your body. The chassis can now be carefully collapsed.

A

B

G

C

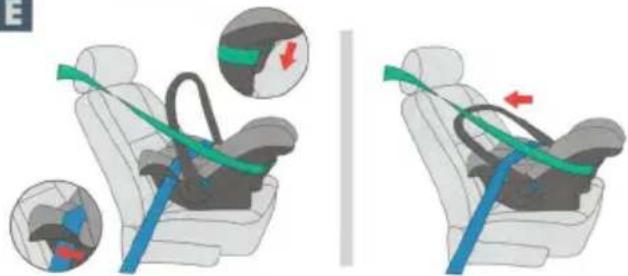

Illustration of a car seatbelt with a green cable and blue straps, showing a correct seatbelt adjustment (no text or symbols present)

D

Diagram of a helmet with internal components and a close-up inset showing a blue tool interacting with the helmet (no text or symbols present)

H

E

F

3D diagram of a mechanical component with numbered parts (1, 2, and a label) indicating specific parts, no text or symbols present.

I

Gebrauchsanweisung:

Congratulations on your purchase of the combination pram with seat unit. This seat unit complies with the strict standards of the ECE R44/04 certification and is suitable for children up to 10 kg. So the seat unit can provide maximum protection, the seat has to be used as described in the instructions.

1. Seat unit
2. Information label
3. Quick guide

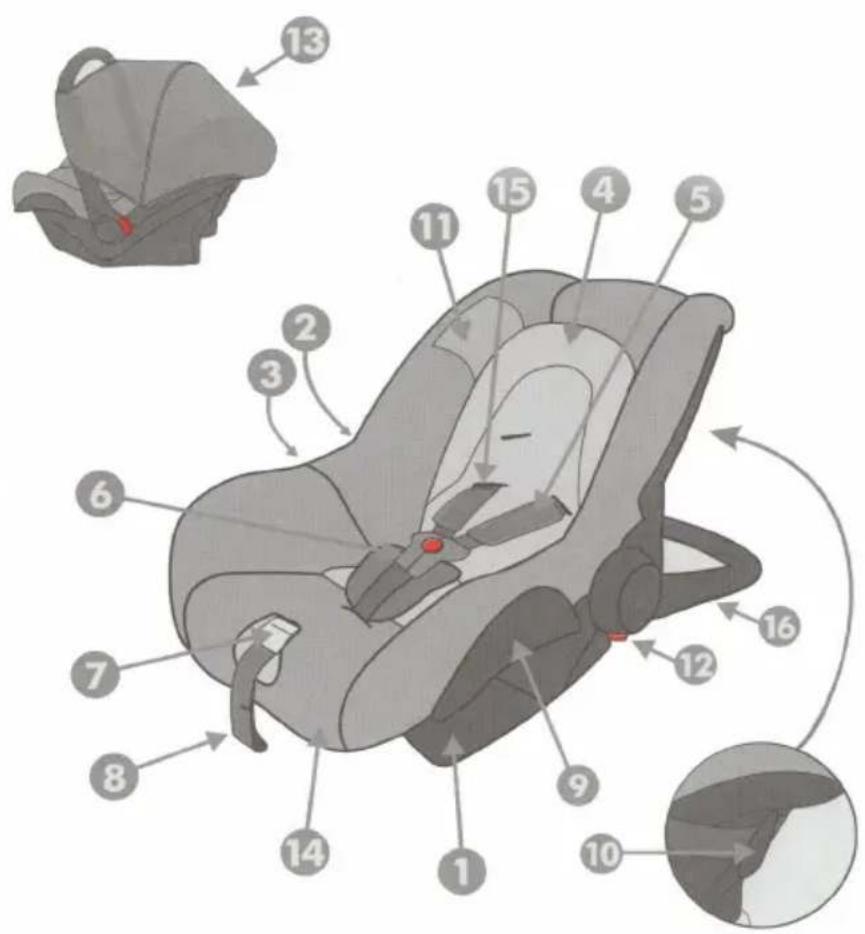

4. Support pillow
5. Padding (safety harness)
6. Harness buckle
7. Adjustment buckle
8. Harness tensioning
9. Side belt guide
10. Rear belt guide
11. Warning label
12. Release button
13. Sunroof
14. Cover
15. Safety harness
16. Transport handle

A

B

G

C

Illustration of a car seatbelt with a green cable and blue straps, showing a correct seatbelt adjustment (no text or symbols present)

D

Diagram of a helmet with internal components and a close-up inset showing a blue tool interacting with the helmet (no text or symbols present)

H

E

F

3D diagram of a mechanical component with numbered parts (1, 2, and a label) indicating specific parts, no text or symbols present.

I

Instructions for use:

I) Positioning the child in the seat unit (Fig. A-F)

Never leave the child in the seat unit without the safety harness on, even if the seat unit is outside of the car!

• Press the red button to open the harness of the seat unit.
• Place the child into the seat unit, close the safety harness and adjust the tension.
• Make sure that the child is seated properly and its back rests against the seat unit.
• The safety harness should lay flat and firmly on the child's shoulders.
• Insert the two plastic hooks into the buckle together. An audible „click“ confirms that they have locked into place correctly.
• Tighten the front adjustment harness so that the safety harnesses of the child seat rest firmly on the child's body (harness system).

Adjusting the safety harness:

• The lengths of the harnesses (harness system) must be individually adjusted to fit the child.
• The harnesses should be in the position closest to the child's shoulders and not twisted.

You can adjust the safety harness system of the seat unit to fit the individual needs of the child in the following manner:

a) To loosen the safety harness, press the adjustment buckle on the front side of the seat unit and simultaneously pull both straps of the seat unit away from it (to the front).

b) To tighten the safety harness, please pull the part of the harness on the front side of the seat unit. Make sure that the belt is not twisted and rests gently (but firmly) on the child's body.

Support pillow:

This seat unit is equipped with a removable support pillow for babies. This offers optimal sleeping comfort and provides support for the baby's head. We recommend using the support pillow up to an age of 5 months.

II) Using the seat unit in a car

When using the seat unit in a car, always observe the following points:

• Never use the seat unit on car seats with activated airbag. The child could be severely injured if the airbag is triggered. Danger to life and limb!
  • Always attach the seat unit in the opposite direction of the vehicle.
• The passenger seat should be positioned all the way to the back.
• Pull the seat belt of the car all the way out and pull it (lap belt) through the two belt guides located on the front side of the seat unit (see Fig. C).
• Buckle the seat belt of the car.
• Pull the diagonal strap of the car seat belt (shoulder belt) through the belt guide which is located on the back of the seat unit (see Fig. D & E).
• The transport handle of the seat unit must be correctly positioned for use in the car (see Fig. F).
• The seat unit is now correctly mounted.

III) Adjusting the transport handle

To adjust the transport handle, please press the two red buttons on the sides of the transport handle with both hands at the same time and adjust it. The buttons lock into place as soon as the next position of the handle is reached. This is confirmed by an audible „click“.

The handle can be adjusted to the following four different positions (see Fig. G):

1. Use in the car
2. Transport
3. Sleep and cradle position
4. Sitting position (no cradle function)

IV) Care instructions

• The fabric parts or the seat unit can be washed with warm soapy water.
• Hand washing at a temperature of 30^ is recommended.
• Never tumble dry in a clothes dryer.

Removing the fabric parts:

• Release the harness system.
• Remove the support pillow and harness pads.
  • Pull the harnesses through the fabric.
• Lift off the fabric.

Attaching the fabric:

• Stick the harnesses back through the openings in the fabric.
• Pull the fabric back onto the seat.
• Pull the pads back onto the harnesses.
• Insert the support pillow again.

Chers parents,

A

B

G

C

Illustration of a car seatbelt with a green cable and blue straps, showing a correct grip and adjustment (no text or symbols)

D

Diagram of a helmet with internal components and a close-up inset showing a blue tool interacting with the helmet (no text or symbols present)

H

E

F

3D diagram of a mechanical component with numbered parts (1, 2, and a label) indicating specific parts, no text or symbols present.

I

Mode d'emploi :

We recommend the following accessories for the Bergsteiger prams. The exact fi t and opti mal functi on of these have been certi fi ed by us. That way, you can be sure that these accessories are tailored to opti mally fi t your pram.

F Accessoires

Prams manufactured by Bergsteiger are extremely low maintenance and are characterized by their quality and durability. Our designs are sturdy and carefully conceived. With the proper care, you will enjoy your pram for a very long time. However, should there be a defect of any kind, you can order the required spare parts. Wear parts such as hoses or tyres can also be purchased directly from your assigned sales representative.

Contact us at [e-mail] and let us know if you have any concerns.

We will take care of everything else for you.

Light blue background with white line drawings of various flowers and dots (no text or symbols)
