Dreami - Stroller QUINNY - Free user manual and instructions

Product Type	Stroller / Bassinet / Convertible Carrycot
Brand	Quinny
Model	Dreami
Recommended Use	From birth up to 7 kg or until the child starts getting on all fours
Maximum Weight Capacity	7 kg (15 lb)
Main Materials	Fabric, plastic, metal
Main Functions	Can be used as a bassinet for sleeping or as a carrycot on a stroller
Canopy	Foldable with viewing window
Cleaning of cover and canopy	Wipe with a damp cloth, do not use abrasive cleaners
Cleaning of mattress and liner	Hand wash in cold water with mild detergent, do not use bleach, hang to dry, do not iron
Safety	Never leave a child unattended
Safety	Always apply the brakes when the carrycot is stopped
Safety	Do not use if parts are missing or broken
Safety	Do not place items with cords around the neck
Replacement Parts	Available by contacting customer service: [phone]
Warranty	2-year limited warranty
Country of Manufacture	China
Assembly Instructions	Assemble the carrycot onto the stroller using adapters
Canopy Folding	Press the release buttons to unlock then lower the frame
General Maintenance	Do not lubricate moving parts

Frequently Asked Questions - Dreami QUINNY

What is the difference between using it as a bassinet and as a carrycot?

The bassinet allows the baby to sleep safely, while the carrycot is designed to be used on the stroller. The maximum allowed weight is 7 kg in both cases.

Up to what age or weight can I use the Quinny Dreami?

The Dreami can be used until the child reaches 7 kg (15 lb) or starts getting on all fours, whichever comes first.

How do I install the Dreami on my Quinny stroller?

Place the carrycot with the foot end towards the handles, then snap it onto the adapters until you hear a click. Pull up on the handle to check it is securely attached.

How do I fold the canopy of the Dreami?

Press a release button to unlock, then press the opposite button while lowering the canopy frame.

How do I clean the cover and mattress of the Dreami?

The cover and canopy can be wiped with a damp cloth without abrasive cleaner. The mattress and liner should be hand washed in cold water with mild detergent, no bleach, and hung to dry. Do not iron.

What are the important safety instructions?

Never leave the child unattended. Always apply the brakes when the carrycot is stopped. Do not use on elevated surfaces. Do not add additional bedding. Do not use plastic bags as mattress covers.

What should I do if a part is missing or broken?

Contact customer service at [phone] for replacement parts or an instruction manual. Do not return the product to the store.

What is the product warranty?

The Quinny Dreami comes with a 2-year limited warranty from the date of purchase against defects in materials or workmanship. The warranty is void if modified or abused.

Can I use a different mattress than the one provided?

No, use only the mattress provided by the manufacturer. Adding an extra mattress or non-compliant bedding increases the risk of suffocation.

How do I attach the rigid cover?

Staple the two staples on each side of the bassinet frame, attach the adhesive strips on the outside, then pull the bottom of the cover over the edge of the bassinet.

USER MANUAL Dreami QUINNY

French Guide Included

Contents Warnings i-1 Parts List /Features 2 To fold the canopy 3 To Use 3 To attach cover To remove from stroller

Care & Maintenance 4 To remove the lining To attach the mattress and lining Warranty 4

WHEN USING YOUR dreami AS A BASSINET: WARNING - Failure to follow these warnings and instructions could result in serious injury or death. FALL HAZARD - To help prevent falls, do not use this product when the infant begins to push up on hands and knees or has reached 15-LBS (7-kg), whichever comes first. Child's movement can slide bassinet. NEVER place bassinet near edges of counter tops, tables or other elevated surfaces. SUFFOCATION HAZARD - Infants can suffocate: · In gaps between an extra pad and side of the bassinet · On soft bedding.

· NEVER add a mattress, pillow, comforter, or padding. Use ONLY the pad provided by manufacturer. · Use ONLY the bedding provided by the manufacturer · If a sheet is used with the pad, use only the one provided by the bassinet manufacturer or one specifically designed to fit the dimension of the bassinet or cradle mattress. · To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician. · Strings can cause strangulation! Do not place items with a string around a child's neck, such as a hood string or pacifier cords. Do not suspend strings over a bassinet or attach strings to toys. · CHECK your child frequently, accidents can happen quickly. · DO NOT place more than one infant in the bassinet · DO NOT allow children to play on or around bassinet · DO NOT use bassinet in a motor vehicle. · DO NOT USE bassinet if any parts are missing or

dreami

Warnings

broken. Contact Consumer Relations for replacement parts and instructional literature if needed.

• NEVER use plastic shipping bags or other plastic film as a mattress cover. They are not sold or intended for that purpose as they can cause suffocation.

WHEN USING YOUR dreami AS A CARRIAGE:

WARNING: NEVER

LEAVE CHILD UNATTENDED

FOR THE SAFETY OF YOUR CHILD, PLEASE READ THE FOLLOWING WARNINGS AND ASSEMBLY INSTRUCTIONS AND KEEP FOR FUTURE REFEREN

• CARRIAGE is only for use with children up to 15-LBS. (7-kg).
  NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when in carriage.
• This product will become unstable if a parcel bag or rack is used when there is no provision for one.
• This product may become unstable if a parcel bag, other than the one recommended by the manufacturer is used.
• This product will become unstable if the manufacturer's recommended load is exceeded.
  DO NOT carry additional children, goods or accessories in or on this product except as recommended by the manufacturer's instructions.
  ALWAYS keep fingers away from moving parts when folding, unfolding or adjusting stroller to prevent

finger entrapment.

• ALWAYS make sure carriage is FULLY OPEN AND LOCKED before using.
• ALWAYS use the brakes when carriage is stopped.
• ALWAYS remove protective material and poly bags and dispose before assembly.
• NEVER use carriage on stairs or escalators.
• NEVER allow children to play with or hang onto the carriage.
• NEVER use this bassinet as a means to transport an infant in a motor vehicle.
• NEVER allow children to climb into the carriage. Carriage may tip over and injure child.

NEVER place or hang parcels, bags or accessories on a canopy. The carriage may tip over or the canopy may collapse.

ONLY use this carriage with ONE child at a time.

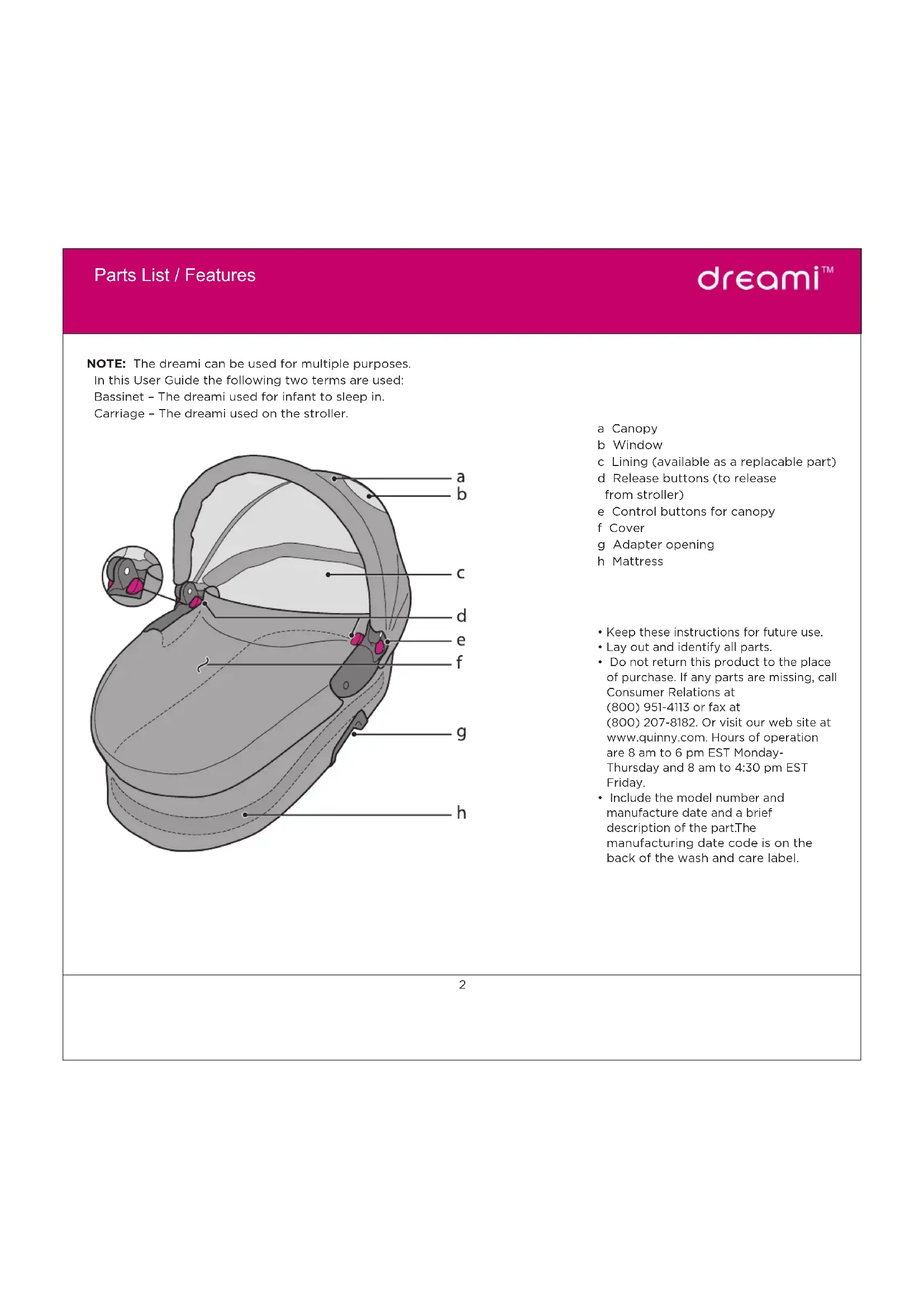

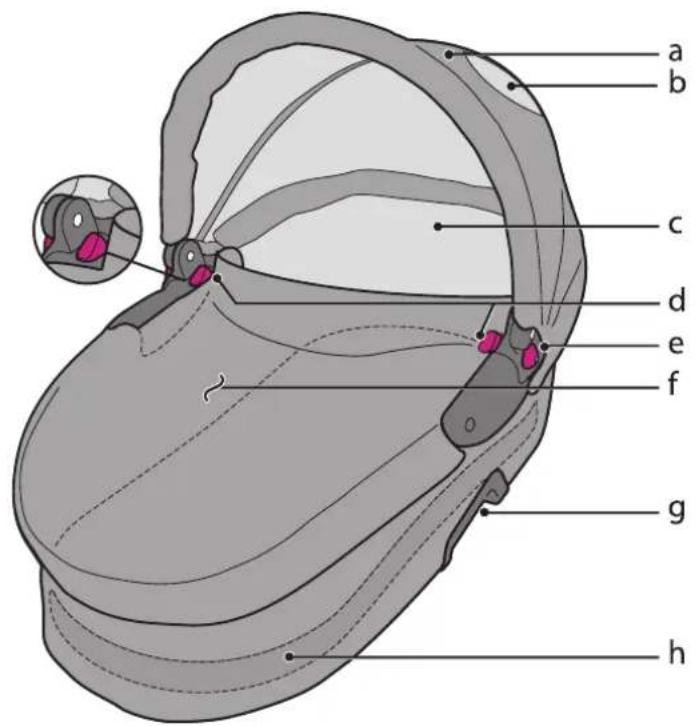

Parts List / Features

dreami

NOTE: The dreami can be used for multiple purposes.

In this User Guide the following two terms are used:

Bassinet - The dreami used for infant to sleep in.

Carriage - The dreami used on the stroller.

a Canopy
b Window
c Lining (available as a replacable part)
d Release buttons (to release
from stroller)
e Control buttons for canopy
f Cover
g Adapter opening
h Mattress

• Keep these instructions for future use.
• Lay out and identify all parts.
• Do not return this product to the place of purchase. If any parts are missing, call Consumer Relations at [phone] or fax at [phone]. Or visit our web site at www.quinny.com. Hours of operation are 8 am to 6 pm EST Monday-Thursday and 8 am to 4:30 pm EST Friday.
• Include the model number and manufacture date and a brief description of the part. The manufacturing date code is on the back of the wash and care label.

dreami

To Use

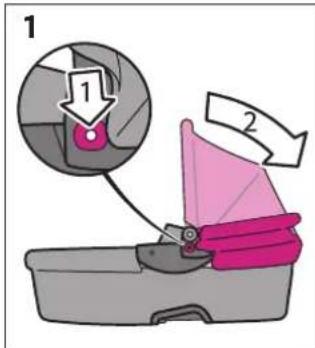

To fold the canopy:

1 Press one of the control buttons down (on either side of the dreami) to release the lock (Figure 1, arrow 1).

Press button on opposite side while pushing canopy frame down (Figure 1, arrow 2).

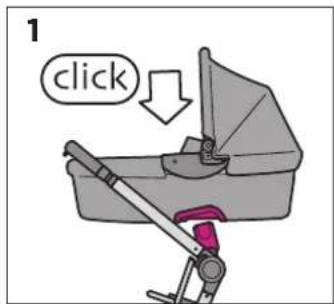

To mount stroller:

1 Position the dreami with the foot of the dreami toward the handlebar as shown (Figure 1). Place the dreami on the adapters until you hear a "click."

Pull up on the dreami to ensure it is securely in place. The dreami should not release without pushing the release buttons.

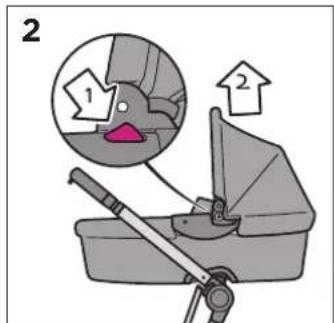

To remove dreamiTM from stroller:

2 Press both release buttons Inside canopy (1) while pulling up on the dreami (2) (Figure 2).

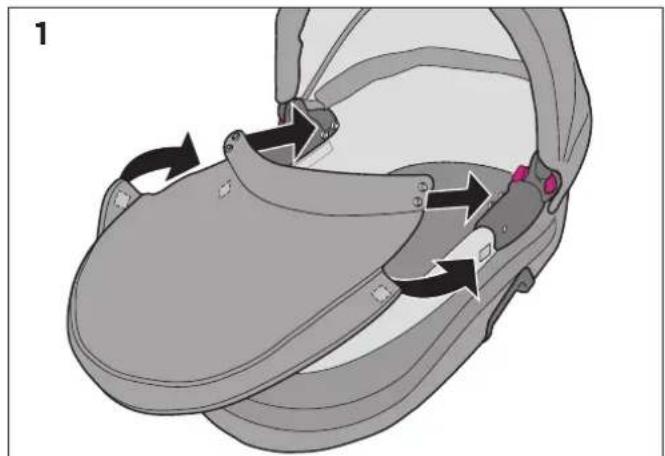

To attach cover:

2 Secure two snaps inside each side of the bassinet frame. Secure adhesive patch outside each side of the bassinet frame (Figure 1).

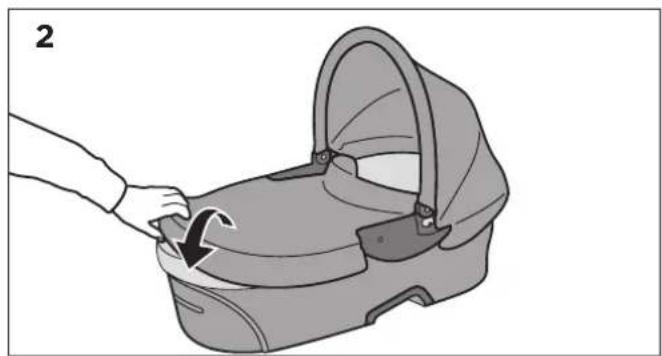

Pull bottom of cover over edge of bassinet down (Figure 2).

Care & Maintenance

Warranty

dreami

Care and maintenance:

Washing the cover, restraint and canopy:

• Do not lubricate the moving parts on the dreami.
• Wipe using a damp cloth. Do not use harsh cleaning agents.

Washing the mattress and removable lining:

• Hand wash in cool water. Use only mild detergent. DO NOT BLEACH. Line dry. Do not iron.

To remove the lining:

1 Remove the side from under the under the canopy control buttons and unhook (Figure 1).

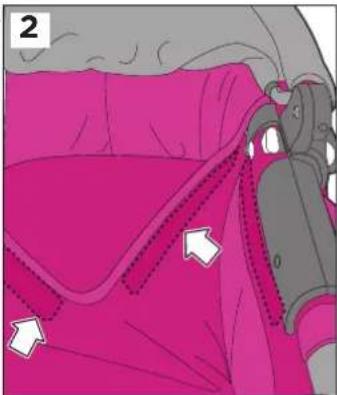

2 Pull the lining away from the sides and foot of the dreami to unfasten the adhesive strips (Figure 2).

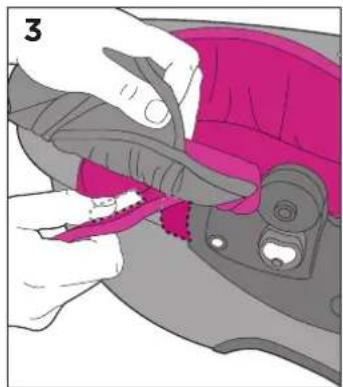

3 Pull lining away from the outside and feed it under the canopy (Figure 3).

To attach the mattress and lining:

To refasten the lining, follow the above instructions in reverse order. Be sure that all hooks and adhesive strips are secured in

place. DO NOT use the dreami without the lining and mattress.

Two-Year Limited Warranty

Dorel Juvenile Group, Inc. warrants to the original purchaser that this product (dreami), is free from material and workmanship defects when used under normal conditions for a period of two (2) years from the date of purchase. Should the product contain defects in material or workmanship Dorel Juvenile Group, Inc., will repair or replace the product, at our option, free of charge. Purchaser will be responsible for all costs associated with packaging and shipping the product to Dorel Juvenile Group Consumer Relations Department at the address noted on the front of this document and all other freight or insurance costs associated with the return. Dorel Juvenile Group will bear the cost of shipping the repaired or replaced product to the purchaser. Product should be returned in its original package accompanied by a proof of purchase, either a sales receipt or other proof that the product is within the warranty period. This warranty is void if the owner repairs or modifies the product or the product has been damaged as a result of misuse.

This warranty excludes any liability other than that expressly stated previously, including but not limited to, any incidental or inconsequential damages.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT MAY VARY FROM STATE TO STATE.

Distributed by (distribué par) Dorel Juvenile Group, Inc., 2525 State St., Columbus, IN 47201-7494

Dorel Distribution Canada, 873 Hodge, St. Laurent, QC H4N 2B1

08/10/10 4358-5348
