Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

SER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

ING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

ION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

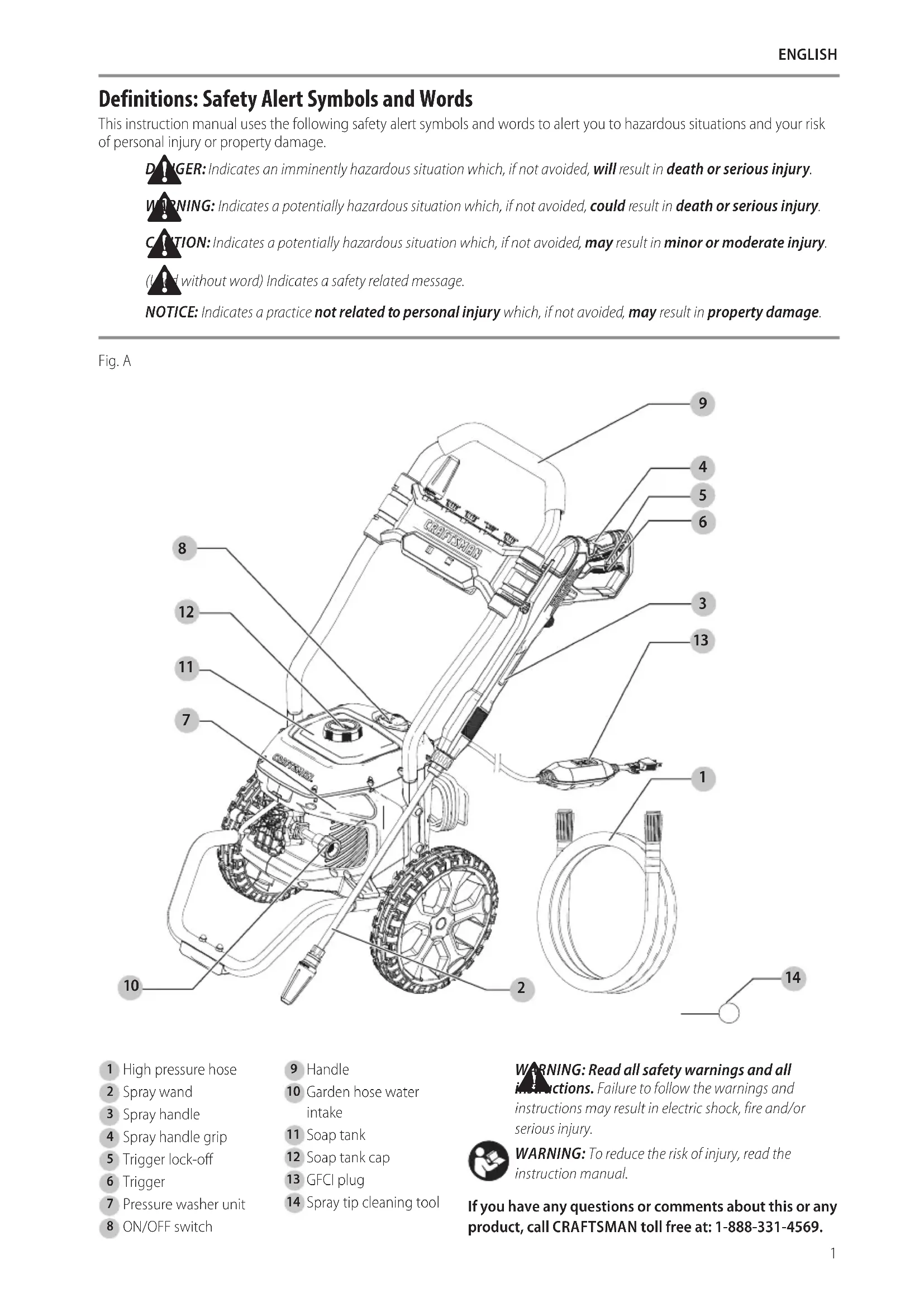

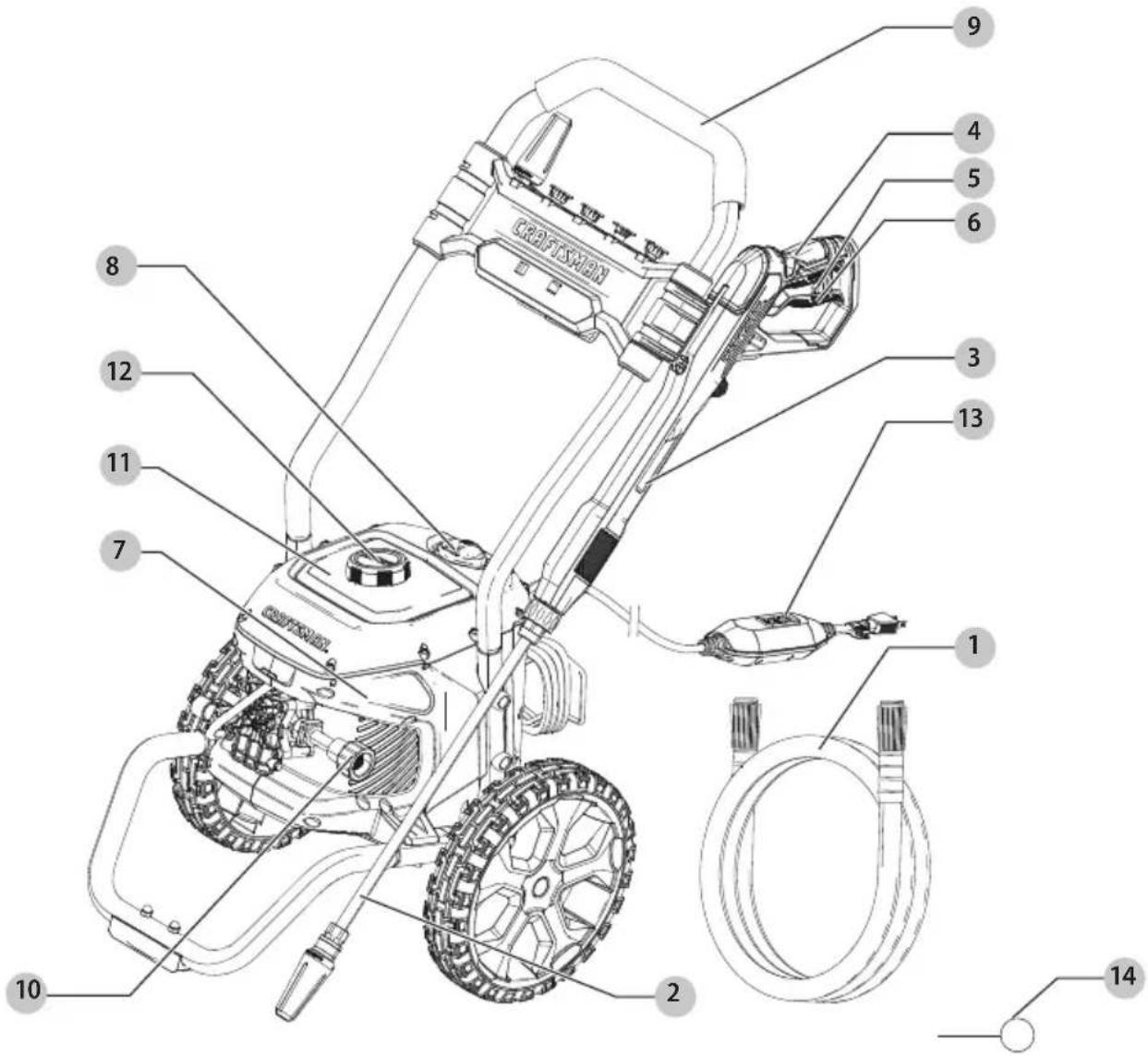

Fig. A

1 High pressure hose
2 Spray wand
3 Spray handle
4 Spray handle grip
5 Trigger lock-off
6 Trigger
7 Pressure washer unit
8 ON/OFF switch

9 Handle
10 Garden hose water intake
11 Soap tank
12 Soap tank cap
13 GFCI plug
14 Spray tip cleaning tool

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any product, call CRAFTSMAN toll free at: 1-888-331-4569.

Electric Pressure Washer CMEPW2100

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using this appliance, basic safety provisions should always be followed including the following:

• Read all the instructions before using the product.
• To reduce the risk of injury, close supervision is necessary when a product is used near children.
• Know how to stop the product and bleed pressures quickly. Be thoroughly familiar with the controls.
• Stay alert - watch what you are doing.
• Do not operate the product when fatigued or under the influence of alcohol or drugs.
• Keep operating area clear of all persons.
• Do not overreach or stand on unstable support. Keep good footing and balance at all times.
• Follow the maintenance instructions specified in the manual.
• This product is provided with a ground fault circuit interrupter built into the power cord plug. If replacement of the plug or cord is needed, use only identical replacement parts.

CAUTION: risk of injection or injury - do not direct overcharge stream at persons."

SAVE THESE INSTRUCTIONS

WARNING: Please read this entire manual before attempting to assemble, operate or install the product.

WARNING: This unit was designed for specific applications. It should not be modified and/or used for any application other than that which it was designed.

NOTICE: Always store your pressure washer in a location where the temperature will not fall below 4^. freeze damage is not covered by the warranty.

WARNING: This product and its exhaust can expose yea chemicals including lead and lead compounds, and carbon monoxide, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www. P65Warnings.ca.gov.

1. Do not touch plug or outlet with wet hands.
2. Avoid accidental starts. Move switch on unit to OFF position before connecting or disconnecting cord to electrical outlets.
3. Water spray must never be directed towards any electric wiring or directly towards the pressure washer machine itself or fatal electric shock may occur.

4. Never carry your pressure washer by the cord. Do not pull on the cord to disconnect from the outlet.

5. To prevent damage, the cord should not be crushed, placed next to sharp objects or near a heat source.

6. Check power cords before using. Damaged cords can reduce performance of pressure washer or cause a fatal electrical shock
7. The narrow pin point stream is very powerful. It is not recommended for use on painted surfaces, wood surfaces or items attached with an adhesive backing.
8. Keep operating area clear of all persons and animals.
9. Always use both hands when operating pressure washer to maintain complete control of the wand.
10. Do not touch nozzle or water spray while operating. Never place hands in front of nozzle.
11. Wear safety goggles while operating. Wear protective clothing and footwear to protect against accidental spraying.
12. Disconnect power plug from the outlet when not in use and prior to the detaching of the high pressure hose.
13. Never tie knots or kink the high pressure hose as damage could result. Inspect the high-pressure hose regularly. Replace the hose immediately if it is damaged, worn or shows any signs of cracks, bubbles, pinholes, or other leakage. Never grasp a high-pressure hose that is leaking or damaged.
14. Do not operate or store this product in temperatures below 4^ . Freeze damage is not covered by the warranty.
15. Carefully observe all chemical instructions and warnings before using. Use only approved pressure washer cleaners. Do not use bleach, chlorine, or any cleaners containing acids. Always follow manufacturer's label recommendations for proper use of cleaners. Always protect eyes, skin and respiratory system from cleaners.
16. The pressure washer should not be used in areas where gas vapors may be present. An electric spark could cause an explosion or fire.
17. To minimize the amount of water getting into the pressure washer, the unit should be placed as far as possible from the cleaning site during operation.
18. To prevent accidental discharge, the spray gun should be secured by locking the trigger when not in use.
19. To allow free air circulation, the pressure washer should NOT be covered during operation.
20. Never touch, grasp or attempt to cover a pinhole or similar water leak on the high-pressure hose. The stream of water IS under high pressure and WILL penetrate skin.
21. Use only hoses and accessories rated for pressure higher than your pressure washer's psi. Never use with any other manufacturer's accessories or components.

22. Never defeat the safety features of this product.

23. Do not operate machine with missing, broken or unauthorised parts.

24. Never spray flammable liquids or use pressure washer in areas containing combustible dust, liquid, or vapors.
25. DO NOT use an extension cord with this pressure washer.

GROUND FAULT CIRCUIT INTERRUPTER PROTECTION

This pressure washer is provided with a ground-fault circuit-interrupter (GFCI) built into the plug of the power-supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.

EXTENSION CORDS

Use only extension cords that are intended for outdoor use. These extension cords are identified by a marking "Acceptable for use with outdoor appliances; store indoors while not in use." Use only extension cords having an electrical rating not less than the rating of the product. Do not use damaged extension cords. Examine extension cord before using and replace if damaged. Do not abuse extension cord and do not yank on any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect the extension cord from the receptacle before disconnecting the product from the extension cord.

WARNING: To reduce the risk of electrocution, keep connections dry and OFF the ground. Do not touch plug with wet hands.

SERVICING OF A DOUBLE-INSULATED APPLIANCE

In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated product, nor should a means for grounding be added to the product. Servicing a double-insulated product requires extreme care and knowledge of the system, and should be done only by qualified service personnel. Replacement parts for a double-insulated product must be identical to the parts they replace. A double-insulated product is marked with the words "DOUBLE INSULATION" or "DOUBLE INSULATED." The symbol may also be marked on the product.

Additional Safety Information

WARNING: Never modify the power tool or any part of the damage or personal injury could result.

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

ANSI Z87.1 eye protection (CAN/CSA Z94.3)
ANSI S12.6 (S3.19) hearing protection,
- NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust contains chemicals known to cause of California to cause cancer, birth defects

or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers,
• compounds in insecticides, herbicides and pesticides,
• arsenic and chromium from chemically treated lumber.

To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19)

during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.
- An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet(meters)
120 V 25 (7.6)		50 (15.2)	100 (30.5)	150 (45.7)
240 V 50 (15.2)		100 (30.5)	200 (61.0)	300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
06 18	16 16 14
6 10	18 16 14 12
10 12	16 16 14 12
12 16	14 12 Not Recommended

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V.......volts

Class Construction

Hz .........hertz

(grounded)

min.........minutes

../min...per minute

=or DC....direct current

BPM... .beats per minute

IPM............impacts per minute

English

RPM . revolutionsper n . rated speed

minute

• .earthing terminal

sfpm surface feet per

minute 3 visible radiation

SPM.........strokes per minute avoid staring at

OPM. .oscillationsper light

minute

wearrespiratory

protection

A. amperes

W.....watts

weareye

protection

or AC......alternating current

or AC/DC....alternatingor

direct current

O............wearhearing

protection

Classll

Construction

(double insulated) PXX .IPsymbol

no load speed

Motor

Be sure your power supply agrees with the nameplate marking. Voltage decrease of more than 10% will cause loss of power and overheating. These tools are factory tested; if this tool does not operate, check power supply.

Intended Use

This pressure washer is intended for cleaning boats, cars, decks, driveways, grills, house siding, motorcycles, patios, and outdoor furniture.

DO nOT let children come into contact with the tool.

Supervision is required when inexperienced operators use this tool.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

Specifications
Maximum Pounds per Square Inch 2,100
Rated Gallons per Minute* 1.2
Electrical Requirements 120V	AC ~60Hz, 13A
Electrical Cord 35 ft. (10.6 m)
High Pressure Hose 25 ft. (7.6 m)
Minimum Amp Source 15A
Pressure of Inlet Water* 20-100 PSI
Inlet Water Cold Tap
Soap Consumption Rate 10% MAX

*Water flow and maximum pressure ratings determined in accordance with CETA CPC-100.

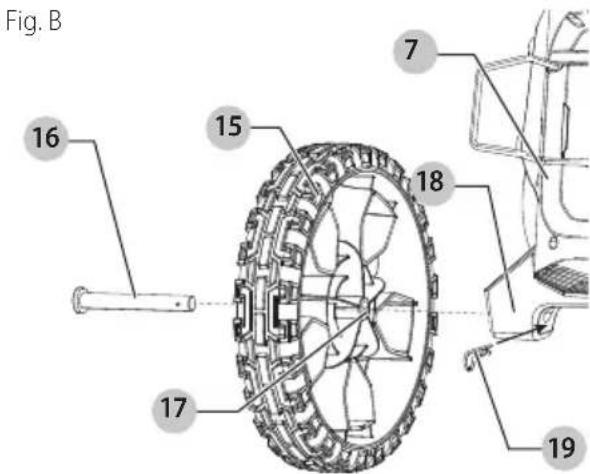

Assemble Wheels (Fig. B)

Your pressure washer is not fully assembled in the carton.

1. To assemble the wheels 15 to the pressure washer unit 7, insert an axle pin 16 through the wheel hub 17. NOTE: Follow this process for left and right wheels.
2. With the wheel attached, insert the axle pin 16 into the axle bracket 18 and install the retaining pin 19 as shown in Fig. B to the axle pin 16 until it snaps into place. NOTE: Follow this process for left and right wheels.
3. Ensure wheels 15 are fully secured to the axle bracket 18.

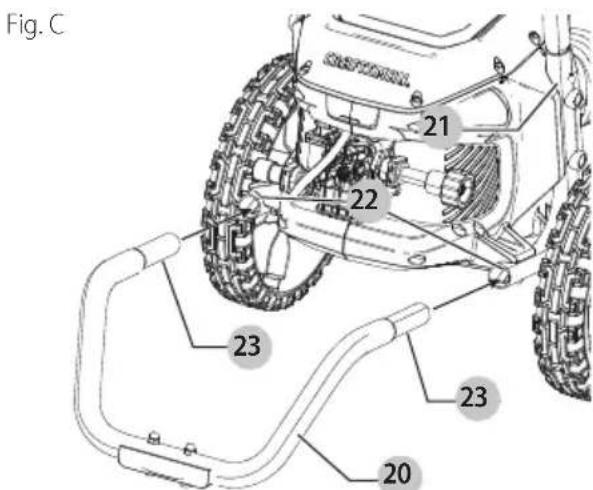

Assemble Lower Frame kickstand (Fig. C)

Your pressure washer is not fully assembled in the carton.

1. To assemble the lower frame kickstand 20 to the frame 21, align the frame poles 22 with the kickstand poles 20 so the detent pins 23 snap into position.

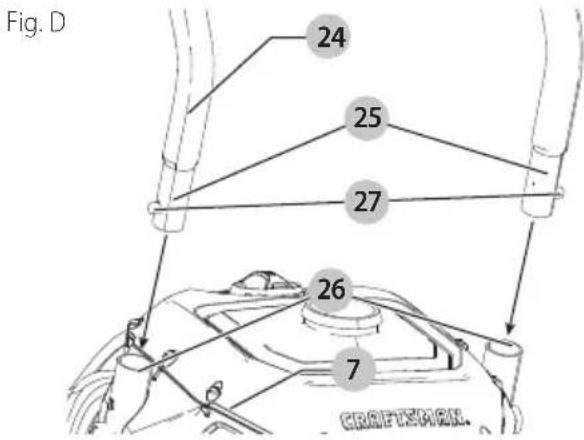

Assemble Frame Handle (Fig. D)

Your pressure washer is not fully assembled in the carton.

1. To assemble the frame handle 24 to the pressure washer unit 7, align the upper poles 25 with the lower poles 26 so the detent pins 27 snap into position.

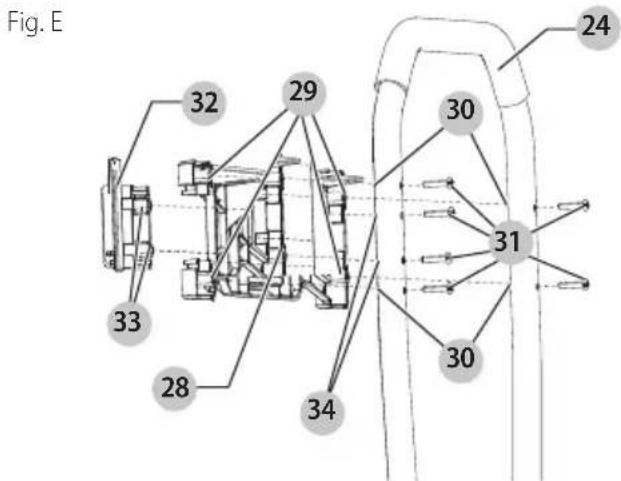

Assemble Crossmember and Spray Handle Storage Hook (Fig. E)

Your pressure washer is not fully assembled in the carton.

1. To assemble the crossmember 28 to the frame handle 24, align the four screw tabs 29 on the back of the crossmember 28 with the with the four slots 30 in the frame handle 24 and place the crossmember 28 onto the frame handle 24.
2. Insert the four retaining screws 31 through the frame handle 24 and use a screwdriver to fully tighten the screws. Ensure the crossmember 28 is fully secured to the frame handle 24.
3. To assemble the spray handle storage hook 32 to the frame handle 24, align the two screw tabs 33 on the back of the spray handle storage hook 32 with the two slots 34 in the frame handle and place the spray handle storage hook 32 onto the frame handle 24.
4. Insert the two retaining screws 31 through the frame handle 24 and use a screwdriver to fully tighten the screws. Ensure the spray handle storage hook is fully secured to the frame handle.

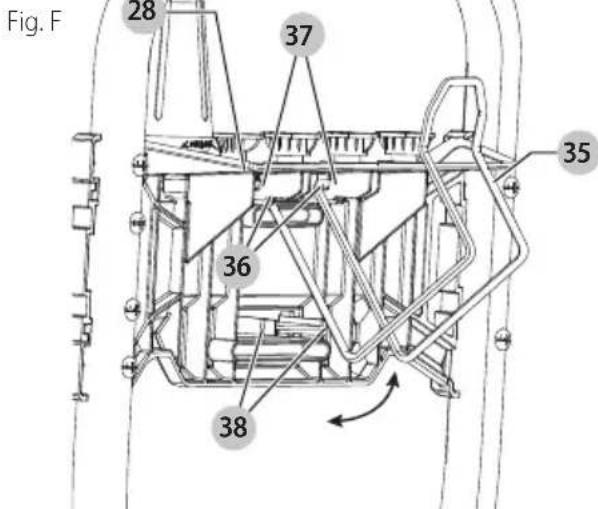

High Pressure Hose Storage Hook (Fig. F)

Your pressure washer is not fully assembled in the carton.

1. To assemble the high pressure hose storage hook 35 to the crossmember 28, squeeze the detent end 36 of the hook so it will slide between the retaining slots 37 on the rear of the crossmember 28.

2. Release the pressure hose storage hook 35 allowing the detents 36 to rest securely in the retaining slots 37.

3. Press the high pressure hose storage hook 35 onto the locking detents 38 on the rear of the crossmember 28 until it clicks into place.

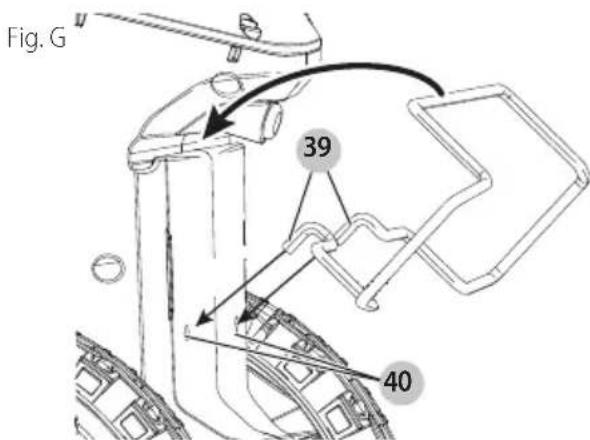

Power Cord Storage(Fig. G)

Your pressure washer is not fully assembled in the carton.

1. Insert power cord storage retaining hooks 39 into two retaining holes 40 as shown in Fig. G.
2. Rotate power cord storage upward and past the detent. The power cord storage will click firmly into place.

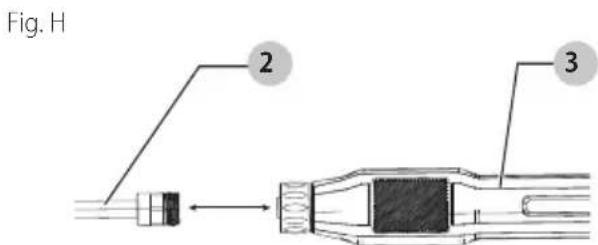

Attaching Spray Wand (Fig. H)

1. To connect the spray wand 2 to the spray handle 3, insert the end of the spray wand inside the spray handle and turn the spray wand clockwise until its firmly in working position.

English

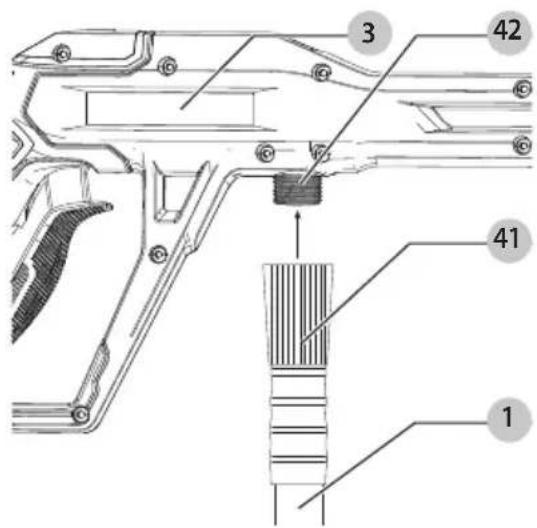

Attaching High Pressure Hose (Fig. I-K)

NOTICE: Never pull water supply hose to move pressure washer. This could damage hose and/or pump inlet.

1. To connect the high pressure hose 1 to the spray handle 3, screw the hose collar 41 onto the inlet coupler 42.
2. To connect the high pressure hose to the pressure washer unit 7, screw the hose collar 41 onto the high pressure water outlet 43.

NOTE: Uncoil the high pressure hose before installation to prevent kinks.

NOTE: Avoid cross threading when installing the hose. Cross threading will cause leaks.

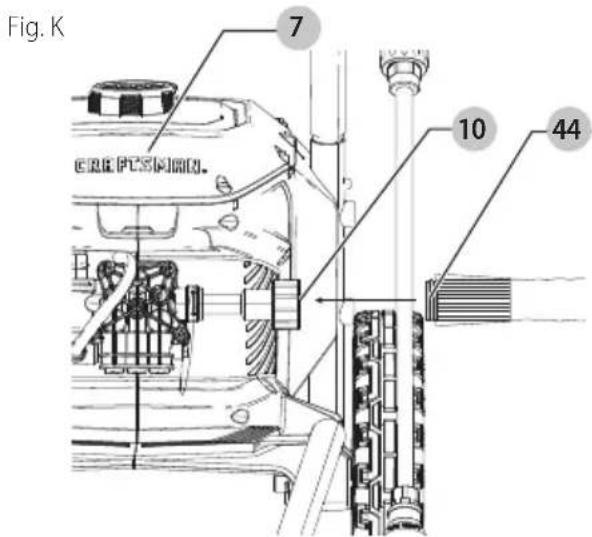

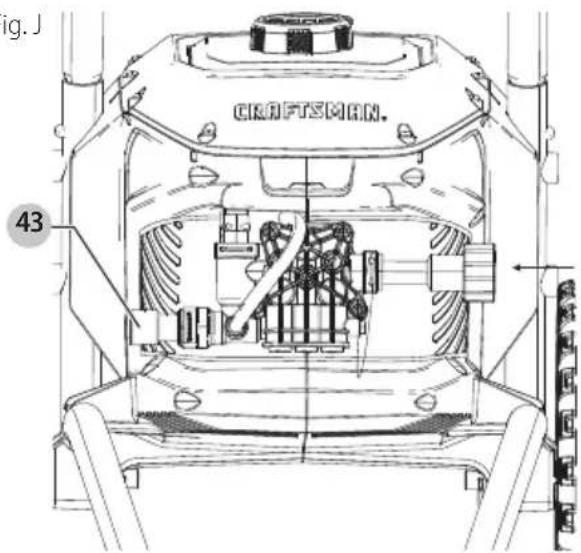

Attaching Garden Hose (Fig. K)

1. To connect a garden hose to the pressure washer unit 7, place the end of a garden hose 44 inside the water intake 10. Tighten the garden hose by hand.
2. Always disconnect the garden hose after usage. NOTE: Before connecting the garden hose to the pressure washer unit, run water through the garden hose for thirty seconds to clear any debris from the mouth of the garden pressure hose.

Fig.1

Fig.J

Attaching Nozzles (Fig. L)

DANGER: Risk of fluid injection. Do not direct large stream toward persons, unprotected skin, eyes or any pets or animals. Serious injury will occur. WARNING: Flying objects could cause risk of serious injury. DO NOT attempt to change nozzles while pressure washer is running. Turn pressure washer unit OFF before changing nozzles.

1. To connect a nozzle to the spray wand 2, pull the quick connect collar 45 toward the spray wand and insert the appropriate nozzle.
2. Release the quick connect collar to lock the nozzle in place.
3. To ensure nozzle is locked into place, give the nozzle a firm tug after the quick connect collar has locked into place.

Spray Tip Application

15^ Orange Nozzle For brick or masonry.

25^ Green Nozzle For vinyl siding.

40^ White Nozzle For automotive washing.

Soap Nozzle For gentle wide area cleaning.

Black Turbo Nozzle For abrasive cleaning.

Fig. L

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit OFF and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

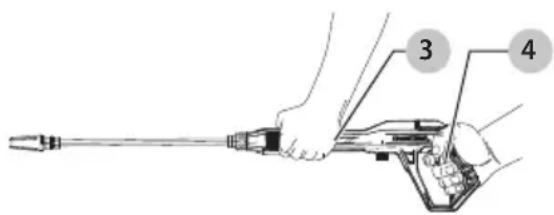

Proper Hand Position (Fig. M)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.
WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the spray handle grip 4 and the other hand on the spray handle 3.

Fig. M

Test Ground-Fault Circuit-Interrupter (GFCI) Before Each Use (Flg. A)

This pressure washer is provided with a ground-fault circuit-interrupter (GFCI) built into the plug of the power-supply cord. This device provides additional protection from the risk of electric shock.

1. Plug the Ground Fault Circuit Interrupter (GFCI) into a working grounded outlet.
2. The indicator at the top of the GFCI should turn green when product is ready to use.
3. Press the "TEST" button (bottom). The green indicator should disappear.
4. Press "RESET" button for use. Do not use if the above test fails.

Pressure Washing

Preparing Surface for Cleaning

• Remove objects from the area which could create a hazard such as children's toys or outdoor furniture.
• Insure that all doors and windows are closed tight. Protect all plants and trees in the adjacent area with a drop cloth ensuring that they will not be harmed by any overspray.
• Pre-rinse cleaning area with fresh water.
• Use only detergents formulated for pressure washers.
• Always test detergent in an inconspicuous area before use.

Preparing Pressure Washer Unit for Use (Fig. A)

DANGER: Risk of fluid injection and laceration. Using the high-pressure setting, DO NOT allow the high-pressure spray to come in contact with

unprotected skin, eyes, or with any pets or animals. Serious injury will occur.

ION: Before operation:

• Connect the water supply to the pressure washer. For instructions on connecting the water supply to the pressure washer, please refer to Attaching Garden Hose under Assembly and Adjustments.
• Connect the High pressure hose to the pressure washer and the pressure wand. For instructions on connecting the High pressure hose to the pressure washer and pressure wand, please refer to Attaching High Pressure Hose under Assembly and Adjustments.

Preparing Spray Handle (Fig. A)

IMPORTANT: Before turning on the pressure washer unit, disengage the trigger lock-off 5 and squeeze the trigger 6. Hold the trigger for 30 seconds to purge the system of air. If air is still found in the water stream, continue to run water through the spray handle.

1. Disengage the trigger lock-off 5
2. Squeeze the trigger 6.

Cleaning a Surface (Fig. A, N)

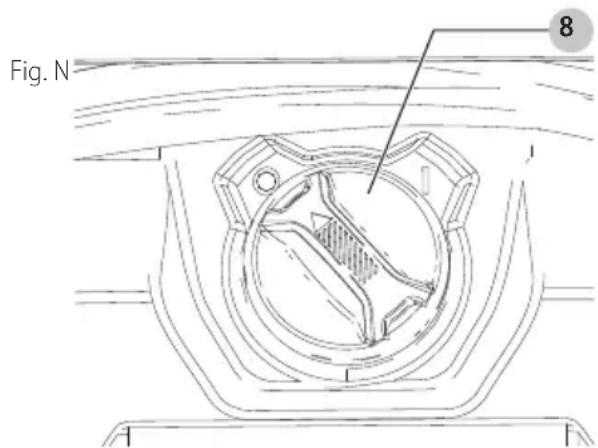

• To start the pressure washer, rotate the ON/OFF switch 8 to the ON position.
• The best angle for spraying water against a cleaning surface is 45^ . Spraying head on tends to cause dirt particles to imbed in the surface. When working on vertical surfaces, it is best to apply detergent starting at the bottom and working upwards which will prevent the detergent from sliding down and causing streaks.

To disengage the spray handle, release the trigger.

NOTE: Excessive pump pressure may be the result of a clogged nozzle or brass coupling. Always turn OFF the pressure washer unit and unplug the unit before attempting to unclog a nozzle or brass coupler.

Moving the Pressure Washer (Fig. A)

1. Turn OFF the pressure washer unit 7 by rotating the ON/OFF switch 8 to the OFF position and then turn OFF the water supply.
2. Point the spray wand 2 in a safe direction and pull the trigger 6 to release remaining water pressure.
3. When the spray wand is completely empty, pull the pressure washer by the handle 9.

English

Shutdown (Fig. A)

1. To stop the pressure washer, rotate the ON/OFF switch 8 to the OFF position and unplug the cord from the outlet.
2. Turn OFF water at the faucet.
3. Discharge residual pressure by squeezing the trigger 6 until no more water comes out of the spray wand 2.
4. Engage the spray handle lock-off 5
5. Disconnect the garden hose from the water intake 10.
6. Disconnect the high pressure hose 1 from the high pressure water outlet 43 and drain the hose.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

Cleaning

WARNING: Blow dirt and dust out of all air vents with dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Nozzle

If the nozzle becomes clogged with foreign materials, such as dirt, excessive pressure may develop. If the nozzle becomes partially clogged or restricted, the pump pressure will pulsate. Clean the nozzle immediately using the nozzle cleaner.

1. Shut OFF the pressure washer unit 7 and turn OFF the water supply.
2. Pull trigger 6 on spray handle 3 to relieve any water pressure.
3. Remove the nozzle from the spray wand 2 by pulling the quick connect collar 45 toward the spray wand.
4. Using the spray tip cleaning tool 14, unclog any debris from the nozzle.
5. Run water from a faucet or garden hose through the nozzle.

Soap Tank (O, P)

To clean the soap tank, decouple the hose from the pump.

1. Shut OFF the pressure washer and turn OFF the water supply.
2. Pull trigger on gun handle to relieve any water pressure.

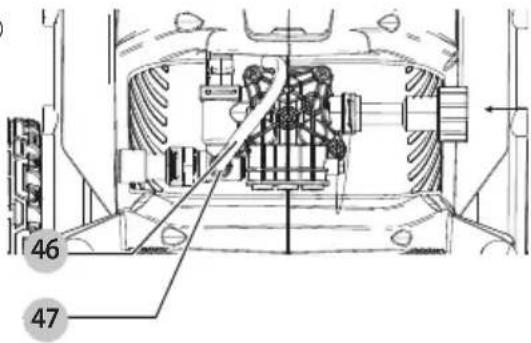

3. Decouple the soap tank hose 46 from the soap tank hose inlet 47.

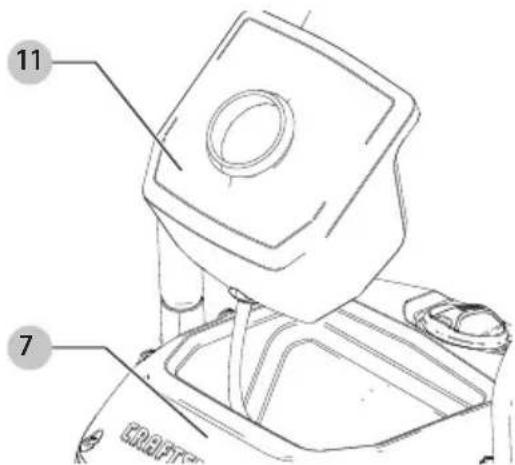

4. Lift the soap tank 11 out of the pressure washer unit 7
5. To clean the soap tank 11, empty any remaining detergent back into its bottle. Use water from a garden hose to thoroughly rinse out the tank. Empty the tank and allow it to dry.

Fig. O

Fig. P

Storage (Fig. Q)

• Store in a dry, covered location above freezing temperature. sTORE inDOORS.
• Always completely empty water from high pressure hose, pressure washer unit, spray wand, nozzles, soap bottle, and pressure wand handle.

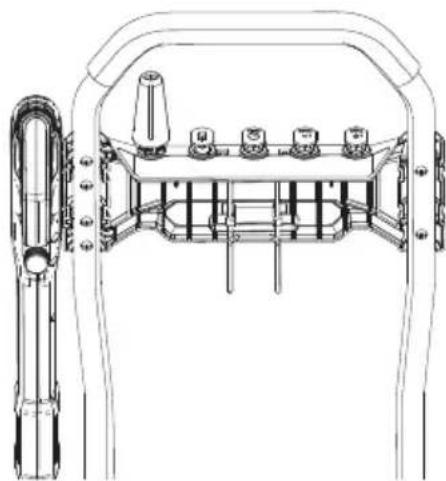

• Nozzles can be stored on the cross member as shown in Fig. Q.

Fig. Q

Accessories

WARNING: Since accessories, other than those used by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with this product.

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN call 1-888-331-4569.

Repairs

WARNING: To assure product SAFETY and REACHABILITY, repairs, maintenance and adjustment (including power cord repairs, and brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
  CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
  FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
• Register online at www.craftsman.com/registration

Three Year Limited Warranty

CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDING ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund - no questions asked.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

TROUBLESHOOTING

WARNING: Risk of Unsafe Operation. Before servicing unit unplug or disconnect electrical supply, turn water supply off, discharge residual pressure, and engage spray handle lock-off.

PROBLEM CAUsE CORRECTION

Motor does not start.. Unit not plugged in. Plug in power cord.
	ON/OFF switch is in the OFF position. Turn switch to the "On" position.
	Wand trigger not being squeezed. Squeeze trigger with switch in "ON" position.
	GFCI tripped. Press reset button at GFCI on plug end of cord.
Unit does not reach high pressure. Water faucet not fully turned on. Open water valve fully.
	Water inlet filter clogged. Remove filter and rinse to clean.
	Nozzle worn. Contact CRAFTSMAN customer service representative at 1-888-331-4569.
	Pump is sucking air.	Check that hoses and fittings are air tight. Turn OFF machine and purge pump by squeezing trigger gun until a steady flow of water emerges from the nozzle.
	Water supply restricted. Check water hose for kinks, leaks and blockage.
Output pressure varies high/low.	Not enough inlet water supply.	Turn water on full force - check hose for leaks and kinks.
	Pump is sucking air.	Check that hoses and fittings are air tight. Turn OFF machine and purge pump by squeezing trigger gun until a steady flow of water emerges from the nozzle.
	Water inlet screen clogged.	To unclog, rinse OFF with water.
	Discharge nozzle is obstructed.	Blow out or remove debris.
No detergent.	Detergent container is empty.	Add more detergent.
	Detergent bottle or suction tube not properly connected.	Check connections.
	Detergent is too thick.	Use detergent recommended for use in pressure washers only.
	Filter on detergent suction tube is clogged.	Run warm water through filter to remove debris.
	Damaged or clogged detergent suction tube.	Remove obstruction or replace detergent suction tube.
	Discharge nozzle is obstructed.	Blow out or remove debris.
Garden hose connection leaks.	Loose fittings.	Tighten fittings.
	Missing/worn rubber washer.	Replace washer in hose adapter.
Spray wand or extension leaks.	Spray wand not properly attached.	Insert the spray wand into the wand extension. Push in and turn to lock spray wand into place.
	Broken O-ring.	Contact CRAFTSMAN customer service representative at 1-888-331-4569.
Pump is excessively noisy.	Pump is sucking air.	Check that hoses and fittings are air tight. Turn OFF machine and purge pump by squeezing trigger gun until a steady flow of water emerges from the nozzle.
Water leaks from pump.	Loose fittings.	Check that all fittings are tight.
	Water seals are damaged or worn.	Contact CRAFTSMAN customer service representative at 1-888-331-4569.
Oil leaks.	Oil seals are damaged or worn.	Contact CRAFTSMAN customer service representative at 1-888-331-4569.
Motor buzzes but fails to run.	Supply voltage below minimum.	Verify that only the pressure washer is running on this circuit.
	System has residual pressure.	Turn unit off, squeeze trigger on spray wand to release pressure, then turn unit on.
	Voltage loss due to extension cord.	Do not use extension cord with this unit - plug directly into outlet.
	Cleaner not used for long periods.	Contact CRAFTSMAN customer service representative at 1-888-331-4569.

Nettoyerune surface (Fig.A,N)

REEMPLACEMENT Gratisuit DES ETIQUETTES

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

Especificaiones
