USER MANUAL LPad Universe LETAB1003 Leotec

Abstract blue background with white geometric shapes and scattered dots (no text or symbols)

Thank you for choosing this LEOTEC product. We hope it will satisfy you totally and will work perfectly for a long time. This Tablet with Android ^™ operating system allows you to download many applications (Apps) and take full advantage of all the Internert potential (surf the net, send and receive emails, download widgets, etc.), as you would on a laptop or desktop computer. Enjoy watching videos or listening to music, communicate over Internet with any instant messaging application or even read or edit office documents (text documents, spreadsheets, presentations, etc.)

The LEOTEC team

All information in this manual is correct at the time of publication. Now, to be updating and improving our products, the appearance or the device software may differ from those described in this manual. You can get updates through our website www.leotec.com

Attention:

This handbook contains important security measures and the correct use of the product information, in order to avoid accidents. Please make sure to reading the manual carefully before use the device.

• Please don't be in high temperature, moisture or very dust place
• Please don't be in high temperature, especially in summer don't put the device in the car when Windows closed.
• Avoid fall or Violent collision of the device, don't make the TFT display screen were violent tremor. This could cause TFT display screen abnormal or damage.

• Please choose the appropriate volume, Use headphones should not be too big volume, If feel tinnitus, Lower the volume or stop using it please charge In the following condition,

• The battery power ICONS shows have no power

• The system automatically shut off, startup after power off soon
• Operation buttons no response

• The machine that the top right corner show red icons

• When the device in the format or ongoing upload and download file, please don't suddenly disconnect. This could cause application error.

• For those who because of damage to the product, repair, or other causes of erased the memory, The company shall not be liable for any responsibility, please follow the user manual for the standardized operation to use the device.

- Don't disassemble the product, don't use alcohol Thinner or benzene to scrubbing products

- Don't use the device one of the place of prohibit to use electronic equipment in regional (such as the plane)

- Please don't using the Tablet PC when you in driving or walking down the street,

- USB just only be used for data transmission

The company reserves the right to improve product, products specification and design have any change. The information is subject to changes without prior notice.

Note that this device uses an operating system license AndroidTM free of charge so there can be substantial differences in the instructions in this manual regarding to those found in your device, as well as differences in the language of the displayed options due to operating system upgrades.

Remark All pictures in this manual is just for your reference. products specification and design have any change, The information is subject to changes without prior notice.

INTRODUCTION

First time use

Battery charge

Before using your LEOTEC L-Pad for the first time, fully charge the battery. Plug the adapter / charger. Caution: Use ONLY the charger / adapter supplied with your device LEOTEC or a compatible model with exactly the same specifications. The LEOTEC Tablet will turn on and start charging. The battery icon in the main interface will indicate when the device is fully charged. If not connected to a power adapter, the icon displays the percentage of available battery.

Configuration

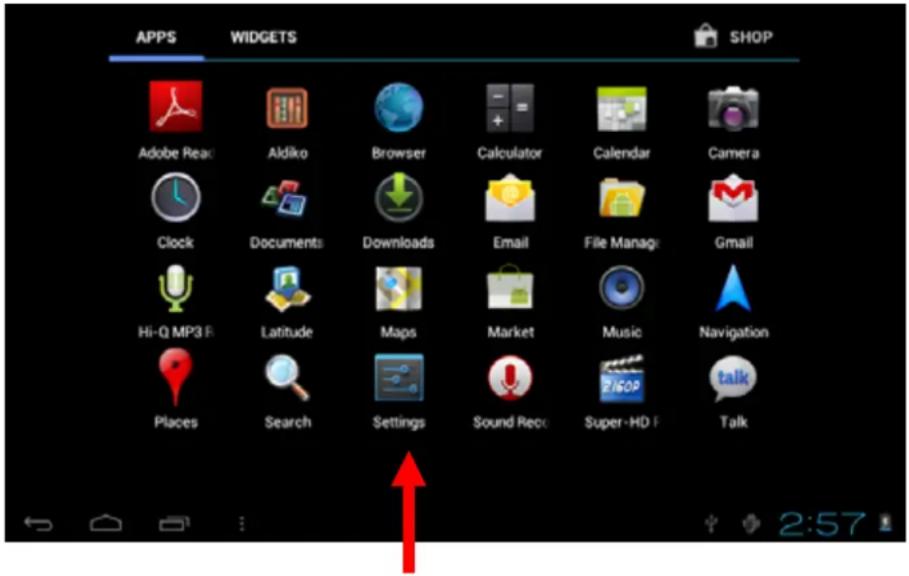

We recommend that the first time you use the L-Pad Tablet LEOTEC configure core values such as language, location, date, time, security options and backup found in the Settings section

APPS WIDGETS SHOP Adobe Read Aldiko Browser Calculator Calendar Camera Clock Documents Downloads Email File Manage Gmail Hi-Q MP3 F Latitude Maps Market Music Navigation Places Search Settings Sound Rec Super-HD F Talk

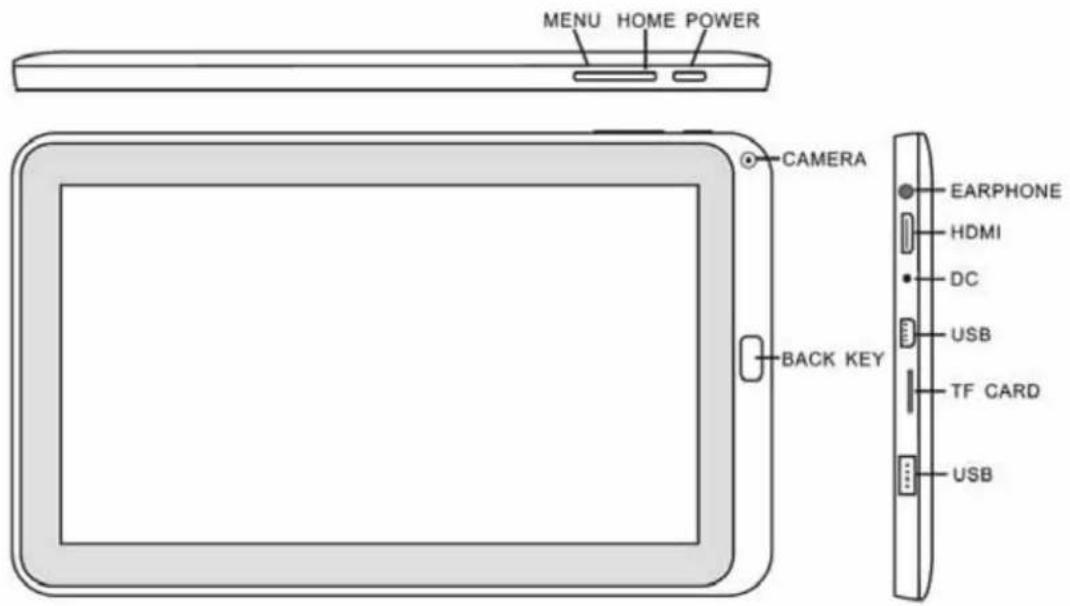

1. Appearance and button:

MENU HOME POWER CAMERA BACK KEY EARPHONE HDMI DC USB TF CARD USB

1.1 Touch panel

10,1" Capacitive touch panel: In the Operation, to clic, dragging on the touch panel

1.2 POWER

Start up: Long Press and hold the power button, then it will load the operating system and display the main interface.

Shutdown: In the main menu interface, Press the power button about 5 second to shutdown, The system can hint "power off" option, Clic "ok". you can safely shut down.

Lock screen: Short press Power button to lock screen or unlock screen.

Remark 1. When power is empty, system will shut down automatically.

1. Illegal turn off the device, restart will scan and restore the disk, it may take longer time to enter into system

1.3 BACK key

Short Press BACK KEY button will return the last interface.

The Tablet under normal operating conditions, short press M button will Back to the home screen

1.4 HOME key

Short press to return to main interface.

Long press to decrease volume.

1.5 MENU key

Show menu options depending on the current app

Long press to increase volume

1.6 Earphone jack

3.5 mm standard earphone jack

1.7 HDMI

Mini HDMI output interface

1.8 TF card

Memory expand through TF-CARD slot: external T-FLASH card

1.9 Mini USB

Mini USB jack: you can use it to connect the computer for data transmission, charging and external connection USB flash drive

1.10 RESET

Remark: unless unable to shutdown, otherwise don't use the reset, suggest you to shutdown by normal, or it will easy to damage the machine system.

1.11 DC

Connecting the battery charger.

Attention: ONLY USE THE CHARGER SUPPLIED BY THE MANUFACTURER or ANY APPROVED BY THE SAME.

First use - Battery management and charge

Before first use, please set the device's battery is fully charged

Just need to connect the adaptor or USB interface, then you can charge

The first two times charging please keep about 6 hours, after that you just need 4 hours to charge.

Remark: This tablet using Built-in type polymer battery, Charge must be to choose standard adaptor (Input: AC110\~240V 50/60Hz Max180MA.. Output: DC5.0\~5.5V/1.5A), this device without supply DC charging, USB interface can charge, Choose USB interface to charger During the charging, the battery icon will scroll

When finished charging, battery icon will become green and stop rolling

In order to prolong the service life of the machine, suggest use out battery power before charge it

Remark:

1 If you long time don't to use this Tablet, ,in order to avoid power consumption caused damage, Please charge/play the battery once a month.

2 After low battery shut down, connect DC adaptor, device will remind low battery, charging, need to wait some time until the battery is enough power to enter into main menu.

3 Device charging should be in standby status for reach normal charging time.

Because with device and screen consumption, it may cause longer charging time.

2. Connection with PC

Use USB cable to connect device to PC, device will pop up the USB connection window, clic Turn on USB storage to connect to PC

Once connected click on the USB icon that appears at the bottom right of the screen:

18:56

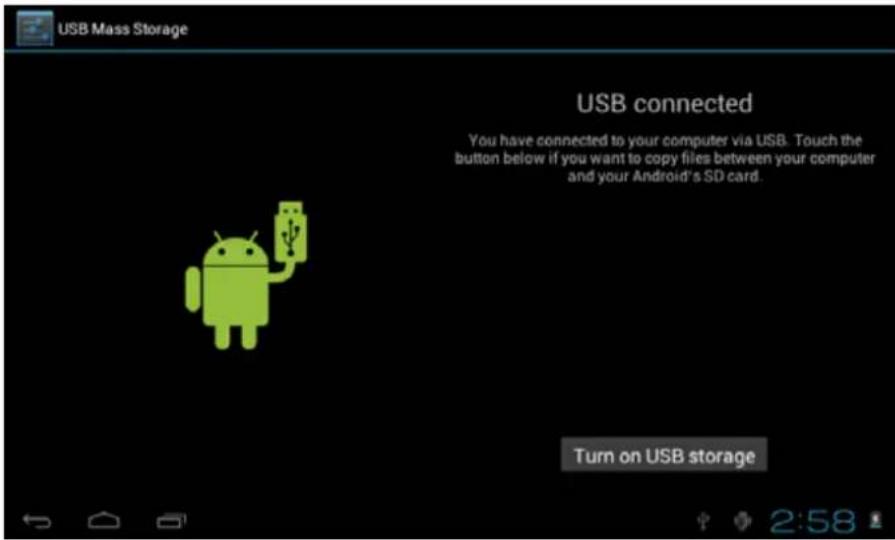

The device enables users to access the screen to activate the USB storage as shown in the following screen:

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

Into the load mode, you can copy, delete the file on the device and the file on the memory card.

3. Equipment operation interface

3.1 Main interface describe

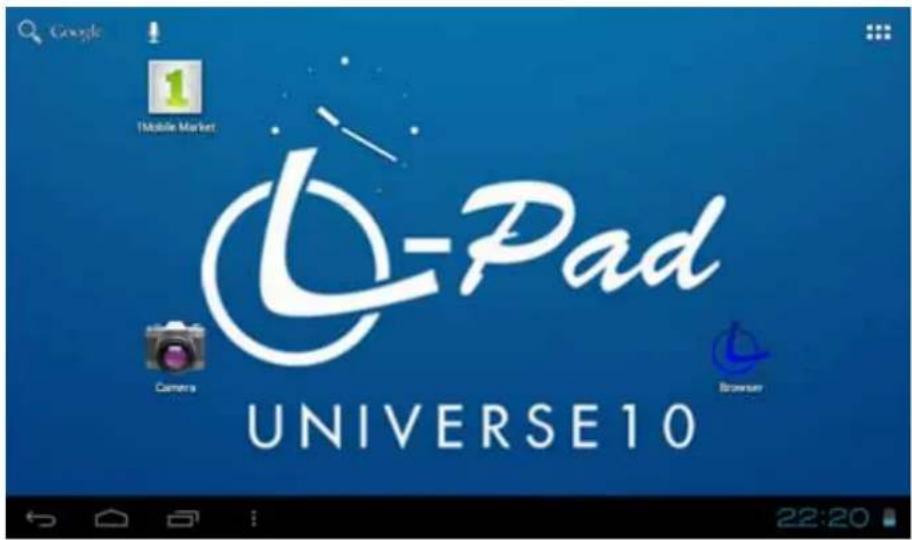

After startup will enter the main interface

Google 1 Mobile Market Camera L-Pad UNIVERSE10 22:20

The main interface, can be divided into 5 parts, each of the corners and the main body of the screen. In the main of the screen are housed icons and widgets that the user wants, capable of being moved to the left (2 screens) or right (2 screens) thus has a total of 5 screens that can be added shortcuts, bookmarks and Widgets

Google

The upper left corner:

can either perform a Google search by

typing the desired look or do a search for voice (in either case must be connected to the Internet)

The upper right corner:

access to applications and installed Widgets.

Applications are programs that run when the user wishes and stop working when the user exits the application. They can be installed by downloading the application 1Mobile Market or through websites that offer Android applications.

Widgets are small easy access programs that run continuously, they are located in any of the main screens. For example one of the widgets that are already installed and running is the analogue clock

Abstract blue background with white geometric shapes and scattered dots (no text or symbols)

The lower left corner has 4 icons

Allows to go back

Go to the main screen. The same function as the 📄 button on the top of the Tablet.

View and select the applications that are currently running.

Access the menu depending on the application you are using. If you are in the main interface will pop up a menu that lets you change the wallpaper, manage applications or access

the system settings. The same function as the button on the top of the tablet.

In the lower right corner is the status area:

battery status, wireless connection, different alarms and status messages. By clicking you can access some quick adjustments.

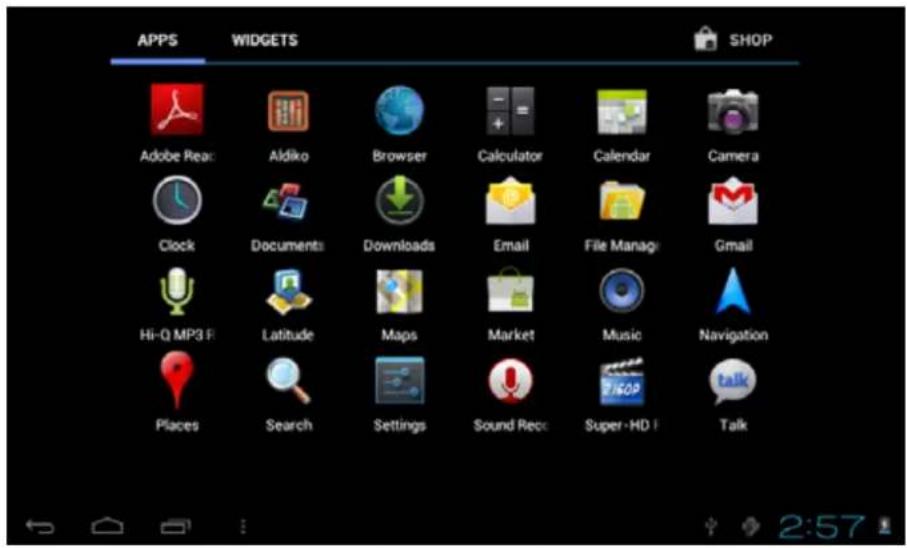

Accessing the area of applications and widgets you can manage the main interface icons: Press and hold an icon 3 seconds after the icon is enlarged, you can drag it anywhere on the interface

APPS WIDGETS SHOP Adobe Read Aldiko Browser Calculator Calendar Camera Clock Documents Downloads Email File Manage Gmail Hi-Q MP3 F Latitude Maps Market Music Navigation Places Search Settings Sound Record Super-HD I Talk

Delete icons: long press the icons 3 second, drag the icons to the Recycle Bin icon, once it become red, Loosen your hand, after that you can delete icon

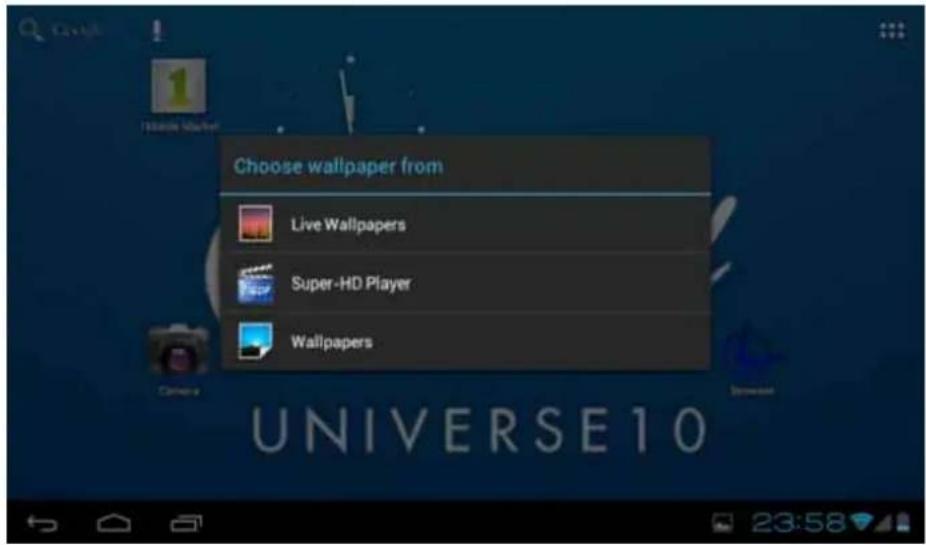

You touch the screen keep a time, appear the dialog box" Add you Home screen" as shown below:

Choose wallpaper from Live Wallpapers Super-HD Player Wallpapers UNIVERSE10

4. Basic settings

Setting: Clic setting icons

enter setting interface

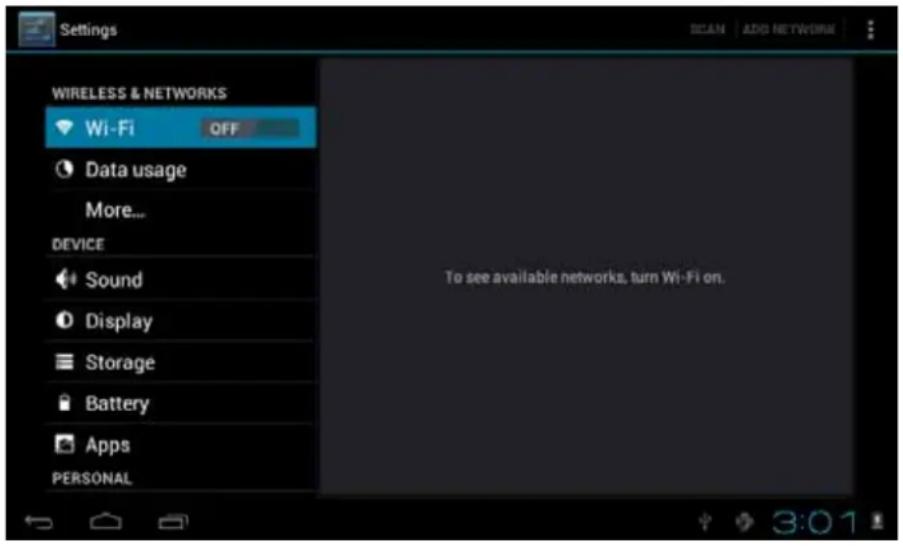

4.1 Wi-Fi: Turns on the Wi-Fi and connects to any Wi-Fi that is within the coverage area

Settings WIRELESS & NETWORKS Wi-Fi OFF Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL To see available networks, turn Wi-Fi on.

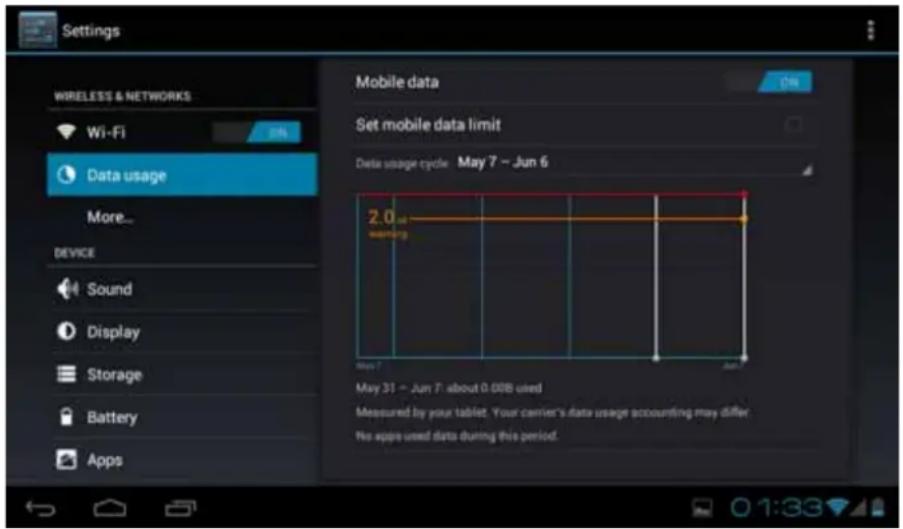

4.2 Data Usage: Allows you to disable or limit access to mobile data as well as shows the volume of data downloaded.

Settings WIRELESS & NETWORKS Wi-Fi Data usage More... DEVICE Sound Display Storage Battery Apps Mobile data Set mobile data limit Data usage cycle: May 7 - Jun 6 2.0 meaning May 7 Jun 7 May 31 - Jun 7: about 0.00B used Measured by your tablet. Your carrier's data usage accounting may differ. No apps used data during this period.

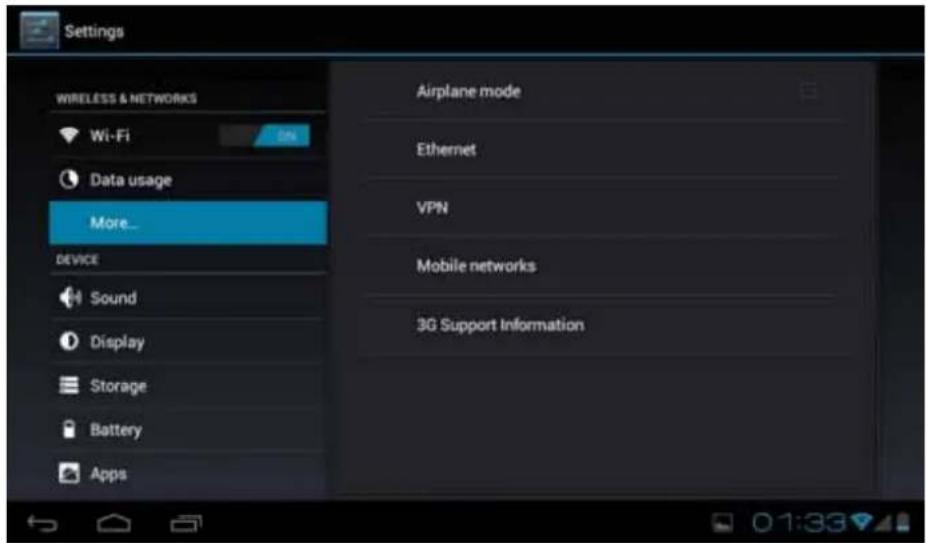

4.3: More ...: Enables Airplane mode (used when you are aboard a plane), and advanced settings for both Ethernet networks, creation of VPNs and mobile networks

Settings WIRELESS & NETWORKS Wi-Fi Data usage More... DEVICE Sound Display Storage Battery Apps Airplane mode Ethernet VPN Mobile networks 3G Support Information

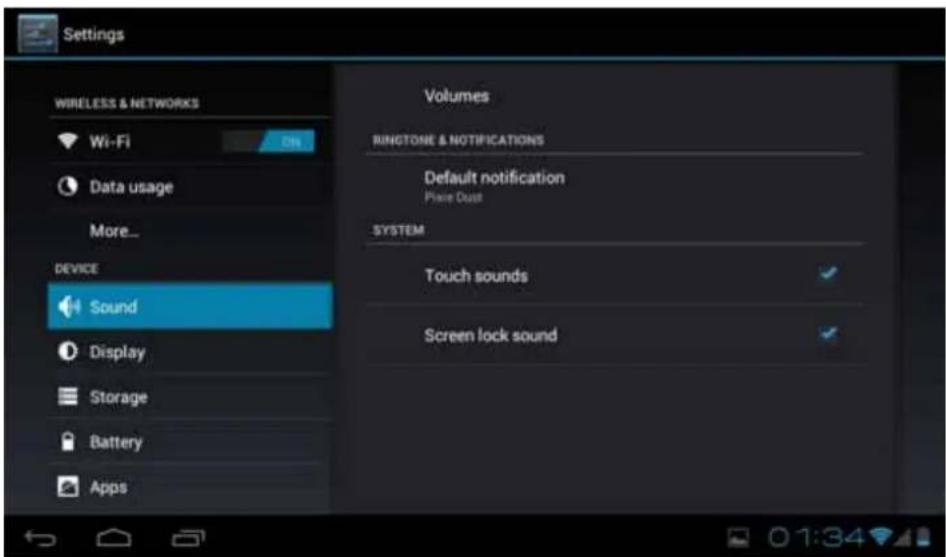

4.4 Sound: You can change the default volume of music, games and other media files, notifications and alarms, different melodies for service, enable sound to play and also the sound of the lock screen.

Settings WIRELESS & NETWORKS Wi-Fi Data usage More... DEVICE Sound Display Storage Battery Apps Volumes RINGTON & NOTIFICATIONS Default notification Place Dust SYSTEM Touch sounds Screen lock sound

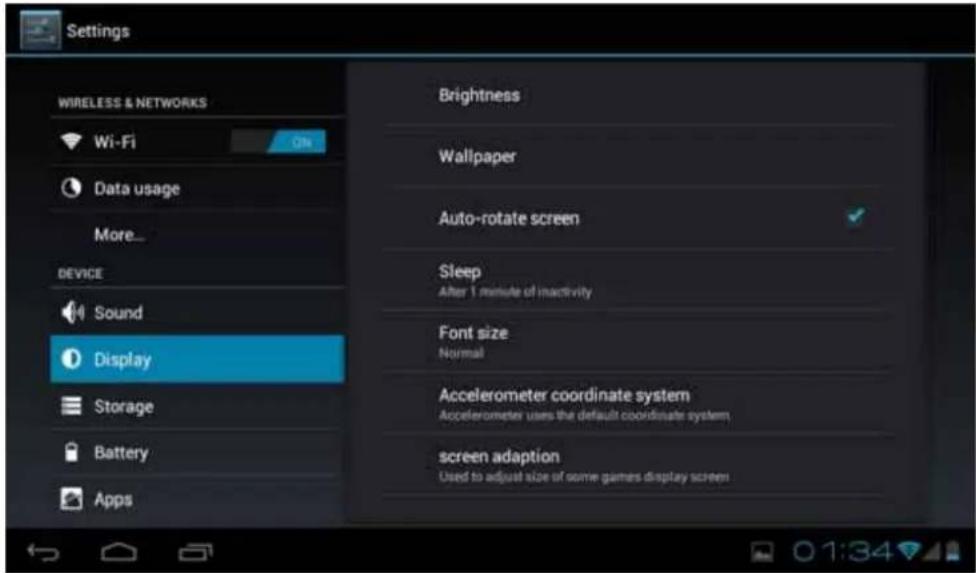

4.5 Screens: adjust properties, change backgrounds, change font size, etc.

Settings WIRELESS & NETWORKS Wi-Fi ON Data usage More... DEVICE Sound Display Storage Battery Apps Brightness Wallpaper Auto-rotate screen Sleep After 1 minute of inactivity Font size Normal Accelerometer coordinate system Accelerometer uses the default coordinate system screen adaption Used to adjust size of some games display screen

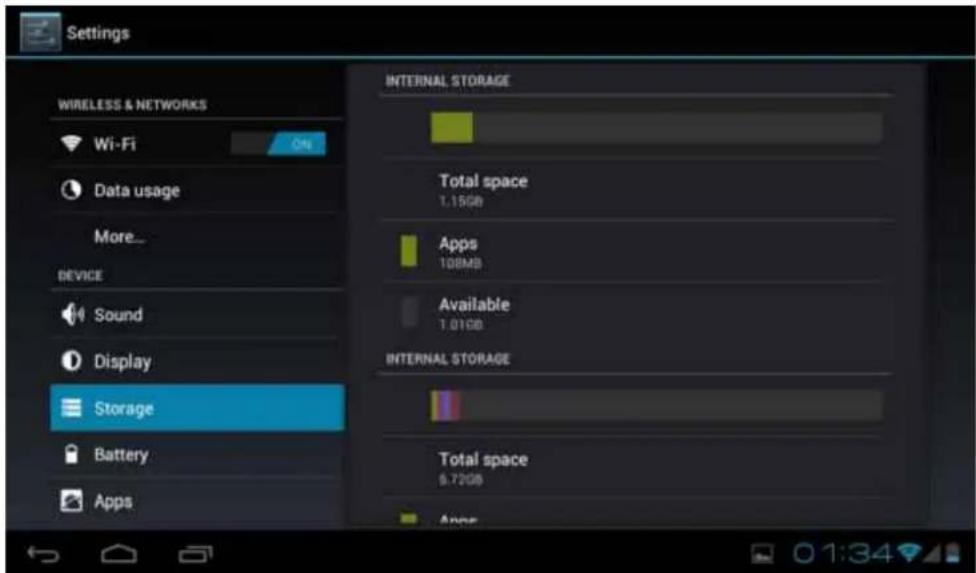

4.6 Storage: Shows the memory usage in the different storage media

Settings WIRELESS & NETWORKS Wi-Fi Data usage More... DEVICE Sound Display Storage Battery Apps INTERNAL STORAGE Total space 1.15GB Apps 108MB Available 1.01GB INTERNAL STORAGE Total space 9.72GB Apps

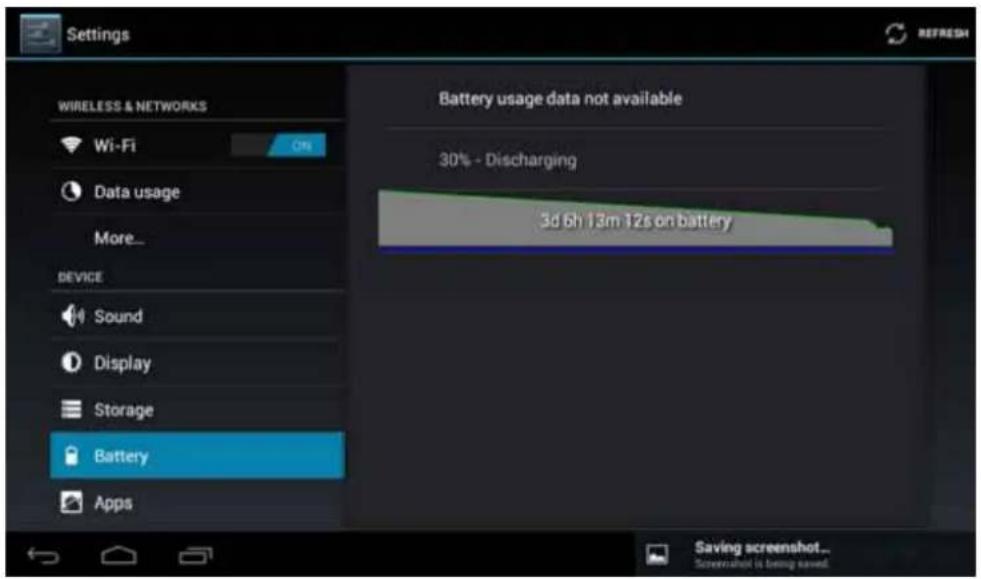

4.7 Battery: Displays current use of the battery

Settings WIRELESS & NETWORKS Wi-Fi ON Data usage More_ DEVICE Sound Display Storage Battery Apps Battery usage data not available 30% - Discharging 3d 6h 13m 12s on battery Saving screenshot... Screenshots is being saved.

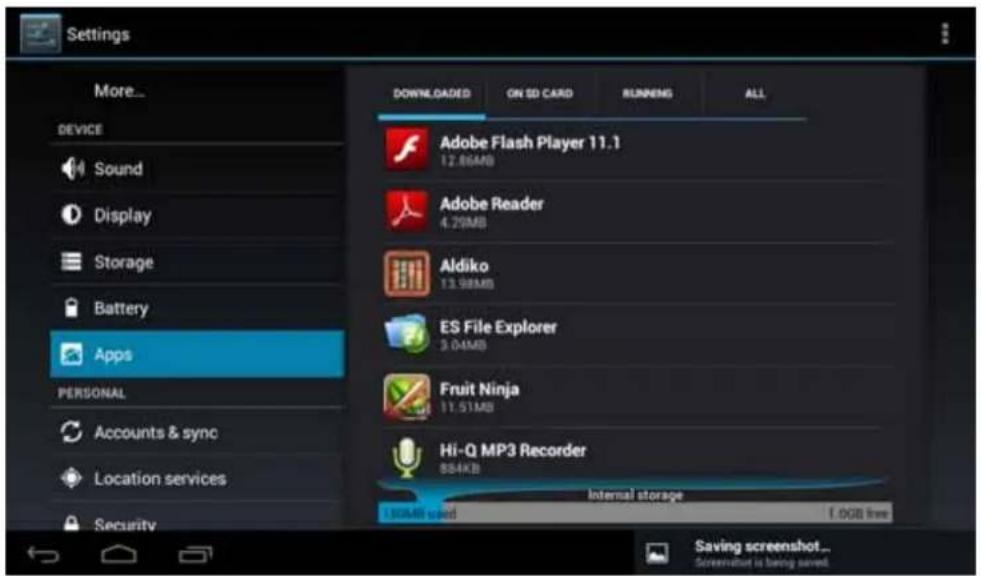

4.8 Applications: Displays applications downloaded to main memory or the memory card (SD) as well as the currently running applications.

Settings More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security DOWNLOADS ON SD CARD RUNNING ALL Adobe Flash Player 11.1 12.86MB Adobe Reader 4.29MB Aldiko 13.98MB ES File Explorer 3.04MB Fruit Ninja 11.51MB Hi-Q MP3 Recorder 884KB Internal storage 1.0GB used 1.0GB free Saving screenshot... Screenset is being saved.

One way to install new applications is through Markets or stores available online. An example is www.1mobile.com, which comes pre-installed on your Tablet LEOTEC L-Pad, access via the "1Mobile Market" available in the Applications screen and enjoy thousands of programs and games.

WARNING

The manufacturer does not guarantee the compatibility of the version installed on your Android device with all the applications available for this platform.

The manufacturer is not liable for damage to the device for any malware, worm, trojan or virus as a result of the installation, implementation, or downloading programs.

The manufacturer is not liable for the misuse by a user with the device and download and installation of proprietary software without authorization from the owner.

How to uninstall?

(1). Enter Settings "setting">"Application">"Manage application" And then there will be installed the program list

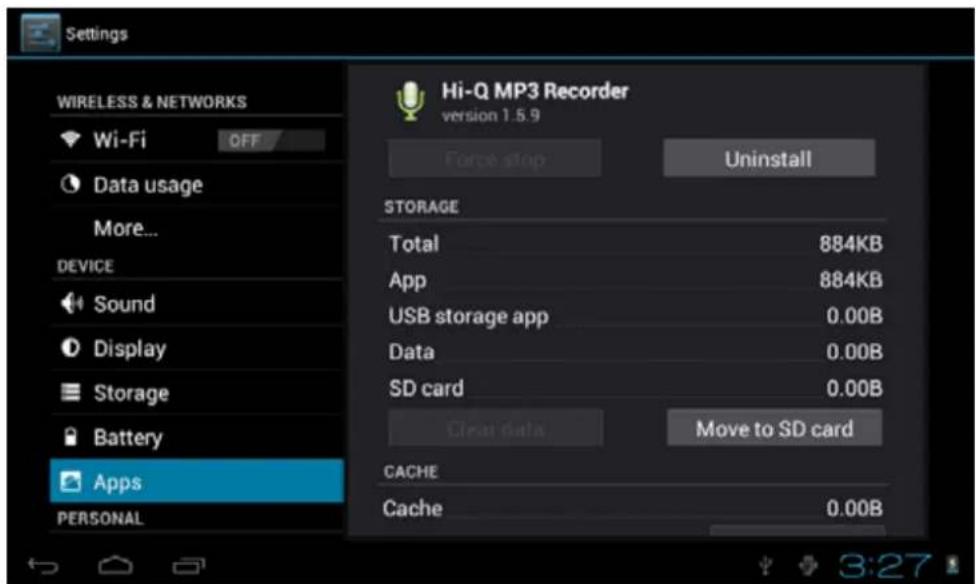

(2). Clic you want to uninstall icons, will enter the following interface

(3). Clic Uninstall, then you can delete the application

Settings WIRELESS & NETWORKS Wi-Fi OFF Data usage More... DEVICE Sound Display Storage Battery Apps PERSONAL Hi-Q MP3 Recorder version 1.5.9 Force stop Uninstall STORAGE Total 884KB App 884KB USB storage app 0.00B Data 0.00B SD card 0.00B Clean data Move to SD card CACHE Cache 0.00B

Some applications allow to be moved to external memory (SD card) to not fill the entire main memory of the Tablet

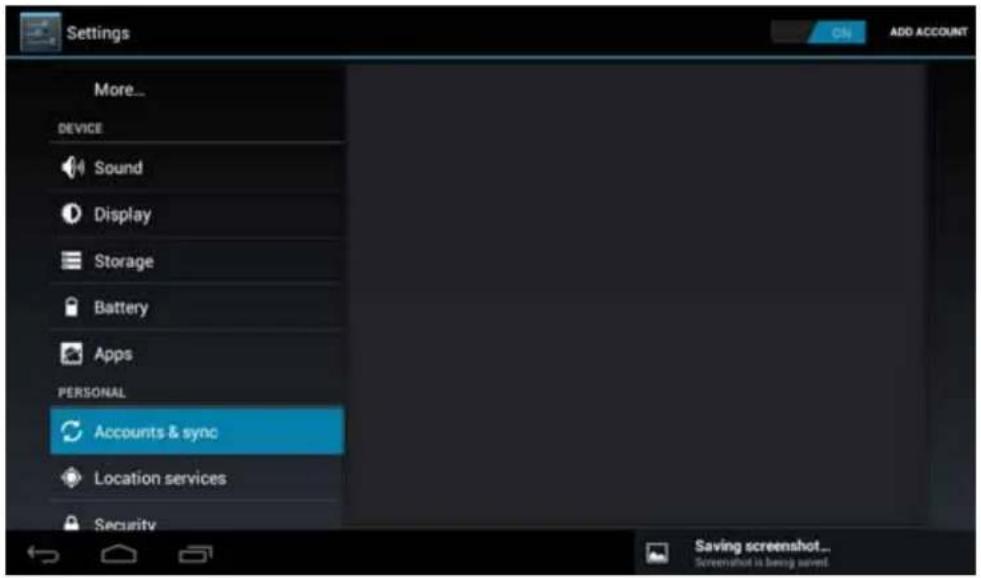

4.9 Accounts and synchronization: Allows you to manage the accounts of different mail applications, Skype etc., Which can be synchronized in real time or not.

Settings More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Add ACCOUNT Saving screenshot... Screenshot is being saved.

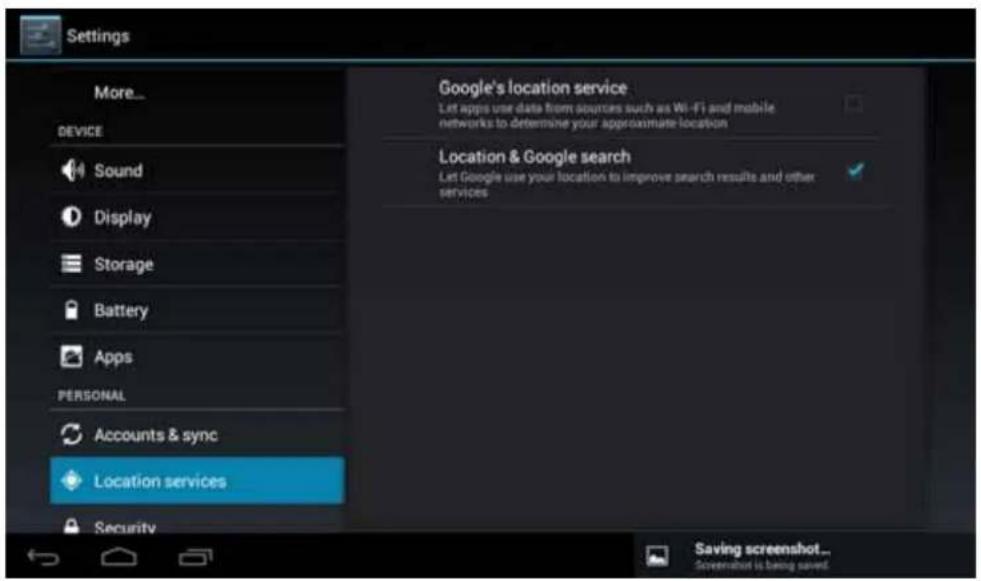

4.10 Location Services: allows applications such as Google use your data to determine your location

Settings More... DEVICE Sound Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Google's location service Let apps use data from sources such as Wi-Fi and mobile networks to determine your approximate location Location & Google search Let Google use your location to improve search results and other services Saving screenshot...

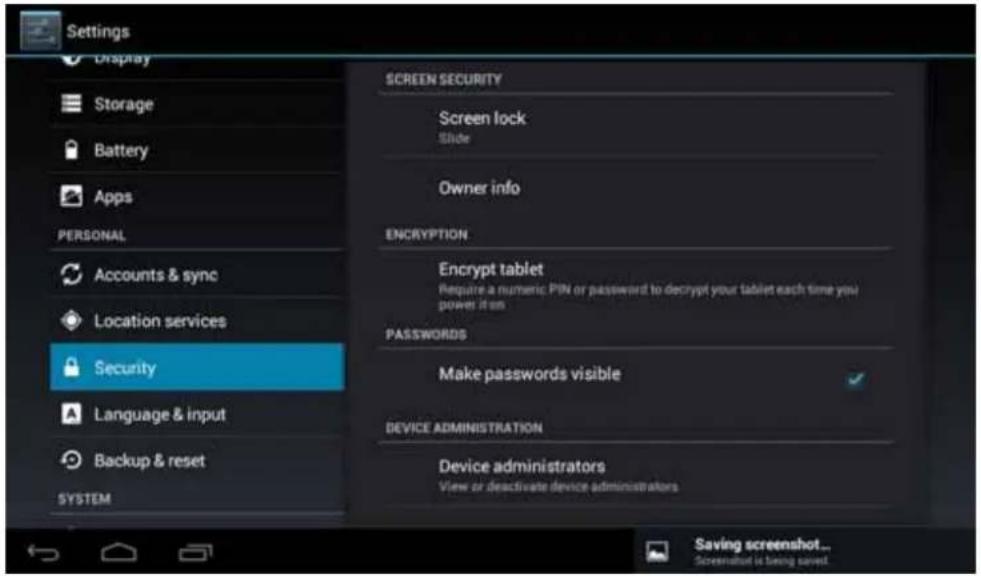

4.11 Security: various security settings like screen lock, displayed or hidden passwords, etc.

Settings Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM SCREEN SECURITY Screen lock Slide Owner info ENCRYPTION Encrypt tablet Require a numeric PIN or password to decrypt your tablet each time you powers it on PASSWORDS Make passwords visible DEVICE ADMINISTRATION Device administrators View or deactivate device administrators Saving screenshot... Screenshot is being saved.

Unknown sources: Click "Unknown sources" and followed by "OK" to allow installation of unknown origin applications (applications not certified by Google, which does not mean they are not reliable sources)

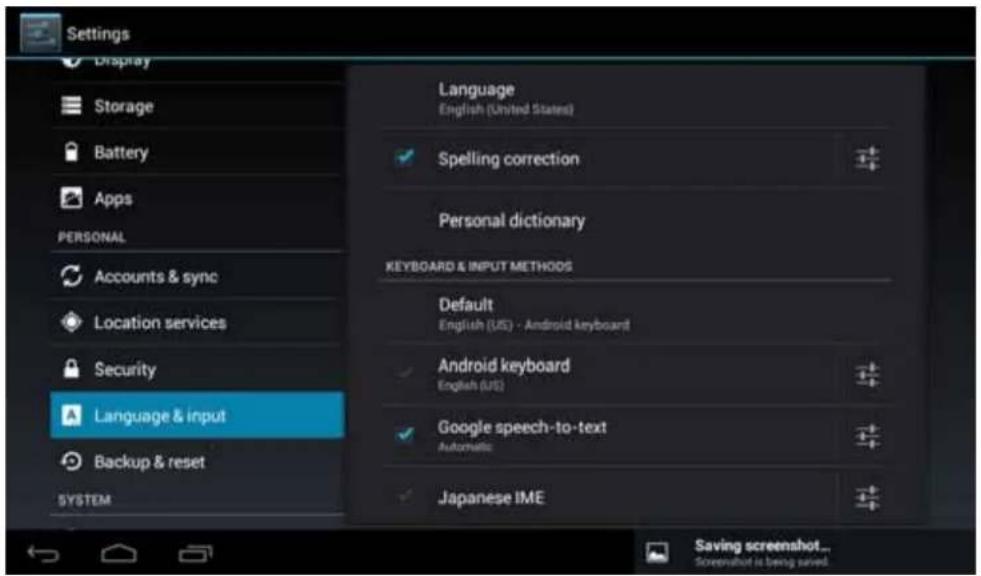

4.12 Language and Keyboard: Change the language to use the Tablet, set the automatic spell correction, keyboard type, etc.

Settings Display Storage Battery Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Language English (United States) Spelling correction Personal dictionary KEYBOARD & INPUT METHODS Default English (US) - Android keyboard Android keyboard English (US) Google speech-to-text Automatic Japanese IME Saving screenshot... Screenshot is being saved.

Select Language: 54 languages are available

Remark: Android system can support 54 kind of language, now main interface just support 14 kind of language,

Android keyboard: Android keyboard setting

Sound on Key-press

Auto-capitalization

Show suggestions: Display suggested words while typing

Auto-complete: Spacebar and punctuation automatically insert highlighted word

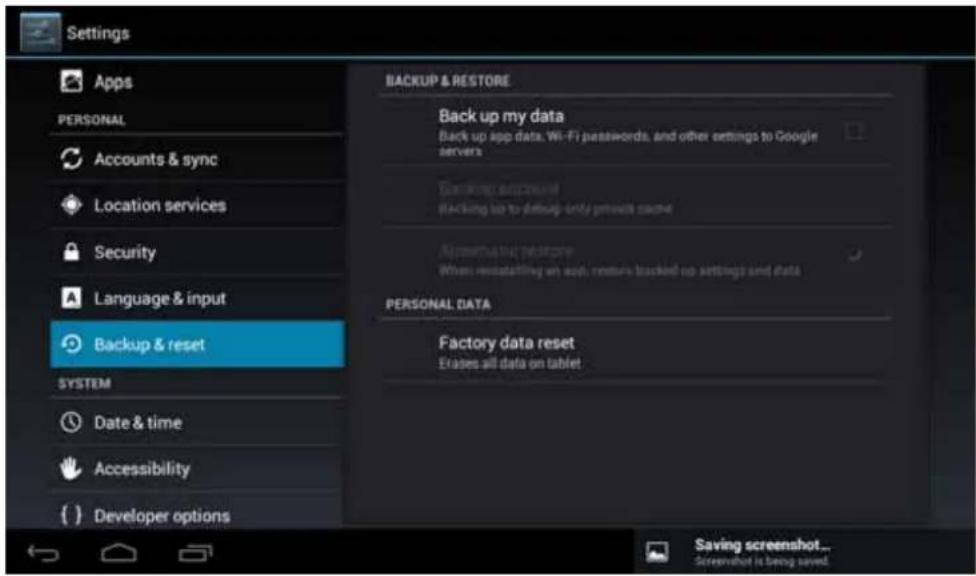

4.13 Backup: Allows automatic backup of application data, passwords and other settings so that if you reset the operating system applications can be recovered under the above conditions. In this option settings can be restored original factory data.

Settings Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility { } Developer options BACKUP & RESTORE Back up my data Back up app data, Wi-Fi passwords, and other settings to Google servers Backup app request backing up to debug-only private name Appurchased restore When restartating an app, restore backed up settings and data PERSONAL DATA Factory data reset Erades all data on tablet Saving screenshot... Screenshot is being saved.

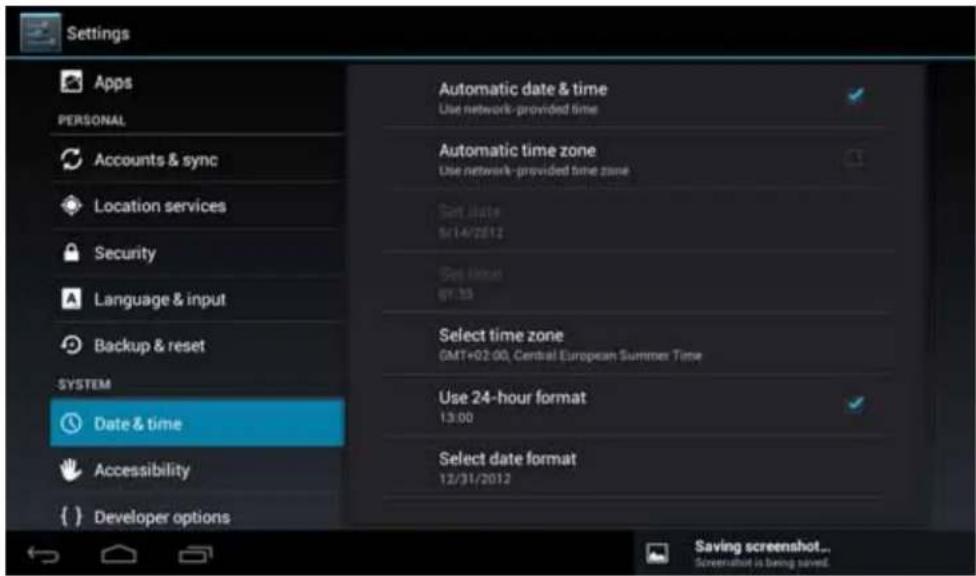

4.14 Date & time setting: Set date, set time, Select time zone and select date format

Settings Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility { } Developer options Automatic date & time Use network-provided time Automatic time zone Use network-provided time zone Set Date 5x14/2012 Set Hour 01:35 Select time zone GMT+02:00, Central European Summer Time Use 24-hour format 13:00 Select date format 12/31/2012 Saving screenshot... Screenset is being paneed.

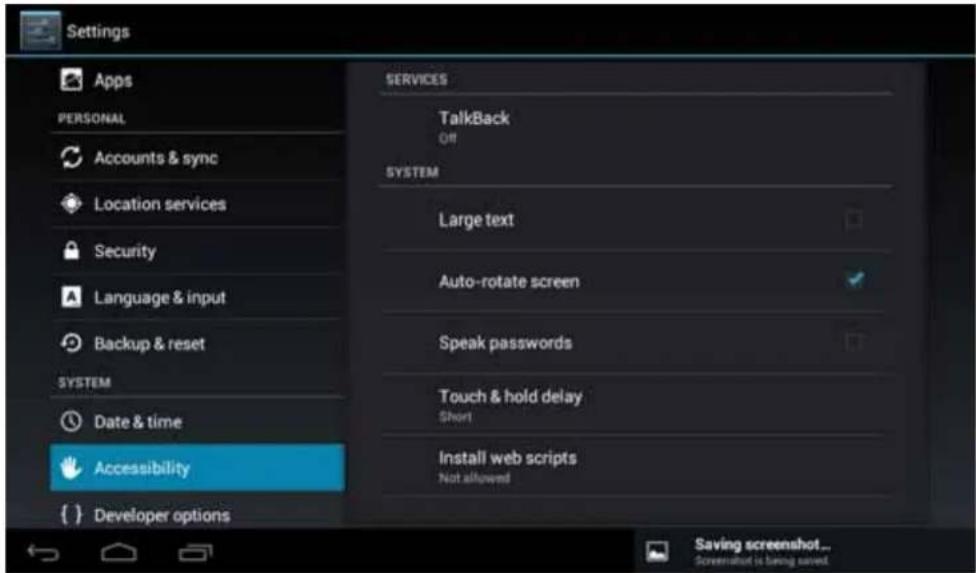

4.15 Accessibility: Different options to facilitate the accessibility of the Tablet

Settings Apps PERSONAL Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility { } Developer options SERVICES TalkBack Off SYSTEM Large text Auto-rotate screen Speak passwords Touch & hold delay Short Install web scripts Not allowed Saving screenshot... Screenshot is being saved.

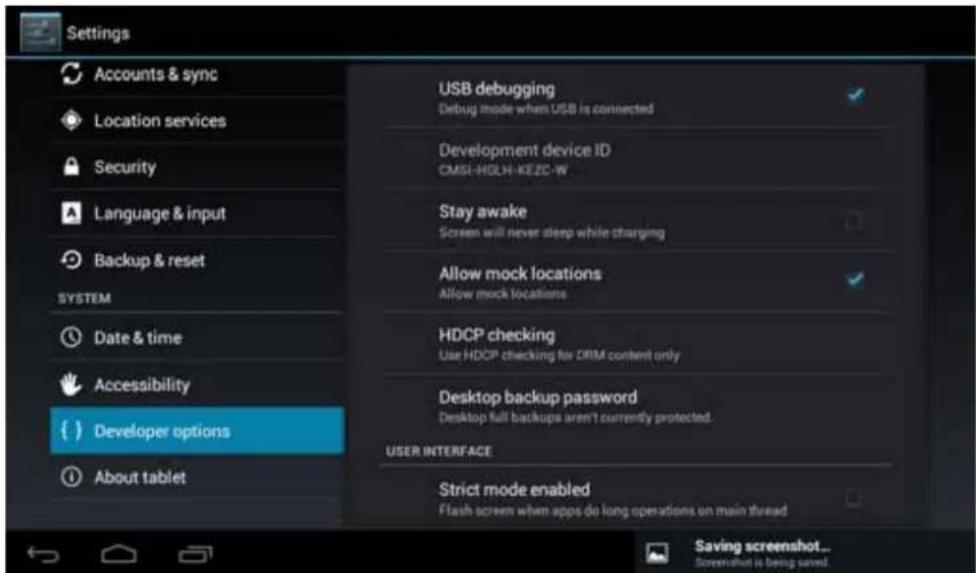

4.16 Development options: Options for developers.

Settings Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility { } Developer options About tablet USB debugging Debug mode when USB is connected Development device ID CMSI-HQLH-KEZC-W Stay awake Screen will never sleep while charging Allow mock locations Allow mock locations HDCP checking Use HDCP checking for DRM content only Desktop backup password Desktop full backups aren't currently protected. USER INTERFACE Strict mode enabled Flash screen when apps do long operations on main thread Saving screenshot... Screenshot is being saved.

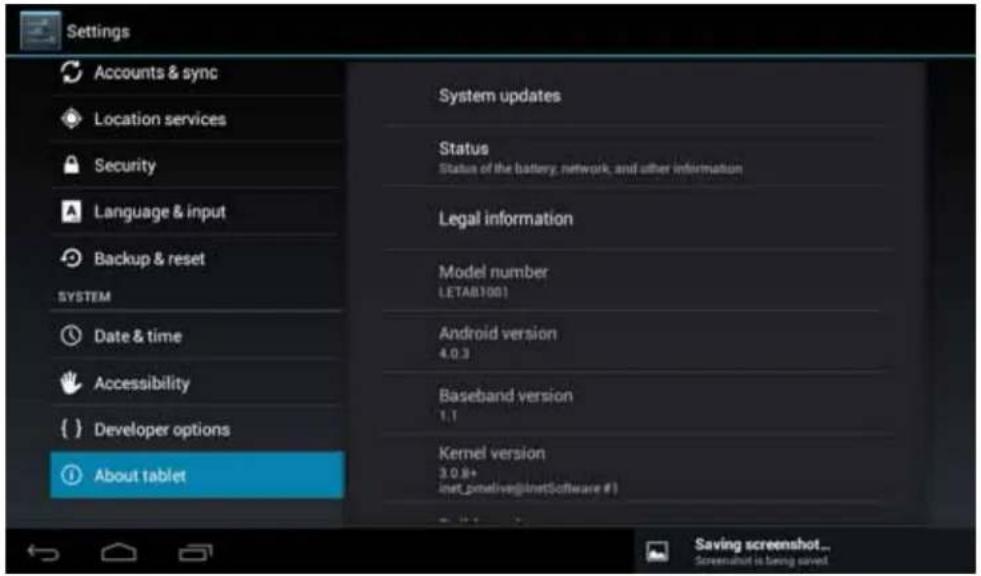

4.17 About the unit: Displays information about the Tablet and the OS

Settings Accounts & sync Location services Security Language & input Backup & reset SYSTEM Date & time Accessibility { } Developer options About tablet System updates Status Status of the battery, network, and other information Legal information Model number (LETAB100) Android version 4.0.3 Baseband version 1.1 Kernel version 3.0.8+ inet_pmlative@inetSoftware # Saving screenshot... Screenshot is being saved.

5. Problem solution

Device can't to open

1) Check the battery power
2) Connect adaptor first, then check again
3) After charging then can't to open, Please contact with the supplier

After startup the screen or the opening picture has been appear, the device appear shutdown

1) Power is not enough, please charge

Headset can't hear the voice

1) Please check the volume whether set to 0
2) Check the music file weather damaged. Try playing other music, if the file is damaged may lead to serious noise or hop sounds.

Can copy file or play music and so on

1) Please check between computer and device is correct connection
2) check the memory storage space is already full
3) check the USB cable is good or not
4) USB connection is disconnected

6. Specifications

Display screen: 10.1" TFT Capacitive touch,

Resolution: 1024*600

Operation System: Android 4

RAM: DDRIII 1024MB

CPU processor speed: Boxchip A10 (Cortex -A8) 1.2GHz(Up to 1.5GHz)

Memory: 8G

TF card: 128M-32G

USB: USB Host OTG

G-sensor 3D

Record: built-in microphone

Video: HD2160P, AVI H.264, DIVX, DIVX, XVID, rm, rmvb, WMV, MOV, MP4 H.264, MPEG,

DIVX, XVID), DAT VCD), VOB DVD), MPEG, MPG, FLV H.263 H.264), ASF, TS, TP, 3GP, MPG etc

(support to 2160P:3840x2160)

Audio: MP3/WMA/APE/FLAC/OGG/WAV/AAC

Photo: JPG, JPEG, GIF, BMP, PNG

Ebook: TXT, EPUB, PDF, WORD, EXCEL, POWERPOINTS

Battery and capacity: rechargeable Built-in type polymer battery, 5500MAH 3,7V

Size: 267mm ×164mm×14mm

Weight: 590g

Guarantee and responsibility

The manufacturer gives a guarantee for 24 months for the player and the accessories provided. The guarantee includes the damage and defects related to defective materials and imperfect preparation. The guarantee does not cover the damage that can occur for incorrect or inadequate use, or for repairs of changes in the apparatus made without the authorization of the manufacturer. The manufacturer does not assume the responsibility for damage incurred due to redundant profit.

Support and Technical Service

For any technical consultation you can go to the place of purchase or contact the technical service of LEOTEC.

Visit our website and stay always updated in the download section of your product

There is more available information in the website: www.leotec.com or by means of the e-mail:
