USER MANUAL LPad Space LETAB701 Leotec

Screenshot of a black home control bar with icons for settings, battery, audio, and playback controls

This handbook contains important security measures and the correct use of the product information, in order to avoid accidents. Please make sure to reading the manual carefully before use the device.

• Please don't be in high temperature, moisture or very dust place
• Please don't be in high temperature, especially in summer don't put the device in the car when Windows closed.
• Avoid fall or Violent collision of the device, don't make the TFT display screen were violent tremor. This could cause TFT display screen abnormal or damage.

• Please choose the appropriate volume, Use headphones should not be too big volume, If feel tinnitus, Lower the volume or stop using it please charge In the following condition,

• The battery power ICONS shows have no power

• The system automatically shut off, startup after power off soon
• Operation buttons no response

• The machine that the top right corner show red icons

• When the device in the format or ongoing upload and download file, please don't suddenly disconnect. This could cause application error.

• For those who because of damage to the product, repair, or other causes of erased the memory, The company shall not be liable for any responsibility, please follow the user manual for the standardized operation to use the device.
• Don't disassemble the product, don't use alcohol Thinner or benzene to scrubbing products
• Don't use the device one of the place of prohibit to use electronic equipment in regional (such as the plane)
• Please don't using the Tablet PC when you in driving or walking down the street,
• USB just only be used for data transmission

The company reserves the right to improve product, products specification and design have any change. The information is subject to changes without prior notice.

(This tablet is no waterproof function)

Remark All pictures in this manual is just for your reference. products specification and design have any change, The information is subject to changes without prior notice.

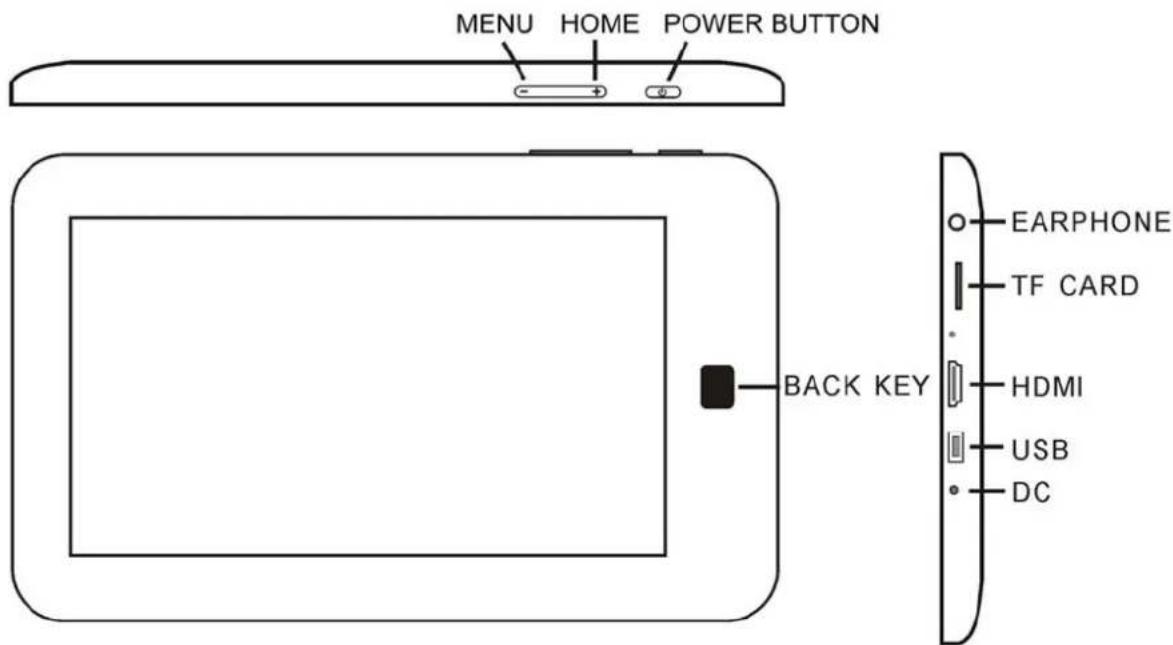

1. Appearance and button:

MENU HOME POWER BUTTON BACK KEY EARPHONE TF CARD HDMI USB DC

1.2 Touch panel

7" Resistive touch panel: In The Operation, to click, dragging on the touch panel

1.2 POWER

Start up: Long Press and hold the power button, the system will enter the main interface shutdown: In the main menu interface, Press the power button about 5 second to shutdown, The system can hint "power off" option, Click "ok". you can safely shut down.

Lock screen: Short press Power button to lock screen or unlock screen.

Remark 1. When power is empty, system will shut down automatically.

1. Illegal turn off the device, restart will scan and restore the disk, it may take longer time to enter into system

1.3 BACK key

Short Press BACK KEY button will return the last interface

the Tablet under normal operating conditions, short press M button will Back to the home screen

1.4 HOME key

Short press to return to main interface.

Long press to show recent applications.

1.5 MENU key

Show menu options depending on the current app

1.6 earphone jack

3.5 mm standard earphone jack

1.7 HDMI

HDMI output interface

1.8 TF card

TF-CARD slot: external T-FLASH card

1.9 Mini USB

Mini USB jack: you can use it to connect the computer for data transmission, charging and external connection USB flash drive

1.10 RESET

Remark: unless unable to shutdown, otherwise don't use the reset, suggest you to shutdown by normal, or it will easy to damage the machine system.

1.11DC

Insert the charger to charge

1.12 First use

1.13 Battery management and charge

Before first use, please set the device's battery is fully charged

Just need to connect the adaptor or USB interface, then you can charge

The first two times charging please keep about 6 hours, after that you just need 4 hours to charge.

Remark: This tablet using Built-in type polymer battery, Charge must be to choose standard adaptor (Input: AC110\~240V 50/60Hz Max180MA.. Output: DC5.0\~5.5V/1.5A), this device without supply DC charging, USB interface can charge, Choose USB interface to charger

During the charging, the battery icon will scroll

When finished charging, battery icon will become green and stop rolling

In order to prolong the service life of the machine, suggest use out battery power before charge it

Remark:

1 If you long time don't to use this Tablet, ,in order to avoid power consumption caused damage, Please charge/play the battery once a month.

2 After low battery shut down, connect DC adaptor, device will remind low battery, charging, need to wait some time until the battery is enough power to enter into main menu.

3 Device charging should be in standby status for reach normal charging time.

Because with device and screen consumption, it may cause longer charging time.

2. Connection with PC

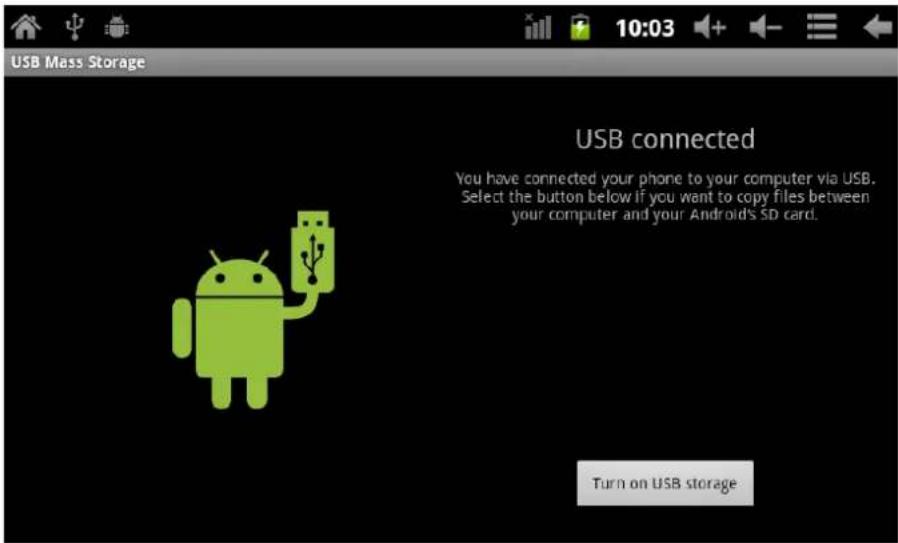

Use USB cable to connect device to PC, device will pop up the USB connection window, click Turn on USB storage to connect to PC

USB Mass Storage USB connected You have connected your phone to your computer via USB. Select the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

Into the load mode, you can copy, delete the file on the device and the file on the memory card.

3. Equipment operation interface

3.1 Main interface describe

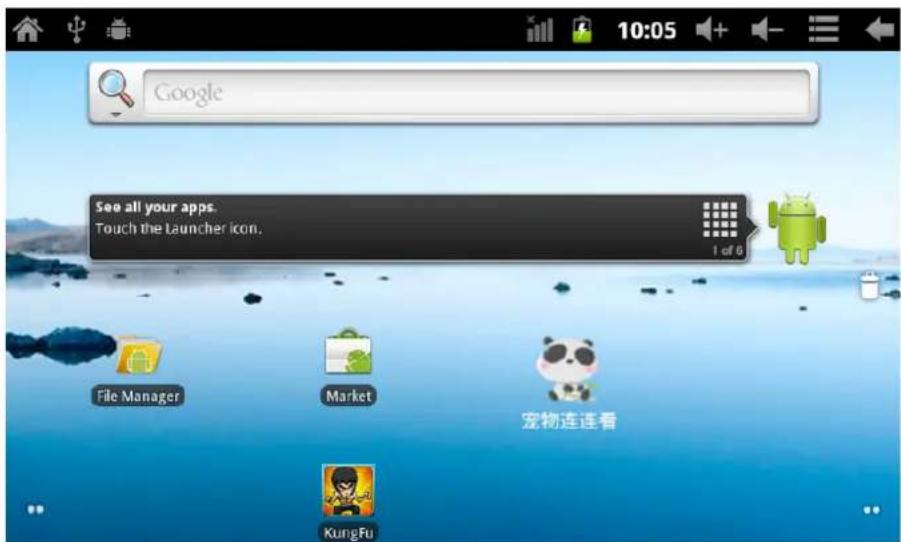

After startup will enter the main interface

10:05 Google See all your apps. Touch the Launcher icon. 1 of 6 File Manager Market 宠物连连看 KungFu

In the main interface, you can:

Management main interface software ICONS: long press the icons 3 second, after the icons will bigger, then you can drag anywhere in the interface.

91手机助手 Adobe Reader Aldiko Arena BFR Browser Calculator Calendar Camera Clock Documents To Go Downloads Email File Manager KungFu Market Music Search Settings Sound Recorder Super-HD Player SWF Player Talk YouTube

Delete icons: long press the icons 3 second, drag the icons to the Recycle Bin icon, once it become red, Loosen your hand, after that you can delete icon

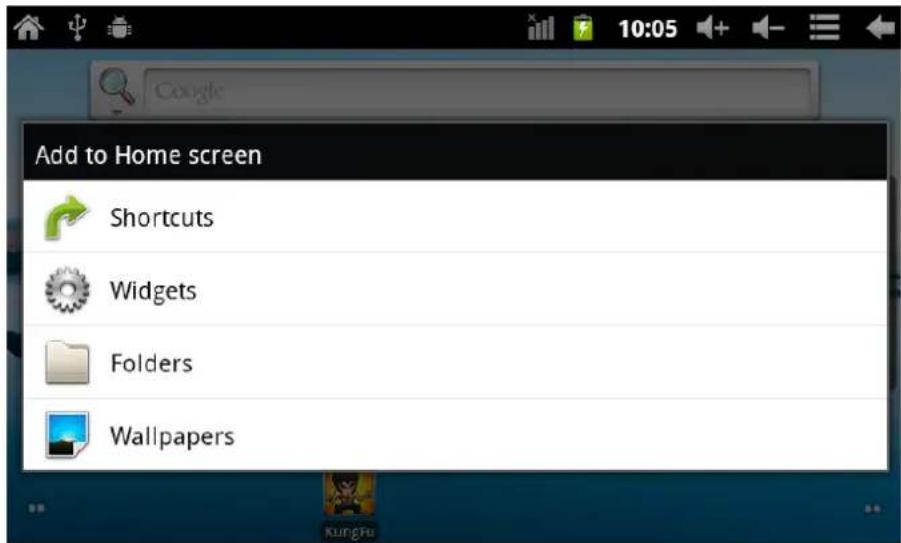

You touch the screen keep a time, appear the dialog box" Add you Home screen" as shown below:

Add to Home screen Shortcuts Widgets Folders Wallpapers

3.2 status bar describe

10:06

● The status bar above of the screen

Top left display main interface software, T-Flash card, USB connection status and so on

Top right display the battery, battery charge icons, current time, set time, Settings Menu, ESC button.

3.3 Use touch panel

Device equipped with a 7 "touch screen. Following the main touch screen area is described, and describes some of the tips for how to use the touch screen.

No matter which interface you are on the screen, can go back to main screen through

pressing the soft key 📄 the upper left corner of the main screen.

Attention: The main screen soft key functions as the machine back key

In different applications, by tapping the back soft key ← on the upper right corner on the touch screen, you can return to its interface on the up floor.

In different applications, by tapping the menu key ☐ on the upper right corner of touch screen, the screen will appear the operation setting interface as follows,

Remark: The main screen soft key functions as the machine menu

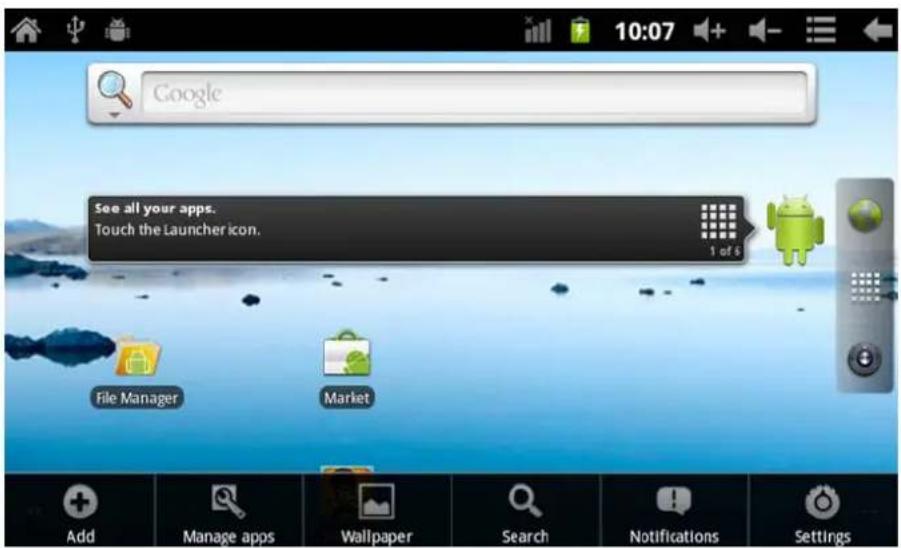

10:07 Google See all your apps. Touch the Launcher icon. 1 of 6 File Manager Market Add Manage apps Wallpaper Search Notifications Settings

In the main interface, you can touch the icon to open the APPS

In different browser (file, music, video, pictures), You shift and drag the scroll bar, so that the file list can up or down to roll.

4. Equipment basic set

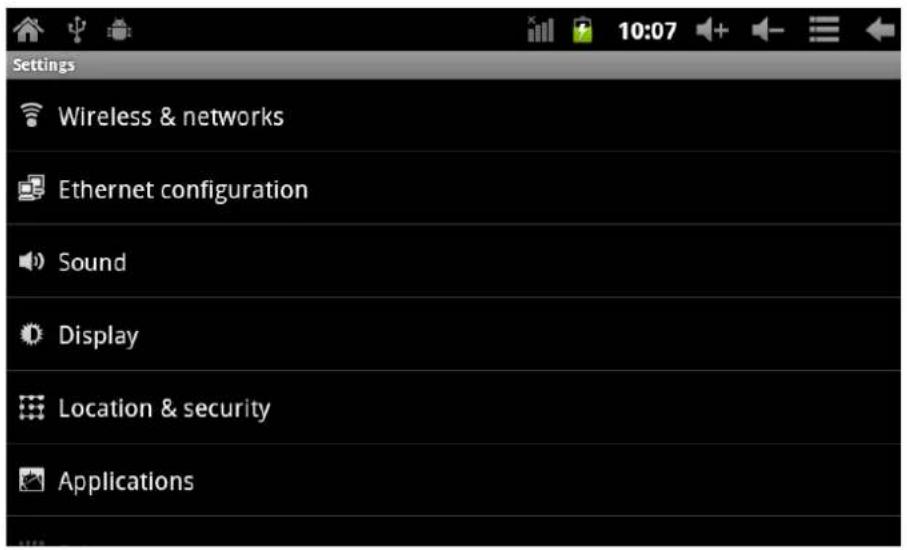

Setting: Click setting icons 📄, enter setting interface

Settings Wireless & networks Ethernet configuration Sound Display Location & security Applications

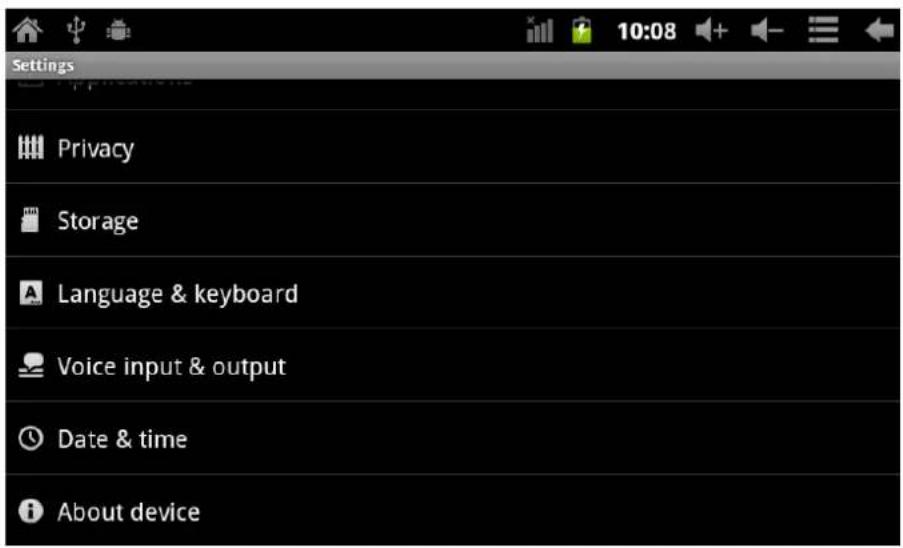

Settings Privacy Storage Language & keyboard Voice input & output Date & time About device

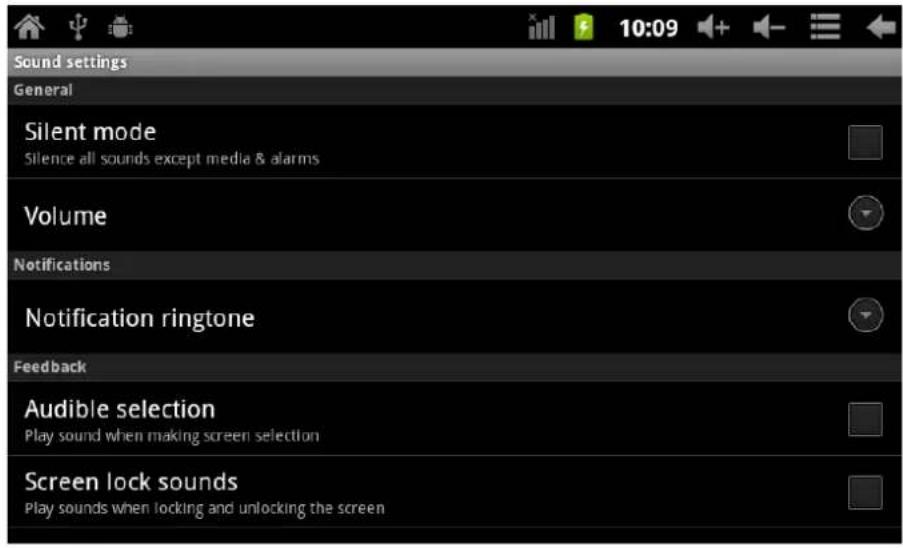

4.1 Silent mode, Volume, Notification ringtone, Audible selection, Screen lock sounds,

Sound settings General Silent mode Silence all sounds except media & alarms Volume Notifications Notification ringtone Feedback Audible selection Play sound when making screen selection Screen lock sounds Play sounds when locking and unlocking the screen

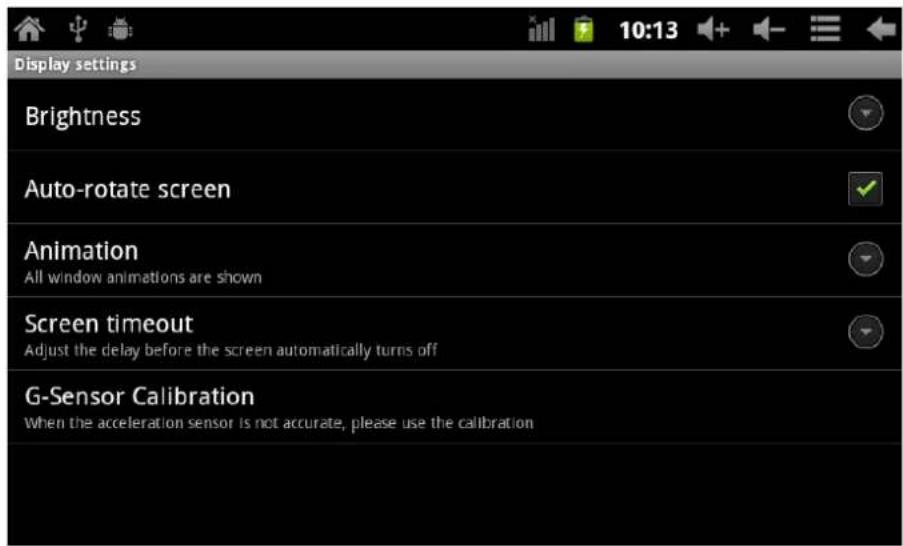

Display settings Brightness Auto-rotate screen Animation All window animations are shown Screen timeout Adjust the delay before the screen automatically turns off G-Sensor Calibration When the acceleration sensor is not accurate, please use the calibration

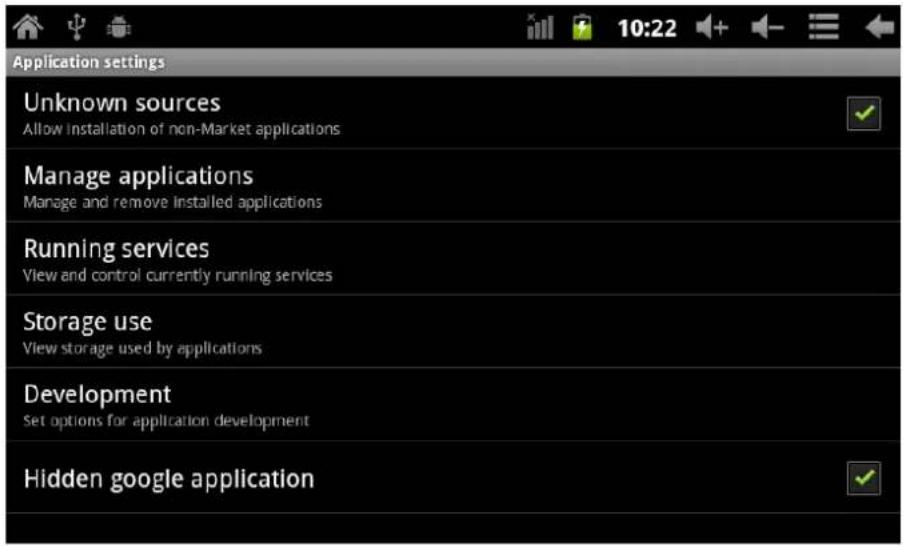

4.2 Application

Manage applications

Application settings Unknown sources Allow installation of non-Market applications Manage applications Manage and remove installed applications Running services View and control currently running services Storage use View storage used by applications Development Set options for application development Hidden google application

Unknown sources: Click "Unknown Sources", then click "OK"

Manage application: manager and uninstall Application

Remark: when you Firmware Upgrade, Please close the USB connect

How to uninstall?

(1). enter "setting">"Application">"Manage application" And then there will be installed the program list

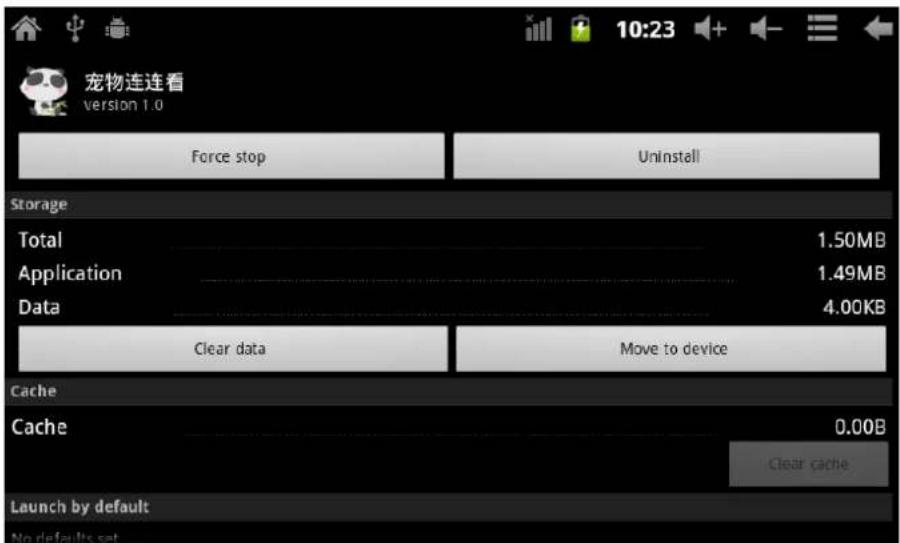

(2). Click you want to uninstall icons, will enter the following interface
(3). Click Uninstall, then you can delete the application

宠物连连看 version 1.0 Force stop Uninstall Storage Total 1.50MB Application 1.49MB Data 4.00KB Clear data Move to device Cache Cache 0.00B Clear cache Launch by default No defaults eat

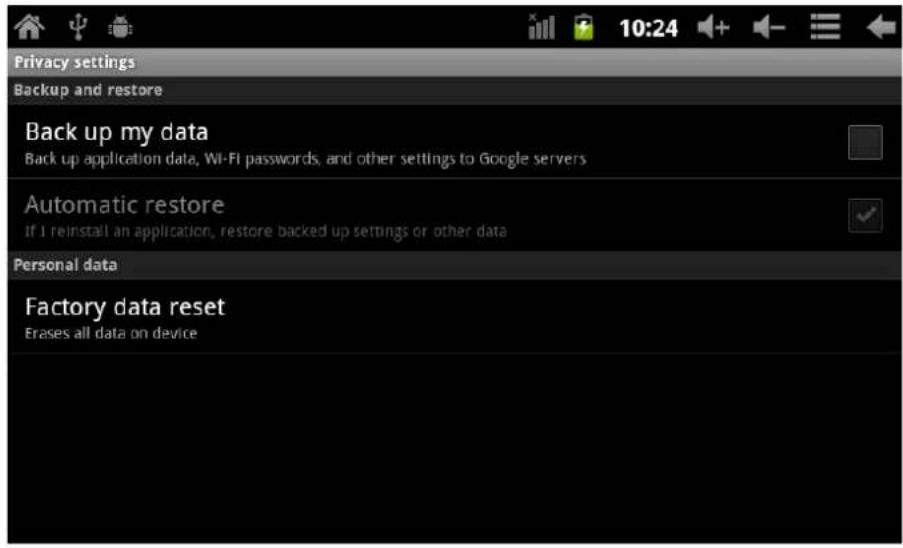

4.3 Privacy

Factory data reset

Privacy settings Backup and restore Back up my data Back up application data, Wi-Fi passwords, and other settings to Google servers Automatic restore If I reinstall an application, restore backed up settings or other data Personal data Factory data reset Erases all data on device

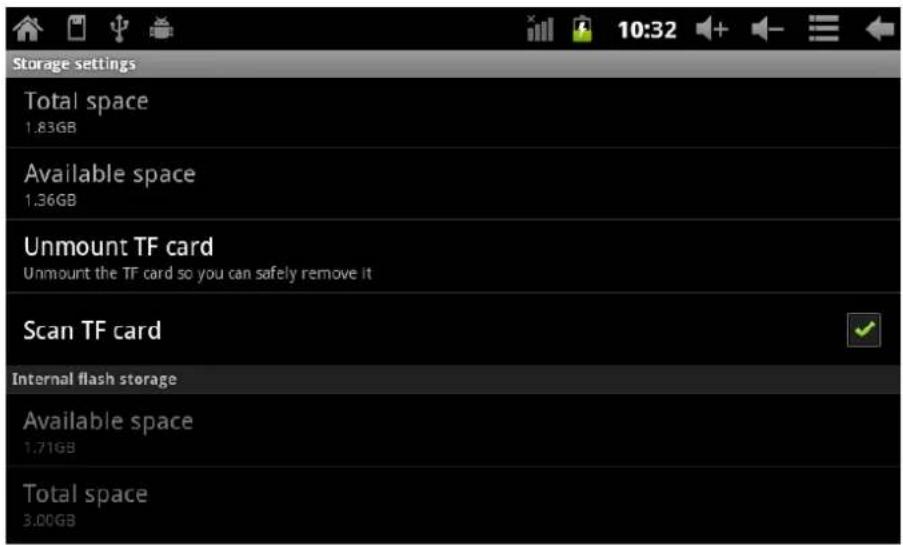

4.4 Storage

Remove TF card, view of the available storage space

Storage settings Total space 1.83GB Available space 1.36GB Unmount TF card Unmount the TF card so you can safely remove it Scan TF card Internal flash storage Available space 1.71GB Total space 3.00GB

Remark: Please touch option "Dismount SD card", so that can safety to remove SD card

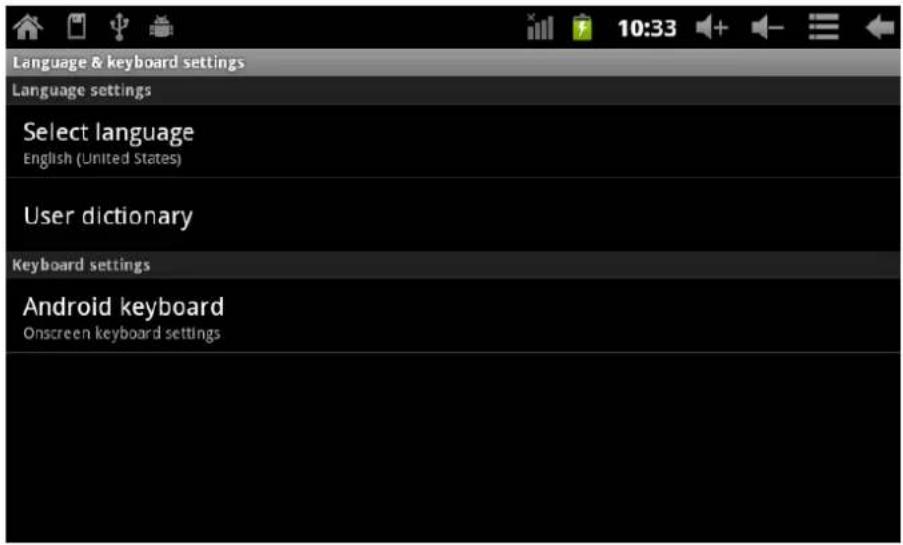

4.5. Language & keyboard

Setting: (Language), text input and automatic error correction options;

Language & keyboard settings Language settings Select language English (United States) User dictionary Keyboard settings Android keyboard Onscreen keyboard settings

Select Language: 54 kind of national languages are available

Remark: Android system can support 54 kind of language, now main interface just support 14 kind of language,

Android keyboard: Android keyboard setting

Sound on Key-press

Auto-capitalization

Show suggestions: Display suggested words while typing

Auto-complete: Spacebar and punctuation automatically insert highlighted word

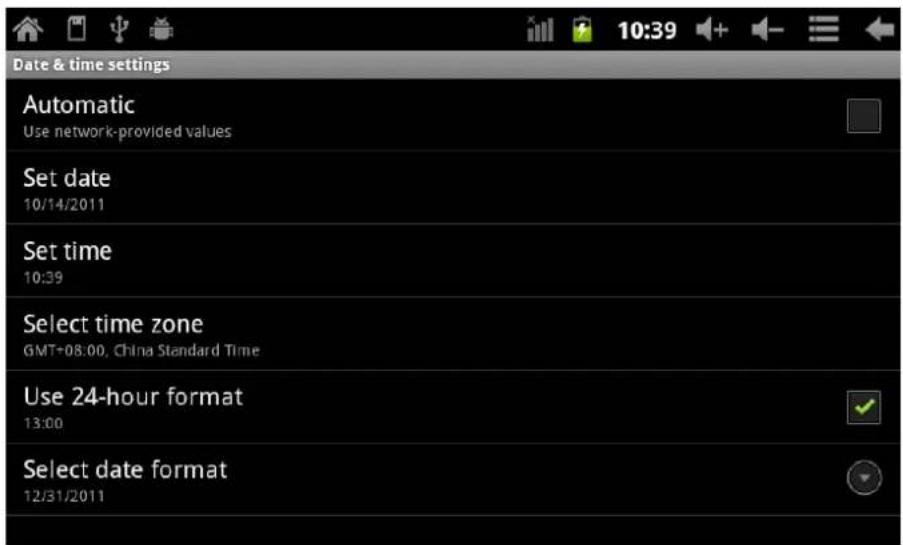

4.6. Date & time setting

Set date, set time, Select time zone and select date format

Date & time settings Automatic Use network-provided values Set date 10/14/2011 Set time 10:39 Select time zone GMT+08:00, China Standard Time Use 24-hour format 13:00 Select date format 12/31/2011

4.7 USB Mode Select

Choose USB work pattern: OTG/HOST/SLAVE.....

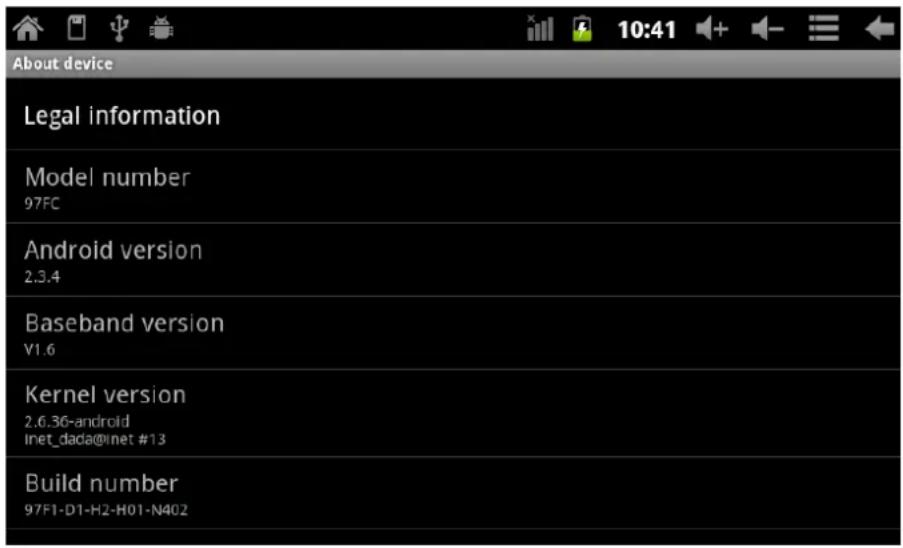

4.8 About device

About device Legal information Model number 97FC Android version 2.3.4 Baseband version V1.6 Kernel version 2.6.36-android inet_dada@inet #13 Build number 97F1-D1-H2-H01-N402

5. Apps Install and manage

5.1 App installer

This Tablet can support Android APP in market by third party, most Apps can install in the network, can copy to NAND FLASH or SD card.

Click App installer icon, will appear Install, manage, Exit options.

Install: Click install, enter APK install interface

Separately for Internal Memory disk and SD Card disk.

Select the APK you would like to install, click it to install, go back to main menu, will display the installed app you just selected.

Manage: click manage, enter third party interface

Click install icon, will enter Action interface

5.2 Stores

Another way to find applications for our Tablet is accessing Markets stores or available online. An example is www.1mobile.com, accessing from the browser you can download your application and enjoy thousands of programs and games.

5.3 WARNING

The manufacturer does not guarantee the compatibility of the version installed on your Android device with all the applications available for this platform.

The manufacturer is not liable for damage to the device for any malware, worm, trojan or virus as a result of the installation, implementation, or downloading programs.

The manufacturer is not liable for the misuse by a user with the device and download and installation of proprietary software without authorization from the owner.

6. Problem solution

Device can't to open

(1) Check the battery power
(2) Connect adaptor first, then check again
(3) After charging then can't to open, Please contact with the supplier

After startup the screen or the opening picture has been appear, the device appear shutdown

(1) Power is not enough, please charge

Headset can't hear the voice

(1) Please check the volume whether set to 0
(2) Check the music file weather damaged. Try playing other music, if the file is damaged may lead to serious noise or hop sounds.

Can't copy file or play music and so on

(1) Please check between computer and device is correct connection
(2) check the memory storage space is already full
(3) check the USB cable is good or not
(4) USB connection is disconnected

7. Specifications

Display screen: 7" TFT Resistive touch, Resolution: 800*480

Operation System: Android 2.3.4

RAM: DDRIII 512MB

CPU processor speed: Boxchip A10 (Cortex -A8-9 1.2GHz(Up to 1.5GHz)

Memory: 4G

TF card: 128M-32G

USB: USB Host OTG

G-sensor 3D

Record: built-in microphone

Video: HD2160P, AVI H.264, DIVX, DIVX, XVID, rm, rmvb, WMV, MOV, MP4 H.264, MPEG,

DIVX, XVID), DAT VCD), VOB DVD), MPEG, MPG, FLV H.263 H.264), ASF, TS, TP, 3GP, MPG etc (support to 2160P:3840x2160)

Audio: MP3/WMA/APE/FLAC/OGG/WAV/AAC

Photo: JPG, JPEG, GIF, BMP, PNG

Ebook: TXT, EPUB, PDF, WORD, EXCEL, POWERPOINTS

Battery and capacity: rechargeable Built-in type polymer battery, 3200MAH

Size: 192mm ×124mm ×12.8mm

Weight: 375g

Guarantee and responsibility

The manufacturer gives a guarantee for 24 months for the player and the accessories provided. The guarantee includes the damage and defects related to defective materials and imperfect preparation. The guarantee does not cover the damage that can occur for incorrect or inadequate use, or for repairs of changes in the apparatus made without the authorization of the manufacturer. The manufacturer does not assume the responsibility for damage incurred due to redundant profit.

Support and Technical Service

For any technical consultation you can go to the place of purchase or contact the technical service of LEOTEC.

Visit our website and stay always updated in the download section of your product

There is more available information in the website: www.leotec.com or by means of the e-mail: [e-mail]
